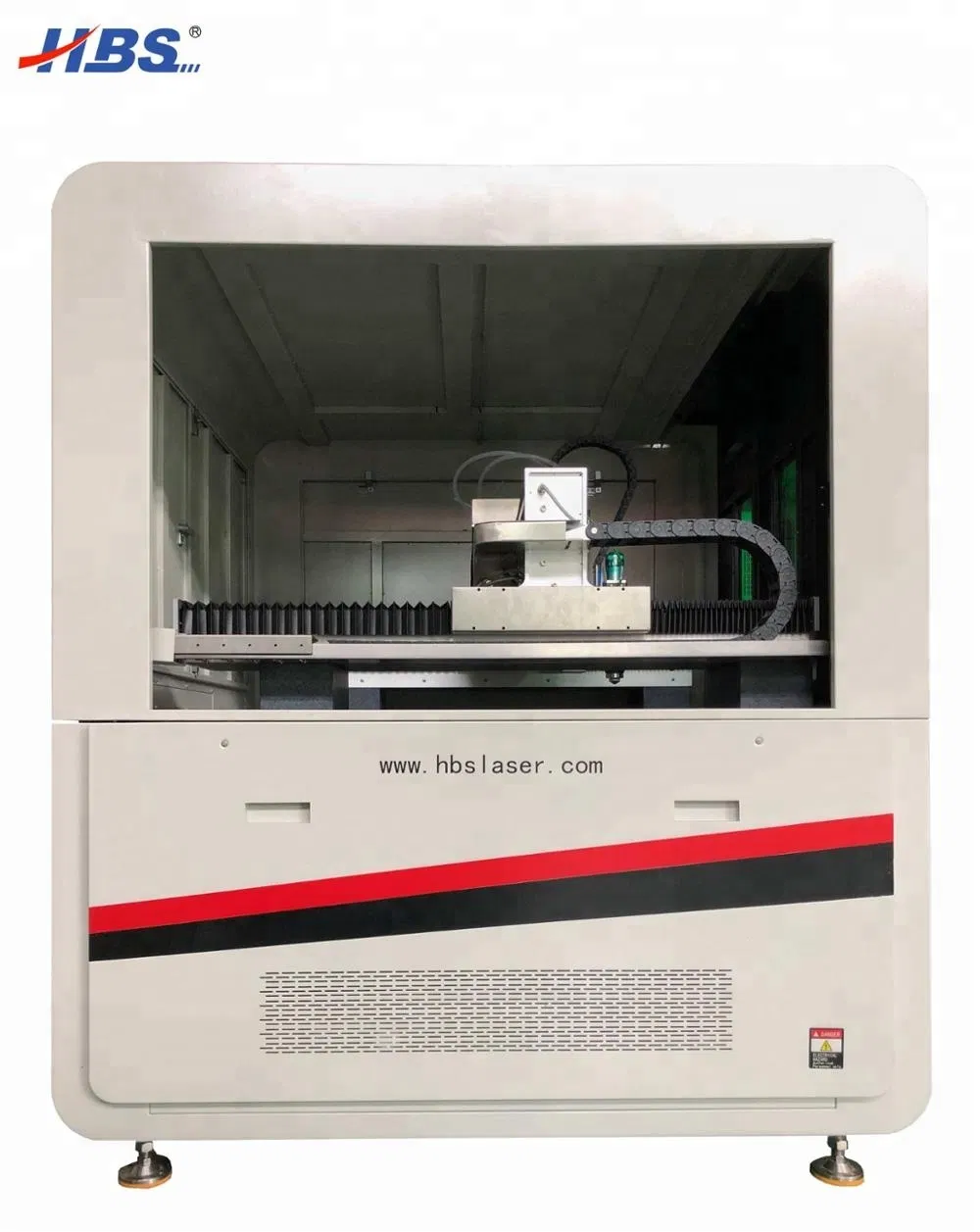

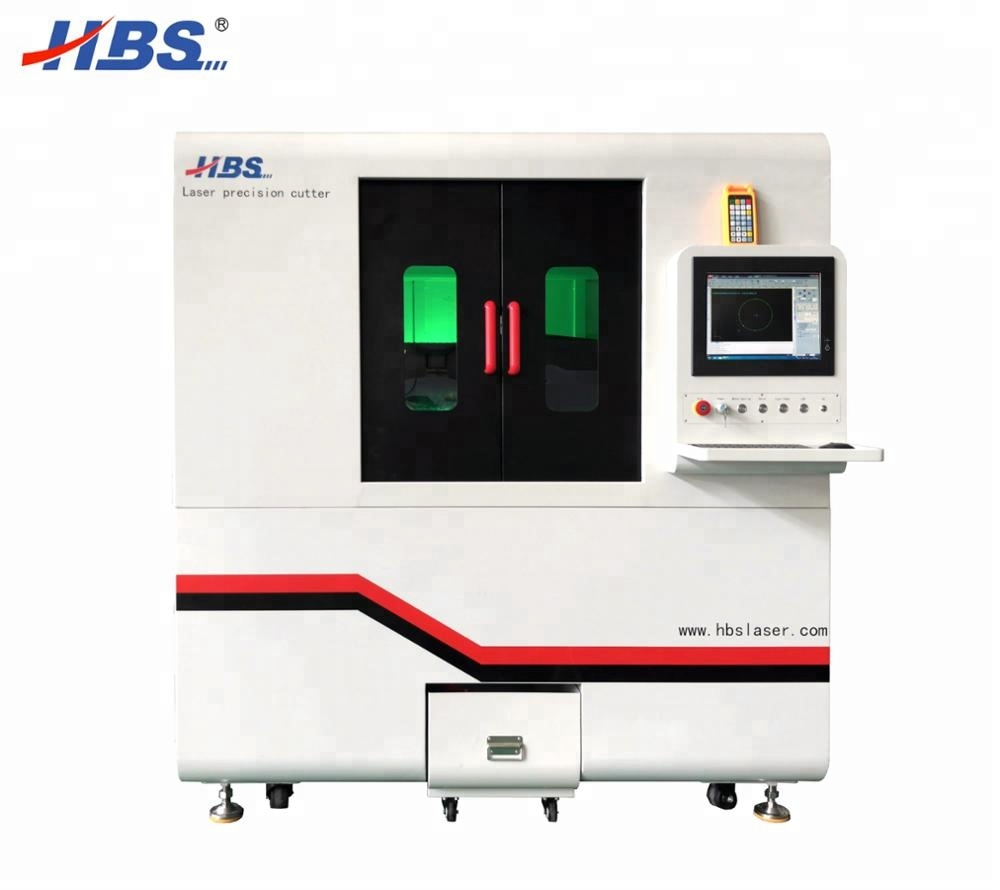

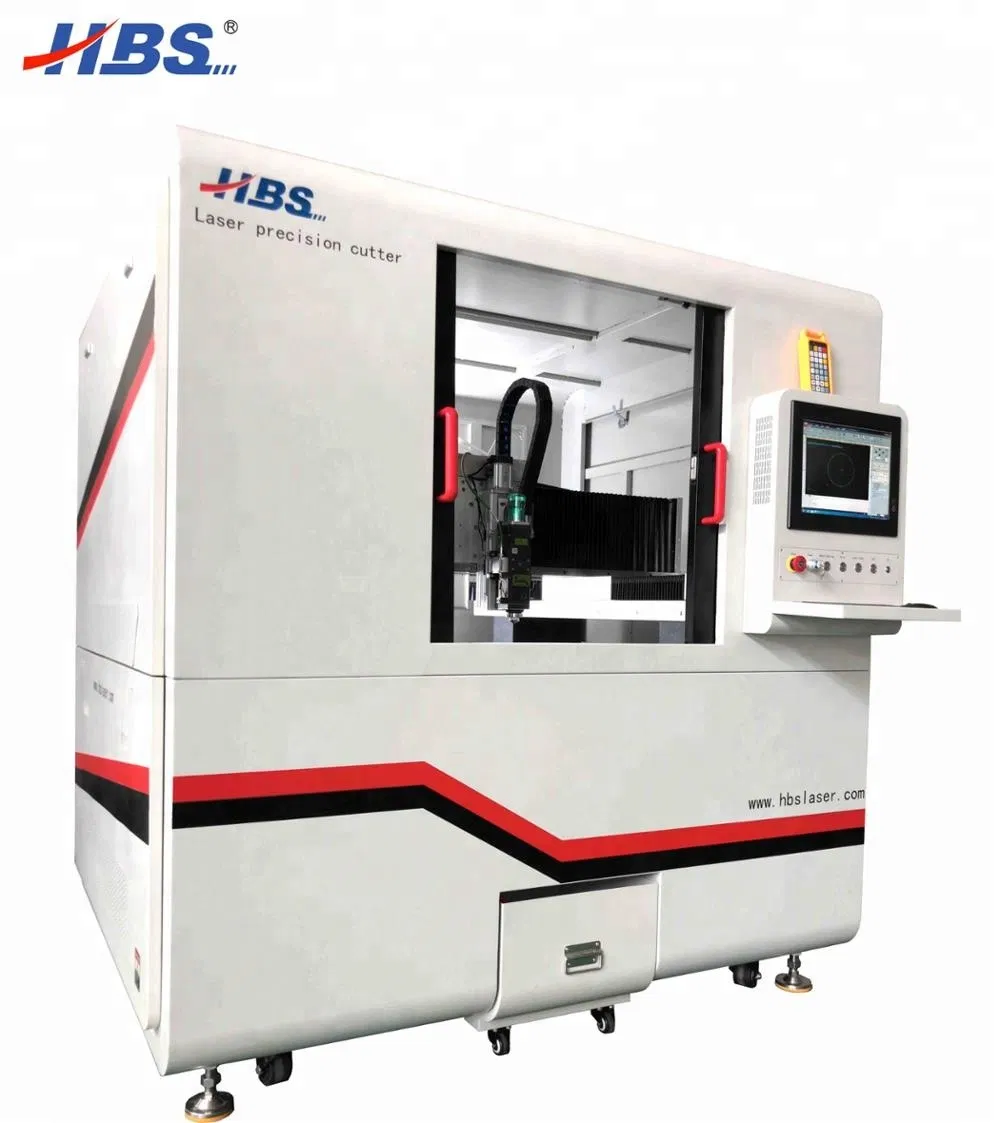

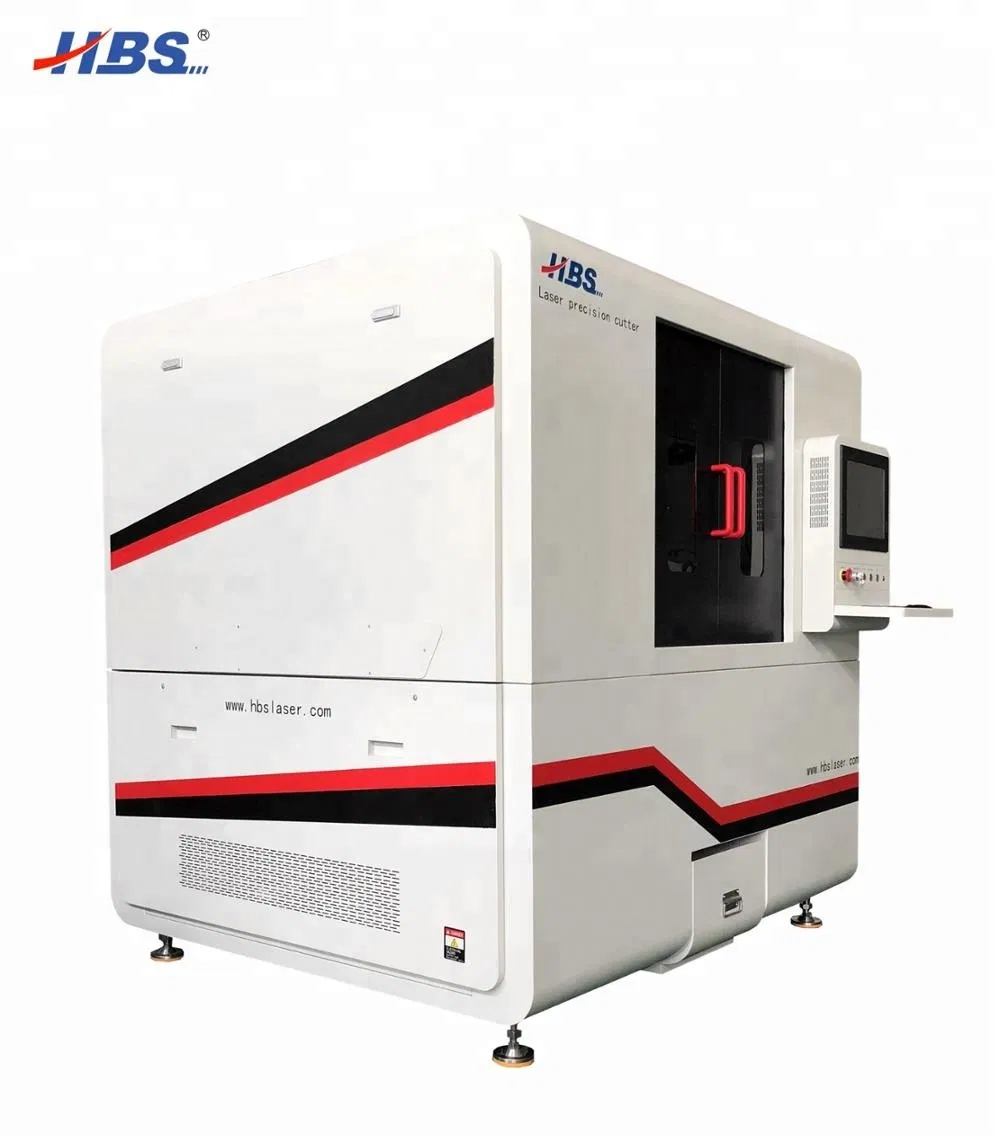

Hbs High Speed Thin Metal Sheet Fiber Laser Cutting Systems

1 / 5

Hbs High Speed Thin Metal Sheet Fiber Laser Cutting Systems

Customization:	Available
Application:	Petroleum Machinery Manufacturing, Textile Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
Cooling System:	Air Cooling

Send Inquiry

Product Description

Basic Specifications

Model NO.LCT-600

Technical ClassFiber Laser

Applicable MaterialMetal

Structure TypeGantry Type

Laser TechnologyLaser Control Fault Cutting

Production Capacity100,000 Sets

High Speed Thin Metal Sheet Fiber Laser Cutting System

18 Months Guarantee | Lifetime Technical Support | Premium After-Sales Service

Key Features

✓ High efficiency in electrical/optical conversion with water cooling system.

✓ Raycus laser source offering high beam output quality and extreme reliability.

✓ Cutting speed is 3-12 times faster than YAG and 2-3 times faster than CO2 lasers.

✓ Stable performance with core parts reaching up to 100,000 hours of working time.

✓ Smooth cutting surface with minimal deformation and professional appearance.

✓ Energy saving: consumes only 20%-30% electricity compared to conventional CO2 machines.

Technical Parameters

Laser Type	Raycus Fiber laser generator
Working Area	370600mm / 600600mm
Laser Power	500W / 800W / 1000W
Cutting Thickness	≤6mm (Stainless Steel)
Cutting Speed	≤25m/min
CNC Control	Yes
Location Accuracy	±0.03mm/m
Repeat Accuracy	±0.02mm/m
Equipment Power	20KW
Cooling Mode	Water Cooling
Laser Wavelength	1064nm
Power Supply	3-phase 380V/50Hz/20KVA
Machine Weight	≤8000kg
Dimensions (LWH)	430025001600mm

Applications

Suitable Materials: Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Aluminum Plate, Copper Sheet.

Industries: Manufacture of Billboards, Advertising Signs, Metal Letters, Kitchenware, Sheet Metal Processing, Components and Parts, Chassis, Racks & Cabinets, Elevator Panels, Auto Parts, and Electronic Parts.

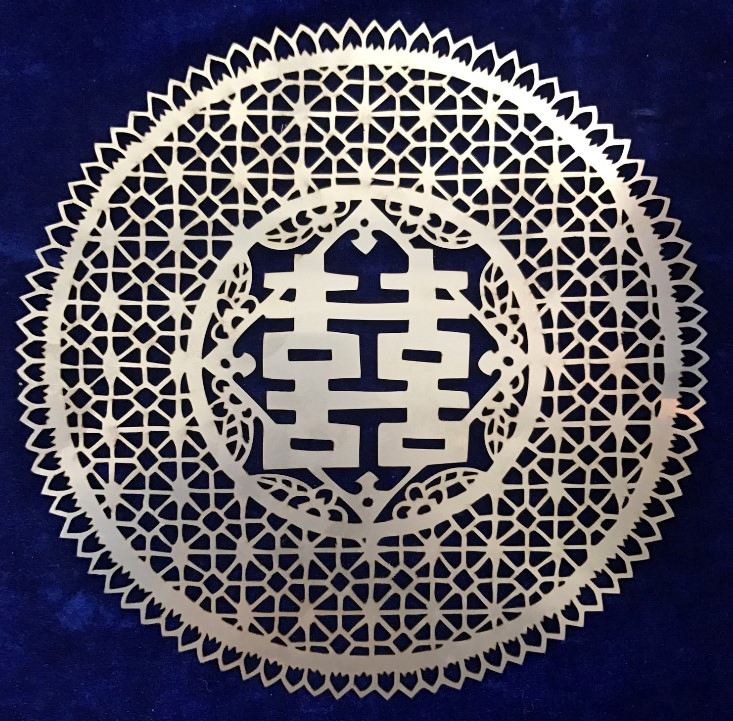

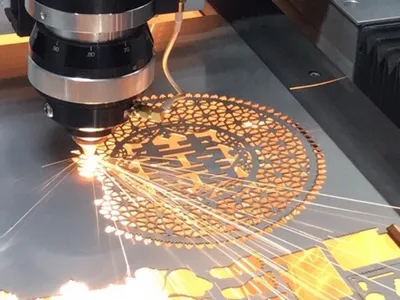

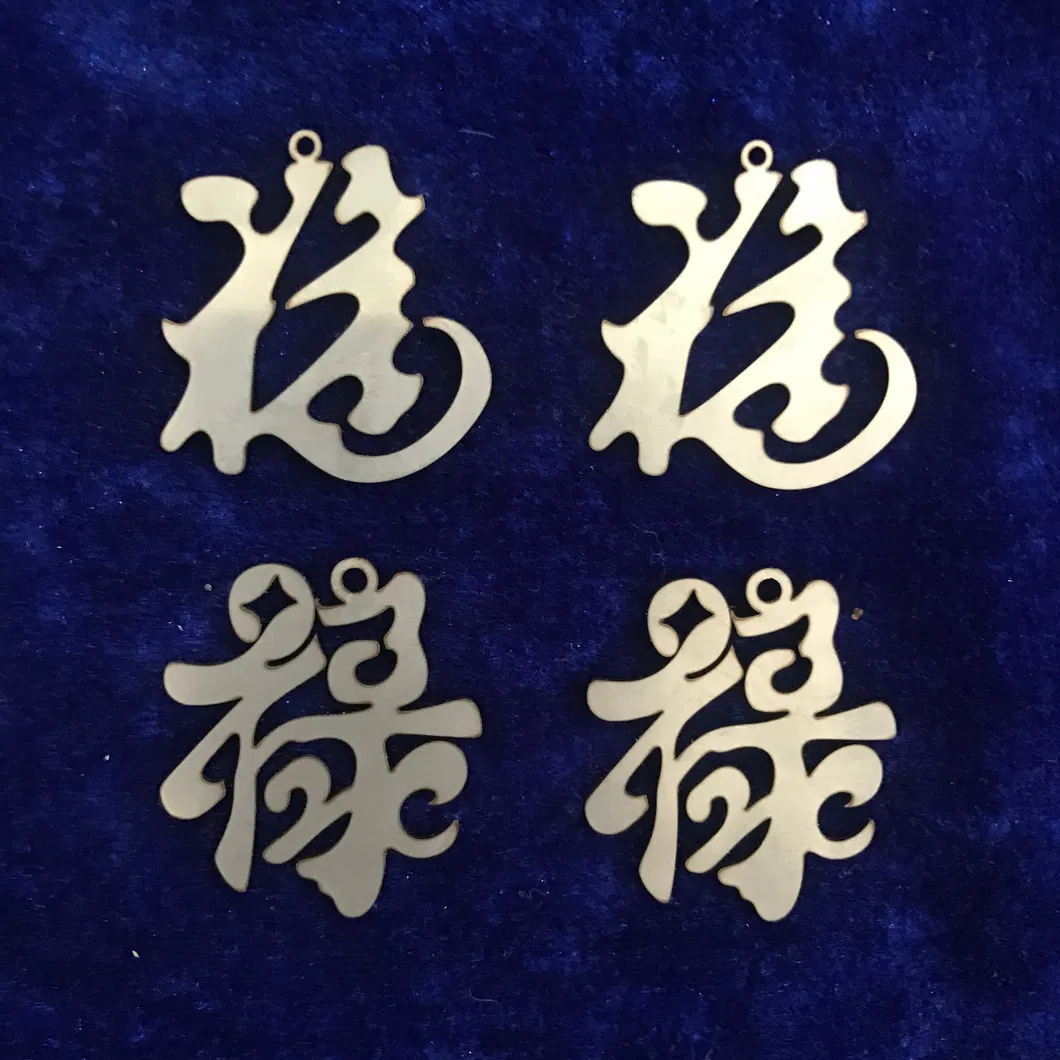

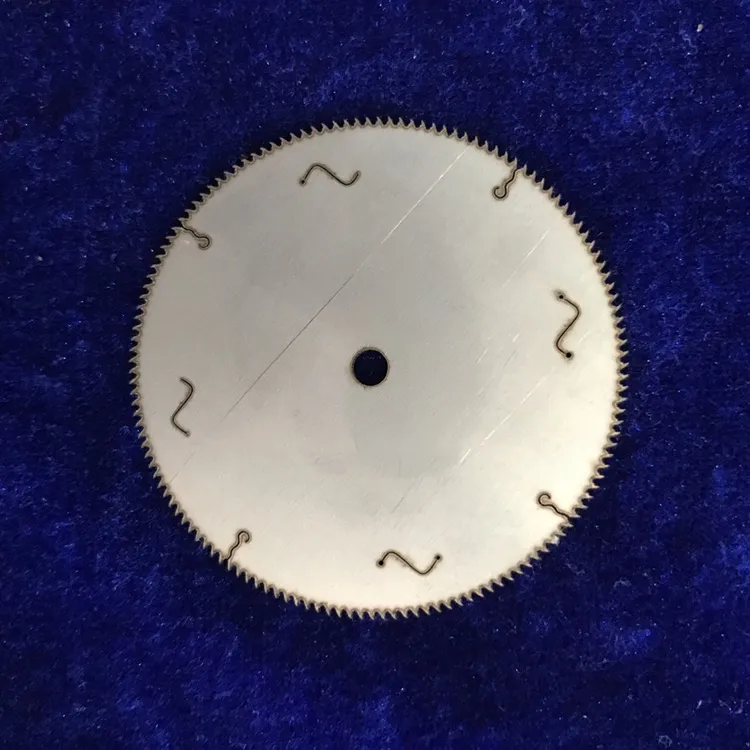

Cutting Samples

Packing Details

📦 Dimensions (mm): 855 x 1000 x 1170 (Main head & table components)
⚖️ Net Weight: 72kg
🚚 Gross Weight: 110kg - 120kg (Carton Package)

Frequently Asked Questions

Q1: What materials can this fiber laser machine cut? A: It is suitable for various metals including stainless steel, carbon steel, alloy steel, aluminum, and copper.

Q2: What is the maximum cutting thickness for stainless steel? A: The system can cut stainless steel up to 6mm in thickness.

Q3: How long is the warranty for this equipment? A: We provide an 18-month guarantee and lifetime technical support.

Q4: What is the advantage of a fiber laser over a CO2 laser? A: Fiber lasers are 2-3 times faster and much more energy-efficient, consuming only 20-30% of the electricity compared to CO2 models.

Q5: Is international technical support available? A: Yes, engineers are available to provide machinery service and support overseas.

Q6: What is the expected lifespan of the laser source? A: The high-quality fiber laser source has a service life of up to 100,000 hours.
