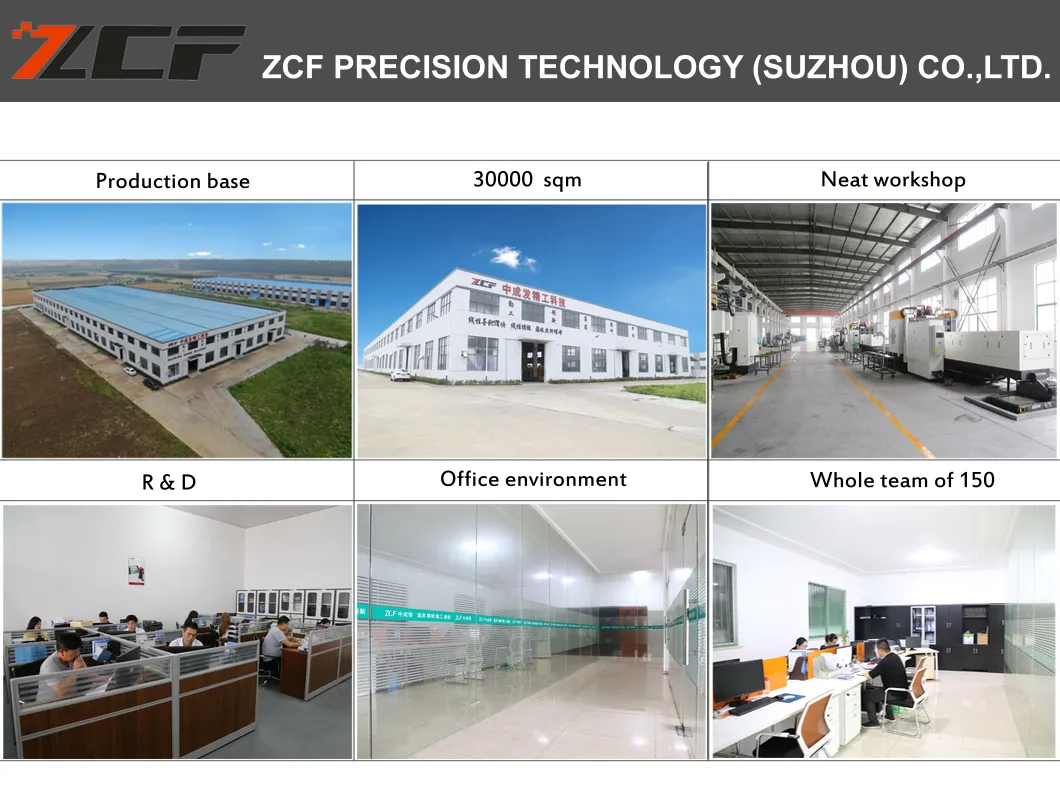

BRIEF INTRODUCTION: We are a professional manufacturer of linear guides, linear modules, and ball screws. Our facilities cover 33,333 square meters with a building area of 16,000 square meters. With over 10 years of effort, we have become a strong brand providing international standard products for customers worldwide.

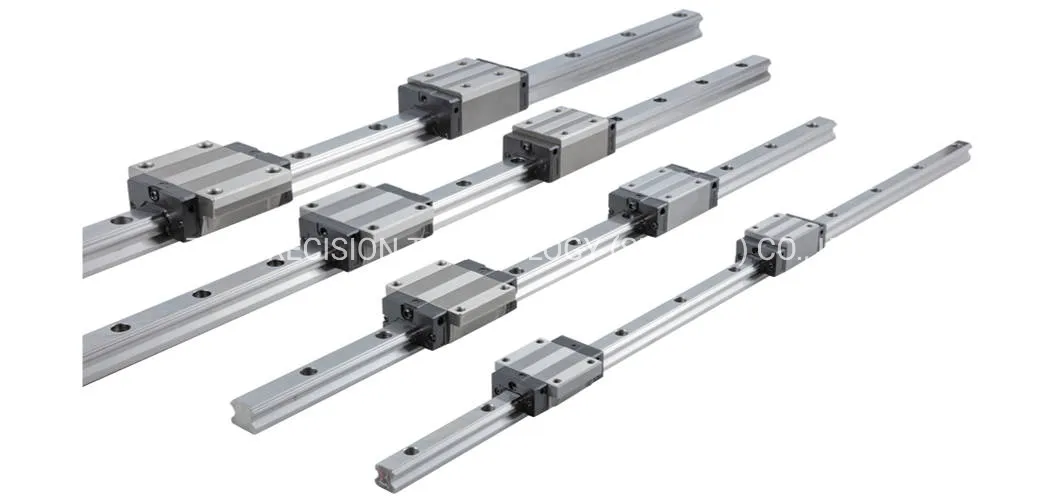

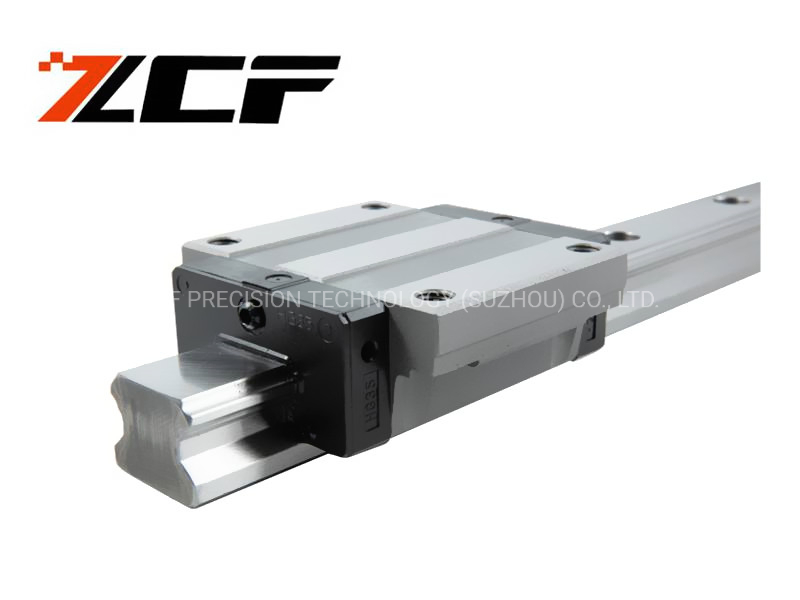

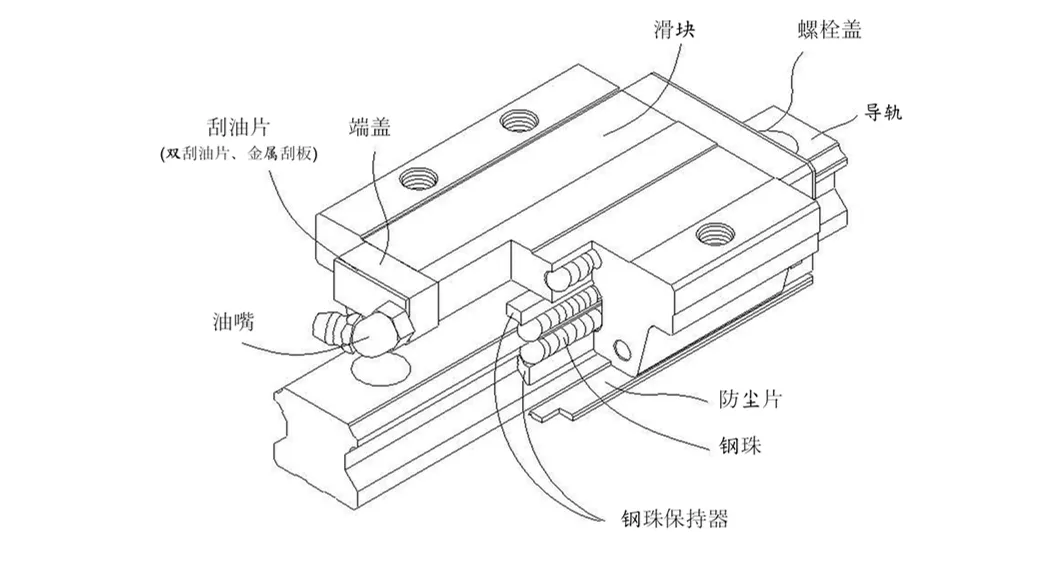

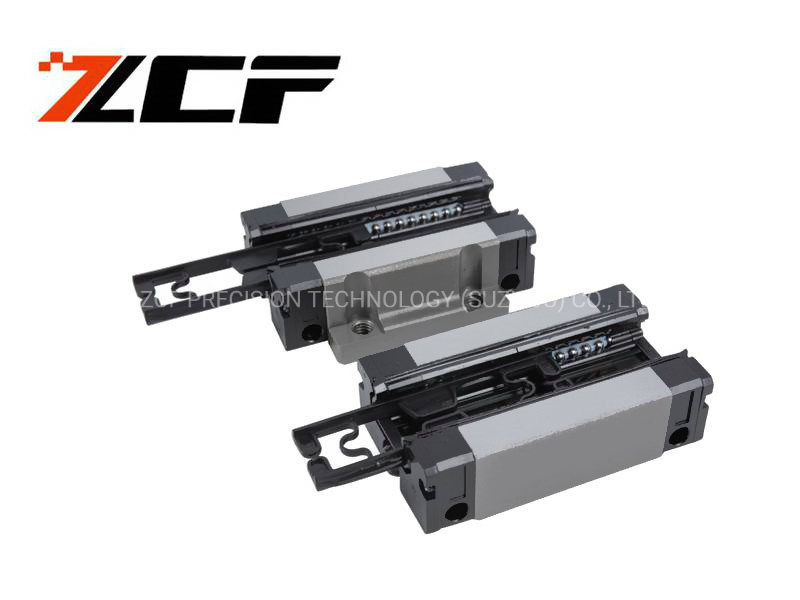

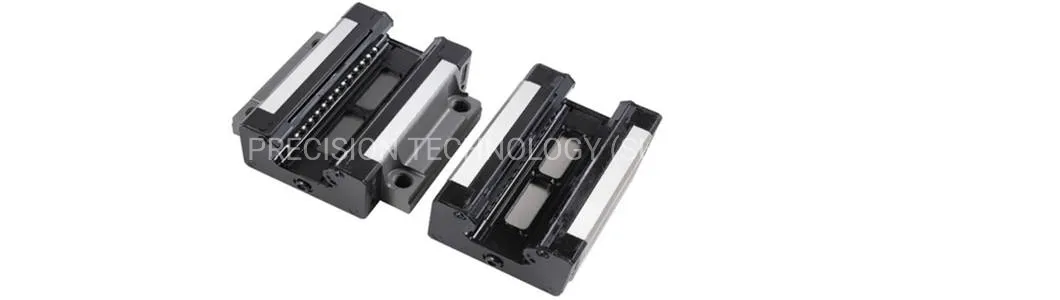

The accuracy of CH series linear guides is divided into five levels: Common (C), High (H), Precision (P), Super-Precision (SP), and Ultra-Precision (UP).
| MODEL | CH - 15, 20 (Unit: mm) | ||||
|---|---|---|---|---|---|
| Accuracy Level | Common (C) | High (H) | Precision (P) | High-Precision (SP) | Ultra-Precision (UP) |
| Tolerance of H | ± 0.1 | ± 0.03 | 0 - 0.03 | 0 - 0.015 | 0 - 0.008 |
| Tolerance of N | ± 0.1 | ± 0.03 | 0 - 0.03 | 0 - 0.015 | 0 - 0.008 |
| Tolerance Mutual H | 0.02 | 0.01 | 0.006 | 0.004 | 0.003 |
| Tolerance Mutual N | 0.02 | 0.01 | 0.006 | 0.004 | 0.003 |
| Rail Length (mm) | C | H | P | SP | UP |
|---|---|---|---|---|---|
| ~ 100 | 12 | 7 | 3 | 2 | 2 |
| 100 ~ 200 | 14 | 9 | 4 | 2 | 2 |
| 200 ~ 300 | 15 | 10 | 5 | 3 | 2 |
| 300 ~ 500 | 17 | 12 | 6 | 3 | 2 |
| 500 ~ 700 | 20 | 13 | 7 | 4 | 2 |
| 1,100 ~ 1,500 | 26 | 18 | 11 | 7 | 4 |
| 3,600 ~ 4,000 | 37 | 28 | 21 | 15 | 7 |

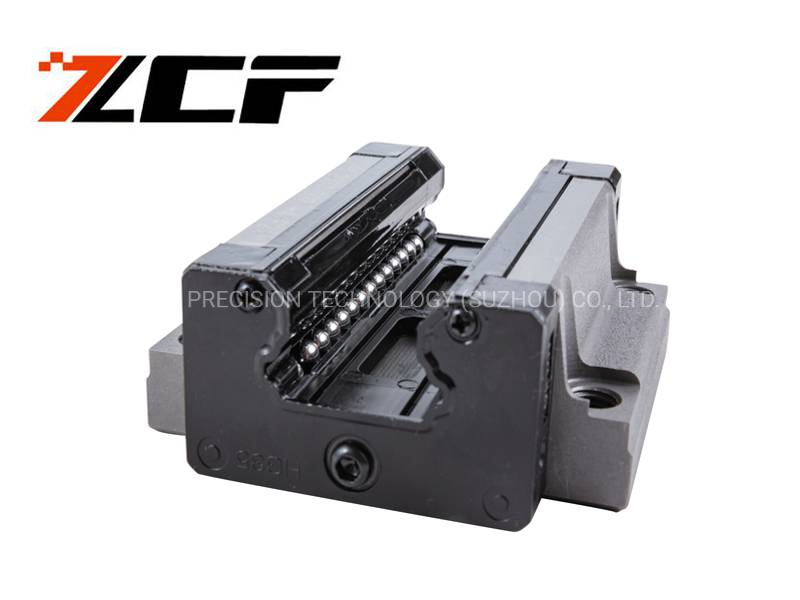

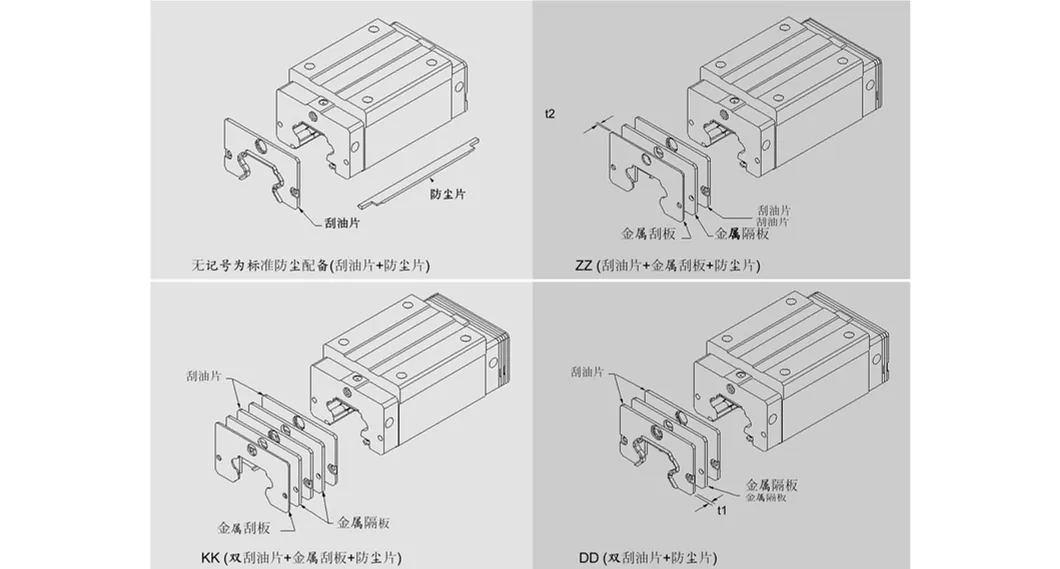

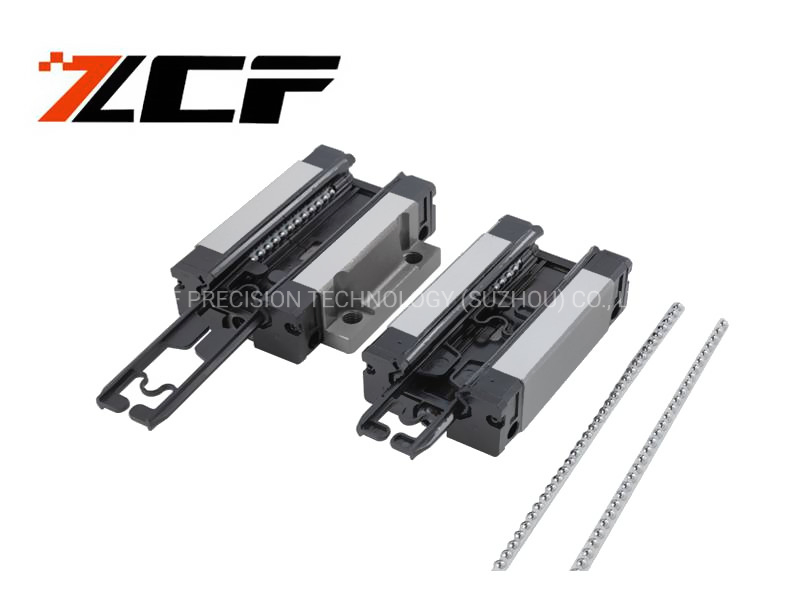

Proper lubrication reduces friction, prevents burns, and extends rolling fatigue life. We support both Grease Lubrication (Lithium soap-based) and Oil Lubrication (32-150 cSt consistency).

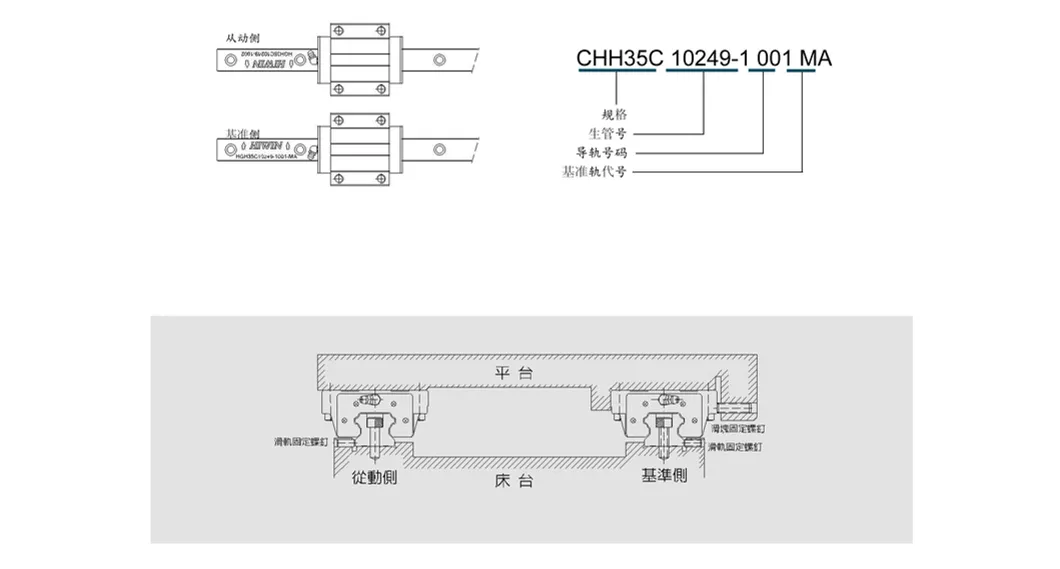

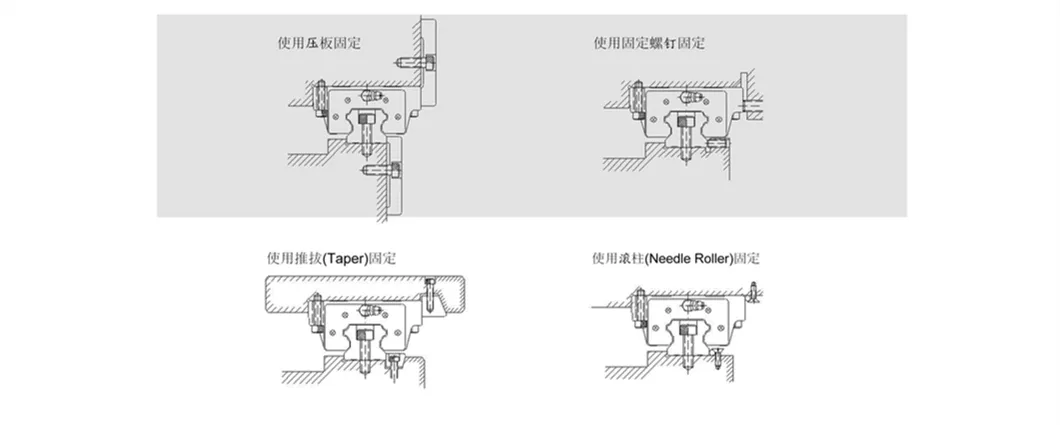

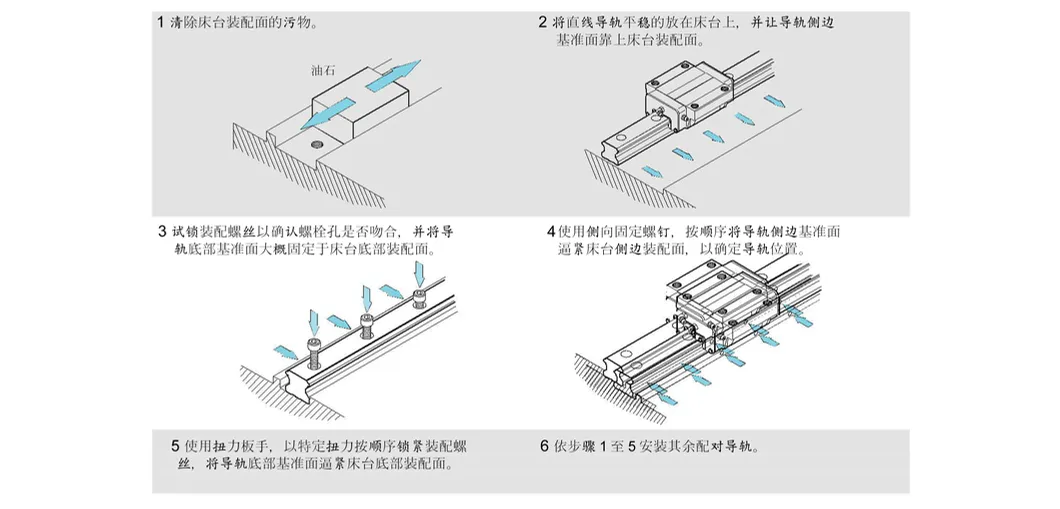

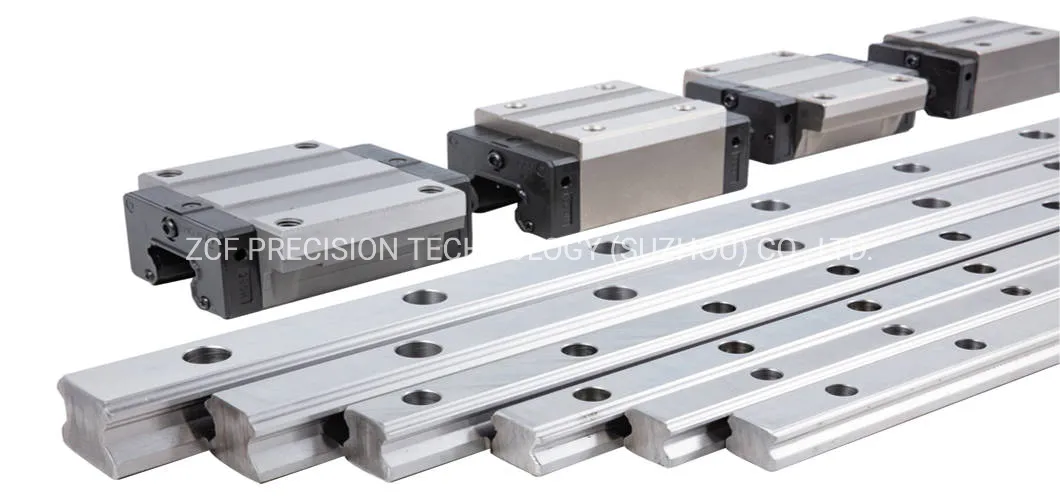

Installation must be configured based on machine vibration, impact force, and required accuracy. Always distinguish between the Reference Rail (marked MA) and the Driven Rail.
