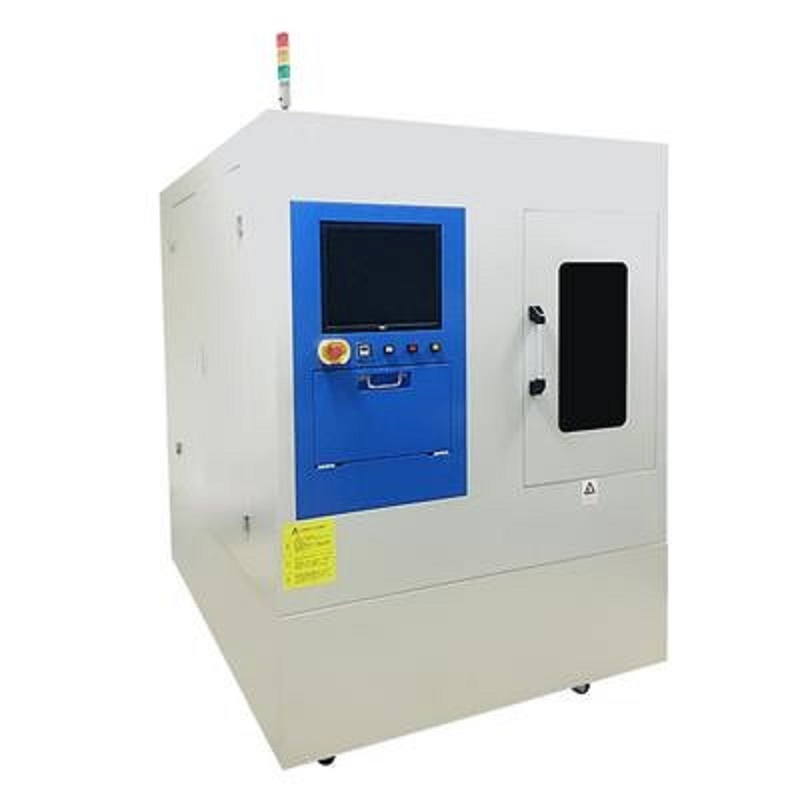

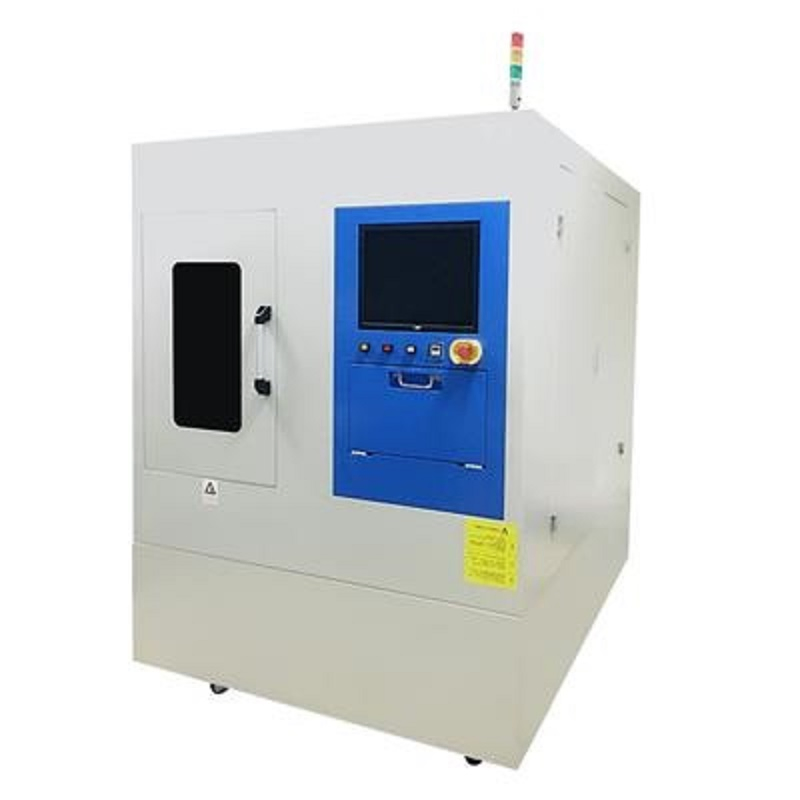

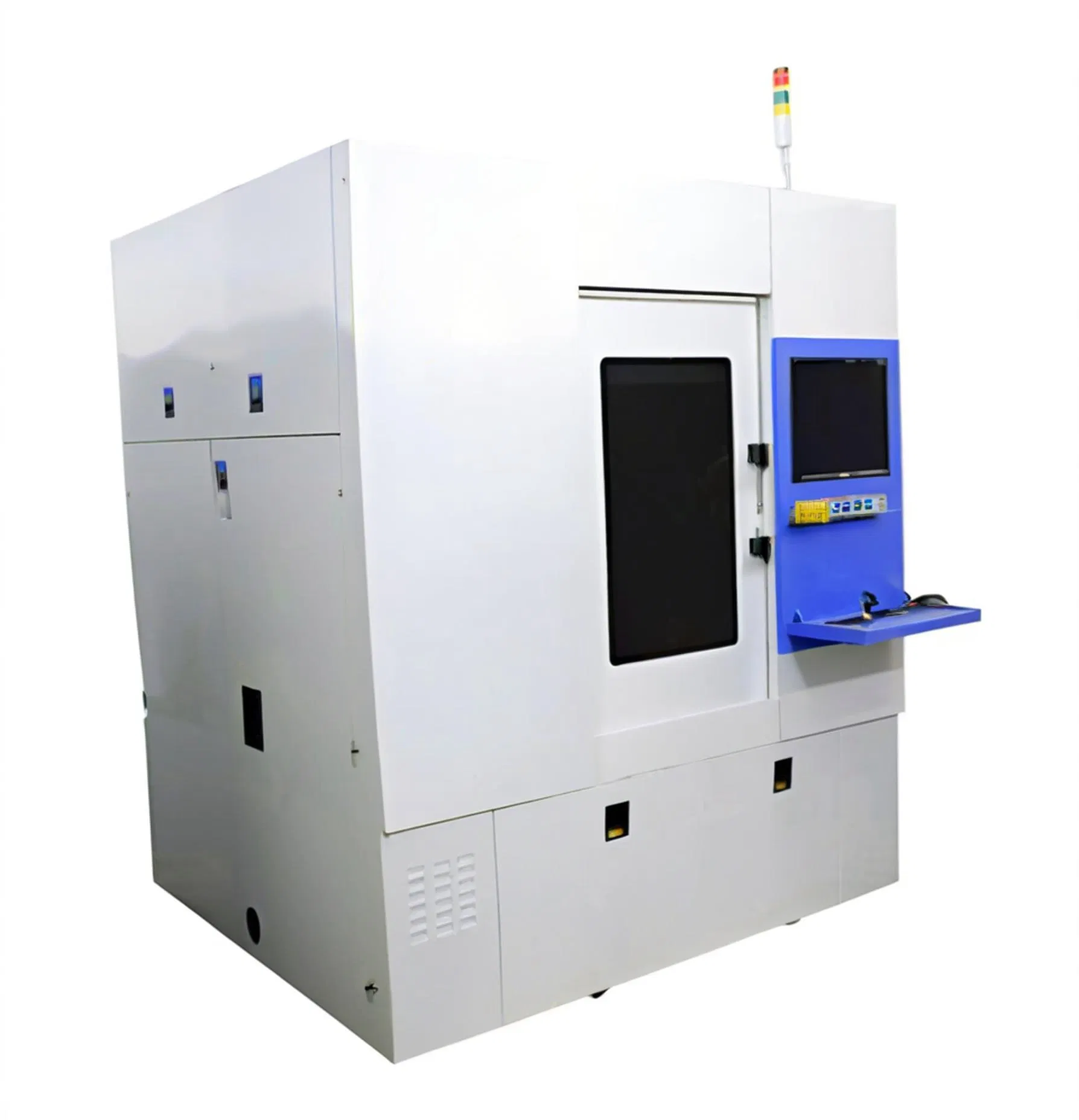

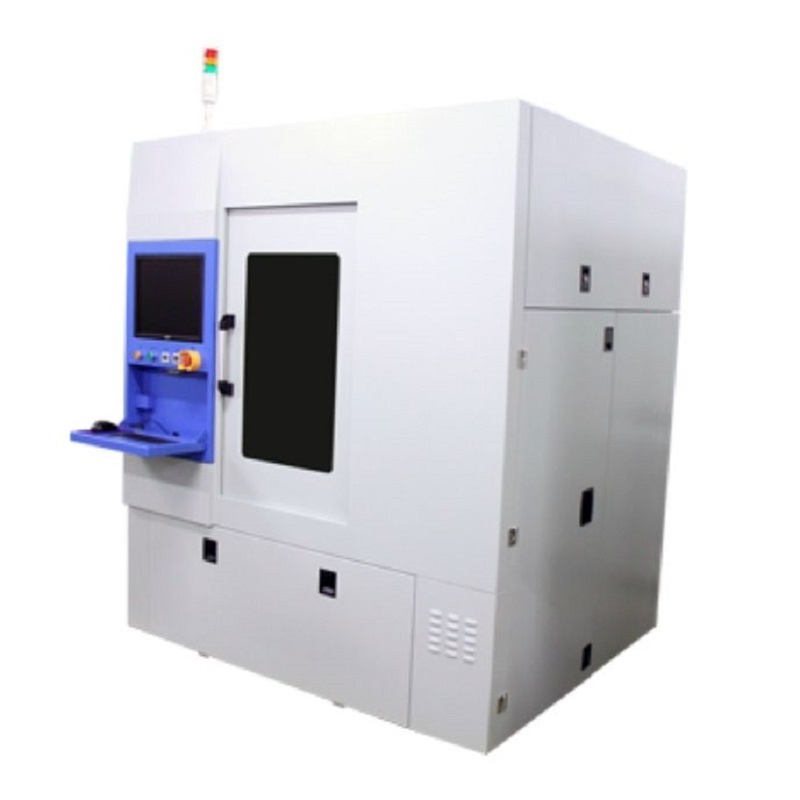

Advanced Five Axis Laser Cutting System for Precision Engineering

Customization:	Available
After-sales Service:	Free Training
Warranty:	One Year Service

Basic Specifications

Model NO.

MSE-01 / LMS10

Application

Metal Precision Processing

Control Method

Open-Loop / Point to Point Control

Numerical Control

CNC/MNC

Processing Precision

0.01~0.02(mm)

Laser Type

Ultra Fast Pulsed Laser

Wavelength

1064nm, 532nm, 355nm

Certification

CE, RoHS

Ultra Fast Pulsed Five Axis Laser Machine

The equipment achieves three-dimensional precision micro machining of various inclined surfaces, conical surfaces, and spherical surfaces through precise control of a multidimensional micro-displacement system.

🎯

High Precision

X/Y/Z Axis Positioning Accuracy up to ±2μm

⚡

Ultra-Short Pulse

Minimizes surface heat effects and residual debris

🌐

5-Axis System

Advanced multi-axis platform for 3D micro-nano machining

Technical Parameters

Parameter Item	Specifications (LMS10)
X/Y/Z Axis Positioning Accuracy	±2μm / ±2μm / ±4μm
X/Y/Z Axis Repeat Positioning Accuracy	±1.5μm / ±1.5μm / ±3μm
A/B Axis Angle Positioning Accuracy	0.003° / 0.003°
A/B Axis Repeat Positioning Accuracy	0.001° / 0.001°
Drilling Module - Aspect Ratio	Helical: 1:20 \| Five-Axis Galvanometer: 1:10
Wavelength Support	Selectable Band, Integrated Dual/Triple-Path System

Industry Applications

This high-end CNC laser system is widely utilized in professional fields including:

Aerospace Engineering
Automotive Manufacturing
Microelectronics
Mold Processing
Tribology
Semiconductor Electronics
Biomedical Fields

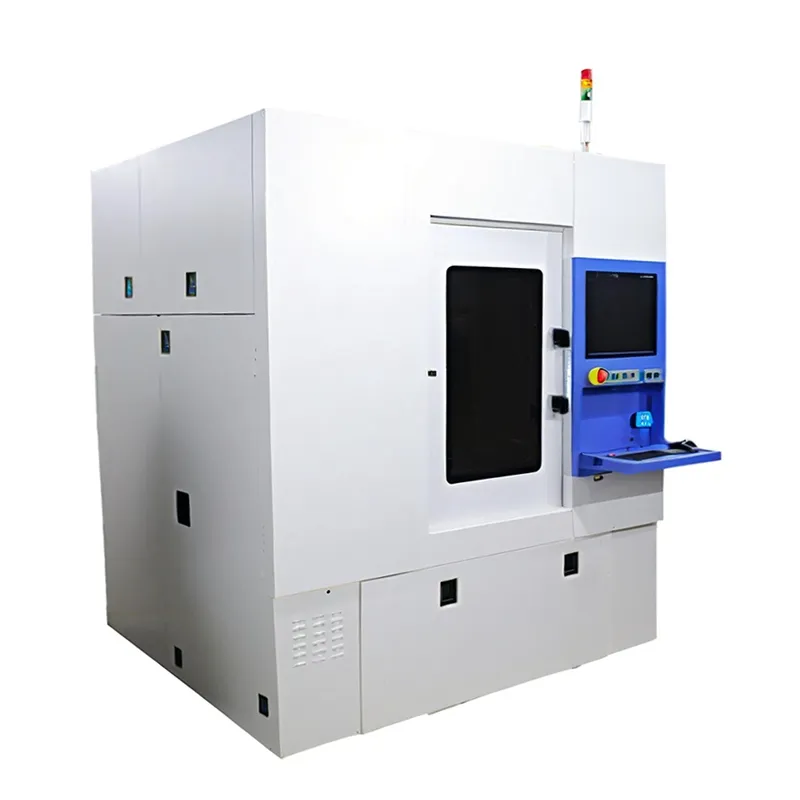

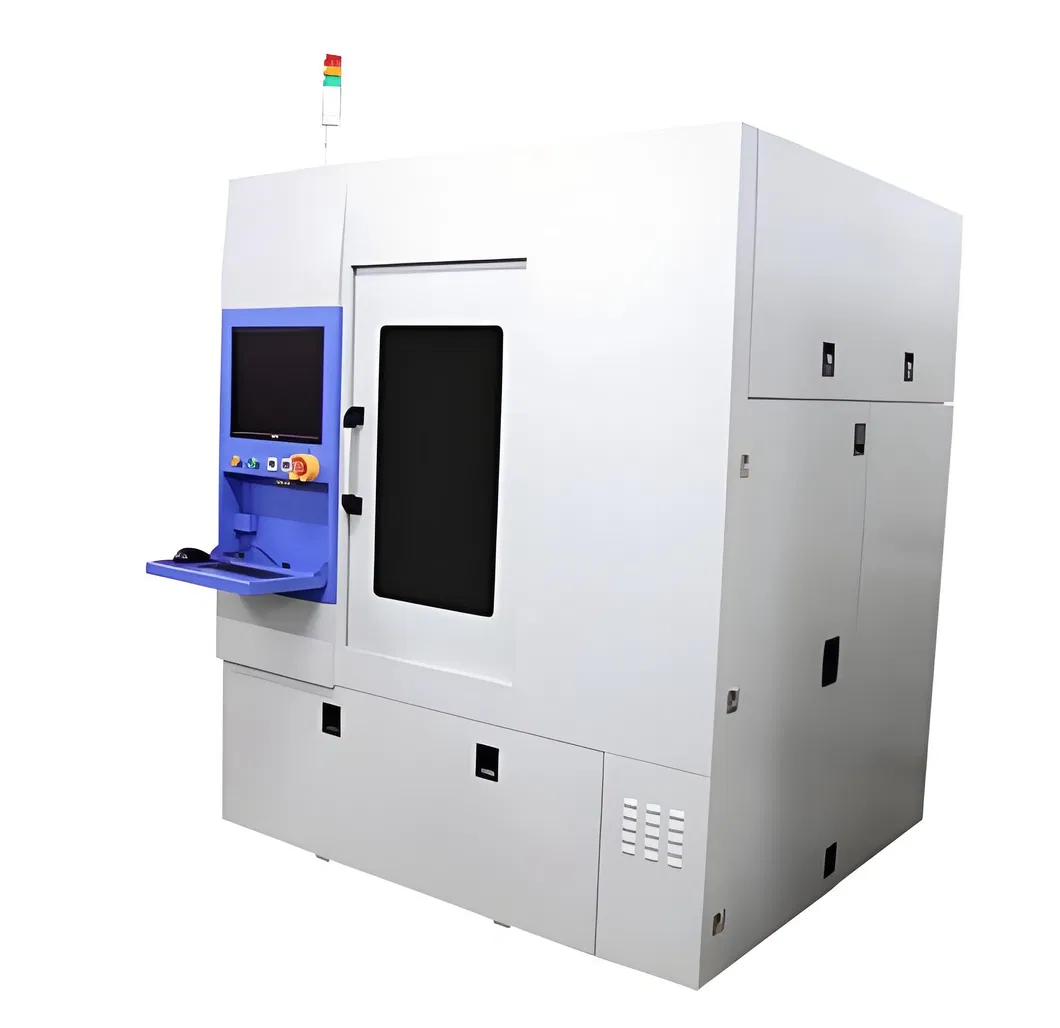

Product Gallery

Frequently Asked Questions

How do I choose the most suitable machine for my needs?

You can evaluate based on your workpiece material, dimensions, and specific functional requirements. Our expertise in ultra-fast laser systems can guide the selection.

What is the standard warranty period for this laser equipment?

The equipment comes with a one-year warranty and 24-hour professional technical support to ensure smooth operation.

What are the main advantages of using ultra-short pulse lasers?

Ultra-short pulse technology significantly reduces the heat-affected zone (HAZ), resulting in cleaner cuts with minimal debris and higher precision on delicate materials.

Does the system support multiple wavelengths?

Yes, the system is designed to be versatile, supporting 1064nm, 532nm, and 355nm wavelengths through integrated dual-path or triple-path configurations.

What kind of 3D surfaces can be processed?

Thanks to the five-axis galvanometer and multidimensional displacement system, it can process complex inclined, conical, and spherical surfaces with micro-nano accuracy.

What is the positioning accuracy of the X/Y/Z axes?

The system provides high-precision positioning at ±2μm for X/Y axes and ±4μm for the Z axis, with even tighter repeat positioning tolerances.
