Bochu Fscut 6000 Metal Fiber Laser Cutting Machine Control System

1 / 5

Bochu Fscut 6000 Metal Fiber Laser Cutting Machine Control System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

FSCUT6000 Fiber Laser Cutting Control System

Type

Controller

Control Signal

5/24V PWM Signal/Analog Signal/Ethercat Bus Signal

Installed Machine

3015/1325 fiber Laser Cutting Machine

Applied Laser Power

6000/8000/10000/12000 watt

Applied Material

All Kinds of Metal Materials

File Format

Dxf, Plt, Ai, Gerber, Lxd

Computer OS

Windows 7 or Above

Certification

ISO 9001, GS, CE

Auto Find Edge

Yes

Active Collision Avoidance

Yes

Trademark

Cypcut

🚀

Product Overview

FSCUT6000 EtherCAT Laser Cutting Control System

FSCUT6000 is a cost-effective EtherCAT laser cutting control system designed for high-power lasers over 6kW. Offering straightforward installation and debugging, FSCUT6000 delivers excellent performance and comprehensive, all-in-one solutions for modern industrial metal cutting.

Core Components:

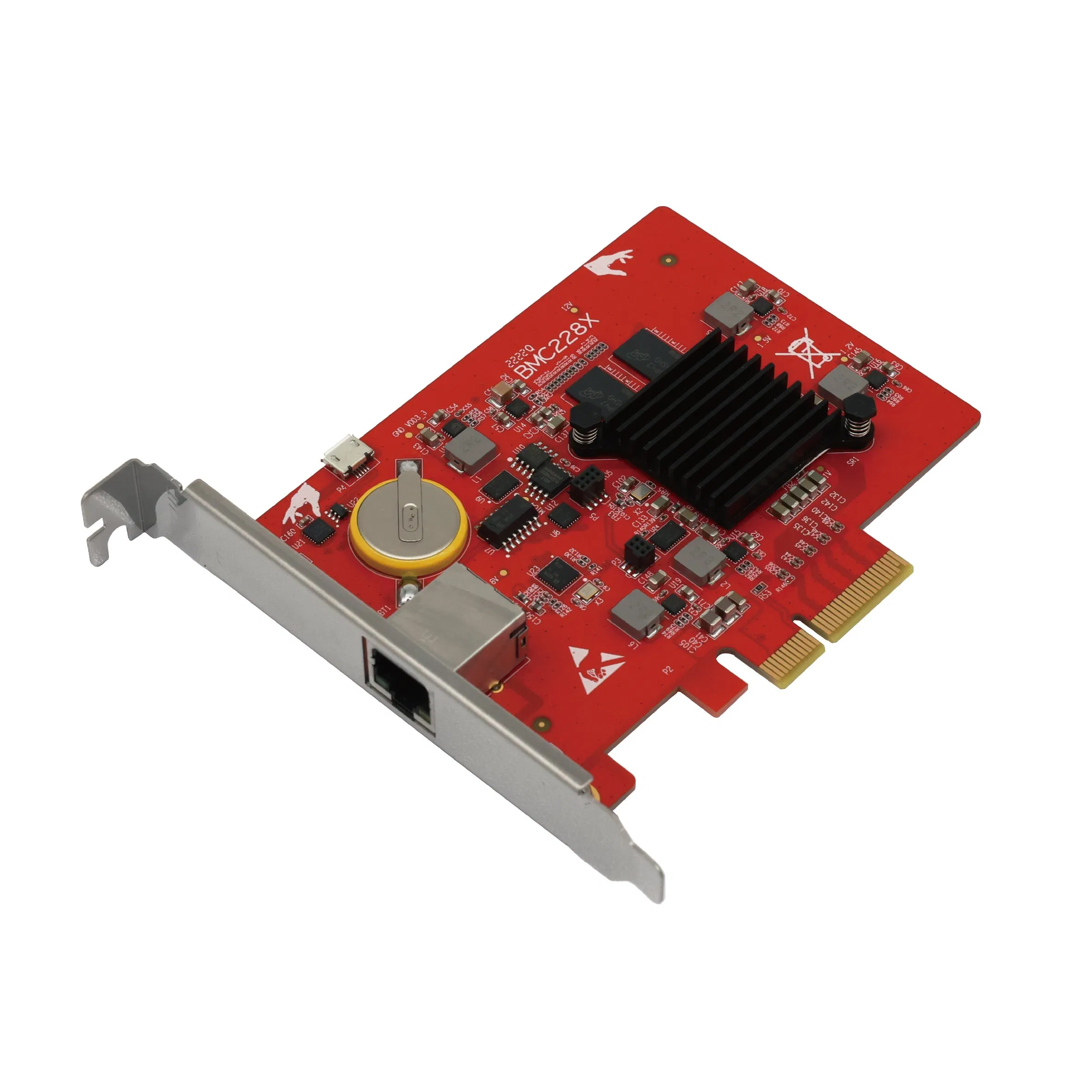

🔹 Control Card: BMC228B
🔹 Terminal Board: BCL4568E
🔹 Remote Control: Wireless WKB

⚙️

Software & Performance Advantages

01 Easy to operate with a Ribbon-style toolbar and clear functional partitions for rapid startup.

02 Supports multi-format graphic import (DXF, PLT, AI, Gerber, LXD) with automatic optimization.

03 Intelligent path optimization and automatic nesting for improved material utilization.

04 Advanced process control: Segmented perforation, progressive perforation, and material library support.

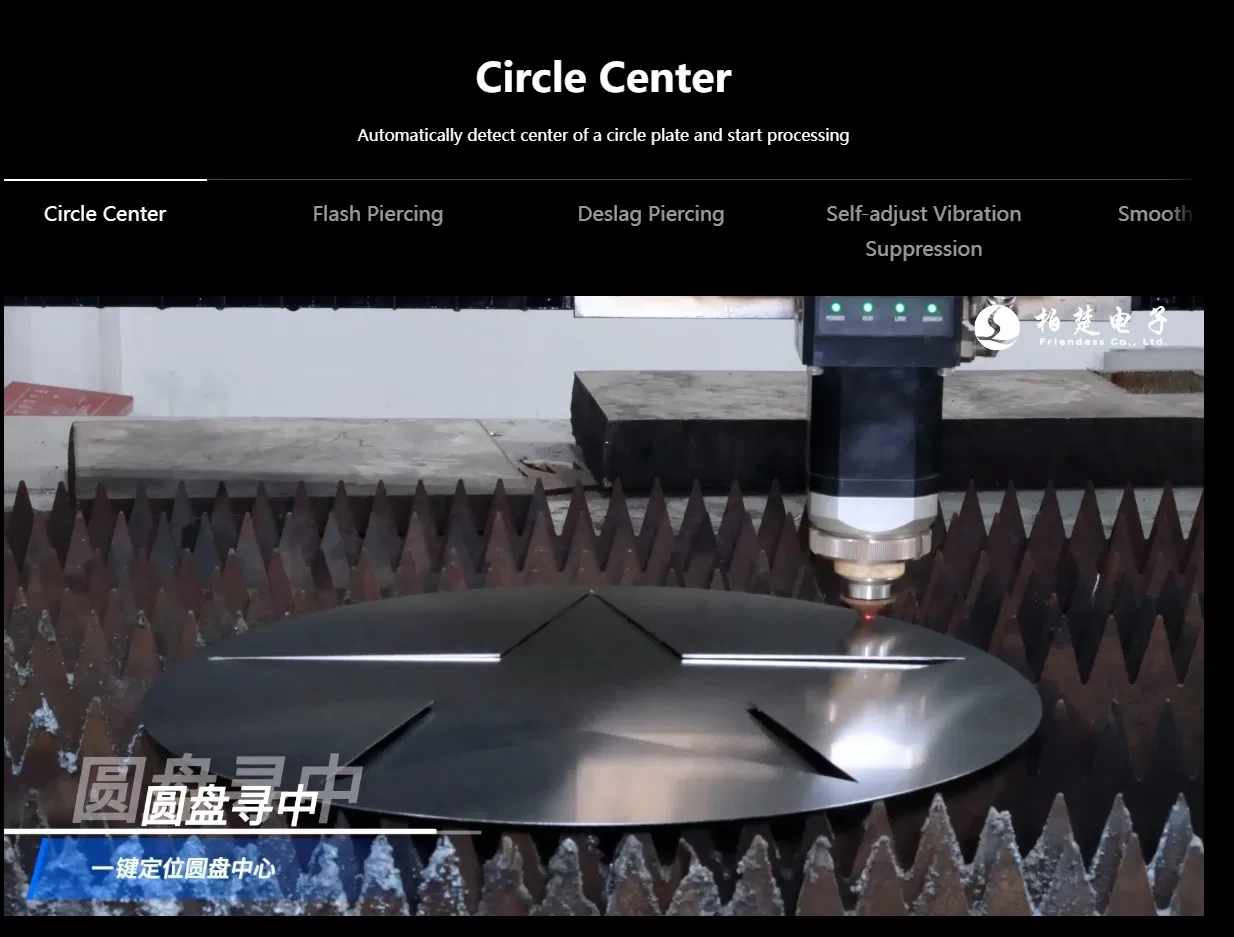

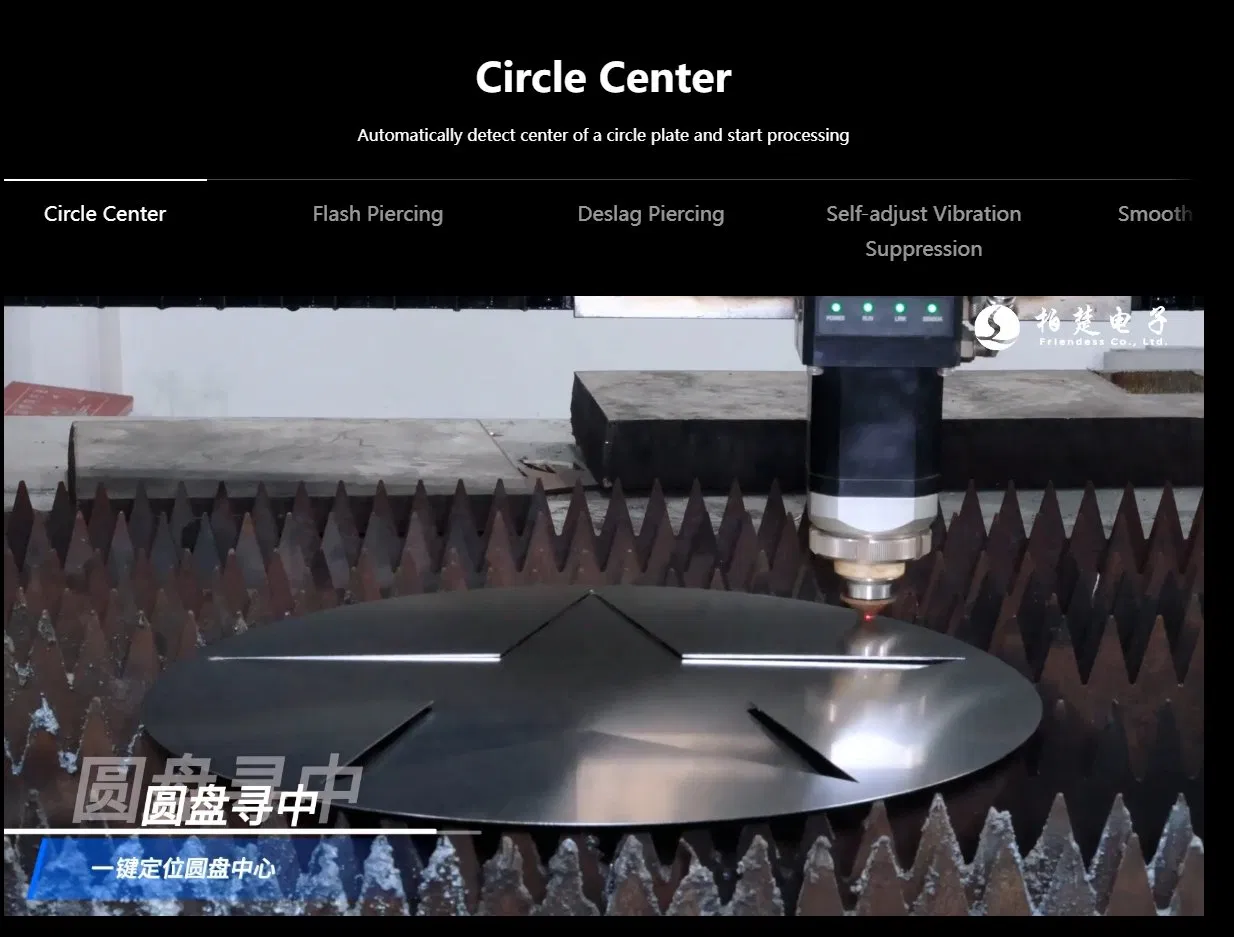

05 High-quality processing: Non-trace micro connection, disk centering, and breakpoint memory.

06 Flight cutting mode for non-precision parts to greatly enhance cutting speed.

07 Real-time monitoring with active collision avoidance and automatic edge finding.

08 Scalability: Supports PLC expansion, wireless handheld boxes, and Ethernet remote control.

❓

Frequently Asked Questions

Q: What is the maximum laser power supported by FSCUT6000?

A: The FSCUT6000 system is specifically designed for high-power fiber lasers, supporting 6000W, 8000W, 10000W, and up to 12000W generators.

Q: Which operating systems is the software compatible with?

A: The system is compatible with Windows 7 and above versions to ensure stable motion control and software performance.

Q: What file formats can I import for cutting?

A: It supports all mainstream industry formats, including DXF, PLT, AI, Gerber, and LXD. It also features automatic graphic optimization upon import.

Q: Does the system include safety features for the cutting head?

A: Yes, when combined with the BCS series capacitor height adjuster, it provides active collision avoidance, frog jumping, and real-time status monitoring for equipment safety.

Q: Can the system handle medium and thick metal plates?

A: Absolutely. FSCUT6000 is optimized for medium thickness and thick plate processing, featuring specialized perforation techniques like progressive and insensitive perforation.

Q: What kind of after-sales technical support is available?

A: The system comes with a 1-year warranty on main components. Technical guidance is provided by skilled technicians to ensure continuous operation of your machinery.
