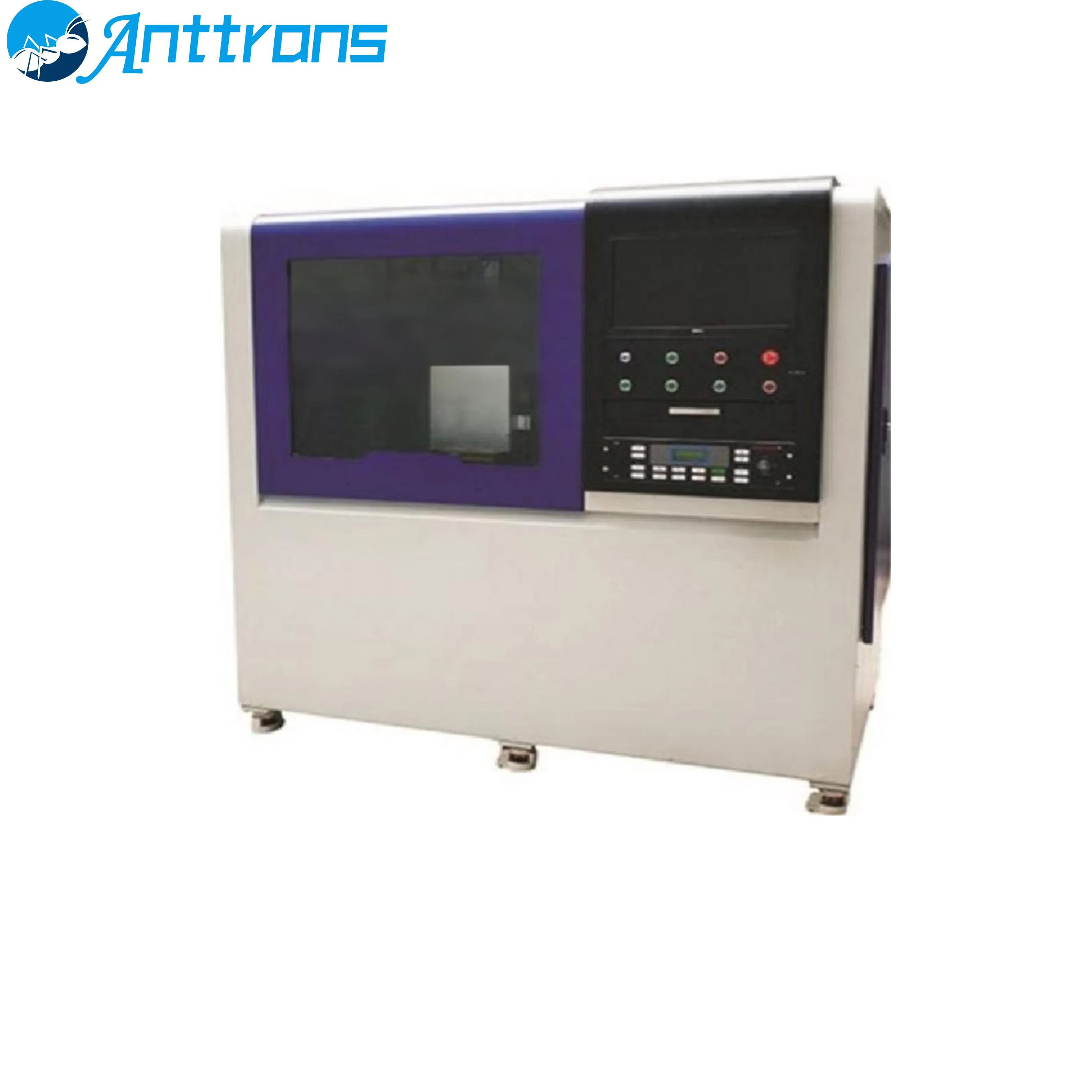

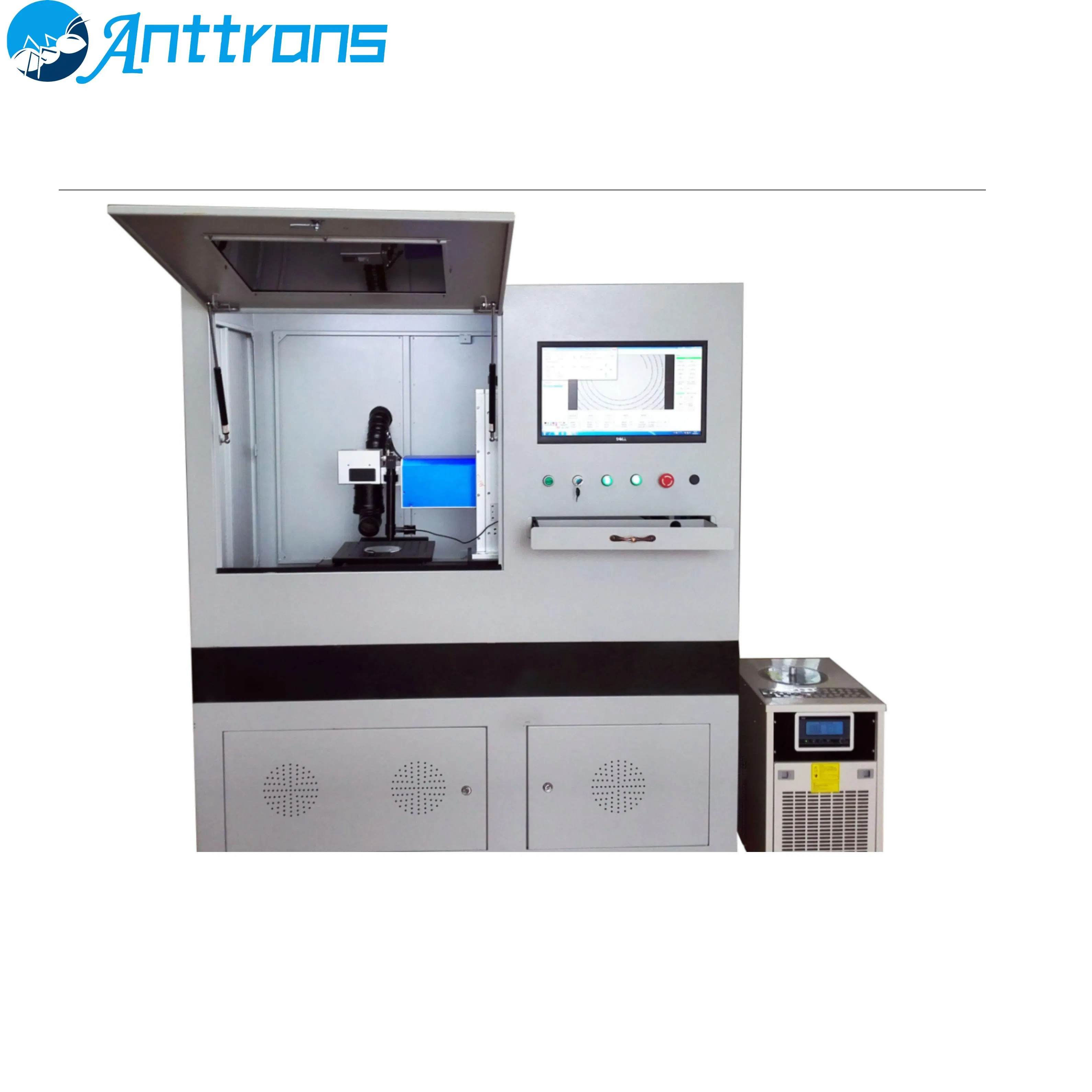

Compact Laser Micro-Machining Equipment/High-Precision Laser Processing System

Customization:	Available
After-sales Service:	One Year Warranty
Warranty:	One Year Warranty

Overview

Model NO.AT-61163

OriginChina

Package Size150.00cm * 90.00cm * 150.00cm

Package Gross Weight2000.000kg

Product Features

1

High-energy density and stable ultraviolet laser directly ablates and vaporizes materials, with a μm-level heat-affected zone and a minimum processing spot size of 5μm.

2

A high-resolution camera, in conjunction with a high-precision linear motor-driven platform, enables sub-micron-level high-precision alignment.

3

High-precision focusing via precision Z-axis ensures stable and repeatable processing techniques.

4

Sub-micron-level runout spindle allows for high-speed, high-precision, and high-surface-finish micro-machining.

5

Auxiliary W-axis allows for processing of both straight holes and inverted taper holes.

6

Marble tabletop enhances overall system stability for long-term precision.

7

Capable of processing holes with a depth-to-width ratio > 10:1 and minimum diameter of 5μm.

Product Parameters

Category	Parameter	FM-UVD7 Specification
Laser	Wavelength	355nm
Laser	Power	>7W@40 kHz (3~40 W optional)
XY Stage	Travel	300*300mm
XY Stage	Repeatability	≤±1μm
XY Stage	Positioning Accuracy	≤±3μm
Z-axis	Travel	200mm
W-axis	Angular Range	±10°
Spindle	Circular Runout	<1μm
Processing	Minimum Spot Size	5μm (10μm optional)
Processing	Materials	Glass, organics, metals, ceramics, etc.
System	Power Consumption	≤2000W
System	Dimensions	1200 * 1600 * 1900mm

Product Applications

Automotive Industry

GDI, Diesel, and Urea Injectors (30-300μm) to improve atomization and meet emission standards.

Aerospace

Engine fuel nozzles and rocket propellant nozzles (50-500μm) for high-pressure environments.

Medical Equipment

Nebulizer nozzles, microfluidic chips, and interventional devices (5-50μm) for drug delivery.

Precision Electronics

Inkjet printheads, sensor nozzles, and optical instrument components (5-200μm) for fluid control.

Technical Expertise

Technical services, technology development, and consulting in computer software and hardware. Specialized in sales of functional glass, new optical materials, optical instruments, and semiconductor device equipment. Expertise includes CNC machine tools, electronic components, and metal cutting and welding equipment.

Detailed Photos
