Small-Format High-Speed Microhole Machining System

1 / 5

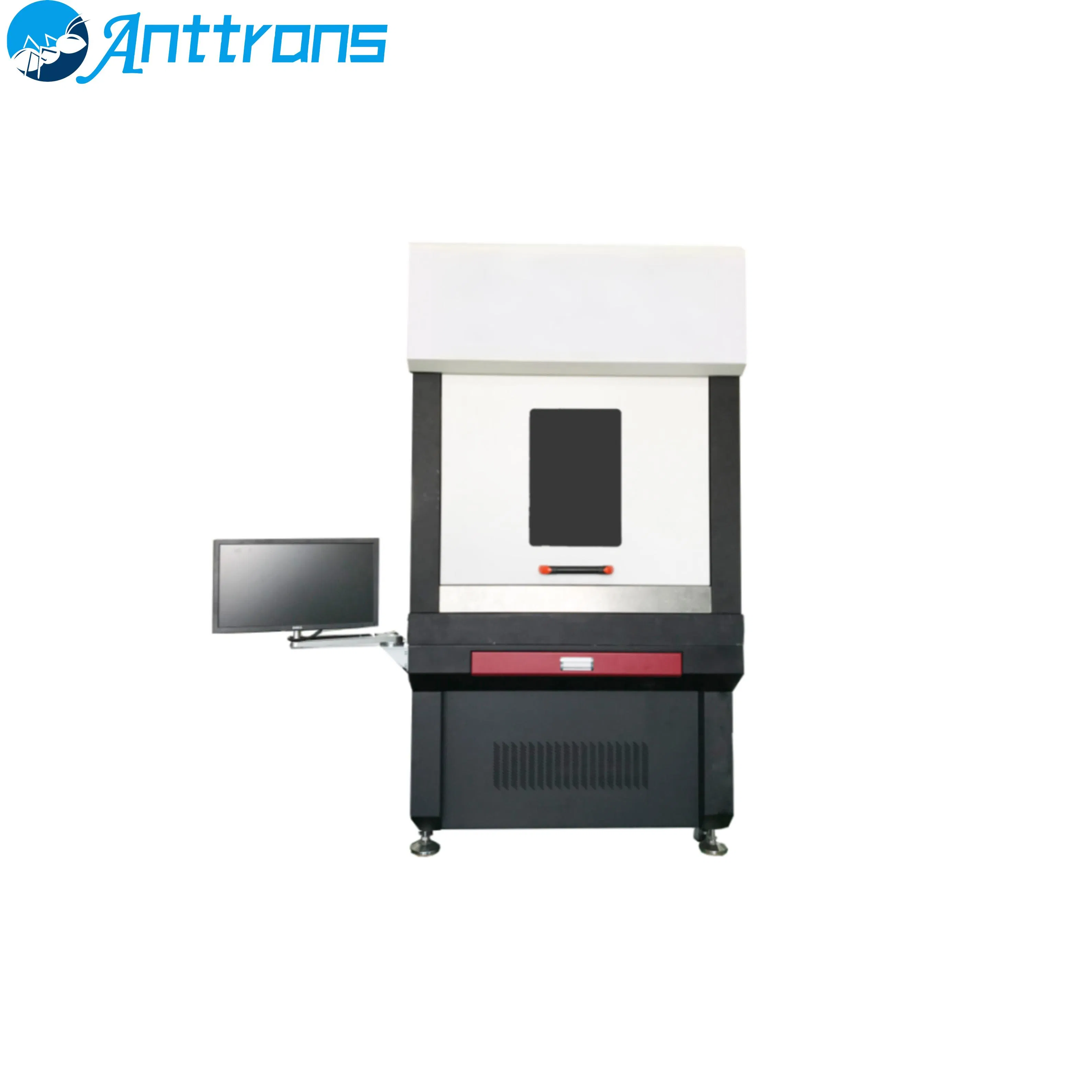

Small-Format High-Speed Microhole Machining System

Customization:	Available
After-sales Service:	One Year Warranty
Warranty:	One Year Warranty

Send Inquiry

Product Description

Basic Information

Model NO.

AT-61168

Origin

China

Package Size

150.00cm * 90.00cm * 150.00cm

Gross Weight

2000.000kg

⚙

Product Description

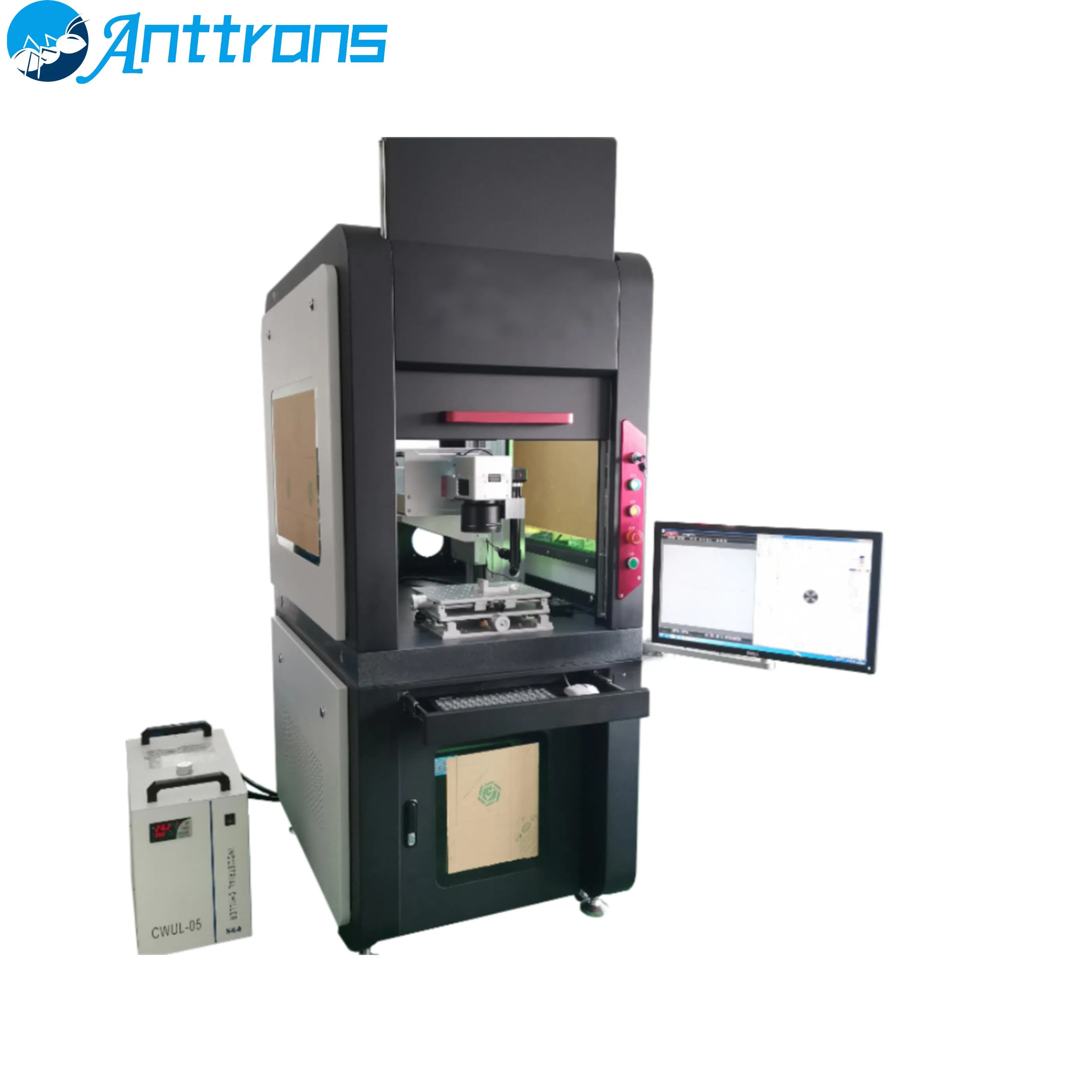

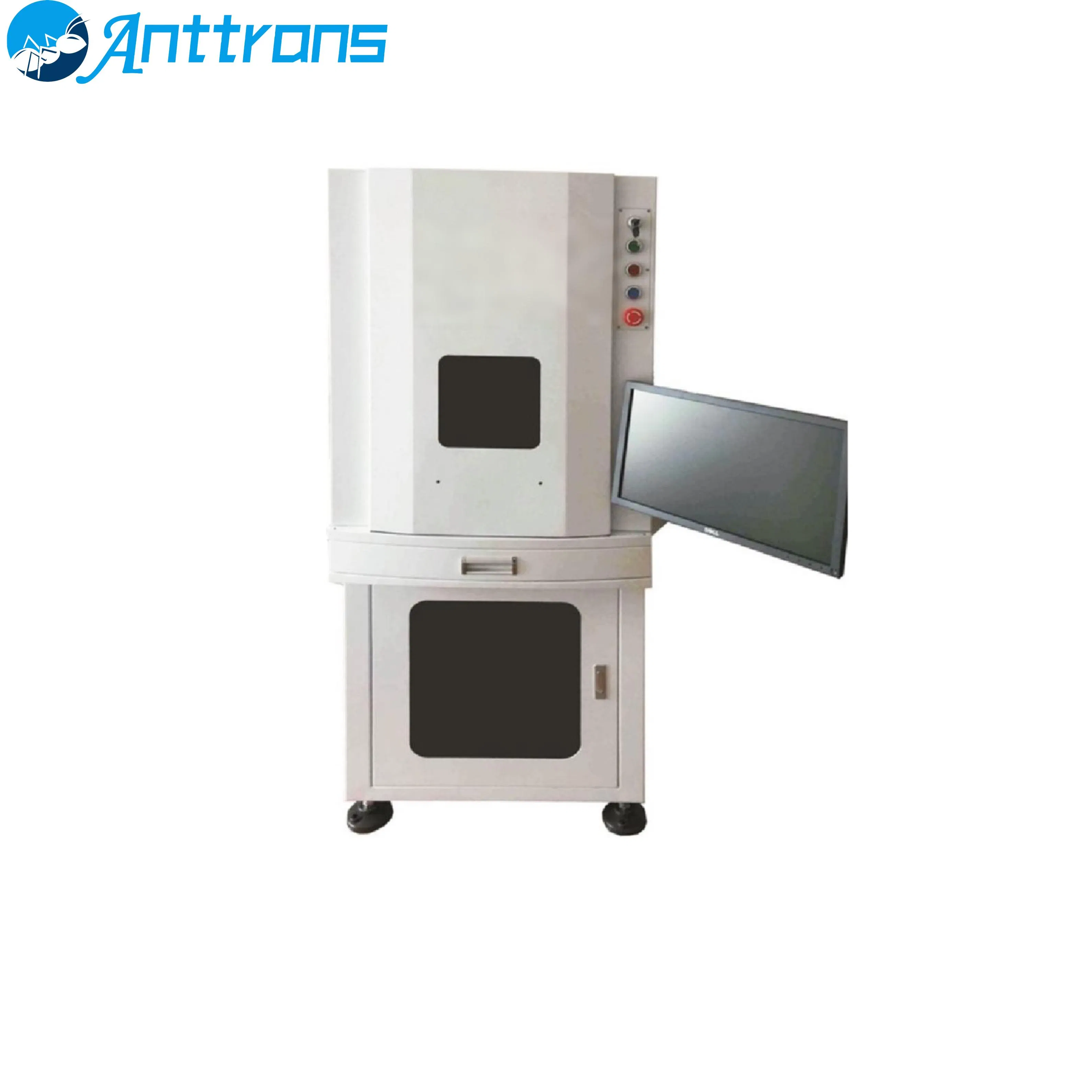

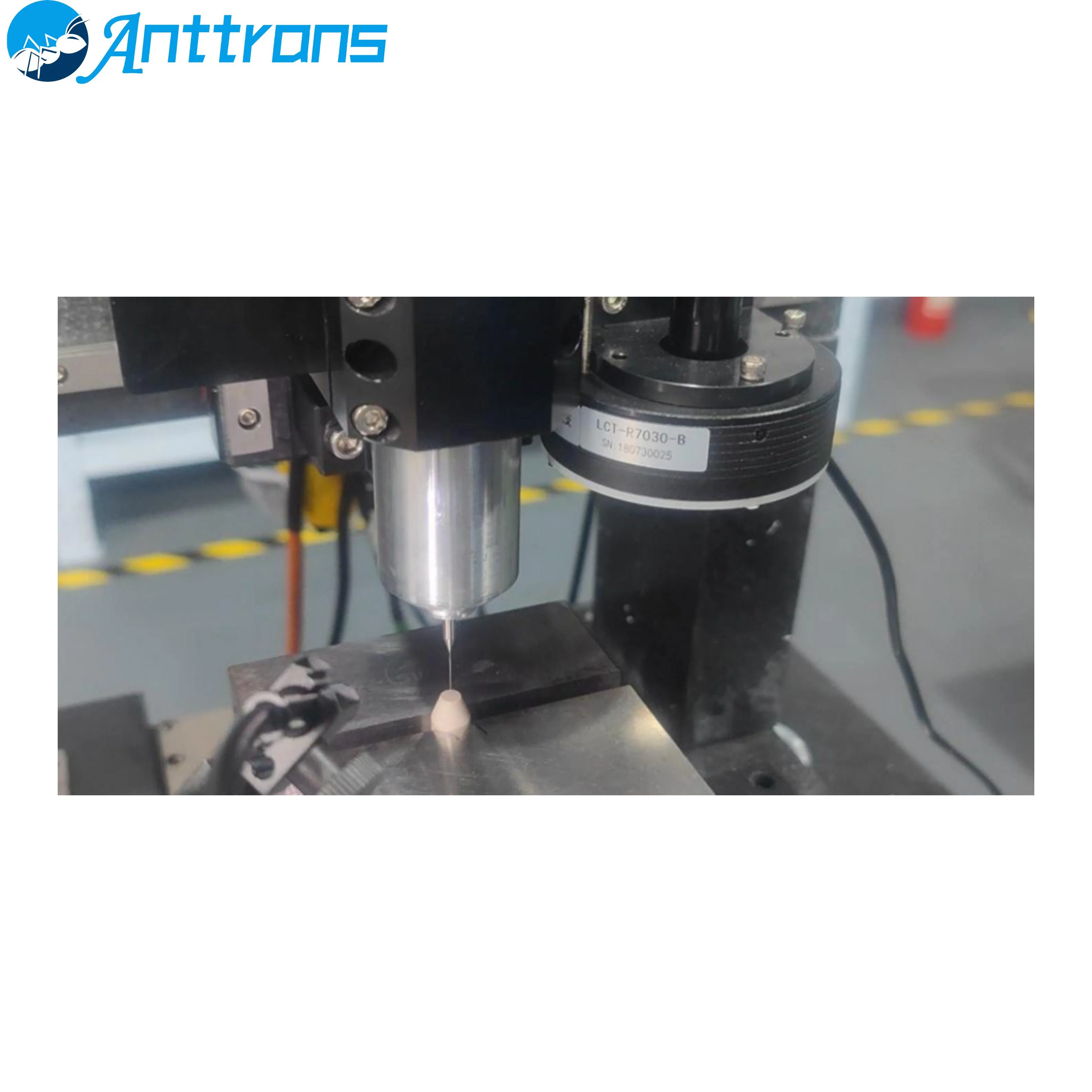

The small-format high-speed microhole machining system is a precision micro-machining equipment based on a high-power, high-stability ultraviolet laser. It is particularly suitable for small-format high-speed microhole machining and can also meet large-format machining requirements through a micron-level high-speed linear motor platform. The system integrates advanced laser technology, precision motion control, and online monitoring technology to provide micron-level precision microhole machining solutions for a variety of materials.

★

Product Features

Utilizes high-power, high-stability ultraviolet laser for direct ablation, resulting in a μm-level heat-affected zone and a minimum spot size of 5 μm.
Precise galvanometer control of beam deflection for high-speed etching on small formats.
Electrically adjustable Z-axis to accommodate varying material thicknesses and 3D etching structures.
High-resolution side-axis industrial camera for high-precision focusing and repeatability.
Robust marble table top to ensure overall structural stability and long-term precision.

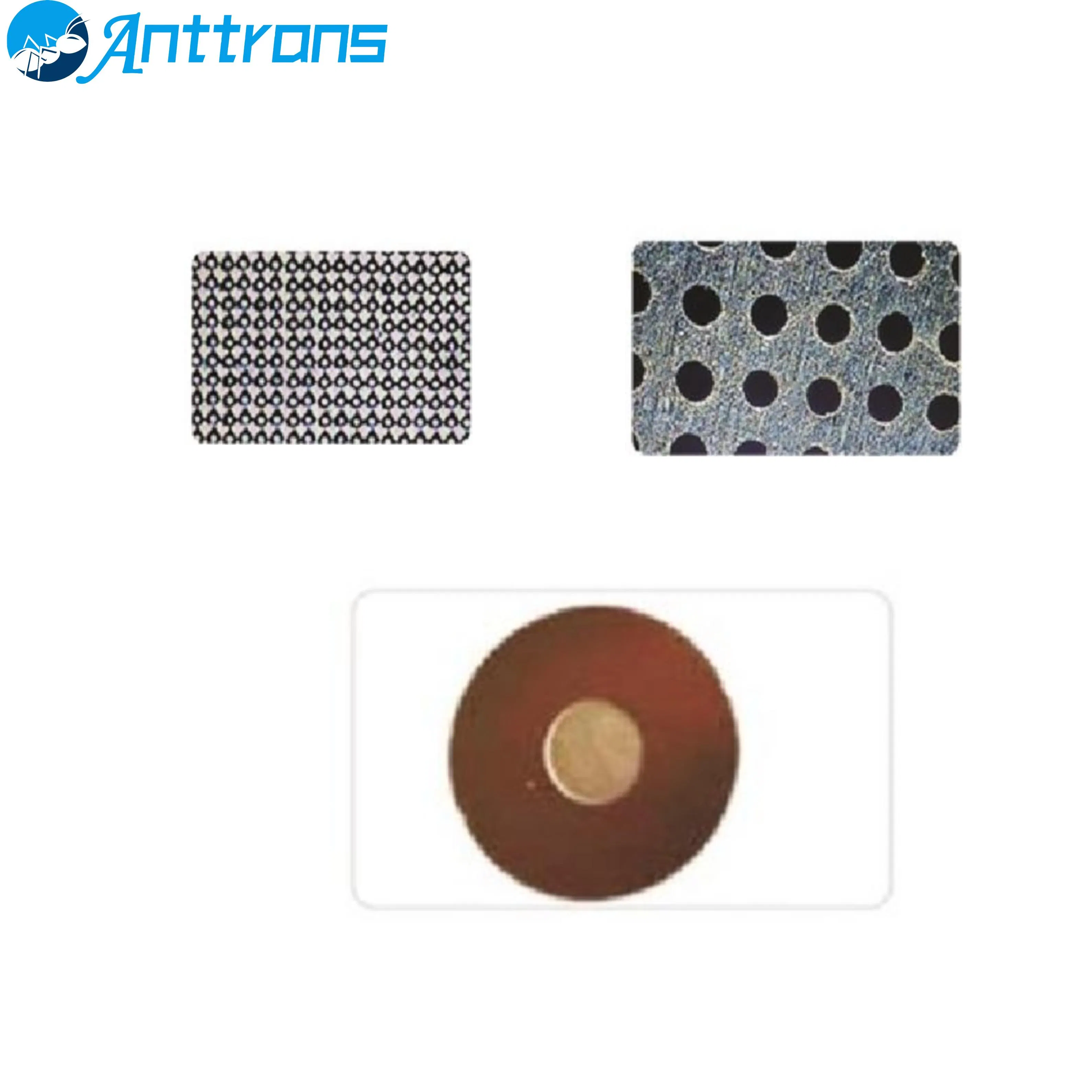

Multi-material capability: processes metals, ceramics, organics, glass for etching, drilling, and cutting.
Minimum processing line width of 5 μm with a standard range of 50*50 mm.

⚓

Product Applications

Electronics Manufacturing: Semiconductor flexible circuit board cutting, ITO film etching, microelectronic device manufacturing.
Medical Industry: Drug filtration, biosensors, microfluidic chips, CC IT positive sample preparation (pore sizes 1-30 μm).
Precision Machinery: Precision micro-mold forming, micro-nozzle processing, microhole filtration components.
New Energy: Lithium battery separator microhole processing (pore size ≤ 3 μm), hydrogen fuel cell bipolar plate processing.
Scientific Research: Microstructure research, material science experiments, micro-nano manufacturing development.
Other Applications: Carbon fiber micro-cutting, PI micro-masking, silicone microneedle molds, precision etching.

📋

Product Parameters

Category	Parameter	Specifications (FM-UV3)
Laser	Wavelength	355 nm
Laser	Power	> 3W @ 40 kHz (3-40W optional)
Laser	Modulation Frequency	1-200 kHz
Laser	Beam Quality M²	< 1.3
Galvanometer	Scan Range	< 50*50 mm
Galvanometer	Repeatability	< 1 μm
Z-Axis	Travel / Repeatability	200 mm / ≤ ±3 μm
Processing	Minimum Pore Size	5 μm
Processing	Processing Thickness	≤ 0.5 mm
Processing	Max Depth-to-Width Ratio	> 10:1
System	Cooling Method	Water-cooled
Dimensions	Machine Size	750 * 1100 * 1700 mm

🏢
