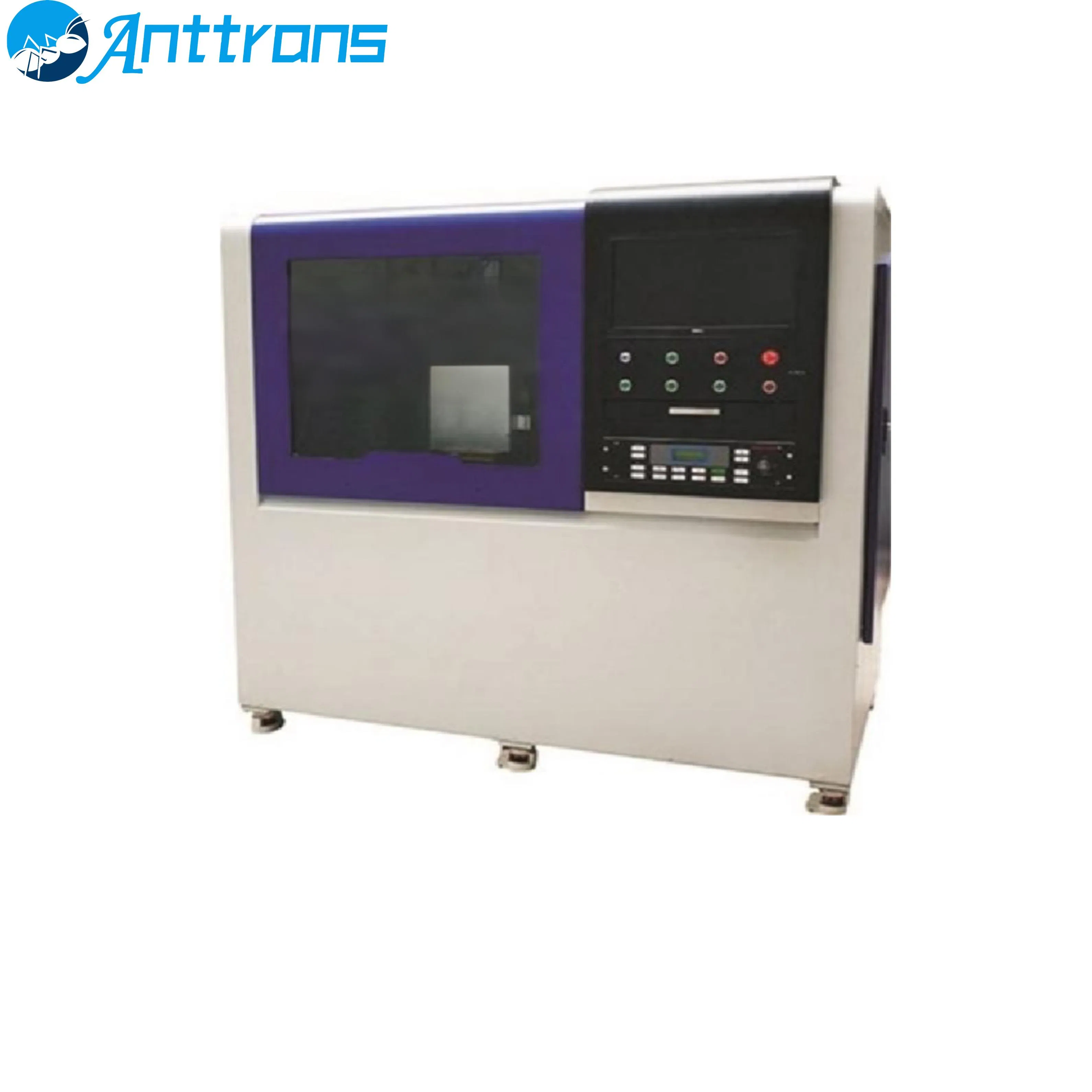

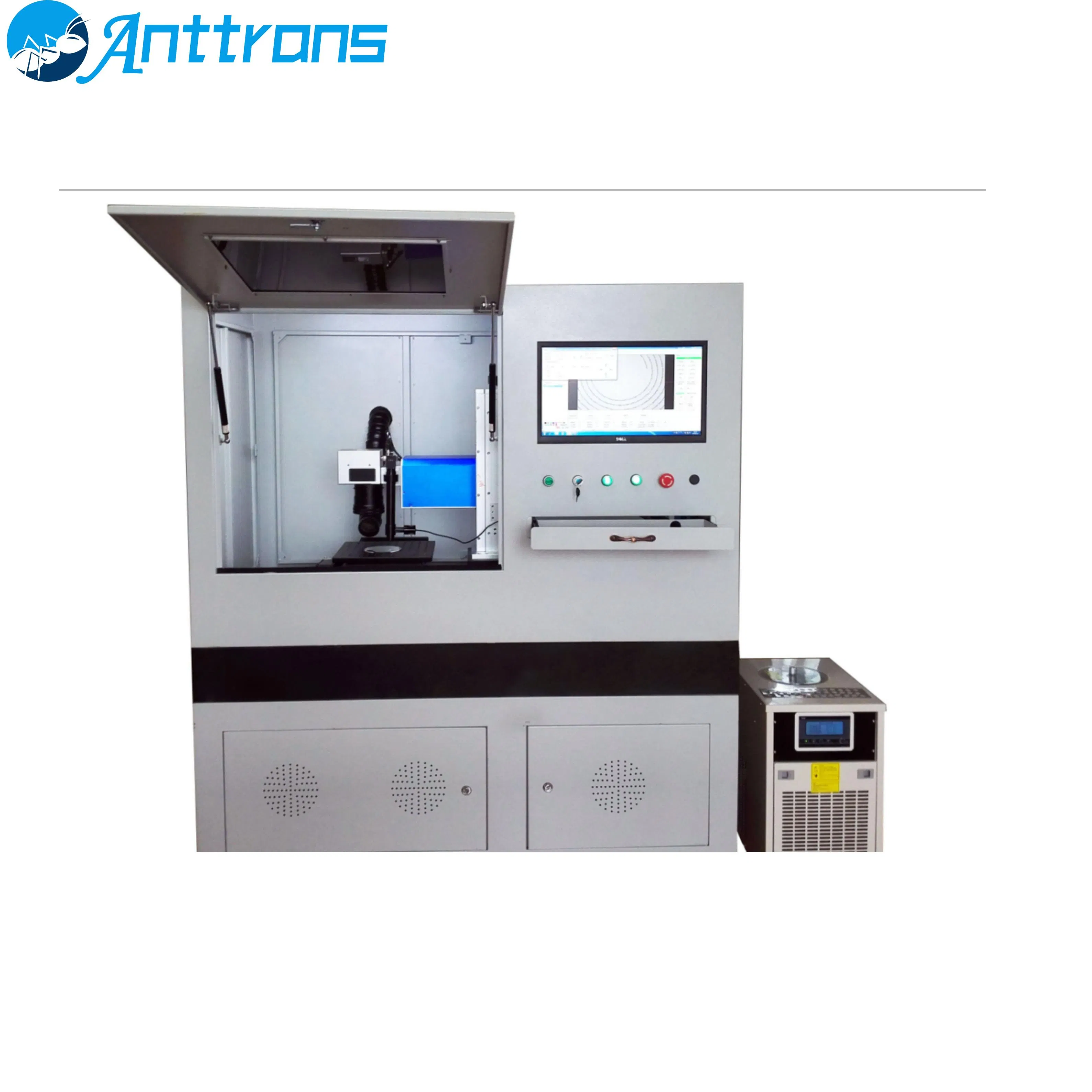

Micro Nozzle Laser Processing System

Customization:	Available
After-sales Service:	One Year Warranty
Warranty:	One Year Warranty

Send Inquiry

Product Description

Basic Info & Delivery

Model NO.	AT-61163
Origin	China

Package Size	150.00cm * 90.00cm * 150.00cm
Gross Weight	2000.000kg

Product Features

High-energy density ultraviolet laser directly ablates materials with a μm-level heat-affected zone and a minimum processing spot size of 5μm.
High-resolution camera and linear motor-driven platform for sub-micron-level precision alignment.
Precision Z-axis achieves high-precision focusing to ensure stable and repeatable processing.
Sub-micron-level runout spindle enabling high-speed and high-surface-finish micro-machining.
Auxiliary W-axis allows for processing straight holes and inverted taper holes.
Marble tabletop base enhances overall system stability and ensures long-term precision.
Minimum processing hole diameter of 5μm with depth-to-width ratio > 10:1.

Product Parameters

Category	Parameter	FM-UVD7 Spec
Laser	Wavelength	355nm
Laser	Power	>7W@40 kHz (3~40 W optional)
XY Stage	Travel	300*300mm
XY Stage	Positioning Resolution	0.1μm
XY Stage	Repeatability	≤±1μm
XY Stage	Accuracy	≤±3μm
Z-axis	Travel	200mm
Z-axis	Repeatability	≤±3μm
Z-axis	Accuracy	≤±5μm
W-axis	Angular Range	±10°
CCD System	Camera	5-megapixel
CCD System	Optical Magnification	10X
Spindle	Circular Runout	<1μm
Capability	Min Spot Size	5μm (10μm optional)
Capability	Diameter Accuracy	±3μm
Capability	Materials	Glass, organics, metals, ceramics, etc.
Cooling	Method	Water-cooled
Environment	Dust Extraction	Triple Dust Purification
Power	Consumption	≤2000W
Physical	Dimensions	1200 * 1600 * 1900mm
Physical	Weight	1200Kg

Product Applications

Automotive Industry

Processes GDI, Diesel, and Urea injectors (30-300μm) to improve fuel atomization and meet emission standards.

Aerospace

Micro-holes for aircraft engine fuel nozzles and rocket propellant nozzles (50-500μm) for combustion efficiency.

Medical Equipment

Nebulizer nozzles and microfluidic chips (5-50μm) for precise drug delivery and biological analysis.

Precision Instruments

Inkjet printhead nozzles and sensor fluid control (10-200μm) to enhance resolution and accuracy.

Detailed Photos

Frequently Asked Questions

Q1: What is the minimum hole diameter this laser system can process?

The system can achieve a minimum processing hole diameter of 5μm.

Q2: Which materials are compatible with the Micro Nozzle Laser Processing System?

It is capable of processing a wide range of materials including glass, organics, metals, and ceramics.

Q3: Can it process both straight and tapered holes?

Yes, the system utilizes an auxiliary W-axis that allows for the precise processing of both straight holes and inverted taper holes.

Q4: How does the system ensure long-term precision?

The system is built on a marble tabletop to enhance stability, and all mechanical components are high-precision parts specifically selected for durability.

Q5: What cooling system does the machine use?

The laser system utilizes a water-cooled cooling method for optimal temperature regulation during operation.

Q6: What is the depth-to-width ratio capability?

The system can handle a depth-to-width ratio of greater than 10:1.
