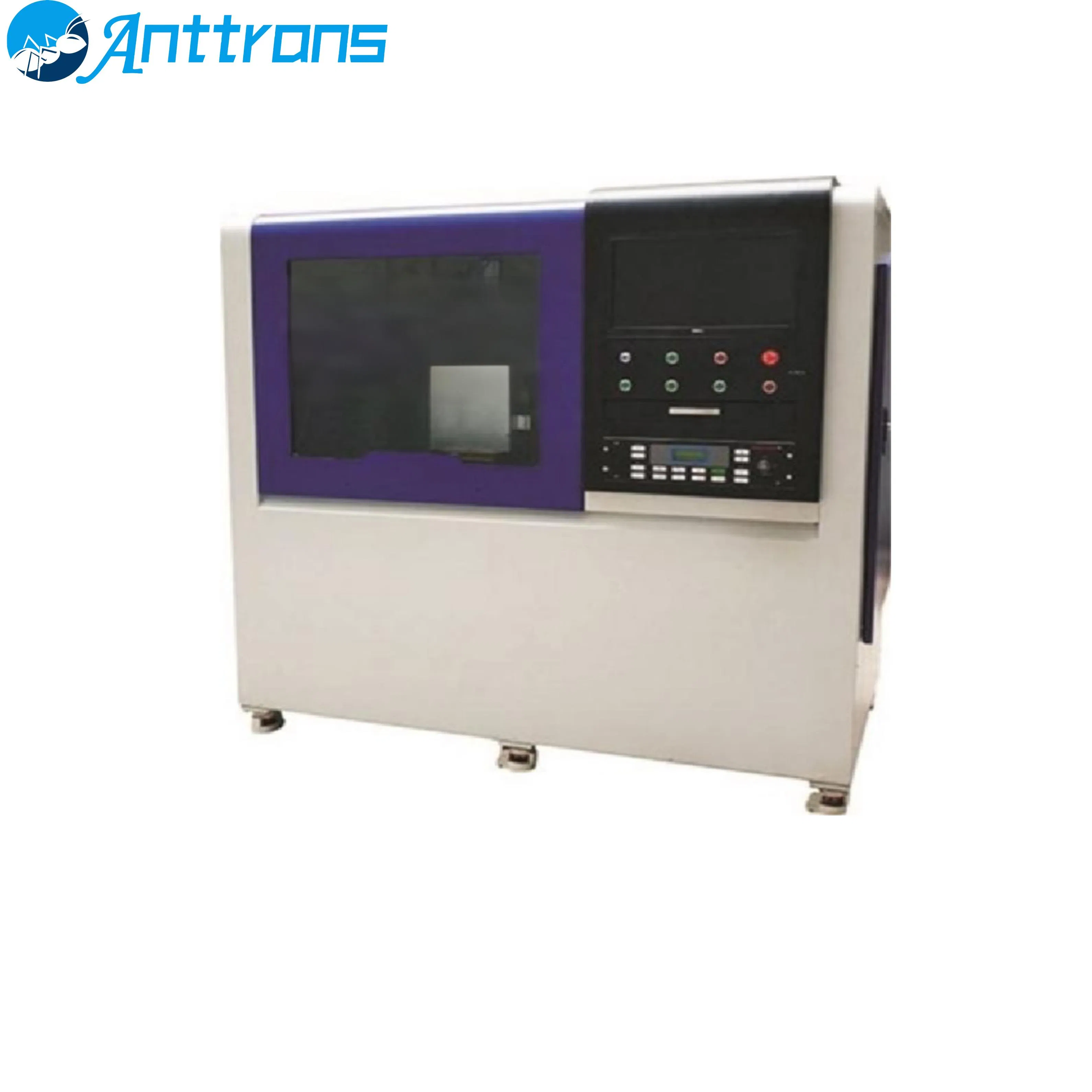

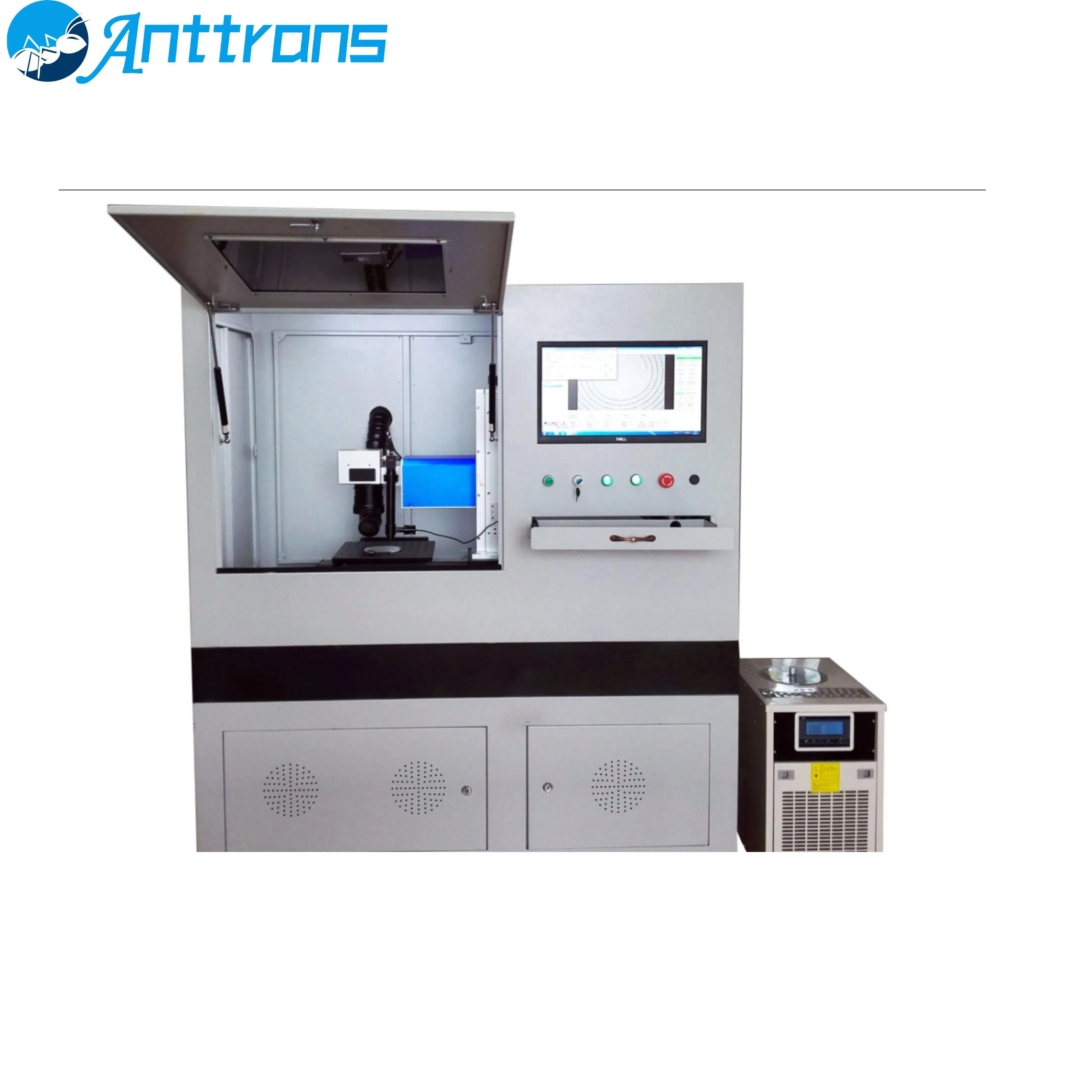

Robust Laser Micro-Machining Equipment/Micro Nozzle Processing System

1 / 5

Robust Laser Micro-Machining Equipment/Micro Nozzle Processing System

Customization:	Available
After-sales Service:	One Year Warranty
Warranty:	One Year Warranty

Send Inquiry

Product Description

📊Overview & Basic Info

Product Identity

Model NO. AT-61163

Origin China

Packaging & Delivery

Package Size 150.00cm * 90.00cm * 150.00cm

Gross Weight 2000.000kg

🚀Product Features

⚡ High-energy density and stable ultraviolet laser directly ablates materials, with a μm-level heat-affected zone and a minimum spot size of 5μm.

🎯 High-resolution camera and linear motor-driven platform enable sub-micron alignment for workpiece hole centers.

🔍 Precision Z-axis focusing system ensures stable and repeatable processing techniques.

🔄 Sub-micron level runout spindle allows high-speed, high-precision micro-machining with superior surface finish.

📐 Auxiliary W-axis supports the processing of straight and inverted taper holes.

💎 Marble tabletop construction enhances overall system stability for long-term precision.

📏 Minimum processing hole diameter of 5μm with depth-to-width ratios exceeding 10:1.

📋Product Parameters

Category	Parameter	FM-UVD7 Spec
Laser	Wavelength	355nm
Laser	Power	>7W@40 kHz (3~40 W optional)
XY Stage	Travel	300*300mm
XY Stage	Positioning Resolution	0.1μm
XY Stage	Repeatability	≤±1μm
XY Stage	Accuracy	≤±3μm
Z-axis	Travel	200mm
Z-axis	Repeatability	≤±3μm
Z-axis	Accuracy	≤±5μm
W-axis	Angular Range	±10°
CCD System	Camera / Magnification	5-megapixel / 10X
Spindle	Circular Runout	<1μm
Capability	Min Spot Size	5μm (10μm optional)
Capability	Hole Accuracy	±3μm (Dia <0.5mm, Depth <0.5mm)
Capability	Materials	Glass, organics, metals, ceramics, etc.
System	Cooling / Dust	Water-cooled / Triple Purification
Physical	Weight / Dimensions	1200Kg / 120016001900mm

💡Product Applications

Automotive Industry

Processes GDI and Diesel fuel injectors (30-200μm) and Urea injectors to meet emission standards and improve efficiency.

Aerospace

Micro-hole processing (50-500μm) for aircraft engine fuel nozzles, rocket propellant nozzles, and UAV atomization systems.

Medical Equipment

Ultra-fine processing (5-50μm) for nebulizer nozzles, microfluidic chips, and intravascular drug delivery devices.

Precision Instruments

High-resolution inkjet printhead nozzles, pressure sensors, and specialized optical instrument cleaning systems.

🏢Services & Capabilities

Technical services and development focusing on computer hardware, software, and specialized optical materials. Experts in the sales and maintenance of optical instruments, semiconductor device equipment, CNC machine tools, and electronic specialized materials. We provide comprehensive solutions for metal cutting, welding, and photovoltaic components.

📸Detailed Photos

❓Frequently Asked Questions

1. What is the minimum hole size this equipment can process?

The system can achieve a minimum processing hole diameter of 5μm, with a controllable spot size as small as 5μm.

2. What materials are compatible with the laser micro-machining system?

It is designed to process a wide range of materials, including glass, organic materials, various metals, and technical ceramics.

3. Can the system create tapered or non-standard holes?

Yes, with the auxiliary W-axis, the system is capable of processing both straight holes and inverted taper holes with high precision.

4. What is the positioning accuracy of the XY stage?

The XY stage features a positioning resolution of 0.1μm, repeatability of ≤±1μm, and overall positioning accuracy of ≤±3μm.

5. How does the system handle dust and cooling?

The equipment uses a water-cooled system for temperature regulation and a triple dust purification system to ensure a clean processing environment.

6. Is the system stable for long-term industrial use?

Absolutely. The system utilizes a heavy marble tabletop and high-quality mechanical components to ensure long-term stability and sub-micron precision.
