Product Description

📋 Basic Info & Delivery

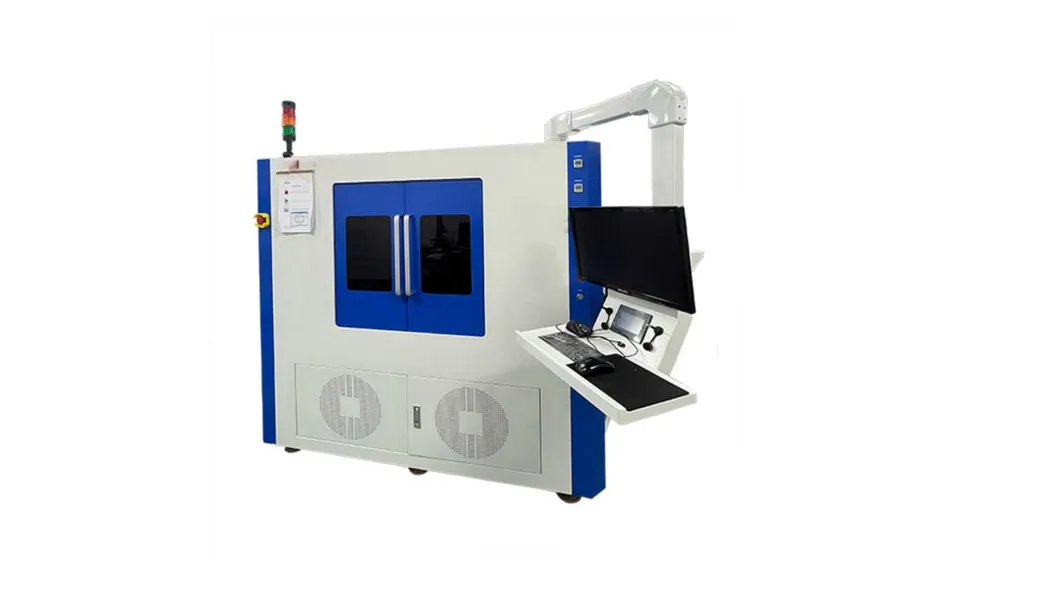

Model NO.: AT-61151

Origin: China

Package Size: 50.00cm * 60.00cm * 50.00cm

Gross Weight: 130.000kg

⚙ Product Features

01 Utilizes high-power, highly stable ultra-fast ultraviolet laser for direct ablation and vaporization of materials, achieving micron-level machining line widths with no heat-affected zone.

02 Excellent beam shaping design allows for adjustments in beam spatial distribution and polarization, expanding micro-machining capabilities.

03 High-precision galvanometer enables high-speed, high-precision control of beam deflection with accuracy better than ±2μm.

04 Large-area precision machining through high-precision linear motor-driven platform translation with repeatability accuracy up to ±1μm.

05 Electrically adjustable Z-axis to accommodate materials of different thicknesses, meeting fine machining requirements for 3D structures.

06 Extended precision rotary axis enables fine structural forming of irregularly shaped parts.

07 High-resolution industrial camera for full-field error correction, high-precision positioning, focusing, and machining measurement.

08 On-machine power detection and compensation ensure reliable long-term machining performance.

09 Supports up to 256 layer parameters and processes 2D/3D vector and image files such as DXF, AI, and PNG.

10 Marble tabletop enhances overall system stability, ensuring long-term precision for all mechanical components.

11 Suitable for virtually all solid materials including glass, organics, metals, ceramics, etc.

📍 Application Areas

Medical devices, precision tools, precision micro-mold forming, and fine mask fabrication.

📊 Product Parameters

Category	Parameter	AT-UVAT-5A Specification
Laser	Wavelength	343/355nm
	Power	10W
	Modulation Frequency	1-2000kHz
	Pulse Width	<10ps
Galvanometer	Repeatability	<1μm
Galvanometer	Positioning Accuracy	≤±3μm
XY Table	Travel	500*400mm
	Positioning Resolution	0.1μm
	Repeatability	≤±1μm
	Positioning Accuracy	≤±3μm
Cooling	Water Cooling	2000W Cooling Capacity
Dimensions	Size	170014001950mm
Weight	Total Weight	2000Kg

🏗 Product Construction

Main System	Key Components
Ultrafast Laser Micro-machining System	Laser Source & Scanning Galvanometer
	Control Card & Platform Control Card
	Linear Translation Stage & Z-axis
	Focusing Lens & CCD Device
	Water Chiller & Smoke Dust Collector
	UPS Supply & System Rack

💻 Technical Services & Scope

The operation covers comprehensive technical services, including technology development, consulting, and exchange. Key areas include computer software and hardware, functional glass, new optical materials, and optical instruments. Specialization extends to semiconductor device equipment, experimental analysis instruments, CNC machine tools, electronic components, electromechanical equipment, and metal cutting/welding systems.

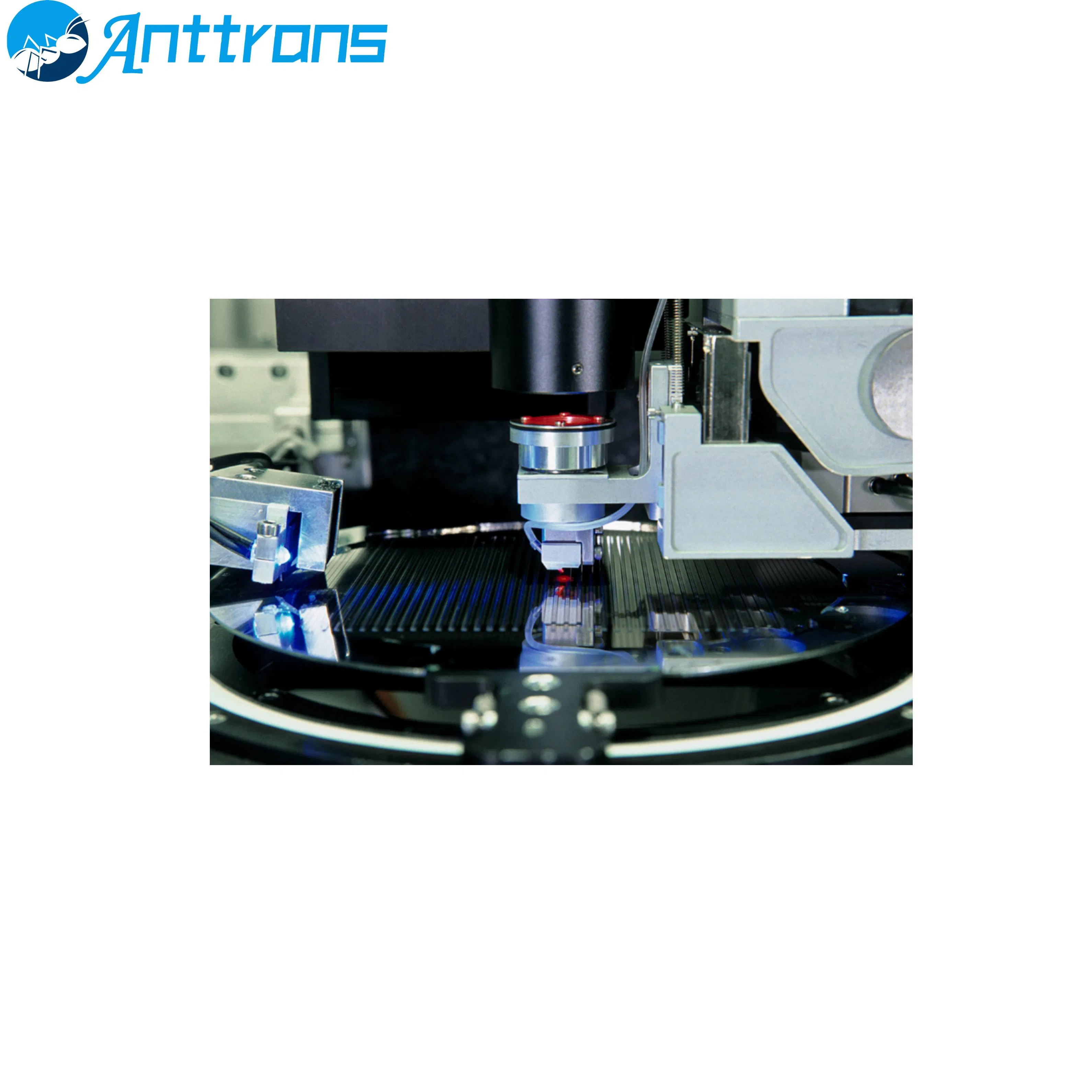

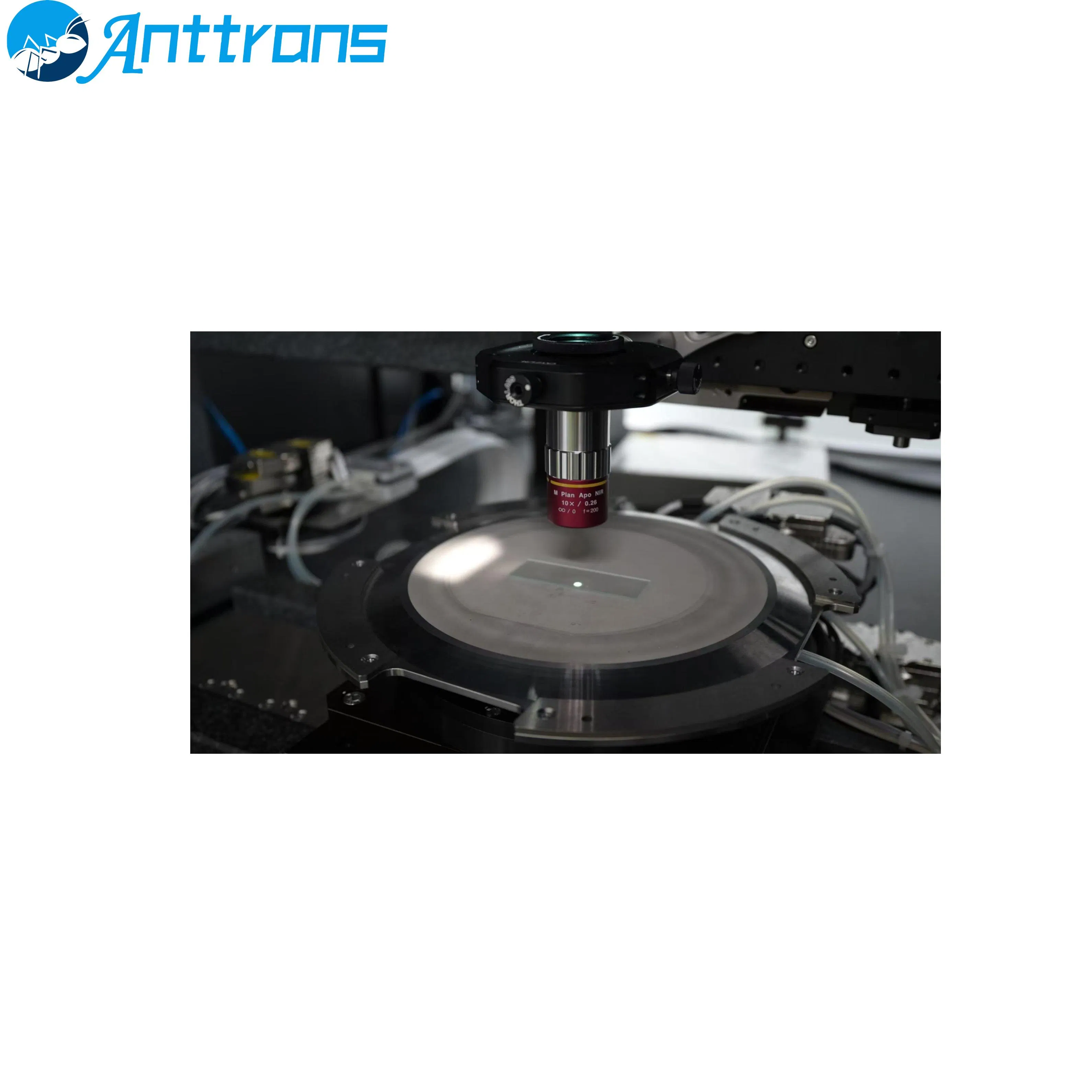

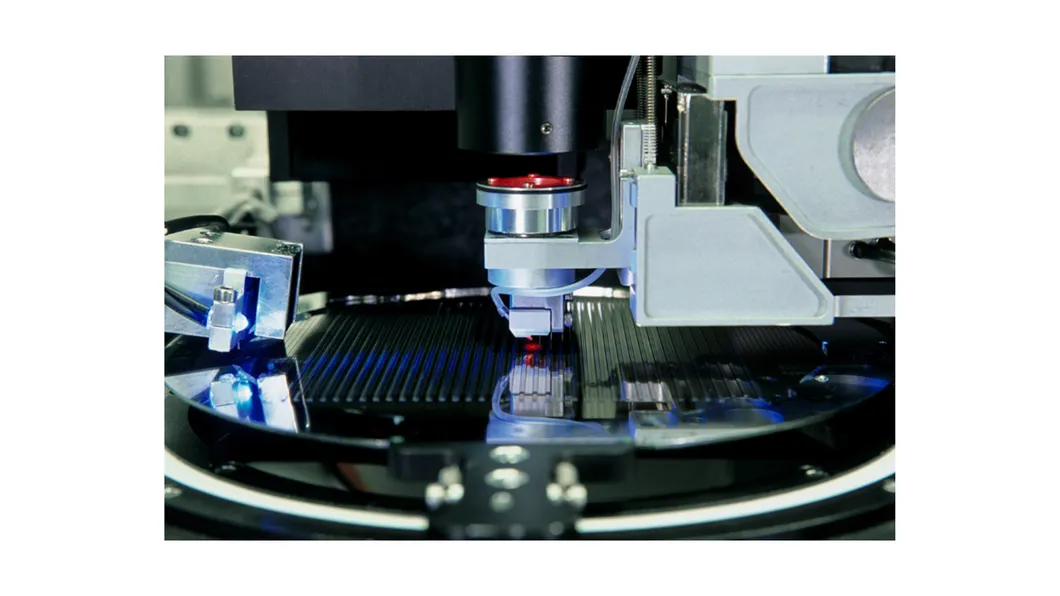

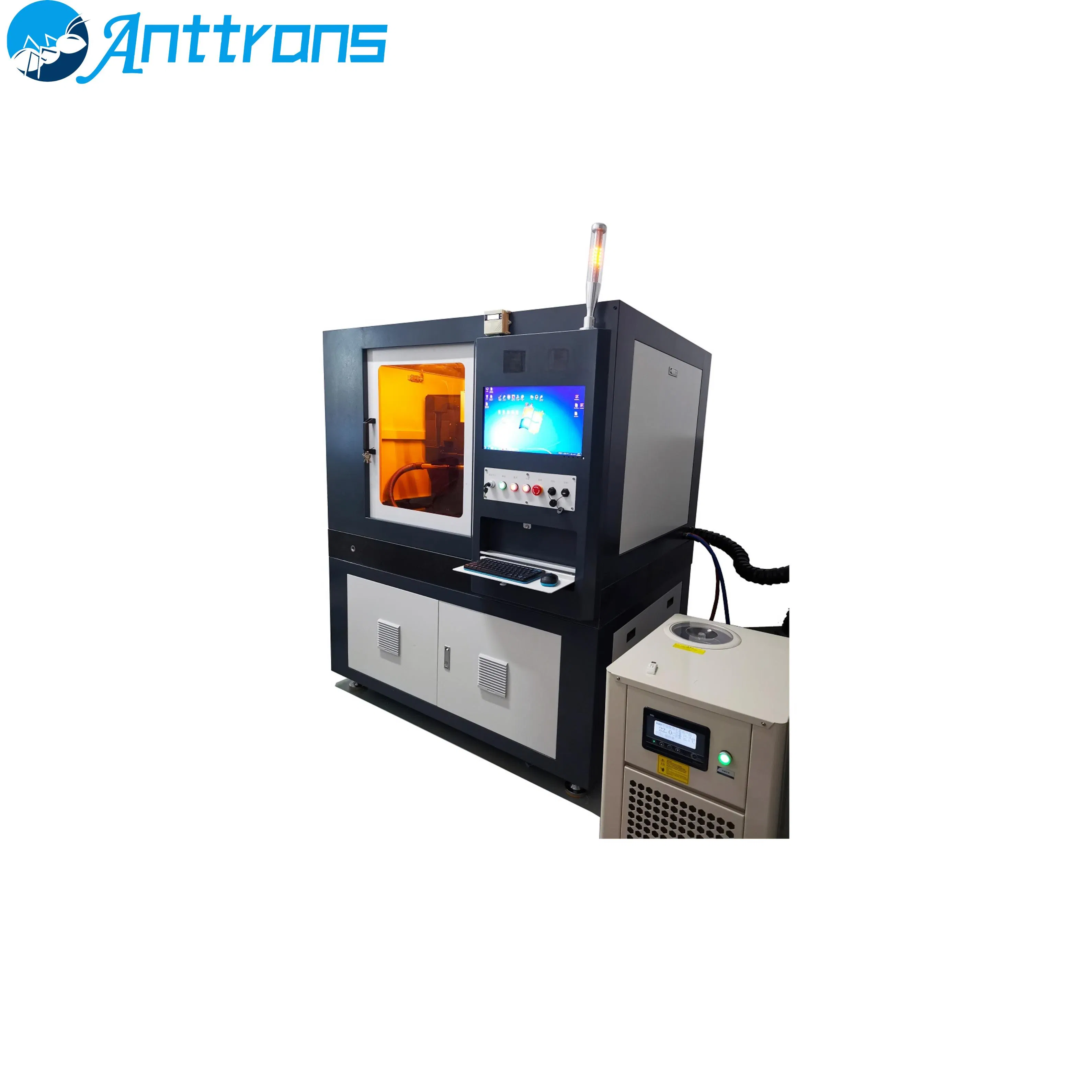

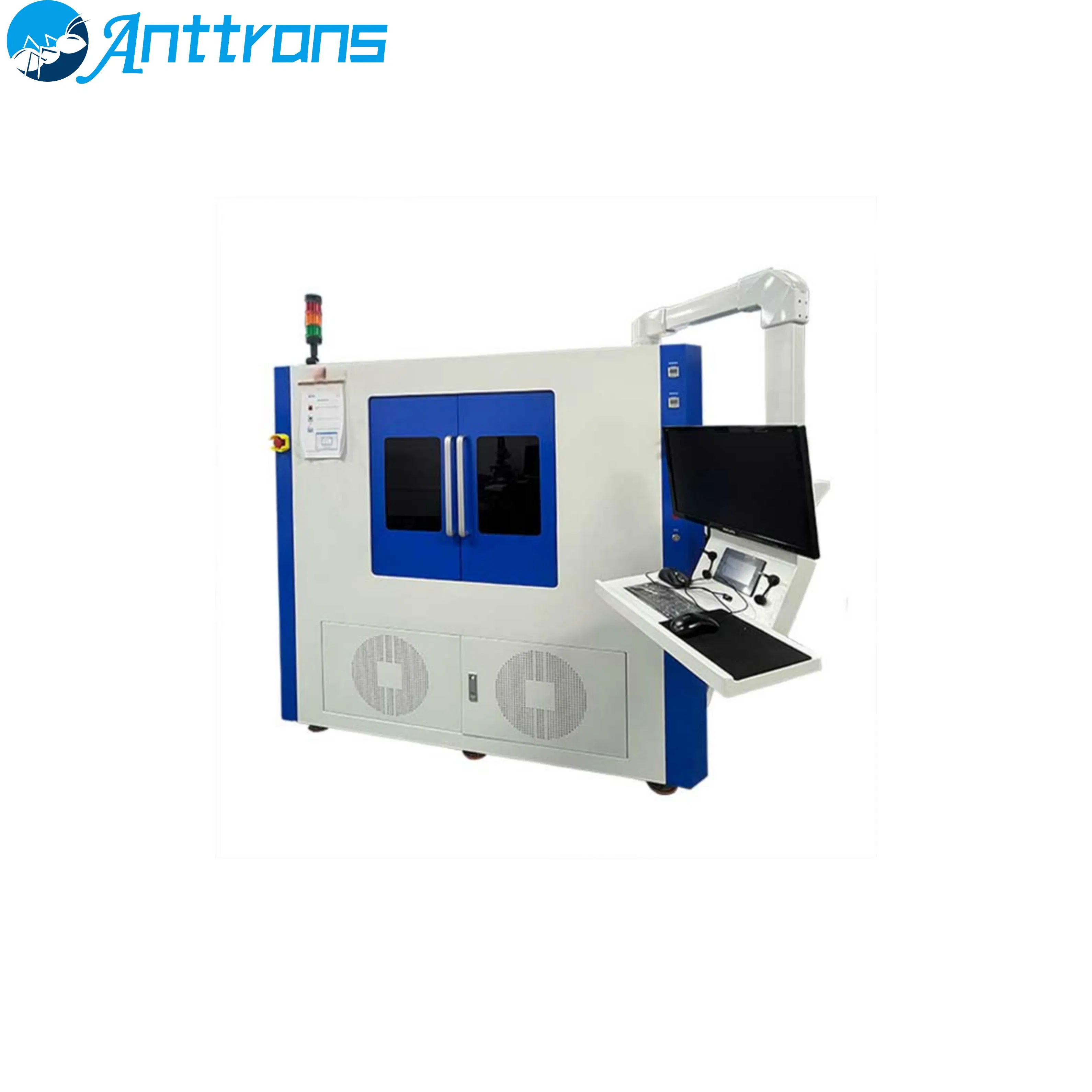

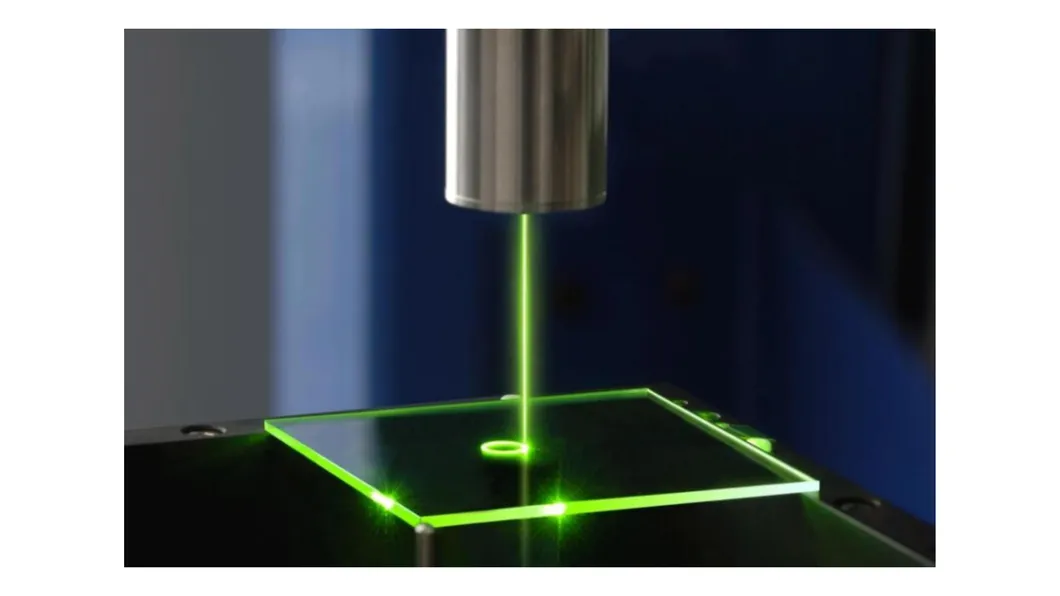

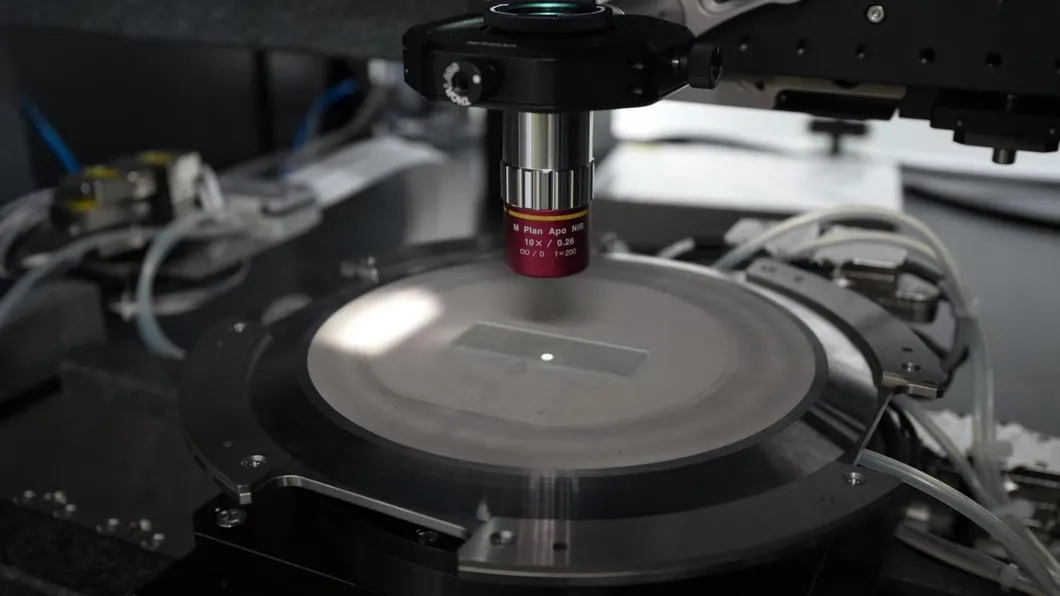

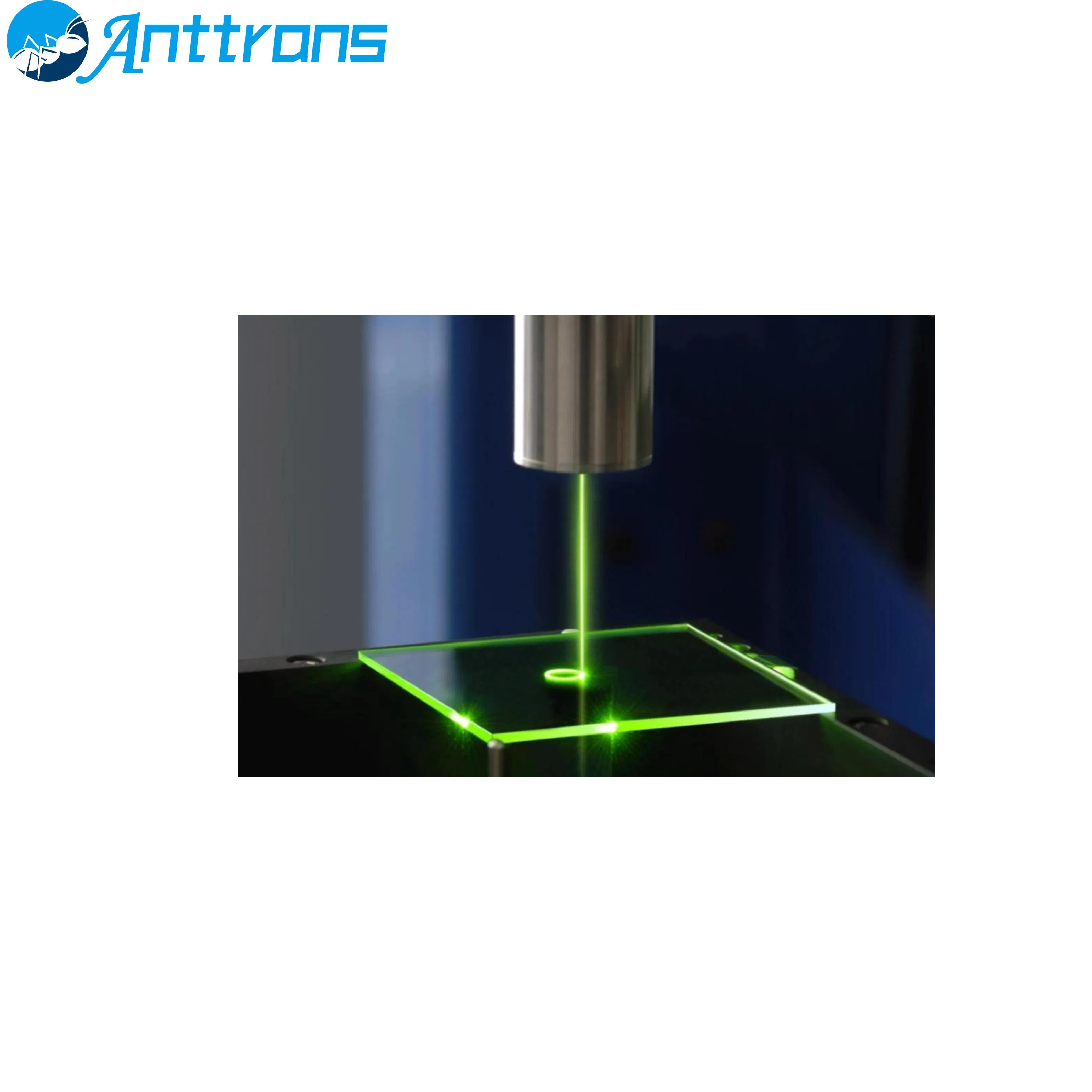

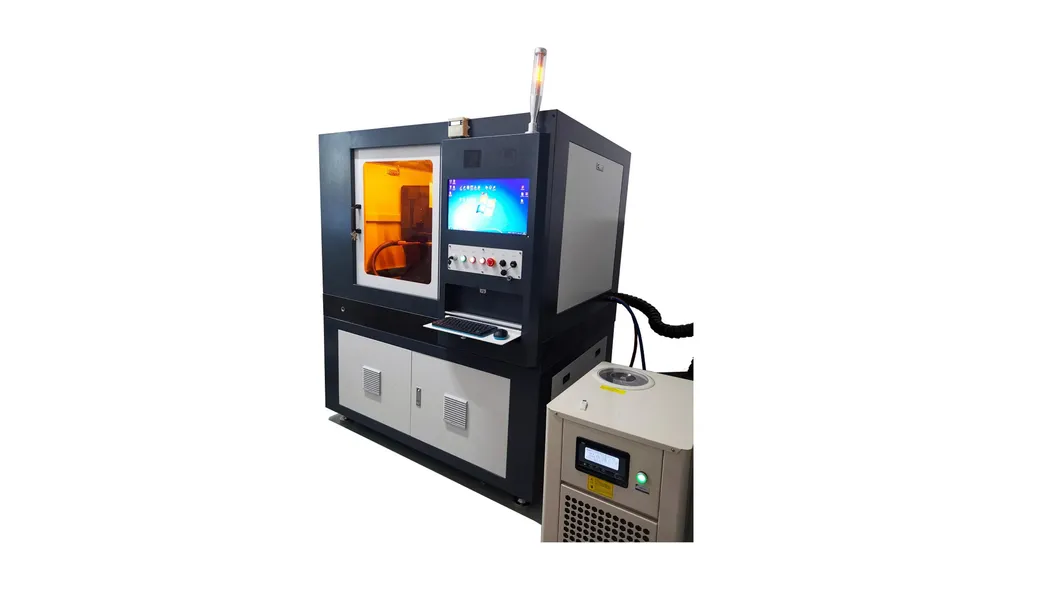

📷 Detailed Photos

❓ Frequently Asked Questions

Q: What types of materials can this ultrafast laser system process? A: The system is versatile and suitable for machining virtually all solid materials, including glass, organics, metals, ceramics, and even diamonds.

Q: What is the machining accuracy of the system? A: It achieves exceptional precision with machining accuracy better than ±2μm and local dimensional accuracy better than 2μm.

Q: Does the equipment support 3D structural machining? A: Yes, the Z-axis is electrically adjustable to accommodate various material thicknesses, allowing for fine machining of three-dimensional structures.

Q: What cooling and environment are required for operation? A: The system uses water cooling with a 2000W capacity. For optimal performance, it should operate in a constant temperature environment (25±0.5ºC) after a 30-minute preheating period.

Q: Which file formats are compatible with the control software? A: The control system supports two-dimensional and three-dimensional vector and image files, including DXF, AI, and PNG formats.

Q: How does the system ensure long-term stability? A: The machine features a heavy marble tabletop for vibration damping and includes on-machine power detection feedback to ensure consistent results over long operating hours.
