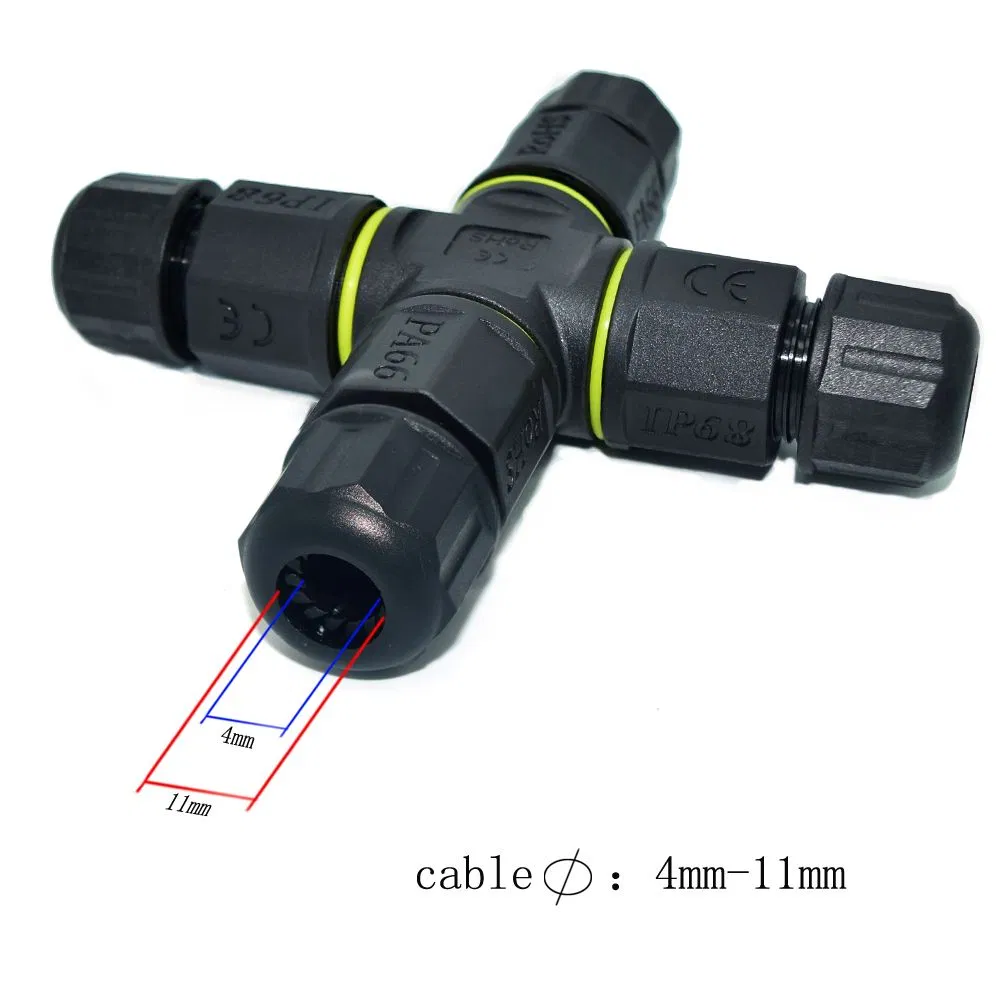

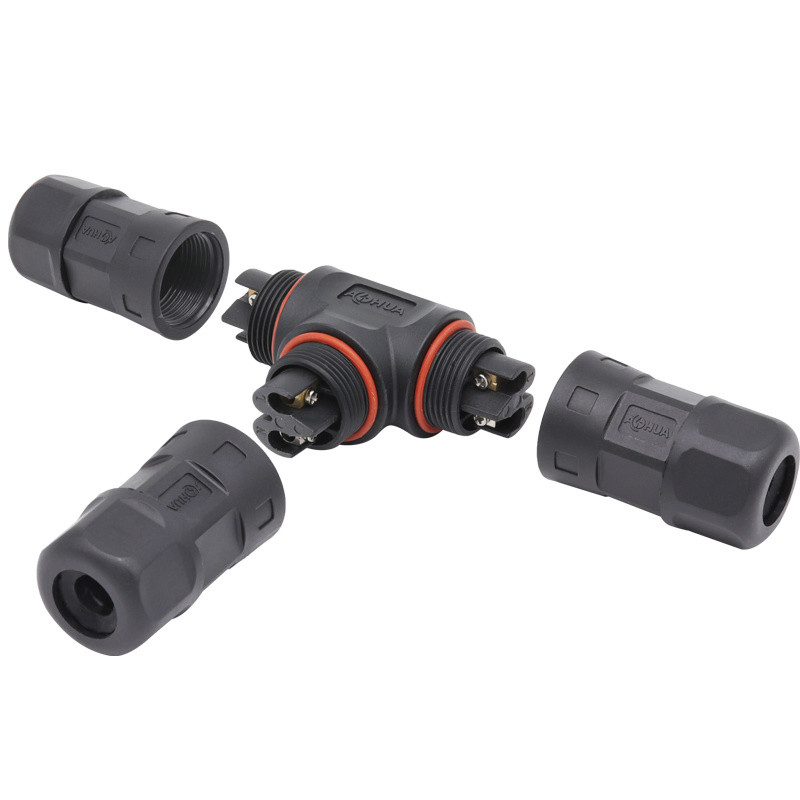

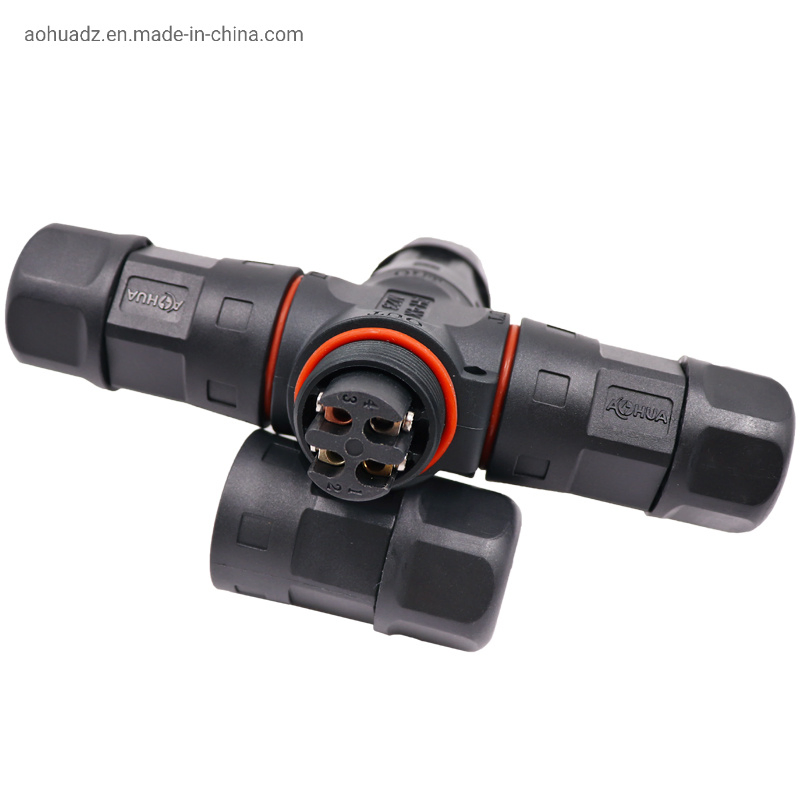

2pin 35A Power Cable Screw Fixing Connector 4 Way Waterproof Plug

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Number of Cores:
Single-Core
Ferrule Endface:
PC(UPC)
Shape:
Square
Fabrication Process:
Moulded
Application:
Fiber Distribution Frame
Light Source TYPE:
Laser
Connector Type:
ST
Test Voltage:
8000V(50Hz,1min)
Contact Resistance:
<0.35mΩ
Temperature Range:
-40℃ ~ +85℃
Product Highlights
  • Simple on-site processing.
  • Mating safety provided by keyed housings.
  • Multiple plugging and unplugging cycles.
  • Accommodates PV cable with different insulation diameters.
  • High voltage and high current carrying capacity.
  • TUV and CE approved.
  • Crimp connection.
  • IP68 strongly waterproof.
Insulation material: PPO Rated current: 50A (2.5mm²~6mm²), 70A (10mm²)
Test voltage: 8000V(50Hz,1min) Rated voltage: 1000V DC/1500V DC
Contact resistance: <0.35mΩ Degree of protection: IP68
Overvoltage category: CATIII/2 Flame class: UL94-V0
Safety class: II Contact material: Copper, tin plated
Power Cable Connector
Waterproof Plug

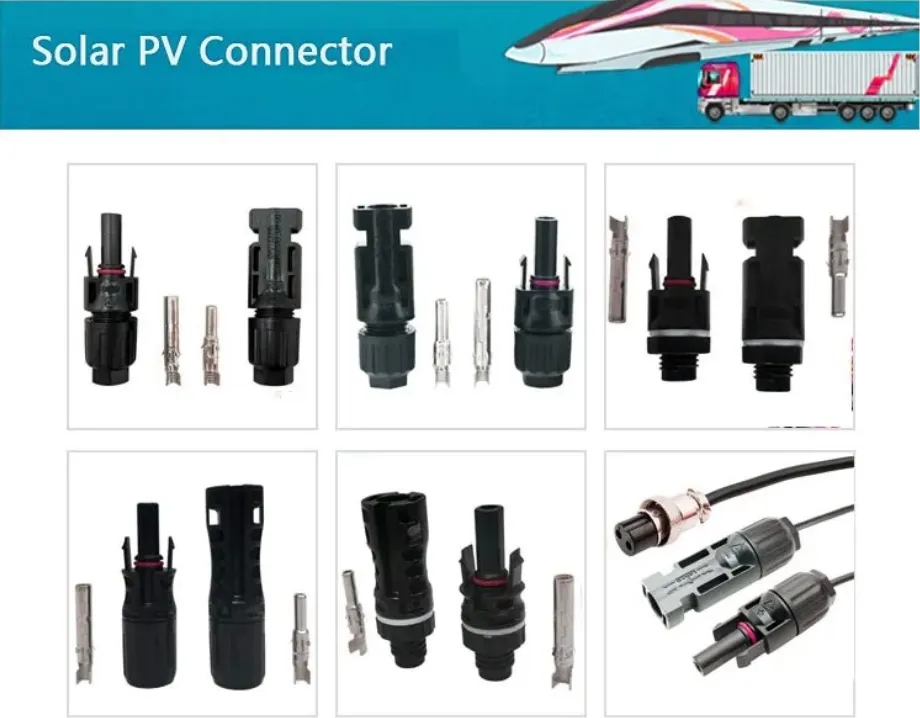

Connector Detail

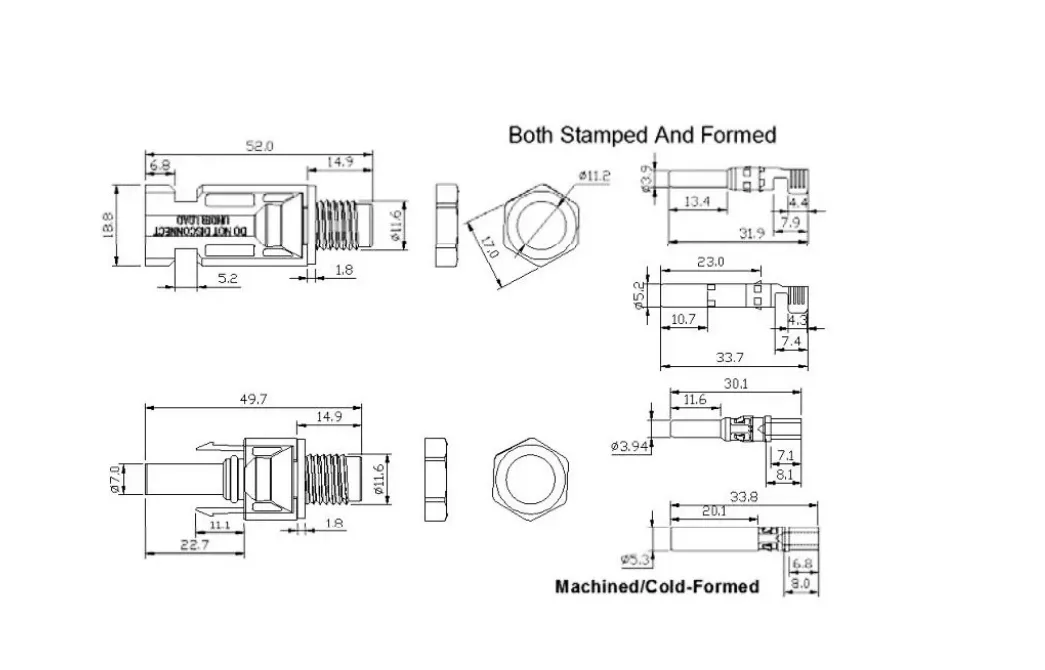

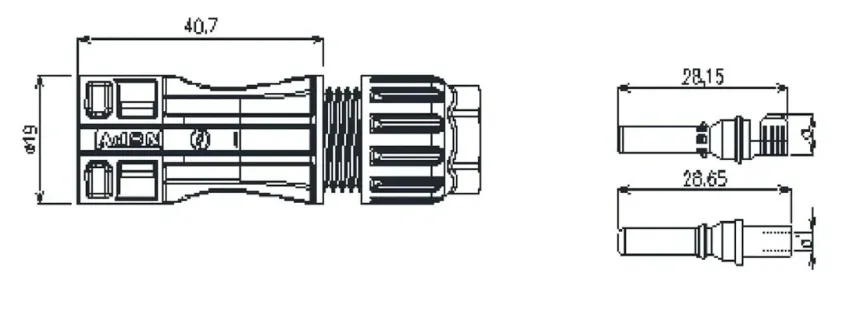

Technical Drawing

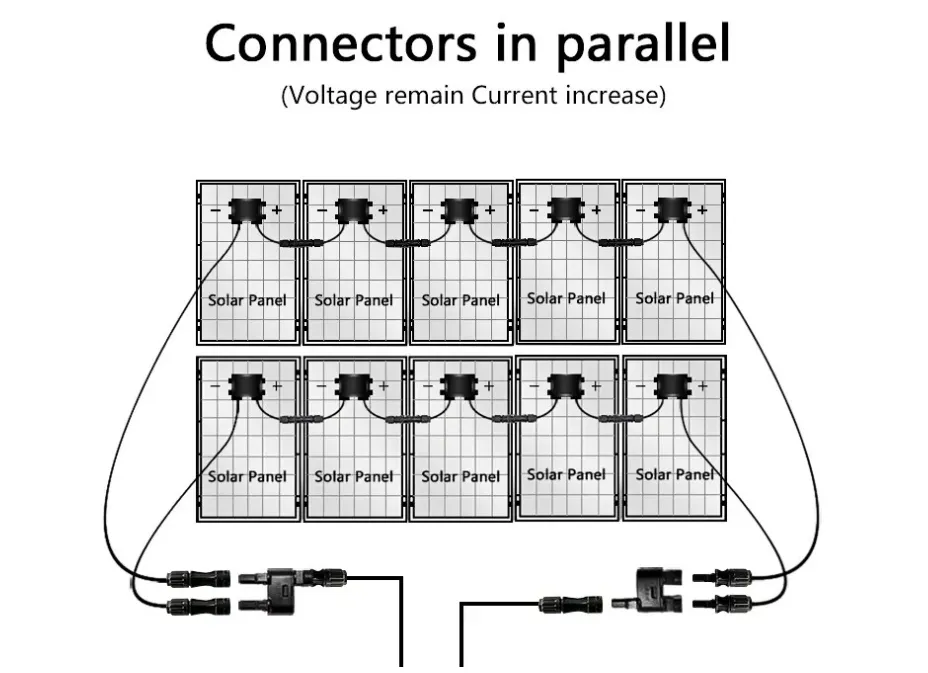

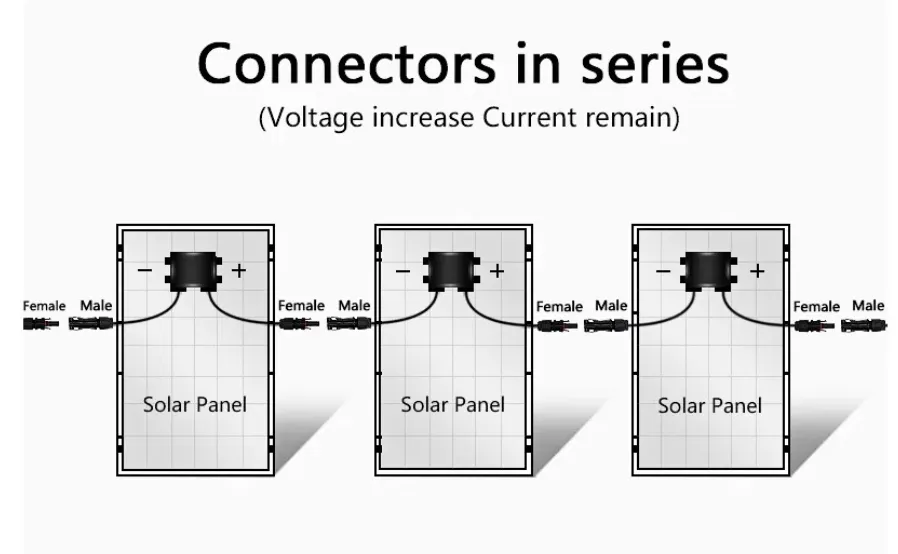

Application View

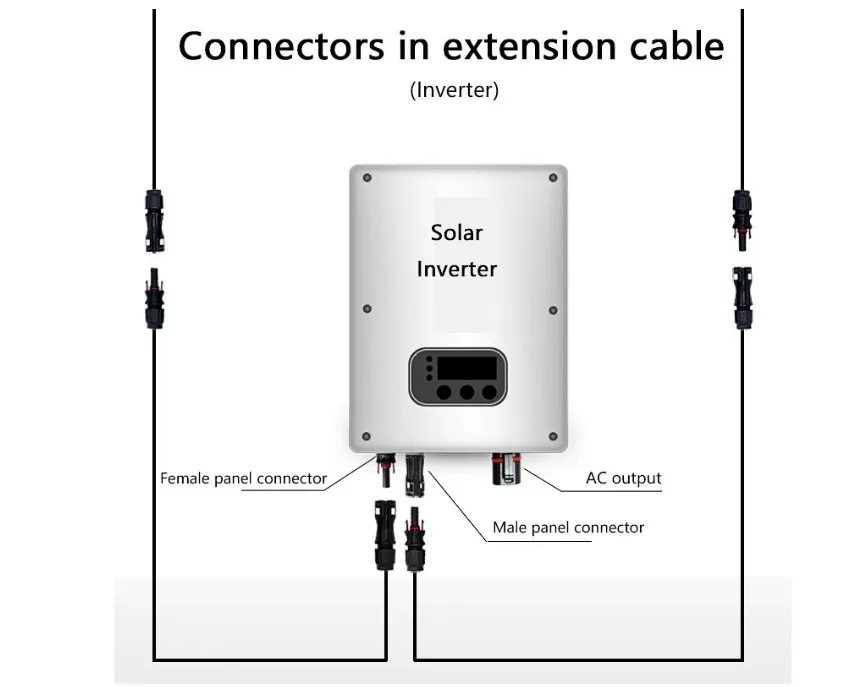

Waterproof Component
Installation
Company Profile

The company has strong technical production capabilities and possesses multiple production lines with leading domestic technical levels. We utilize surge protectors, lightning current impulse transmitters, transformer calibrators, and PD instruments to ensure the highest standards. Through cooperation with top foreign design institutes, the company introduces world-class equipment and imported high-quality PC materials to create products that lead the market.

We strictly implement the ISO9001:2000 international quality management system standard. With modern enterprise management and scientific research personnel, our products have passed national compulsory certification, export CE, TUV, and CB certifications. We have imported advanced inspection equipment and strictly control quality to serve customers in more than 30 countries and regions including the United States, UK, France, and Spain.

Factory Overview

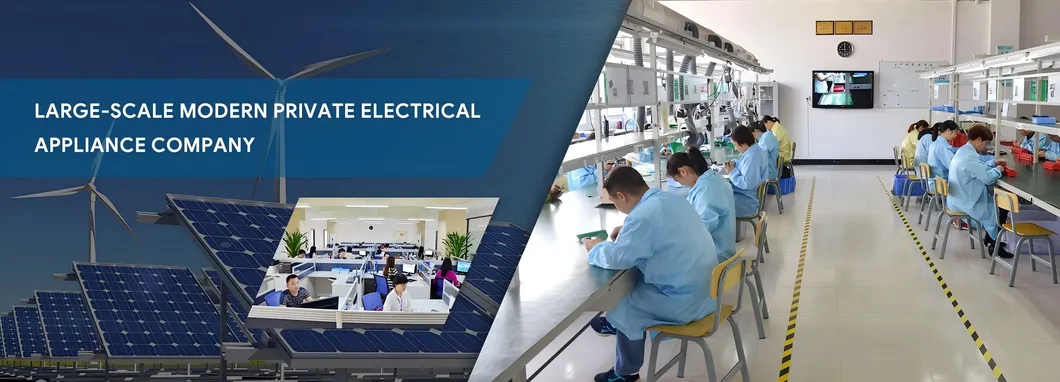

Production Line
Quality Control
Frequently Asked Questions
Is OEM or ODM service available?
Yes, we provide both OEM and ODM services. We have many different specifications and appearances for customers to choose from and can customize products according to your requirements.
Do you provide samples? Are they free?
We can offer one piece as a free sample to customers. However, the shipping cost needs to be covered by the customer.
What is the typical delivery time?
Delivery time depends on the purchase volume. For 300 pieces or less, it takes about 5 days; for larger orders up to 20,000 pieces, it may take 15 to 40 days.
What quality certifications do your products have?
We have established a complete quality management system and have passed ISO9001, ISO14001, CQC, CE, TUV, CB, and RoHS certifications.
What is the minimum order quantity (MOQ)?
The MOQ depends on the product packaging. Our standard minimum order quantity is 100 pieces.
Can the products withstand extreme weather conditions?
Yes, our surge protectors and connectors are designed to operate in environments ranging from -40ºC to 80ºC, making them suitable for both cold and hot weather.
