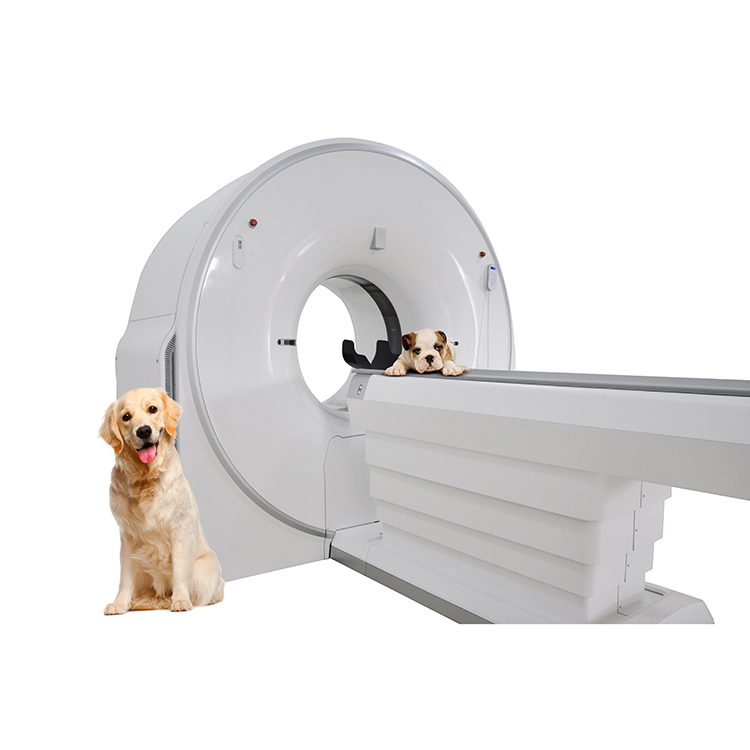

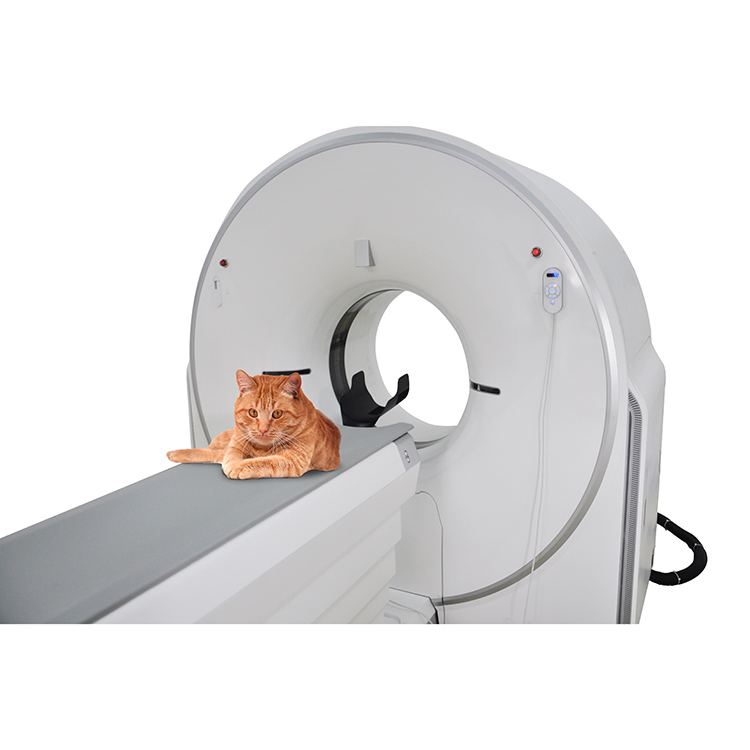

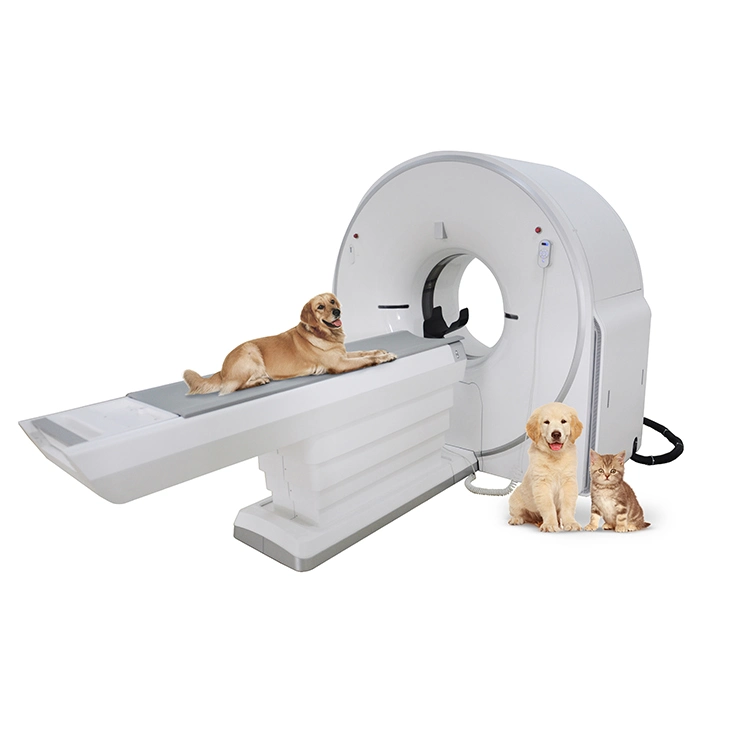

YSCT-32D VET Veterinary Equipment 32 Slice CT System for Animals Hospital
The YSCT-32D VET features a 16 detector-row configuration providing 32-slice imaging capabilities, specifically designed for high-precision veterinary diagnostics.
| No. | Part Name | Model | Specifications |
|---|---|---|---|
| 1 | Scanning frame | SM100 | Aperture: 700mm±10mm; Rotation speed: 0.75s-2.0s; FOV: 430mm |
| 2 | HV generator | CT70PN32X5610 | Tube voltage: 70~140kV; Tube current: 10~300mA; Power: 32kW |
| 3 | Collimator | CMT-003 | Half value layer: ≥4.6mmAl; Al thickness: 2.3mmAl |
| 4 | X-ray tube | GS-30722 / B-240H | Nominal voltage: 140kV; Anode heat capacity: 2MHU; Rotating anode |
| 5 | Detector | DET-003 | GOS crystal; Matrix: 704×16; Layer thickness: 1.25mm - 10.0mm |
| 6 | Diagnostic bed | ZC300 | Z-axis accuracy: ≤±1mm; Speed: 0~150mm/s; Max load: 205kg |
| 7 | Laser | M63AXSAXX-XX | Accuracy: ±1mm; Wavelength: 600~700nm |
| 8 | Console | CZ100 / KH100 | Exposure & Bed control; 24" LCD; Min 8GB RAM / 850GB Storage |
| 9 | Software | ScintVue | Version 1.0; 2D/3D image processing; DICOM printing |
