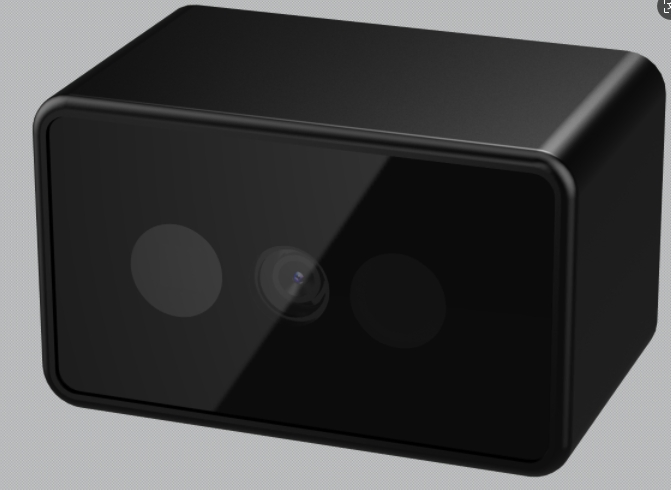

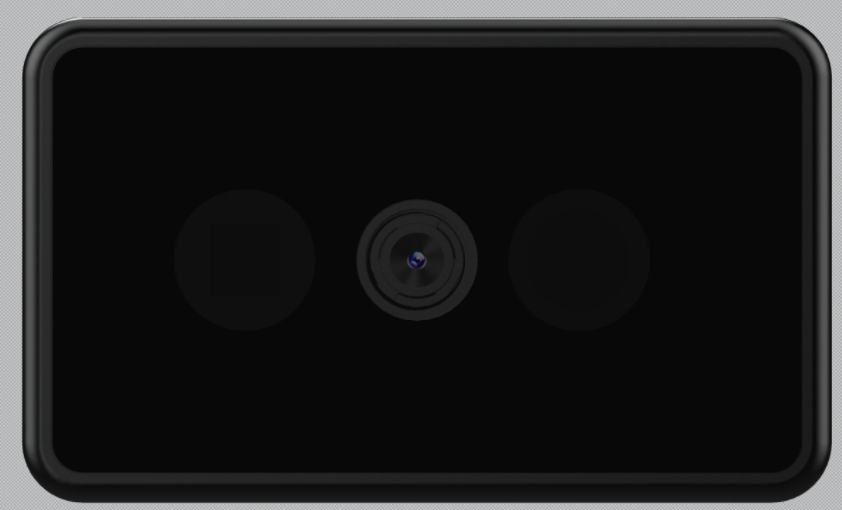

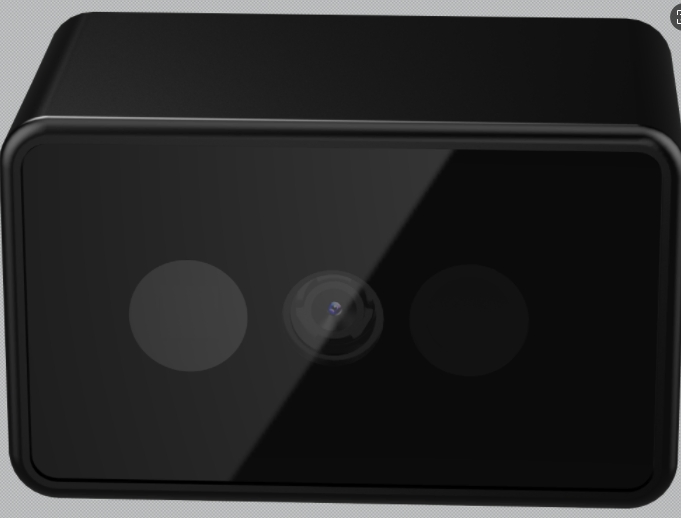

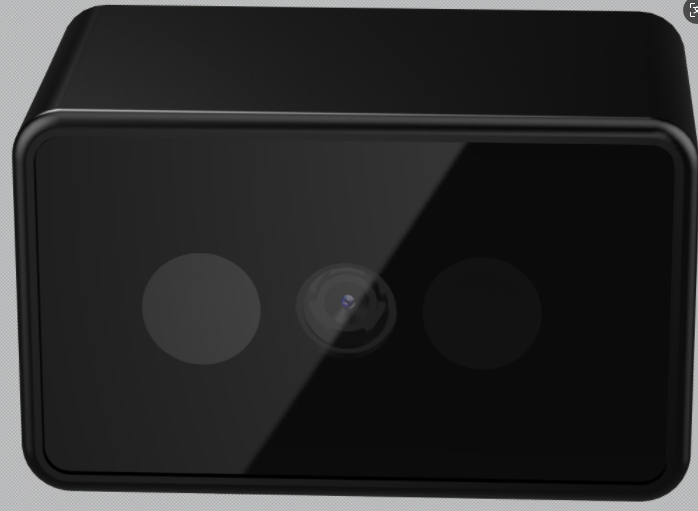

Low-Latency Depth RGB Module Metasense 605 with Imu, Ideal for Real-Time Robotic Control Systems

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊 Basic Info.

Model NO.	Metasense605	Color	Color
HDMI Format	1080P	Application	Computer
Feature	Depth Camera	Certification	CE, FCC, CCC, RoHS, EMI/EMC
Interface Type	VGA	Horizontal Resolution	540tvl
Screen	Flat Screen	Scanning	Line by Line Scan
Material	CRT	Sensor	CMOS
Operating Environment	Indoor & Outdoor	Depth Technology	High-Precision Structured Light Technology
Dimensions	40.024.024.7mm	Weight	50g
Baseline	16.5mm	Laser Wavelength	940nm
IR Module Filter	Near Infrared	Interface	USB 3.0 Type C / GMSL2
Depth Working Range	7-50cm	Depth Accuracy	≤1%
Depth Res @Frame Rate	up to: 640X400 @180fps	Field of View (FOV)	H 77° X V 55° (Depth) / H 75° X V 60 (RGB)
Origin	China	HS Code	8525891200

📦 Packaging & Delivery

Package Size: 20.00cm * 10.00cm * 10.00cm

Package Gross Weight: 1.000kg

Transport Package: Carton Box

📝 Product Description

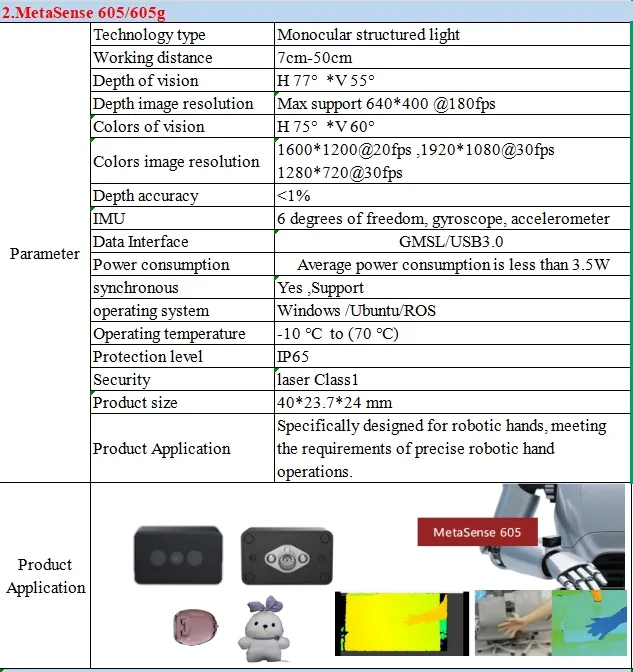

Model	MetaSense 605 (USB 3.0) / MetaSense 605g (GMSL2)
Laser Wavelength	940 nm (Class 1, Eye-Safe)
Depth Range	7 cm - 50 cm (Optimized for close-range tasks)
RGB Sensor	Global Shutter CMOS
Synchronization	Hardware GPIO sync support for multi-camera setups
IMU	Integrated 6-DoF IMU (3-axis gyroscope + 3-axis accelerometer)
Operating Temperature	-25°C to +70°C
Ingress Protection	IP65 (Dust-tight and water-resistant)
Compatibility	Windows 10/11, Ubuntu 18.04/20.04/22.04, ROS / ROS 2

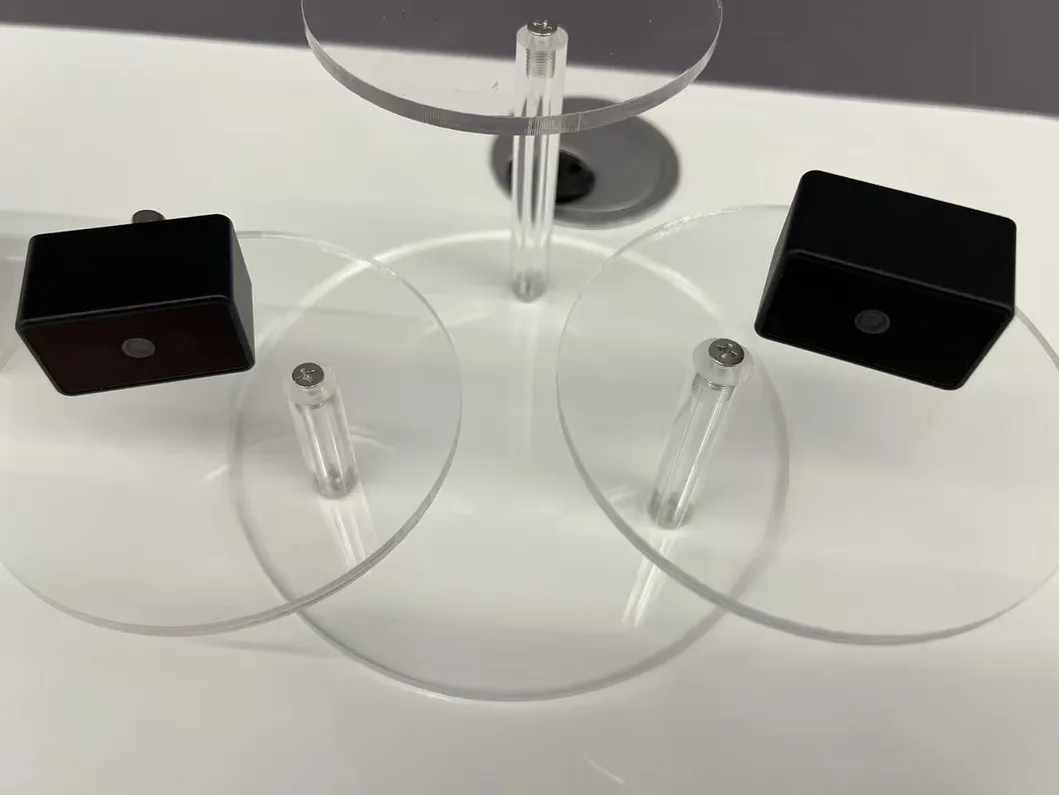

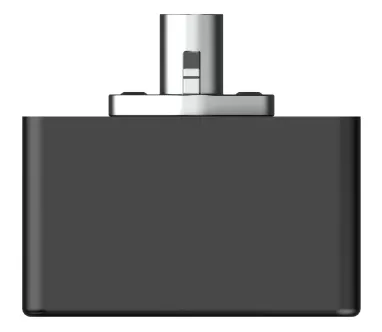

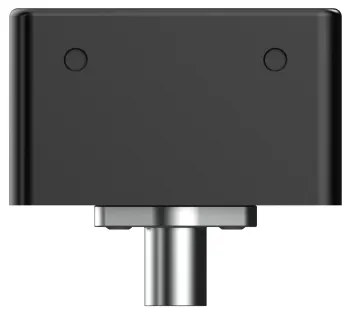

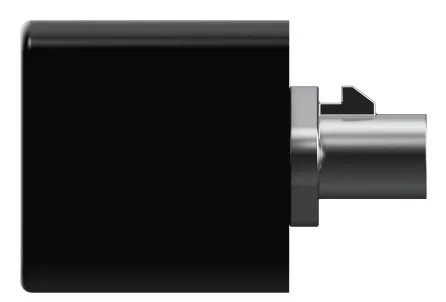

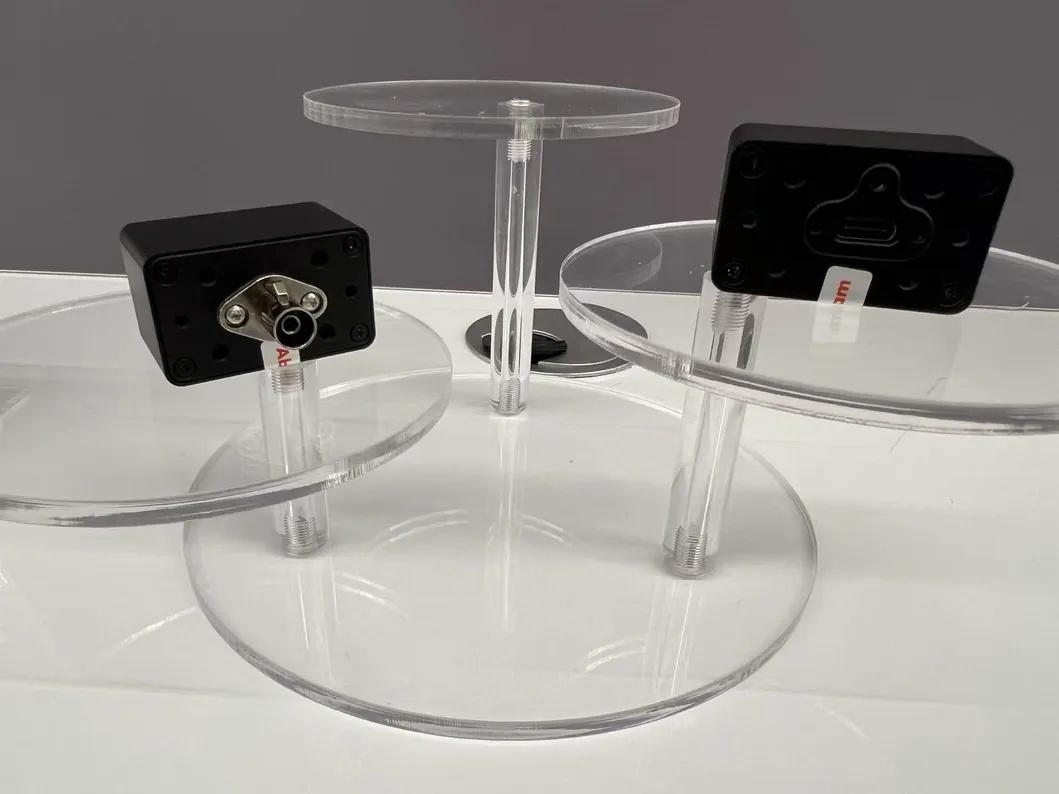

🖼️ Product Showcase

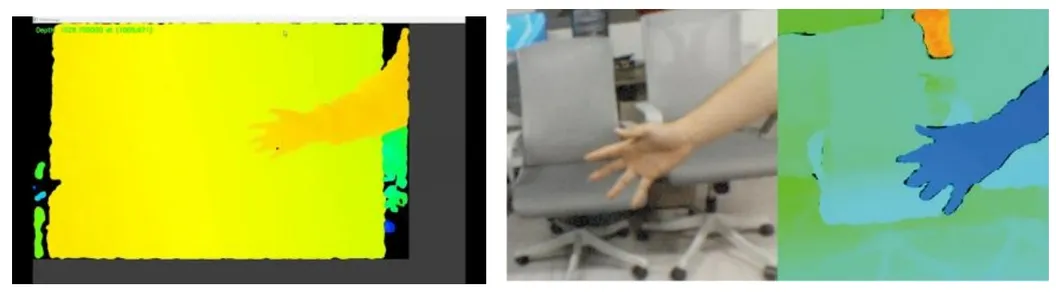

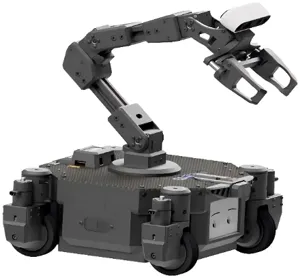

🔌 Appliance & Applications

💡 Industry Coverage & Solutions

Comprehensive 3D vision matrix for various needs:

MetaSense Series: Active/passive stereo vision & structured light cameras.
Argus Series: All-in-one robot vision with onboard compute (up to 10 TOPS).
Industrial Series (Super & Nano): High-accuracy (±0.15mm) for bin picking and welding.
Smart Consumer Modules: Miniature solutions for smart refrigerators, locks, and appliances.

Native support for SLAM, 3D reconstruction, and obstacle avoidance across AMRs, quadrupeds, and industrial arms.

❓ Frequently Asked Questions

What is the optimal working range for the MetaSense 605?

The MetaSense 605 is optimized for close-range tasks with a depth working range of 7 cm to 50 cm.

What interfaces does this camera module support?

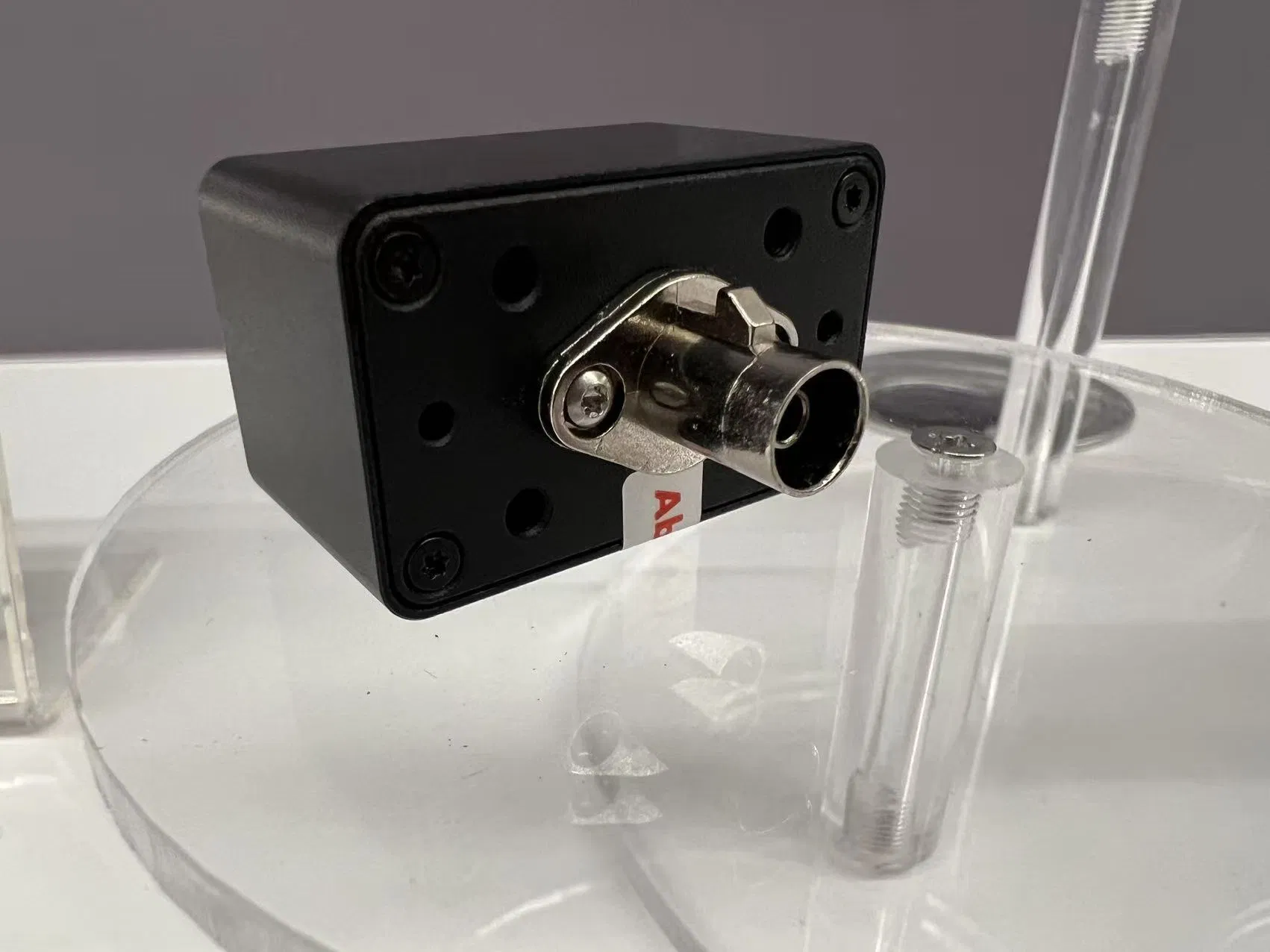

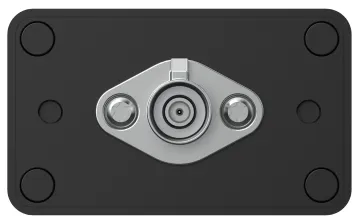

The series offers two main versions: MetaSense 605 via USB 3.0 Type-C and MetaSense 605g via GMSL2 over FAKRA-Z (supporting up to 15m cables).

Is the device suitable for harsh industrial environments?

Yes, it features IP65 ingress protection (dust-tight and water-resistant) and operates in a wide temperature range from -25°C to +70°C.

Does the MetaSense 605 include motion tracking sensors?

Yes, it features an integrated 6-DoF IMU (3-axis gyroscope and 3-axis accelerometer) with hardware timestamping for precise motion data.

Which operating systems and frameworks are compatible?

It supports Windows 10/11, Ubuntu (18.04, 20.04, 22.04), and provides official drivers for ROS and ROS 2.

Can it be used for multi-camera synchronization?

Yes, the module includes hardware GPIO sync support, making it ideal for multi-camera setups in complex robotic systems.
