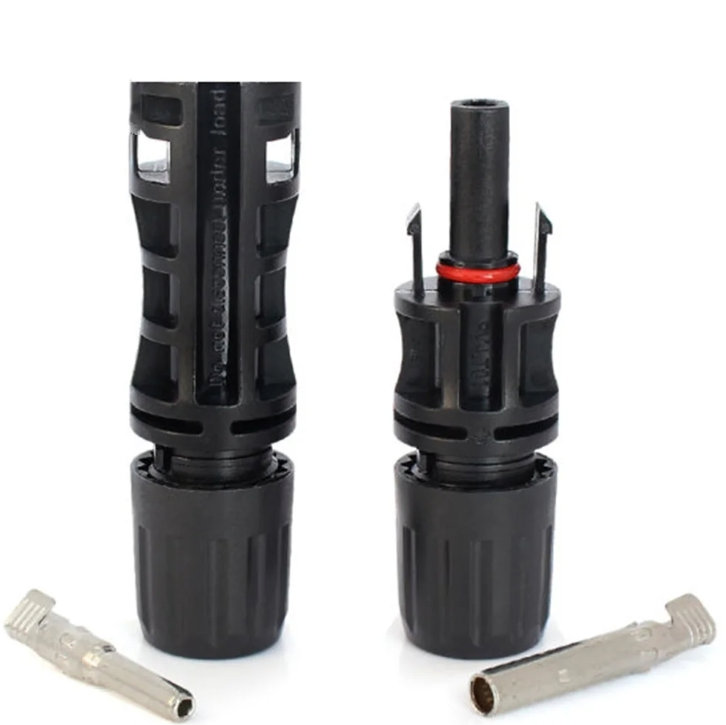

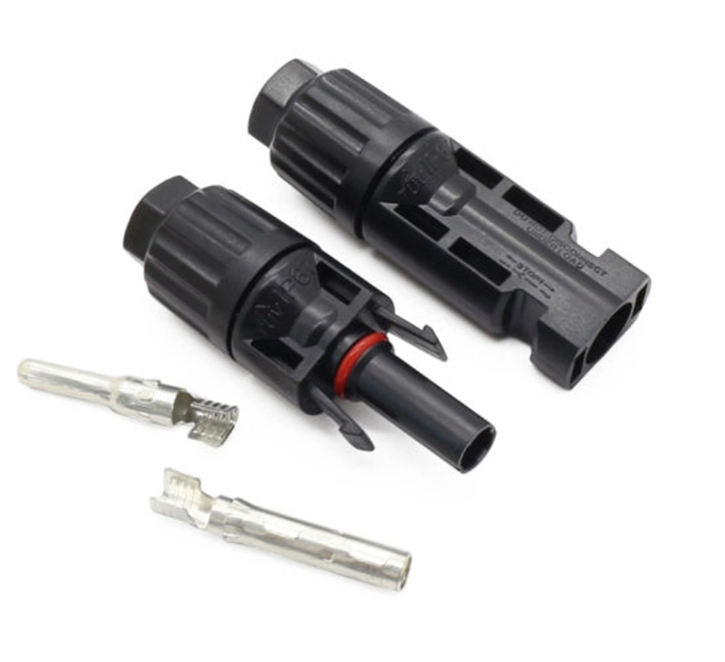

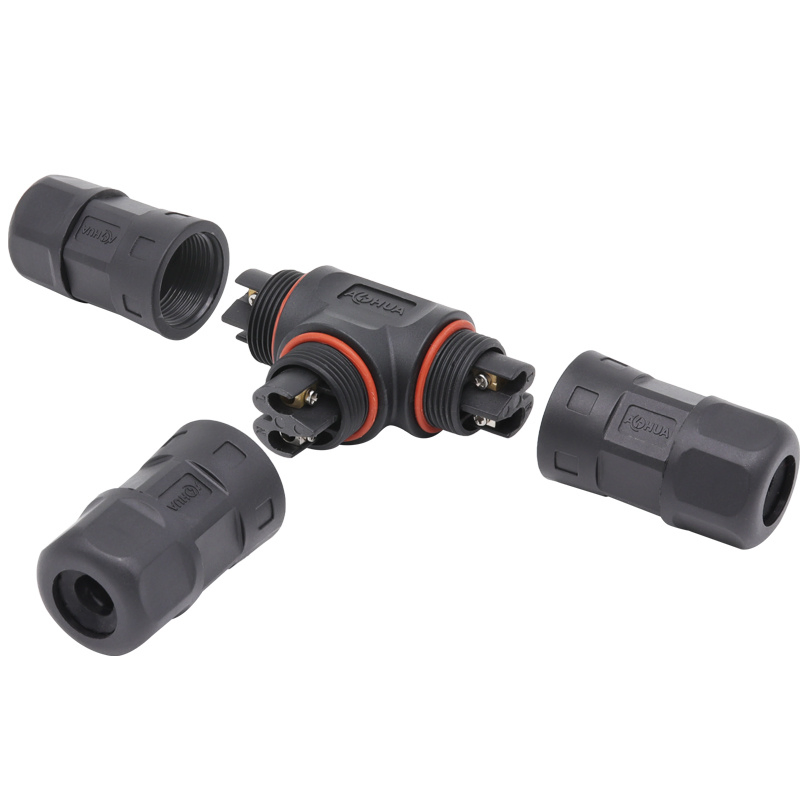

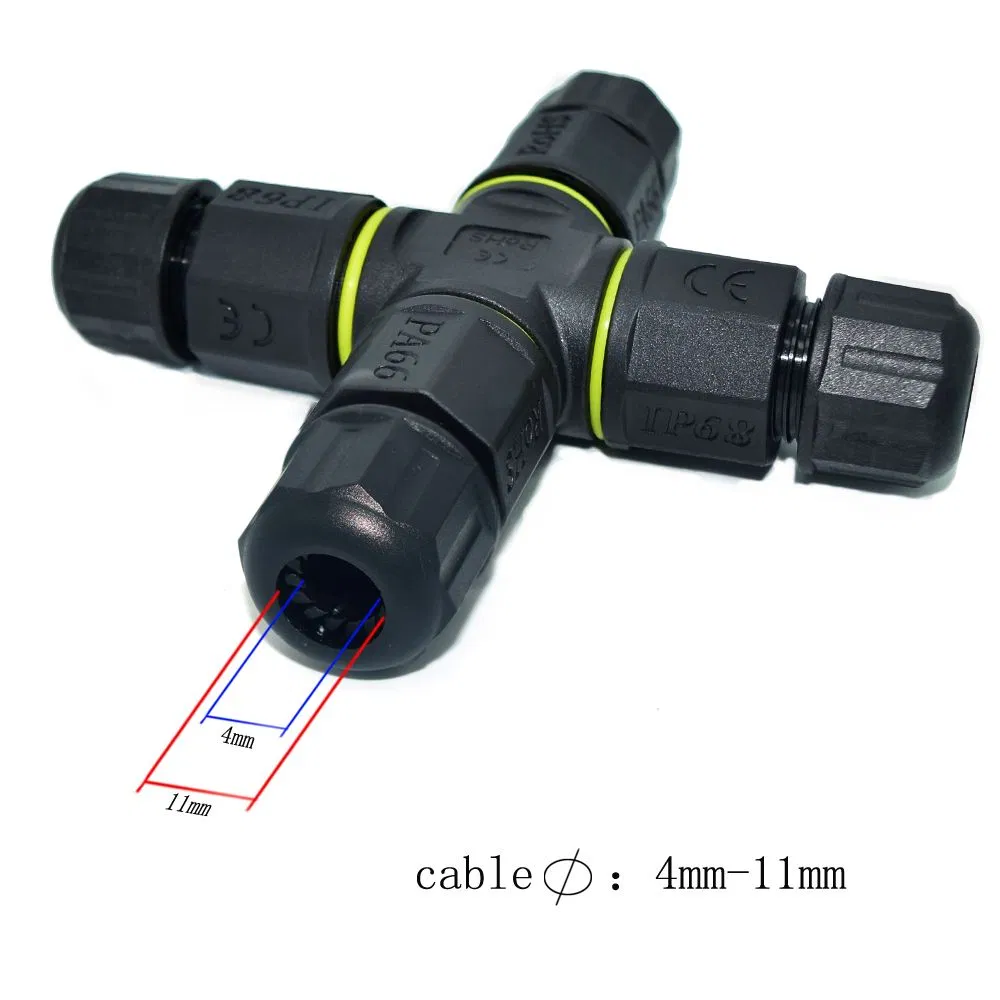

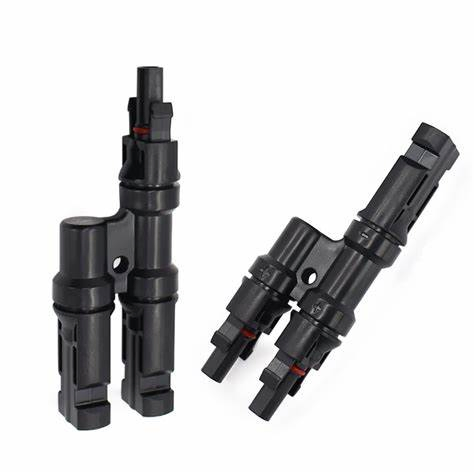

4 Way Wire Splitter Waterproof Cable Connector 2 3pin

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Information

Number of Cores:Single-Core
Ferrule Endface:PC(UPC)
Shape:Square
Fabrication Process:Moulded
Application:Fiber Distribution Frame
Light Source TYPE:Laser
Connector Type:ST
Test Voltage:8000V(50Hz,1min)
Contact Resistance:<0.35mΩ
Temperature Range:-40℃ ~ +85℃
Origin:China
P

Product Description

Simple on-site processing.
Mating safety provided by keyed housings.
Multiple plugging and unplugging cycles.
Accommodates PV cable with different insulation diameters.
High voltage and high current carrying capacity.
TUV and CE approved.
Crimp connection.
IP68 strongly waterproof.
Insulation material PPO Rated current 50A(2.5mm2~6mm2), 70A(10mm2)
Test voltage 8000V(50Hz,1min) Rated voltage 1000V DC / 1500V DC
Contact resistance <0.35mΩ Degree of protection IP68
Overvoltage category CATIII/2 Flame class UL94-V0
Safety class II Contact material Copper, tin plated
Temperature range -40ºC ~ +85ºC Suitable cable 2.5/4/6mm2, 14/12/10AWG
Connecting System Crimp connection Insertion/Withdrawal force ≤50N / ≥50N
C

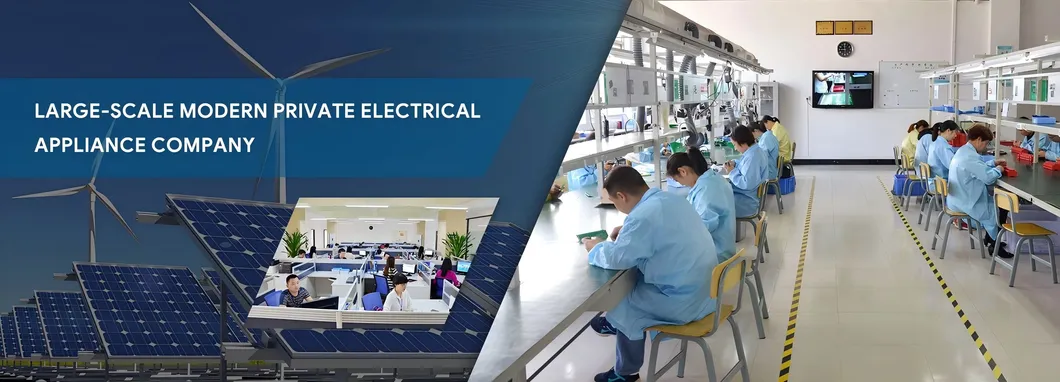

About Our Manufacturing

Our company has strong technical production capabilities and possesses multiple production lines with leading domestic technical levels, as well as surge protectors, lightning current impulse transmitters, transformer calibrators, pressure gauges, PD instruments, etc. Through cooperation with top foreign design institutes, the company introduces world-class equipment, supplemented by imported high-quality PC materials and exquisite manufacturing industry, to create products that are close to users and lead the market.

We strictly implement the ISO9001:2000 international quality management system standard and strive to enhance the brand awareness and reputation of high-quality products and services. With more than 12 years of history, our products have passed ISO9000 system certification, national compulsory certification measurement MC, and export CE. We have established a complete quality management, supply chain and after-sales service system, serving more than 30 countries and regions including the United States, UK, France, and Spain.

Quality Certification
International Presence
?

Frequently Asked Questions

Is OEM service acceptable?
Yes, we can provide both OEM and ODM services. we have many different specifications and appearances for customers to choose from.
How long is your delivery time?
Delivery time depends on purchase volume. Generally, 300 pieces or less take 5 days; 300 to 2,000 pieces take 7 to 15 days; and 2,000 to 20,000 pieces take 15 to 40 days.
What certificates do your devices have?
We have successively passed ISO9001, ISO14001, OHSAS18001, CQC certification, CE certification, TUV certification, CB certification and Rohs certification.
Do you provide samples? Is it free or paid?
We can offer one free sample to customers. However, the shipping cost needs to be borne by the customer.
What is your minimum order quantity (MOQ)?
Our MOQ is typically 100 pieces, depending on the specific product packaging.
Can your products be installed in extreme weather?
The operating environment temperature range of our products is -40ºC to 80ºC, making them suitable for both cold and hot climates.
