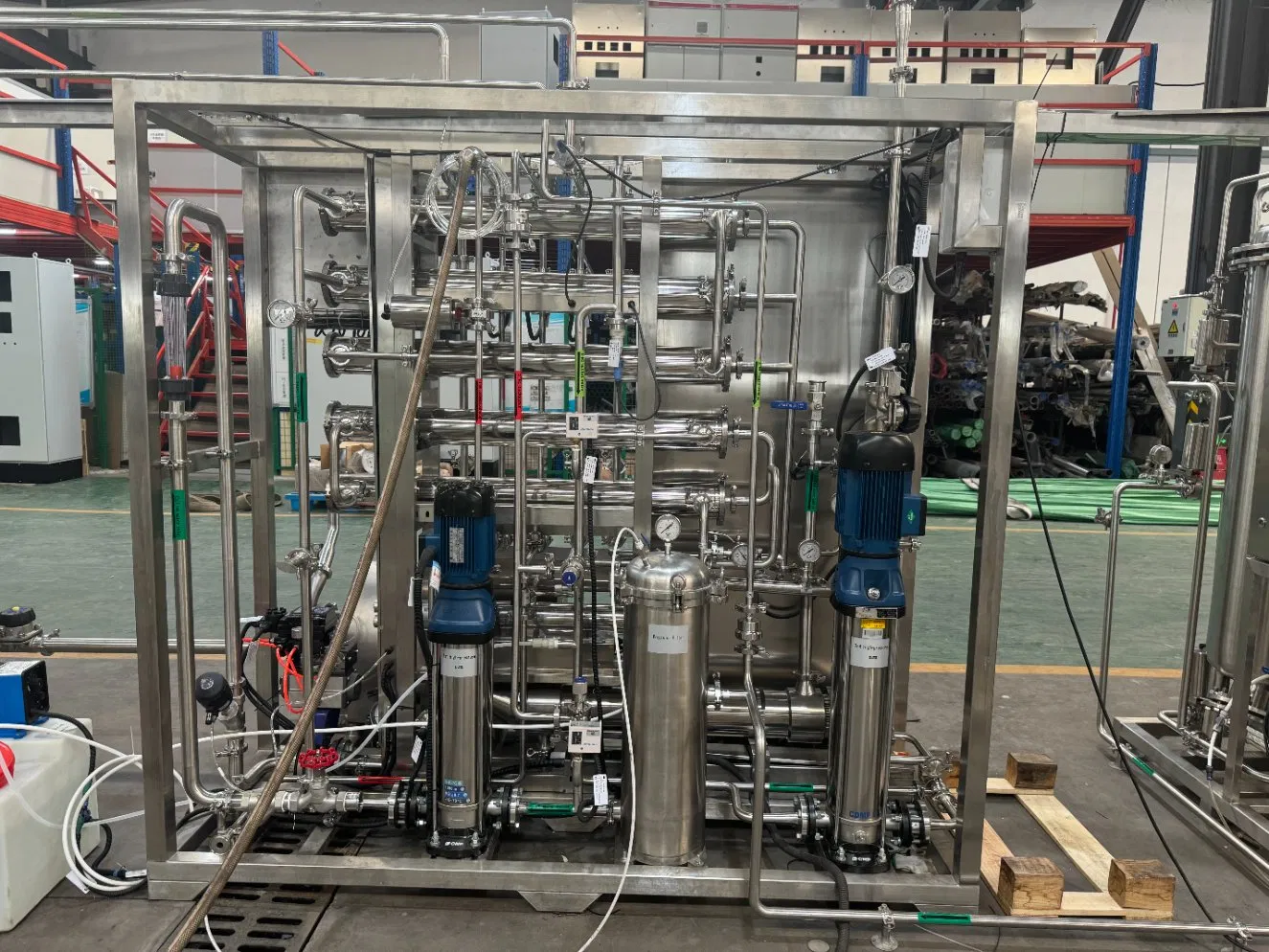

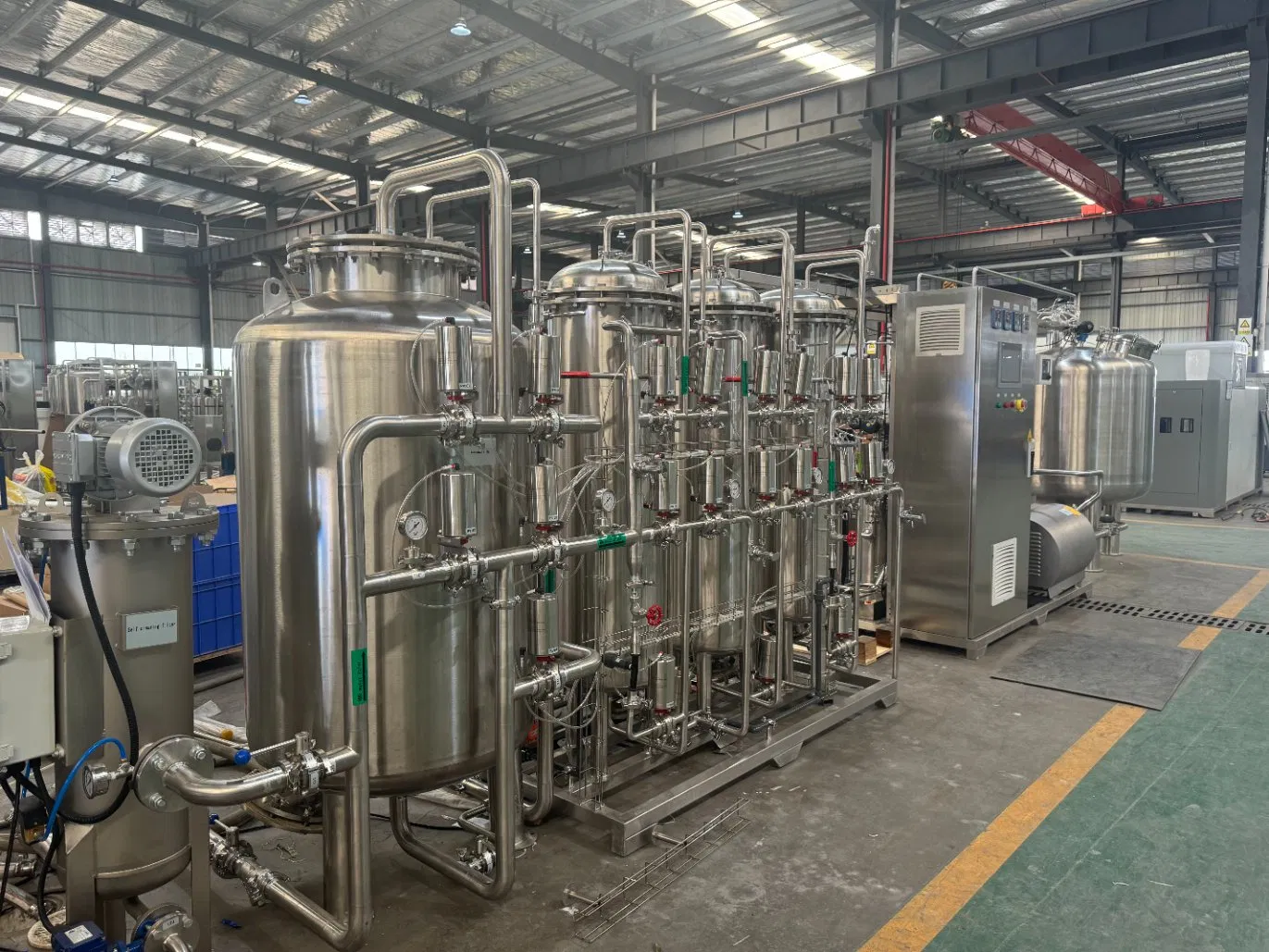

500lph Pharmaceutical Purified Water System Reverse Osmosis Machine Pw Water Equipment GMP /USP Certificates

Customization:	Available
Certification:	ISO9001, CE, ISO14001
Salt Rejection Rate:	99.5%

■ Basic Info.

Model NO.

MOLPW

Application

Solid Preparations, Liquid Preparations, Sterile P

Capacity

3000L/H

Power Supply

380V, 50Hz or Customize

Technology

Double Stage RO +EDI

Disinfection

Heat Disinfection

Standard

GMP, USP, FDA

Warranty

1 Year

Origin

China

Package Size

500.00cm * 150.00cm * 200.00cm

Gross Weight

1000.000kg

■ Product Description

Pharmaceutical purified water system is designed to comply with GMP or USP standards.

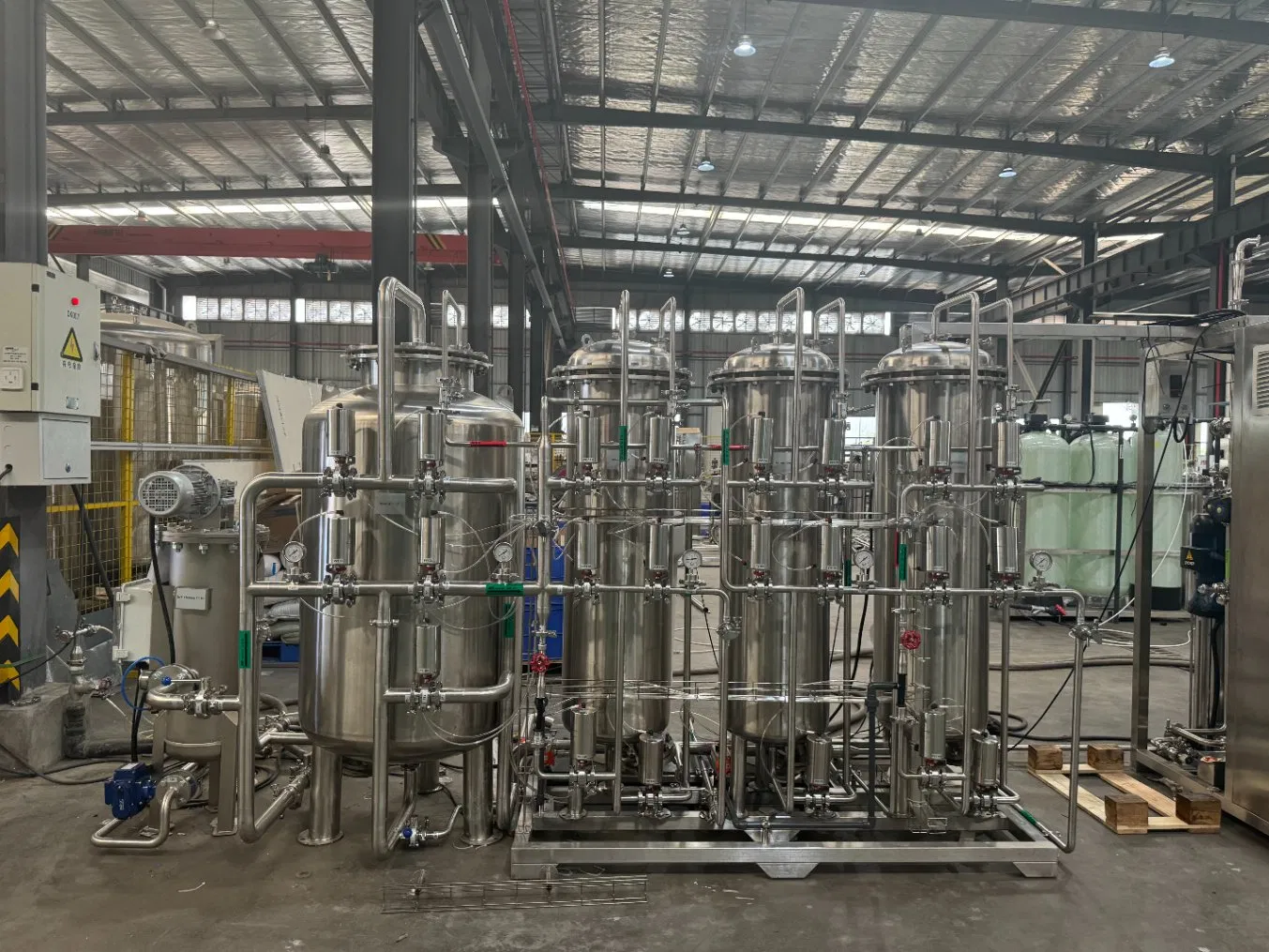

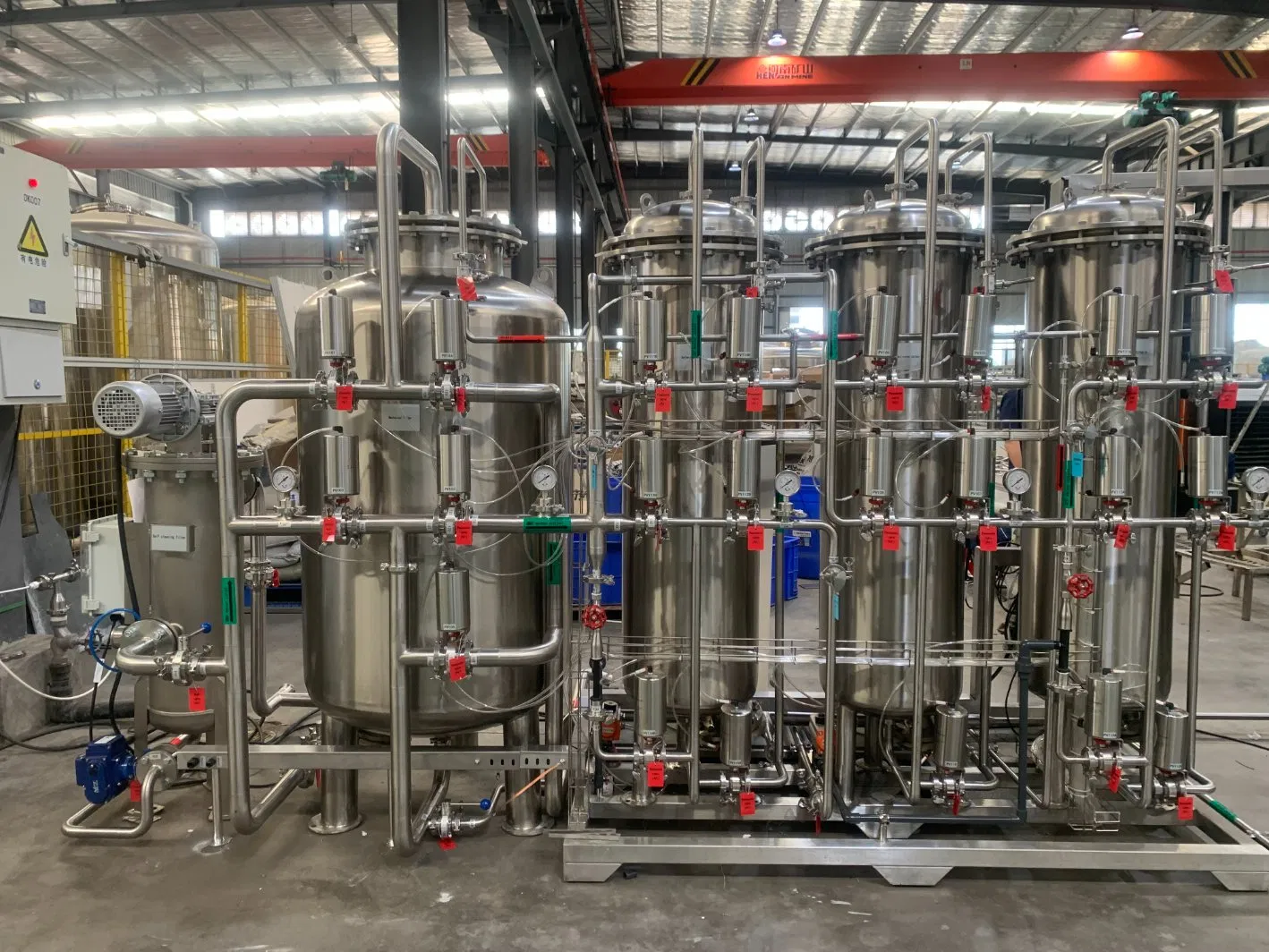

● Raw water treatment system: Pasteurization is applied to the activated carbon filter. Three-stage pretreatment ensures the removal of large particles, impurities, and colored substances in the raw water, meeting the feed water requirements for reverse osmosis.

● Reverse osmosis + EDI system: Energy-saving design. Concentrated water from the first-level RO can be recycled back to the raw water tank (recovery rate ≤30%). EDI concentrated water is returned to the RO feed water to increase total recovery.

● Water quality monitoring points: Conductivity of RO product water (≤5 μS/cm), EDI produced water (≤1μS/cm, 25℃), and online TOC monitoring (≤500 ppb) in the purified water tank.

■ Technical Parameters

TECHNICAL PARAMETERS
Product Name	Pharmaceutical Purified Water Systems
System Type	Fully Automated Purified Water Generation System
Purification Technology	Double stage RO + EDI
Material	SS304 / SS316L
Core Components	Pressure Vessel, High-Pressure Pump, PLC Controller, EDI Module
Control System	PLC + HMI (Automatic and Manual Mode)
Voltage	220V / 380V (Customizable)
Weight	600 kg
Certification	ISO 9001:2008; ISO 14001:2004; ISO 45001:2018; CE

■ Functional Advantages

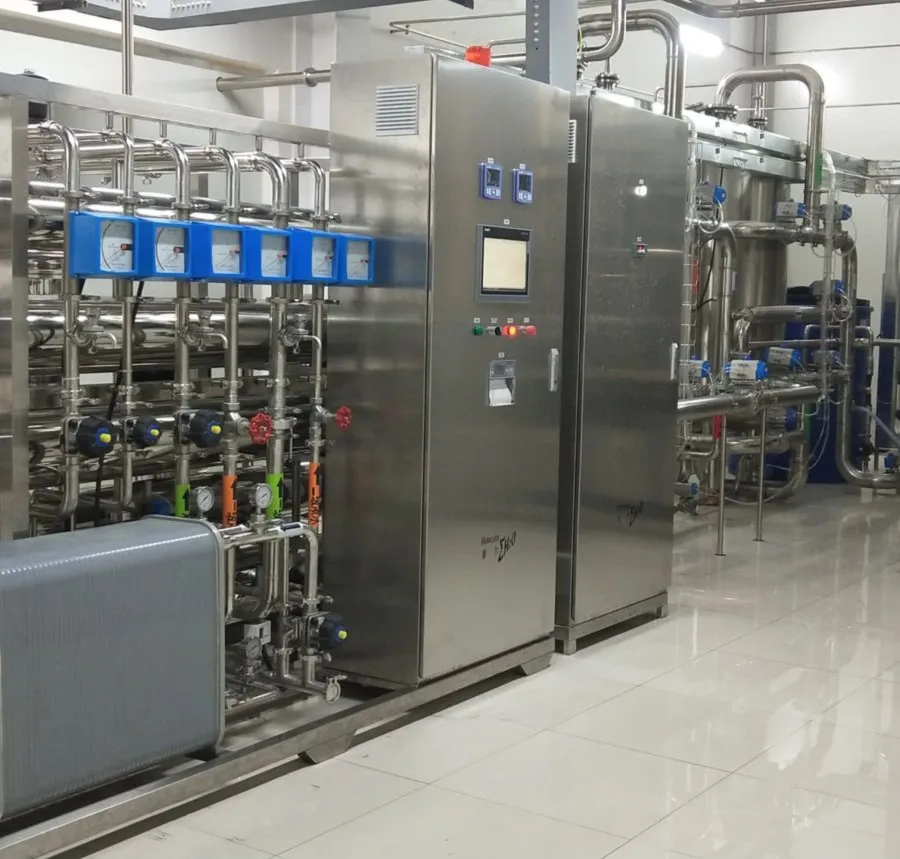

ADVANCED PURIFICATION TECHNOLOGY

Integrates cutting-edge Reverse Osmosis (RO) and Electrodeionization (EDI) technology to consistently produce ultra-pure water that exceeds pharmacopoeia requirements with a built-in safety margin.

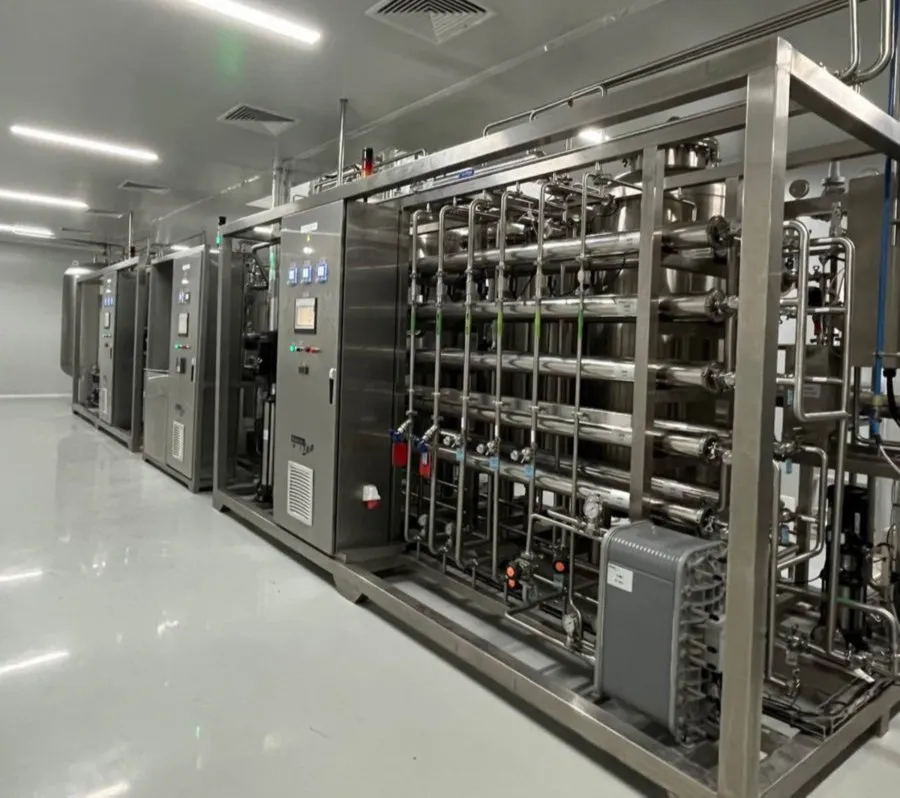

INTELLIGENT AUTOMATION

Equipped with a PLC+HMI control system, featuring real-time monitoring and intelligent algorithms that optimize operational parameters to maximize efficiency and minimize downtime.

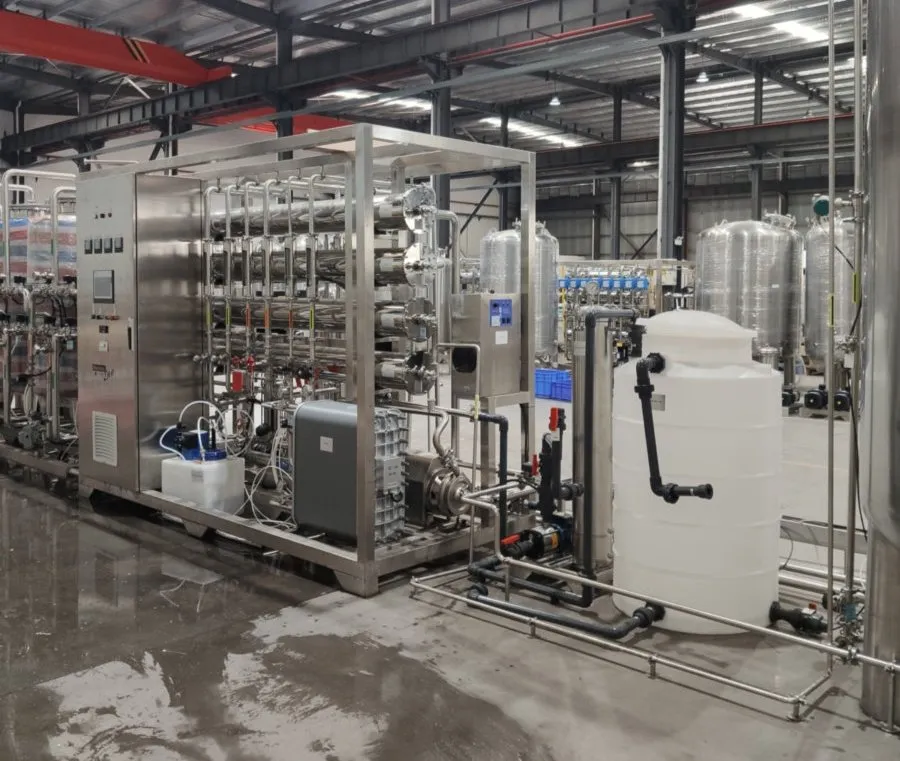

MODULAR & SANITARY DESIGN

Modular construction simplifies installation and maintenance. Components are pharmaceutical-grade stainless steel with dead-leg-free design to prevent microbial growth.

■ Core Applications

Solid Dosage Manufacturing
Tablets, capsules, and granules dissolution and coating.

Sterile Preparation
Pre-treatment for WFI systems and injectable supports.

API Production
Chemical reactions, washing steps, and solvent preparation.

Laboratory & QC
Solution preparation, glassware rinsing, and analytical testing.

■ Facility Showcase

■ FAQ

Q1: Is your system compliant with international regulatory requirements?

A: Yes, it is fully compliant with FDA, GMP, and WHO standards. We provide a complete DQ/IQ/OQ/PQ validation document package to ensure compliance with local certifications.

Q2: What documents are provided after shipment?

A: We provide all original documents including Packing List, Commercial Invoice, B/L, and specific certificates as required by the client.

Q3: Can the water indicators stably meet Pharmacopoeia standards?

A: Yes, stable water production is guaranteed to meet USP, EP, JP, and Chinese Pharmacopoeia pharmaceutical water standards.

Q4: Do you arrange shipment for large scale water treatment equipment?

A: Yes, for CFR or CIF terms, we arrange shipment. For FOB terms, clients can arrange shipment through their own forwarders.

Q5: What installation and training services are available?

A: We provide on-site or remote guidance for installation and commissioning, along with operation and maintenance training in English.

Q6: What are the energy-saving features of the system?

A: Smart operational optimization reduces energy consumption by up to 30% compared to conventional systems, utilizing RO recovery and efficient EDI modules.
