Complete Biomass Pellet Production System

Still deciding? Get samples of $ !
Request Sample

Product Description

Technical Specifications
Model NO.
JN850
Automatic Grade
Automatic
Controlling Mode
CNC
Energy Saving
Energy Saving
Certification
CE, ISO, FDA
Warranty
1 Year
Condition
New
After-sales Service
24-Hour Online Service
Pellet Size
4-8mm
Yield
3-4t/H
Power
250kw
Production Capacity
6000sets/Month
Product Overview

Our premier product, the Biomass Wood Pellet Machine, showcases our expertise in designing and manufacturing state-of-the-art biomass pellet machinery and comprehensive production lines. Our advanced technology ensures seamless integration of all auxiliary equipment. Applications of Wood Pellet Production Line: This versatile system primarily processes agro-forestry residues, including straw, cotton stalks, rice husk, peanut shell, bamboo, empty fruit branches, pulverized coal, and waste paper.

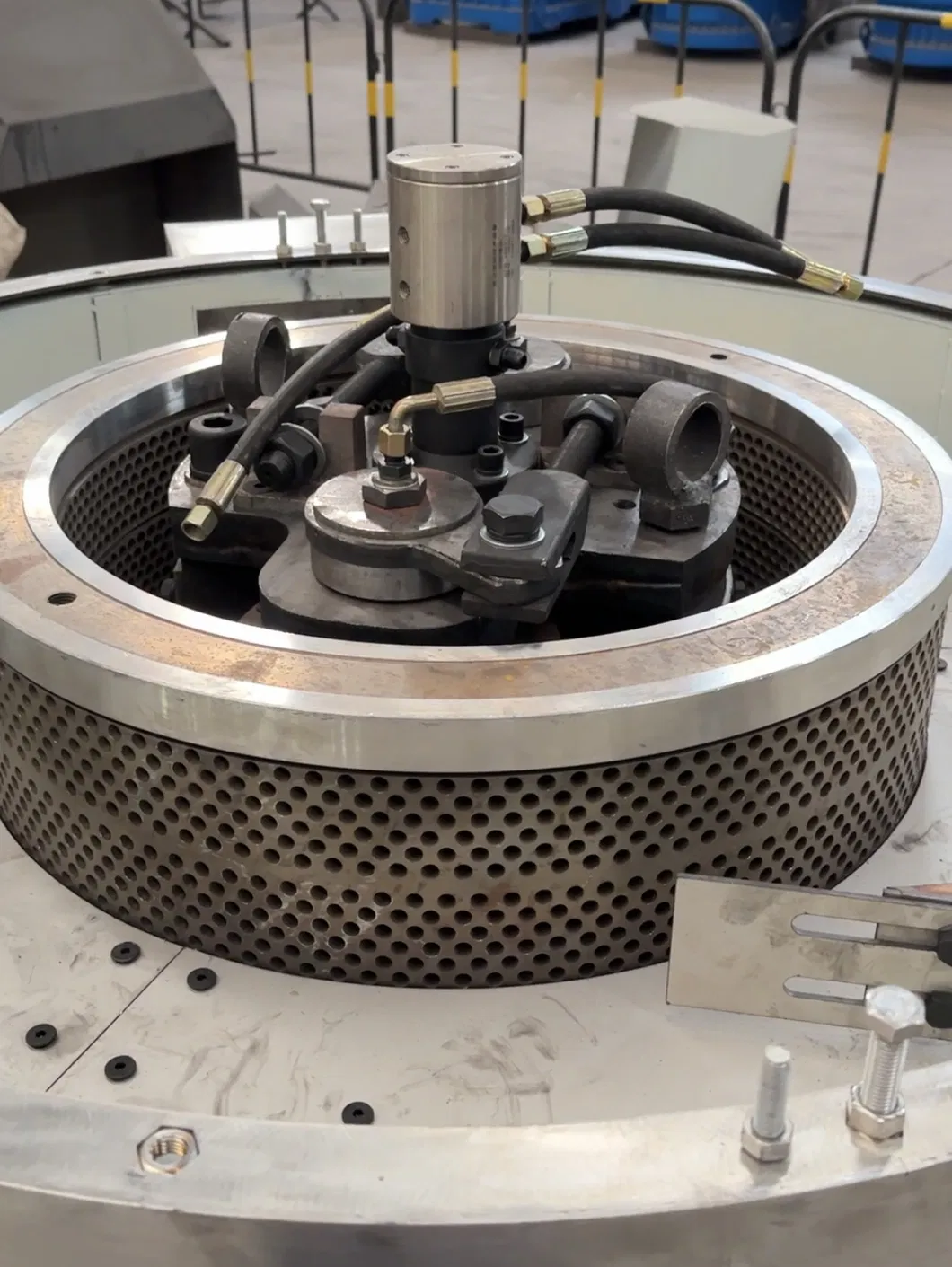

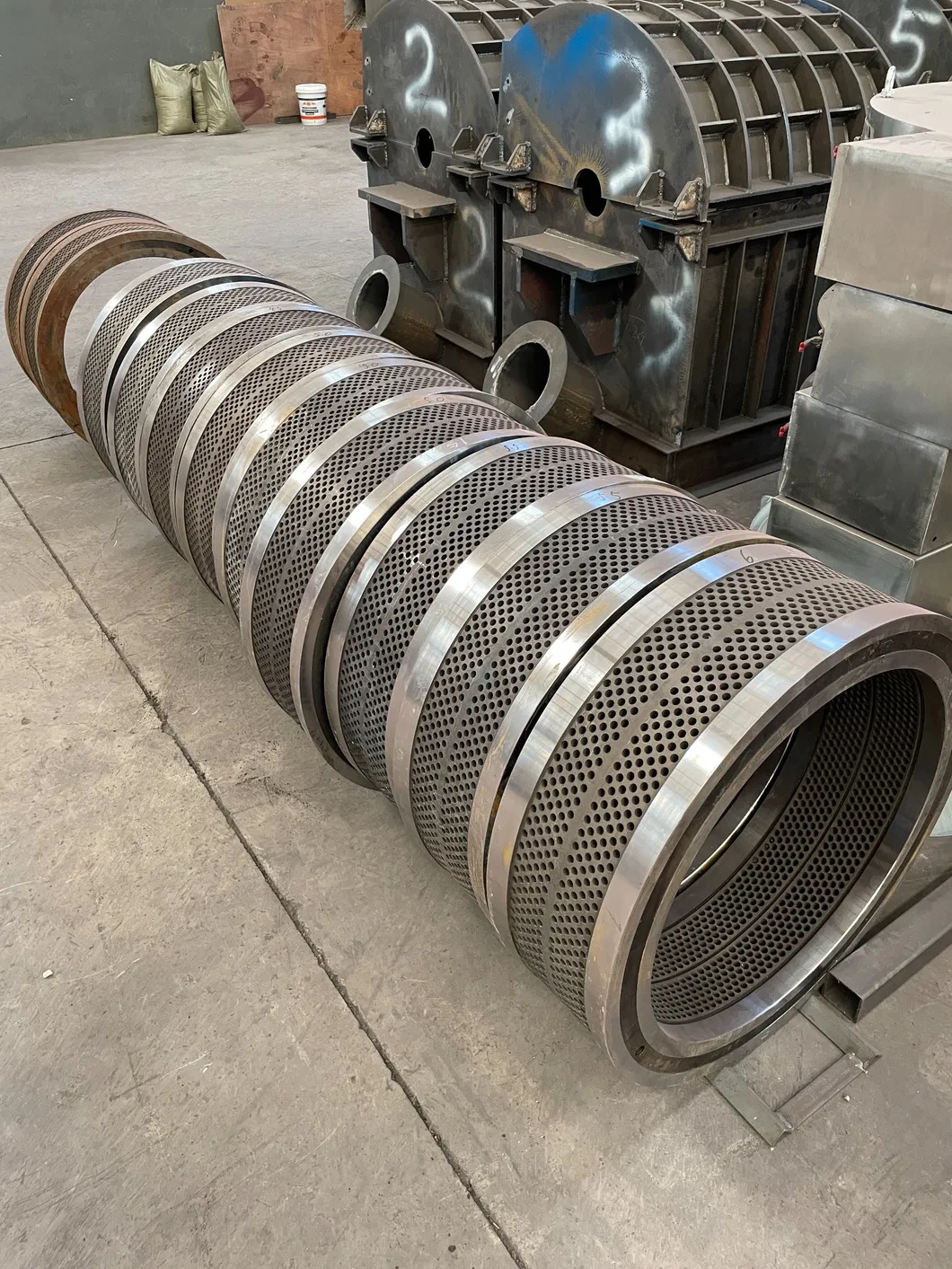

Our machines feature a refined stainless steel mold, which significantly extends service life, outperforming ordinary products by several times. The double-layer design allows the mold to be used twice, providing unparalleled durability. An automatic lubrication system, powered by a circulating pump, ensures smooth operation and optimal bearing protection, enhancing the machine's longevity.

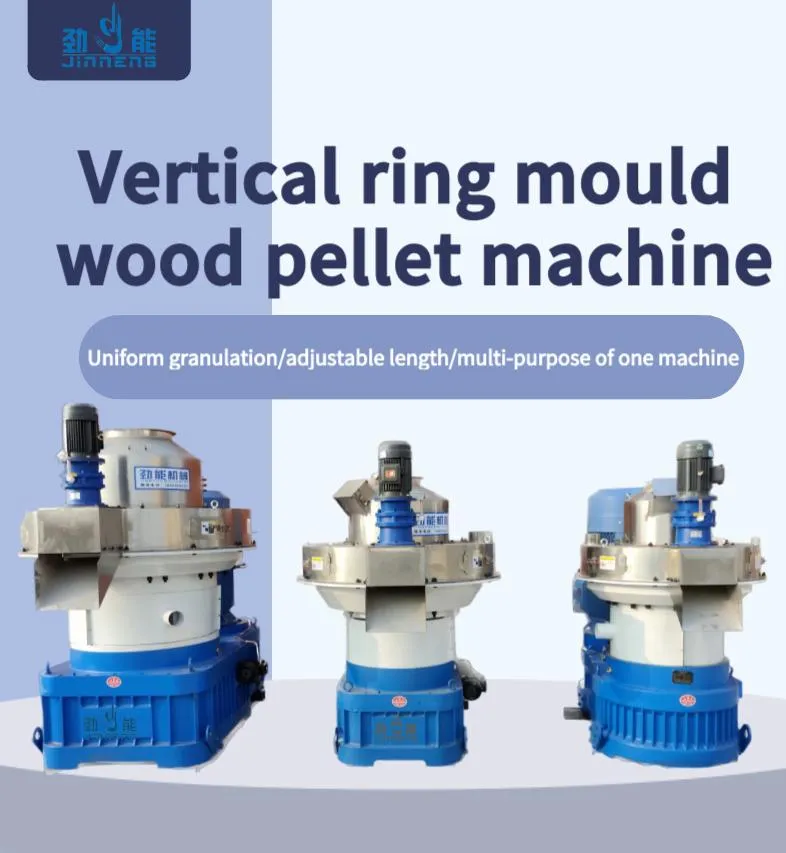

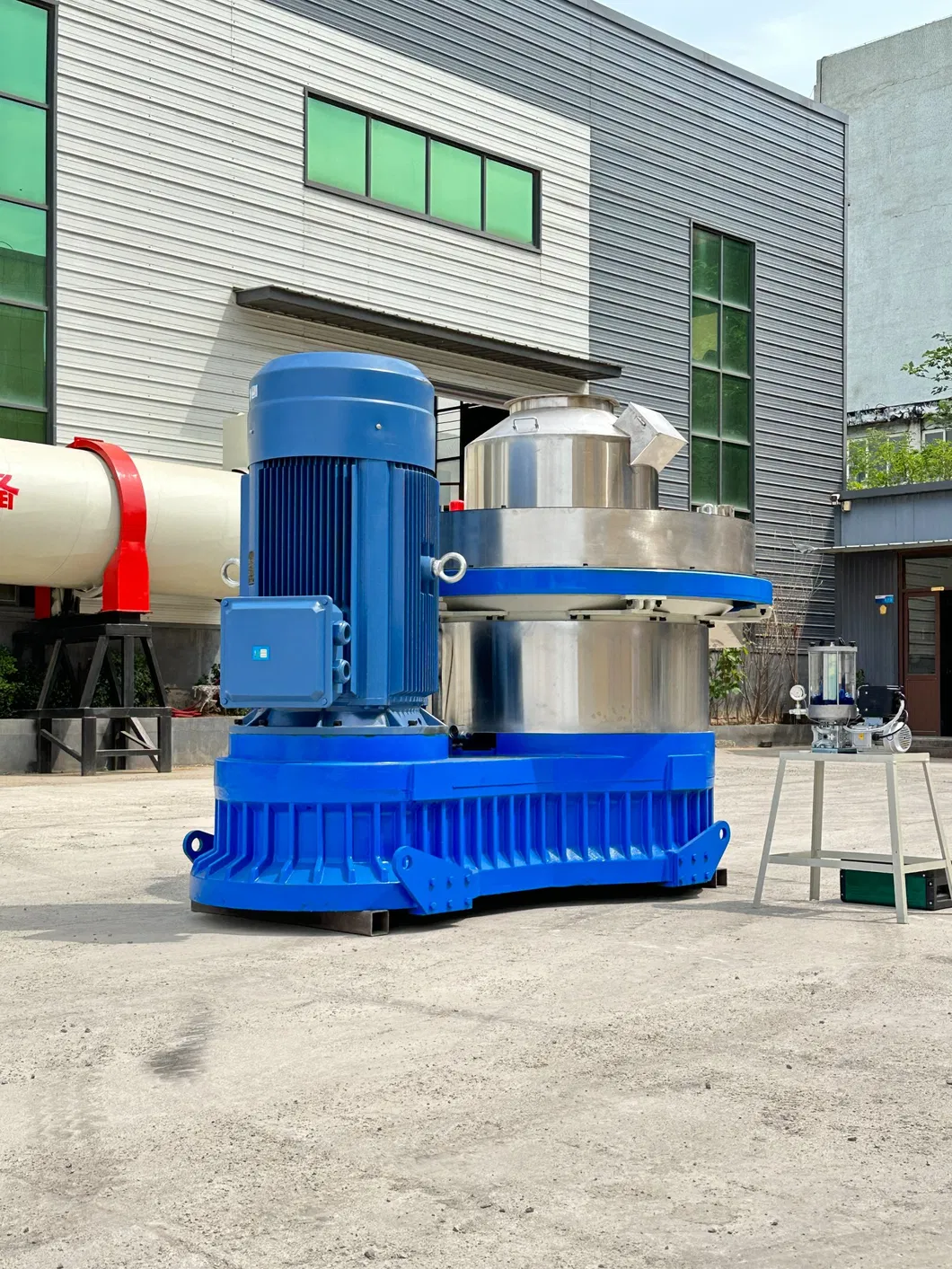

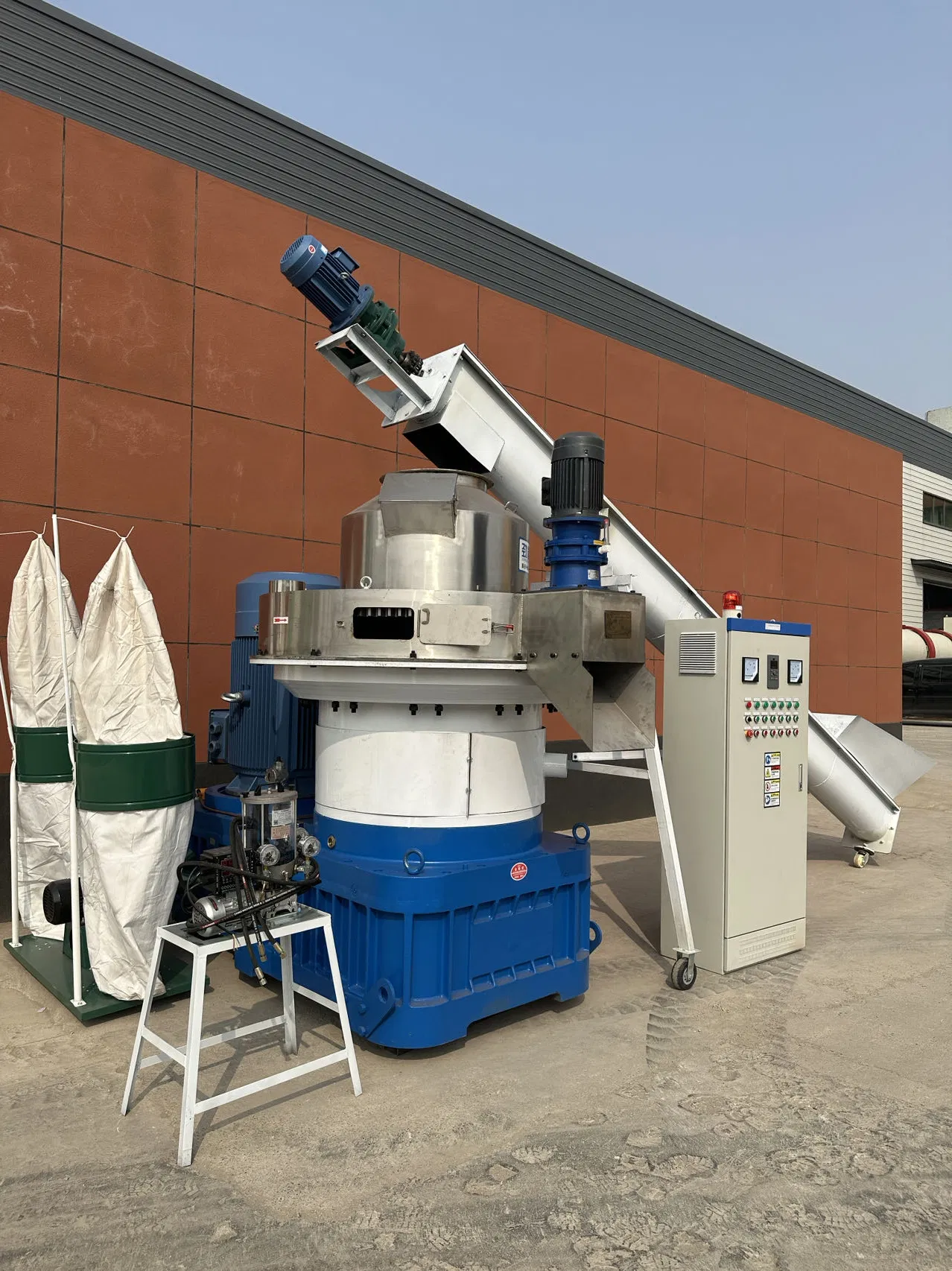

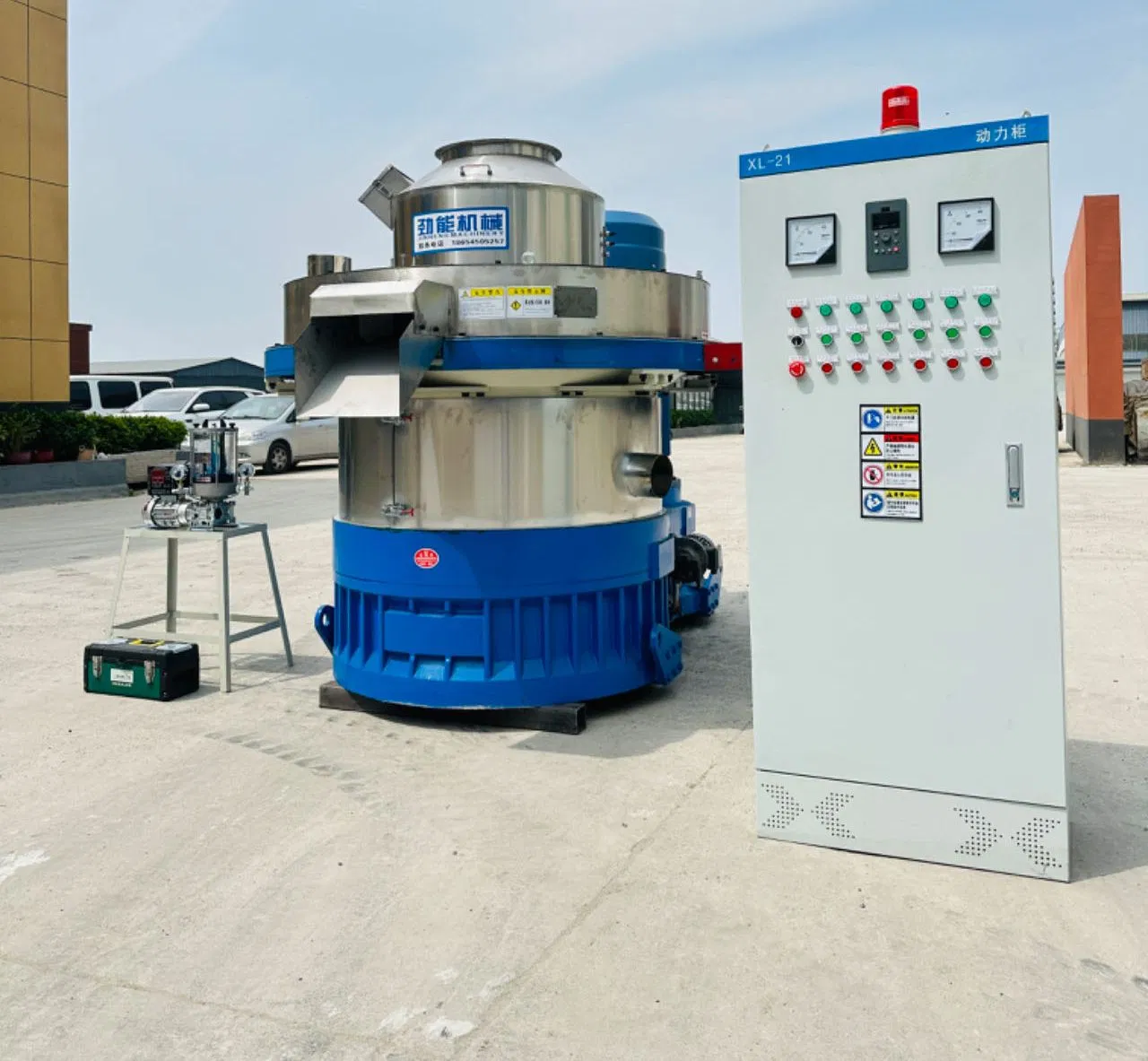

Wood Pellet Machine

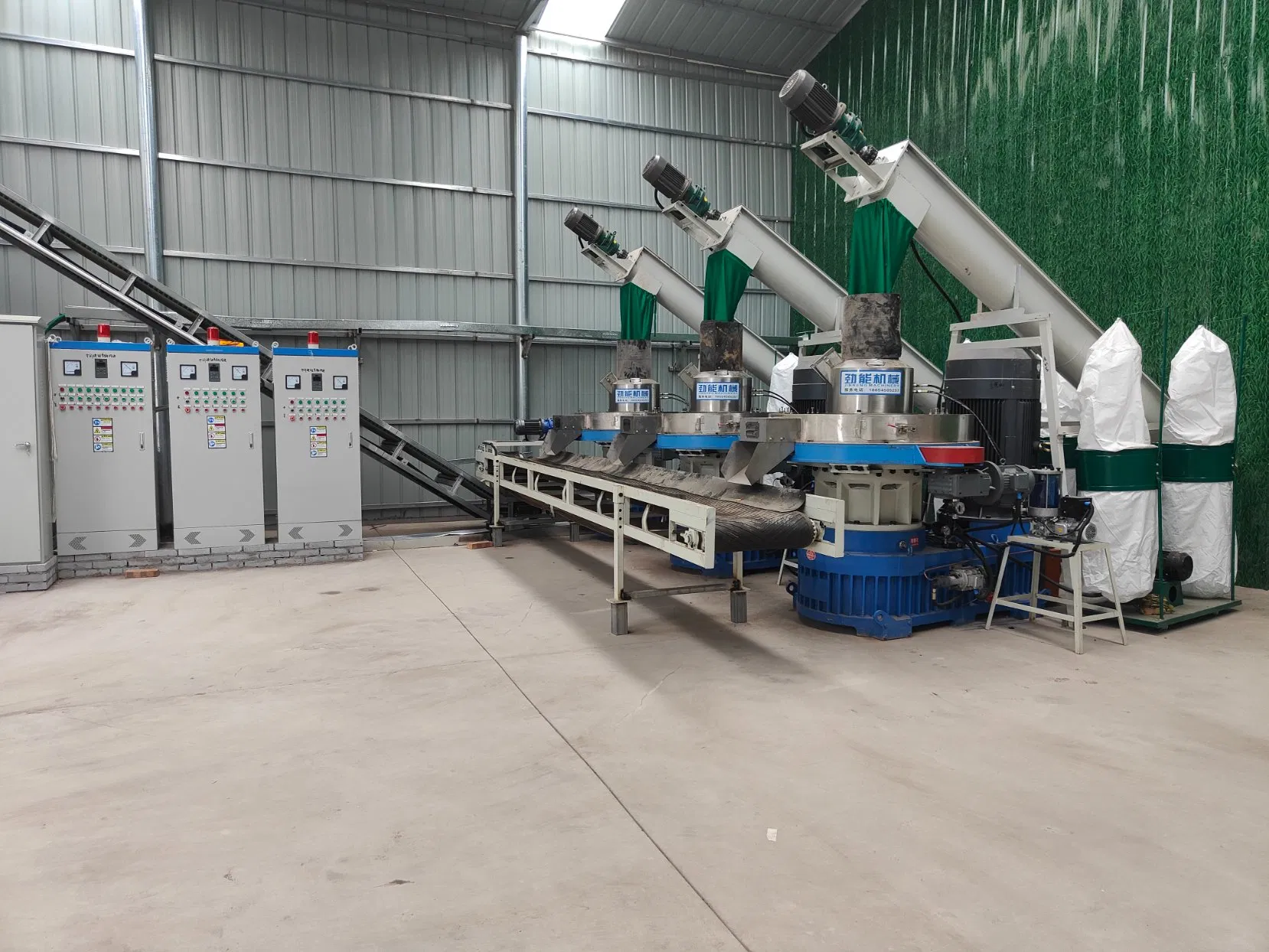

Production Line System
Model Parameters
Model Power (kw) Capacity (kgs/h) Weight (kgs) Dimension (mm)
JN56090+1.5+0.37+1.51000-120042002300x1250x1950
JN560P110+1.5+0.37+1.51200-150045002300x1250x1950
JN560X132+1.5+0.37+1.51500-200050002300x1250x1950
JN700160+1.5+0.37+1.51500-200062002800x1400x2100
JN850220+3+0.37+2.22000-3000145003200x1630x2300
How to Make Pellets
  • Break down wood logs, chips, or other materials into smaller pieces using a Wood Chipper or Wood Crusher.
  • Reduce the moisture content of sawdust or other materials to 8-15% using a Dryer, such as a rotary drum dryer or air-flow dryer.
  • Gradually feed sawdust or materials into the pellet machine. For large-scale production, a screw feeder is recommended.
  • Post-pelletizing, the pellets are hot and must be cooled using a pellet cooler before packaging.
  • Pass the cooled pellets through a vibrating sieve, separating good pellets from broken ones or powder.
  • Finally, pack the pellets using a pellet packing machine.
Process flow 1
Process flow 2
Machine detail 1
Machine detail 2
Machine detail 3
Scope Of Use

The ring mold granule machine is incredibly versatile, widely adopted in large, medium, and small aquaculture, food feed processing plants, livestock farms, poultry farms, and individual or small-scale farms. This equipment is also prevalent in the biomass energy industry, transforming raw materials like branches and stalks into rod particles, serving as fuel molding equipment to replace coal.

Application scope
Material 1
Material 2
Pellet 1
Pellet 2
Pellet 3
Frequently Asked Questions
Q: What are your payment terms? A: We typically require a T/T 30% down payment, with the remaining balance due before shipment.
Q: What is the typical production time for an order? A: Production times vary depending on the specific machines ordered, typically ranging from 10 to 30 days.
Q: Which documents do you provide for international shipping? A: We provide a comprehensive set of documents including invoice, packing list, contract, instructions, customs declaration, certificate of origin, and CE certification.
Q: How do you handle quality issues if they arise? A: We take full responsibility for quality. Our team will diagnose the issue, and if parts are needed, we will send them to you promptly to ensure minimal downtime.
Q: Do you offer equipment installation and training? A: Yes, we can dispatch engineers to your plant for installation and commissioning. We also provide professional training for your workers on operation and maintenance.
Q: What are your primary global markets? A: Our primary markets include South America, Eastern Europe, Southeast Asia, Africa, Oceania, and Eastern Asia.
