Advanced Hydraulic Systems for Solar Water Heater Applications

⚙ Basic Information

Model NO.

Aluminum Tube

Surface Treatment

Anodized

Grade

6000 Series

Alloy

Temper

T3 - T8

Product Name

Aluminum Tube

Length

1-6 Meters/Customizable

Hardness

T3-T8

Al (Min)

97.5%

Wall Thickness

1-65mm/Customizable

Processing Service

Bending, Welding, Cutting

Standard

ASTM, AISI, JIS, En, GB

Diameter

6-640mm/Customizable

Production Capacity

500,000 pieces/Year

Package Size

30.00cm * 30.00cm * 30.00cm

Gross Weight

25.000kg

📘 Product Description

Hydraulic Systems Solar Water Heater Handrails Furniture Aluminum Tubing

Our aluminum extrusion products serve a wide range of industries including aerospace, automotive, and construction. We provide high-quality aluminum tubes, heatsink profiles, T-slot profiles, and custom orbital profiles designed for excellence and durability.

✔

Versatile Applications: Ideal for medical equipment, LED heat sinks, CPU coolers, notebook coolers, and structural frameworks.

✔

High Precision Machining: We offer precise cutting (tolerance 0.2mm), drilling, tapping, CNC milling, and bending services.

Item	Specifications
Material	Alloy 6063, 6061
Temper	T3, T4, T5, T6
MOQ	200kg (Standard container loading available)
Standards	China GB/T6892-2006, Europe EN12020, American AAMA611-98
Certificate	ISO14001:2004, ISO9001:2000

📊 Technical Data & Chemical Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Al
6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	0.1	Rest
6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.04-0.35	0.25	0.15	Rest

Mechanical Properties

Alloy	Temper	Tensile Strength	Yield Strength	Elongation
6063	T5	≥ 160Mpa	≥ 110Mpa	≥ 8%
6063	T6	≥ 205Mpa	≥ 180Mpa	≥ 8%
6061	T6	≥ 265Mpa	≥ 245Mpa	≥ 8%

🔄 Production Process Flow

Product Design ➔ Die Making ➔ IQC ➔ Extruding ➔ Cutting ➔ Heat Treatment ➔ Hardness Test ➔ Surface Treatment ➔ Coating Test ➔ Finish Processing ➔ Packing ➔ Shipping

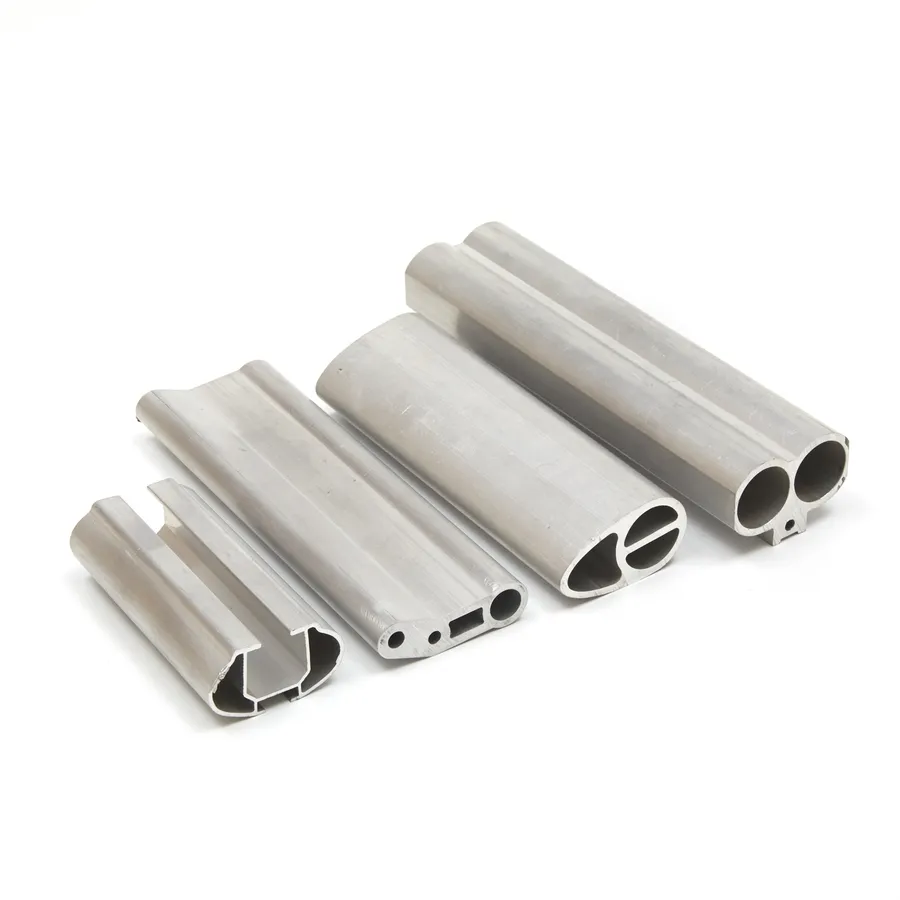

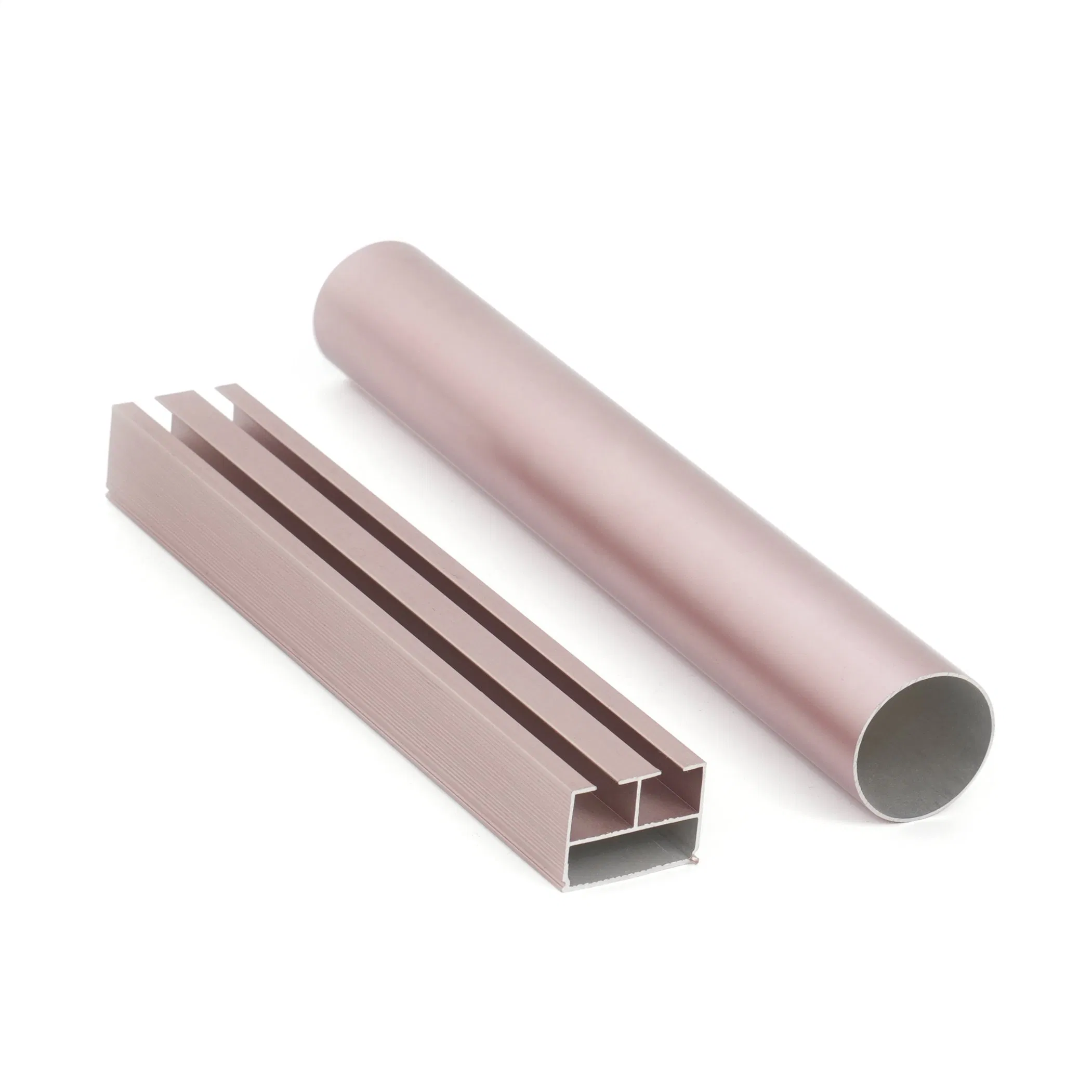

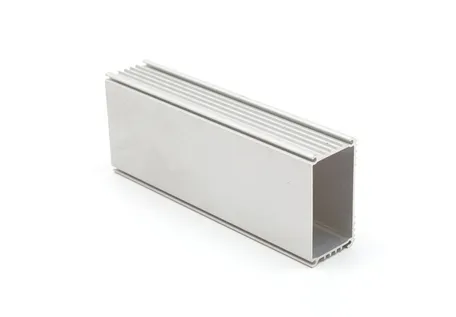

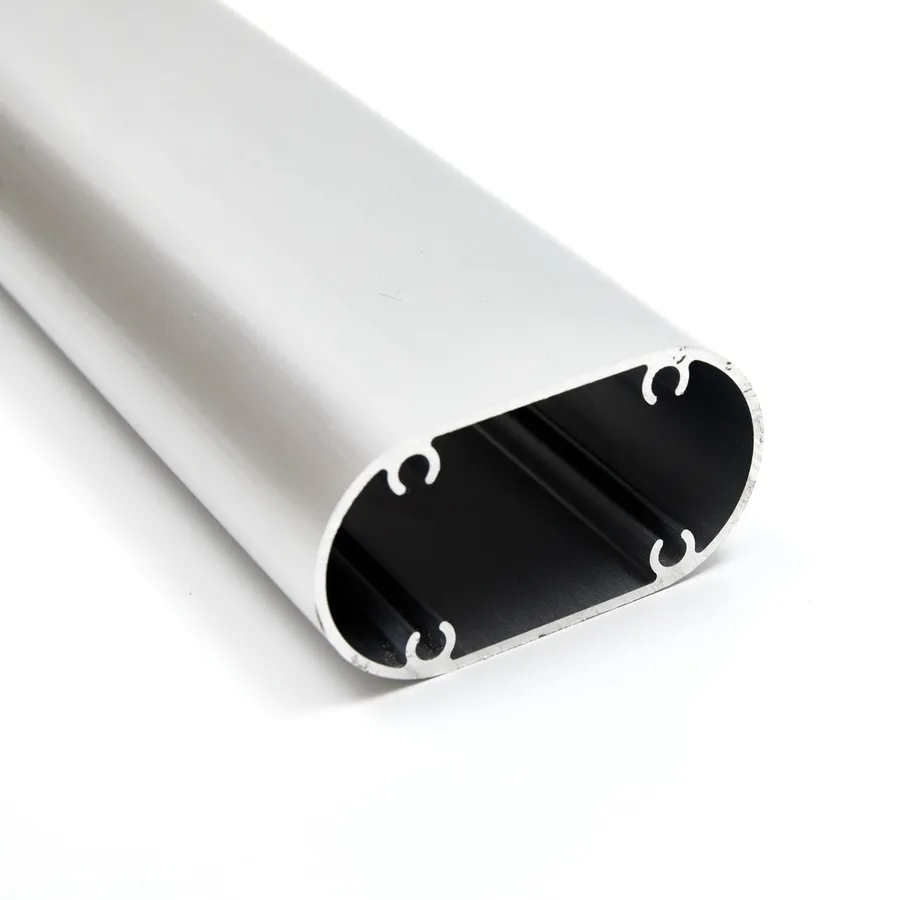

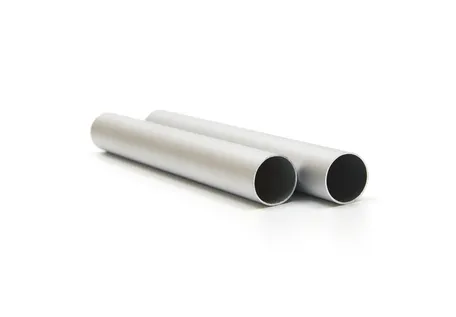

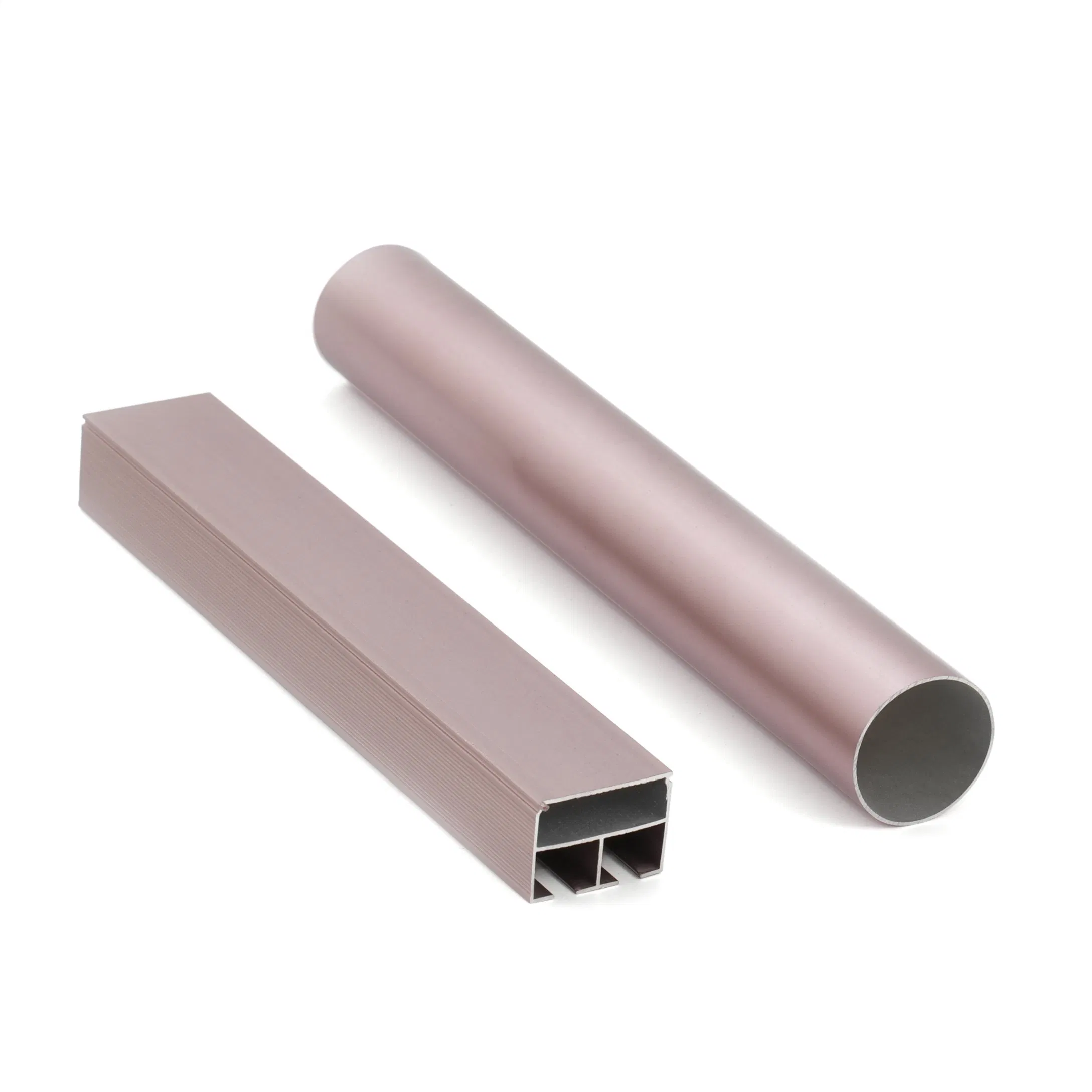

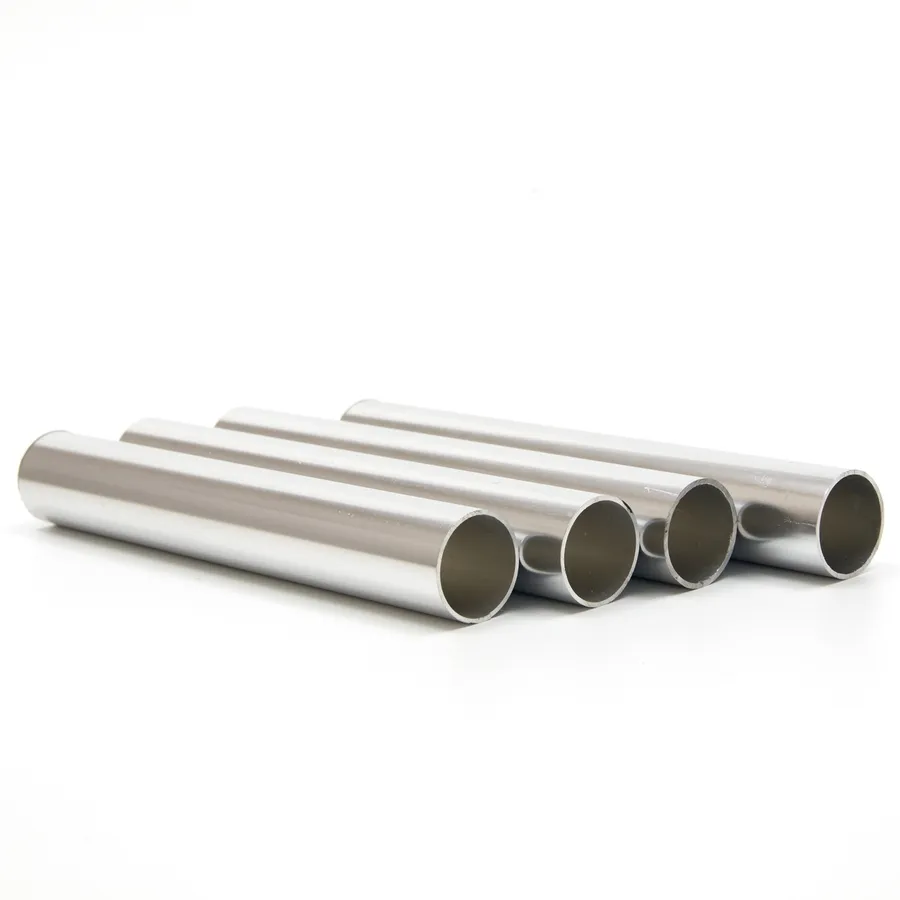

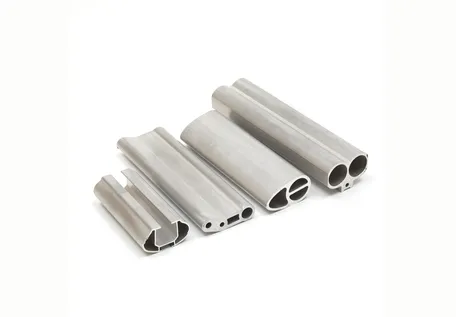

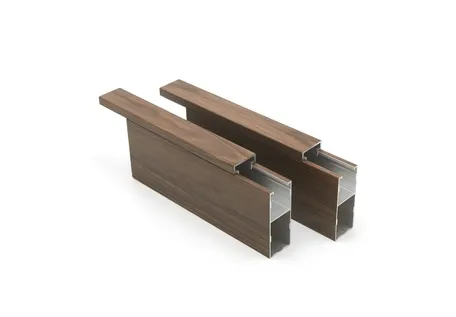

📷 Product Gallery

Premium Aluminum Tube Solutions

Aluminum tubes are known for their high strength-to-weight ratio, corrosion resistance, and recyclability. Our 6061, 6063, and 7075 series tubes are widely used in aerospace, automotive, and construction frameworks.

❓ Frequently Asked Questions

How long does it take to get a sample?

Sample production usually takes 7-10 days. We can manufacture based on your PDF or AI drawings or catalog selection. Transportation freight and sample costs apply.

What types of surface finishing do you offer?

We provide anodizing, brushed/wire-drawing, sandblasting, silk-screen printing, and painting services.

What anodizing colors are available?

Standard colors include silver, black, blue, red, green, and gold. Other custom colors are also acceptable upon request.

What is the typical delivery timeframe for orders?

The standard delivery time is approximately 7-10 days after the receipt of the deposit, depending on order size and customization.

Do you offer custom mold development?

Yes, we can open new molds based on customer drawings. Mold costs are negotiable and can often be refunded once order quantities reach 10-50 tons.

What machines do you use for finishing?

Our facility is equipped with specialized anodizing equipment, brushing machines, sandblasting machines, and silk-screen printing units to ensure high-quality finishes.
