Advanced Automated Negative Pressure Conveyor System for Bulk Material Handling

Customization:	Available
Capacity(t/h):	Customized
Control System:	Fully Automatic Control

Send Inquiry

Product Description

Technical Specifications

Model NO.

XL-14/XL-33/XL-56

Conveying Distance

10 meters

Motor Power(kw)

1~10

Usage

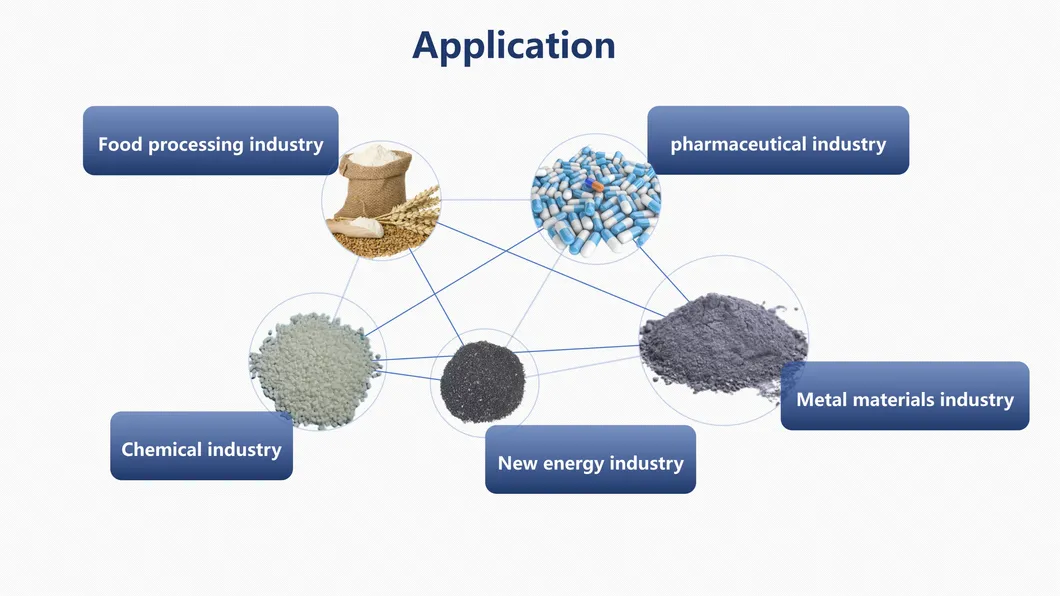

Building Materials, Chemical, Food Processing

Voltage

220V~600V

Control Method

Button / PLC

Conveying Method

Negative Pressure Pneumatic

Certification

CE, ISO

Production Capacity

50000 Pieces/Year

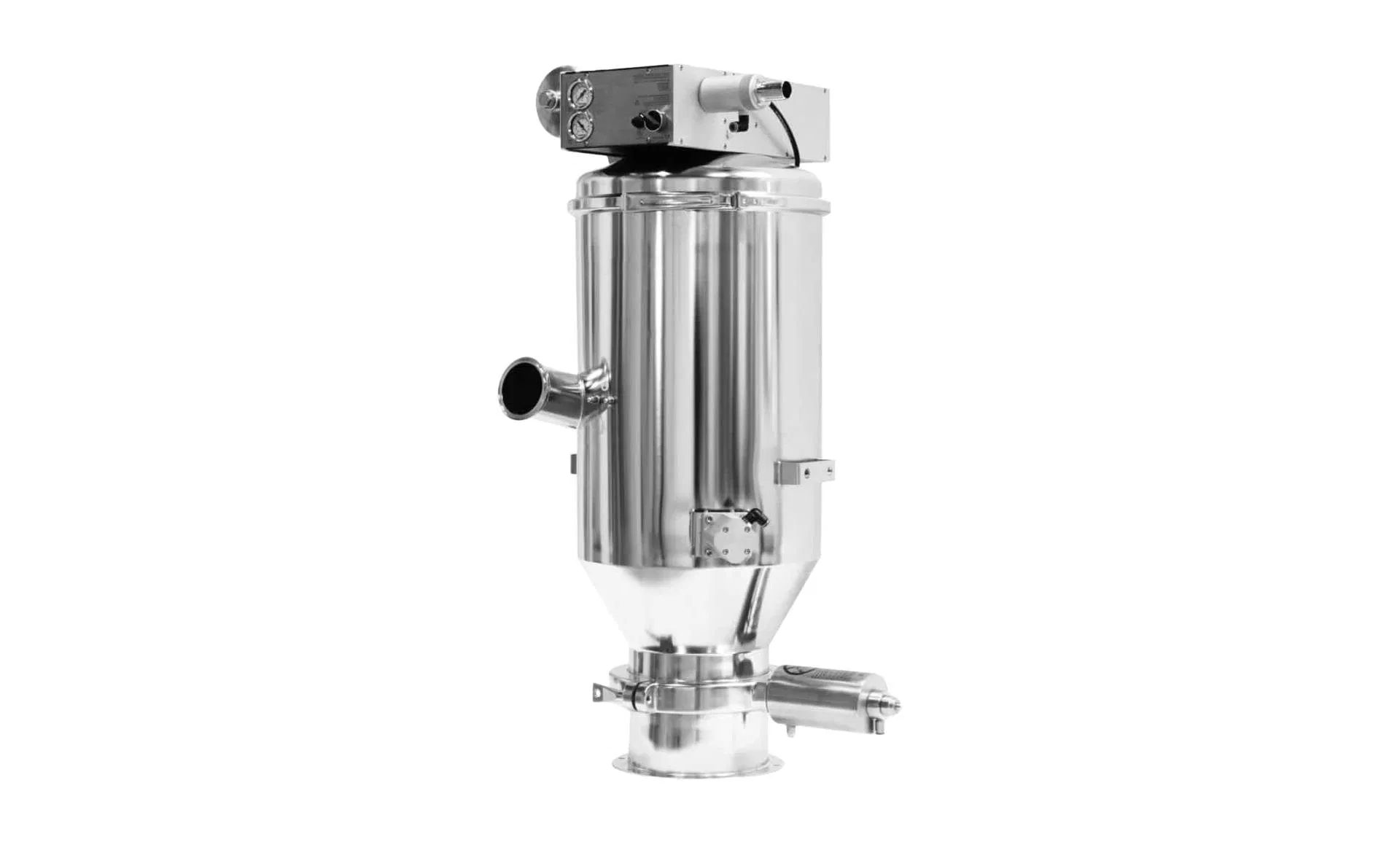

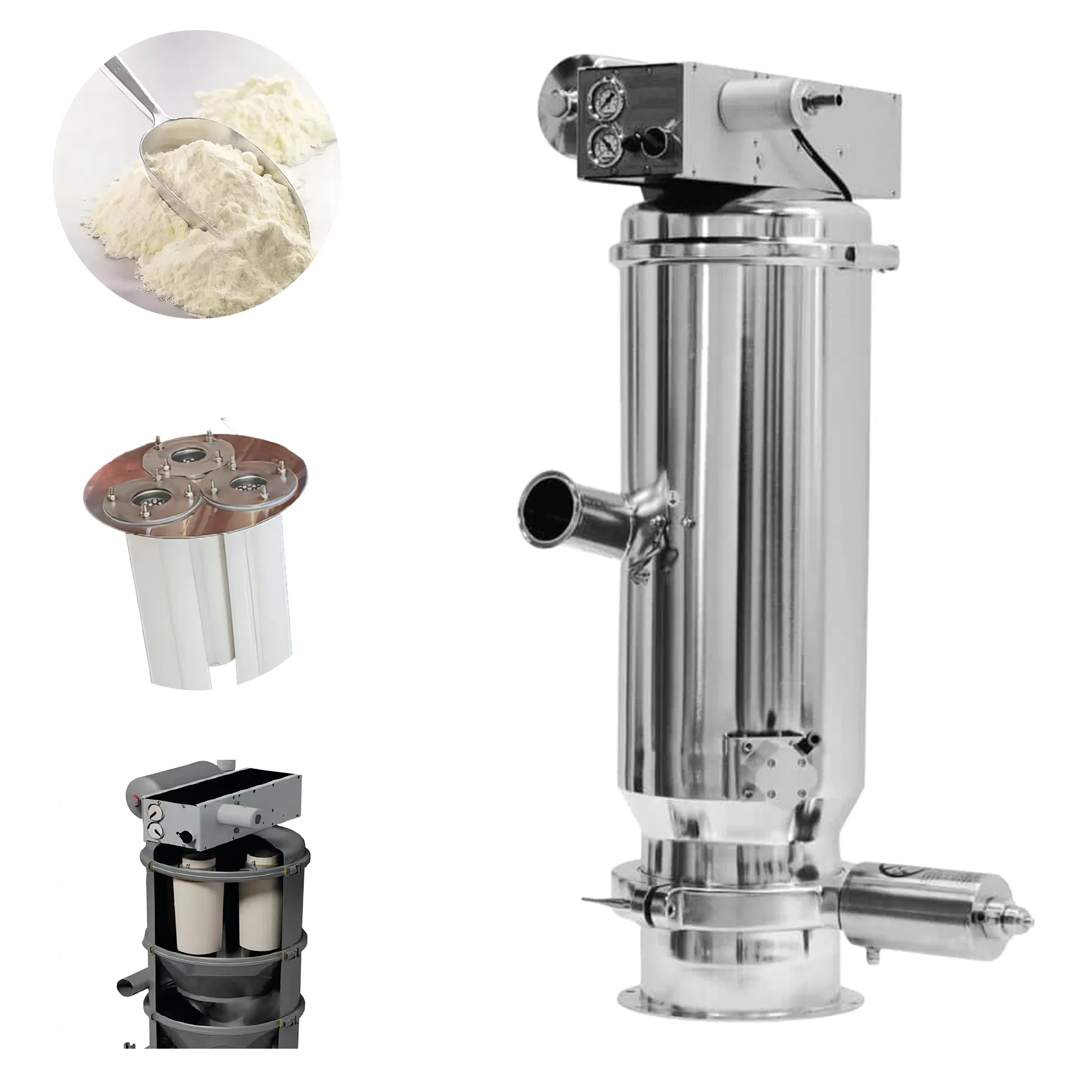

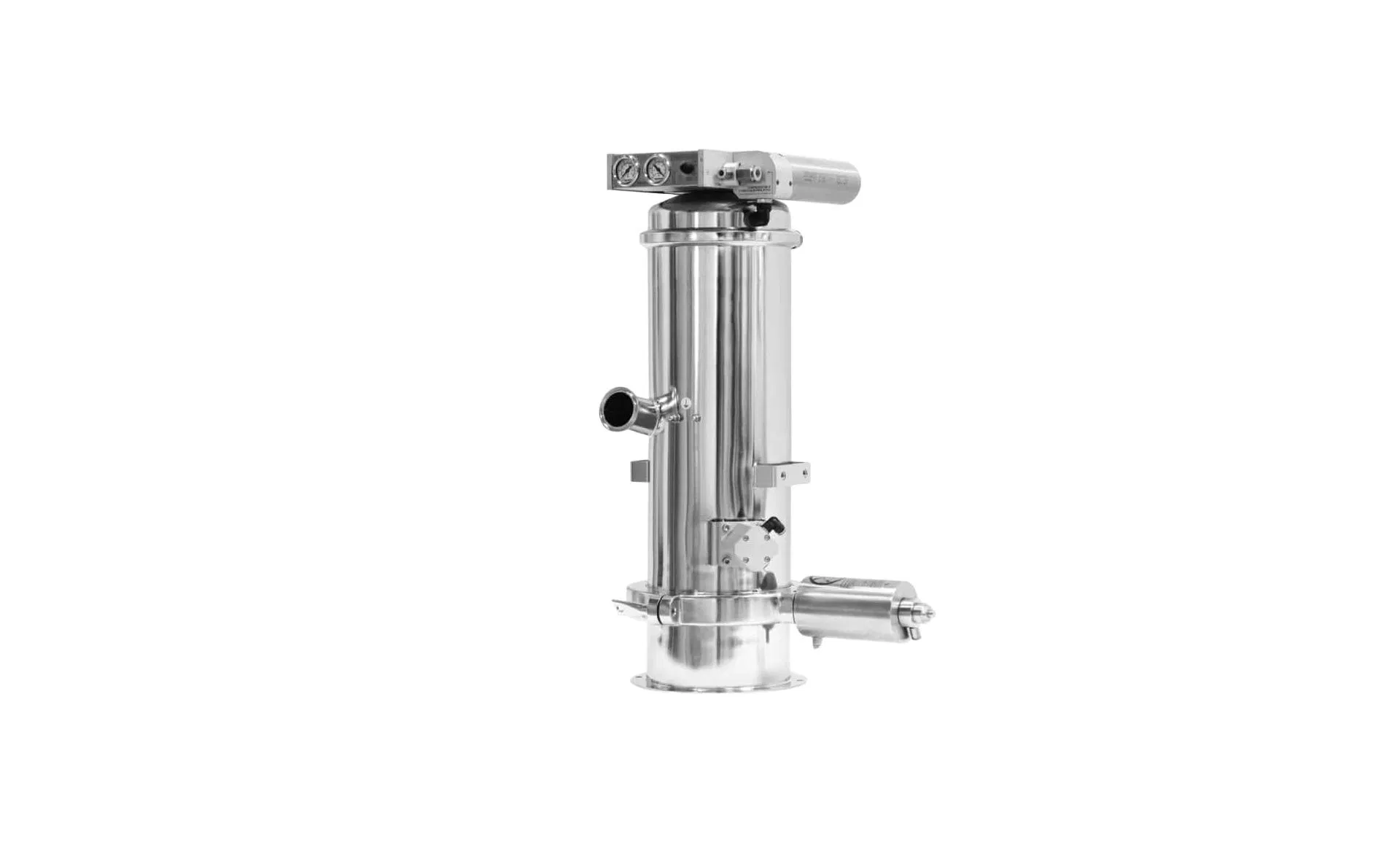

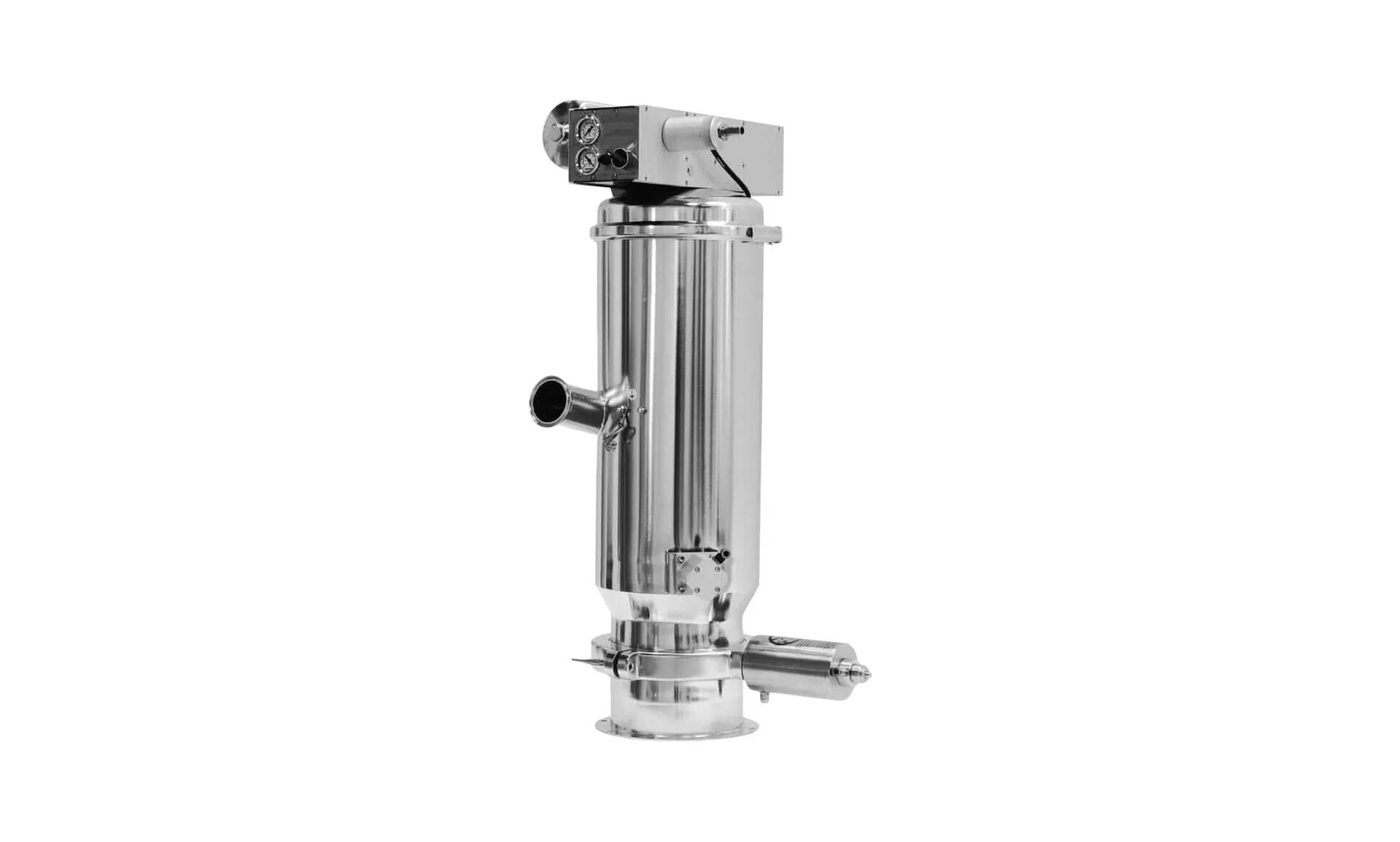

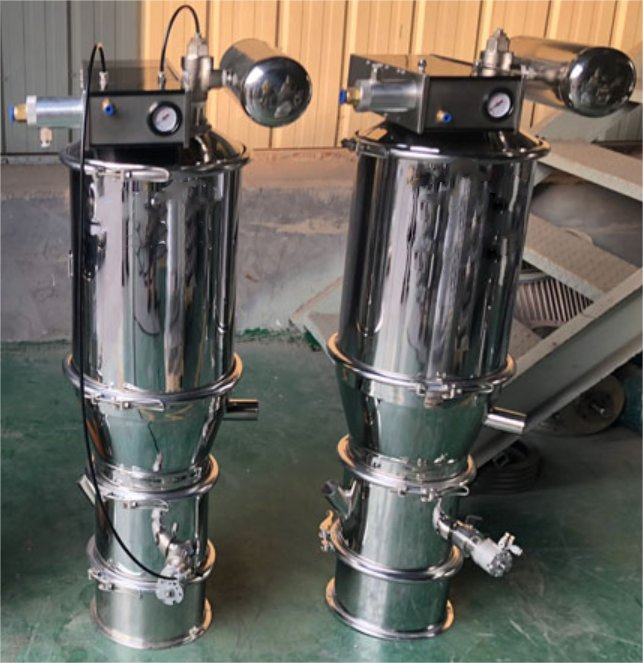

Vacuum Conveyor System

A vacuum conveyor epitomizes cutting-edge technology and unparalleled efficiency, offering a completely dust-free, sealed pipeline conveying solution. Masterfully engineered, this system is designed to transport granular and powdery materials effortlessly through potent vacuum suction.

By harnessing the pressure differential between the vacuum and the ambient environment, it generates a dynamic airflow within the pipeline. This advanced method propels powdered materials at high velocities, executing the conveying process with unmatched precision.

Specialized systems integrate advanced cleaning and sterilization functions, along with state-of-the-art high-precision weighing capabilities.

Key Features & Advantages

⚙️ Independent reverse blowing mechanism for effortless automatic cleaning of filter cartridges.
🔇 Streamlined structure ensuring ease of operation, low maintenance, and low noise levels.
🌿 Fully enclosed, eco-friendly conveying that guarantees zero material leakage.
🛡️ Use of inert gas for safe transport of flammable and explosive materials.
🧼 Equipped with built-in cleaning balls for In-Place Cleaning (CIP) and Sterilization (SIP).
⚖️ High-precision weighing components delivering measurements with a precision of 0.5%.

Model Parameters

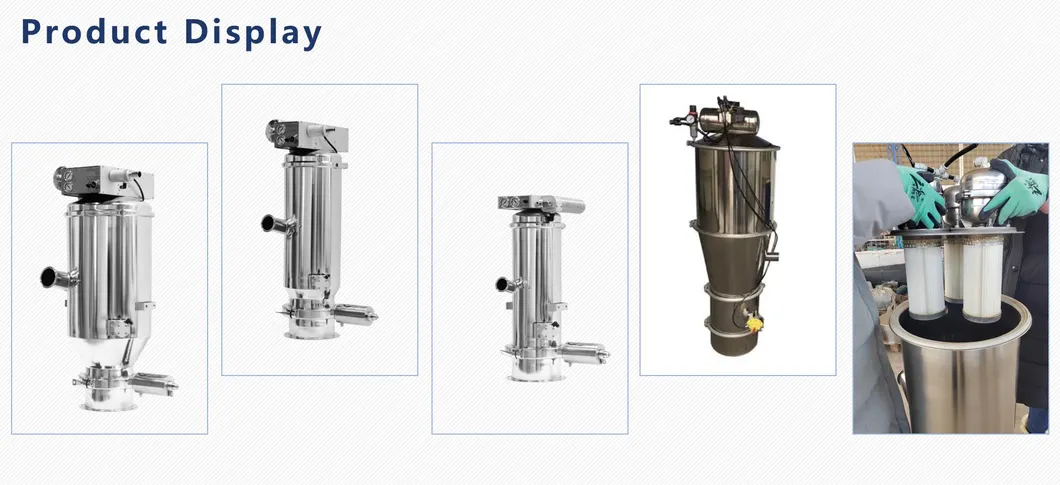

Model	XL-14	XL-33	XL-56
Volume (L)	14	33	56
Power (W)	200
Air Pressure (MPa)	100/0.6		200/0.6
Connector Interface	2-inch Quick	3-inch Quick	4-inch Quick
Weight (Kg)	37	40	65
Dimensions (mm)	Φ400×1000	Φ400×1250	Φ650×1350
