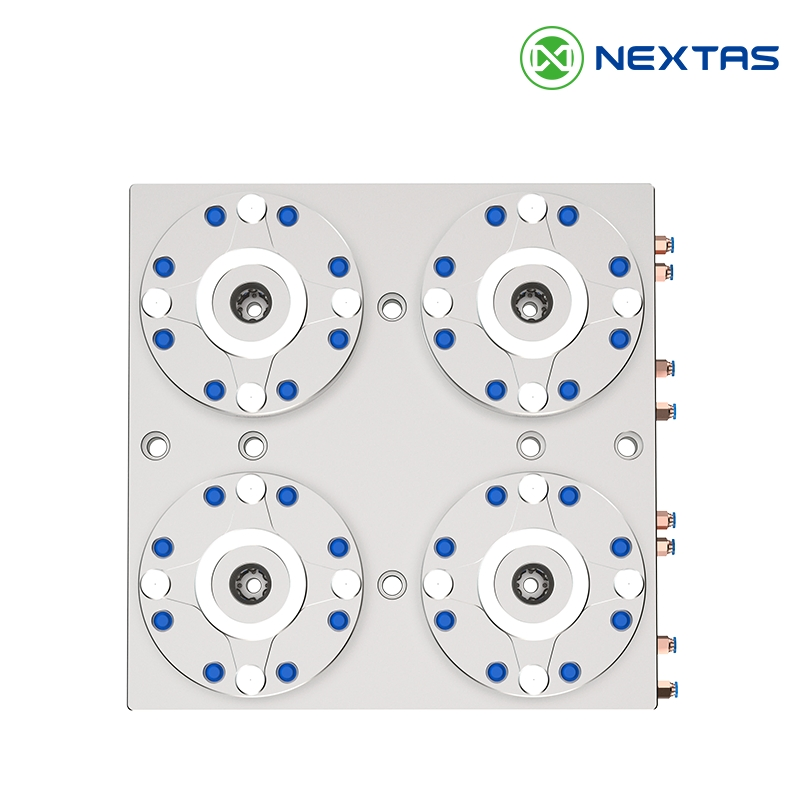

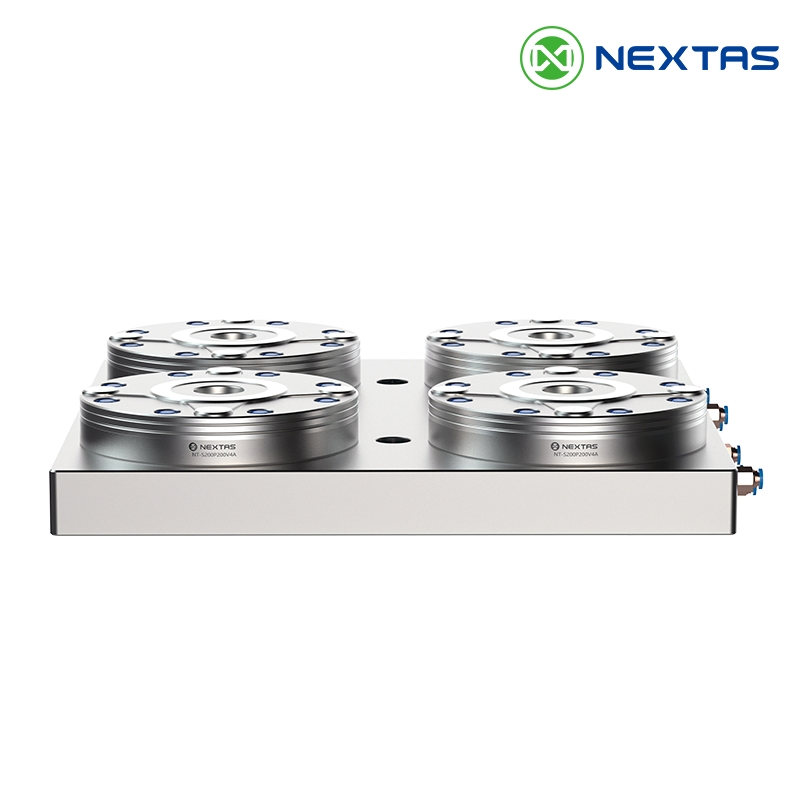

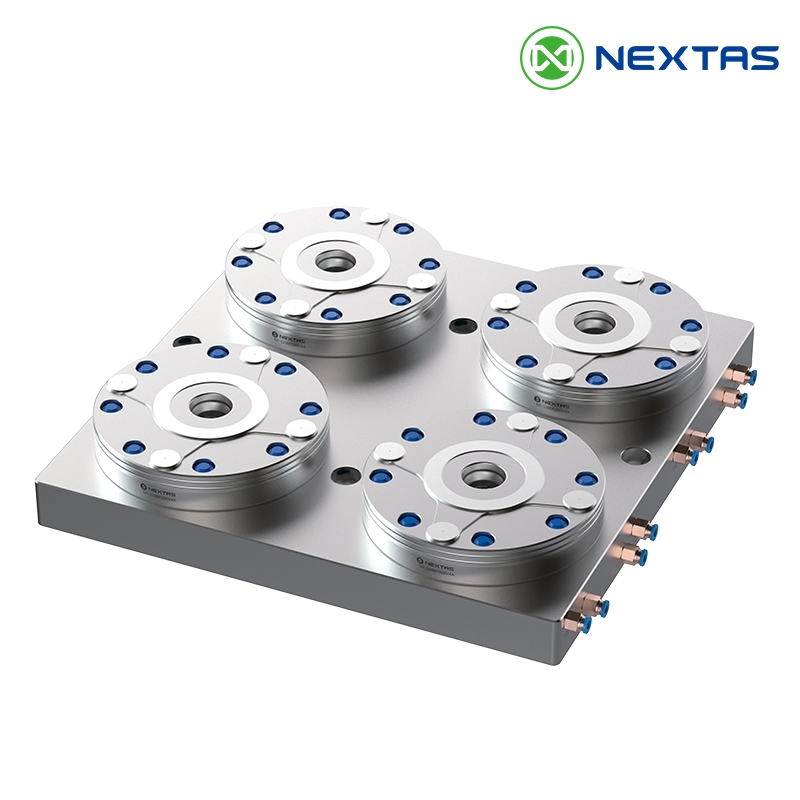

| Model NO. | NT-S200P200V4A | Shape | With Anvil |
| Material | Stainless Steel | Type | Stationary |
| Logo Printing | Available | Size | Middle |
| Warranty | 12 Months | Power | Pneumatic |
| Specification | 340*340*67mm | HS Code | 7326191000 |
Applicable Field: Industrial automation, CNC machining centers, lathes, EDM, CMM and other equipment applications.
Repeatable positioning accuracy: < 0.003mm

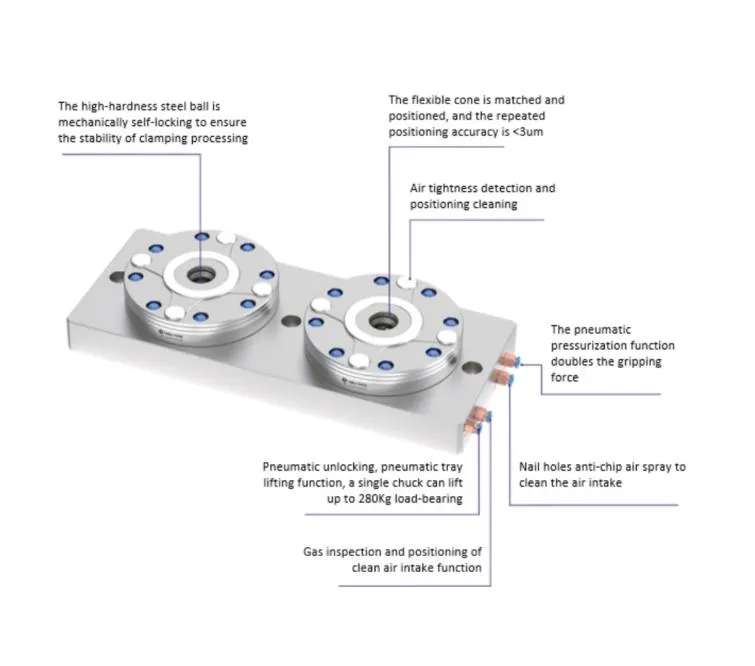

| ✔ Pneumatic pressurization doubles the clamping force. |
| ✔ Flexible taper fit positioning repeatable positioning accuracy < 3um. |
| ✔ Mechanical self-locking for high hardness steel balls ensure stability. |
| ✔ Maximum lifting capacity of a single chuck is 280kg. |
| ✔ Air-tightness detection and positional cleaning. |
| ✔ Spigot holes anti-dirty and air spray function. |

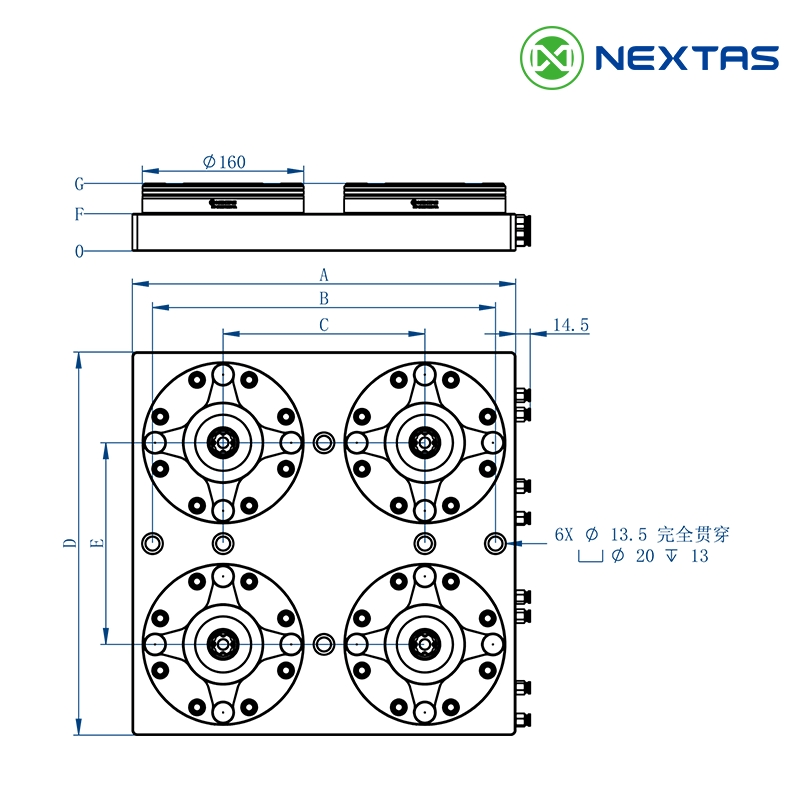

| TECHNICAL SPECIFICATIONS | |||
|---|---|---|---|
| Precision | <0.003mm | Clamping Force | 4*30KN |
| Material | Martensitic Stainless Steel | Finished Size | 340*340*67mm |
| Weight | 41.5kg | Connection | Air ways |
| Self-Cleaning & Air-tightness Detection & Force Spray Cleaning & Pallet Lifting | |||

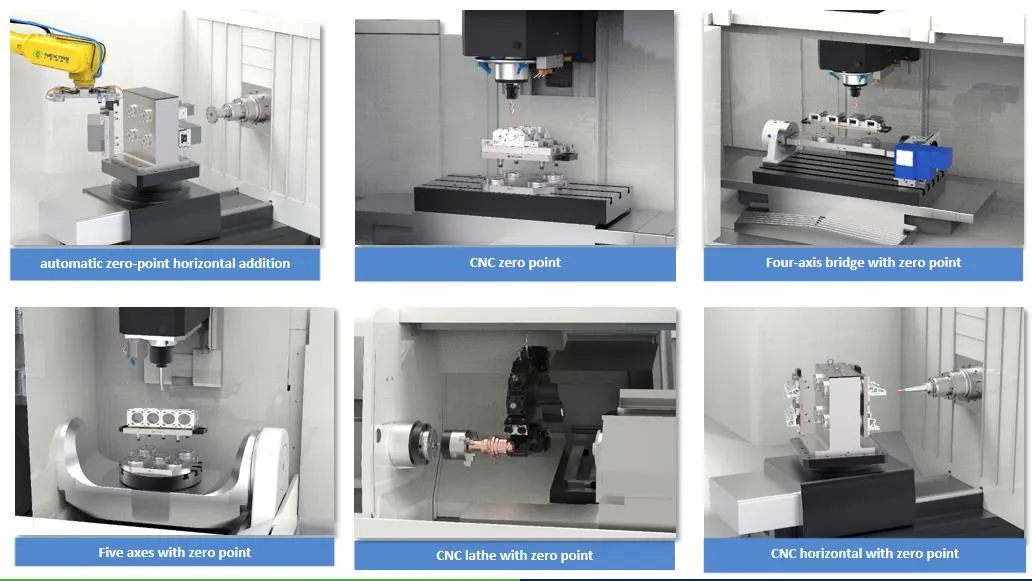

Application Cases

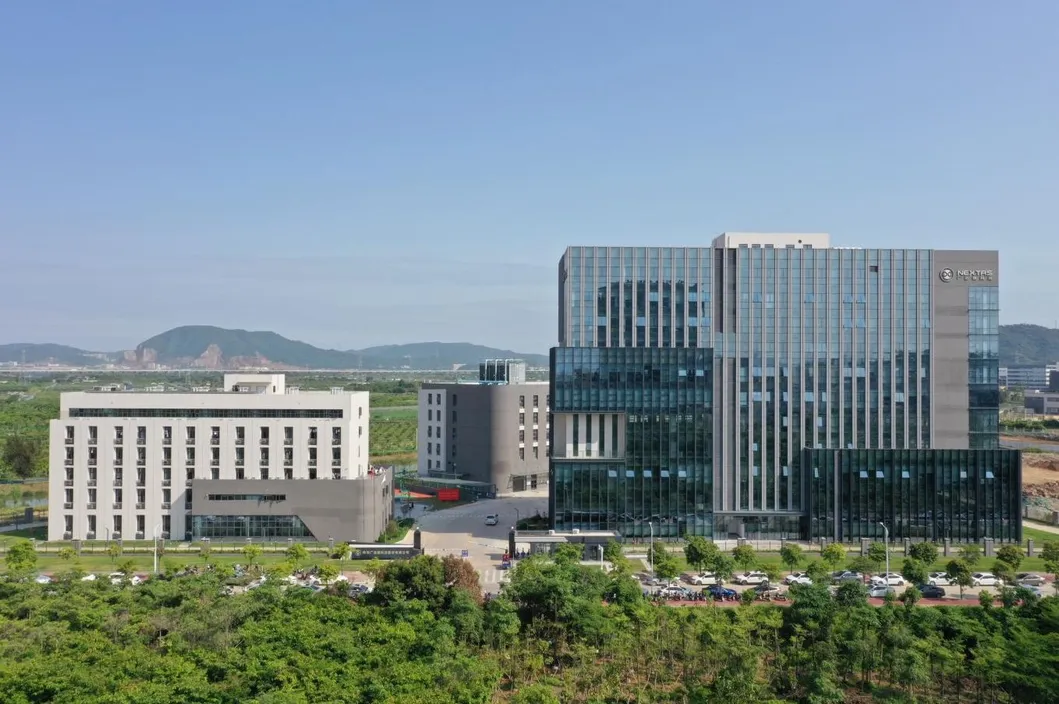

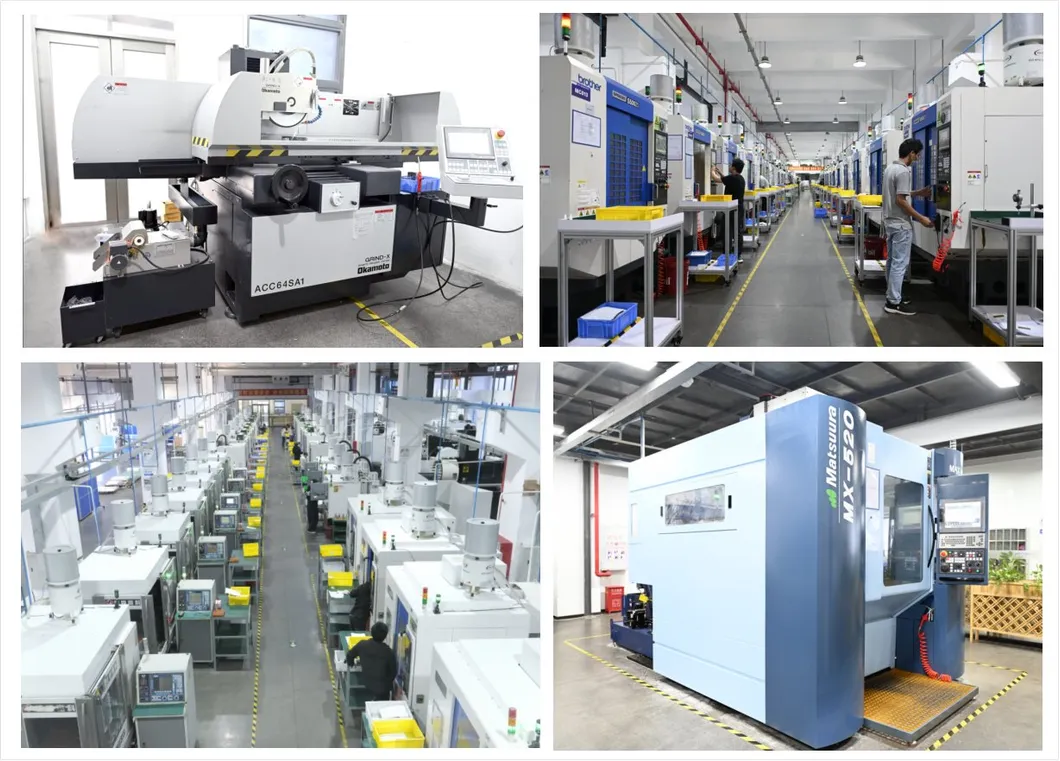

Established in March 2009, dedicated to industrial quick-change fixture technology for 15 years. With 400 employees, R&D technical personnel account for 55% of the workforce. Our production base covers 43,600 square meters, providing a strong guarantee for high-quality, batch demand products.
Mission: Provide competitive intelligent manufacturing solutions and create value for customers through continuous innovation.
Values: Win-win, Innovation, Cooperation, Integrity, Efficiency, Commitment.
Industrial quick change fixtures can be applied to various fields to replace traditional fixed methods, simplifying manufacturing and improving efficiency.
Profession & Innovation
Our professional R&D design team has 15 years of experience in precision manufacturing processes. We provide full quick-change fixture system customization based on specific process needs.
We offer one-stop technical solutions including process design, fixture selection, and programming for complex processing difficulties.
