Certification: ISO9001, CE
Salt Rejection Rate: 99.0%
Capacity: River Water Reserse Osmosis System Customized
Send Inquiry

Product Description

ℹ Basic Information
Model NO. HYRO-1000L Condition New
Warranty 1 Year Application Field River Water, Borehole Water, Recycle Plant
Operation Temperature 1~45 Degree Process Pre-Treatment & RO Part
Rejection Efficiency 99.7% Operation Pressure 10 Bar~15 Bar
Package Size 100.00cm * 80.00cm * 165.00cm Gross Weight 600.000kg
💧 Product Description

Well water RO system, 1000 Litres Reverse Osmosis RO Water Filter System

Main Applications:
  • Drinking water production.
  • Clarifying and eliminating bacteria for mineral water.
  • Water treatment for medical use.
  • Separation and refinement of enzymes and biologic products.
  • Concentration and separation of fruit juice and milking.
  • Pre-treatment for large scale water equipment.
  • Terminal treatment of ultra-pure water for electronics industry.
  • Treatment of industrial waste water and material reclamation.

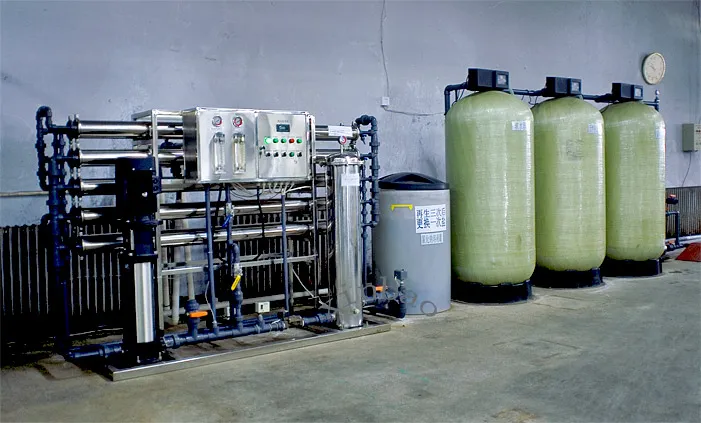

RO Water System View 1

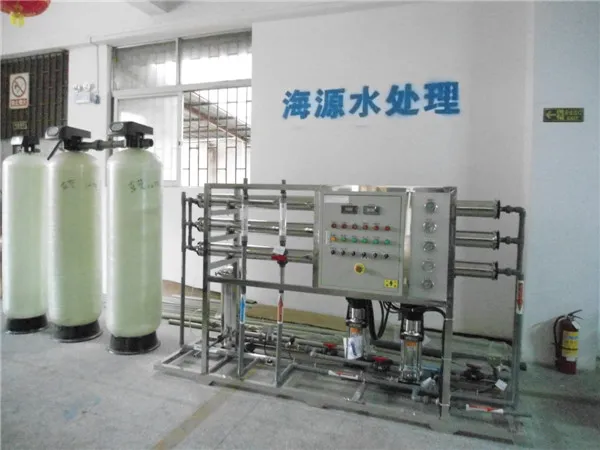

RO Water System View 2

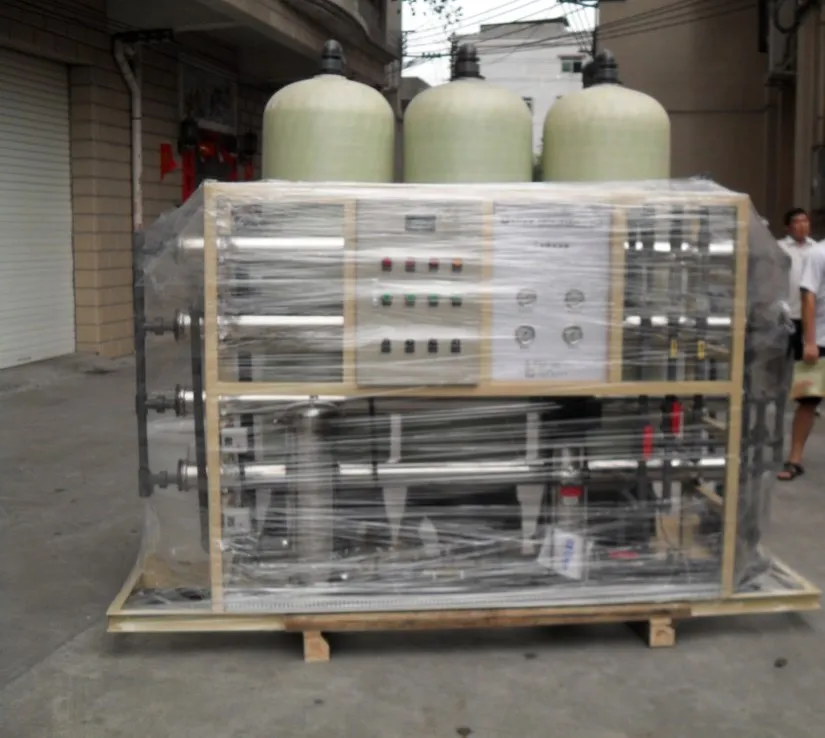

RO Water System View 3
⚙ Process Flow

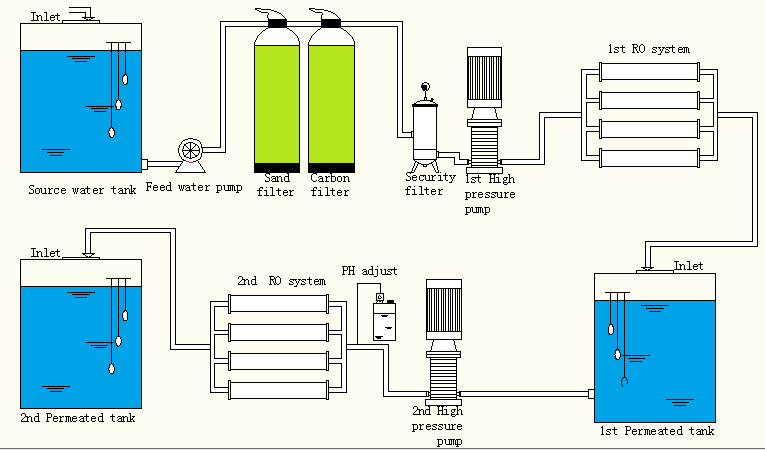

Source tank → Feed water pump → Muti-media filter (Sands filter) → Active carbon filter → Water softener (or inhibitor dosing) → Cartridge/Security/Micro filter → High-pressure pump → Double Reverse Osmosis system → RO purified tank → Ultraviolet sterilizer
Process Flow Diagram
📋 Technical Specifications
Parts Items Function/Information

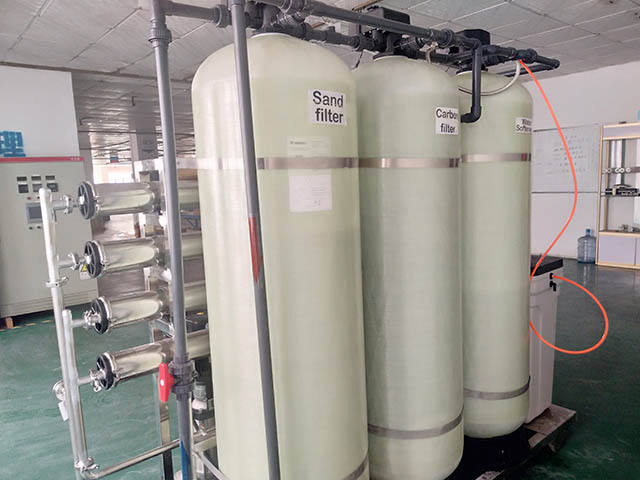

1. Pre-treatment Sand filter Remove turbidity, SS matter, organic matter, colloid, etc.
Active carbon filter Remove color, free chloride, organic matter, and harmful substances.
Water softener Soft water treatment to reduce hardness.
2. Double RO Part High pressure pump Provide necessary power for Reverse Osmosis.
PP filter Prevent particles, iron, and dust from entering RO membrane.
RO membrane Removes: lead, copper, barium, mercury, fluoride, nitrite, and selenium.

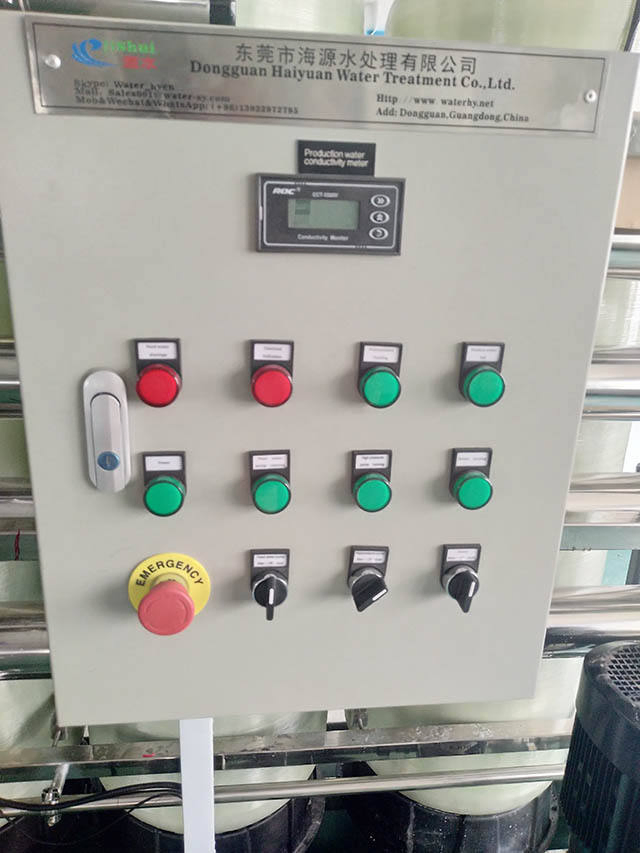

3. Control System PLC/Touch Screen Advanced control system (WeiNview, Mitsubishi components).
Electrical components High-quality components (Omron/German standards).
Equipment Detail 1
Equipment Detail 2
Vertical System View
📦 Packaging & Shipping
Professional Packaging

Standard plywood packing is used to ensure the safety of the equipment during international transit. Special requirements can be accommodated upon request.

❓ Frequently Asked Questions
1. What information is needed for a tailored solution?
Please provide the water source, water quality report, required flow rate, and available ground area for installation.
2. What are the payment terms?
TT and L/C are acceptable. Typically, a 30% deposit is required before production, with the remaining 70% balance paid before loading.
3. What is the expected delivery time?
Delivery time generally ranges from 4 to 6 weeks, depending on the order quantity and specific customization requirements.
4. How is the equipment protected against corrosion?
We use world-famous coating brands and strictly follow standard painting processes to ensure long-term durability and corrosion resistance.
5. How is quality controlled during manufacture?
Our processes follow ISO9001 standards. All products are designed using RO simulation software and undergo a continuous 3-day test run before delivery.
6. How is the installation handled?
We provide detailed illustrations, installation videos, and operating manuals. If necessary, engineers can be dispatched for overseas on-site installation and commissioning.
