Advanced Industrial Laser Marking System for PCB and IC Applications

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

YY-500W-F

Type

Laser Machine Frame

Camera Type

Industrial Camera / Flying-Shot

Lens Focal Length

12mm/16mm

Annotation Mode

Equal-Flow / Induction / Xy Platform

Standard Software

Visual Marking / Flight Marking Software

Control Card Type

V1 Single-Axis / V2 Dual-Axis

Protection Type

Optical Fiber Laser Lens

Specification

51mm x 51mm x 41mm

HS Code

85258919

Product Description

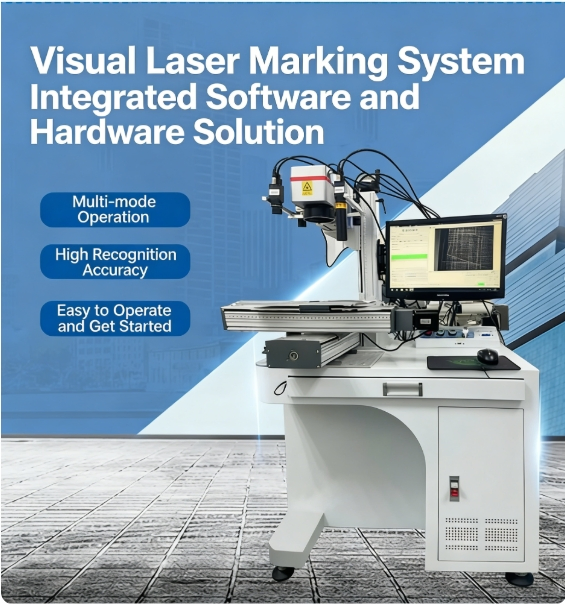

Visual Laser Marking System

The independently developed visual laser marking system deeply integrates laser marking, motion control, and automatic loading technologies. The software system supports customized assembly lines (x, y dual-axis platforms), flying marking, pseudo-coaxial mode, and off-axis mode. Through visual automatic recognition and positioning, it achieves dynamic marking on assembly lines. It solves manual positioning challenges, reduces personnel requirements, and improves processing efficiency for high-hardness, high-brittleness, and high-melting-point materials.

Core Advantages

Repeatability accuracy up to 0.01mm with a quality rate over 99.9%.

Supports fiber optic, carbon dioxide, and ultraviolet lasers.

Flexible vision software with strong compatibility for customized solutions.

Simultaneous recognition, positioning, and marking with multiple templates.

Compatible with conveyor belts, XY platforms, and vibratory feeders.

Barcode reading, grayscale recognition, and missed-marking alarms.

Processing accuracy of ±0.025mm for conventional products.

Advanced visual algorithms for complex object feature recognition.

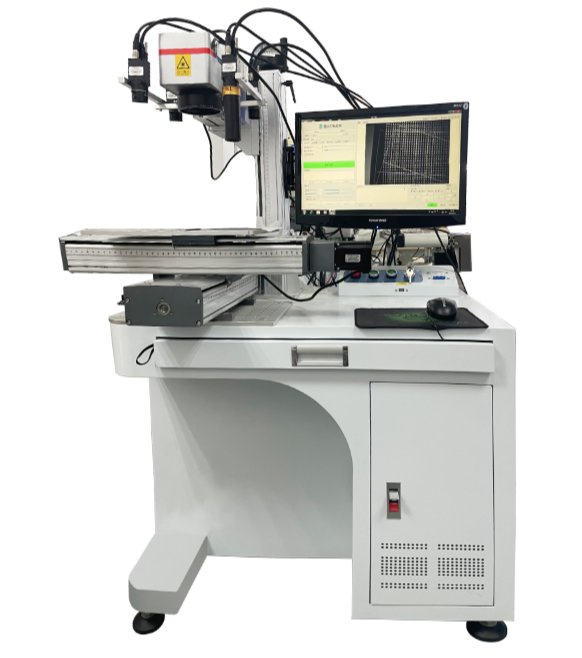

XY Dual-axis System

Suitable for large processing ranges, typically used with trays or boxes. Ideal for 3C industry, metal nameplates, hardware tools, and automotive parts.

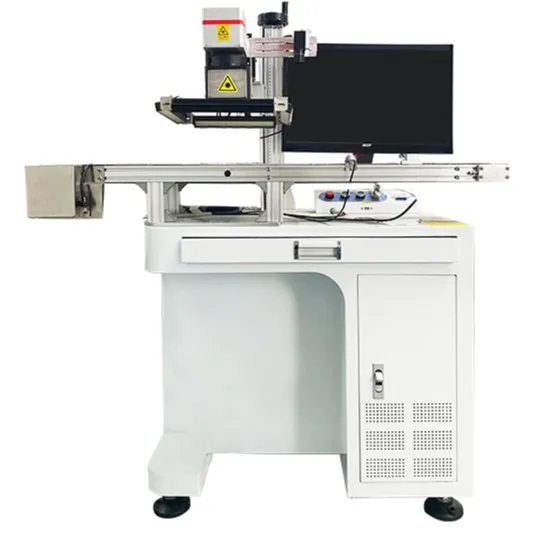

Flying Vision System

Accurately locates products continuously moving on production lines. High efficiency for pipe fittings, daily necessities, and electronics.

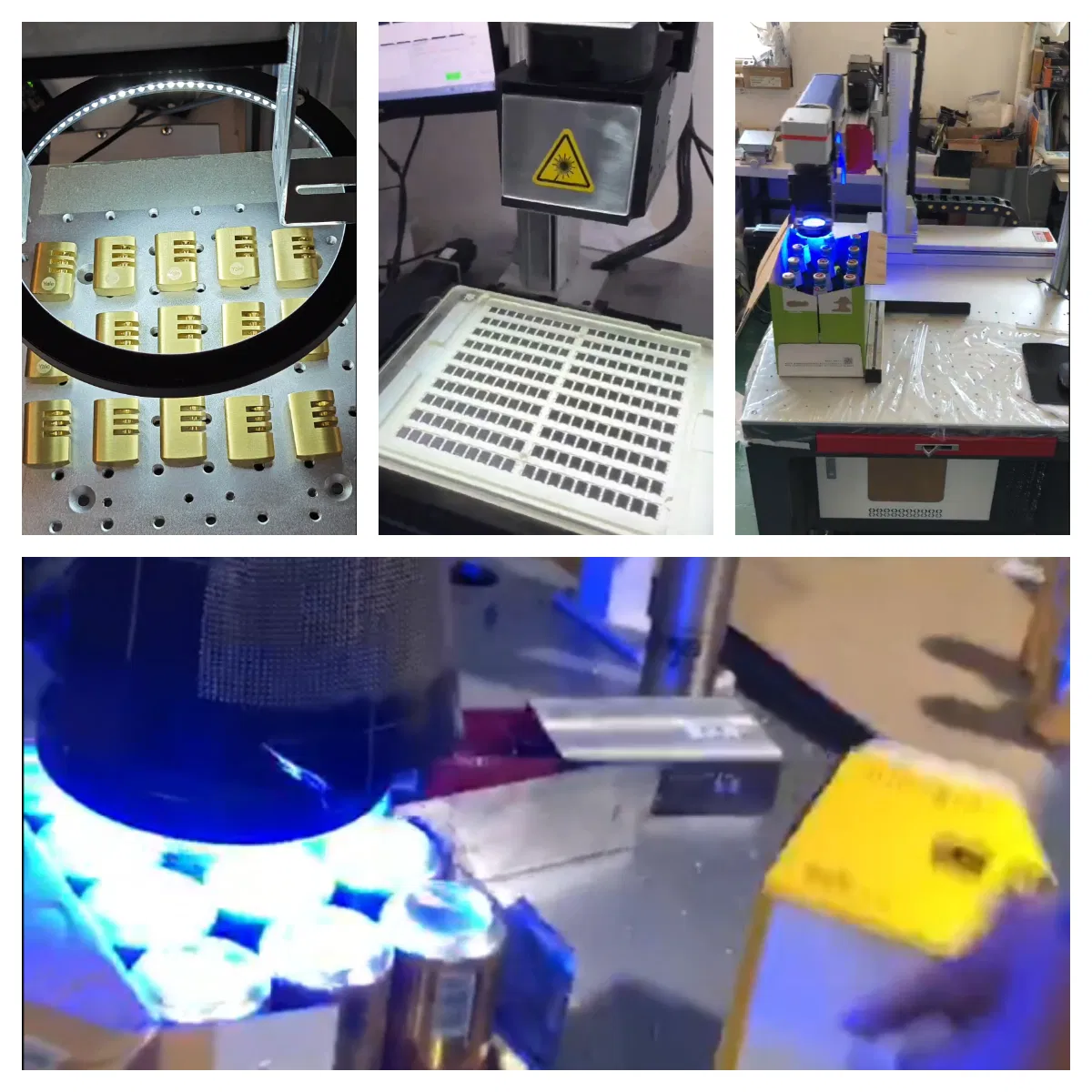

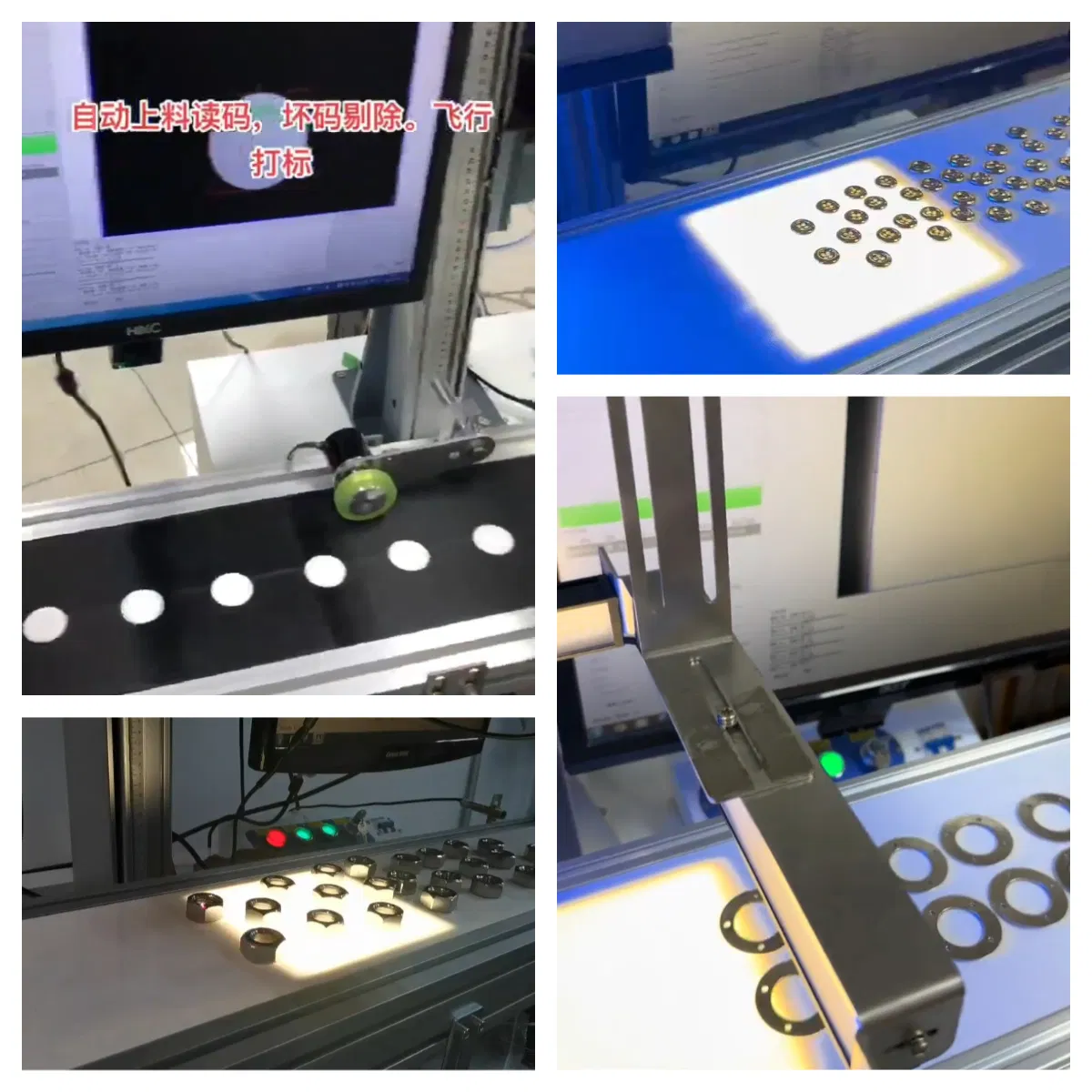

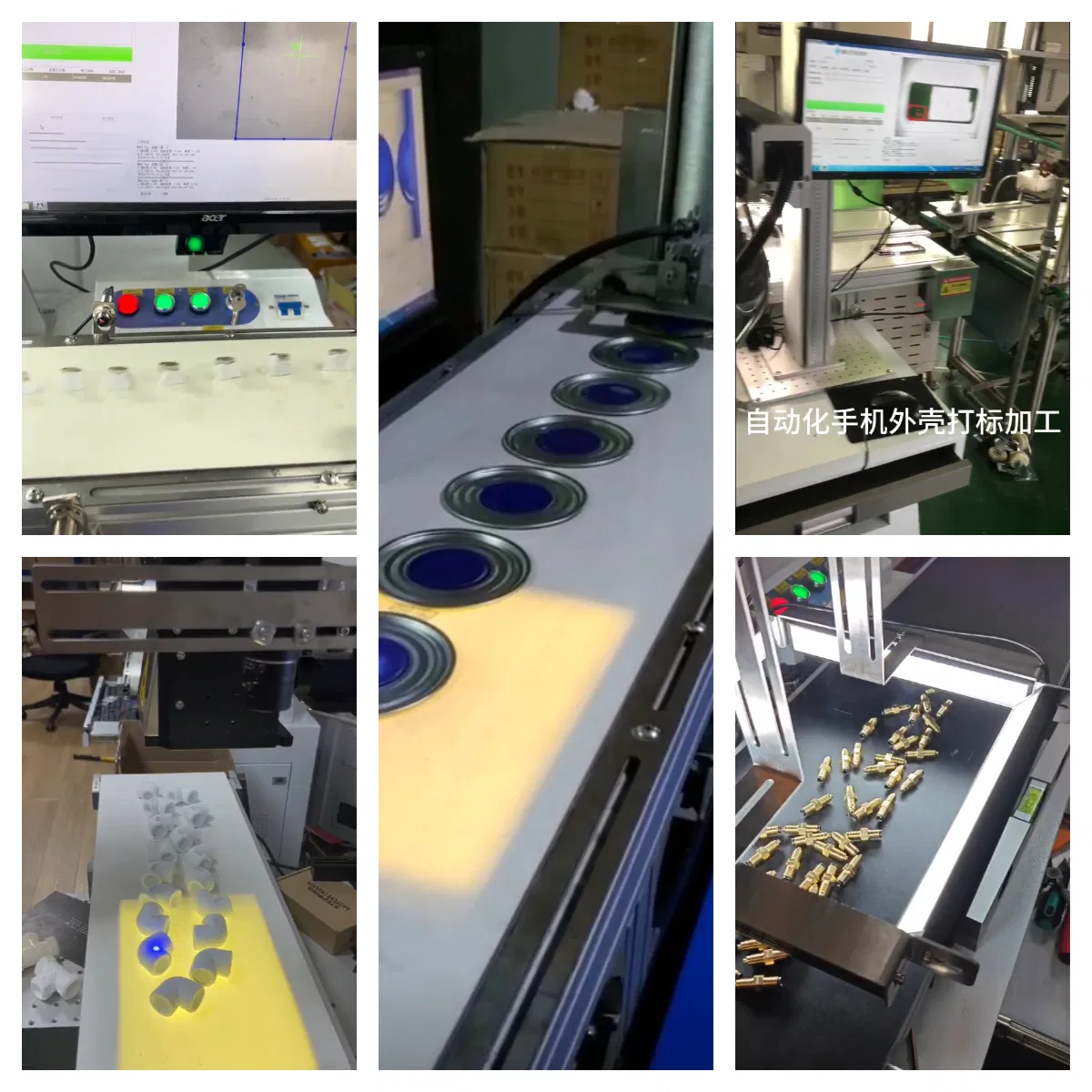

Case Studies

Technical Capability

Focusing on industrial camera hardware, software, and machine vision solutions, our R&D team consists of more than 30 engineers. We support a wide range of interfaces including USB2.0, USB3.0, GigE, 10GigE, and GMSL. Our solutions are deployed globally in robotics, industrial inspection, drones, and medical devices. We collaborate with automation manufacturers and vision software developers to create intelligent manufacturing ecosystems.

Frequently Asked Questions

What is the typical lead time for orders?

Standard products typically ship within approximately one month. Custom product lead times are determined based on technical specifications and material availability.

What is the minimum order quantity (MOQ)?

We support small MOQs for standard models. The exact quantity depends on the specific product model chosen.

Do you provide SDK and technical support for development?

Yes, we offer a complete SDK, comprehensive development documentation, and support for secondary development along with remote technical assistance.

Which sensor brands are utilized in your systems?

We mainly integrate internationally recognized sensor brands such as Sony and ON Semiconductor to ensure high performance and reliability.

Can samples be provided for testing?

Free test samples may be requested for specific projects by existing customers. For new partners, we offer paid testing or rental options that can be applied toward future purchase prices.

Which industries are best suited for your marking systems?

Our systems are widely used in machine vision, automated inspection, vision positioning, laser marking, semiconductor manufacturing, and electronics assembly.
