Product Description

📋 Basic Specifications

Model NO.

HXF

Cooling System

Water Cooling

Laser Class

Continuous Wave Laser

Applicable Material

Metal

Structure Type

Desktop

Laser Classification

Solid Laser

Laser Power

1500W / 2000W / 3000W

Laser Head

Auto Focus Laser Head

Voltage

3 Phases 380V 50-60 Hz

Working Area

Up to 2000mm x 6000mm

Positioning Accuracy

0.03mm

Origin

China

🚀 Key Machine Features

✔ 1. High performance laser equipment with a stable operating system for optimal cutting effects.

✔ 2. Integrated perfect cooling, lubrication, and dust removal systems for efficient, durable operation.

✔ 3. Single table configuration with auxiliary loading/unloading functions to boost processing efficiency.

✔ 4. Large closed-box design improves dust extraction and prevents light pollution.

✔ 5. Automatic height adjustment ensures a constant focal length for stable cutting quality.

✔ 6. Gantry structure with embedded cast aluminum beam for high rigidity and anti-knock performance.

📊 Technical Parameters

Parameter	Specification Details
Model	FAST-F3015 / 4015 / 4020 / 6020
Working Area	3000*1500mm (customizable)
Laser Generator	Raycus / IPG / MAX
Laser Power	1500W / 2000W / 3000W / 6000W
Location Accuracy	0.01mm
Max Moving Speed	140m/min
Materials Thickness	Max 40mm
Machine Warranty	3 Years
Applicable Materials	Stainless steel, carbon steel, alloy steel, copper, aluminum, etc.

🔍 Core Components

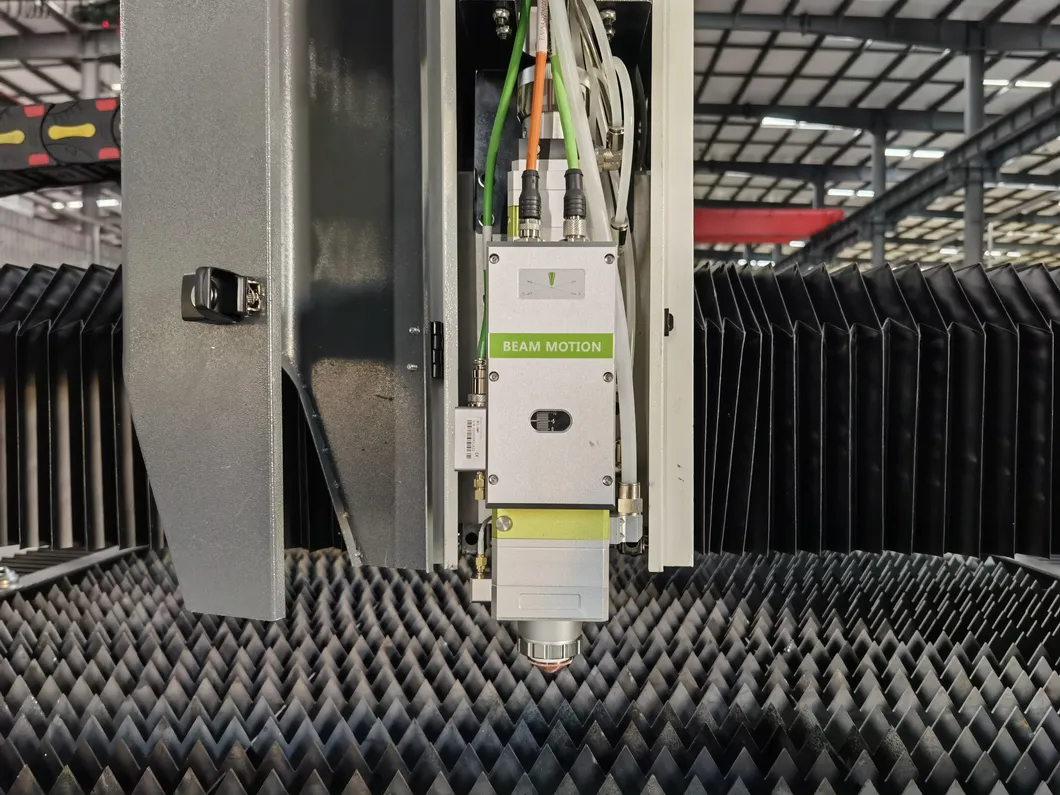

Auto-focus Laser Head
Professional sealed head prevents dust pollution.

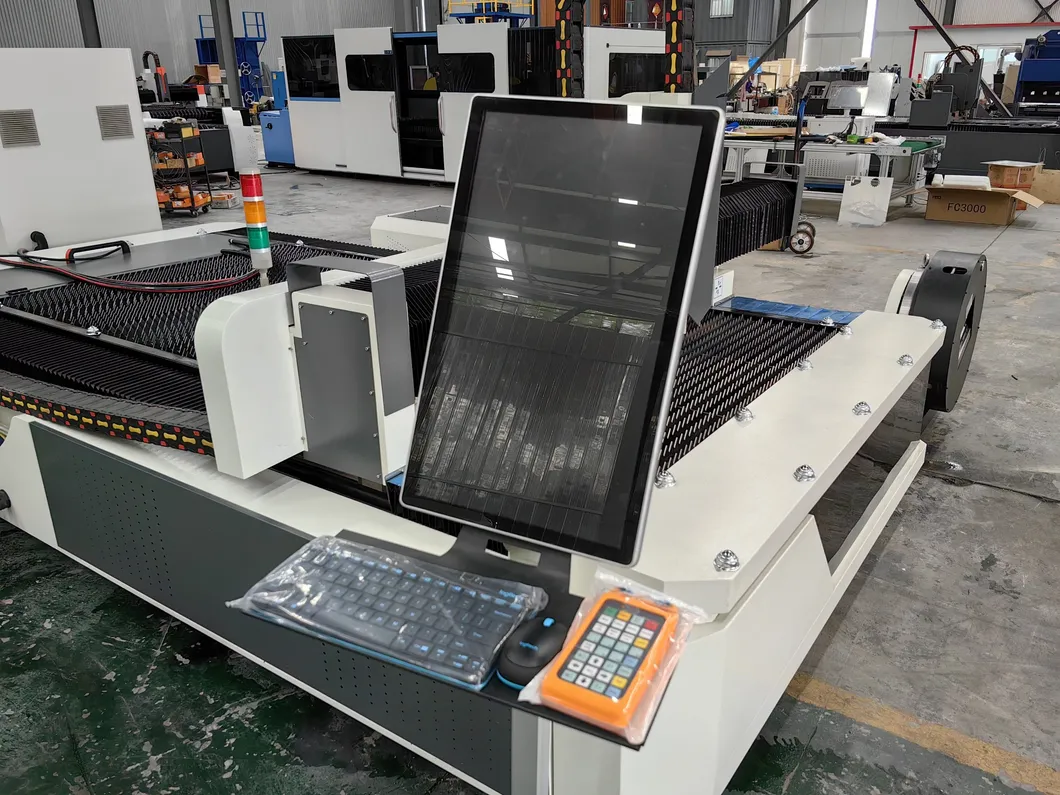

Intelligent CNC System
Supports automatic edge searching and typesetting.

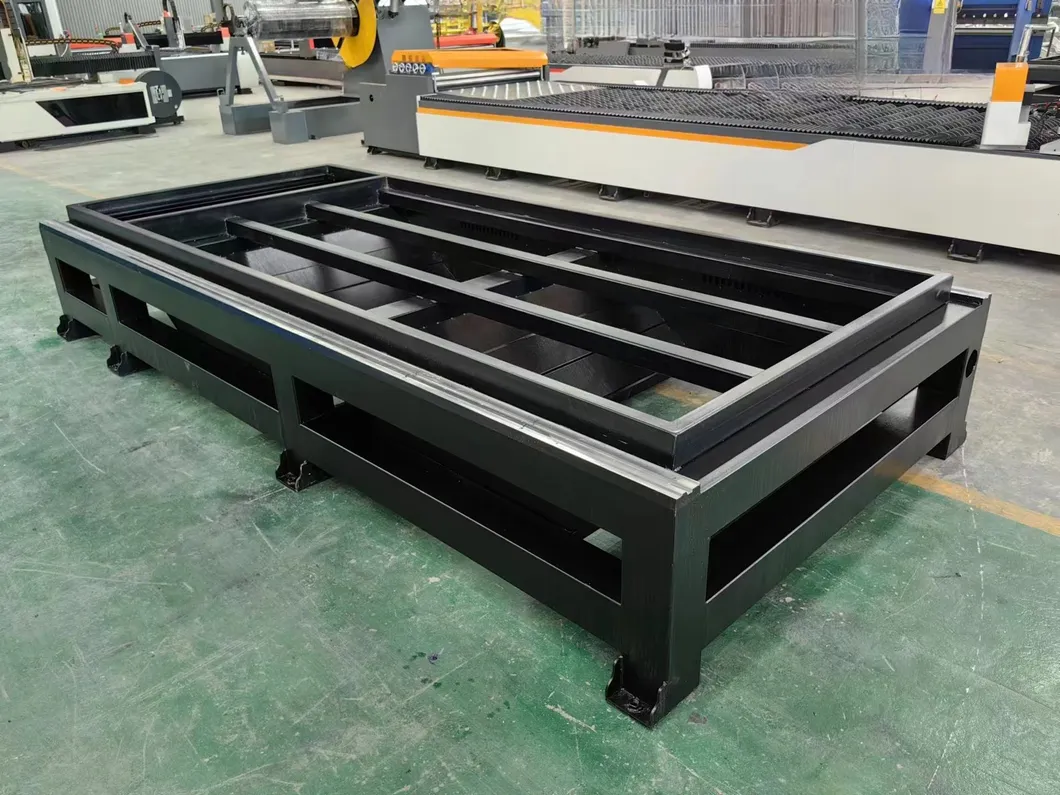

High Precision Machine Bed

High-quality square tube welding with high-temperature annealing to eliminate internal stress, ensuring long-term deformation resistance and toughness.

🛠 Applications & Cutting Samples

📦 Packaging & Delivery

Package Size

450.00cm * 200.00cm * 200.00cm

Gross Weight

1850.00kg

Package Type

Fumigation-Free Plywood Wooden Box

Production Capacity

50 Sets/Month

❓ Frequently Asked Questions

What materials can this fiber laser machine cut?

The machine is designed to cut various metal sheets, including stainless steel, carbon steel, alloy steel, spring steel, copper, aluminum, gold, silver, and titanium.

What is the maximum thickness the machine can process?

Depending on the laser power selected, the machine can cut materials up to a maximum thickness of 40mm.

Which laser sources are available for this equipment?

We offer industry-leading laser generators such as Raycus, IPG, MAX, JPT, and RECI to ensure stability and high performance.

How accurate is the cutting and positioning?

The machine achieves a high location accuracy and repeatability accuracy of 0.01mm to 0.03mm, thanks to its high-precision bed and advanced CNC system.

Does the machine come with a warranty?

Yes, the machine includes a comprehensive 3-year warranty, covering major components to ensure reliable production.

What are the power requirements for installation?

The standard machine requires a 3-phase 380V power supply at 50-60 Hz. Customizable options may be available upon request.
