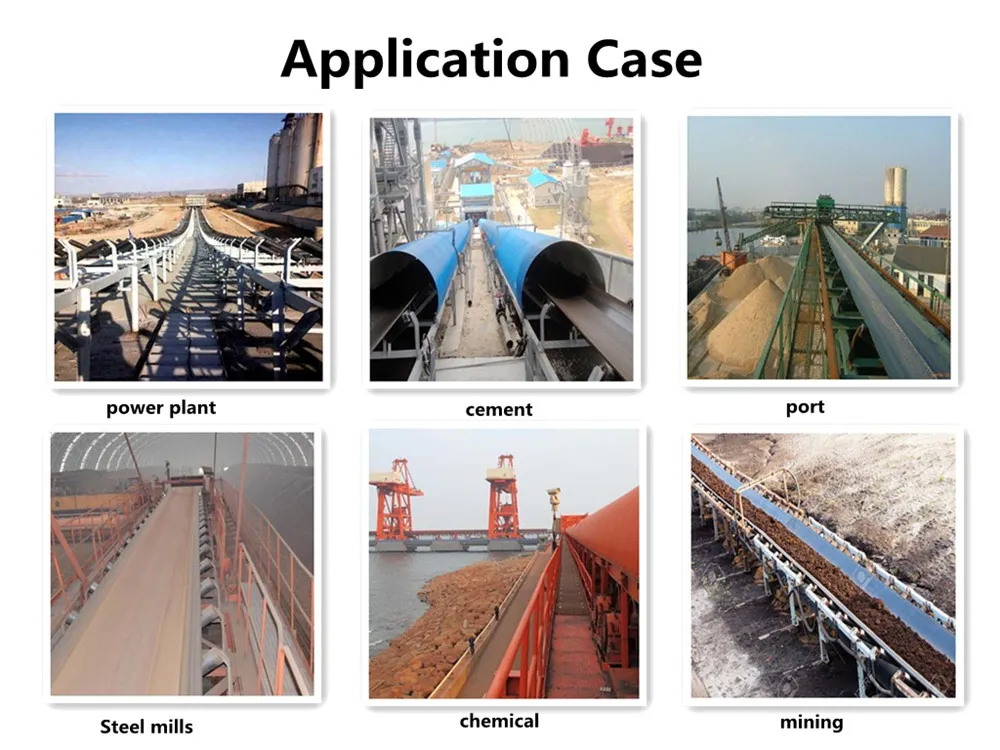

High Quality Conveyor Belt System for Cement/Port/Power Plant

📊 Basic Information

Model NO.

EP200

Inside Material

Nylon

Tensile Strength

Strong (100-4500 N/mm)

Color

Black

Belt Thickness

6mm-16mm Customized

Belt Width

500mm--3000mm

Fabric Type

EP/Nylon

Standard

DIN22102, RMA

Warranty

1 Year

Processing

Mould, Cutting

📝 Product Description

Application: Ideally suited for mid-distance, high speed, and shock-resistant operations across various industrial sectors.

✓ Low load elongation
✓ Excellent flexing and trough ability
✓ Shock resistant for long service life
✓ Heat and water resistant performance

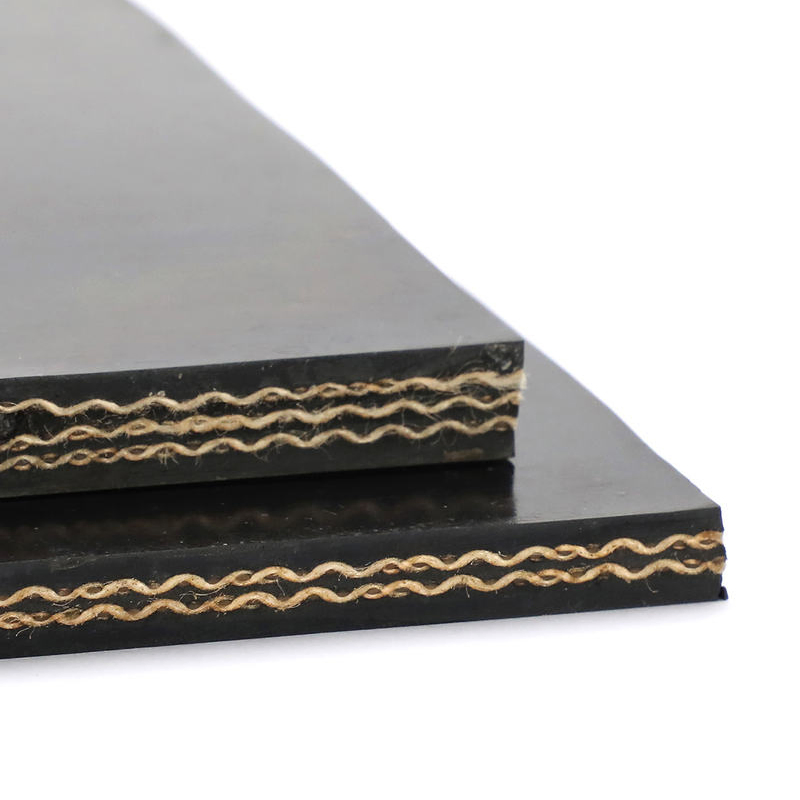

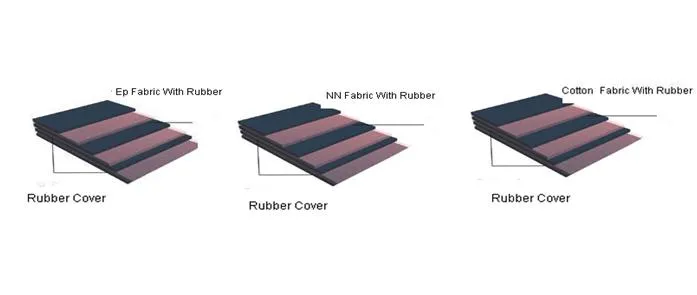

EP polyester offers high tension strength and minimal elongation, making it superior to other fabric materials. Depending on working conditions, various rubber cover qualities (10MPA to 24MPA) and fabric grades (EP100 to EP250) are available.

⚙️ Product Parameters

Tensile Strength (N/mm)	Canvas Type	Belt Width (mm)	Layers	Cover Thickness (mm)		Weight (Kg/m²)
Tensile Strength (N/mm)	Canvas Type	Belt Width (mm)	Layers	Top Rubber	Bottom Rubber	Weight (Kg/m²)
200-1000	EP-100	300-2200	2-10	3.0 / 4.5 / 6.0	1.5 / 3.0	1.4012
400-1200	EP-200	300-2200	2-6	3.0 / 4.5 / 6.0	1.5 / 3.0	1.5685
500-1500	EP-250	500-2200	2-6	3.0 / 4.5 / 6.0	1.5 / 3.0	1.6605
600-1500	EP-300	500-2200	3-6	3.0 / 4.5 / 6.0	1.5 / 3.0	1.6839
800-2400	EP-400	800-2200	2-6	3.0 / 4.5 / 6.0	1.5 / 3.0	1.8059

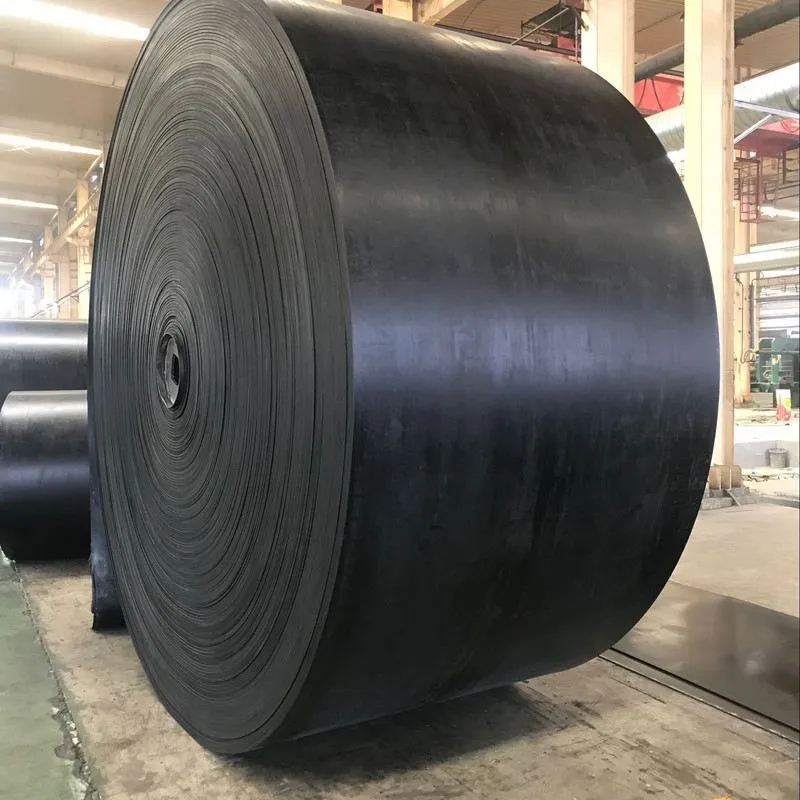

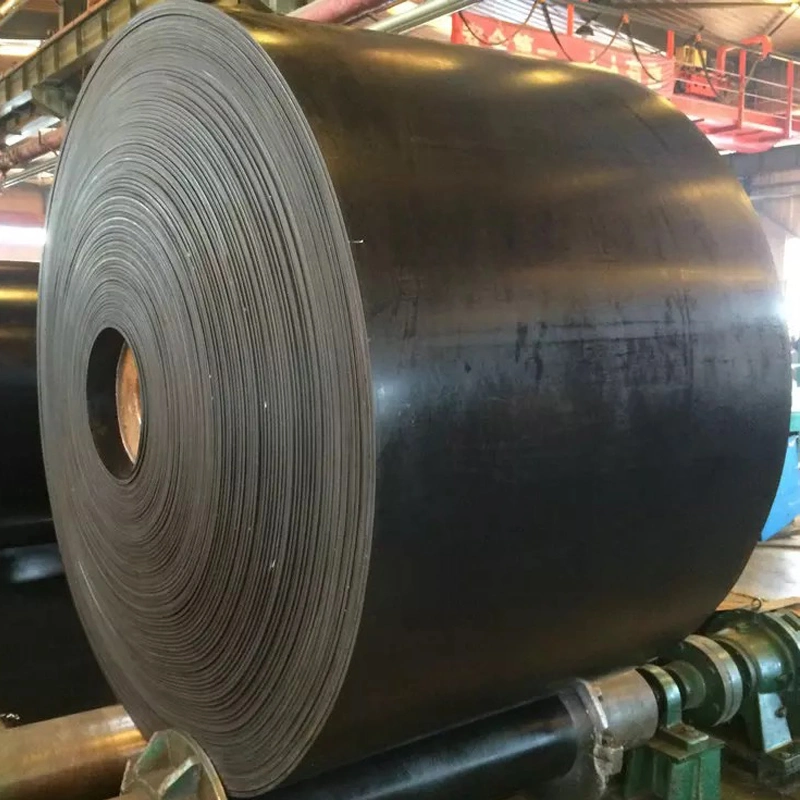

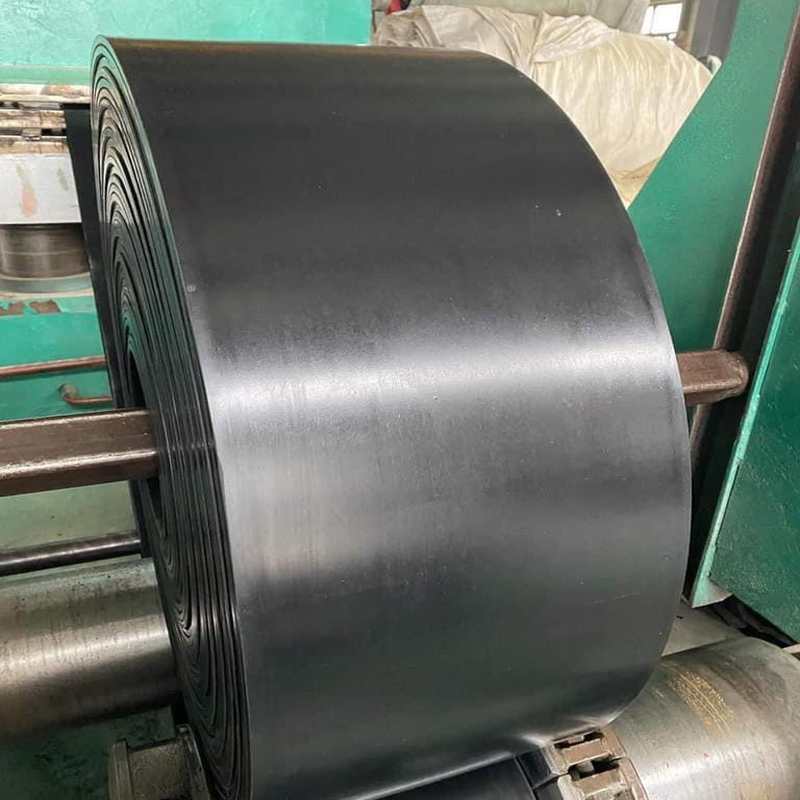

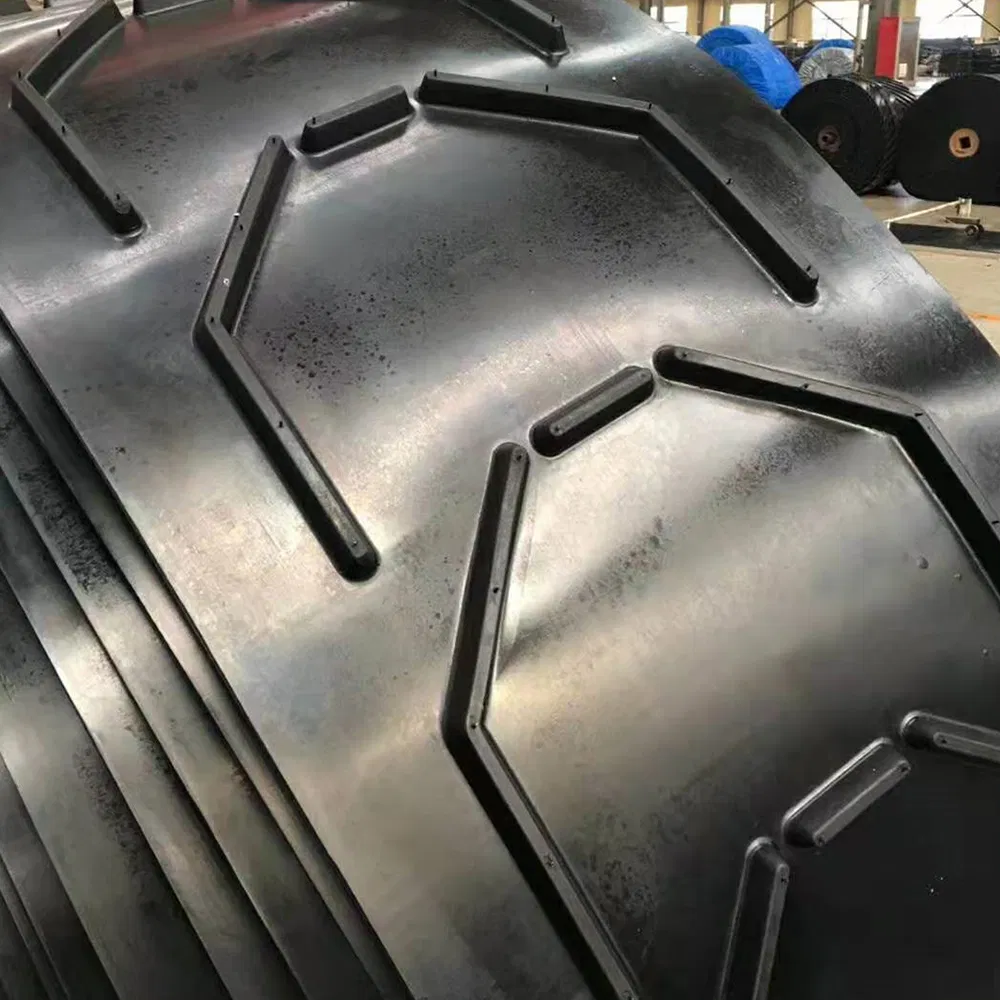

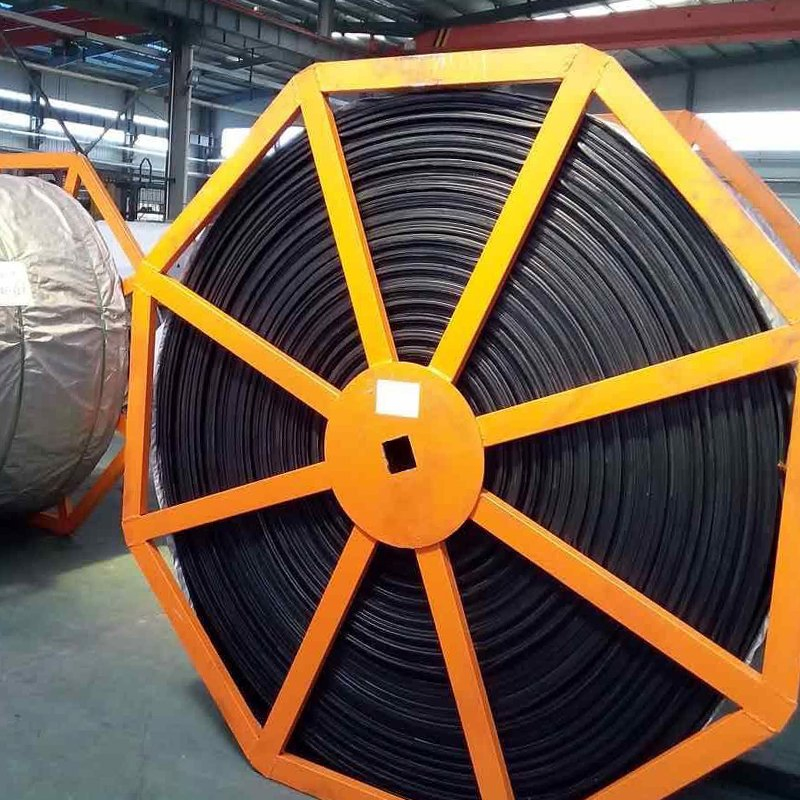

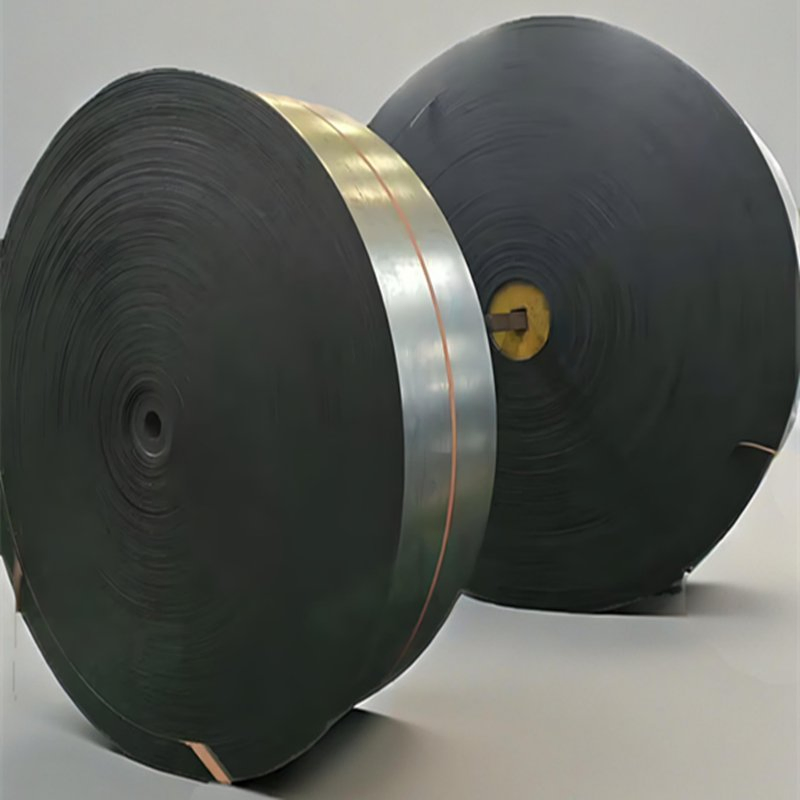

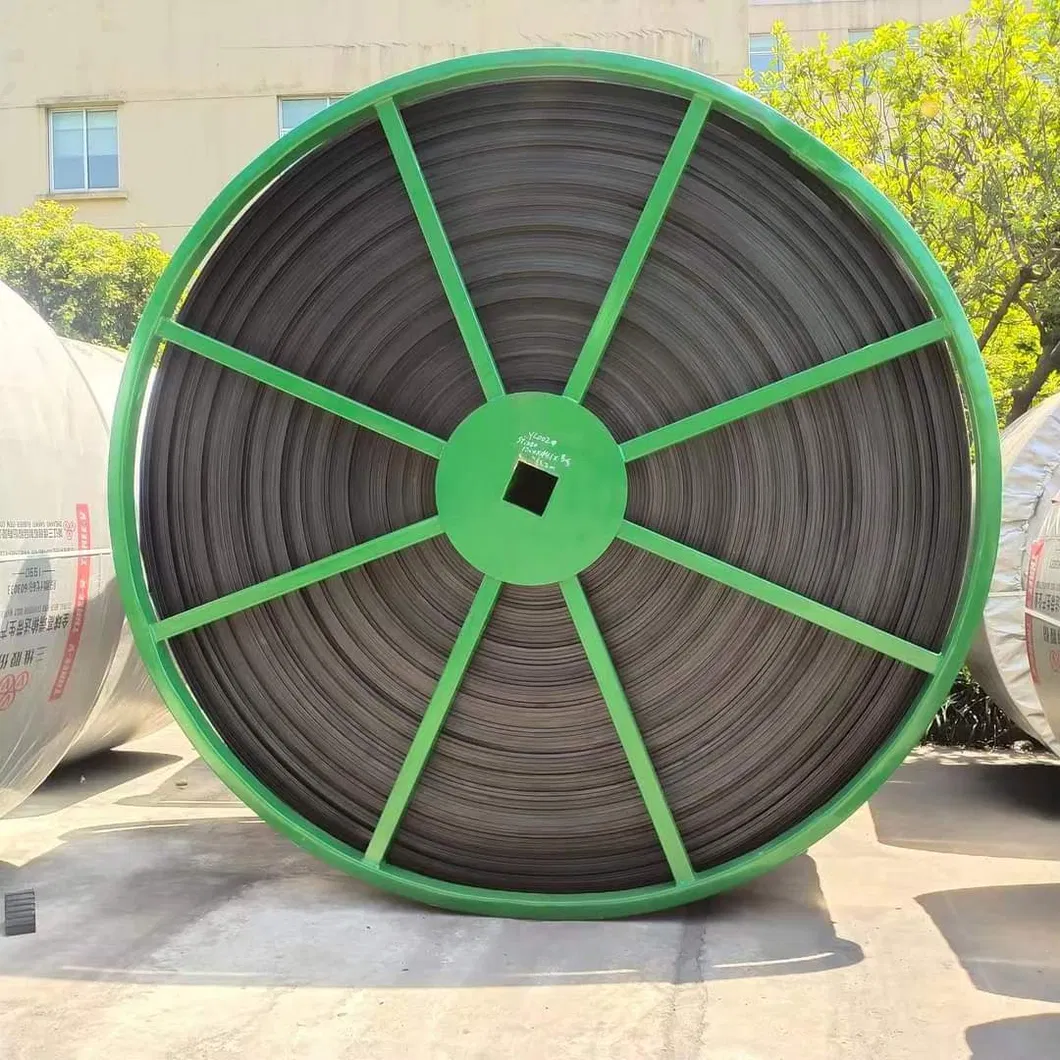

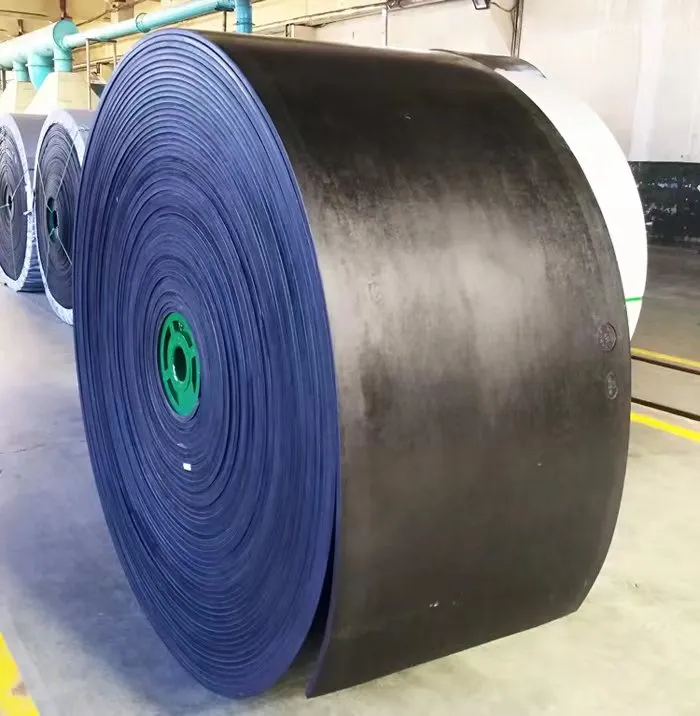

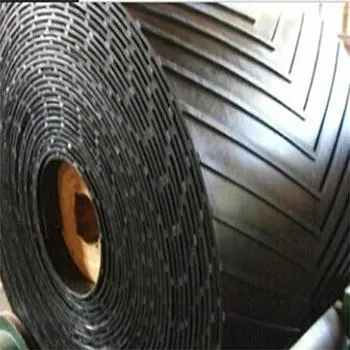

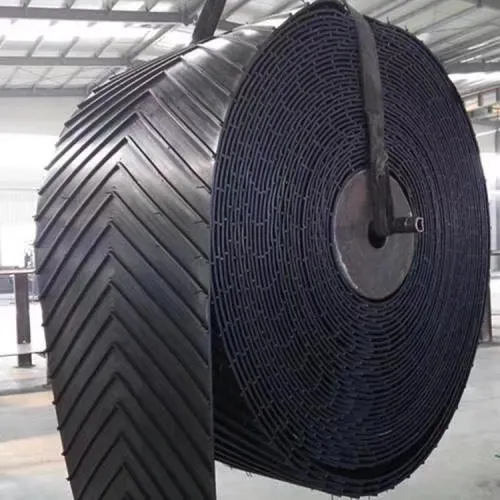

📷 Detailed Photos

🏆 Certifications & Quality Control

Certifications

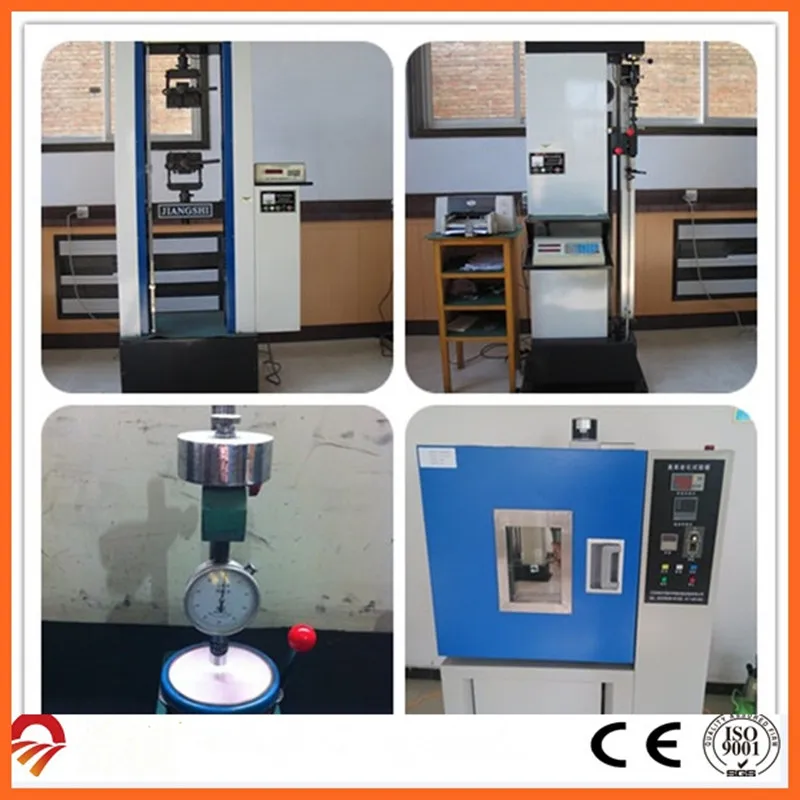

Quality Inspection

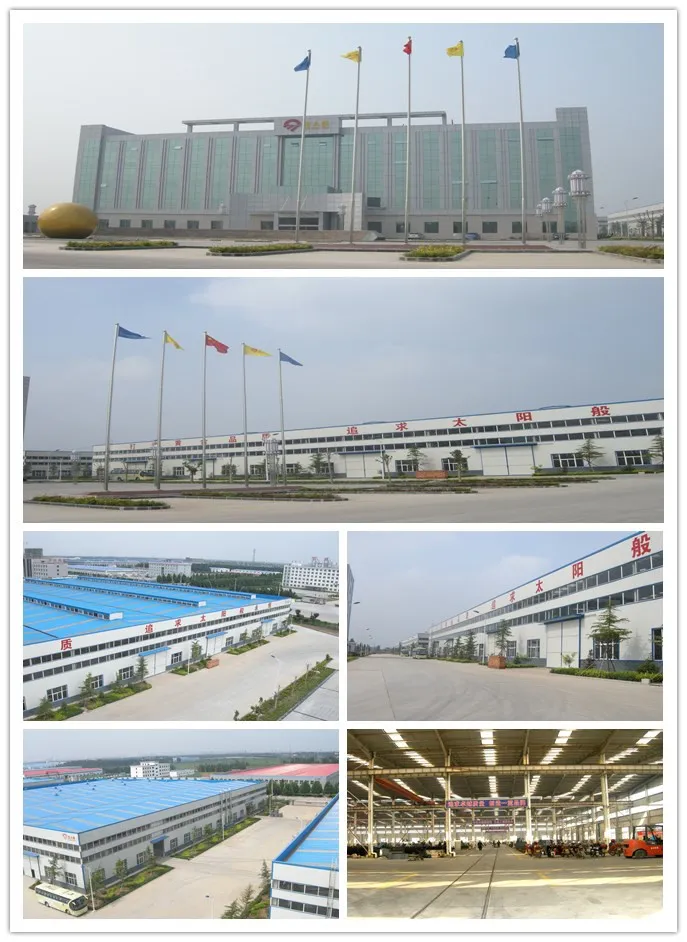

🏢 Profile

As a high-end conveying equipment brand with an excellent technical team and multiple national patents, we focus on providing intelligent conveying machinery. We provide one-stop solutions for intelligent conveying systems, managing the entire cycle from construction to operation and service.

❓ FAQ

Are you a manufacturer?

Yes, we have been specialized in manufacturing conveyor and conveyor components for more than 19 years.

What is the delivery time?

The typical delivery time is about 10 to 30 days, depending on the product specifications and order quantity.

What are the supported payment methods?

We primarily accept T/T (Telegraphic Transfer) and L/C (Letter of Credit).

How do you guarantee product quality?

Quality is our priority. We conduct five separate inspections throughout the production process before final delivery.

Can the conveyor belt width be customized?

Yes, we offer customization for belt widths ranging from 500mm up to 3000mm to meet specific industrial requirements.

What industries are these belts suitable for?
