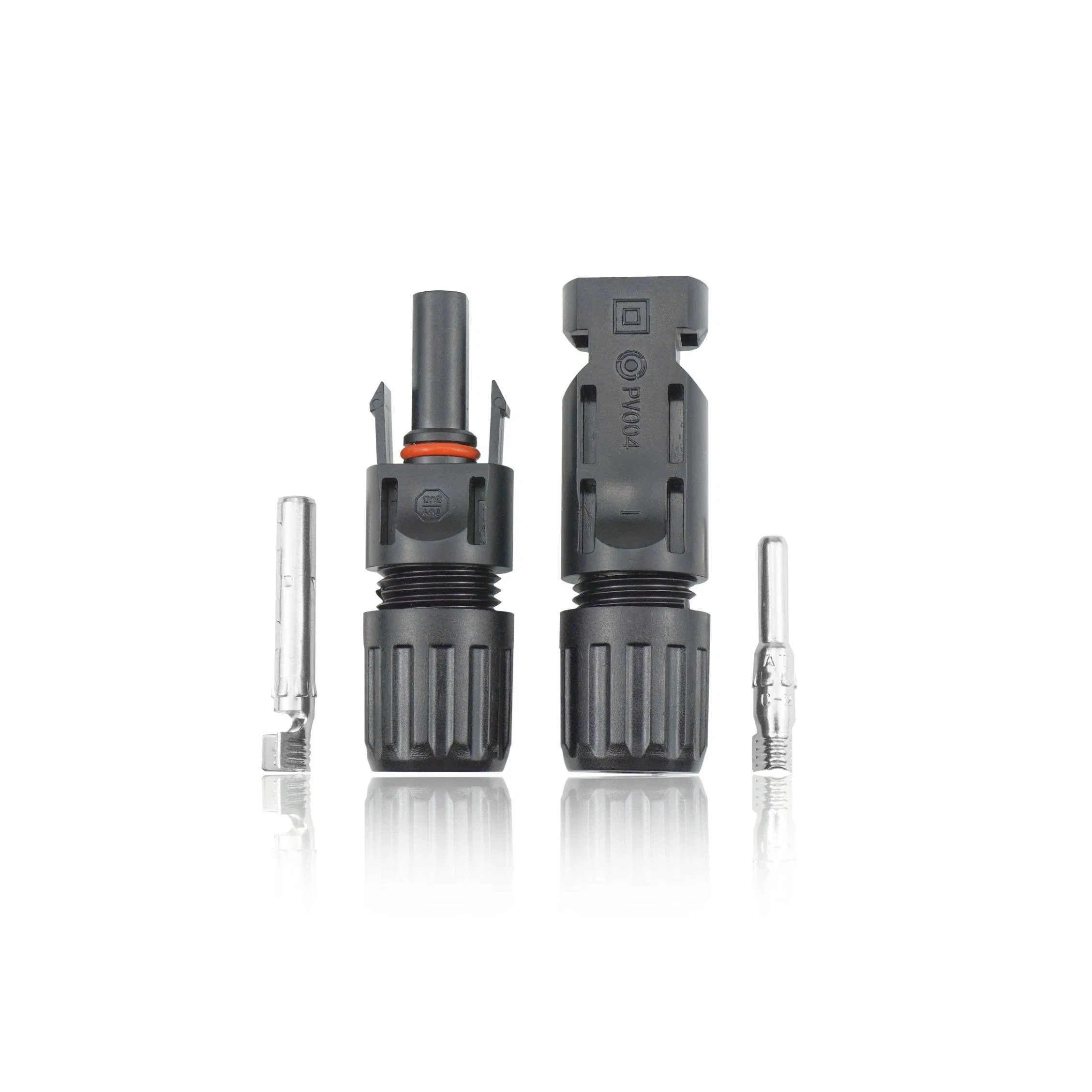

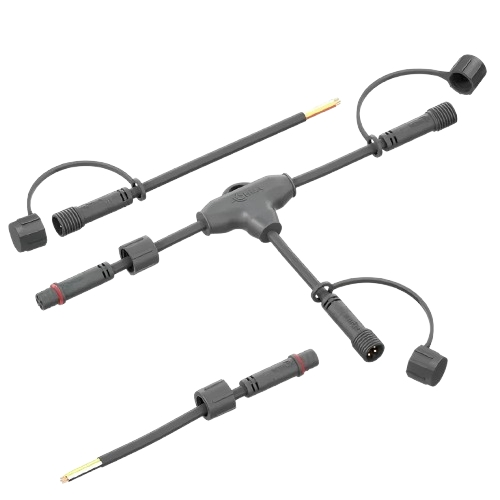

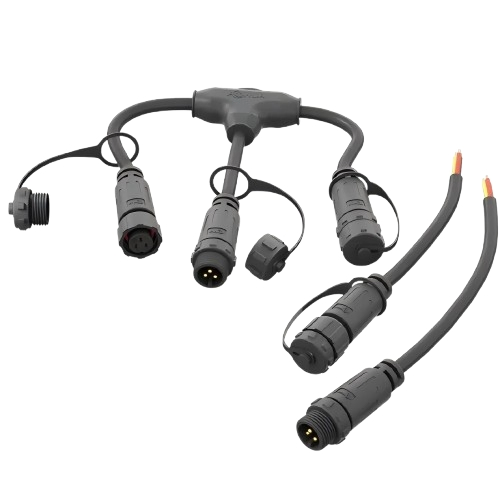

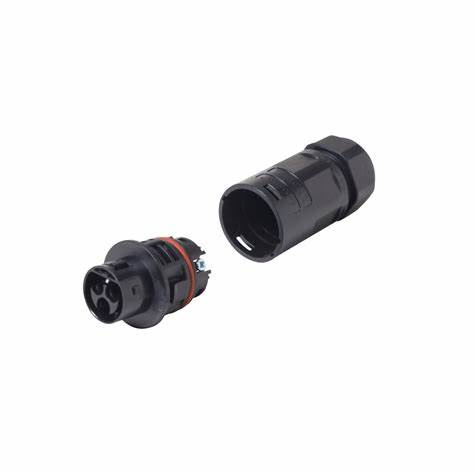

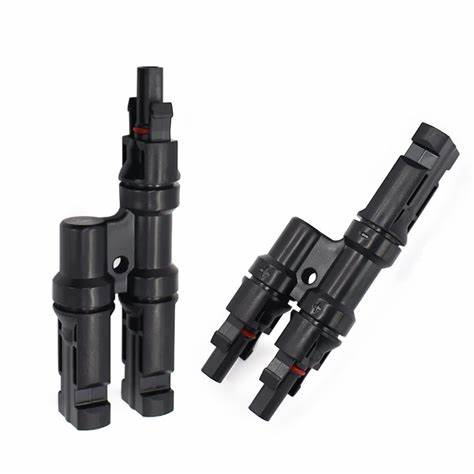

Customized Cable Harness Outdoor Indoor LED Light Nylon PVC Molding T Y Type Distributor Male Female Waterproof Connector

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Number of Cores
Single-Core
Ferrule Endface
PC(UPC)
Shape
Square
Fabrication Process
Moulded
Application
Fiber Distribution Frame
Light Source TYPE
Laser
Connector Type
ST
Brand
OEM
Test Voltage
8000V(50Hz,1min)
Contact Resistance
<0.35mΩ
Temperature Range
-40℃ ~ +85℃
Origin
China

Product Description

  • Simple on-site processing.
  • Mating safety provided by keyed housings.
  • Multiple plugging and unplugging cycles.
  • Accommodates PV cable with different insulation diameters.
  • High voltage and high current carrying capacity.
  • TUV and CE approved.

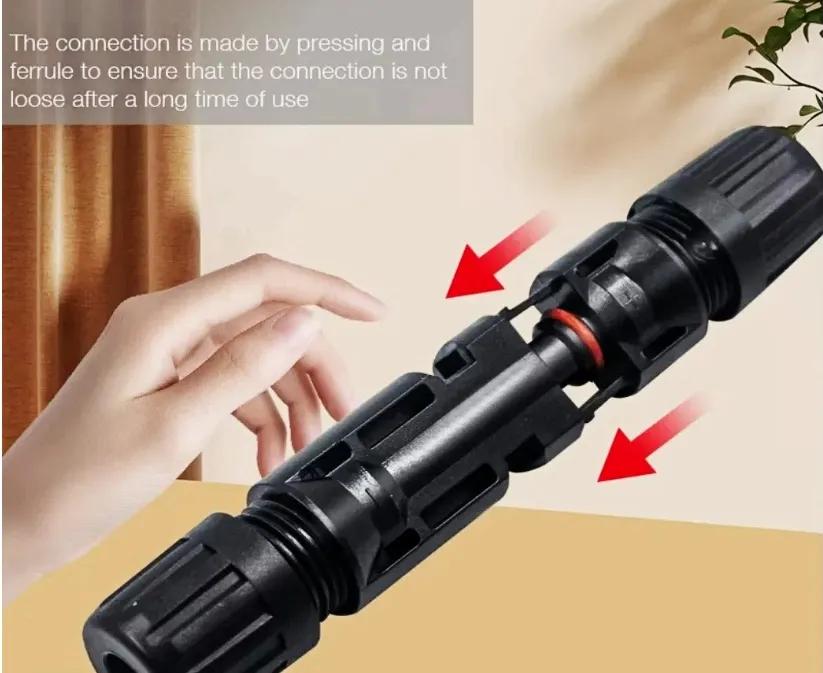

  • Crimp connection.

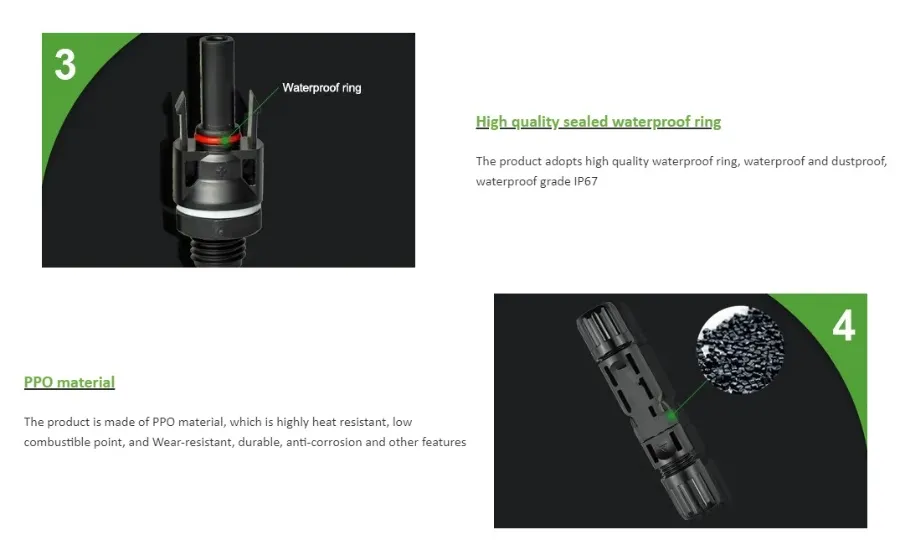

  • IP68 strongly waterproof.
Insulation Material PPO Rated Current 50A(2.5mm2~6mm2), 70A(10mm2)
Test Voltage 8000V(50Hz, 1min) Rated Voltage 1000V DC/1500V DC
Contact Resistance <0.35mΩ Degree of Protection IP68
Overvoltage Category CATIII/2 Flame Class UL94-V0

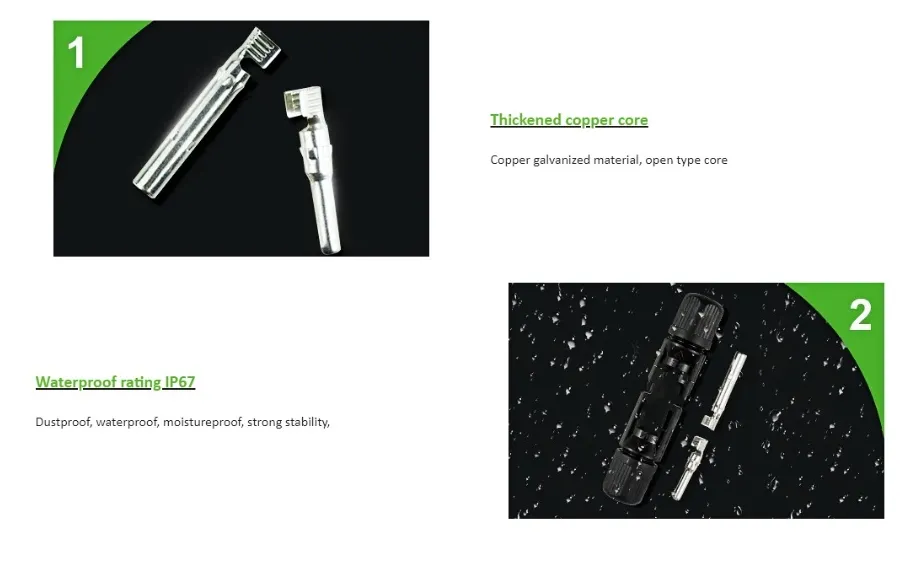

Safety Class II Contact Material Copper, tin plated
Temperature Range -40ºC ~ +85ºC Suitable Cable 2.5/4/6mm2, 14/12/10AWG
Connecting System Crimp connection Insertion/Withdrawal Force ≤50N / ≥50N

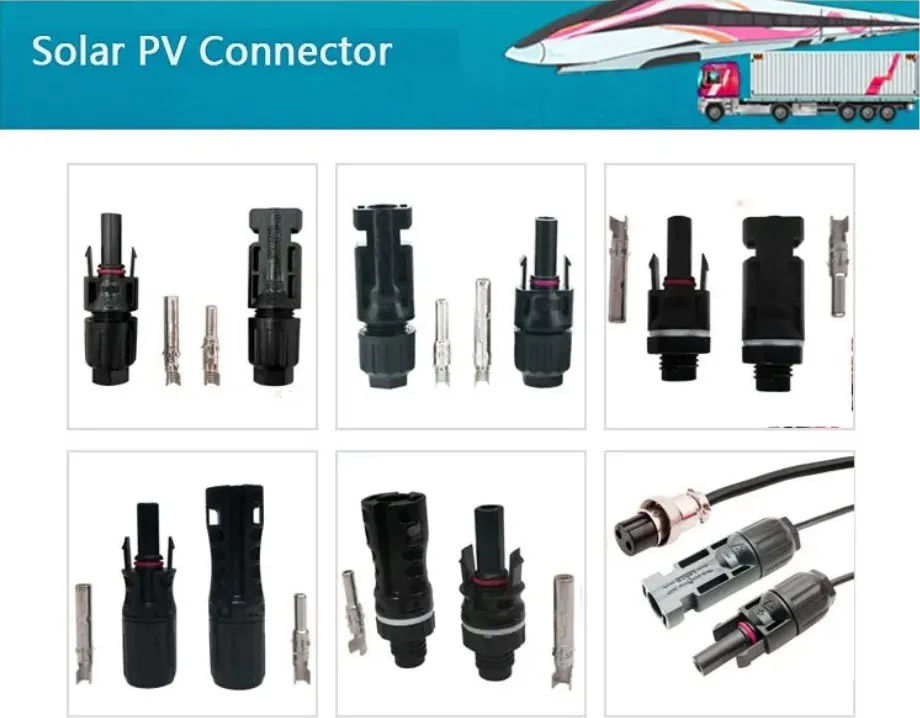

Full Product Range

Company Profile

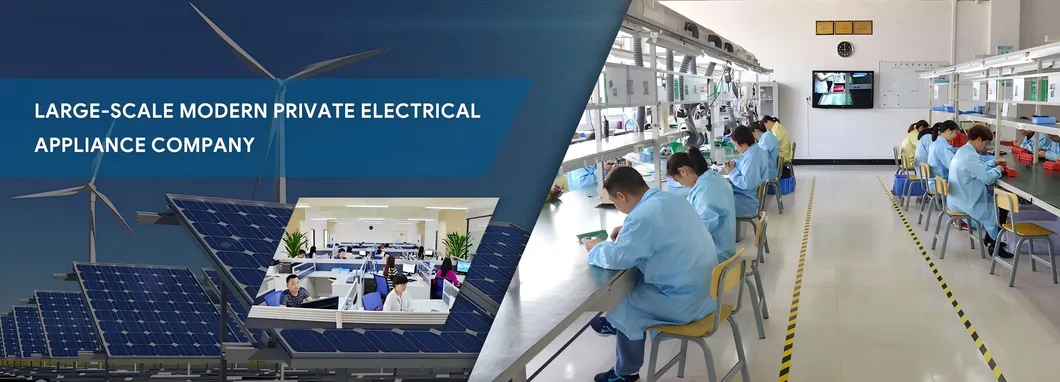

Our company has strong technical production capabilities and possesses multiple production lines with leading domestic technical levels, as well as surge protectors, lightning current impulse transmitters, transformer calibrators, pressure gauges, PD instruments, etc. Through cooperation with top foreign design institutes, the company introduces world-class equipment, supplemented by imported high-quality materials and exquisite manufacturing industry, to create products that lead the market. We strictly implement the ISO9001:2000 international quality management system standard and strive to enhance the brand awareness and reputation of high-quality products and services. We have established a complete quality management, supply chain, and after-sales service system, serving more than 30 countries and regions such as the United States, UK, France, and Spain.

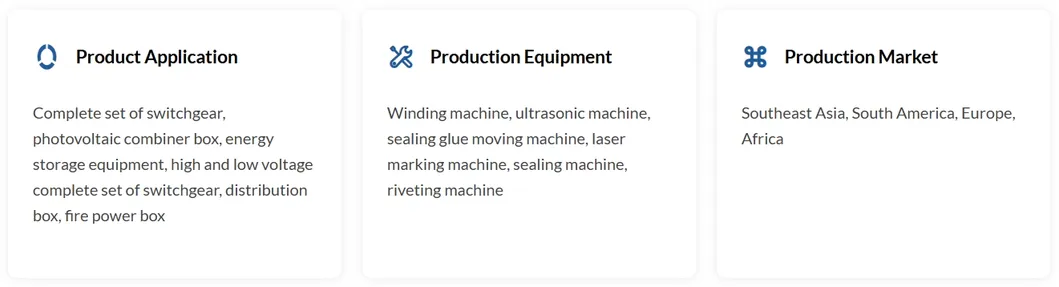

Equipment Showcase Product Testing Quality Control Logistics Warehouse Certifications

FAQ

Is OEM or ODM service available?
Yes, we can provide both OEM and ODM services. We offer many different specifications and appearances for customers to choose from.
How long is your standard delivery time?
Our delivery time is determined by purchase volume. Generally, it takes 3 to 40 days. For quantities under 300 pieces, it takes about 5 days; for larger orders up to 20,000 pieces, it may take 15 to 40 days.
Do you provide samples for testing?
We can offer free samples to customers (usually one piece). However, the shipping cost needs to be borne by the customer.
What certifications do your products hold?

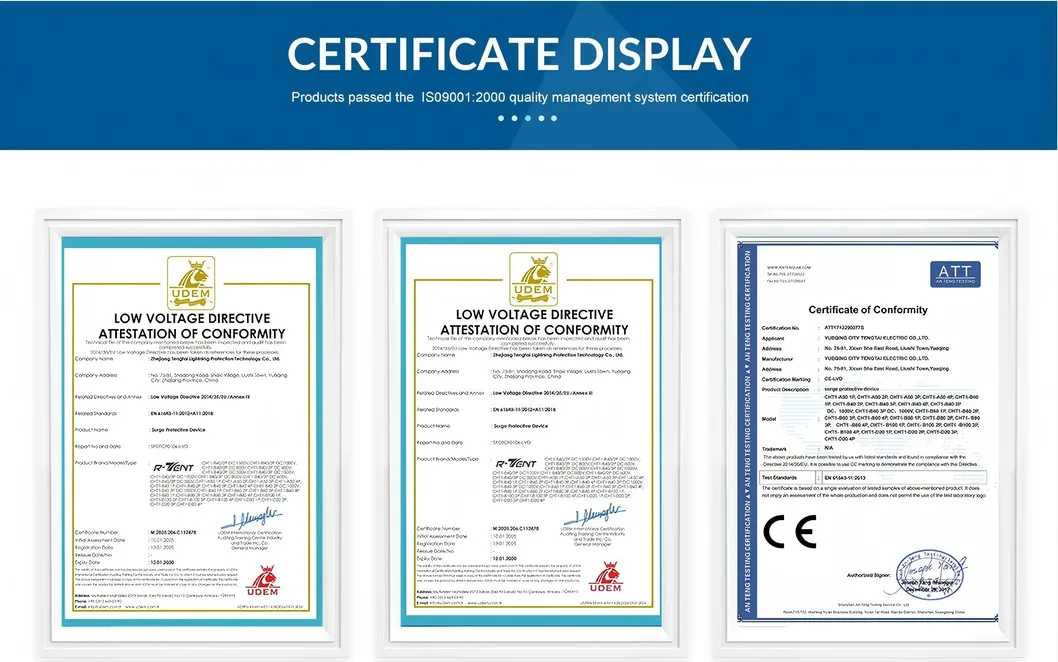

We have passed ISO9001, ISO14001, OHSAS18001, CQC, CE, TUV, CB, and RoHS certifications, ensuring a complete quality management system.

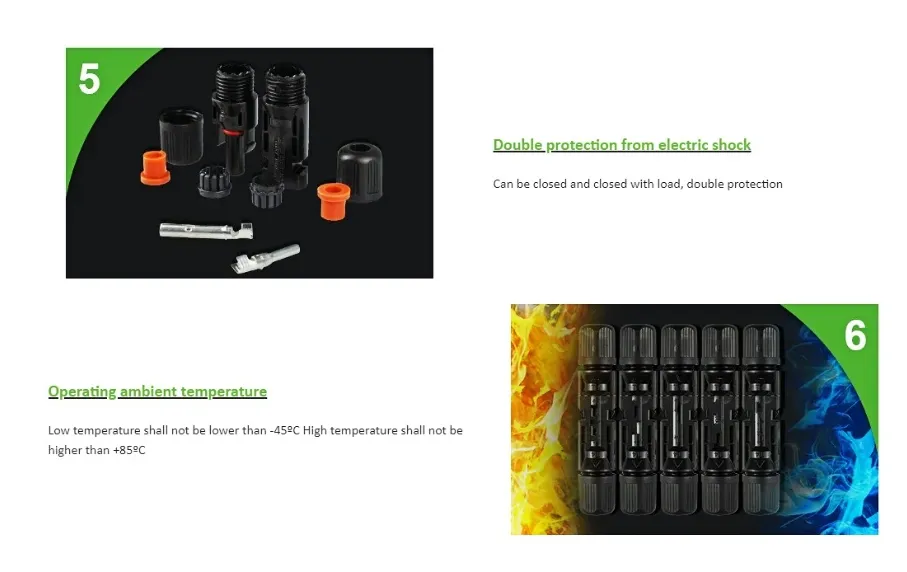

What is the operating temperature range for these products?
The operating environment temperature range for our products is typically -40ºC to +85ºC, making them suitable for both cold and hot weather conditions.
Can you provide a professional installation manual?
Sure, a detailed installation manual is included in every product box and is also available for reference on our website.
