High Speed Fin Welding System for Solar Thermal Collector Production with Automated Material Handling and Stacking

Customization:	Available
Cooling Way:	Water Cooling
Control:	Automatic

Send Inquiry

Product Description

⚙️ Basic Specifications

Style

Vertical

Frequency

High Frequency

Electric Current

Pipe Shape

Round, Square, Rectangle

Useful Life

40 Years

Production Capacity

70 Sets

📘 General Overview

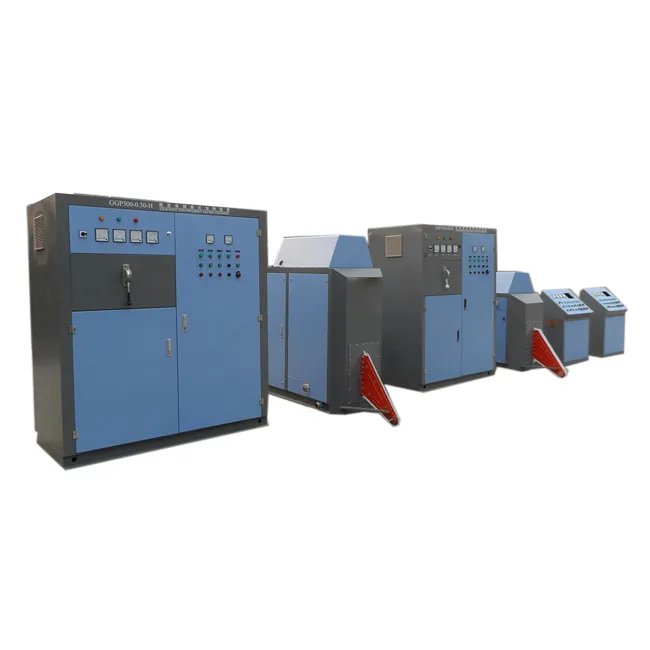

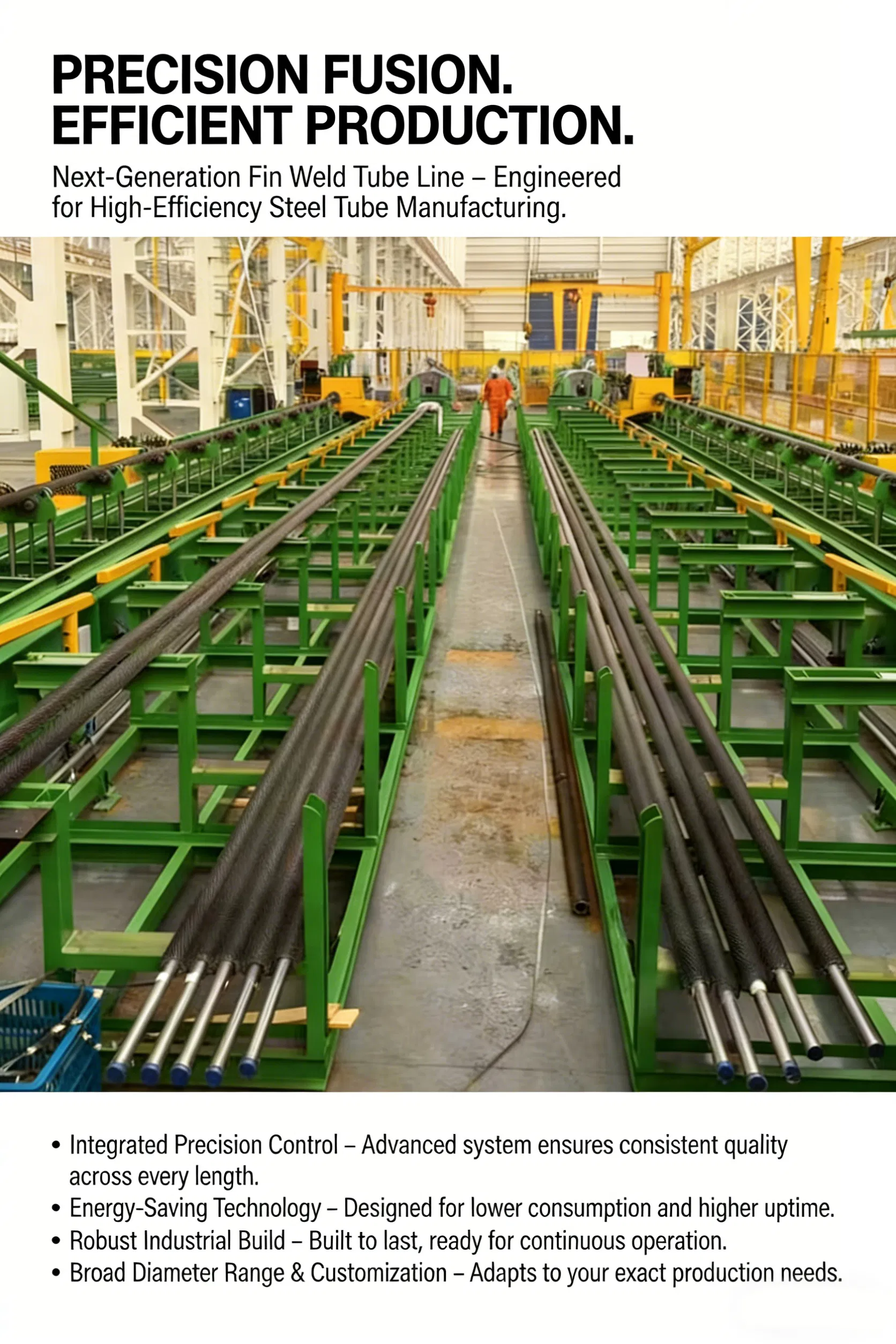

The latest generation Fin Weld Tube Production Line is engineered for high-efficiency welded steel tube manufacturing. This advanced system integrates precision control, energy-saving technologies, and robust industrial design to deliver consistent quality and high uptime performance. The line is suitable for a broad range of tube diameters and can be customized to meet specific production demands.

🛠️ Core Machine Configuration

Uncoiler & Straightening Section: Heavy-duty uncoiler with stable pay-off and precision straightening units.

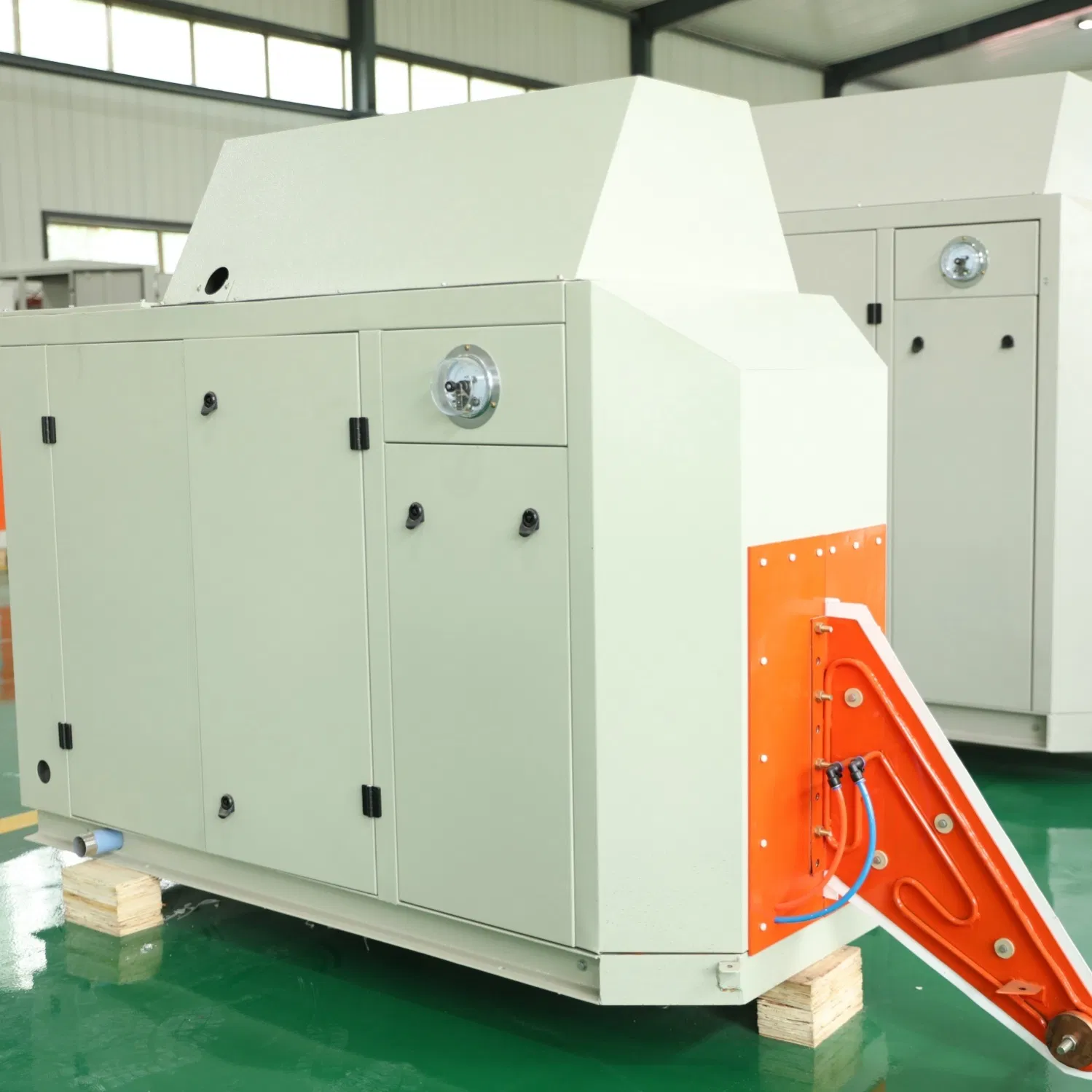

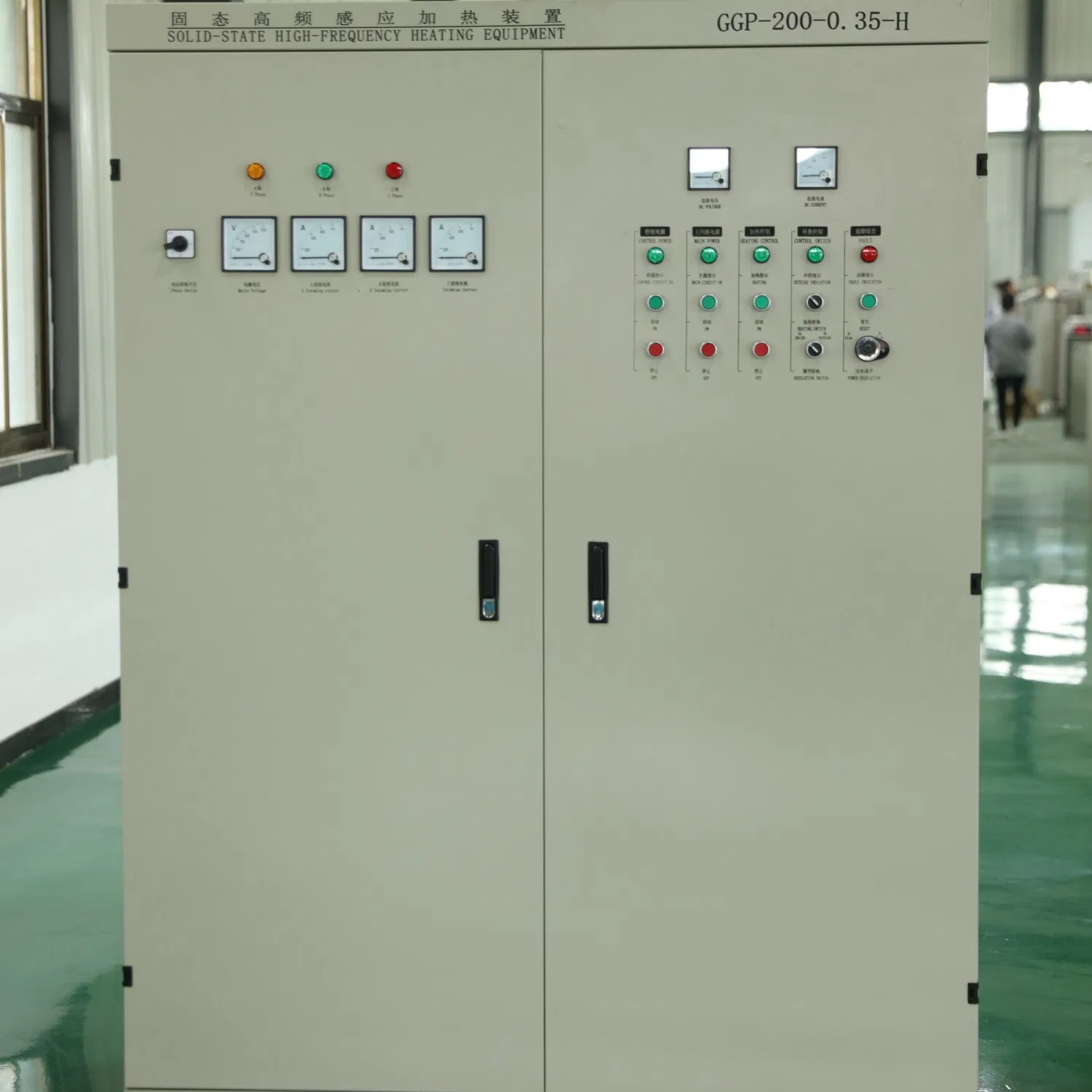

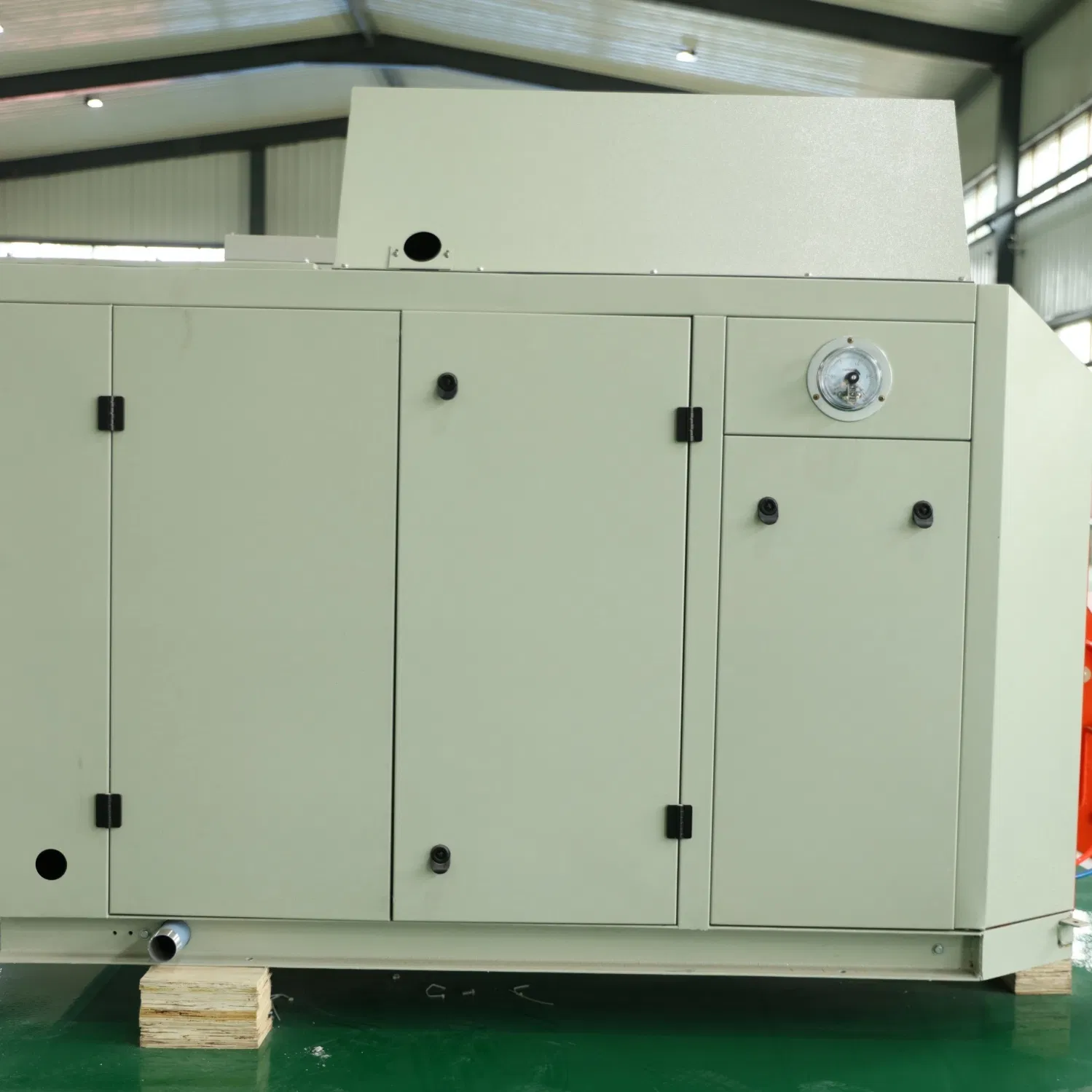

High-Frequency Welding Unit: Optimized induction welding with precise power control for uniform weld beads.
Forming & Shaping Section: Multi-roll forming stands with auto-adjustable systems for multi-diameter production.
Fin Weld Unit: Precision fin forming and welding head with stable mechanical structure.
Sizing & Calibration Section: Hydraulic or mechanical units to maintain roundness and tolerance compliance.

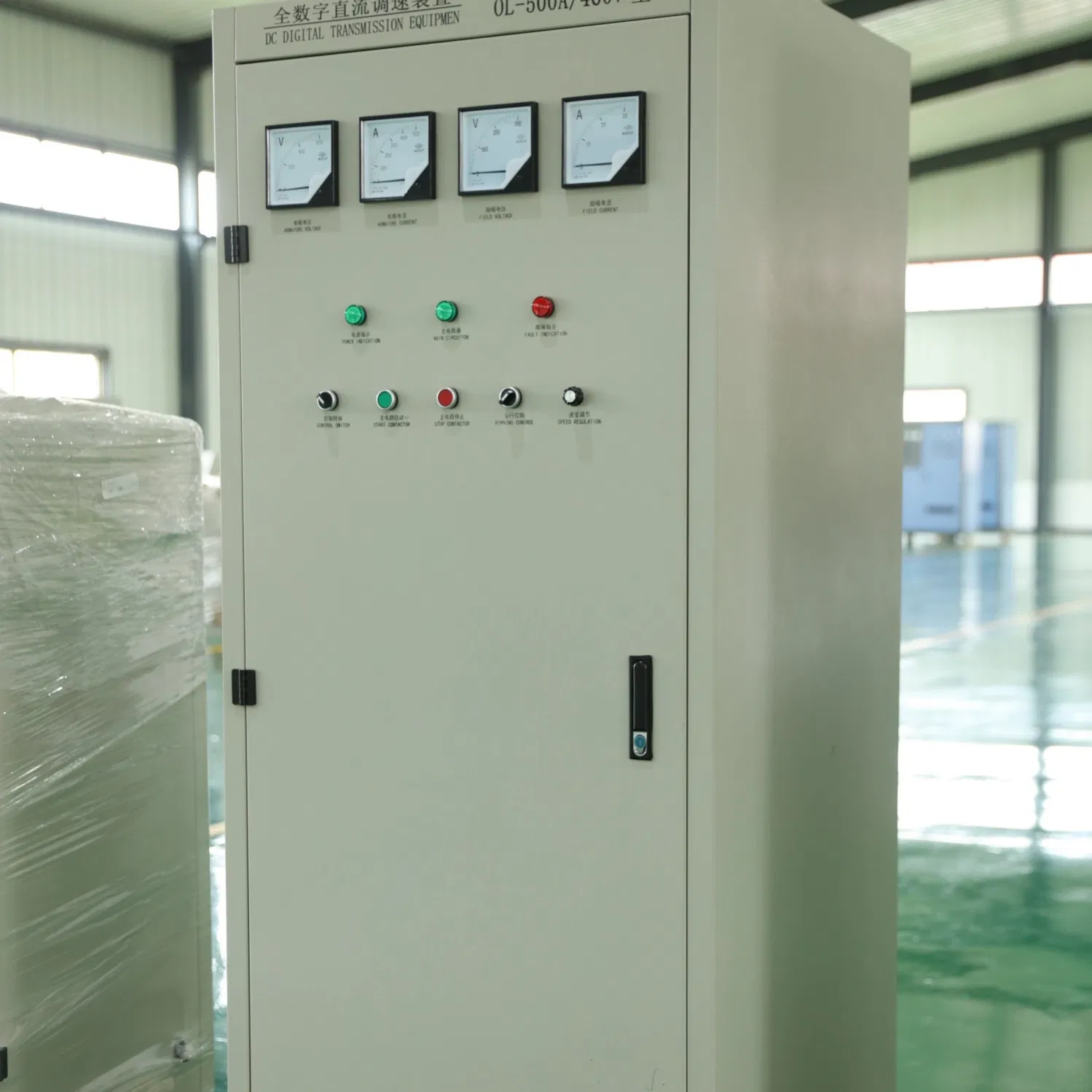

Control & Automation: PLC + HMI industrial controller with real-time process diagnostics.

🖼️ Equipment Gallery

🌟 Key Advantages & Highlights

Wide Diameter Range: Capable of producing welded steel tubes from 25 mm up to 273 mm in diameter with no practical length limit.

High Weld Quality: Advanced high-frequency technology ensures minimal oxidation, low spatter, and strong metallurgical integrity.

Modular Design: Scalable architecture allows for easy expansion and upgradeable options based on production needs.

📊 Technical Data

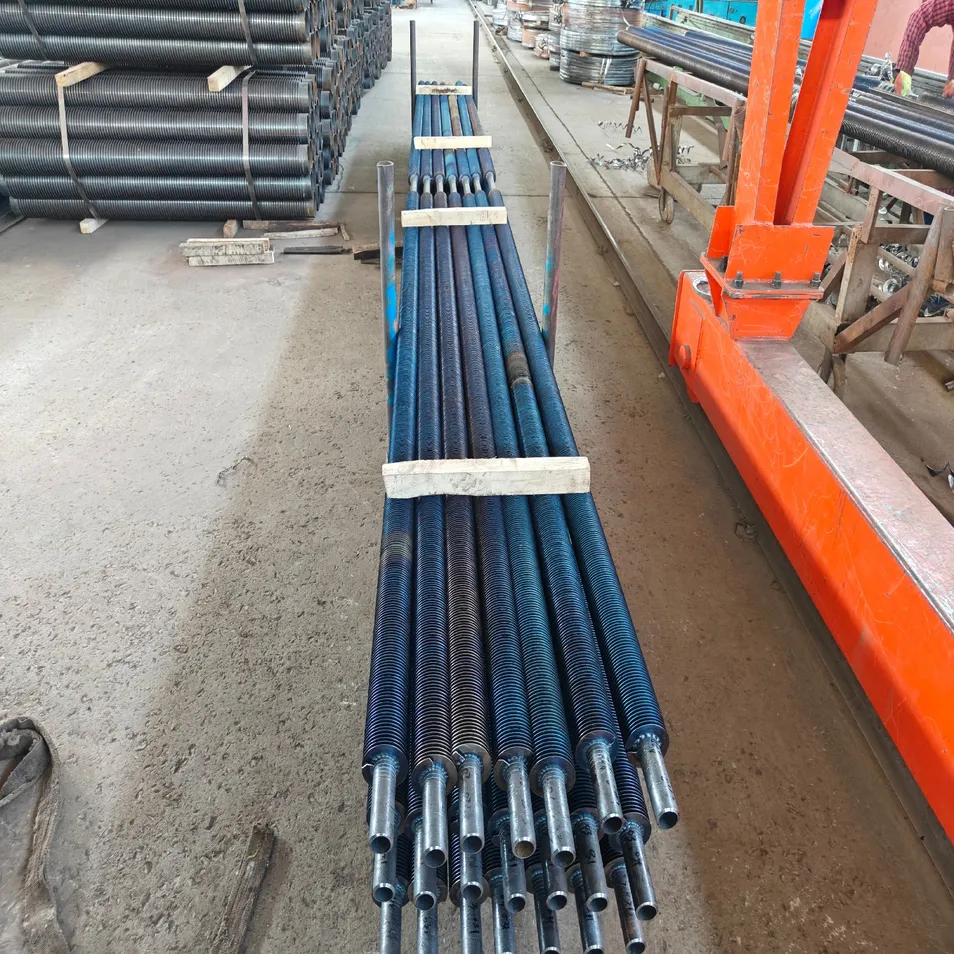

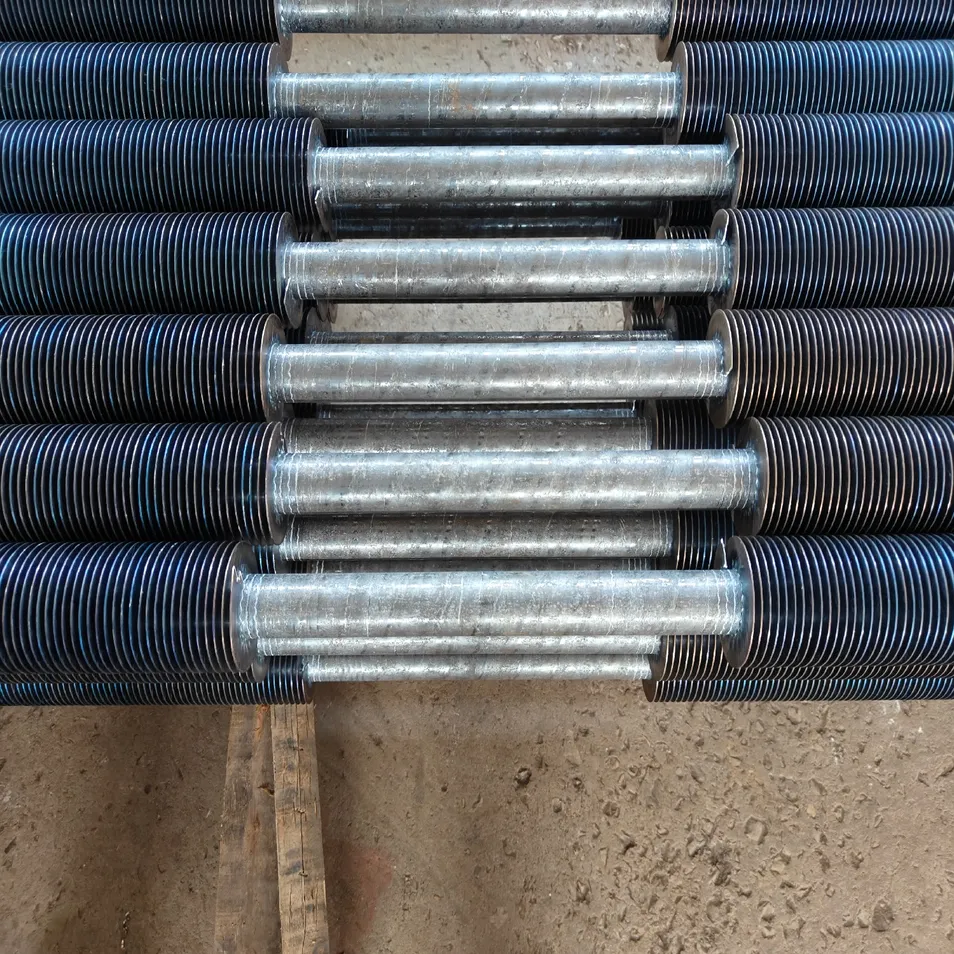

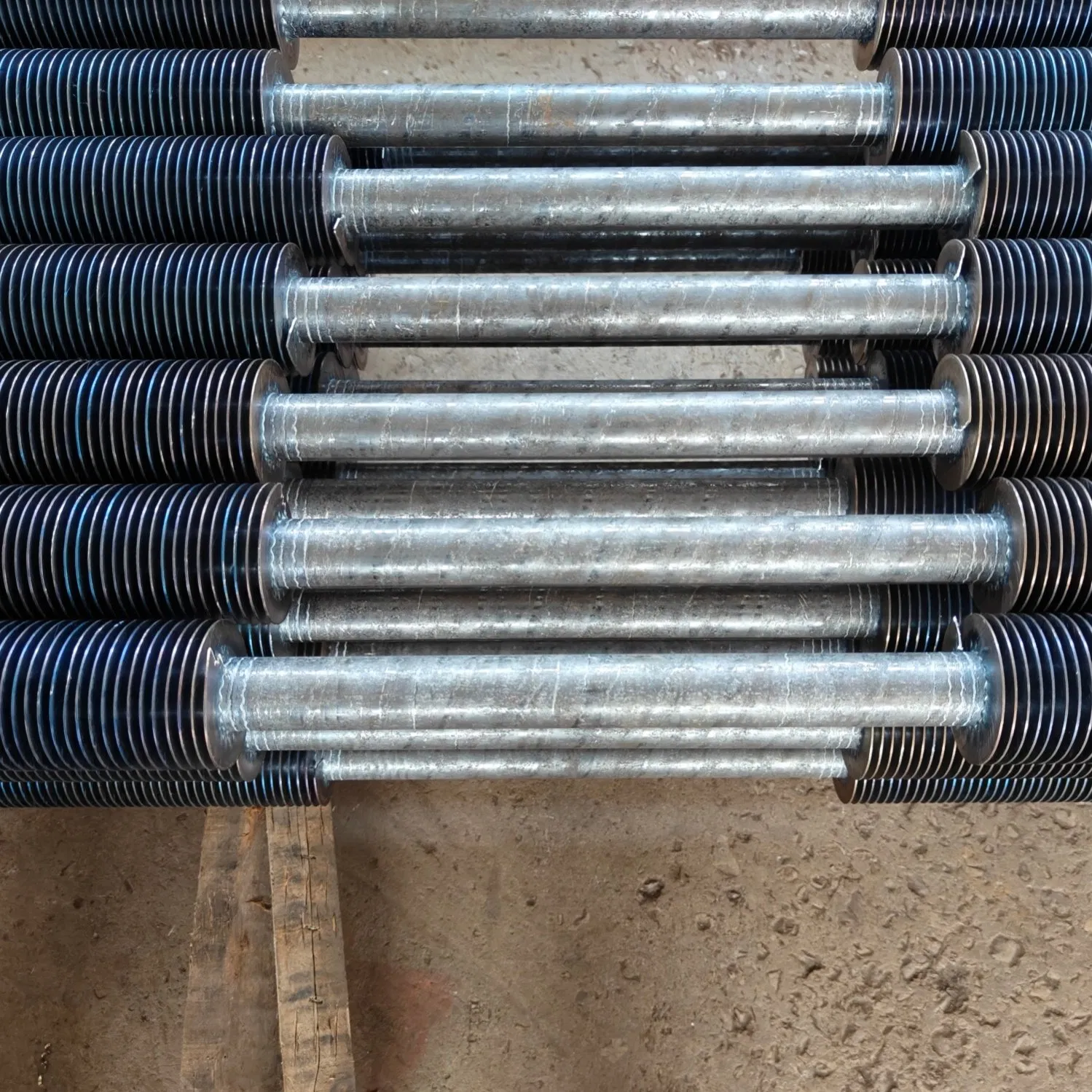

Product Name	Fin Tube
Application	Industry, Agriculture
Cross-sectional Shape	Circular / Square
External Diameter	10-3000 mm (Customizable)
Thickness	0.2-100 mm (Customizable)
Standard Compliance	ASTM, DIN, JIS
Length	6m or customized

🏭 Manufacturing Capabilities

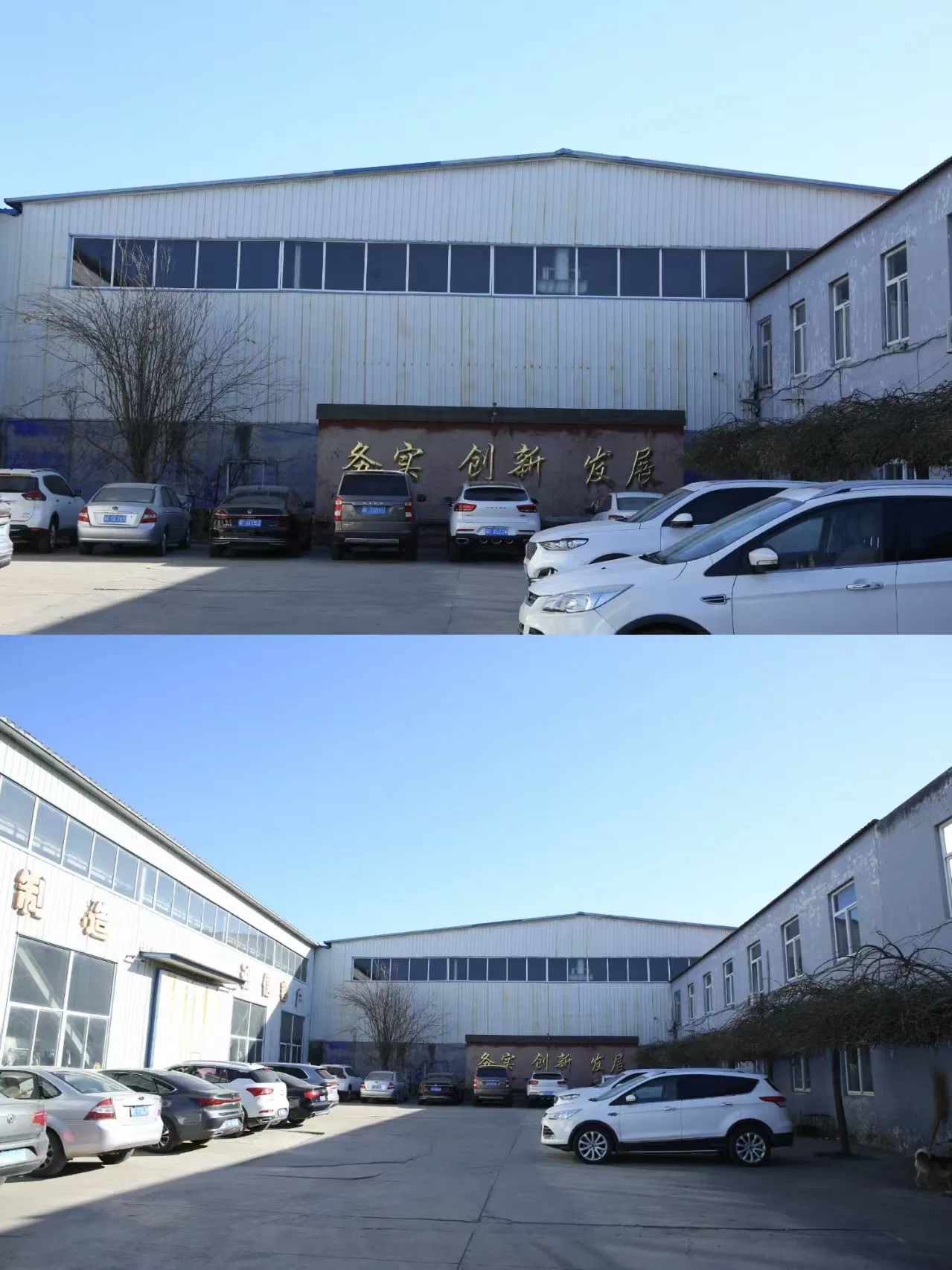

Our manufacturing facility utilizes over 100 sets of CNC machining equipment to ensure precision at every stage. We operate a comprehensive system featuring independent R&D, quality control, assembly, and commissioning. Products are exported globally, including to markets in India, Turkey, Chile, and Russia.

❓ Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer and trading company with our own technical team and a large-scale workshop dedicated to production and assembly.

What information is required for a quotation?

We require the pipe diameter, thickness range, profile drawings, material specifications, and any other special requirements you may have.

What are the available payment terms?

We offer flexible terms including T/T (35% prepayment, 65% balance before delivery) or irrevocable L/C at sight.

Can the machinery be customized for specific needs?

Yes, our engineering team can customize the machines to meet the specific production demands and technical requirements of our clients.

How is quality assurance managed?

We perform strict QA testing, including 8-hour oil leak tests for gearboxes, centering jumpiness inspections for shafts, and tolerance checks for all rollers.

What is the warranty period for the equipment?

The standard warranty period is 12 months after successful commissioning at the customer's site.
