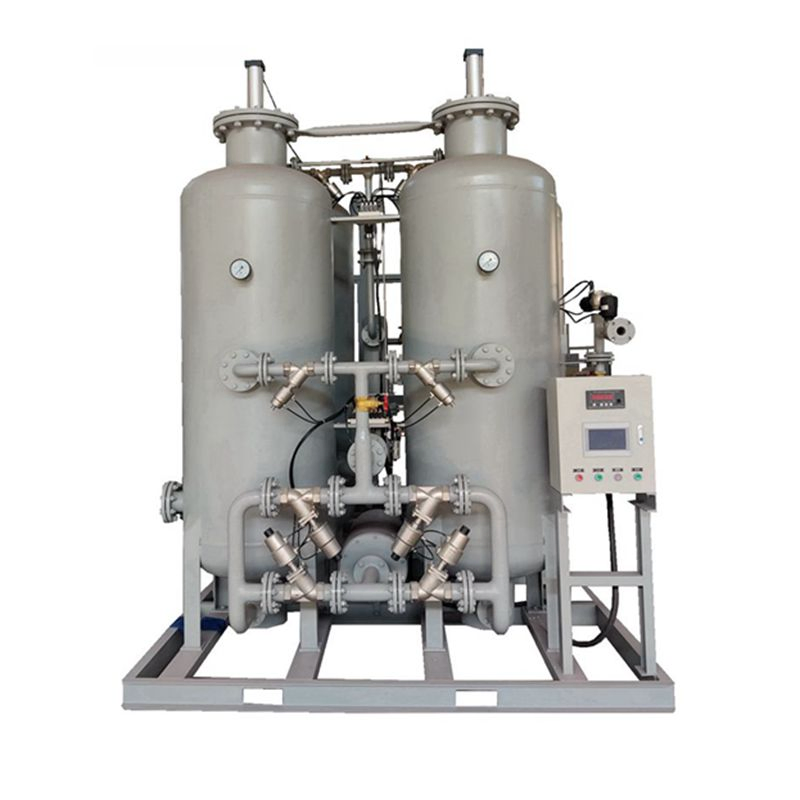

Nuzhuo High Purity 99.999% Psa Nitrogen Gas Generation System for Food Industry

1 / 5

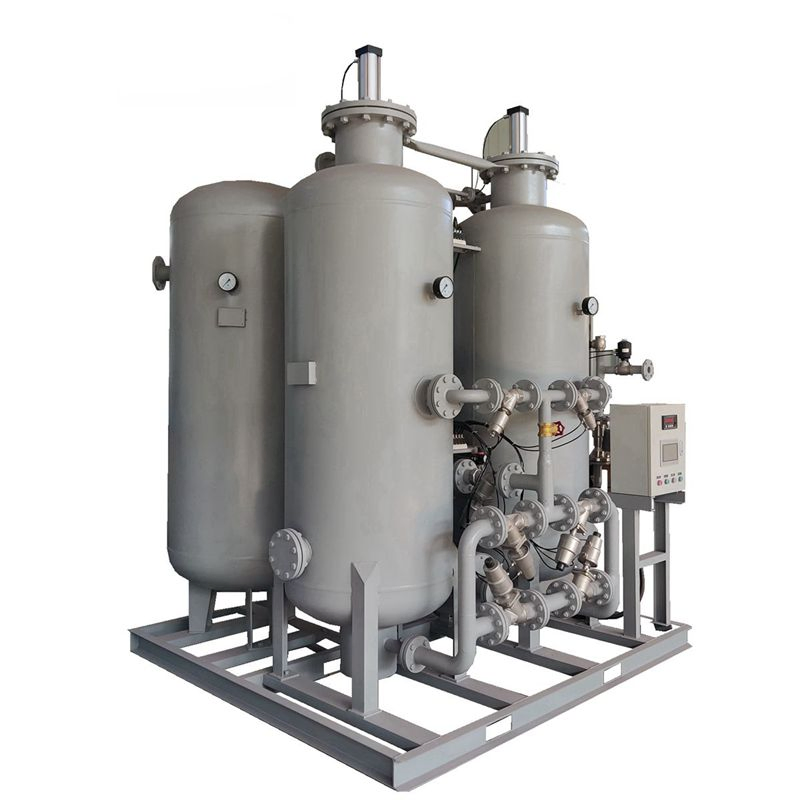

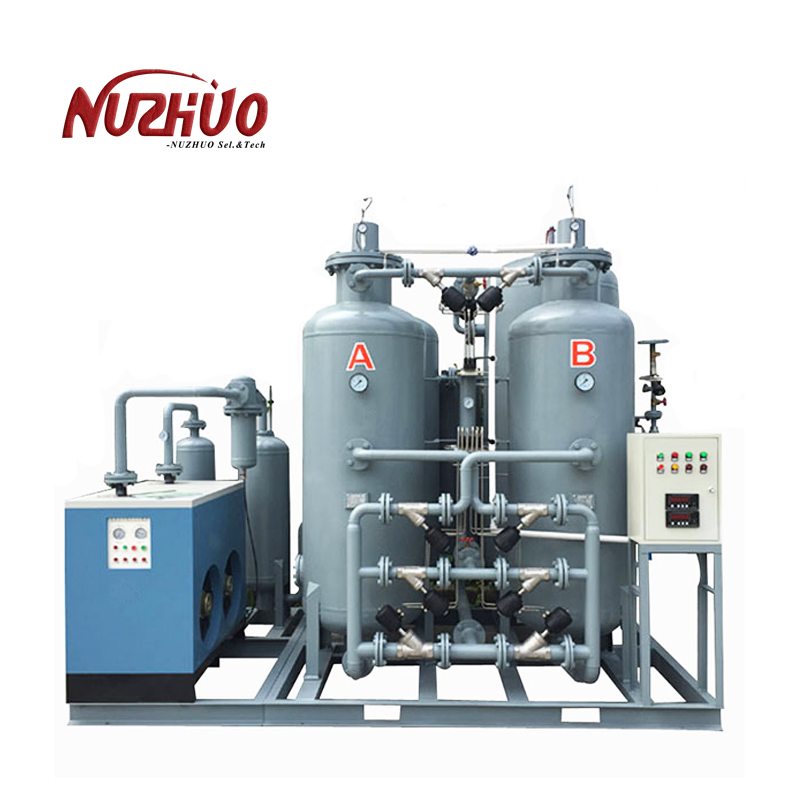

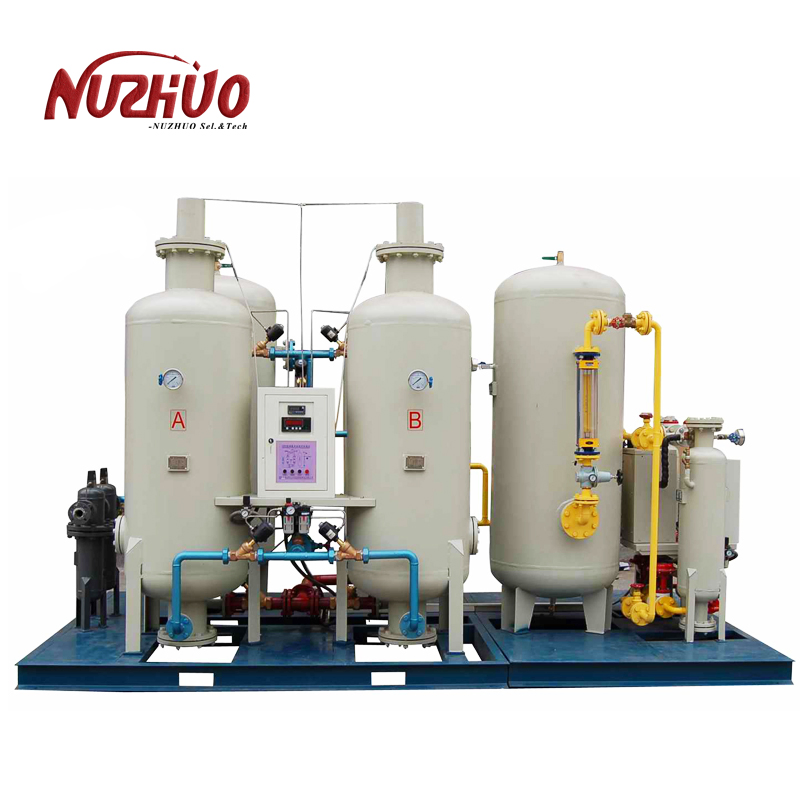

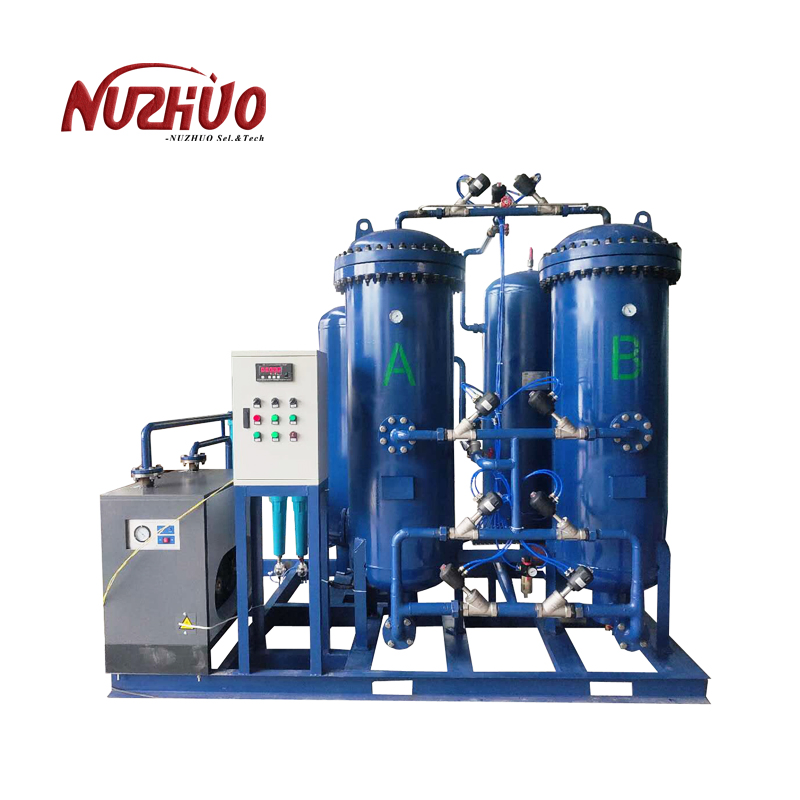

Nuzhuo High Purity 99.999% Psa Nitrogen Gas Generation System for Food Industry

Customization:	Available
Application Fields:	Chemical, Electronic, Food, Medical, New Energy, Petroleum, Pharmaceutical, Medical, Cylinder Filling, Industries
Certification:	CE, ISO

Send Inquiry

Product Description

Basic Information

Model NO.

NZN49-30

Condition

New

Noise Level

73decibel

Types

Adsorption Nitrogen Generator

Purity

95%-99.999%

Capacity

3-3000nm3/H

Pressure

0.3-1.0MPa (Adjustable)

Technology

Pressure Swing Adsorption

Manufacturer Profile

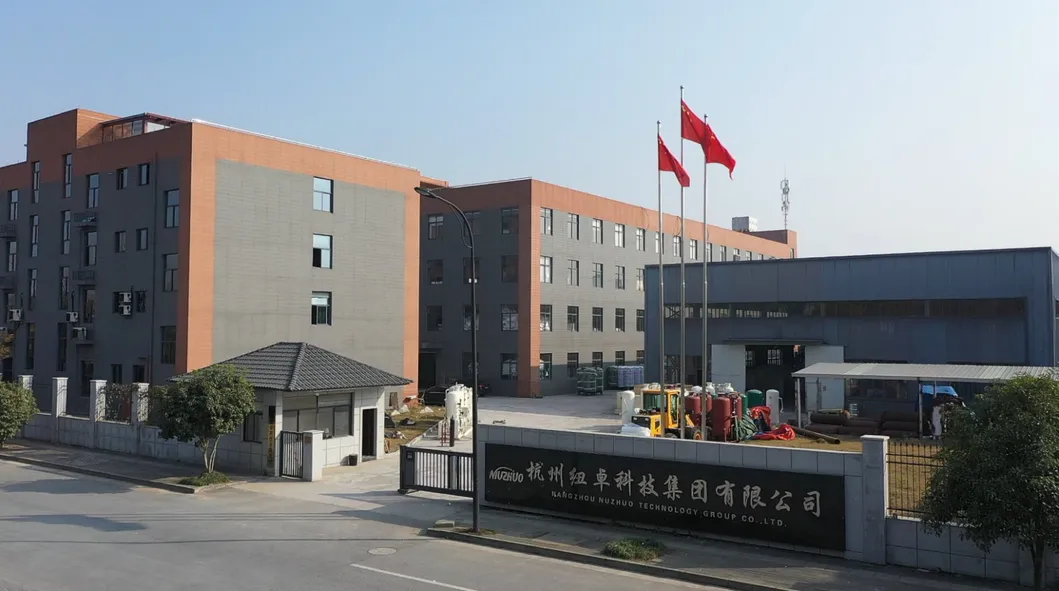

We are a professional manufacturer of cryogenic air separation series, PSA series, liquid nitrogen series, oil-free booster series, concentrator series, and valves. The company possesses more than fourteen thousand square meters of modern standard workshop and advanced product testing equipment.

The enterprise has passed ISO9001 quality system certification and CE certification. We adhere to a "honesty, cooperation, win-win" business philosophy and support pre-loading inspections.

Product Description

Working Principle: Following the principle of pressure swing adsorption (PSA), high-quality carbon molecular sieve is used as the adsorbent. Oxygen molecules are adsorbed by the carbon molecular sieve, while nitrogen molecules are enriched in the gas phase to achieve separation.

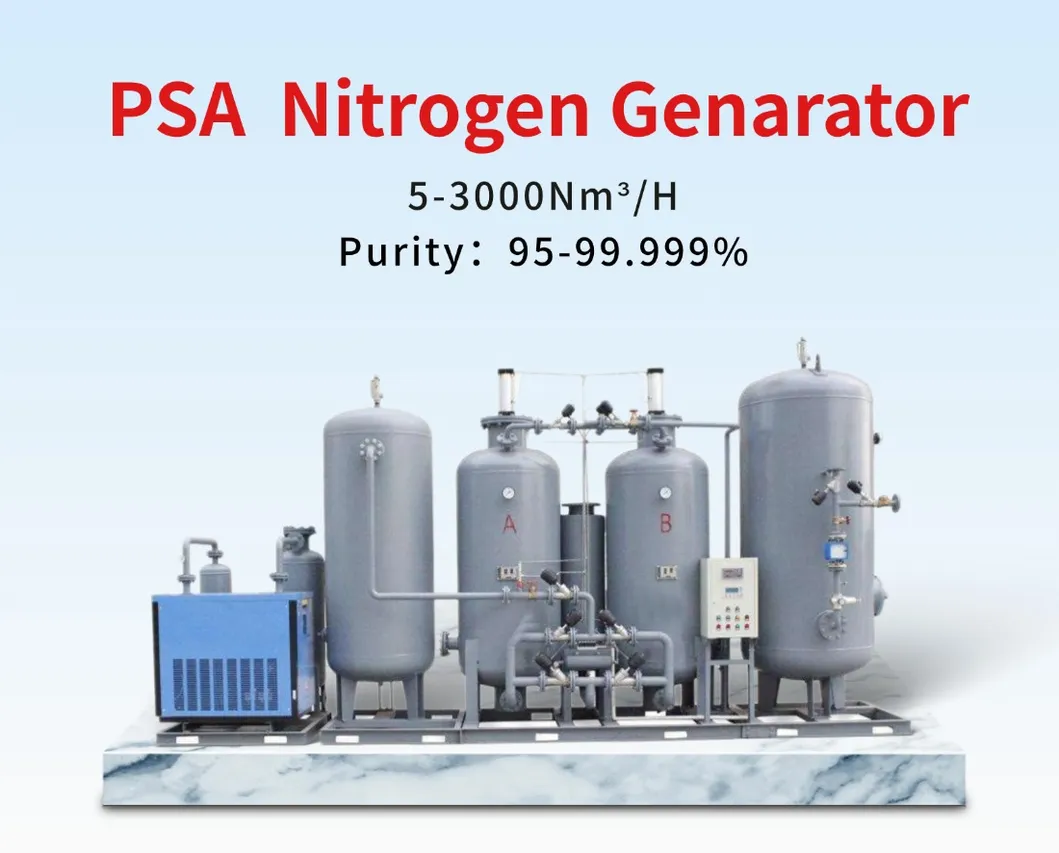

Product Name	PSA Nitrogen Generator
Model No.	NZN ; NZN97; NZN99; NZN39; NZN49; NZN59
Nitrogen Production	5~3000Nm3/h
Nitrogen Purity	P5~99.9995%
Nitrogen Pressure	0~0.8Mpa (0.8~6.0MPa alternative)
Dew Point	≤-45 degree C (Normal Pressure)

Technical Specifications

Specification	Output (Nm3/h)	Gas Consumption (Nm3/min)	Air Cleaning System	Inlet Caliber	Outlet Caliber
NZN59-5	5	0.78	KJ-1	DN25	DN15
NZN59-10	10	1.75	KJ-2	DN25	DN15
NZN59-30	30	5.25	KJ-6	DN40	DN25
NZN59-60	60	10.5	KJ-12	DN50	DN32
NZN59-100	100	16.64	KJ-20	DN65	DN40
NZN59-300	300	49.82	KJ-60	DN125	DN50
