| System Specifications | |
|---|---|

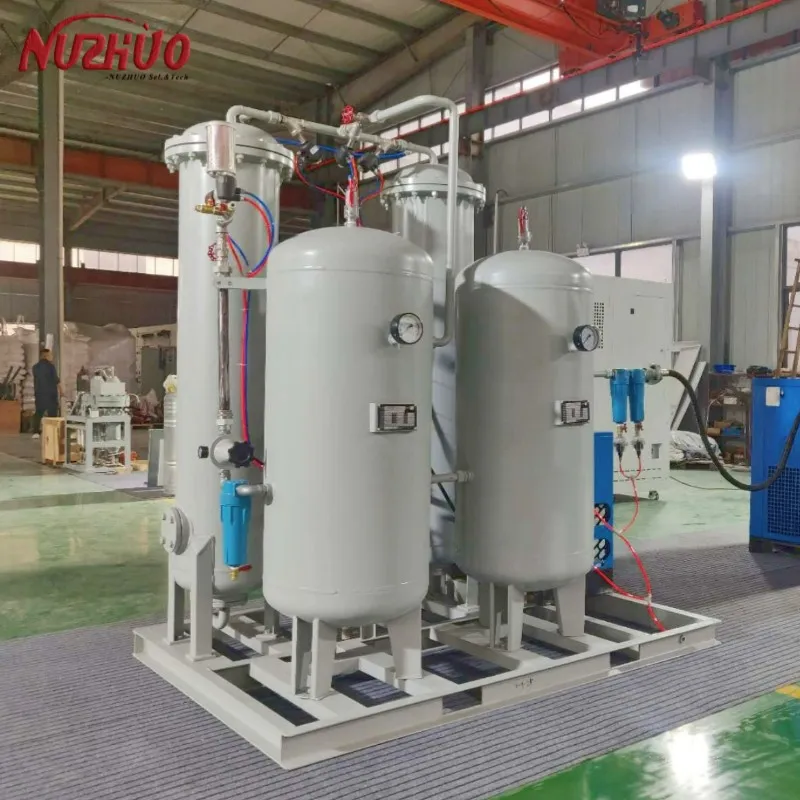

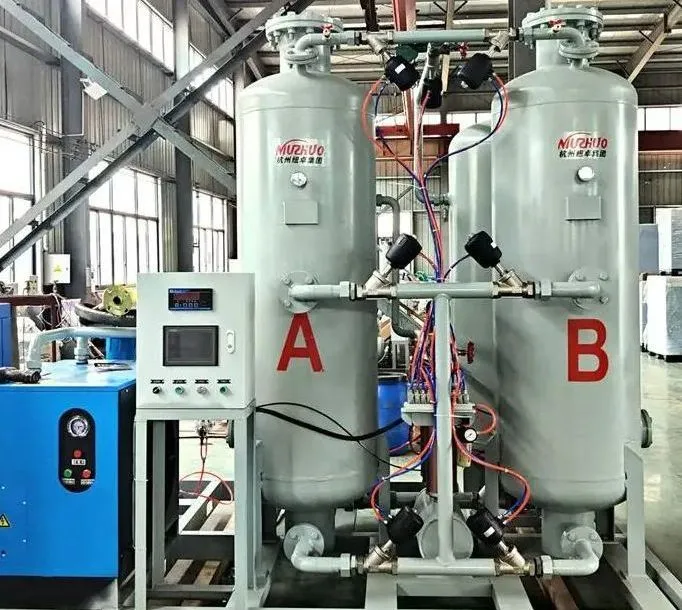

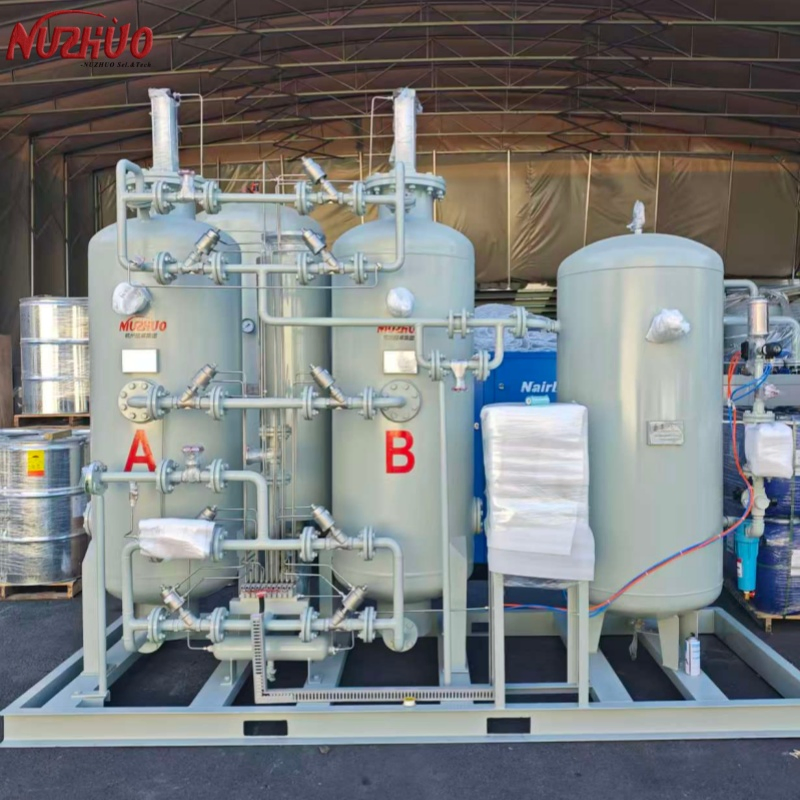

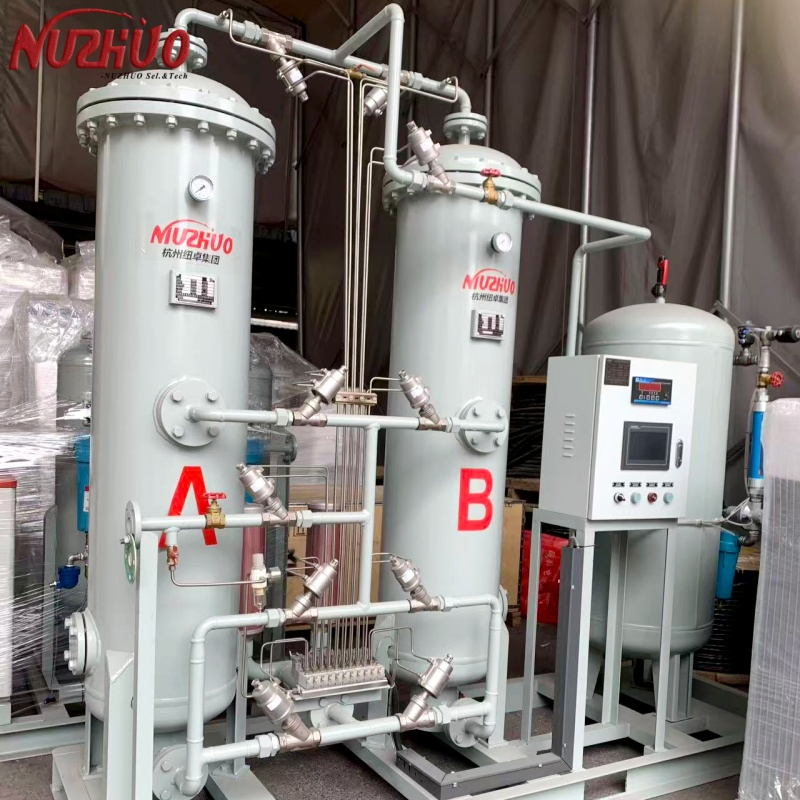

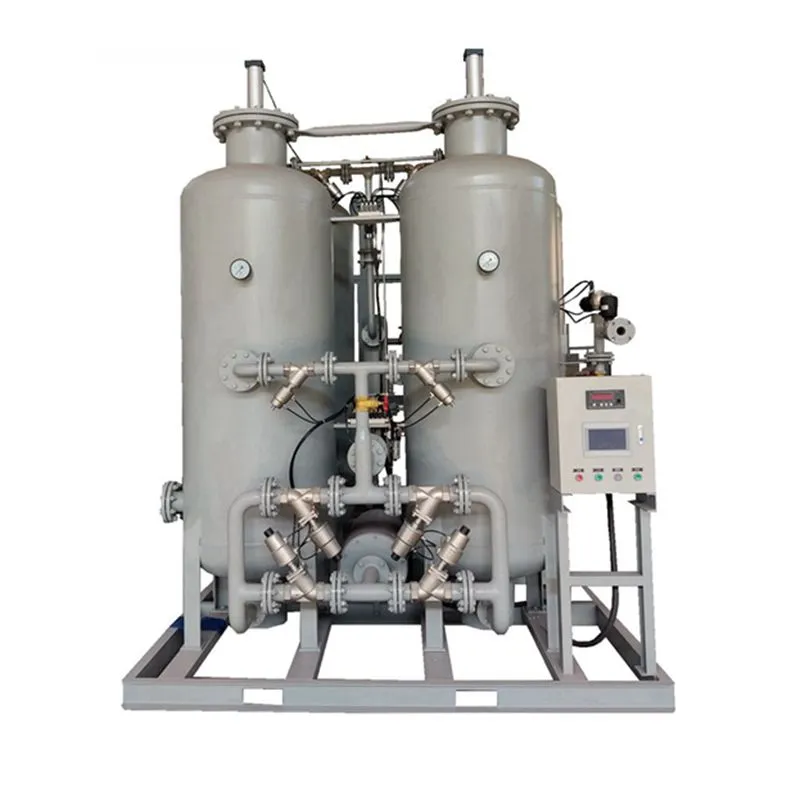

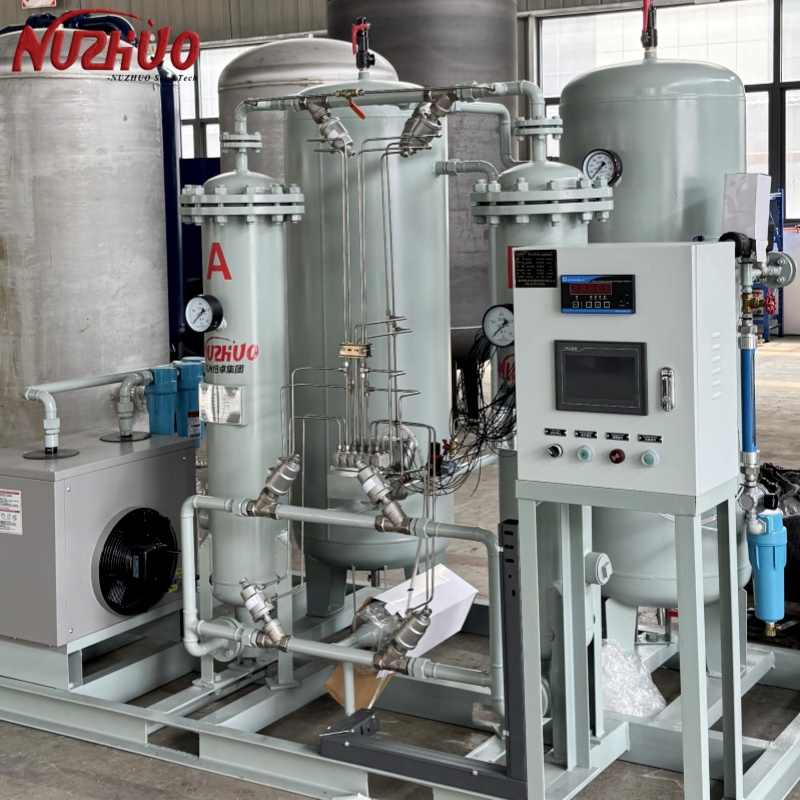

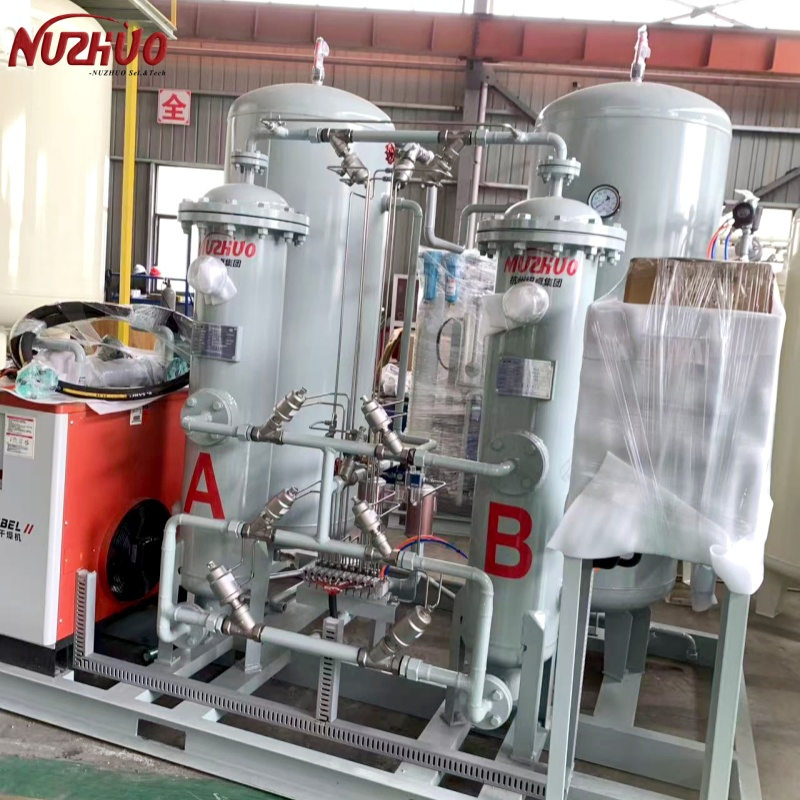

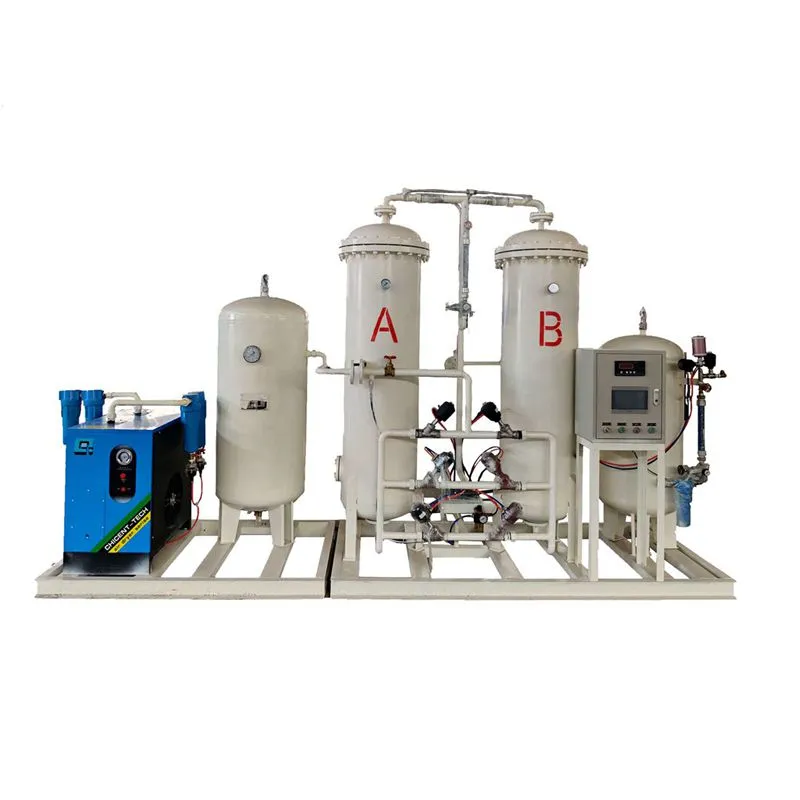

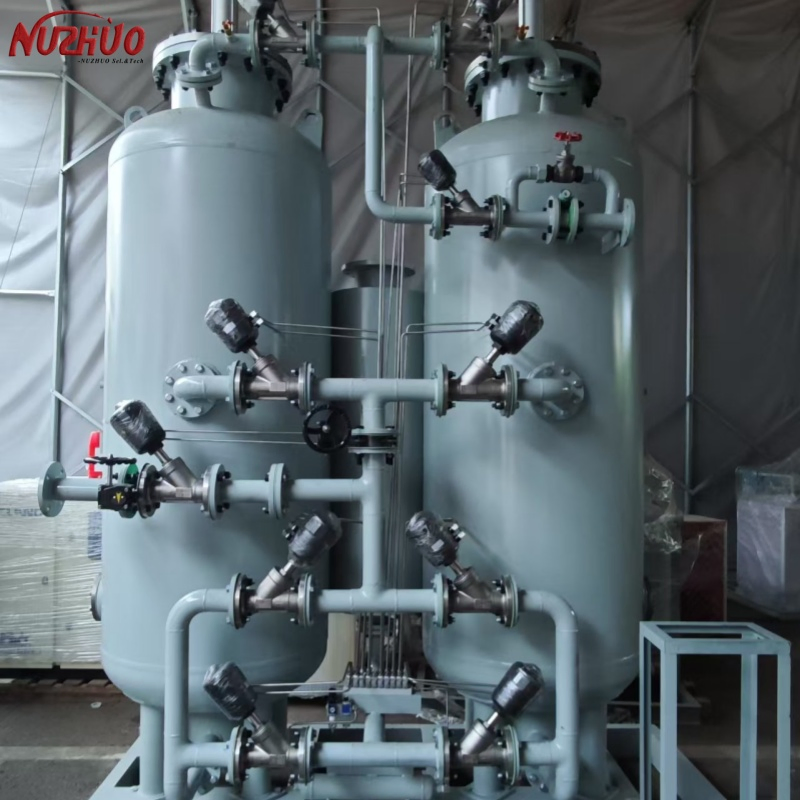

| Product Name | PSA Nitrogen Generator |
| Model No. | NZN Series (NZN97, NZN99, NZN39, NZN49, NZN59) |

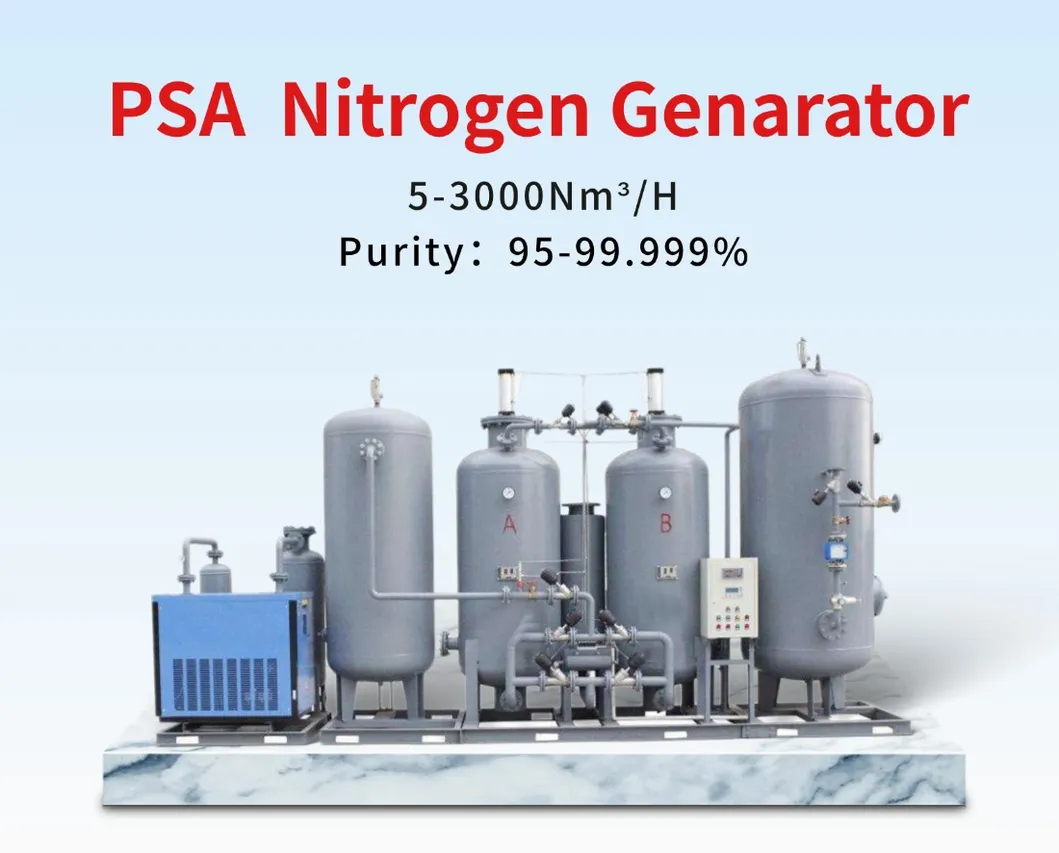

| Nitrogen Production | 5~3000Nm3/h |
| Nitrogen Purity | 95% ~ 99.9995% |
| Nitrogen Pressure | 0~0.8Mpa (0.8~6.0MPa alternative) |
| Dew Point | ≤-45 degree C (Normal Pressure) |
| Model | Output (Nm3/h) | Gas Consumption (Nm3/min) | Air Cleaning System | Inlet/Outlet (mm) |
|---|---|---|---|---|
| NZN59-5 | 5 | 0.78 | KJ-1 | DN25 / DN15 |
| NZN59-10 | 10 | 1.75 | KJ-2 | DN25 / DN15 |
| NZN59-20 | 20 | 3.55 | KJ-6 | DN40 / DN15 |
| NZN59-50 | 50 | 8.7 | KJ-10 | DN50 / DN25 |
| NZN59-100 | 100 | 16.64 | KJ-20 | DN65 / DN40 |
| NZN59-300 | 300 | 49.82 | KJ-60 | DN125 / DN50 |

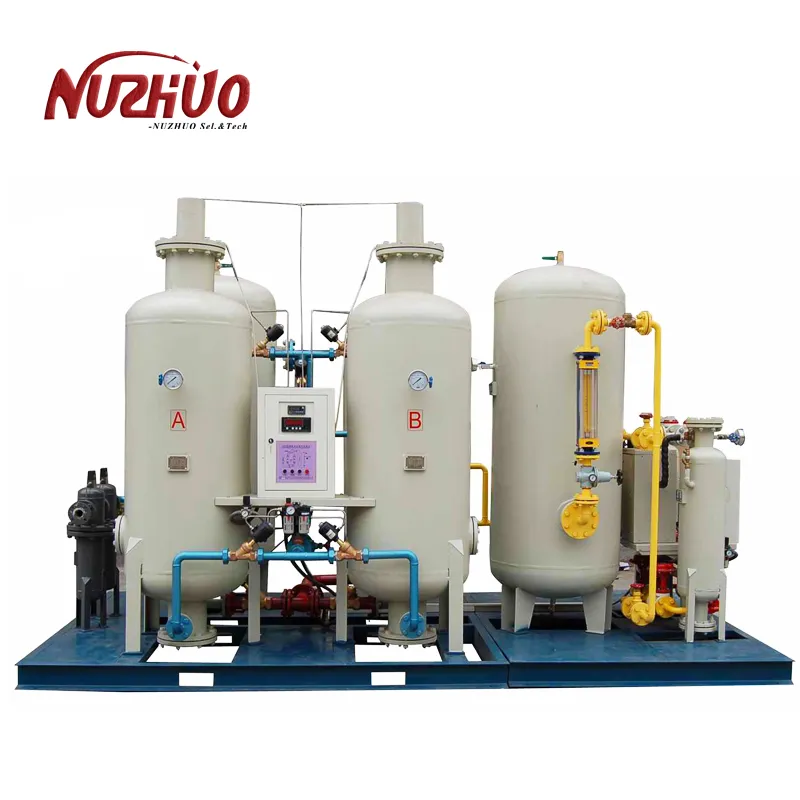

PSA Working Principle
High-quality carbon molecular sieve is used as the adsorbent. Under pressure, the diffusion rate of oxygen and nitrogen differs to achieve separation.

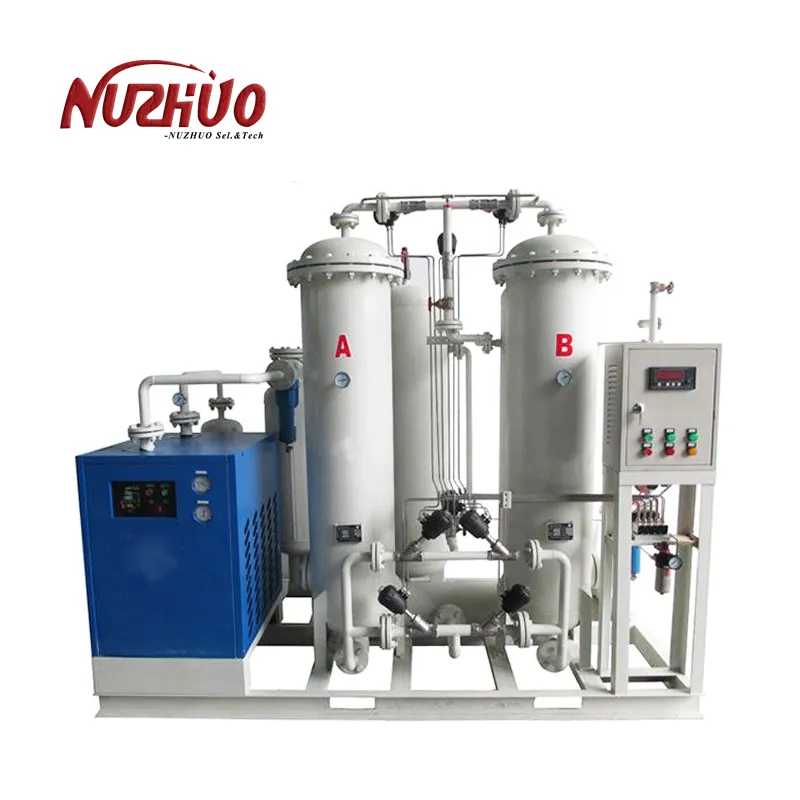

Technical Characteristics
1. Full low pressure positive flow expansion.
2. Full low pressure back flow expansion.
3. Booster turbo expander process.

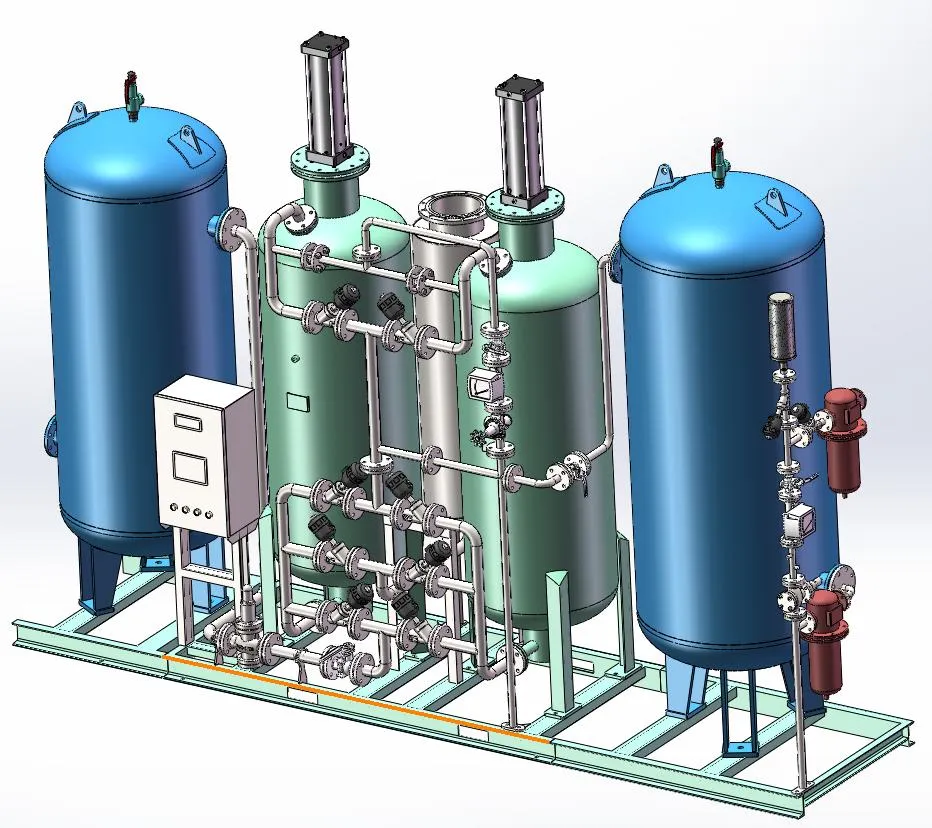

Core Advantages
Modular design for simple maintenance, fully automated system, and low energy consumption with high purity output.
