CXO Laser
1 / 5
| Model NO. | KF3015T |
| Application | Home Appliance, Environmental Equipment, Petroleum Machinery, Agriculture, Textile, Food, Woodwork, Advertising |
| Cooling System | Water Cooling |
| Technical Class | Continuous Wave Laser |
| Applicable Material | Metal |
| Structure Type | Gantry Type |
| Laser Classification | Solid Laser |
| Laser Technology | Laser Control Fault Cutting |

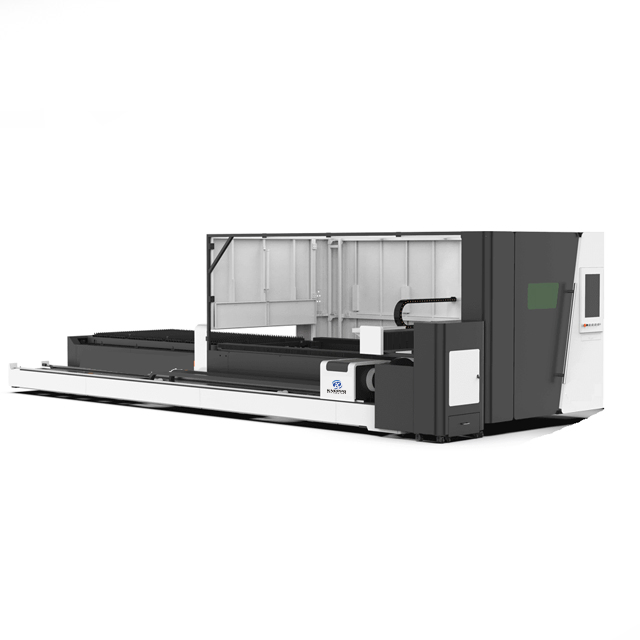

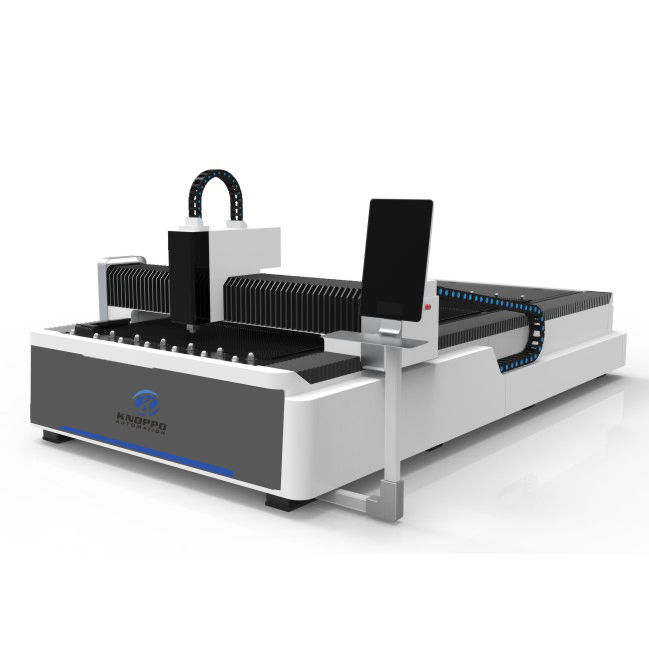

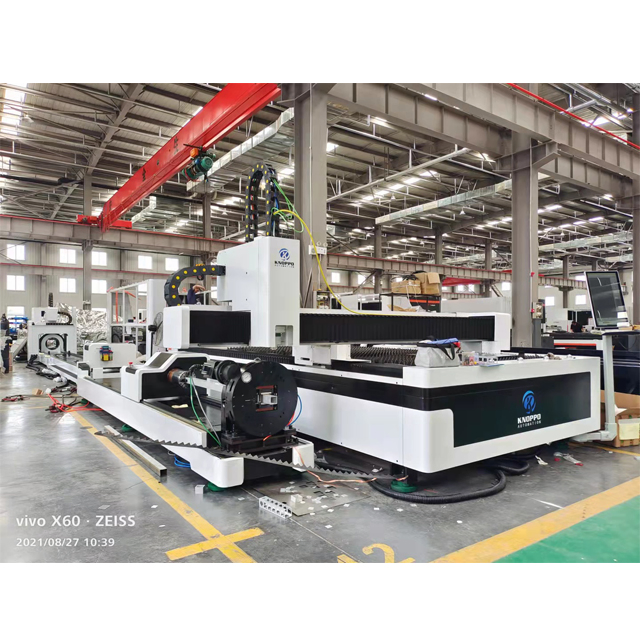

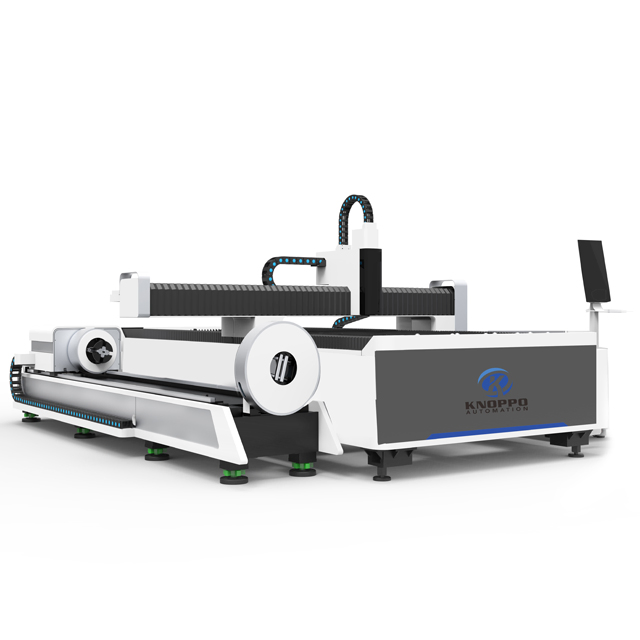

| Name | Sheet Metal Laser Cutting Machine |
| Wavelength | 1070nm |
| Sheet Cutting Area | 3000*1500mm / 4000*2000mm / 6000*2000mm / 6000*2500 |
| Laser Power | 1000W / 1500W / 2000W / 3000W / 4000W / 6000W |
| Positioning Accuracy | 0.03mm (X/Y) |
| Repositioning Accuracy | 0.02mm (X/Y) |
| Max. Acceleration | 1.5g |
| Max. Linkage Speed | 140m/Min |
| Laser Head | Switzerland Raytools Auto Focus |
| Laser Source | Raycus / Max / IPG |
| Control System | Cypcut |
| Servo Motor | Japan Yaskawa |
| Water Chiller | S&A |
| Weight | 6000kg |
The heavy bed makes the equipment more stable in working, while the light crossbeam enhances operation speed. Perfect industrial design combined with man-machine engineering provides higher cutting precision. The machine features comfortable operation, stable performance, durable quality, and high cutting efficiency.
Applicable Industries: Metal working, advertising signs, decoration, electronics, electric appliances, agricultural machinery, spare parts, furniture, windows, and doors.

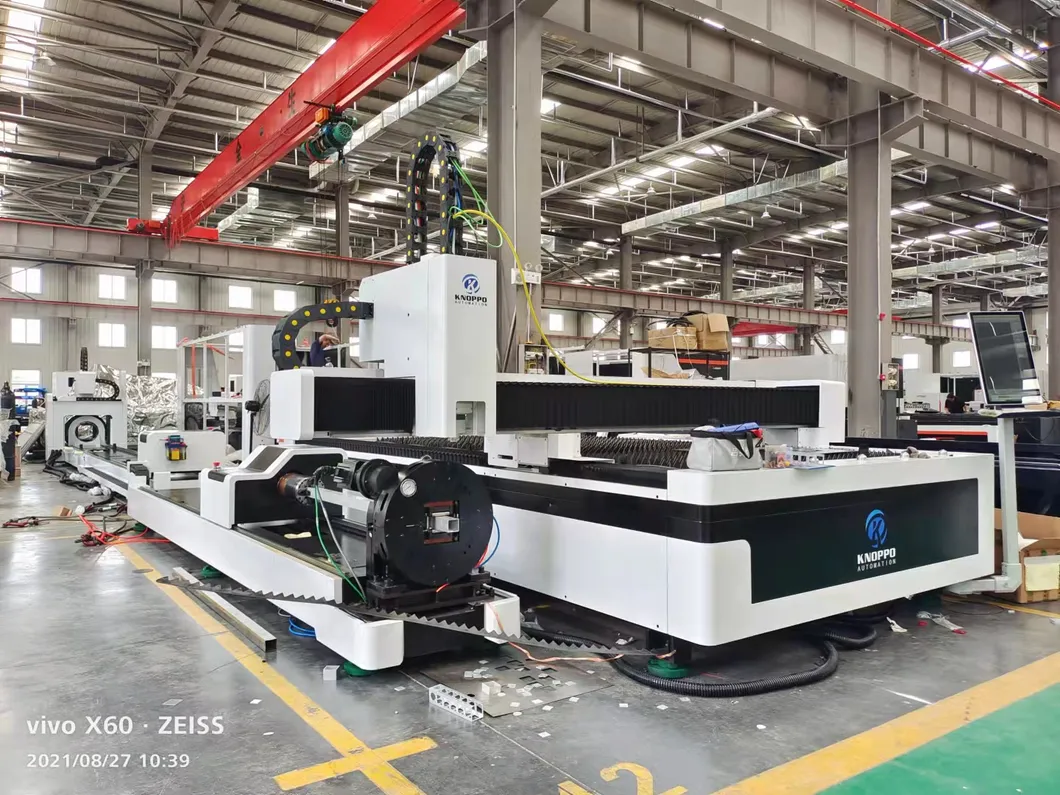

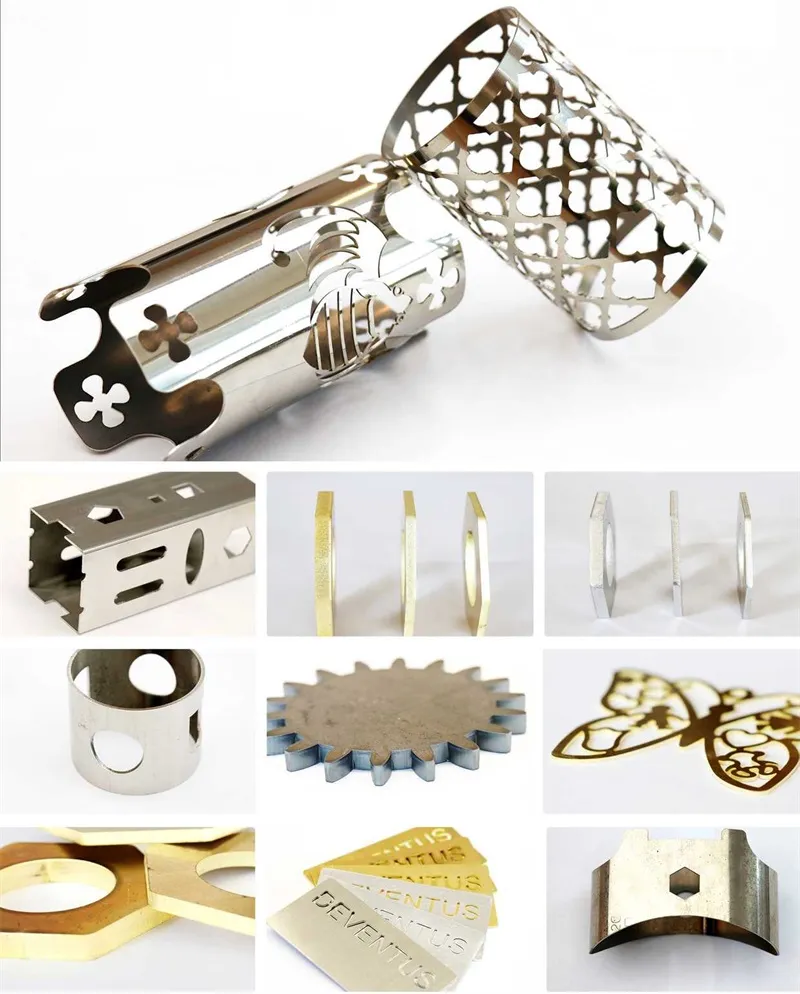

Applicable Materials: Carbon steel, stainless steel, iron, aluminum, brass, copper, mild steel, and galvanized steel tube.
| Specifications | |
|---|---|
| Laser Power | 1000W - 8000W |
| Working Area | 3000*1500mm to 6000*2500mm |
| Tube Cutting Length | 3m / 6m |
| Tube Cutting Diameter | 20~220mm / 320mm |
| Overall Dimensions | 8550*2300*2000mm |
| Max. Acceleration | 1.5G |
| Max. Linkage Speed | 140m/min |

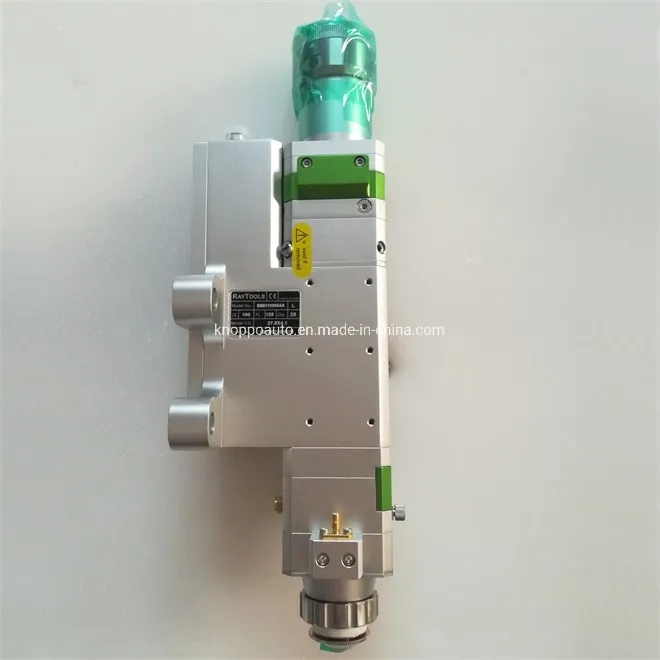

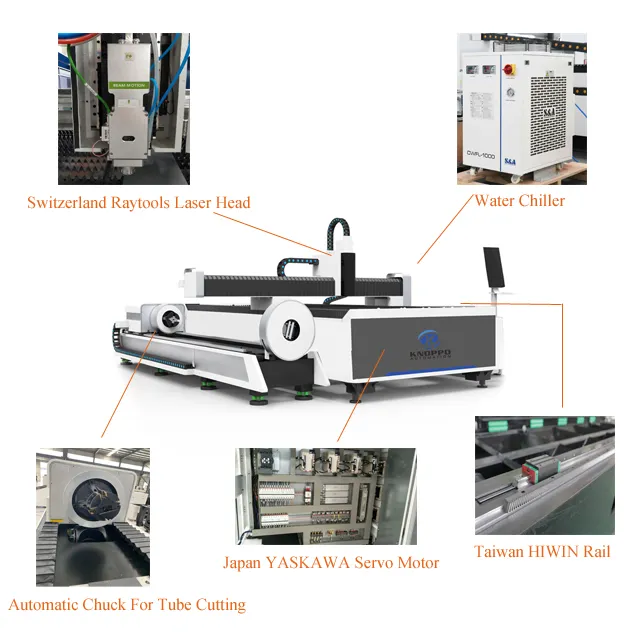

Switzerland Raytools Laser Head
Built-in double water-cooling structures ensure constant temperature and extend lens life.

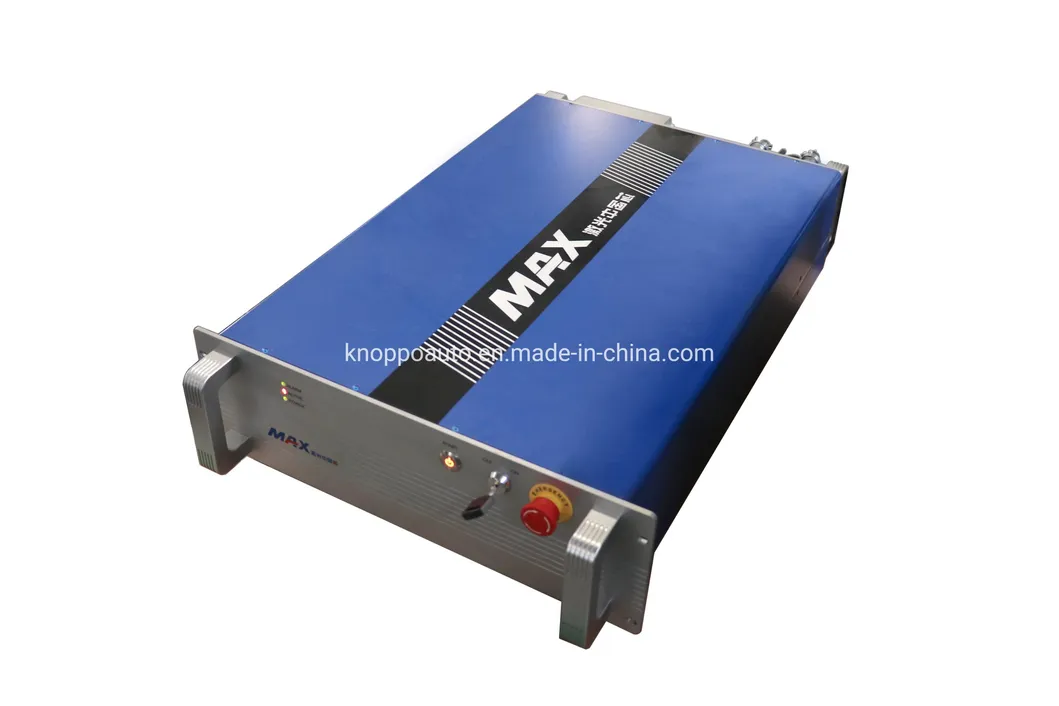

MAX Laser Source
High-quality source suitable for 24-hour continuous working on various metals.
Strong Welding Machine Body
High hardness and shock absorption to ensure no deformation over the life cycle.

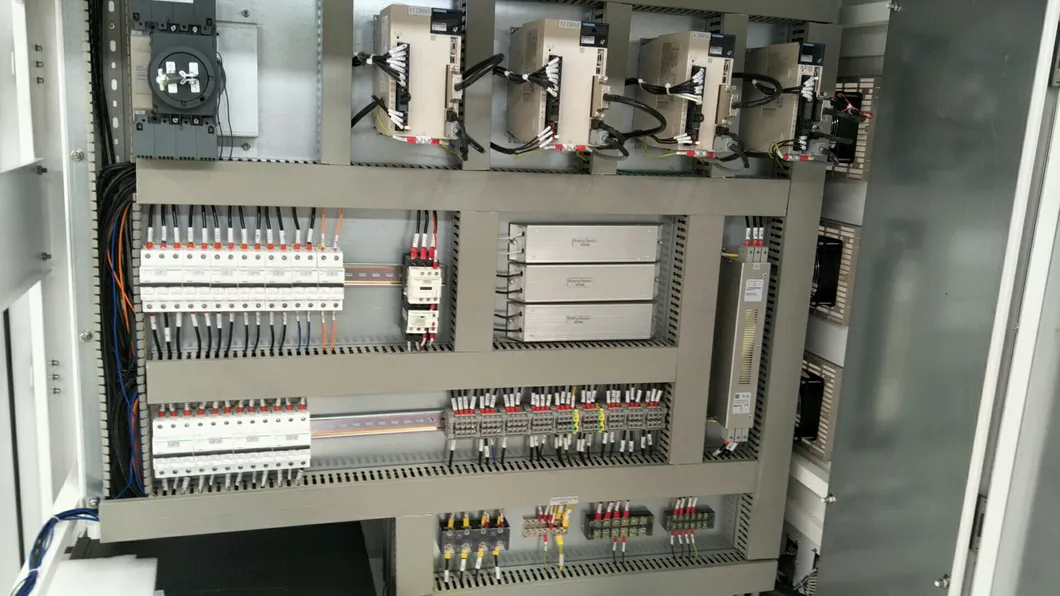

Japan YASKAWA Servo Motor
Closed-loop control for accurate positioning and dynamic response.

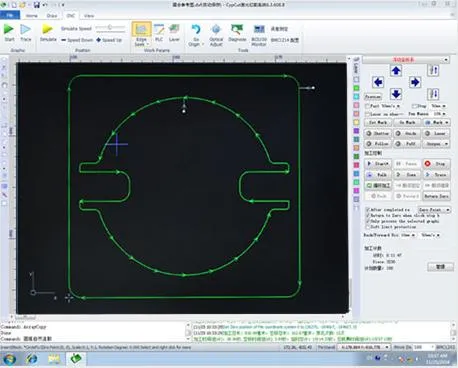

Cypcut Control System
Intelligent layout and automatic edge searching for optimized material use.

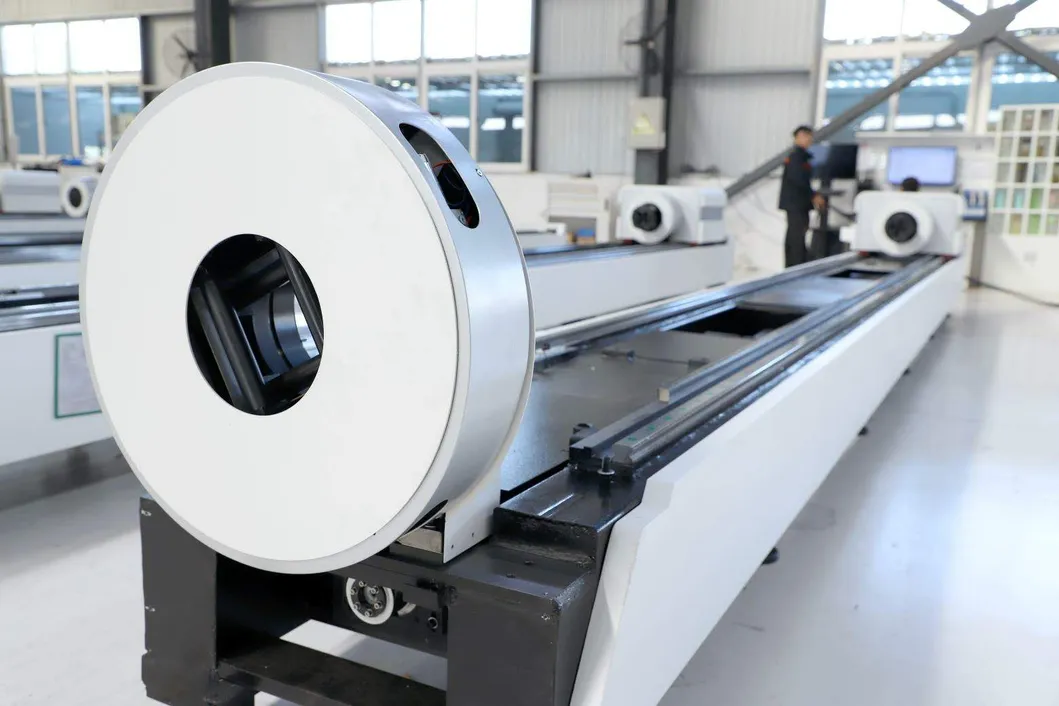

Automatic Rotary & Chuck
Electric chuck with large clamping force and high transmission efficiency.

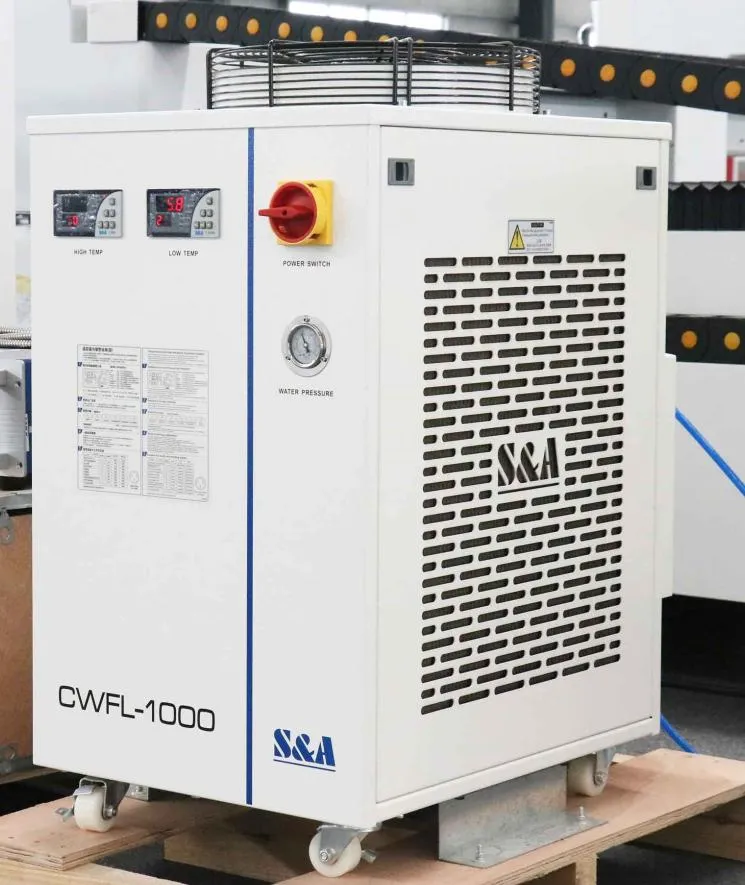

Water Chiller

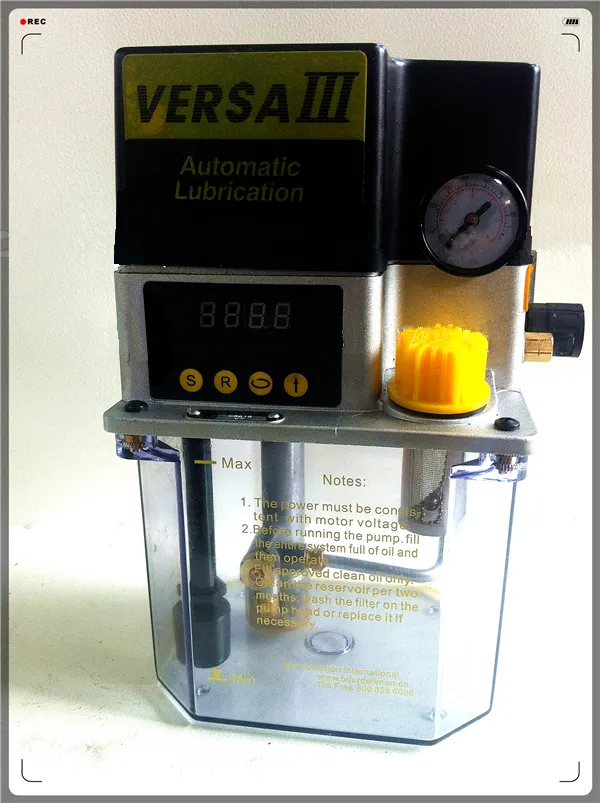

Automatic Lubrication Pump

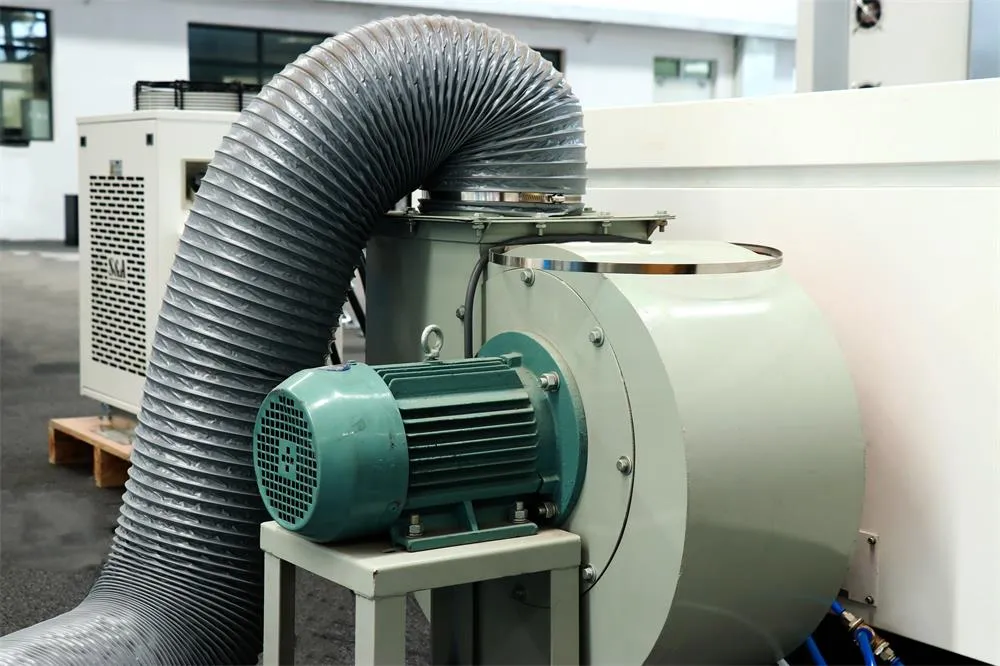

Exhaust Fan

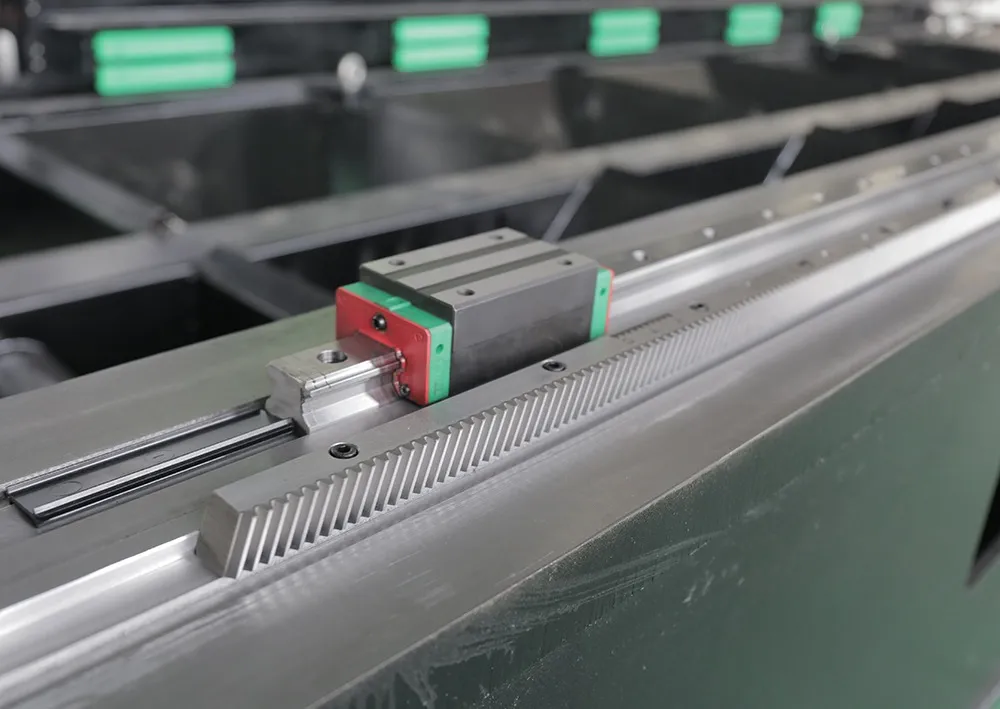

Taiwan HIWIN Rails

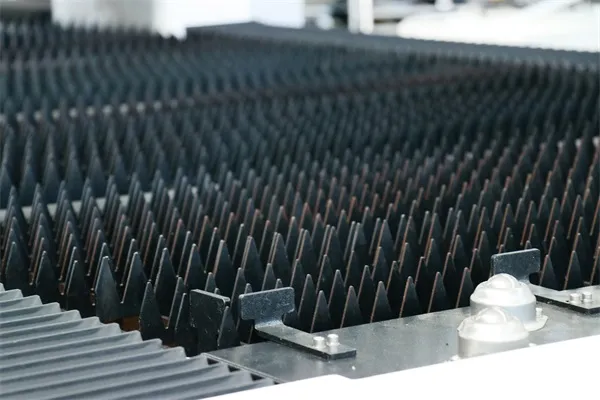

Blade Table

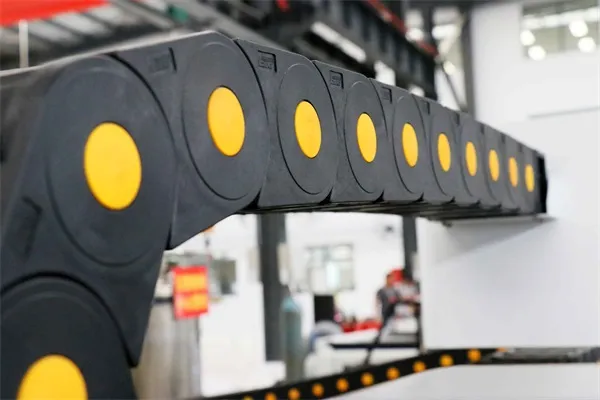

Protection Cover For Cables

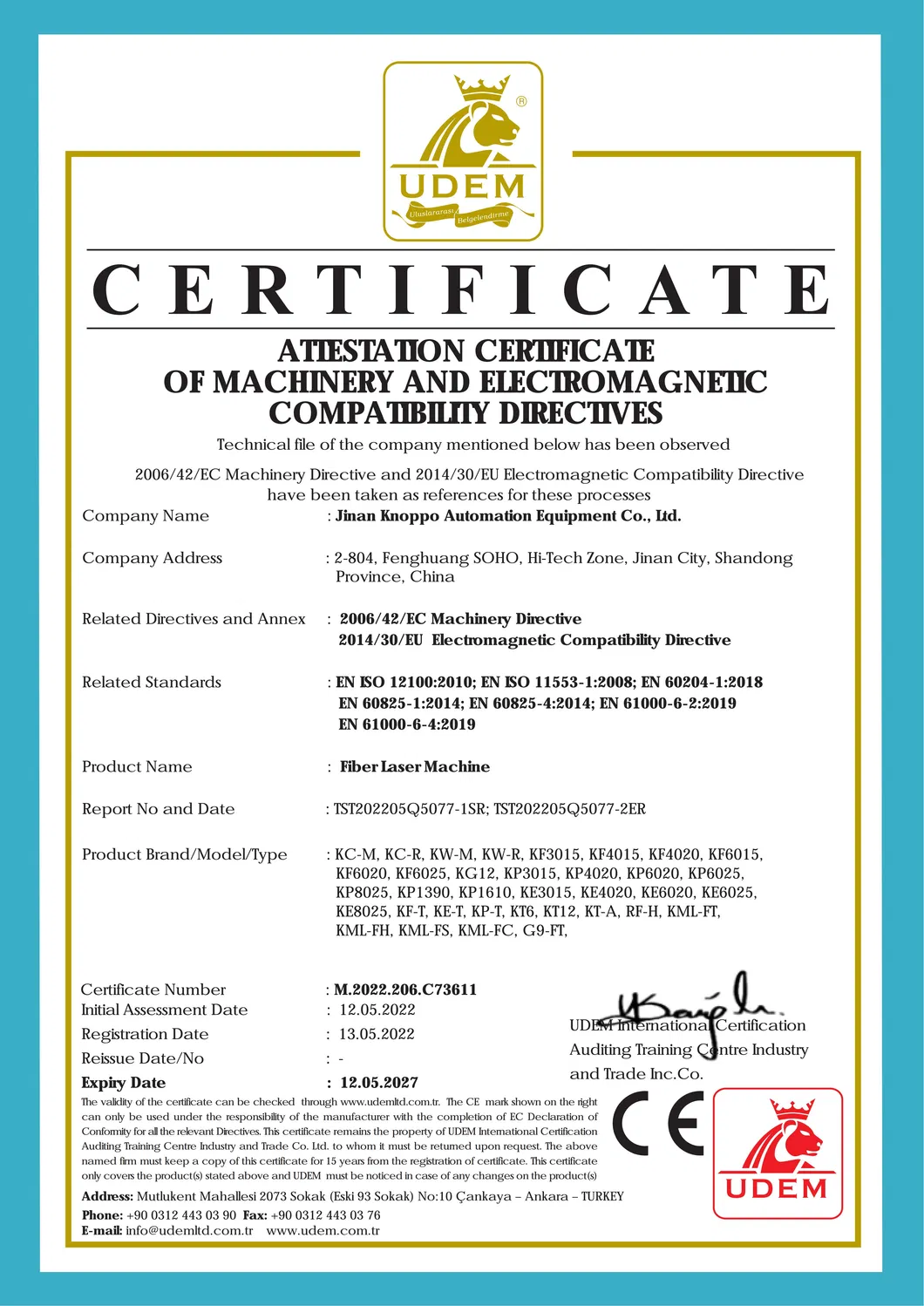

CE Certified - European Standard Quality
Dedicated to providing laser intelligent equipment solutions, helping global customers become more efficient and competitive. With over 15,000 systems in the market, we guarantee high quality and rapid response times in more than 100 countries. Our focus remains on innovation, sustainability, and the development of Industry 4.0 technologies.
A: It is designed to cut various metals including carbon steel, stainless steel, aluminum, brass, copper, and galvanized steel tubes.
A: The machine achieves a high positioning accuracy of 0.03mm and a repositioning accuracy of 0.02mm.
A: We provide a 3-year guarantee for the entire machine along with lifetime maintenance support.
A: Yes, it is equipped with the Cypcut Control System which supports intelligent graphics layout and automatic edge searching.
A: Yes, we offer free training at our factory and provide English manuals and operation videos to ensure you master the equipment.
A: The machine utilizes a high-efficiency water cooling system (S&A Water Chiller) to maintain stable operating temperatures.
