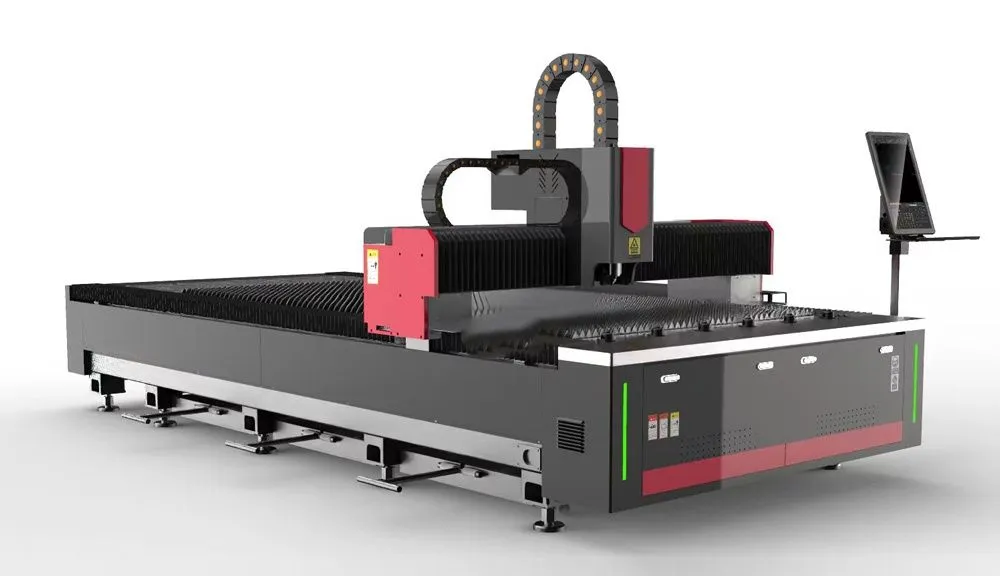

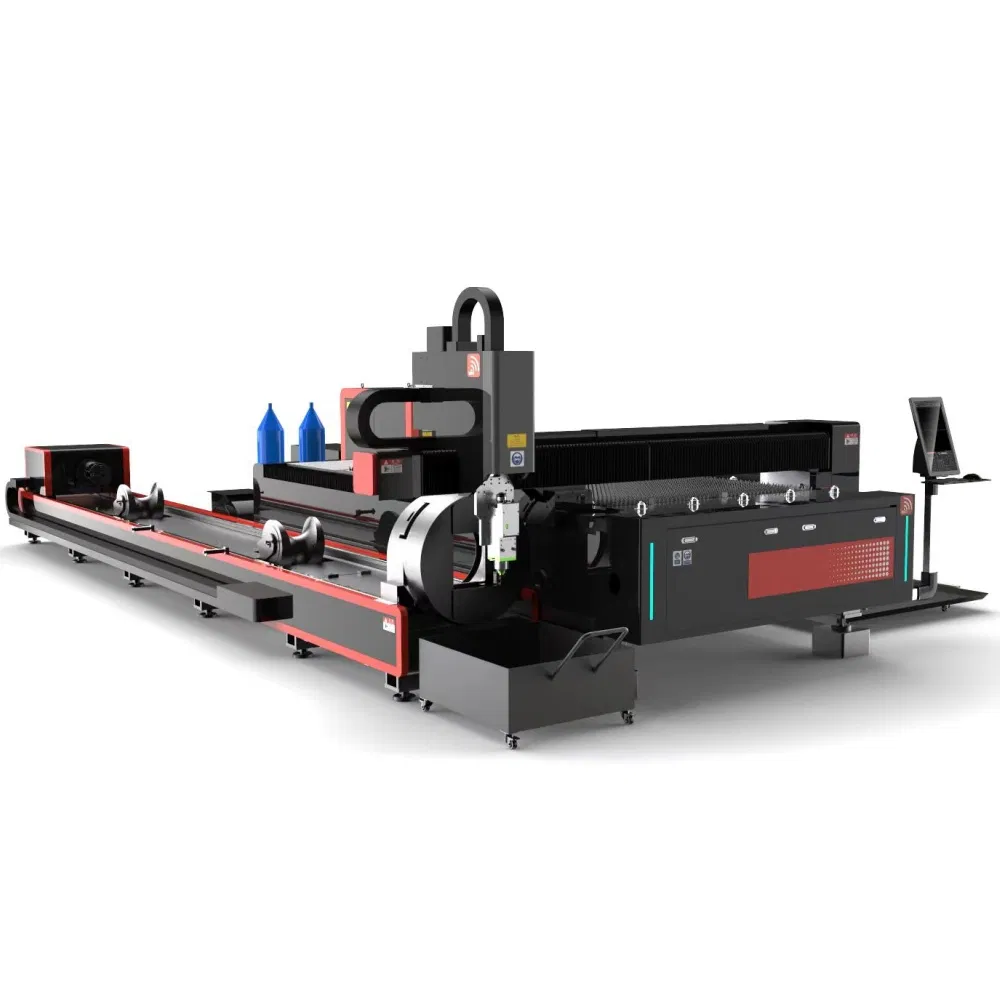

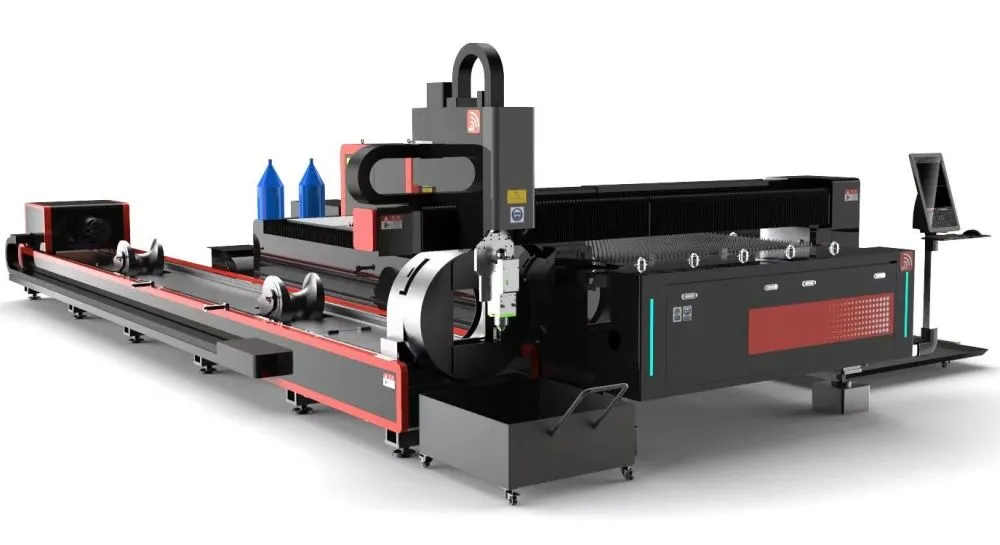

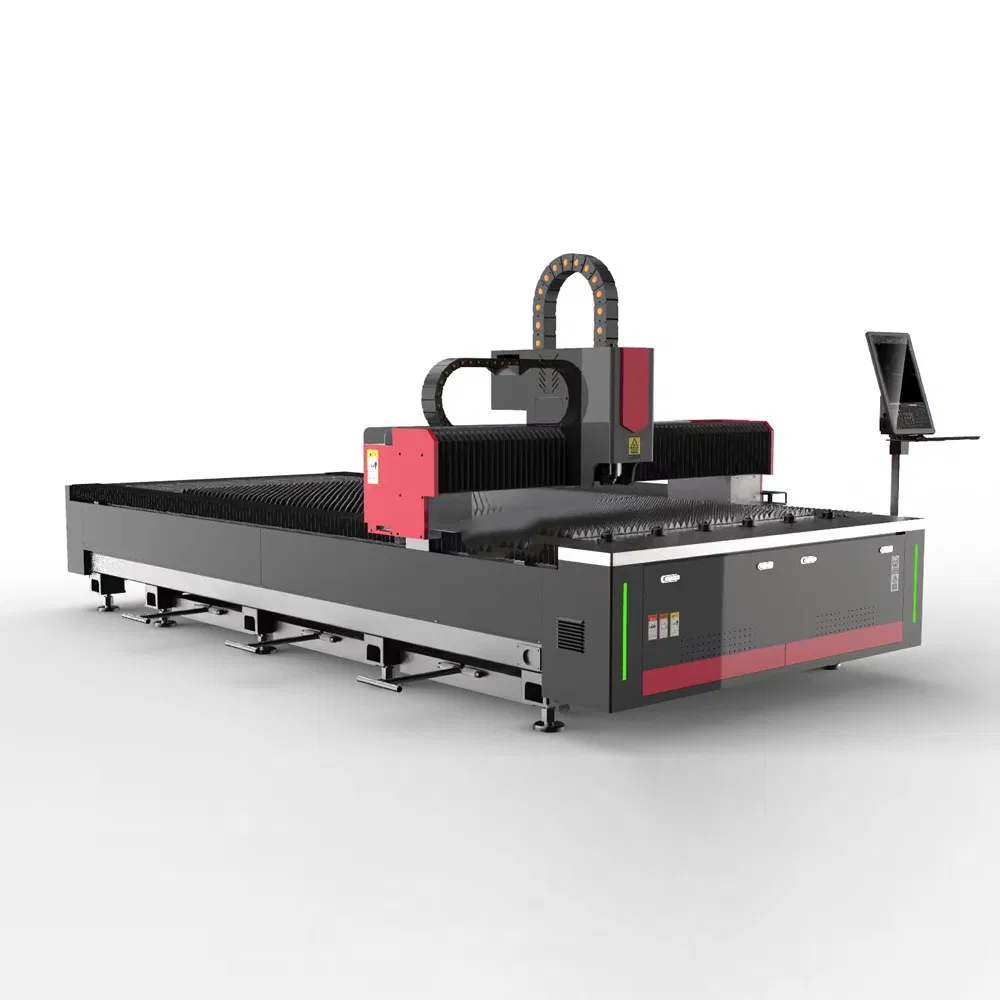

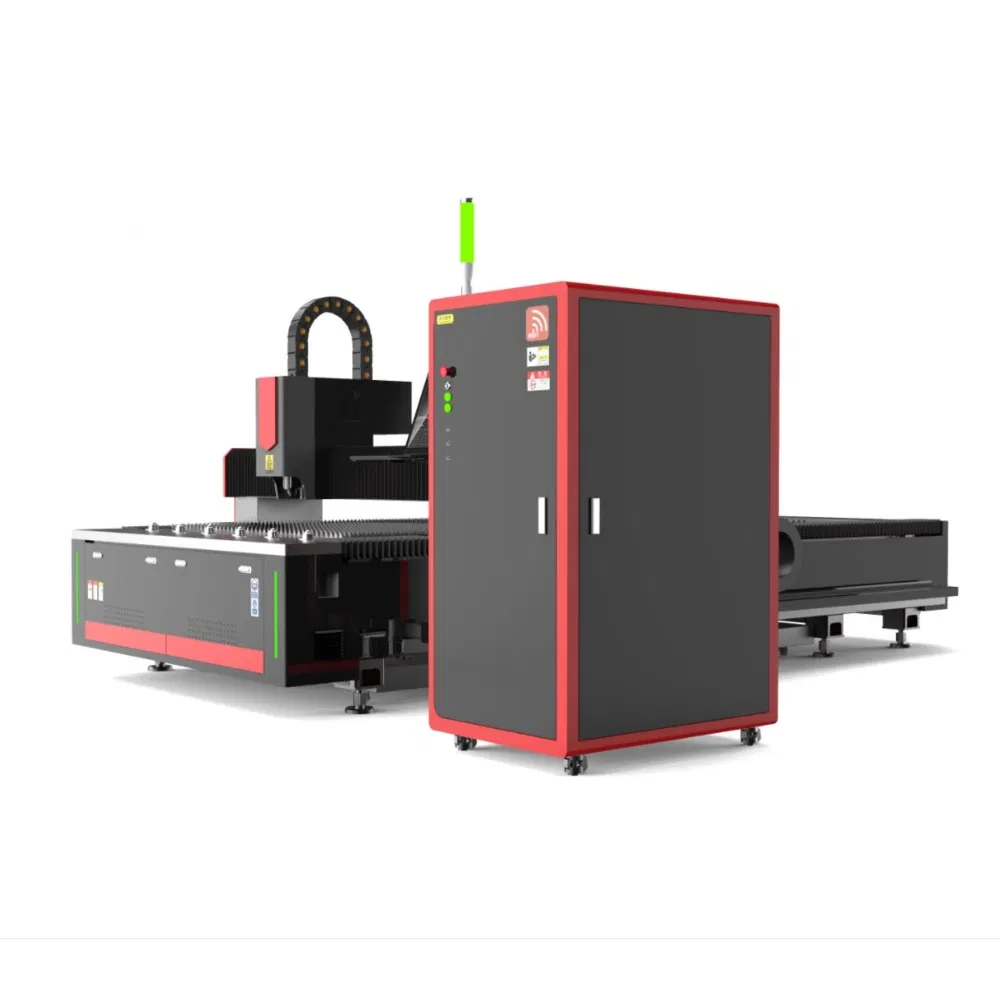

CNC Metal / Stainless Steel / Carbon Plate Fiber Laser Cutter

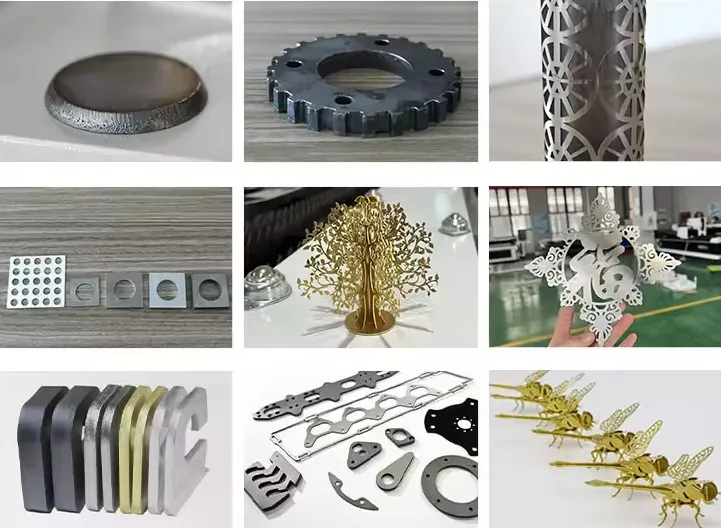

High speed cutting for moderately thin sheet and widely used in fields of light-fixture, kitchen ware, stainless steel decorative materials, case and cabinet etc.

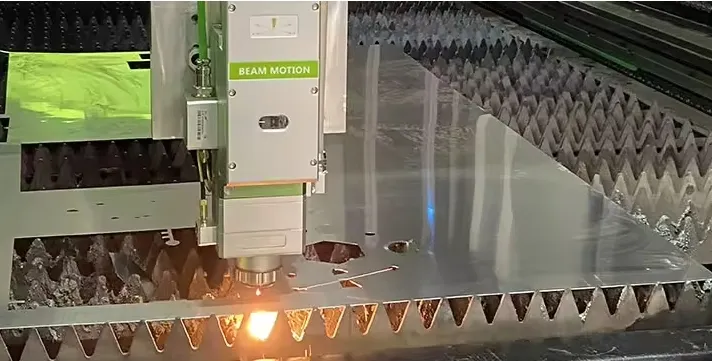

A laser head with an autofocus function that automatically adjusts focus without the need for manual adjustment. The software can automatically change the focusing lens according to different material thicknesses.

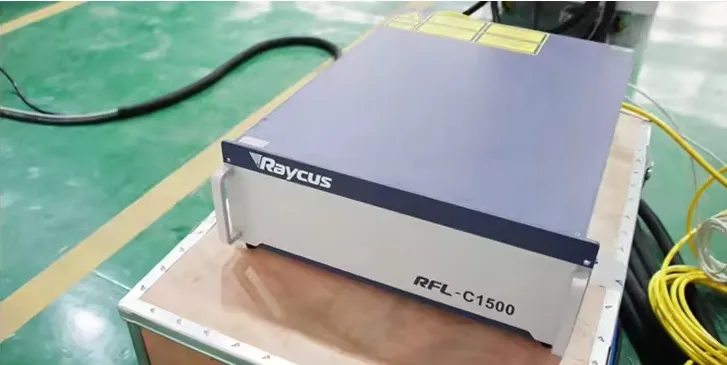

High electro-optical conversion efficiency, flat-top distribution of spot energy, and high energy density. Compatible with welding and cutting in hardware, medical, automobile, and aviation fields.

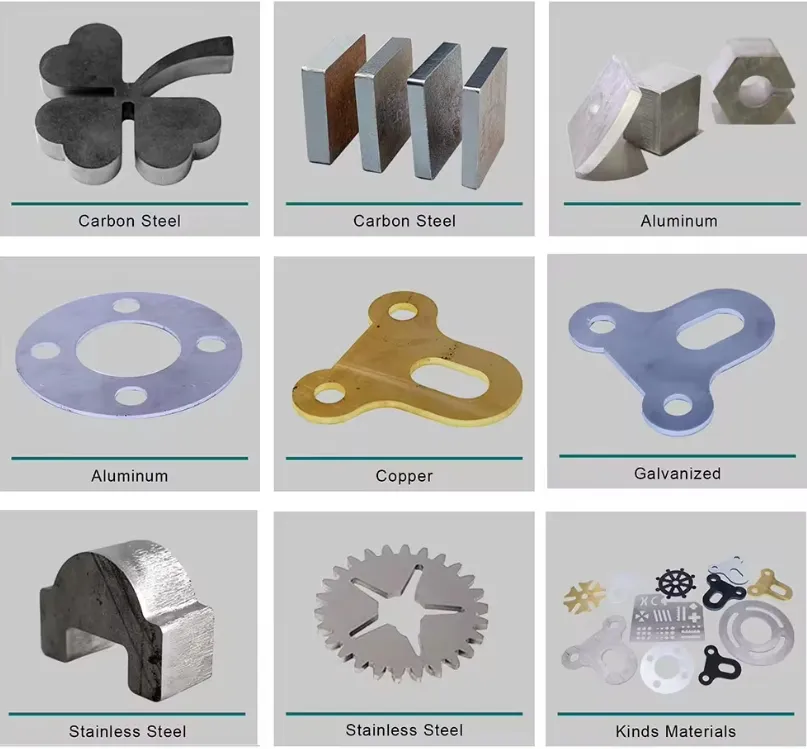

Integrates high power, light volume, and highlight conversion efficiency. Ideal for quick cutting of carbon steel, stainless steel, brass, and aluminum.
| Performance Index | Parameters |
|---|---|
| Bed form | Pipe welding |
| Beam form | Steel beam |
| Processing range | 3000mm x 1500mm |
| X-axis Travel | 1520mm |
| Y-axis Travel | 3050mm |
| Z-axis Travel | 100mm |
| Positioning accuracy | ±0.05mm/m |
| Repeated positioning accuracy | ±0.03mm |
| Maximum positioning speed | 75m/min |
| Maximum acceleration | 0.8g (~2000W) / 1g (3000W) |
| Machine weight | 1.4t |
| Maximum load of working platform | 700kg |
