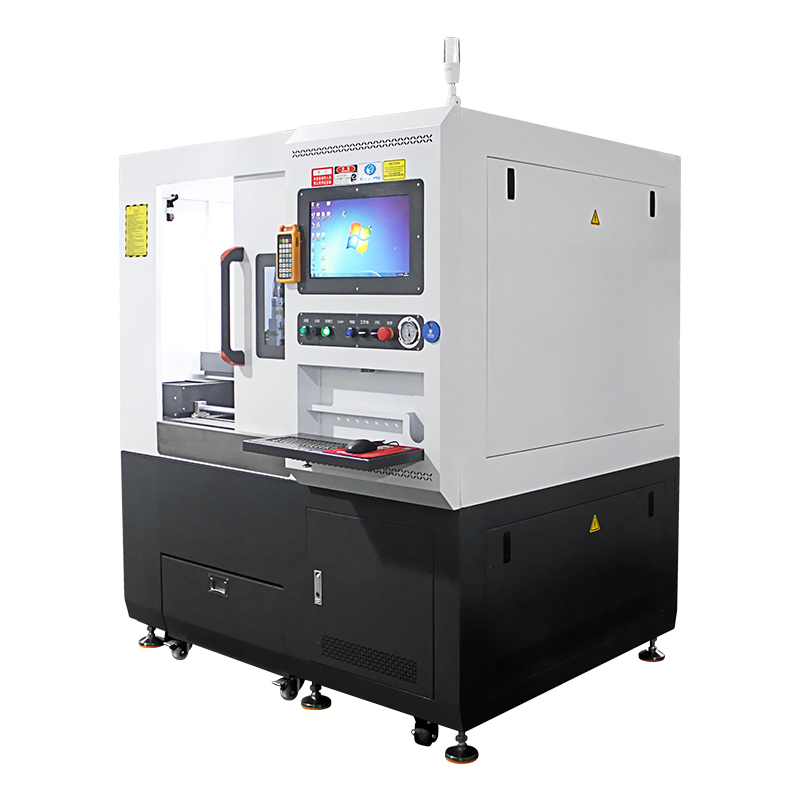

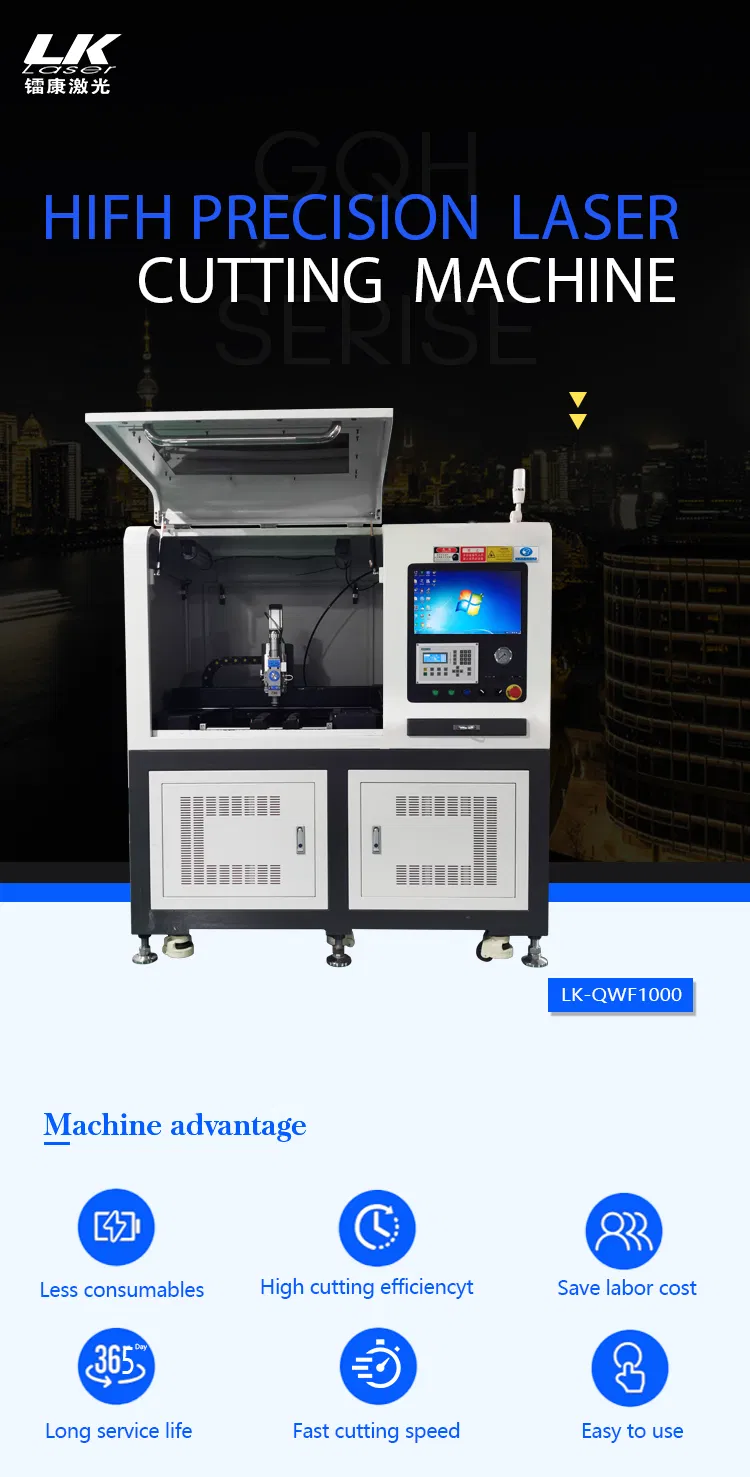

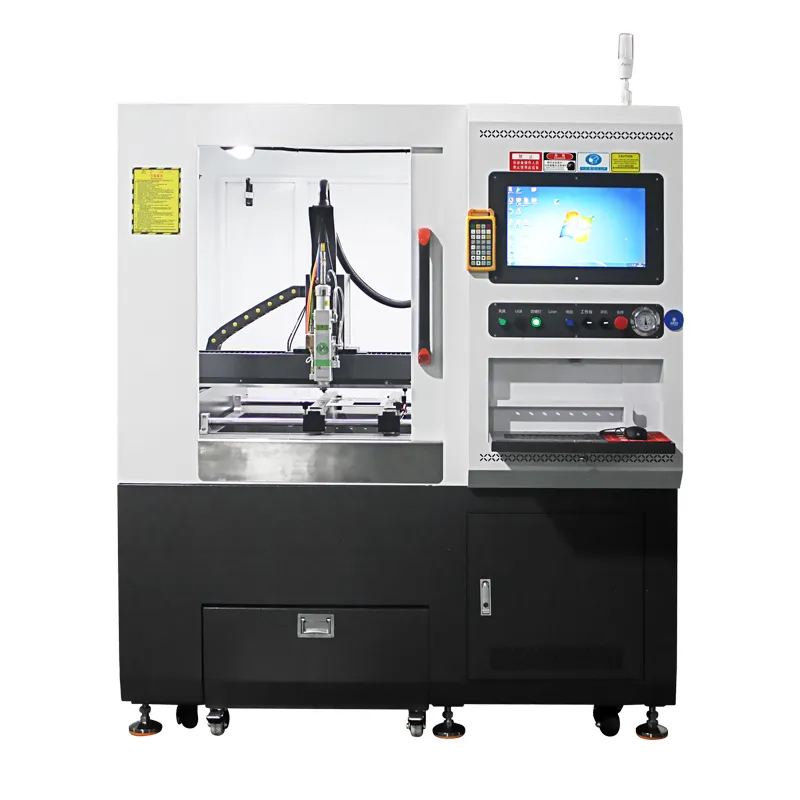

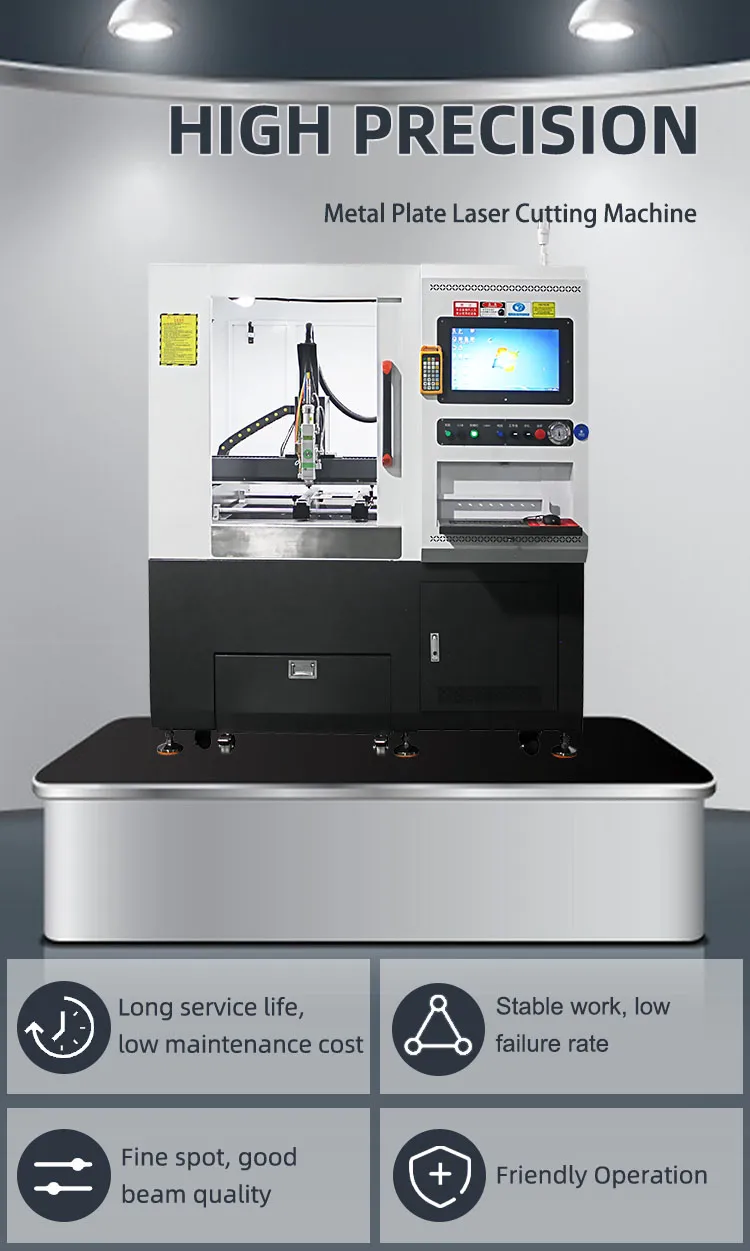

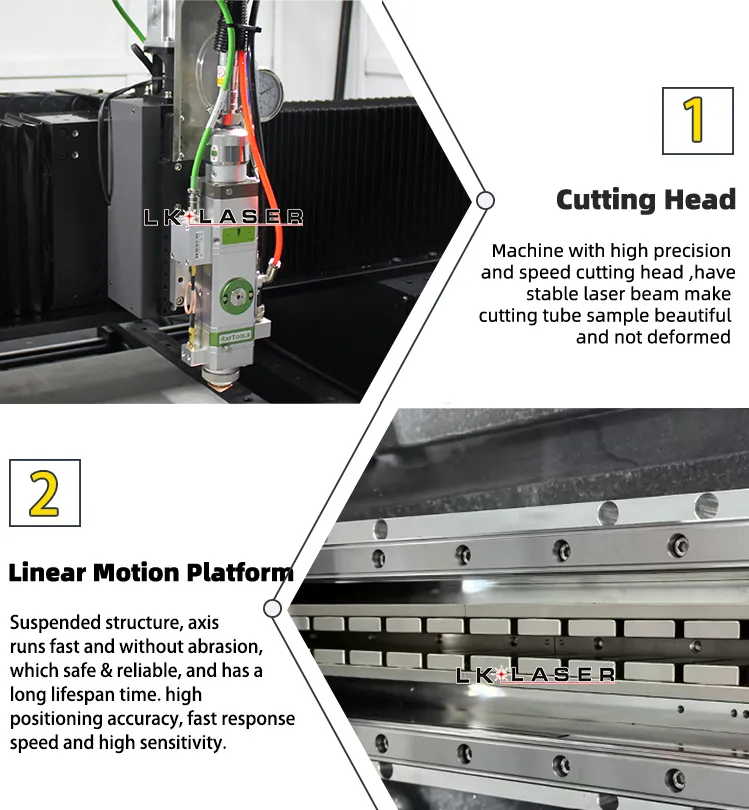

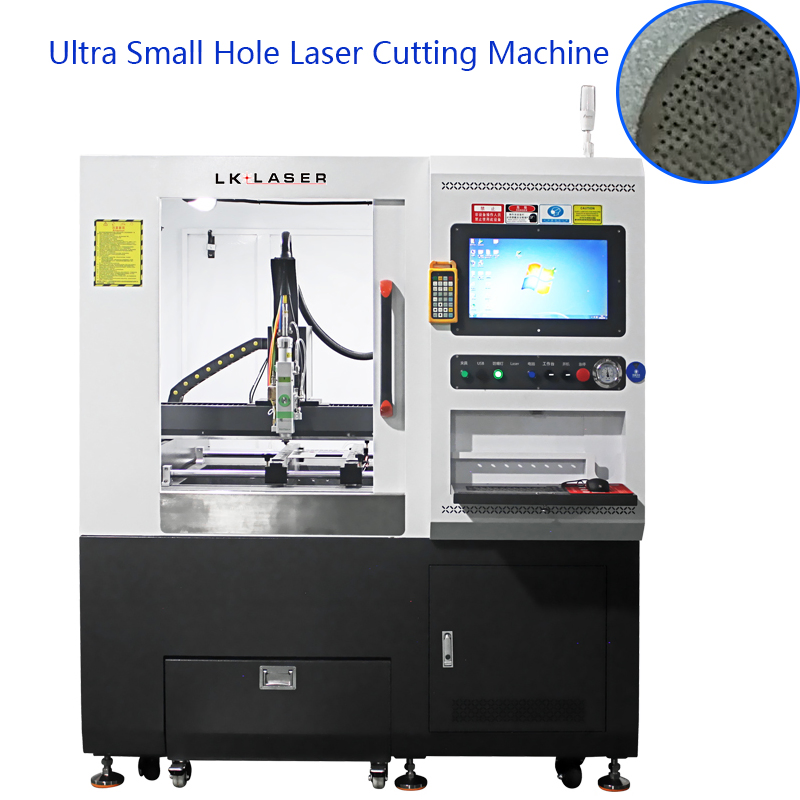

The precision enclosed metal hardware laser cutting equipment adopts ultra-high precision linear motor module, compact structure and low power loss. Without mechanical contact, friction force is smaller. Smooth movement, high position accuracy and re-positioning accuracy, higher speed and acceleration. Fast reaction speed, high sensitivity, excellent follow-up performance, safe and reliable, long service life, low motion noise.
It is suitable for accurate small micro and thin workpieces parts cutting and processing.
1. Small deformation: The laser beam is focused into a small spot, making the focal point reach high power density. The pipe laser cutting machine has no burrs, no wrinkles and high precision.
2. Non-contact processing: The performance is not affected by the hardness of the material, enabling it to cut any hard material.
3. Adaptability and flexibility: Controllable laser beam with high flexibility, making it easy to integrate with automation equipment.
| Model | LK-CWF |
| Laser Power | 1000W/1500W/2000W optional |
| Laser Wavelength | 1064nm |
| Working Speed | 300mm/s(X); 300mm/s(Y); 100mm/s(Z) |
| Width of Cutting Slit | 20um |

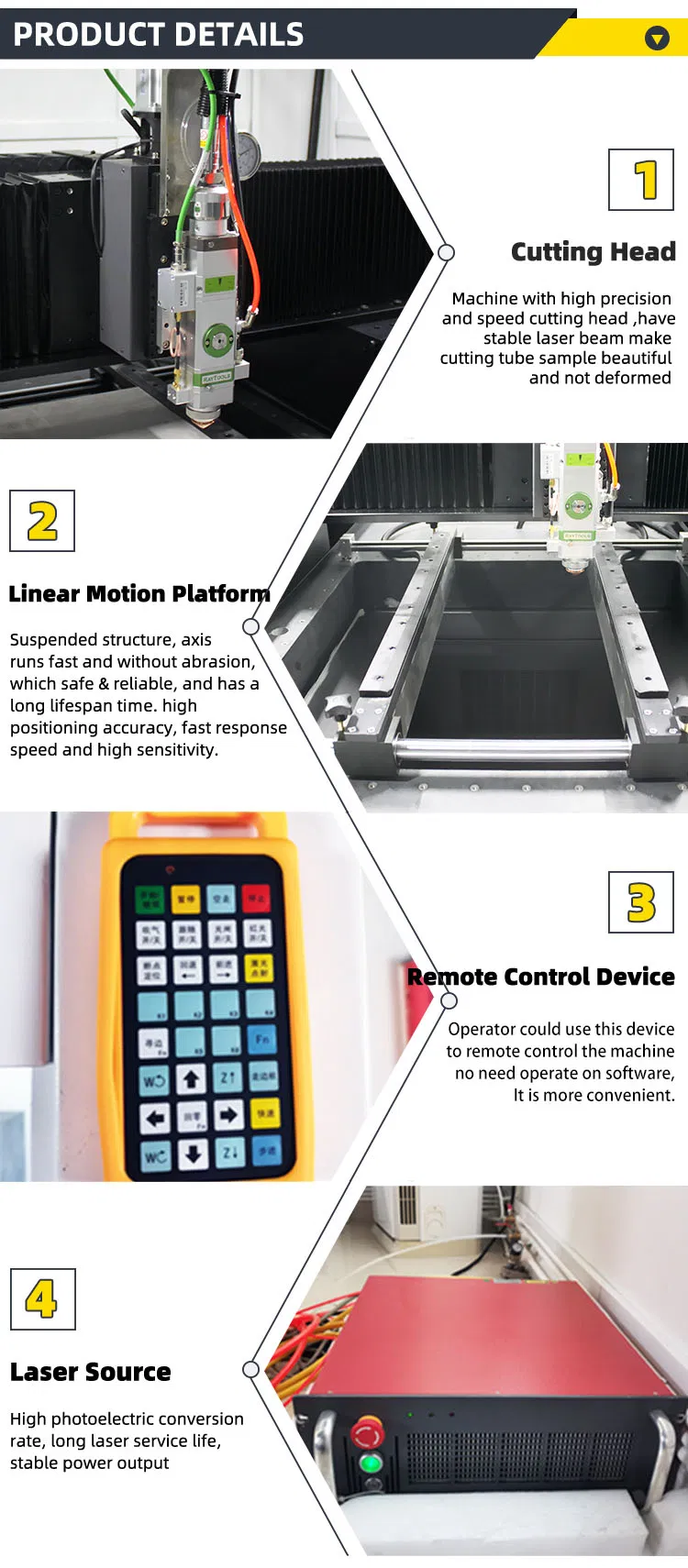

| X Y Axis Motor | Linear Motor |

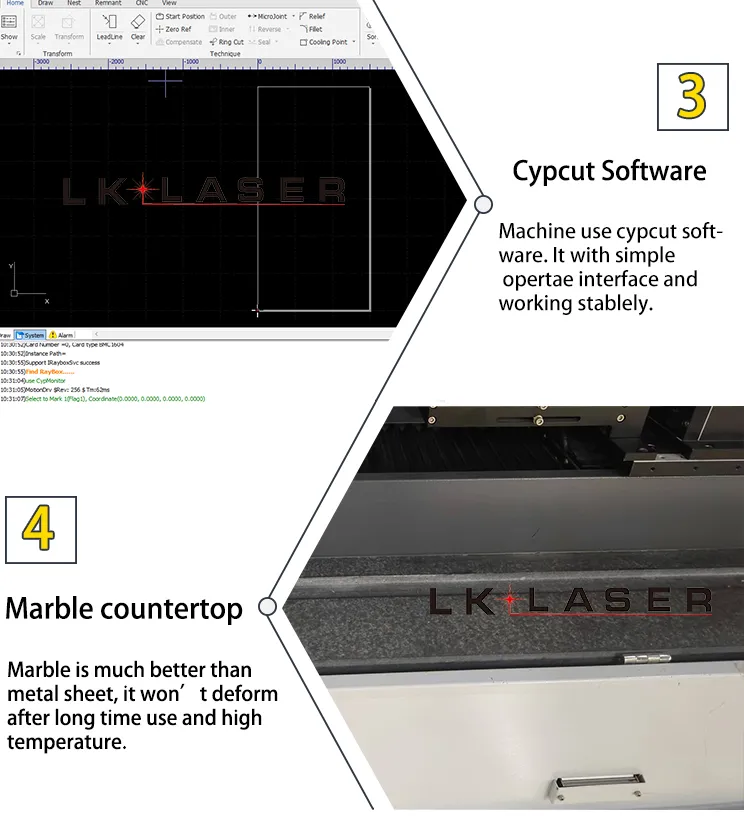

| Software | Cypcut |

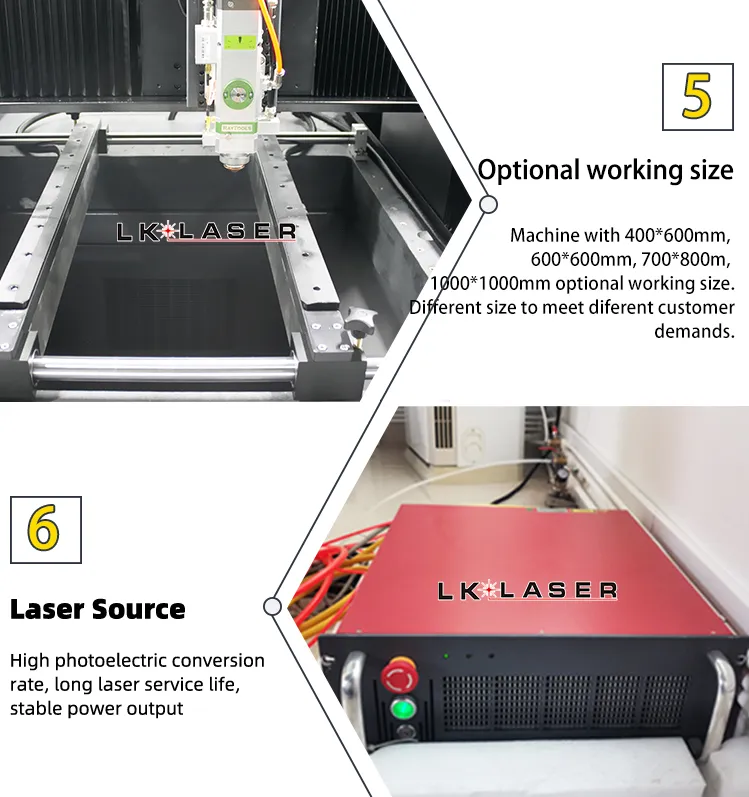

| Cutting Area | 400*600mm / 600*600mm / 1000*1000mm optional |
| Power Supply | 220v single phase |

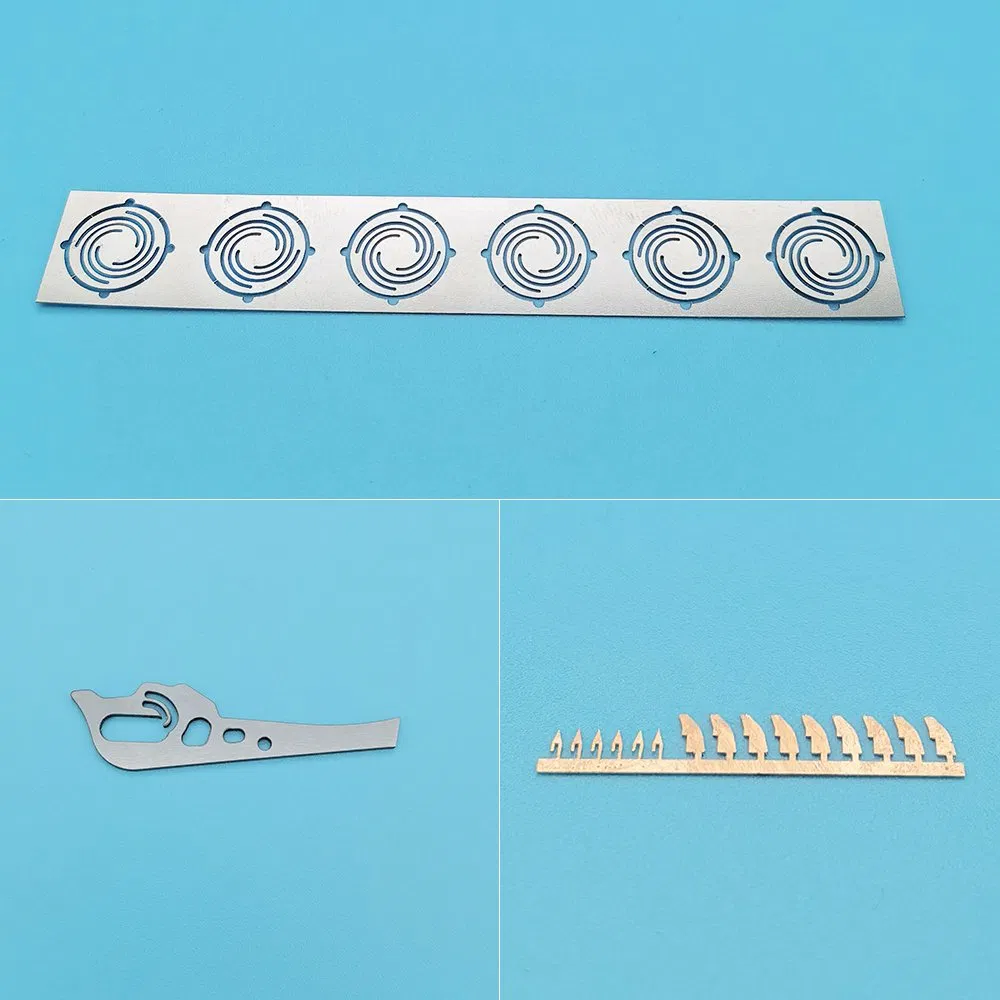

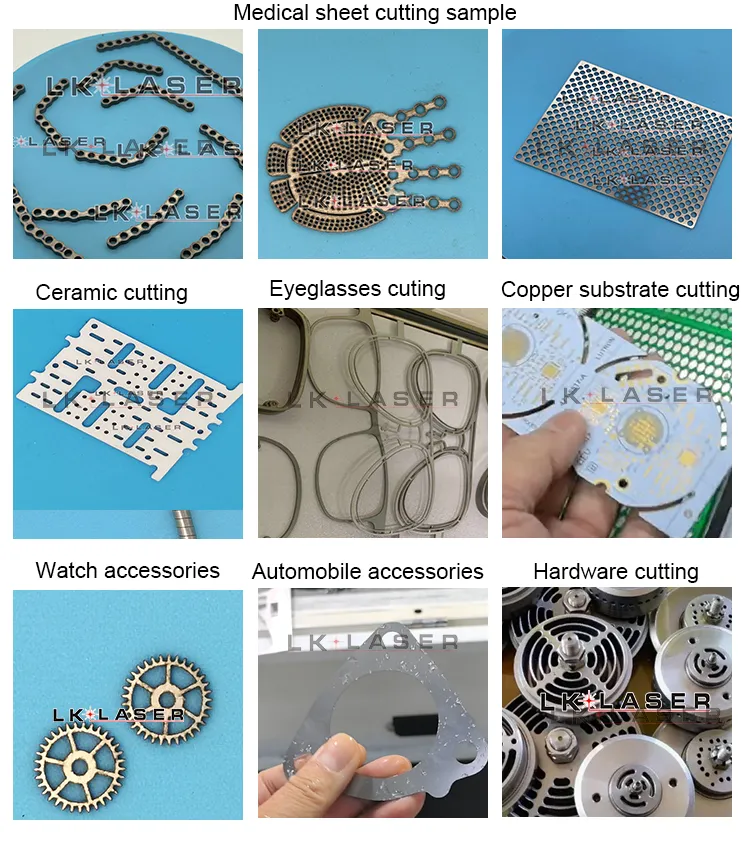

Suitable for cutting, drilling ultra small holes in thin sheet, orthopedic implant mesh, cranial titanium plate mesh, shaver blade mesh, ceramic sheet, zirconia sheet, metallic switch panel, and brittle materials like sapphire, PCD, and ceramics manufacturing.

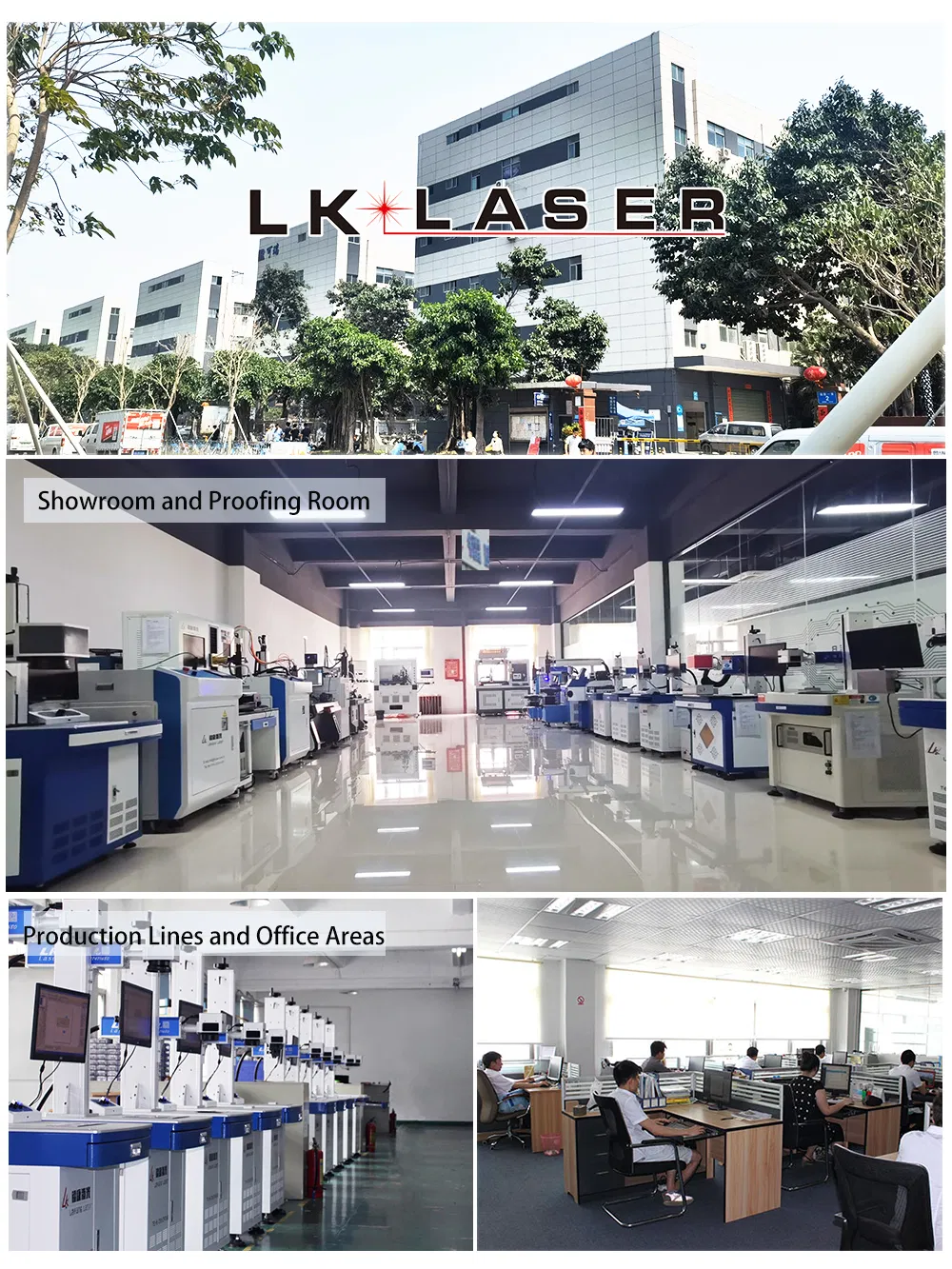

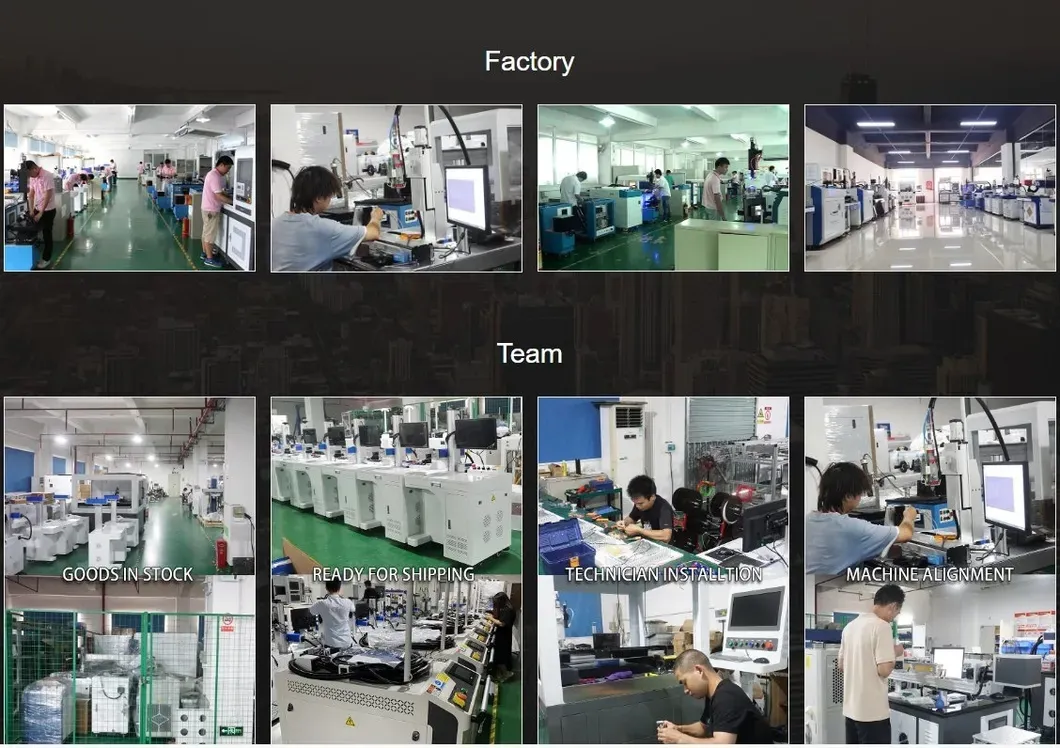

Our company is a modern manufacturing enterprise specializing in R&D and production of complete sets of industrial and medical laser equipment. Since 2007, we have focused on the optimization and integration of technology, quality, and application.
Products include: laser welding machines, laser marking machines, laser cutting machines, and cleaning machines. We work closely with world-famous laser supporting suppliers to ensure high conversion efficiency and stable performance. Our equipment is exported to more than 100 countries including Europe and the United States.
