CXO Laser
1 / 5
| Model NO. | GX |
| Application | Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Woodwork Industry, Advertising Industry |
| Cooling System | Water Cooling |
| Laser Technology | Continuous Wave Laser, Laser Control Fault Cutting |
| Applicable Material | Metal |
| Structure Type | Gantry Type |
| Keywords | Metal Laser Cutting Machine |
| Specification | 8900*2260*2200mm / 12500*2260*2200mm |
| Production Capacity | 5000 Sets/Year |

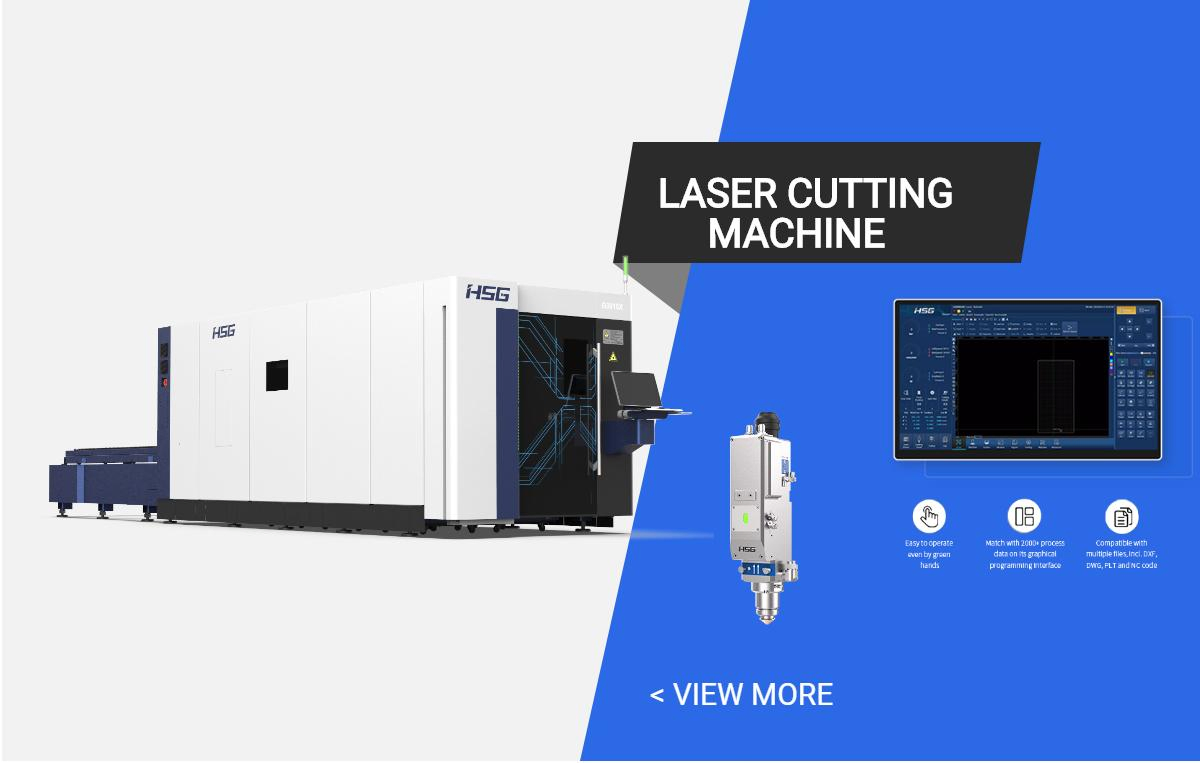

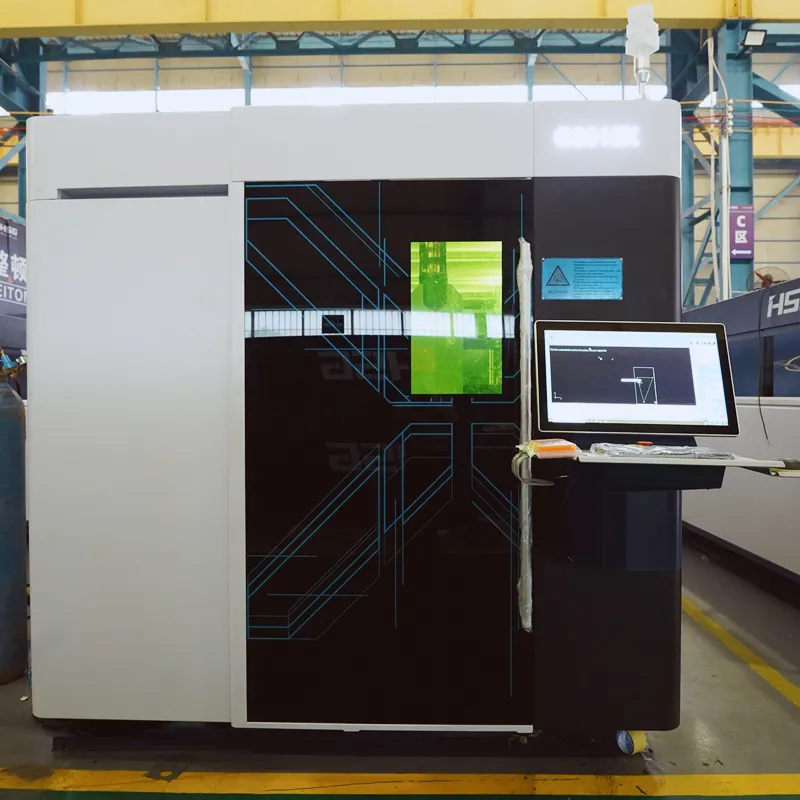

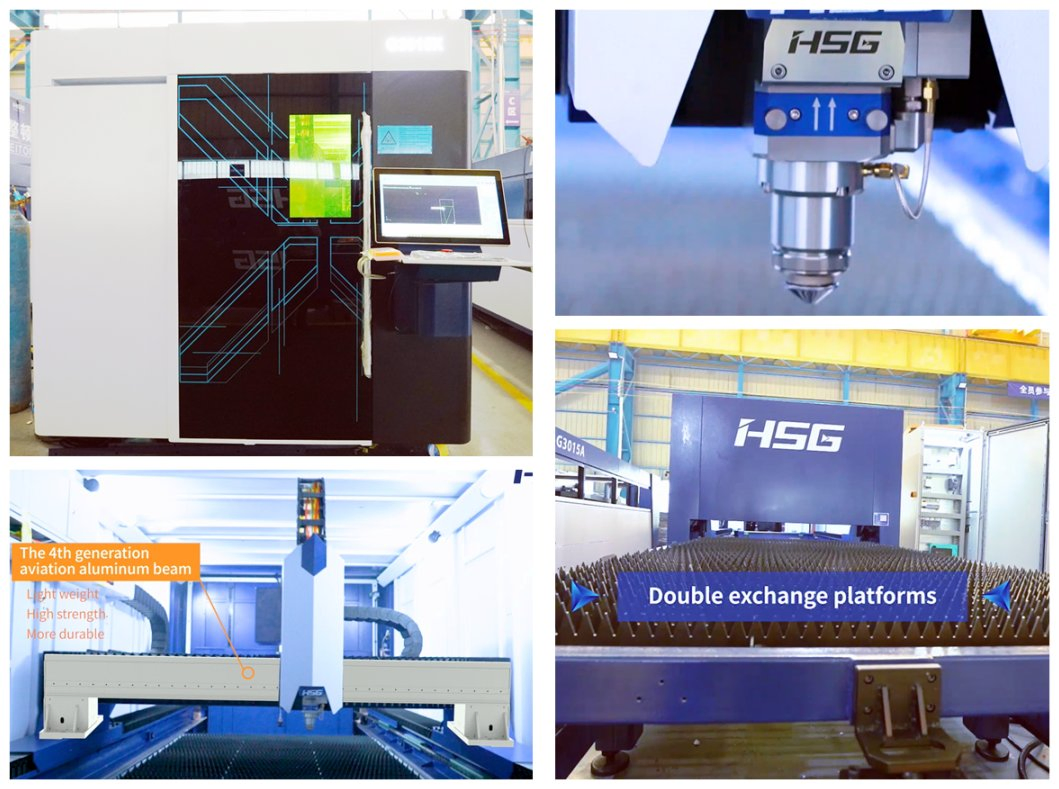

CNC Exchange Table & Full Cover Optical Fiber Laser Cutting Machine
Designed for high-precision cutting of Stainless Steel, Aluminum, Iron, and Sheet Metal (2kw 4kw 6kw options).
| Technical Parameter | GX Series | |
|---|---|---|
| Model | G3015X | G6015X |
| Power | 2000-6000W | 2000-6000W |
| Processing Format (L*W) | 3048*1524mm | 6048*1524mm |
| X/Y-axis Positioning Accuracy | ±0.03mm/m | ±0.05mm/m |
| Acceleration | 1.5G | 1.2G |
| No-load Speed | 140m/min | 140m/min |

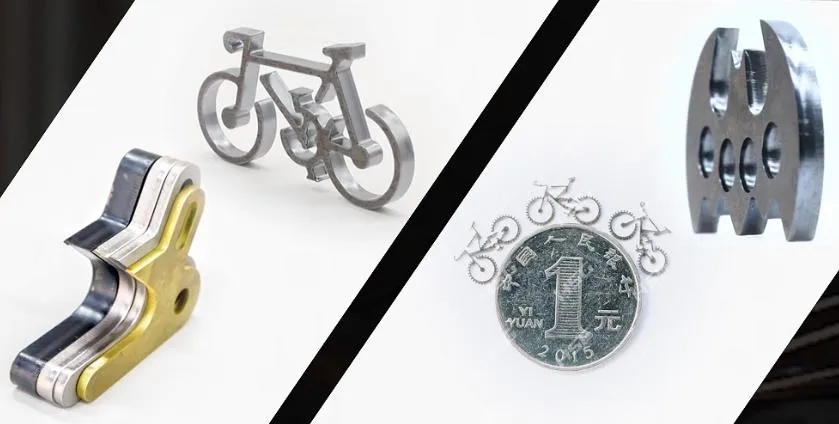

Note: Suitable for mild steel (max 25mm), stainless steel (max 20mm), aluminum alloy, brass, and red copper.
Easy to operate with a graphical programming interface and 2000+ process data points. Compatible with DXF, DWG, PLT, and NC codes. Improves material utilization by up to 9.5%.

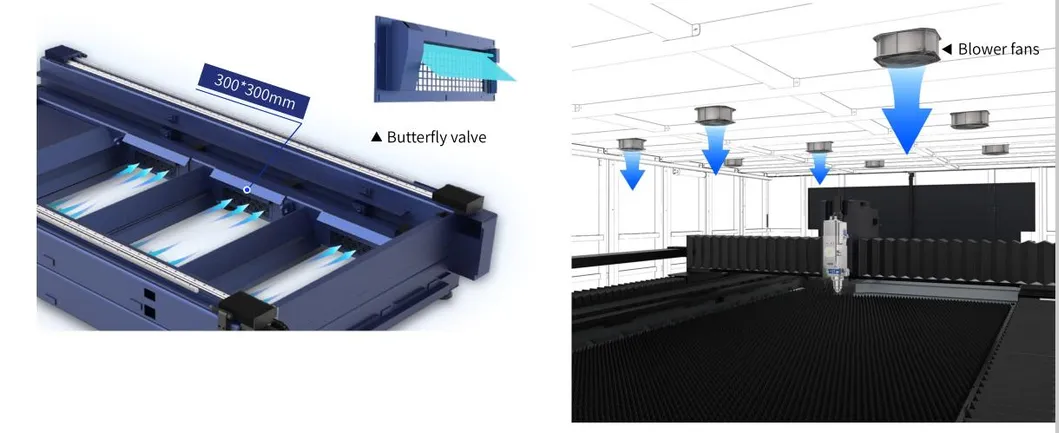

Features butterfly valve-controlled zoning and 300*300mm hollow air ducts. The positive-pressure air cover ensures an almost smoke-free environment during operation.

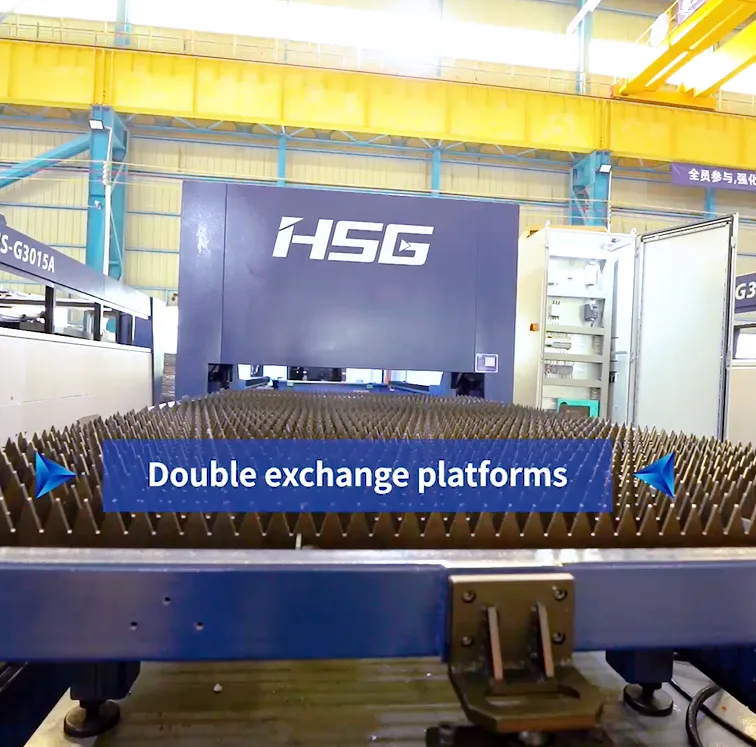

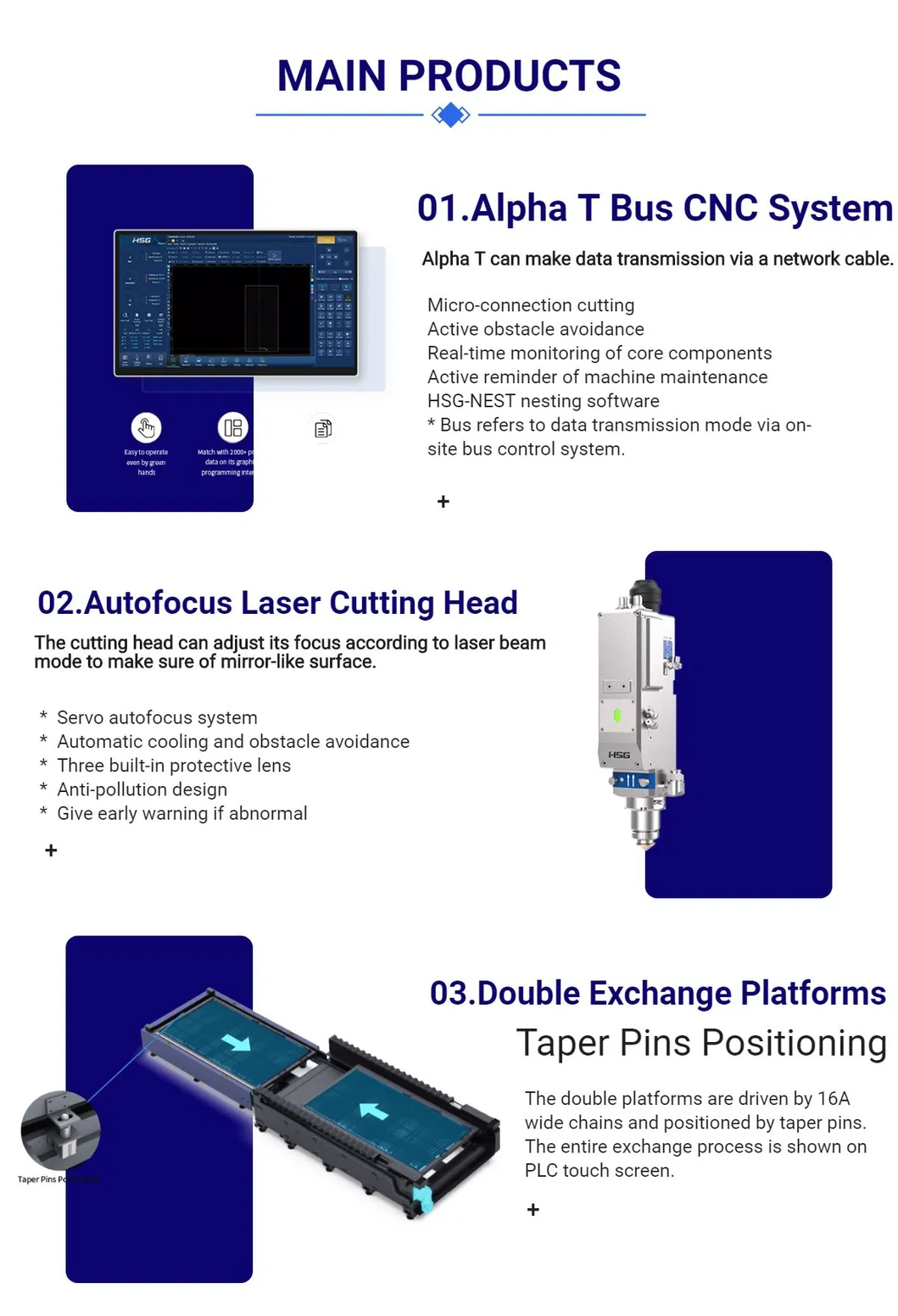

Utilizes 16A chains for rapid exchange. Taper pin positioning ensures high platform precision within 0.5mm.
Automatic focus adjustment based on laser beam mode. Features an anti-pollution design and early warning system for abnormal conditions.
Every machine undergoes rigorous quality control and testing protocols before delivery to ensure peak performance.
All unit components are warranted for 1 year. Our after-sales engineers or local agents will supply new or remanufactured components to replace failed ones.
Warranty Exclusions: Normal wear items are not covered, including: 1. Nozzles, 2. Protective lenses, 3. Ceramic rings.
The machine is ideal for sheet metals including mild steel (up to 25mm), stainless steel (up to 20mm), aluminum alloy, brass, and red copper.
The X/Y-axis positioning accuracy ranges from ±0.03mm/m for the G3015X model to ±0.05mm/m for the G6015X model.
Yes, the Alpha T CNC System is designed to be easy to operate even for inexperienced users, featuring a graphical interface and over 2000 process data presets.
It uses a butterfly valve-controlled zoning system combined with 300*300mm hollow air ducts and blower fans to create a positive-pressure air flow for a smoke-free effect.
We provide a one-year warranty for all unit components, excluding consumable parts like nozzles, protective lenses, and ceramic rings.
The control system is compatible with multiple graphic files, including DXF, DWG, PLT, and NC codes.
