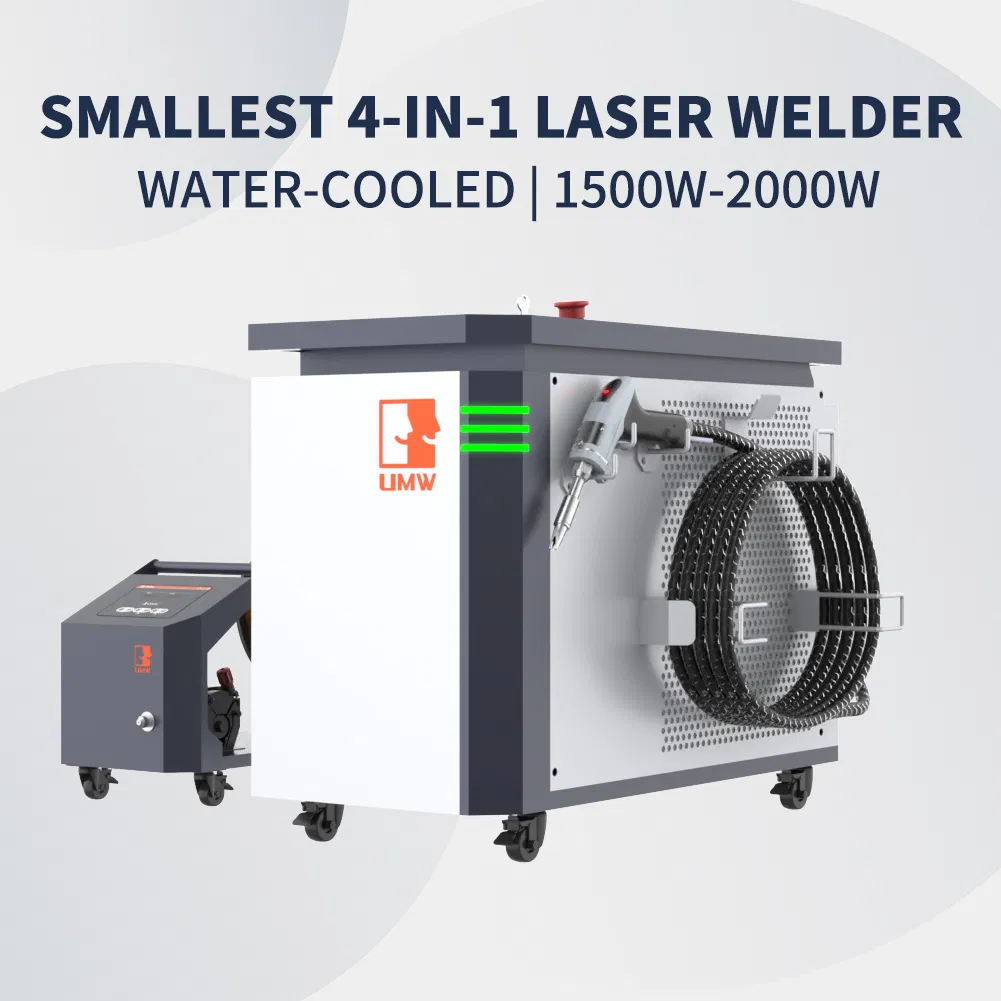

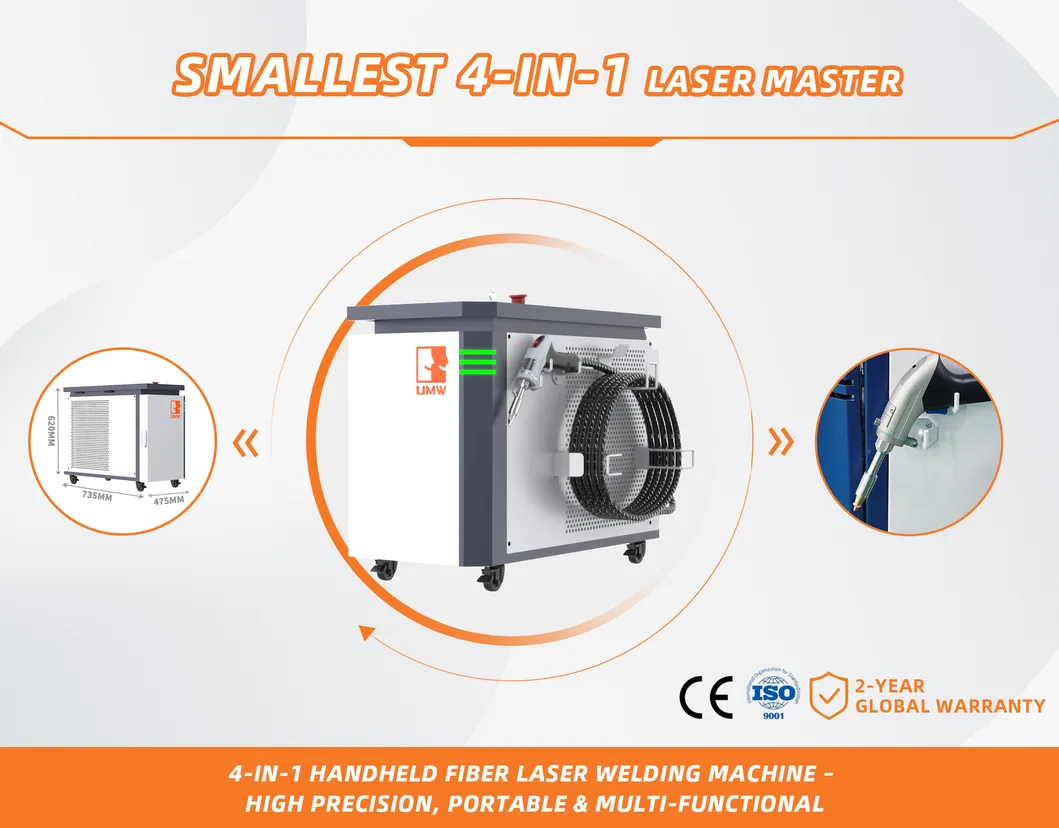

Revolutionize metalwork with unmatched portability! This ultra-compact powerhouse combines Welding, Cutting, WeldSeam Cleaning, and Laser Remote Cleaning in one device, delivering industrial precision for stainless steel, aluminum, copper, and more.

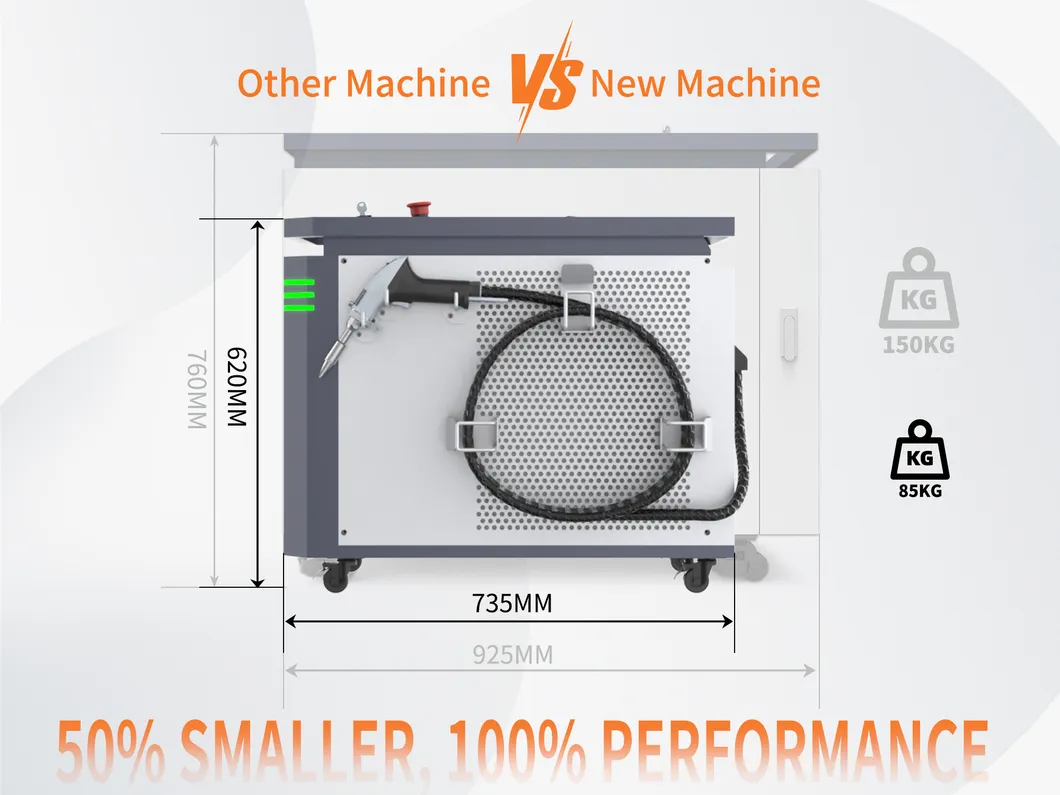

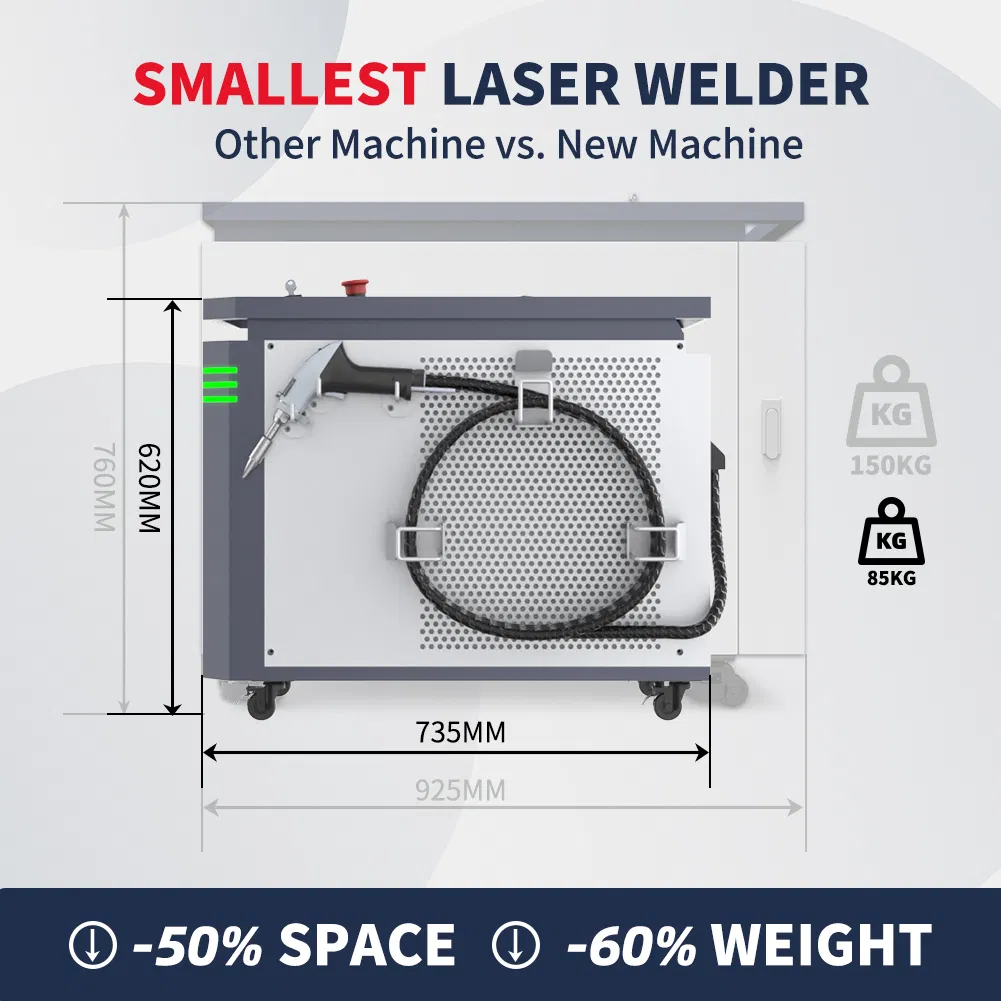

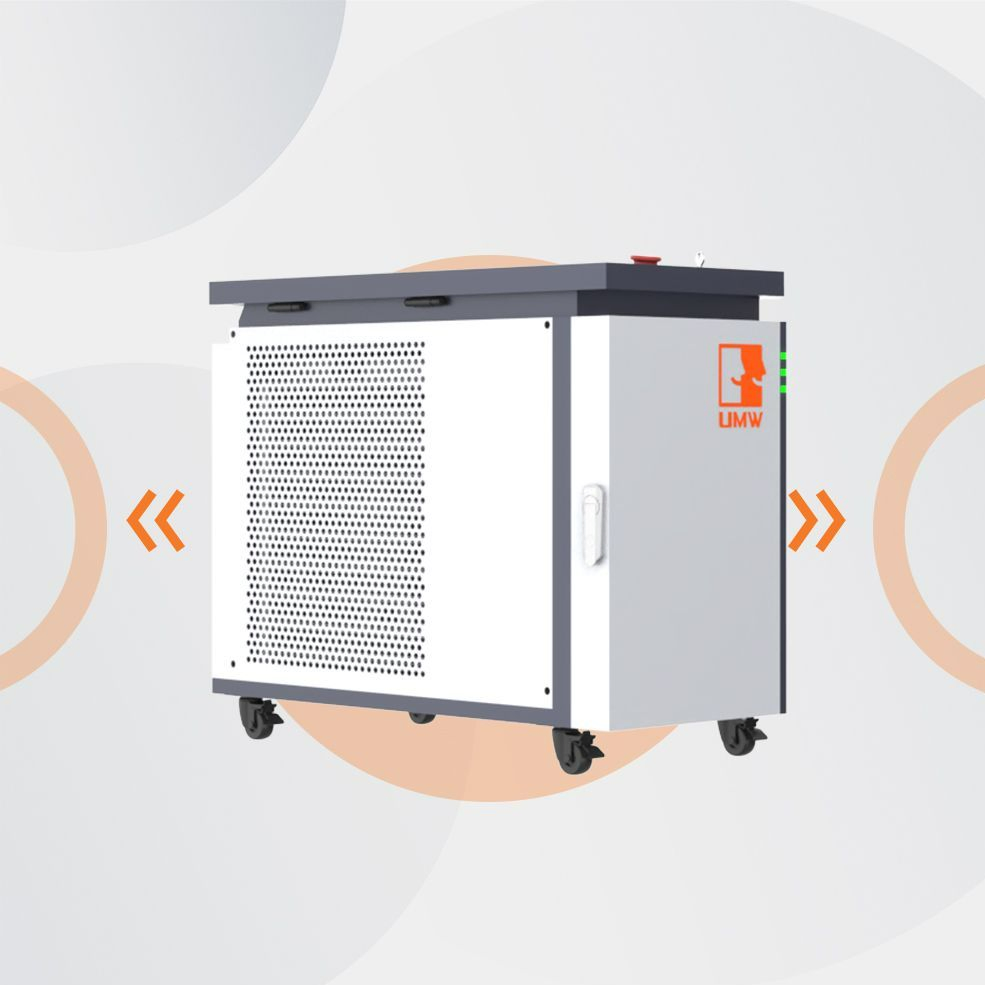

✓Machine Size: Near air-cooled dimensions (735×475×620mm) with built-in chiller for 24/7 high-power stability.
✓Machine Weight: Just 85kg - easy to move, yet delivers 1500-2000W output.
✓Ultra-Lightweight Gun: Only 0.65kg with ergonomic pistol-grip handle and optimized tilt angle.
✓Intuitive Controls: Thumb-activated trigger switch + wire feeder control.

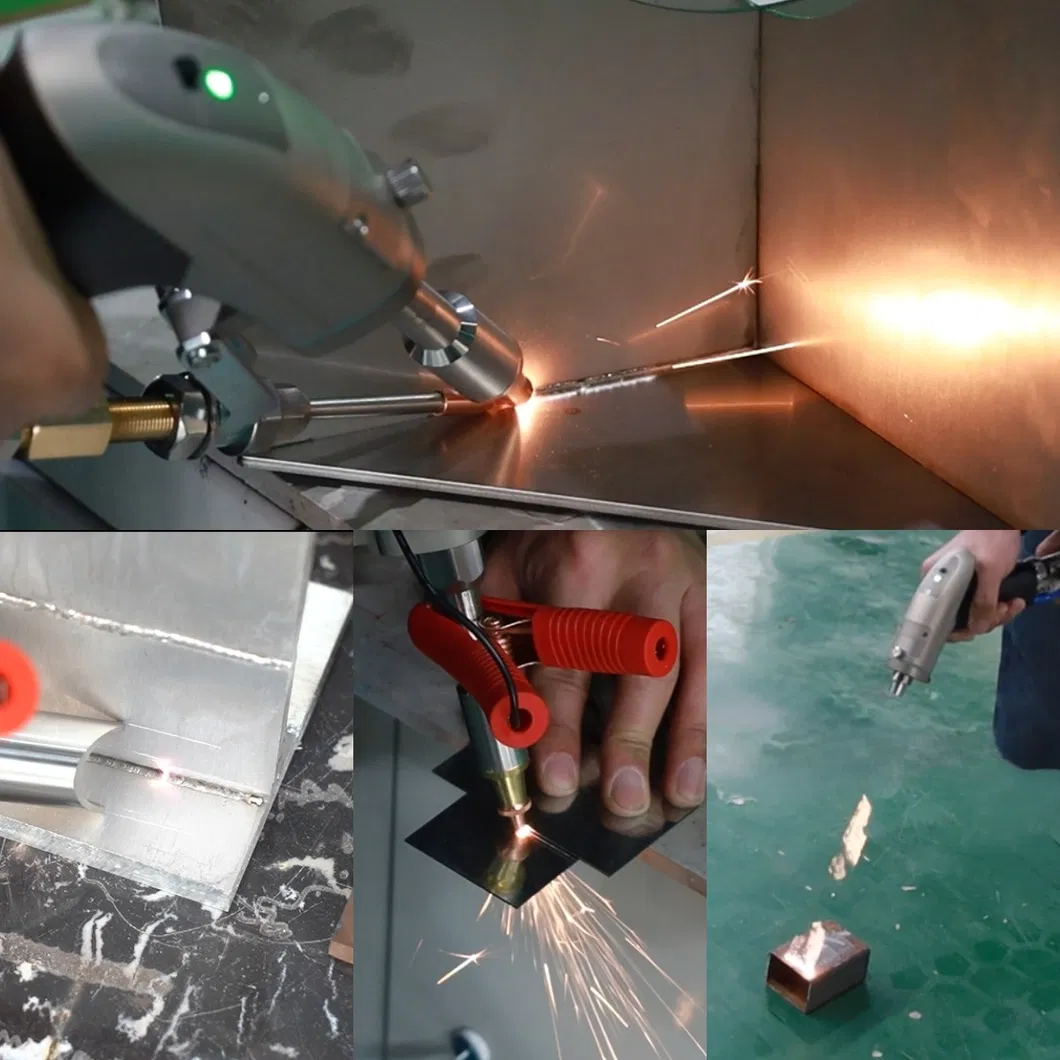

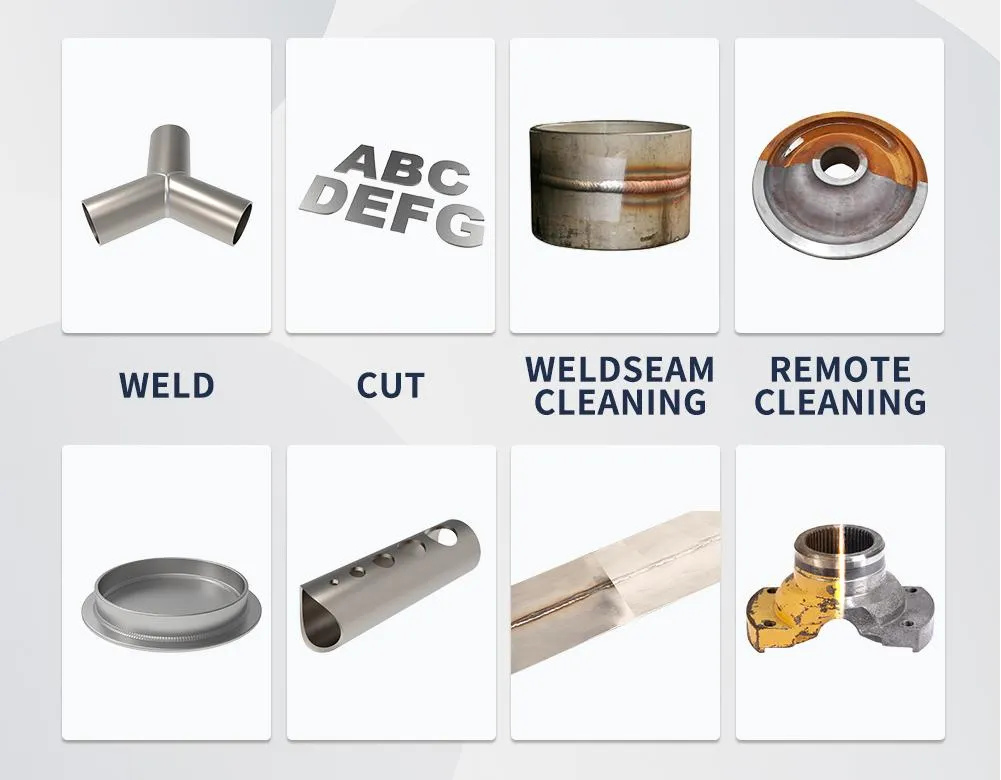

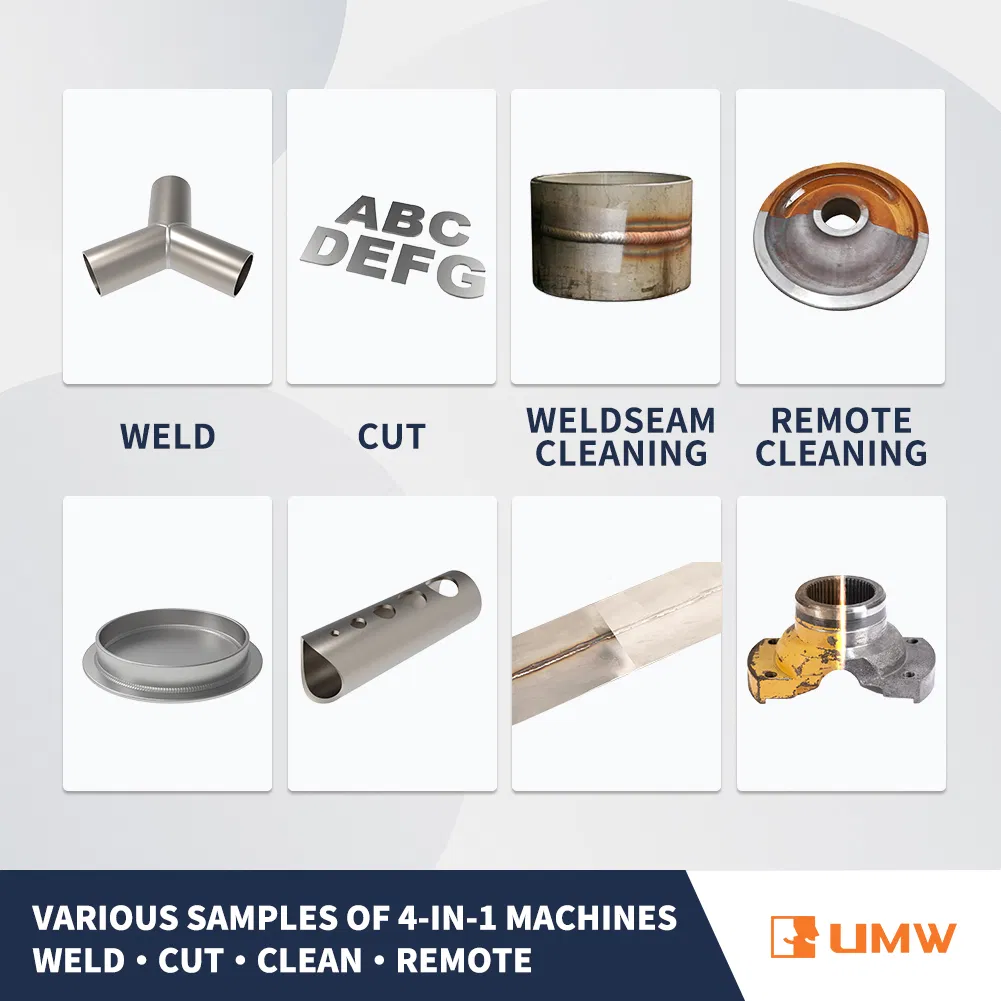

4-in-1 Versatility: Perform Welding, Cleaning, Cutting, and WeldSeam Cleaning with a single machine.

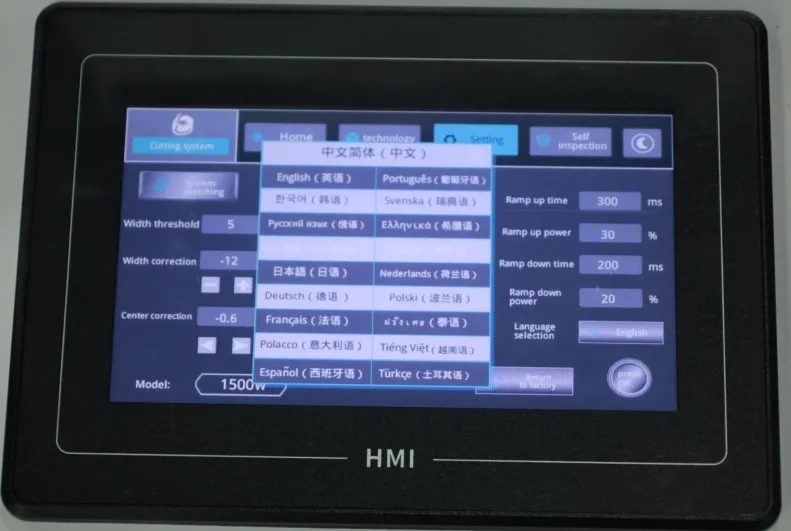

High-Performance: Equipped with a 7-inch touchscreen and 100+ preset process libraries.

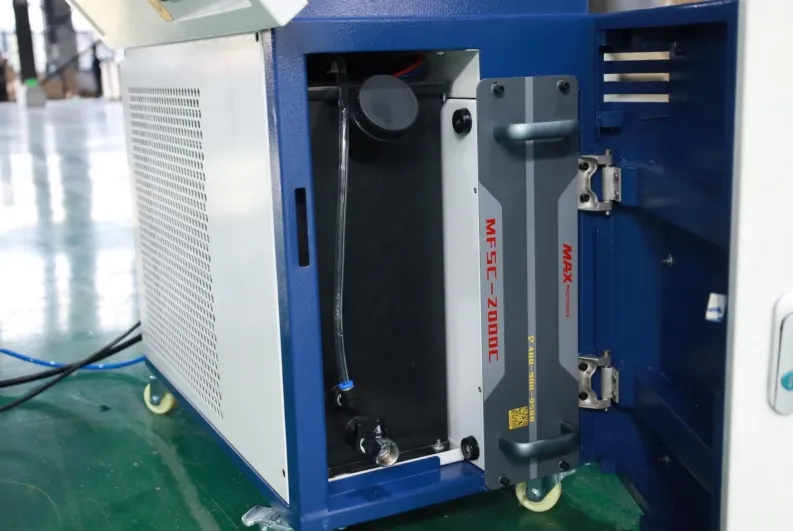

Advanced Cooling: Industrial-grade water-cooling ready for 24-hour continuous welding.
| Comparison | Laser Weld | Traditional Weld |
|---|---|---|
| Speed | Fast | Slow |
| Operate | Easy | Hard |
| Mode | Much | Less |
| Effect | Well | Bad |
| Labor Cost | Less | More |
| Core Parameters | |
| Laser Power | 1500w, 2000w |
| Operating Mode | Continuous Laser |
| Cooling Type | Water Cooled |
| Output Wavelength | 1070±20nm |
| Welding Speed | 0-120mm/s |
| Laser Source | MAX |
| Voltage | 110V/220V 1PH 50/60HZ |
| Net Weight | 85kg |

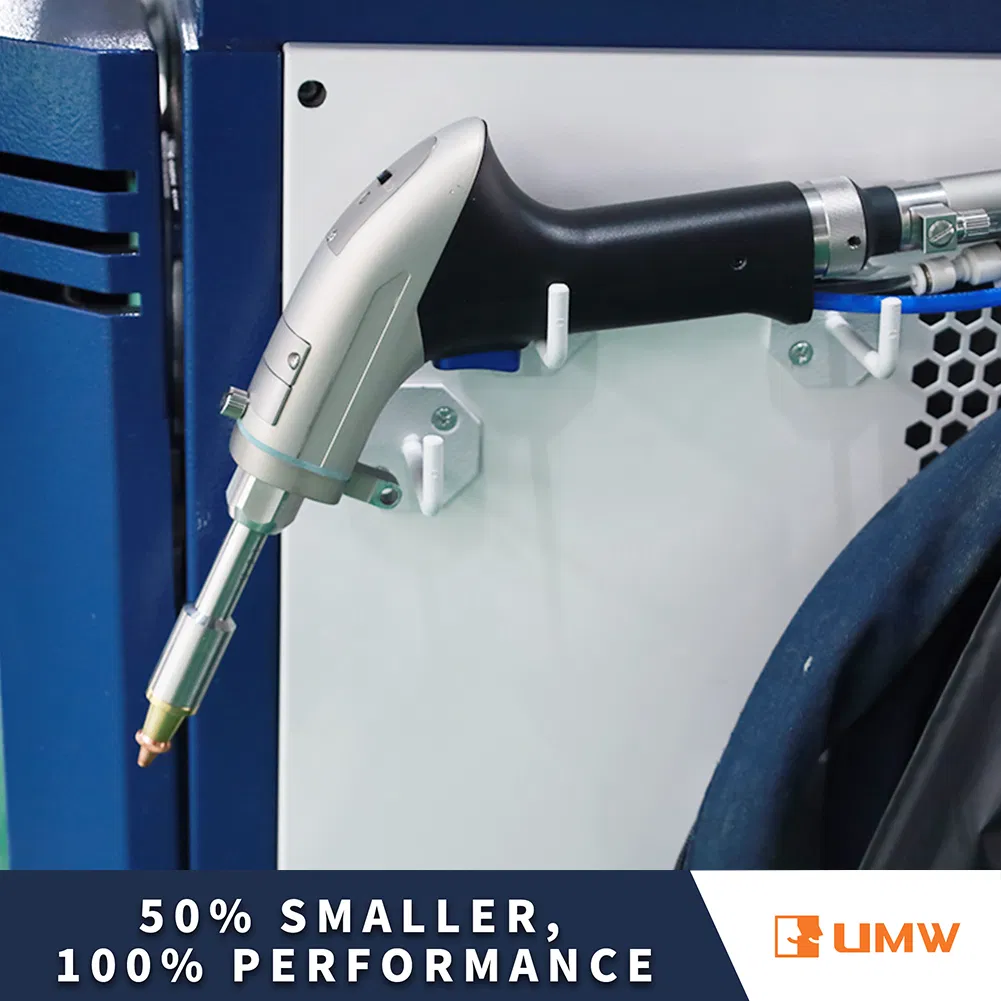

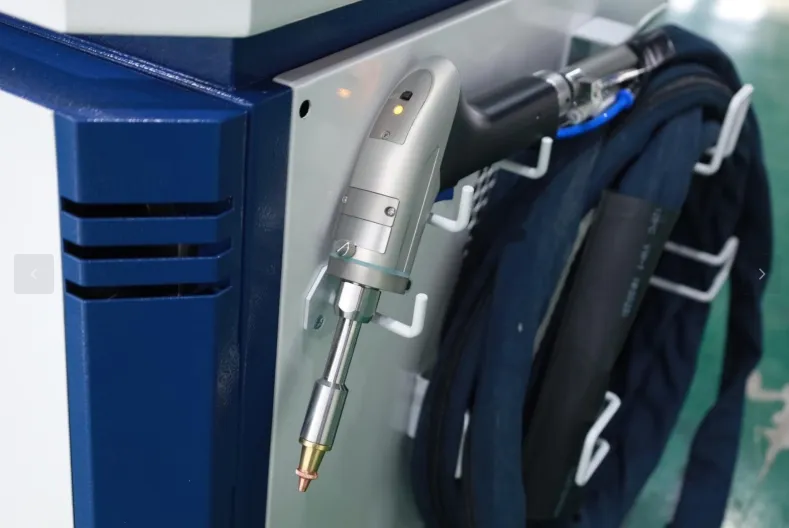

Welding Gun: Ergonomic design, 0.65kg, with status indicator lights.

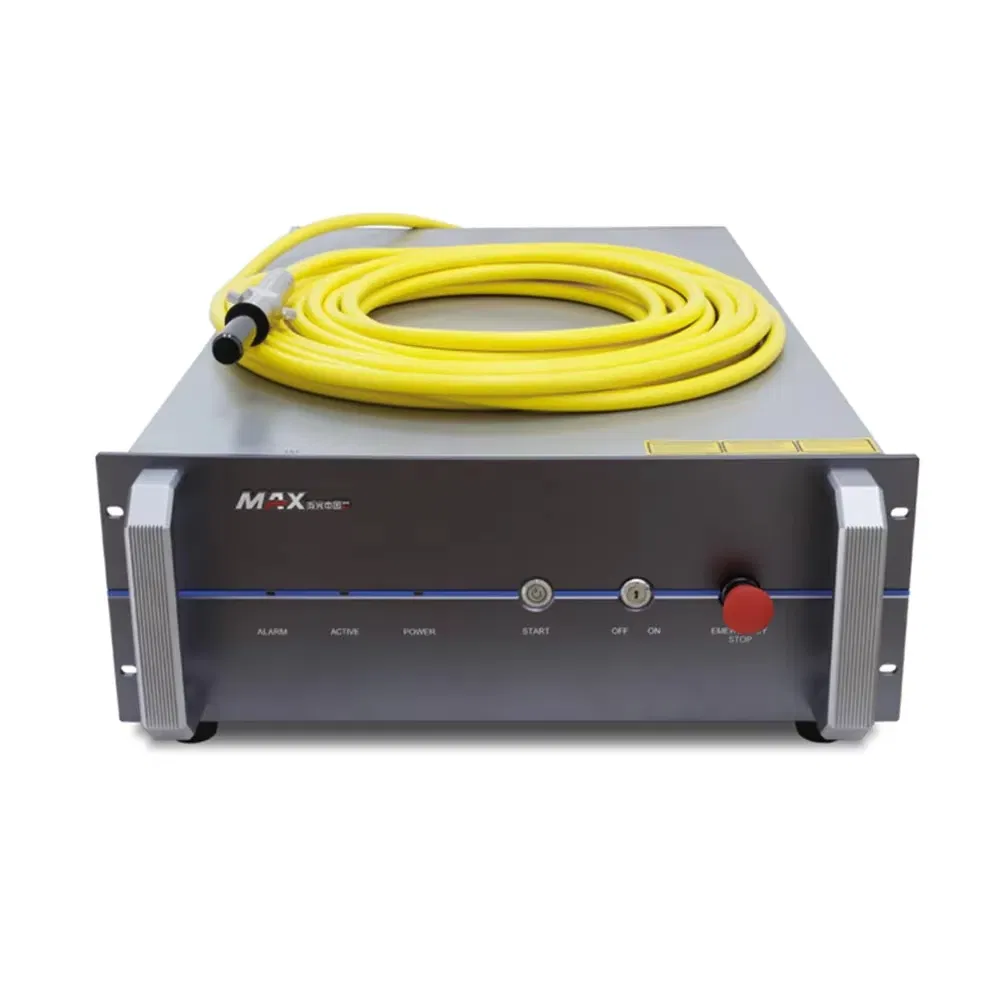

Laser Source: 100,000 hours lifetime, high efficiency >30%.

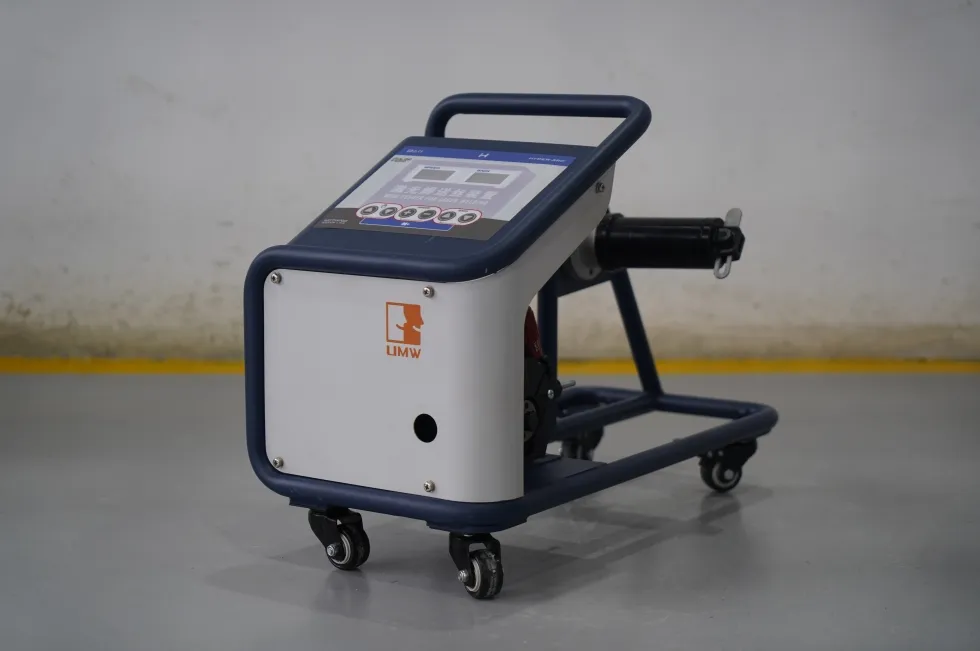

Wire Feeder: Supports 0.8mm-2.0mm wire, up to 20kg spool.

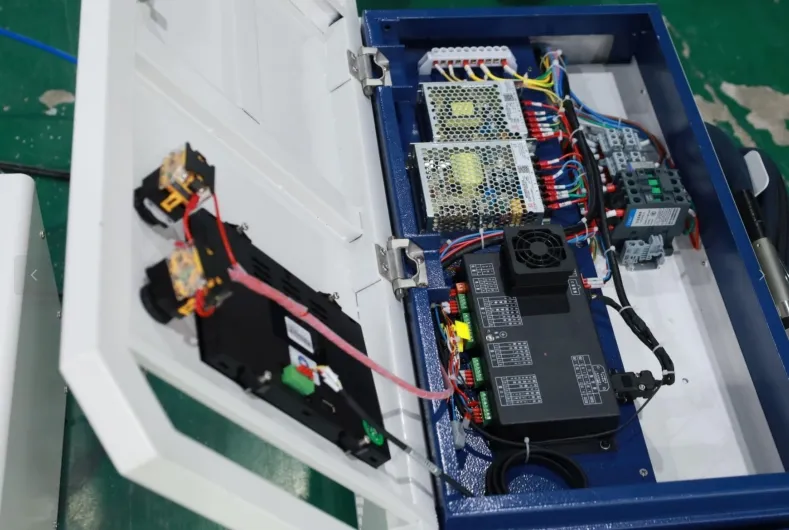

Control Cabinet: Neat internal wiring with top-brand components.

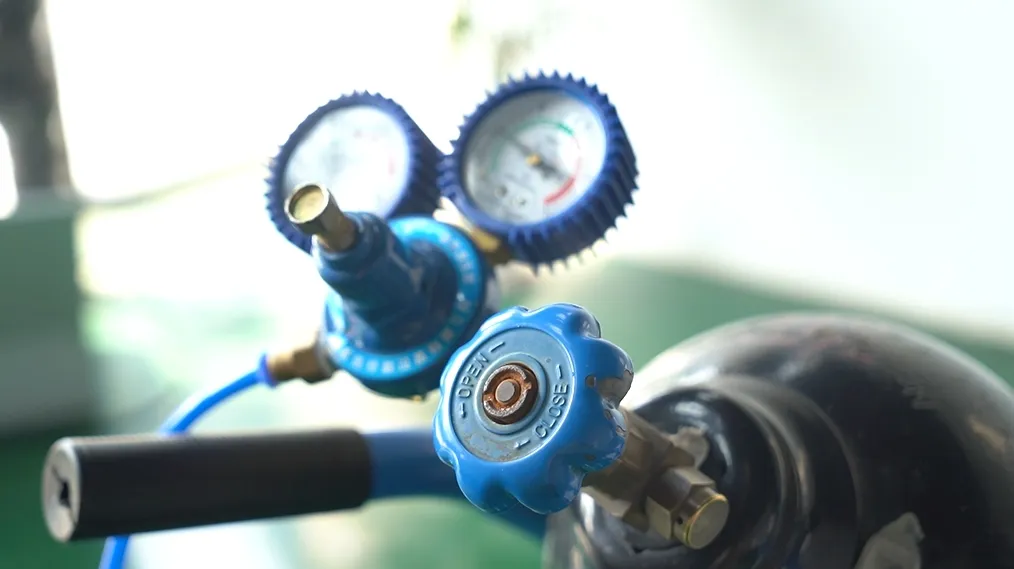

Protective Gas: Inert gas system to prevent oxidation.

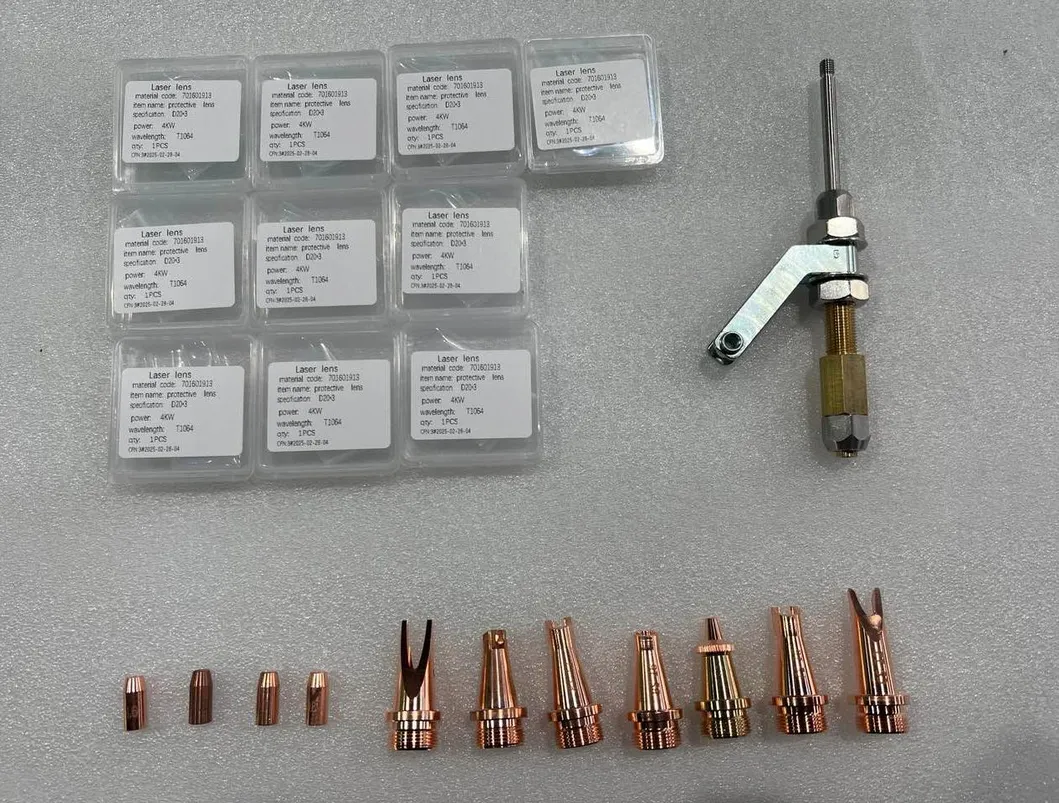

Standard Accessories: 8 nozzle types and 10 protective lenses included.
| Material | Stainless Steel | Carbon Steel | Aluminum | Brass |
|---|---|---|---|---|
| 1500W | 3mm | 3mm | 1.5mm | 2mm |
| 2000W | 4mm | 4mm | 2mm | 3mm |
Note: Double-sided welding increases thickness capacity by 1.5-2x.
Ideal for: Automotive, HVAC, metal fabrication, and electronics industries.

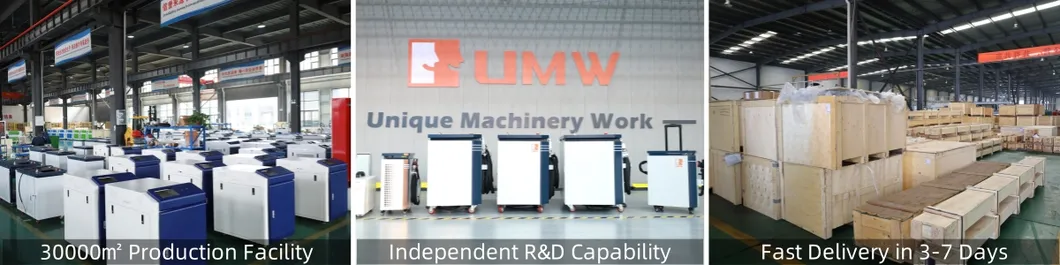

Shipment Method: Sea Freight, Land Freight, Air Freight, International Express.
Package Method: International Standard Wooden Case.
We actively participate in international exhibitions such as EMO Hannover and the China Import and Export Fair. Comprehensive after-sales service is provided to ensure production efficiency.
