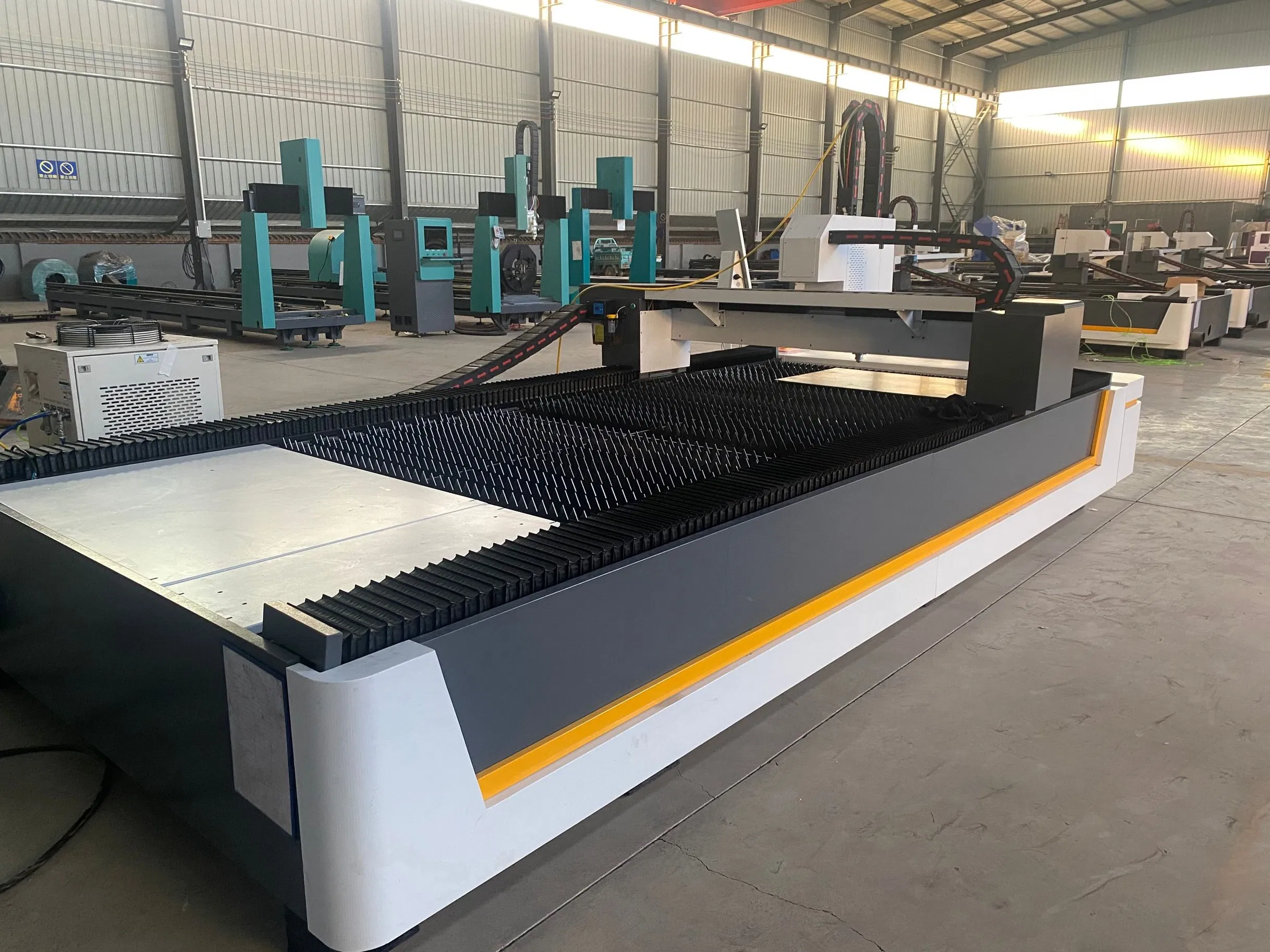

Cutmaster PRO CNC Fiber Laser Metal Processing System

1 / 5

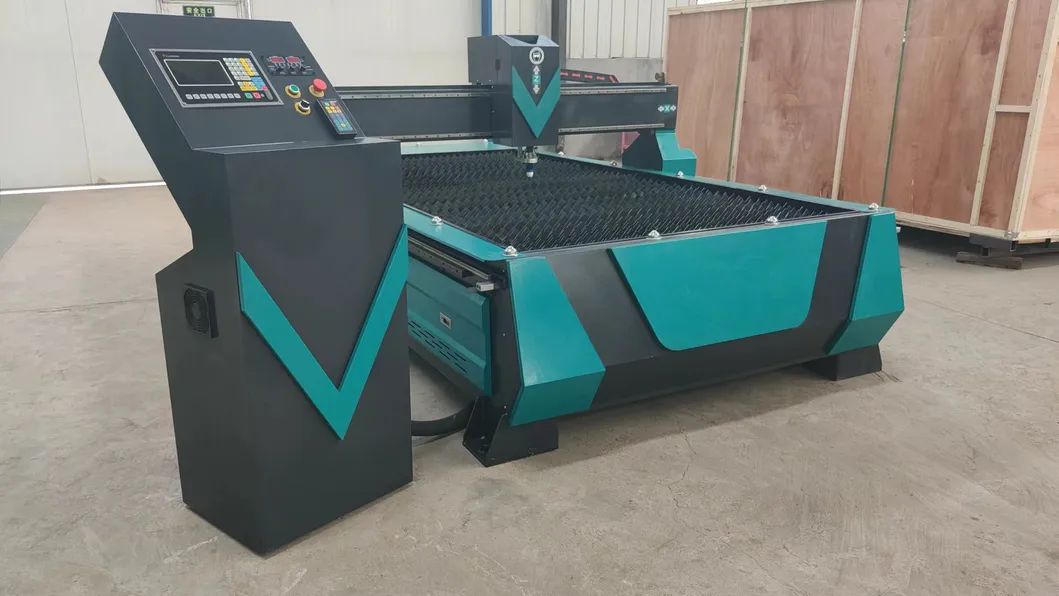

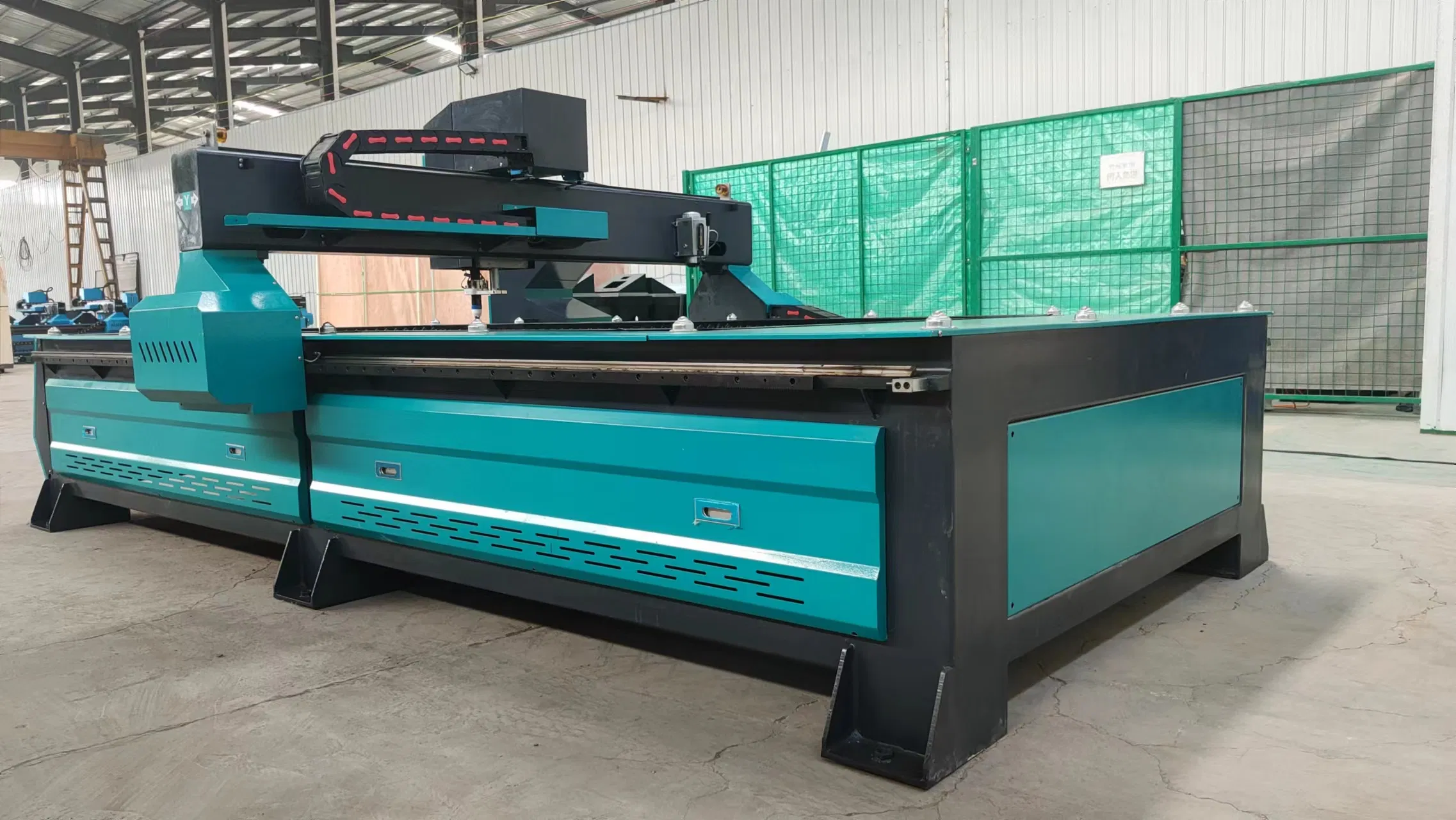

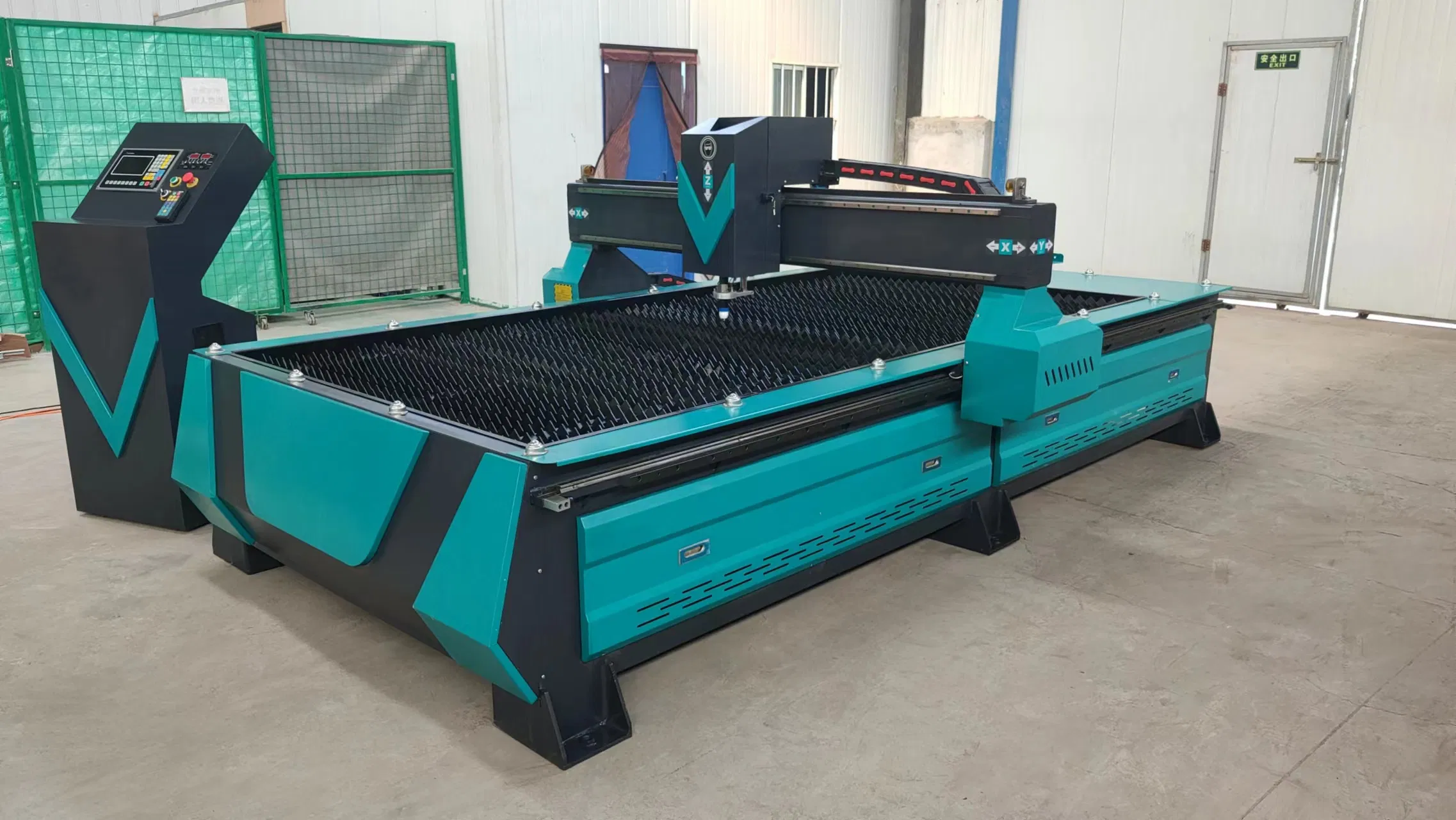

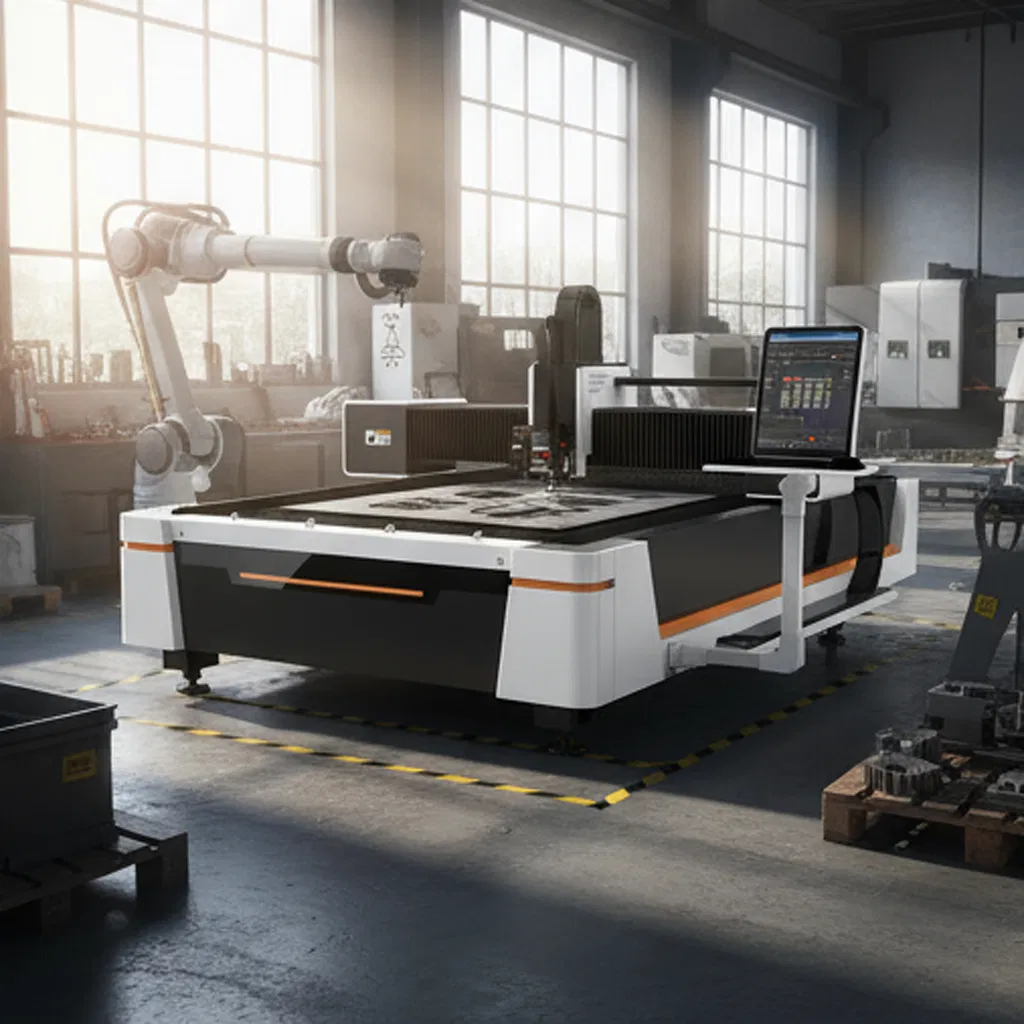

Cutmaster PRO CNC Fiber Laser Metal Processing System

Customization:	Available
After-sales Service:	Best
Warranty:	Best

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

fiber laser cutting machine

Application

Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, etc.

Cooling System

Water Cooling

Technical Class

Fiber Laser

Applicable Material

Metal

Structure Type

Gantry Type

Laser Classification

Solid Laser

Warranty

1 Year

Working Table

Honey Comb/ Electrical up and Down/ Knife

Laser Source

Raycus, Gw, Max, Ipg

Cutting Speed

1----800mm/S

Laser Power

1500W - 12000W

Working Area

1500*3000mm

🔍 Product Description

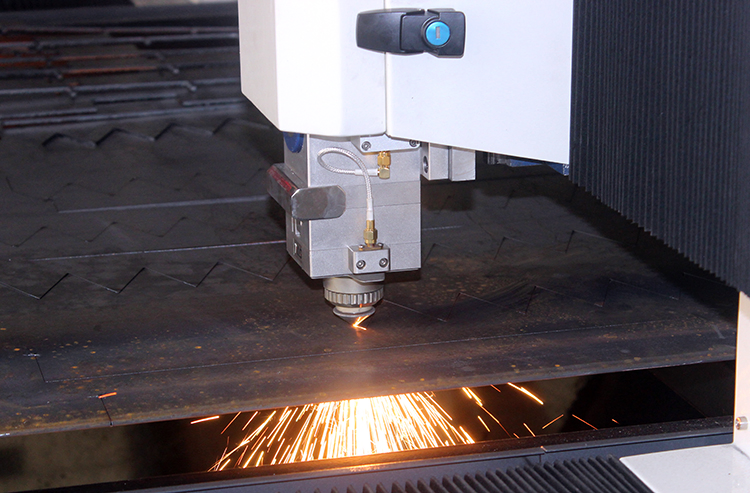

Discover the epitome of precision in metal cutting with our state-of-the-art fiber laser cutting machine. This masterful engineering marvel is a beacon of advanced technology, crafted to deliver unparalleled accuracy and efficiency. Boasting a formidable 1064nm laser beam managed by an intricate CNC system, this machine performs meticulous cuts with finesse through expertly designed tool paths, guided by cutting-edge CAD/CAM software.

Revel in perfectly smooth and immaculate metal cuts that redefine standards in sheet metal, metal tubes, bars, and straps. Designed for excellence, whether dealing with flat or beveled shapes, this machine shines with its bespoke 3D metal cutting capability. Its versatility is unmatched, effortlessly slicing through metals ranging from 1mm to a staggering 200mm in thickness, with power options reaching breathtaking speeds of over 120m/min.

⚙ Product Parameters

Configuration	Specifications
Model	3015
Working area	1500*3000mm
Optional Working Area	15003000mm, 20004000mm, 2000*6000mm
Laser Generator	GW/Raycus/IPG
Laser Cutting Head	Au3tech, Raytool
CNC Controller	Au3tech, Cypcut
Servo driver system	Delta/Yaskawa/Pansonic
Speed Reducer	Shimpo Reducer, Japan
Max.cutting speed	0-30m/min (Material dependent)
Repeat Precision	≤±0.03mm /m
Min line width	≤0.15mm
Transmission	Y-axis gear rack double driver, X-axis ball screw
Power requirements	380V/3 Phases /50Hz or 60Hz

⭐ Key Features

🚀 Servo motor and driver

- Delivers superior accuracy: Excellence in closed-loop control across position, speed, and torque.

- Accelerated rotation speed: Exemplary high-speed performance (2000 to 3000 rpm).

- Robust anti-overload capabilities: Managing loads three times the rated torque.

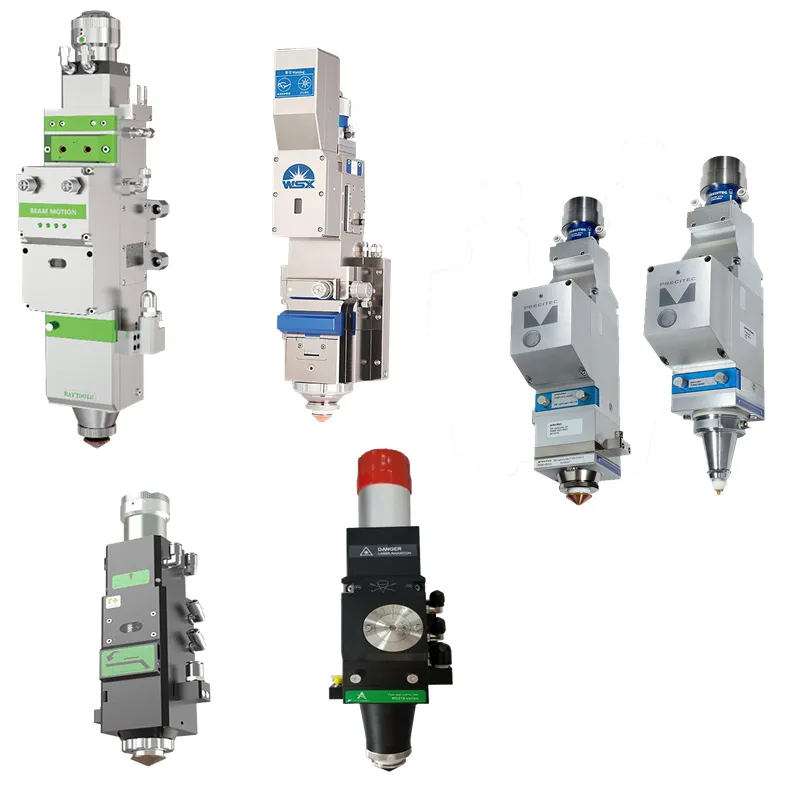

🎯 Advanced Laser Head

Featuring Automatic Focusing. The software intelligently adjusts the focusing lens for seamless perforating and cutting of varied thicknesses. Adjustment range spans -10 mm to +10mm with 0.01mm precision.

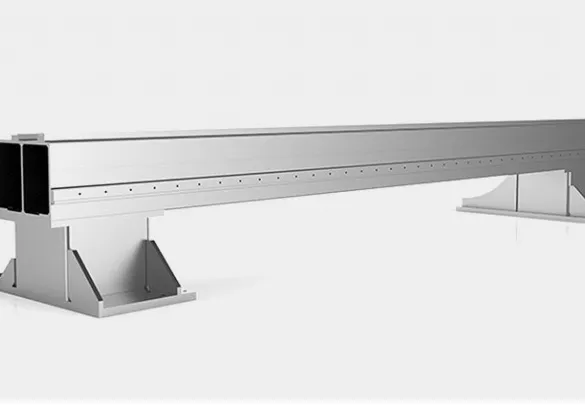

✈ Aerospace Aluminium Gantry

Constructed with high-hardness aerospace aluminum. Precisely extruded in a 4,300 ton press. Lightweight, corrosion resistant, and low density to dramatically enhance processing speed.

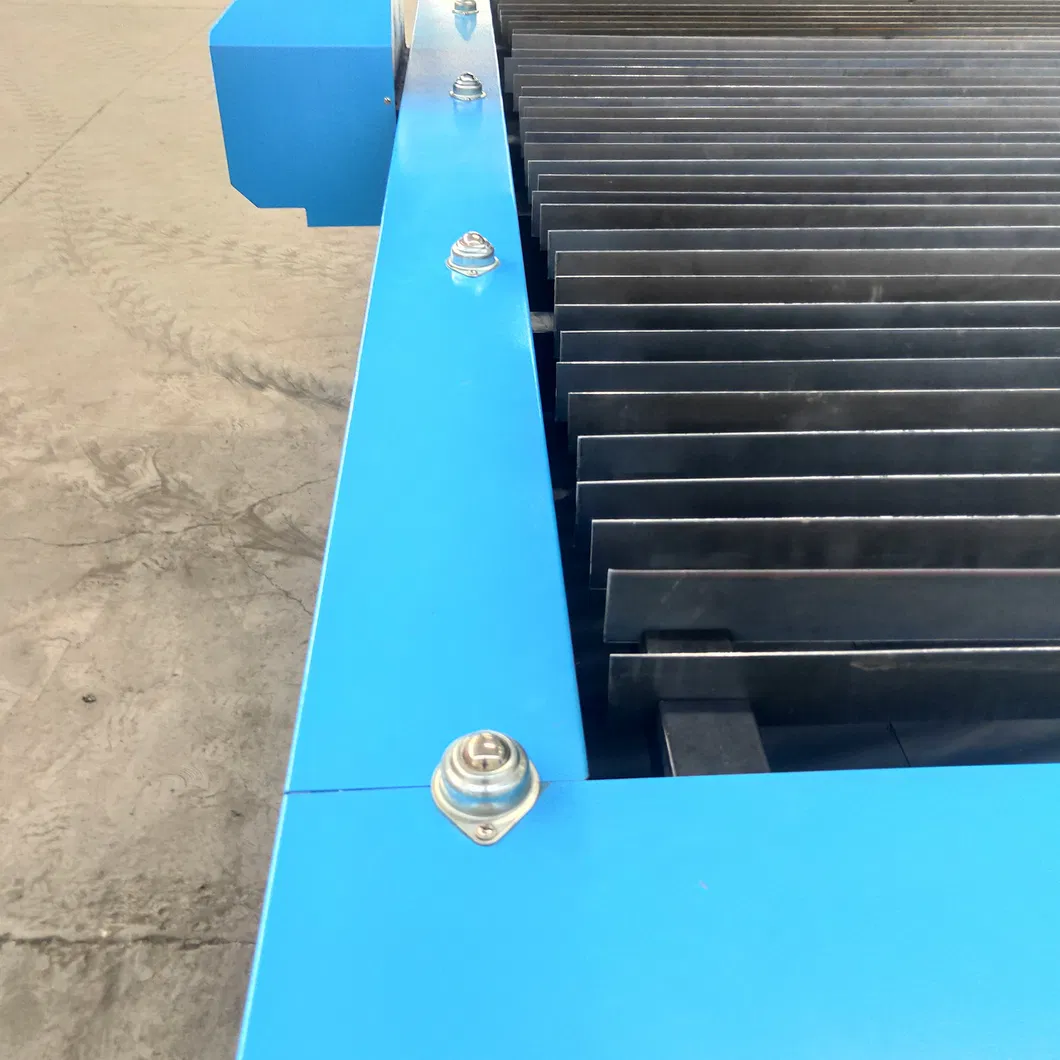

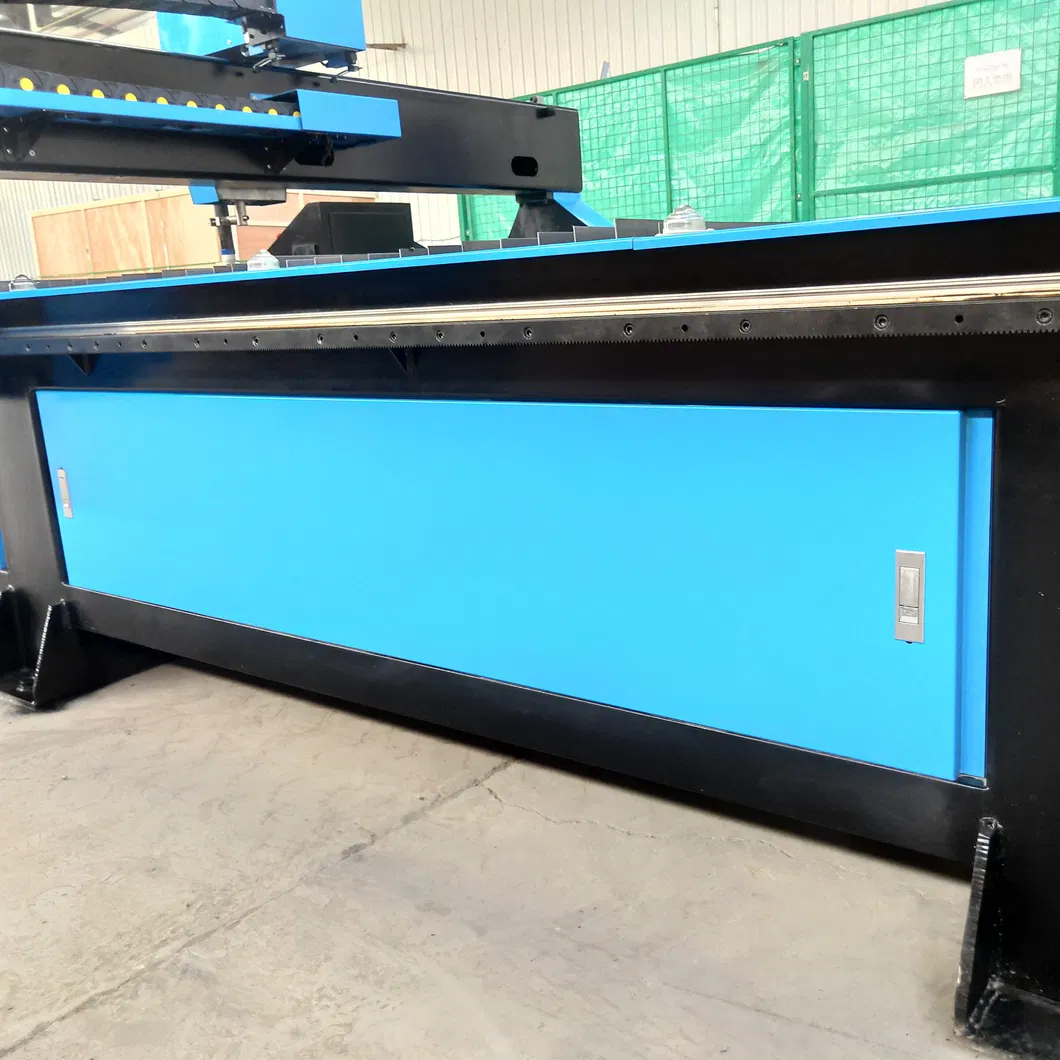

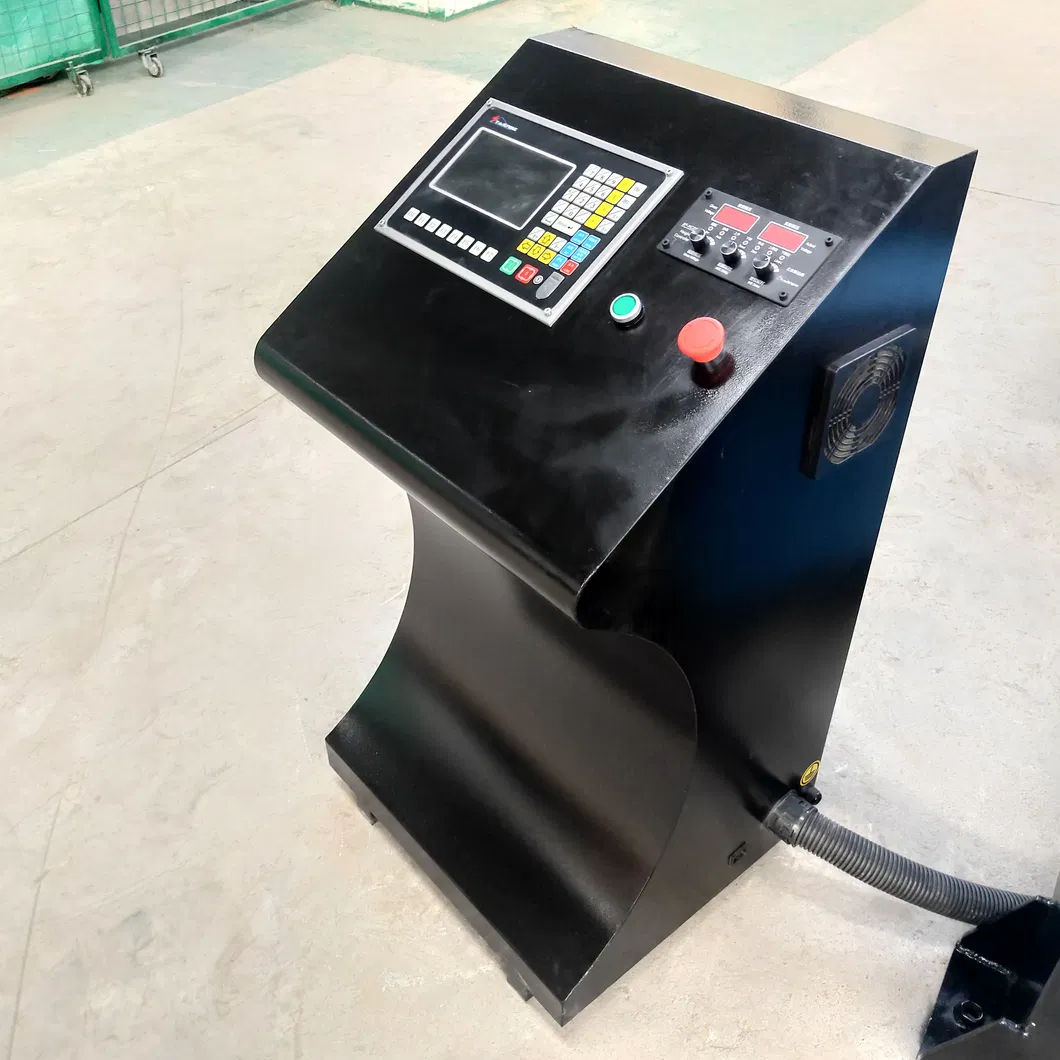

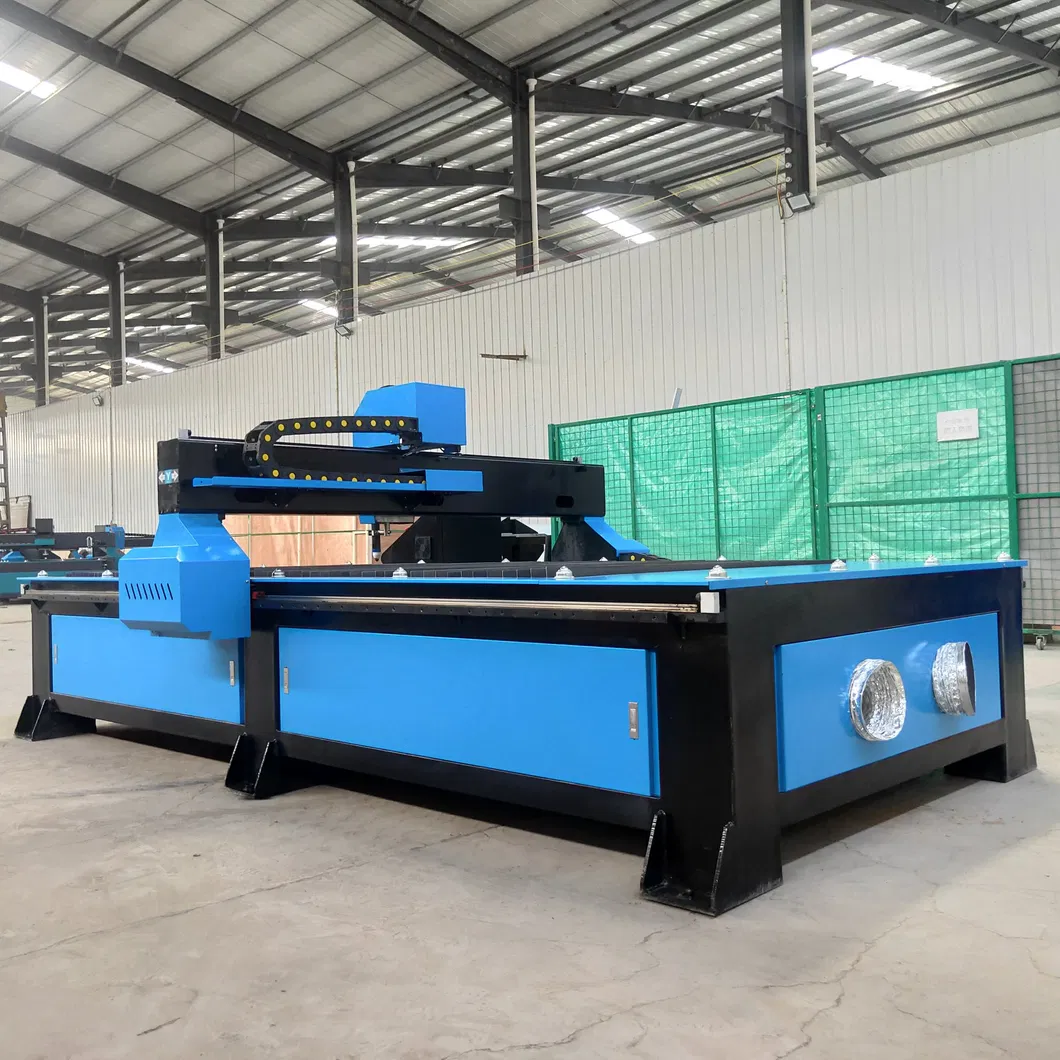

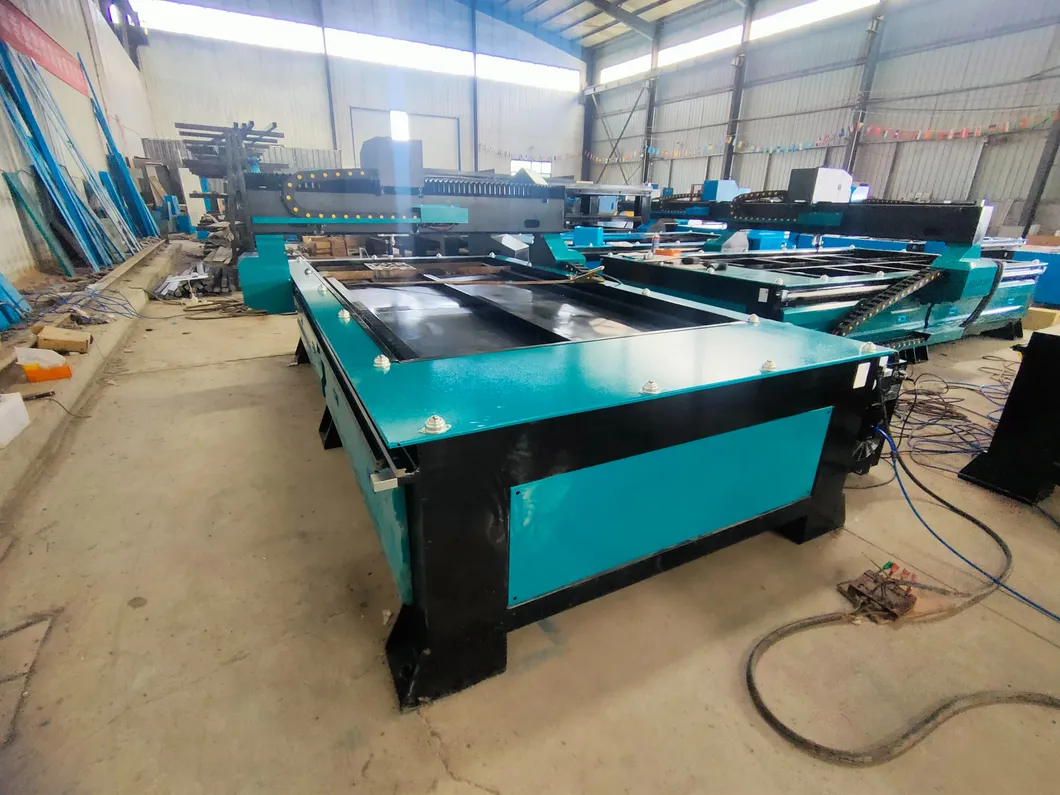

📷 Detailed Photos

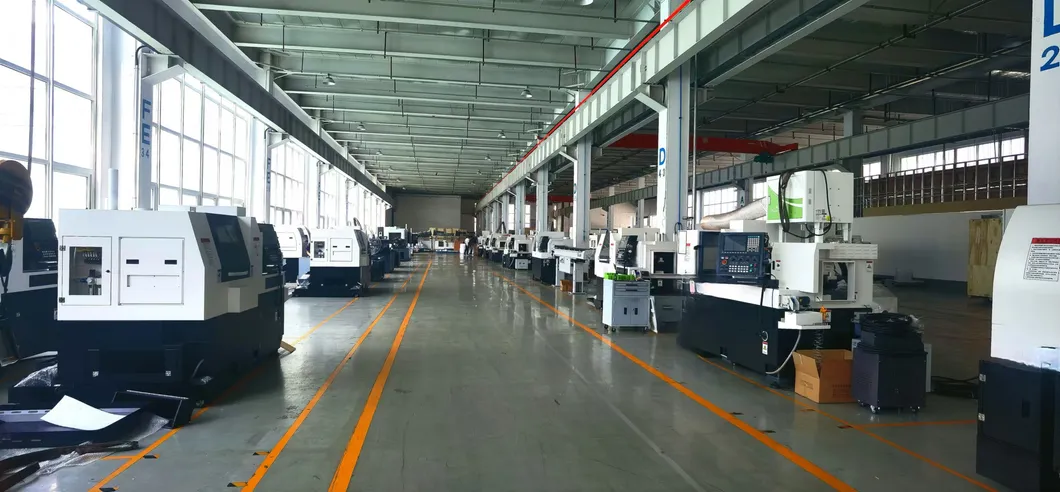

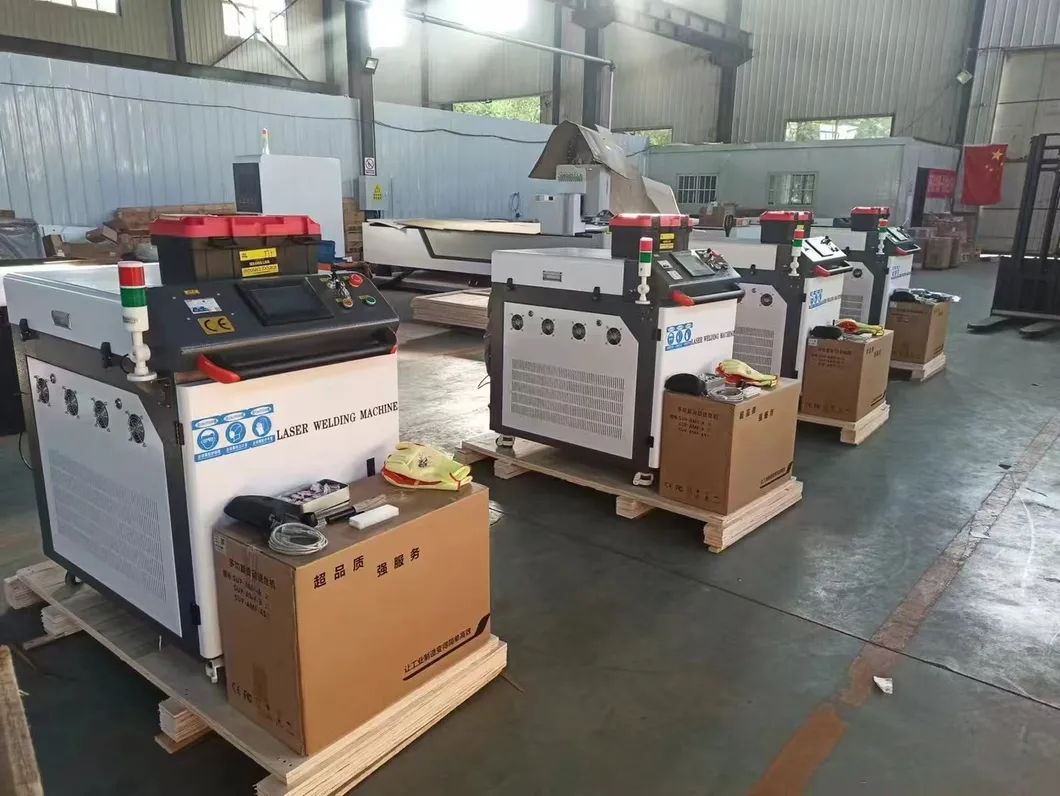

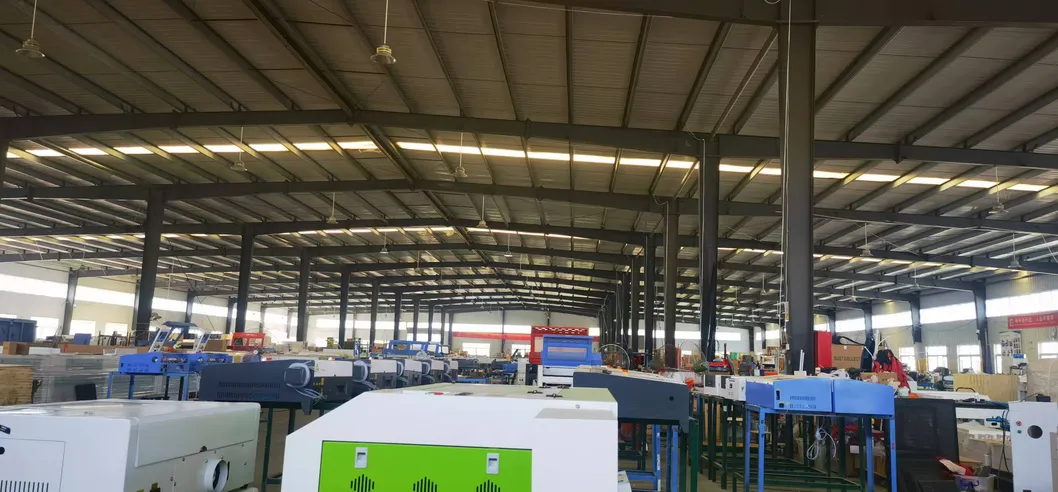

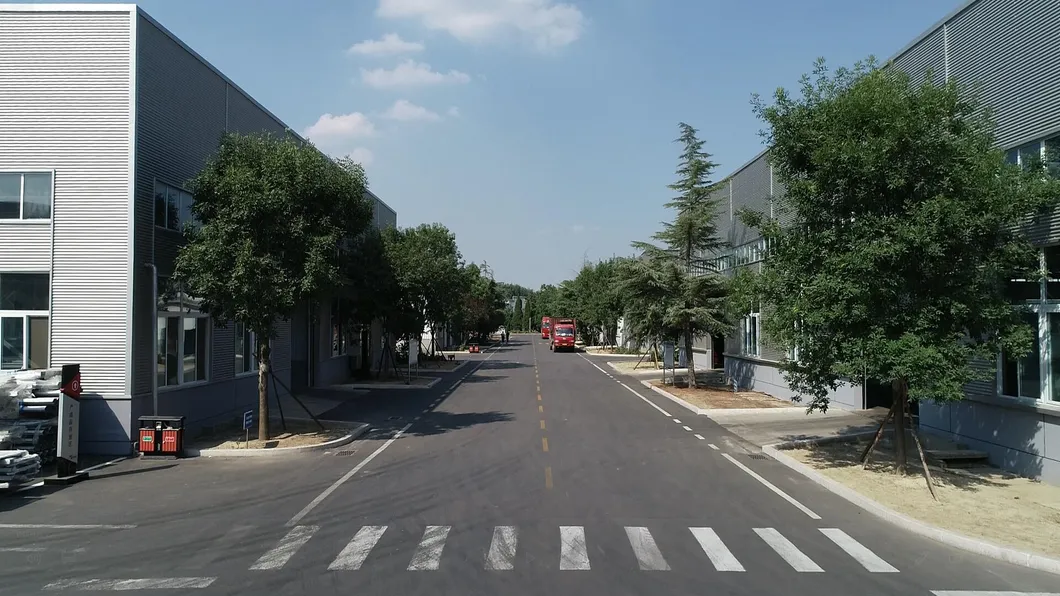

🏭 Professional Manufacturing

Our facility stands as a beacon of innovation and mastery within the CNC Router and Laser Engraving & Cutting Machine sector. Our collection showcases Large-scale ATC Woodworking Routers, 5-Axis CNC Routers, Fiber Laser Cutting Machines, and precision Swiss Type Lathes. With a foundation built on cutting-edge technology and a steadfast commitment to quality, our brand has achieved international acclaim, exporting to over 100 countries including the United States, Germany, and Russia.

📦 Packaging & Shipping

❓ Frequently Asked Questions

Q1: What materials can this fiber laser cutting machine process?

A1: It is designed primarily for metals, including stainless steel, carbon steel, aluminum, brass, copper, and various alloy plates and pipes.

Q2: How long is the lifespan of the fiber laser source?

A2: Most high-quality fiber laser sources (like Raycus or IPG) have a theoretical lifespan of up to 100,000 hours depending on usage and maintenance.

Q3: What is the benefit of the Automatic Focus Laser Head?

A3: The auto-focus head allows the machine to adjust the focal point automatically through the software, which is significantly faster and more precise than manual adjustment, especially when cutting materials of different thicknesses.

Q4: Does the machine require a special cooling system?

A4: Yes, our machines come with a high-efficiency water cooling system to maintain optimal operating temperatures for both the laser source and the cutting head.

Q5: Is training provided for machine operation?

A5: We provide comprehensive manuals and video guides. Our technical team is also available to support customers in learning the CAD/CAM software and machine control systems.

Q6: What is the difference between fiber laser and CO2 laser for metal?

A6: Fiber lasers are much more efficient for metal cutting, offering higher speeds, lower maintenance, and better absorption on reflective metals compared to traditional CO2 lasers.
