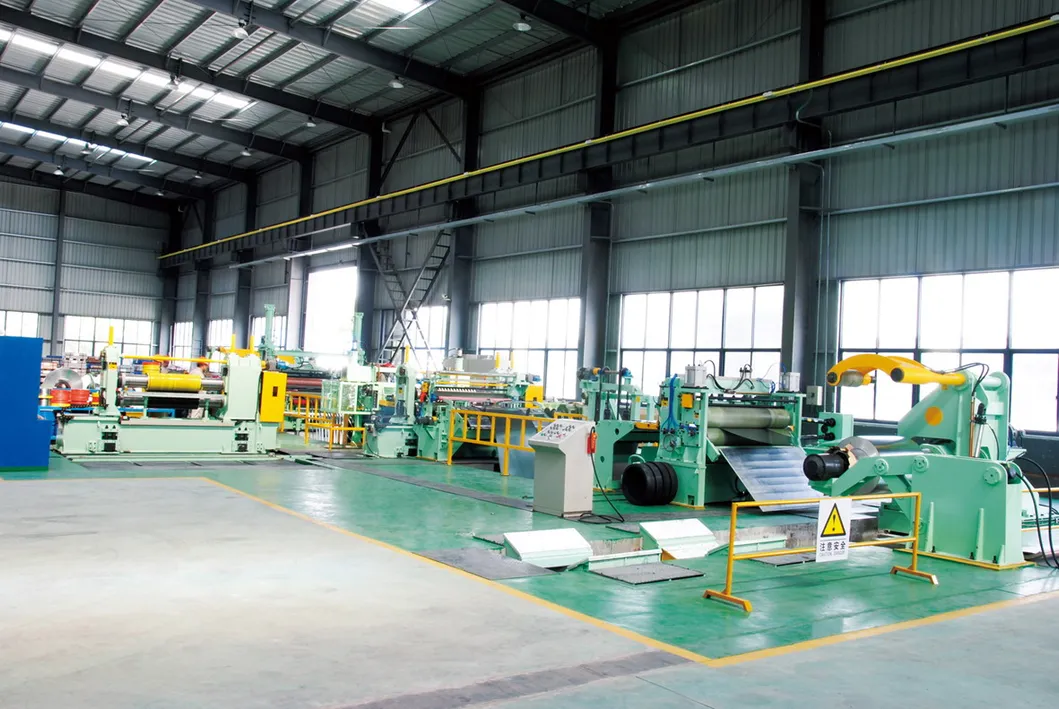

Precision Coil Slitting System for Electrical and Automotive Industries
The slitting line is also called a slitting unit, slitting machine, and scissors. It cuts metal coils into strips of various required widths and then collects the strips into small rolls for the next process. It is essential equipment for precision cutting in transformers, motor industries, and other metal strip applications.
| Model/ Items | Thickness (mm) | Width (mm) | Slitting Number | Speed m/min | Coil Weight (ton) |
|---|---|---|---|---|---|
| RSL-0.5x1000 | 0.15-0.5 | 300-1000 | 12 | 50-150 | 7 |
| RSL-0.5x1300 | 0.15-0.5 | 500-1300 | 24 | 50-150 | 7 |
| RSL-2X650 | 0.3-2 | 200-650 | 10-30 | 50-150 | 7 |
| RSL-2X1000 | 0.3-2 | 300-1000 | 10-30 | 50-150 | 7/15 |
| RSL-2x1300 | 0.3-2 | 500-1300 | 12-30 | 50-180 | 7/15 |
| RSL-3x1600 | 0.3-3 | 500-1600 | 8-30 | 50-180 | 15 |
| RSL-6x1600 | 1-6 | 900-1600 | 6-30 | 30-80 | 30 |
| RSL-12x2000 | 3-12 | 900-2000 | 5-30 | 20-40 | 30 |

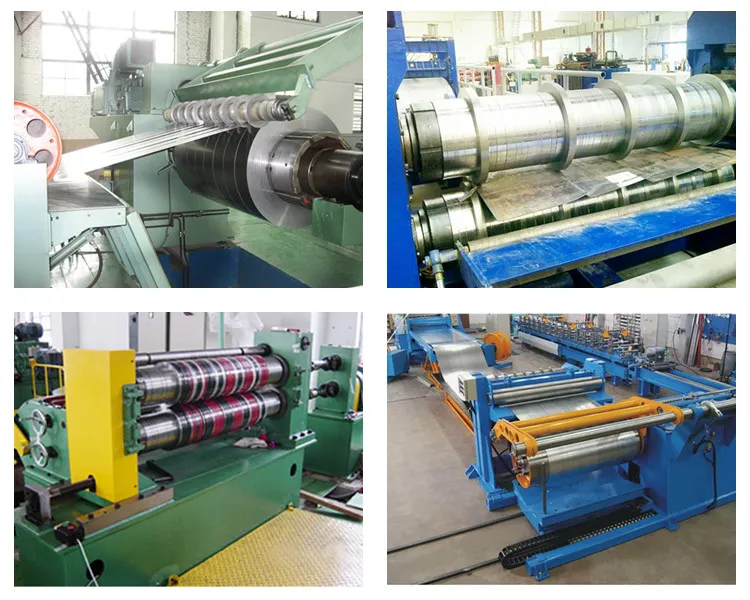

The system is composed of the following core units:

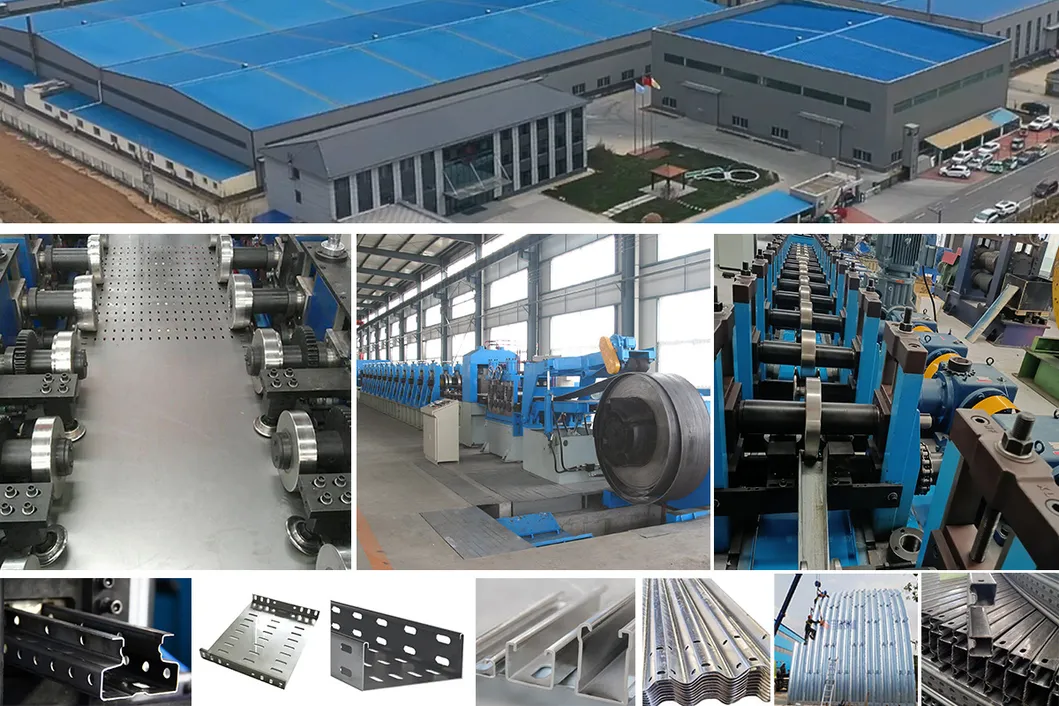

Operating since 2008, our facility was built by a group of experienced engineers. We have exported to numerous countries including Italy, Ecuador, USA, India, Indonesia, Brazil, Russia, and more. We maintain high reputations through local service agents and long-term client relationships.
