| Model NO. | Fiber laser cutting machine |
| Application | Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Aerospace Industry, Automotive Industry, Advertising Industry |
| Cooling System | Water Cooling |
| Technical Class | Fiber Laser |
| Applicable Material | Metal (Stainless Steel, Carbon Steel, Iron, Mild Steel) |
| Structure Type | Gantry Type |
| Laser Classification | Solid Laser |
| Warranty | 1 Year (Core Components) |
| Laser Source Brand | Raycus, GW, Max, IPG |
| Cutting Speed | 1-800mm/S |
| Laser Power | 1500W to 12000W Options |
| Working Area | 1500*3000mm |

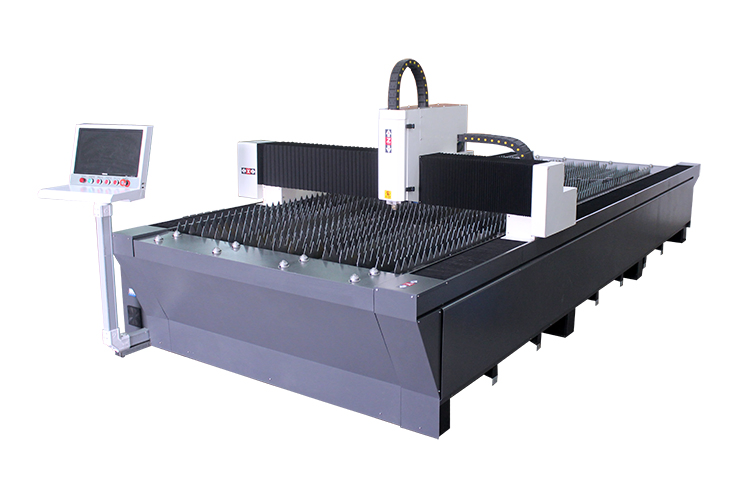

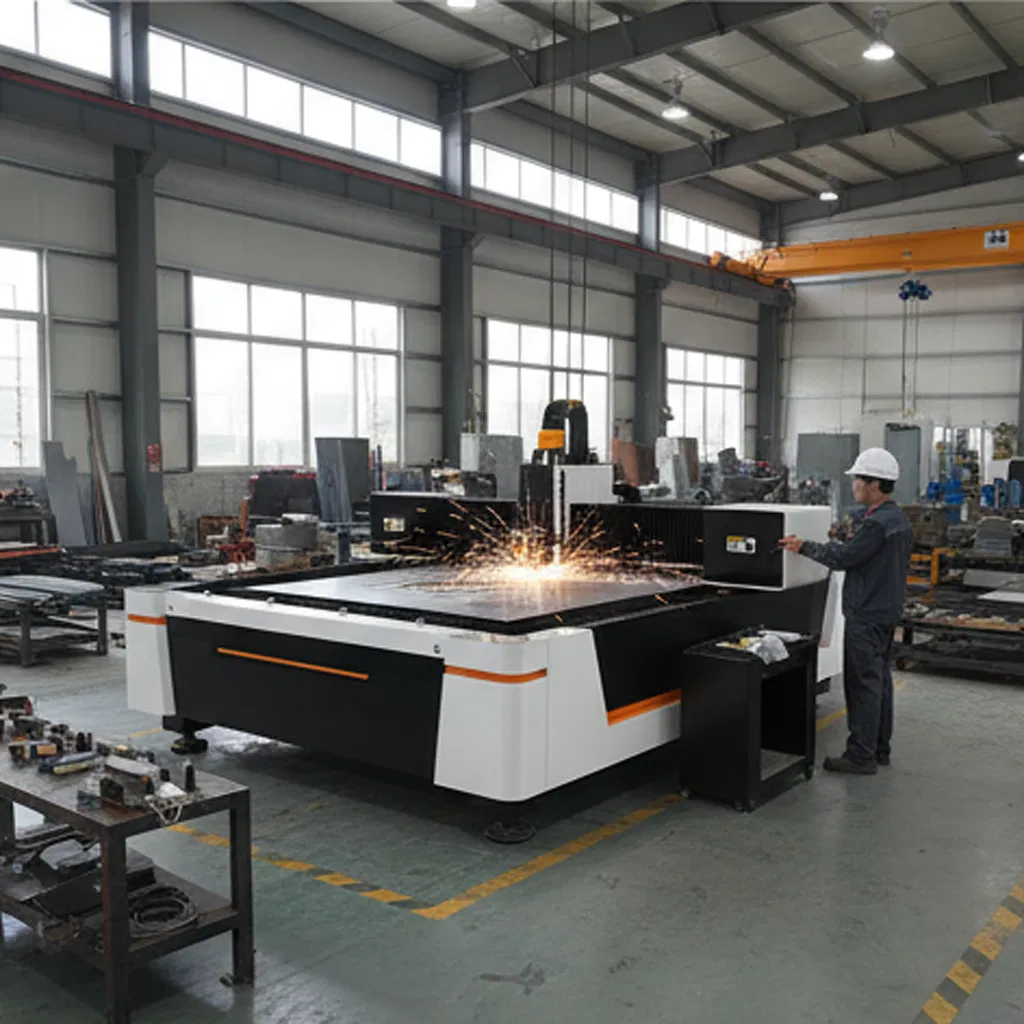

Introducing the pinnacle of precision in metal cutting: our fiber laser cutting machine. A marvel of modern technology, this machine is your gateway to unmatched accuracy and efficiency. Equipped with a potent 1064nm laser beam, orchestrated by a sophisticated CNC controller, it performs flawless cuts along precisely crafted tool paths, courtesy of advanced CAD/CAM software. The outcome? Immaculately smooth metal cuts that set new standards in sheet metal, metal tubes, bars, and straps.
Whether handling flat or beveled shapes, this machine is engineered for perfection. Its standout feature—a robotic arm—enables bespoke 3D metal cutting. Renowned for versatility, fiber lasers adeptly cut metals from 1mm to an astounding 200mm with power levels ranging from 1,000W to a formidable 60,000W, achieving breathtaking speeds exceeding 120m/min. Effortlessly manage hard metals like mild steel and carbon steel, plus highly reflective metals such as aluminum and copper.
| Configuration | Specifications |
|---|---|
| Model | 3015 |
| Working Area | 1500*3000mm (Optional up to 2000*6000mm) |
| Laser Generator | GW / Raycus / IPG |
| CNC Controller | Au3tech / Cypcut |
| Servo Driver System | Delta / Yaskawa / Panasonic |
| Speed Reducer | Shimpo Reducer, Japan |
| Max Cutting Speed | 0-30m/min (Depending on material) |
| Repeat Precision | ≤±0.03mm /m |
| Max Empty Running Speed | 120m/min |
| Cooling System | Water Cooling |
| Power Requirements | 380V / 3 Phases / 50Hz or 60Hz |
Achieves closed-loop control mastery across position, speed, and torque. Offers exemplary performance at high speeds (2000 to 3000 rpm) and robust anti-overload prowess.

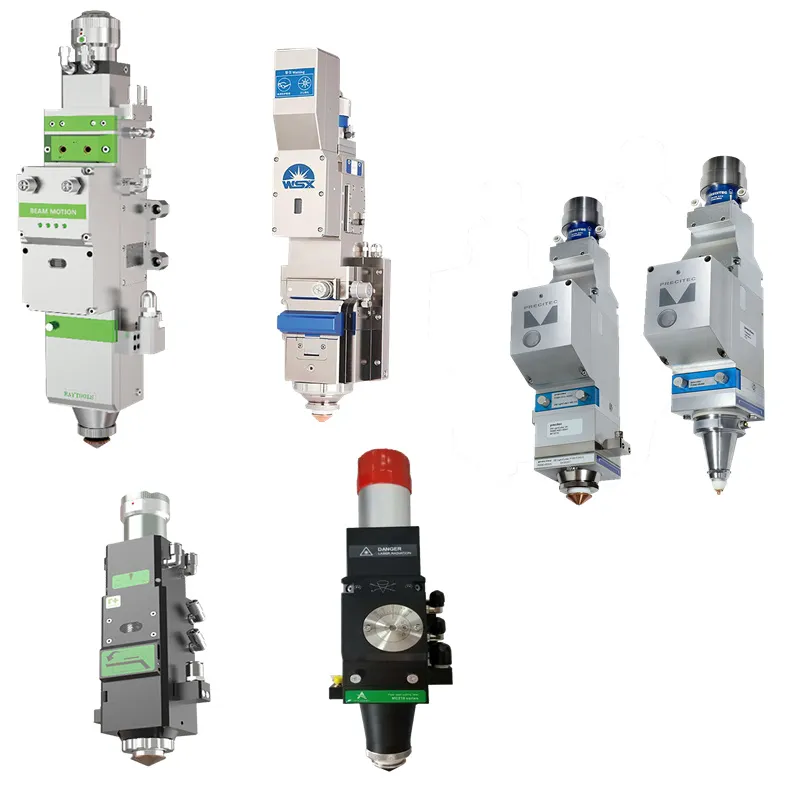

Equipped with automatic focusing. The software intelligently orchestrates the lens for seamless perforating and cutting of plates with diverse thicknesses. Includes water-cooled heat sinks to prolong component life.

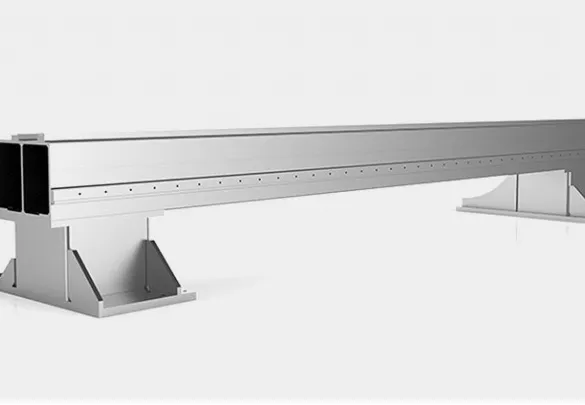

Precisely extruded using a 4,300-ton press. Exceptional toughness and lightness provide remarkable resistance to corrosion and oxidation, significantly elevating processing efficiency.

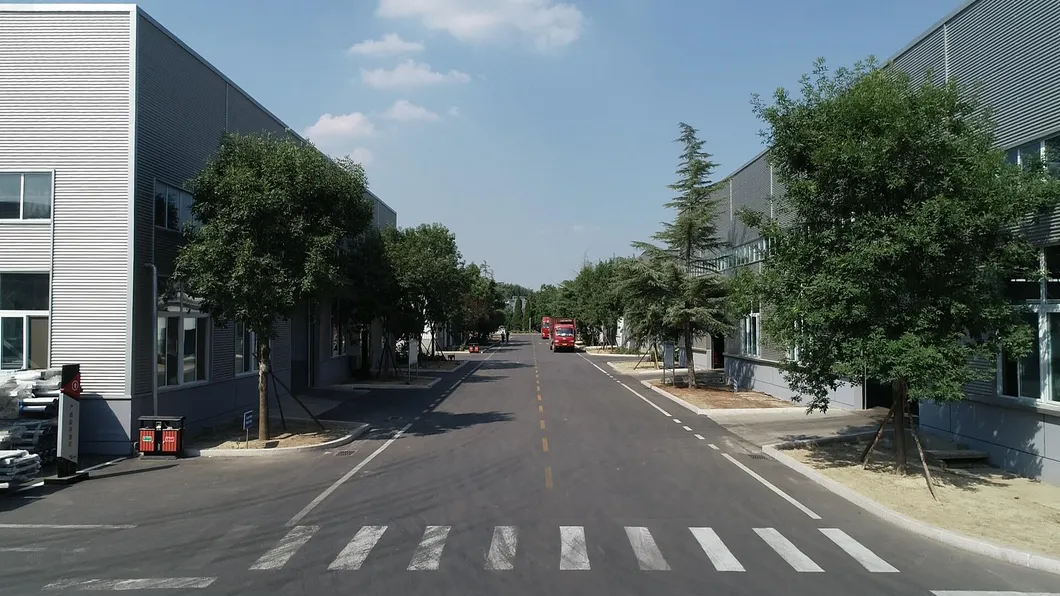

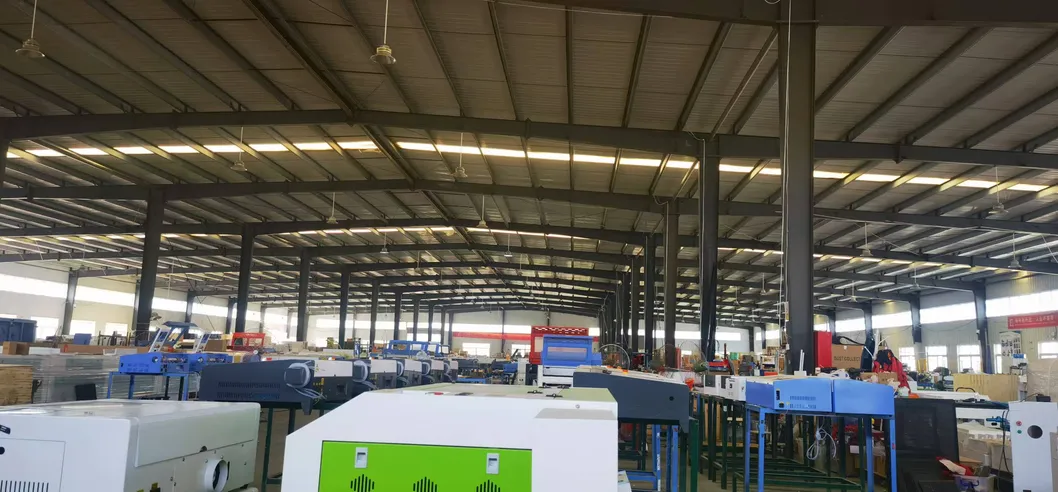

Our production facilities specialize in a diverse spectrum of CNC and laser technology. From Large-scale ATC Woodworking Routers to 5-Axis CNC Machines and High-power Fiber Laser Cutters, we embrace state-of-the-art technology and an unyielding commitment to quality. Our machines are utilized across 100 countries in industries ranging from woodworking and metal crafting to boat building and aerospace fabrication.
