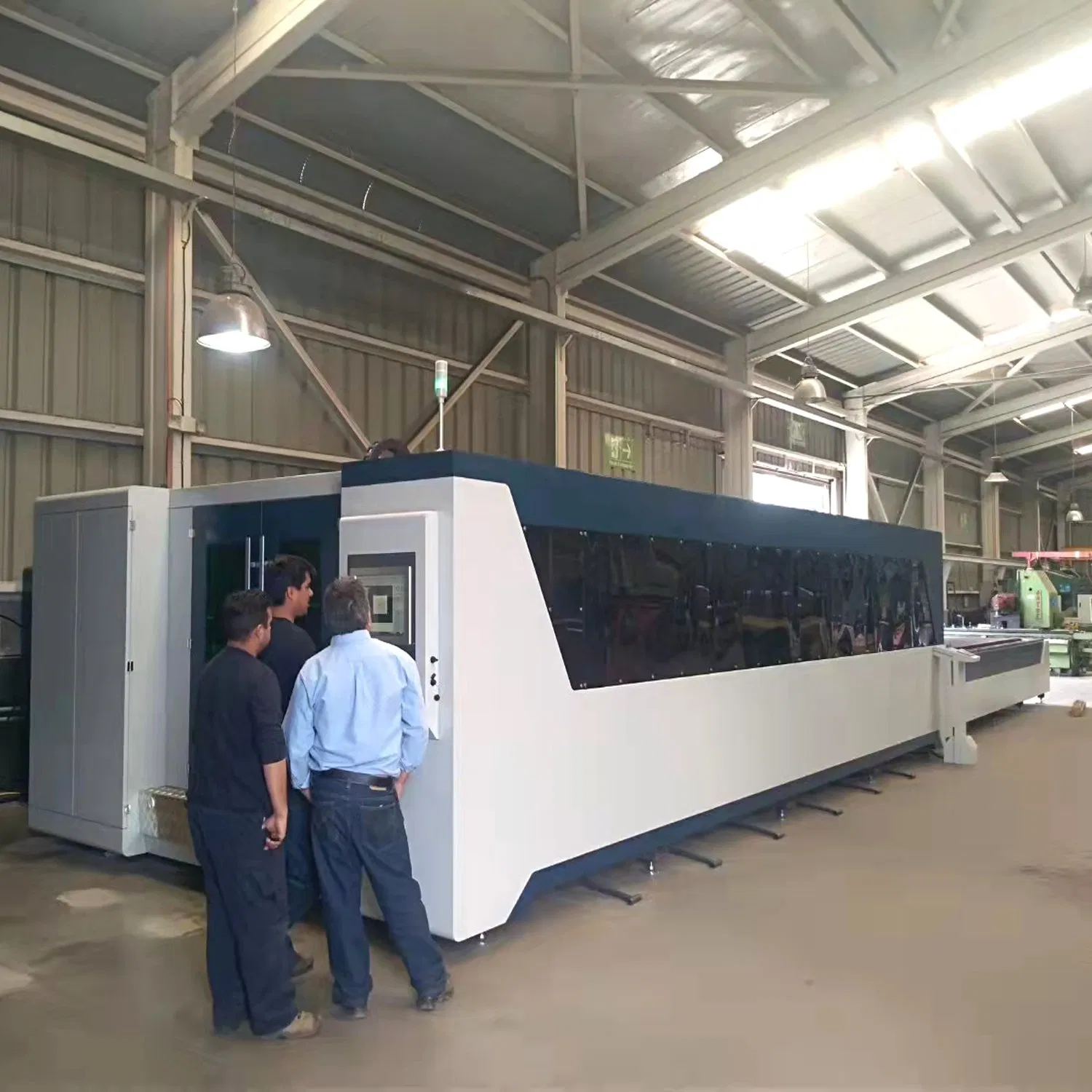

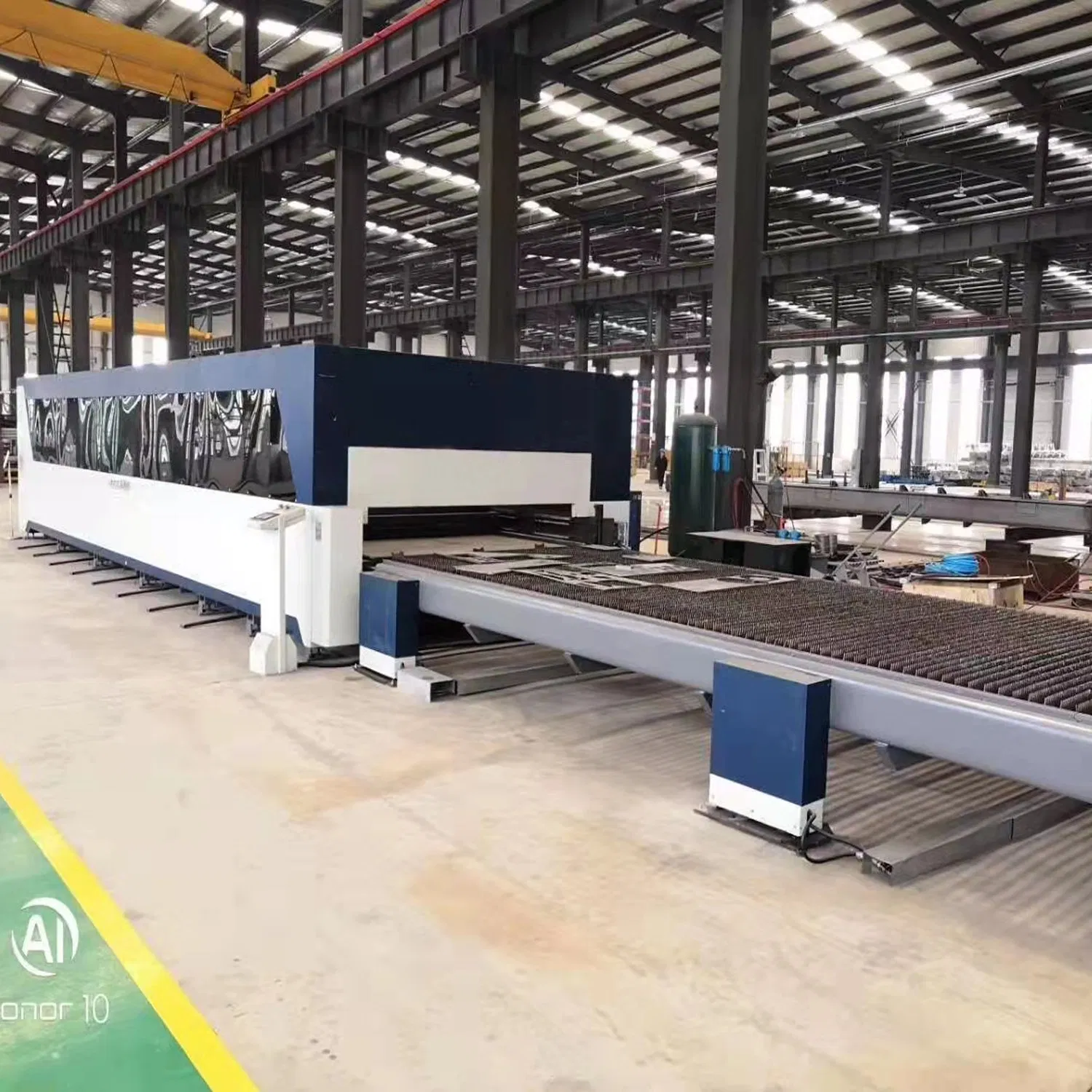

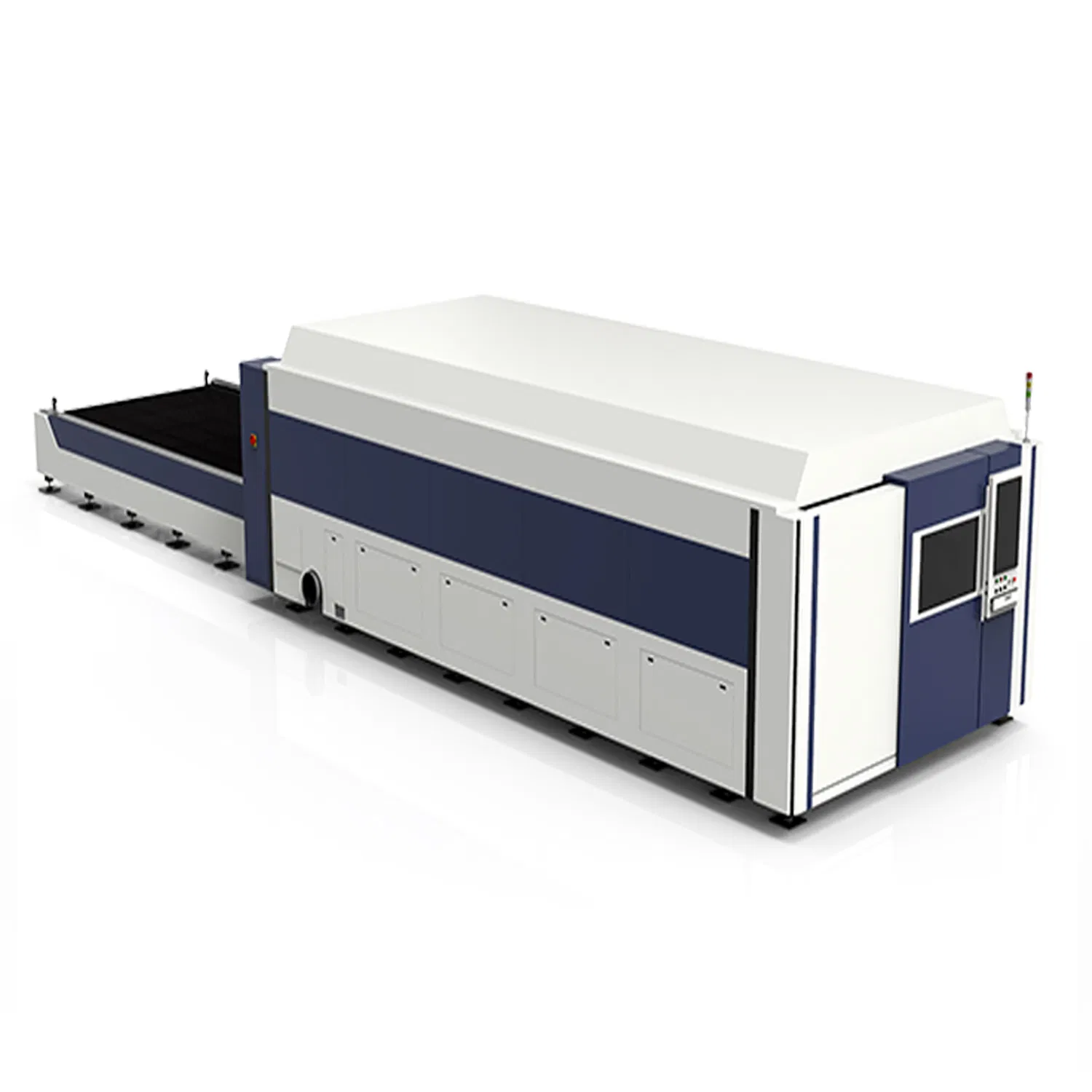

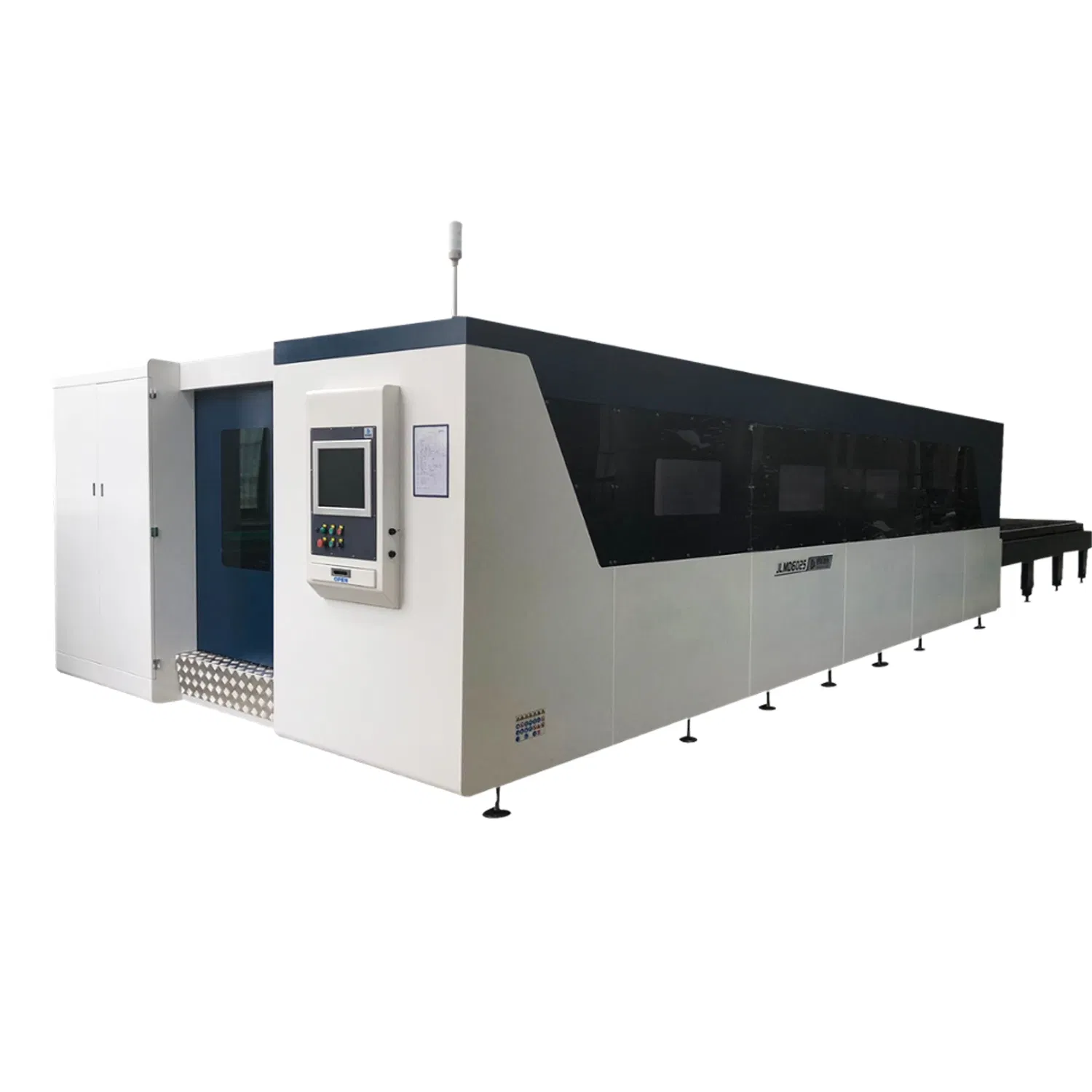

Industrial Stainless Steel Plate CNC Fiber Laser Cutting Machine

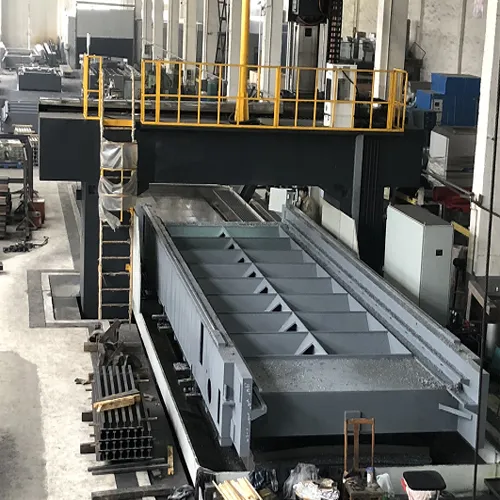

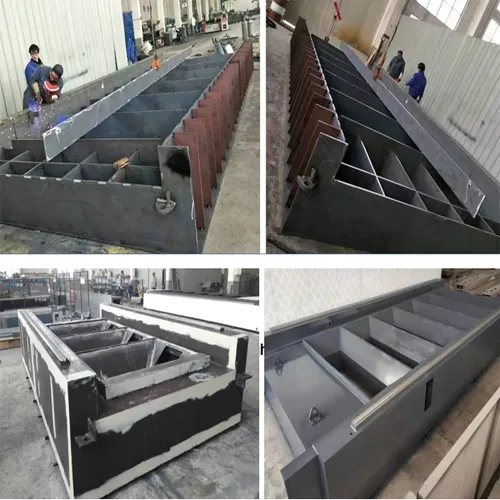

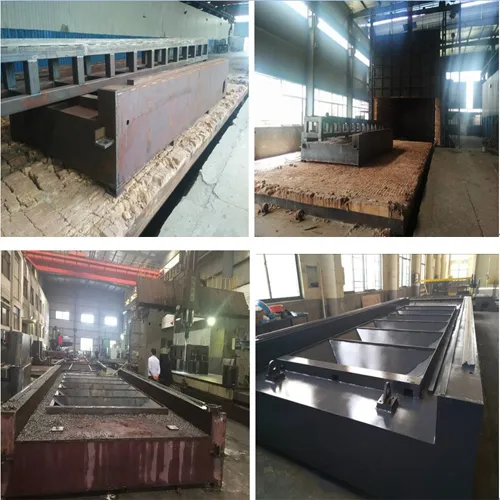

Machine Body: (Plate welding with stiffener inside)
Note: Machines over 6 meters are welded with 16mm and 20mm steel plates. This plate welding design prevents deformation over ten years, ensuring superior precision compared to square pipe frames.

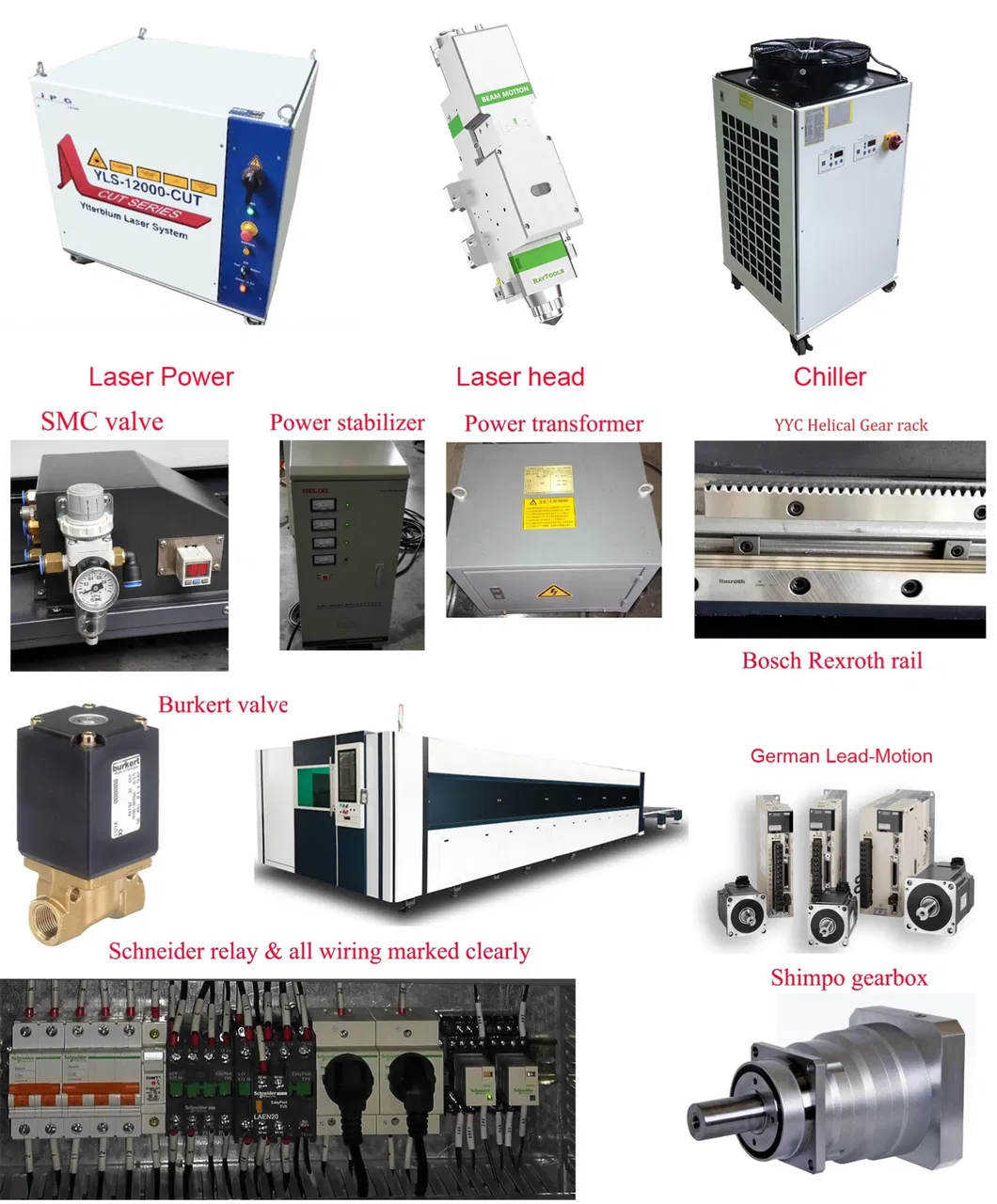

Machine Components:

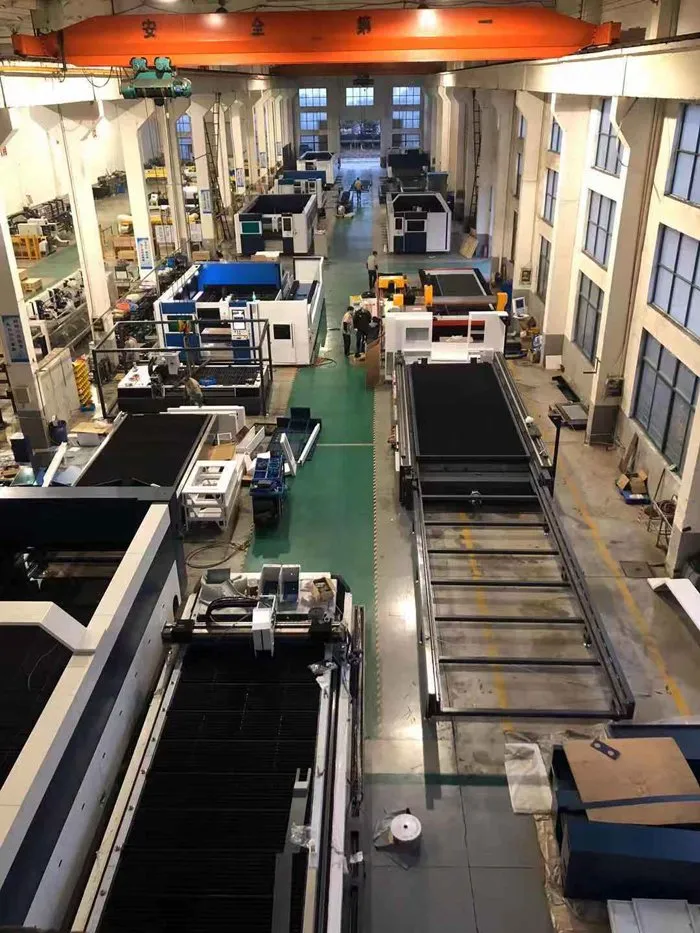

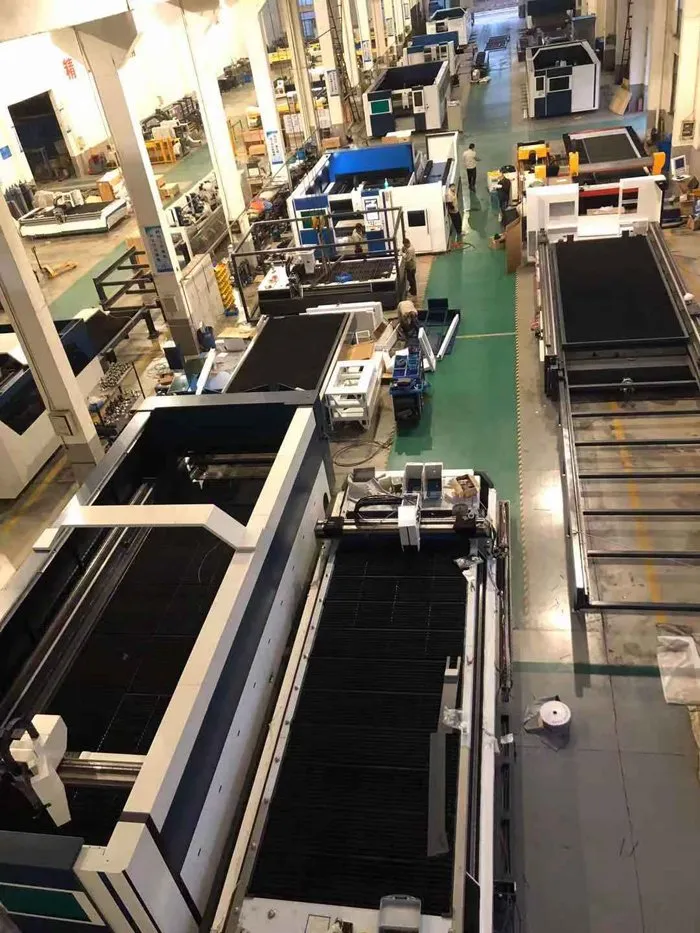

Factory Overview:

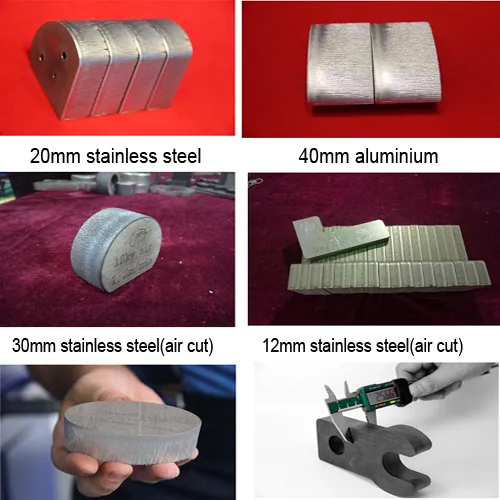

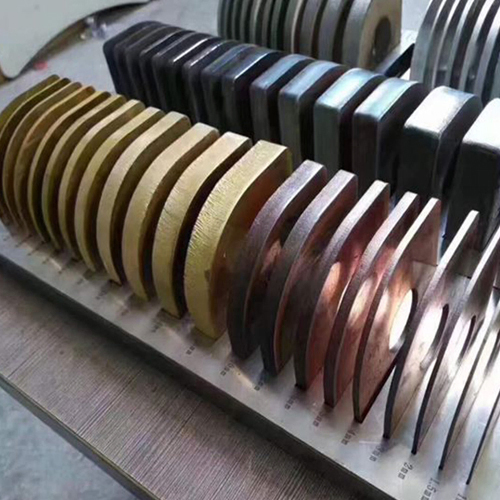

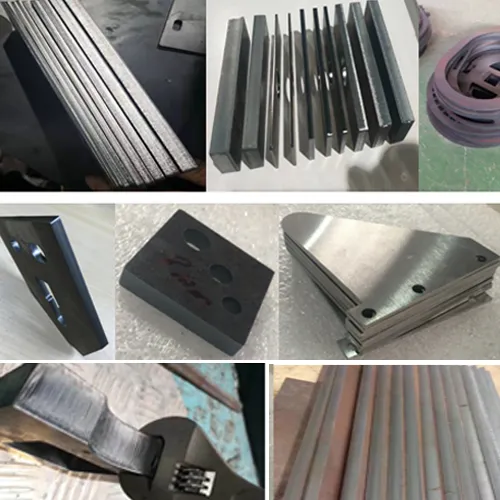

Cutting Samples:

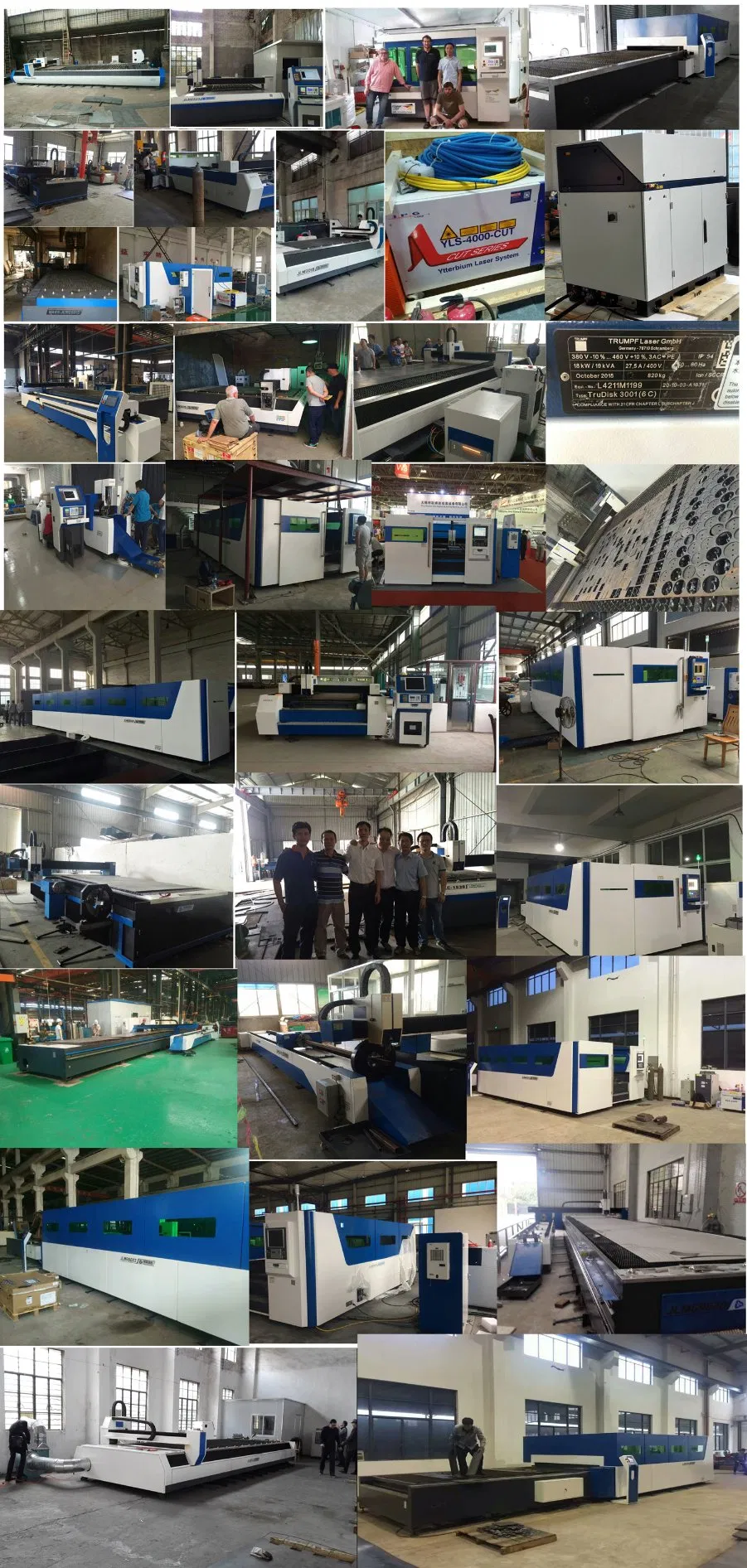

Recent Projects:
| Description | Technical Parameters | |
|---|---|---|
| Max cutting size (mm) | 3000×1500 / 4000×2000 / 6000×2500 etc. | |
| Workpiece max height (mm) | 100 | |
| Effective travel | X axis (mm) | 6050 |
| Y axis (mm) | 2550 | |
| Z axis (mm) | 280 | |
| Cutting thickness | Carbon steel (mm) | Up to 20mm (based on power) |
| Stainless steel (mm) | Up to 10mm (based on power) | |
| Aluminum (mm) | Up to 10mm (based on power) | |
| Positional accuracy (mm/m) | ±0.06 | |
| Repeated positioning accuracy (mm) | ±0.03 | |
| Rapid positioning speed (m/min) | 120 | |
| Max Cutting Speed (m/min) | 80 | |
| Work table bearing (kg) | 5000kg | |
| Power consumption | 20kw/h | |
