Product Description

📊 Basic Information
Model
LC-230CNC-3000W
Application
Environmental, Petroleum, Aerospace, Automotive, Furniture, Medical
Laser Technology
Fiber Laser Fusion Cutting
Laser Power
1000-3000W
Material
Stainless Steel, Carbon Steel, Aluminum, Copper, Iron
Cooling System
Water Cooling
Chunk Speed
100r/Min
Tailing Length
50mm

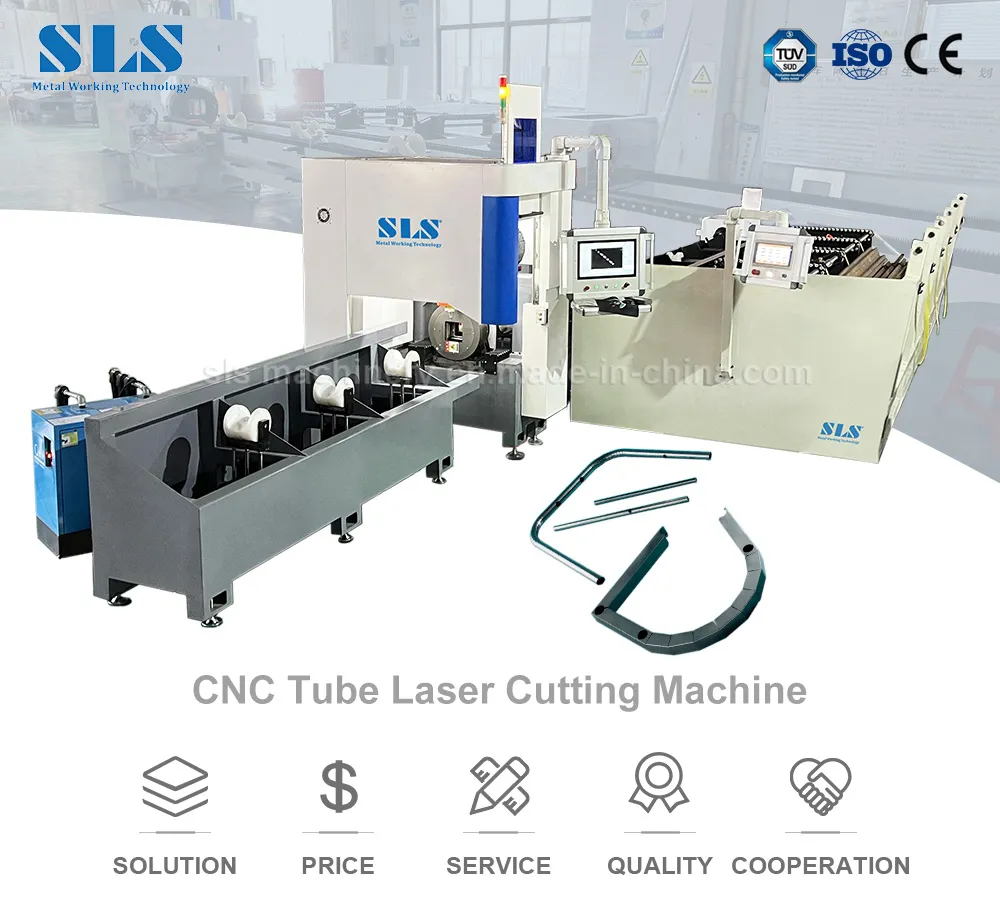

CNC Laser Tube Cutting System
💡 Product Introduction

This CNC Laser Tube Cutting System is a specialized solution for pipe laser processing. It is widely used in industries such as furniture, auto parts, fitness equipment, medical treatment, sanitary ware, and hardware accessories.

Capable of cutting various metal materials including stainless steel, mild steel, and carbon steel, this system delivers high-precision results. The processing speed and quality are optimized based on the specific material and thickness, ensuring industry 4.0 service standards.

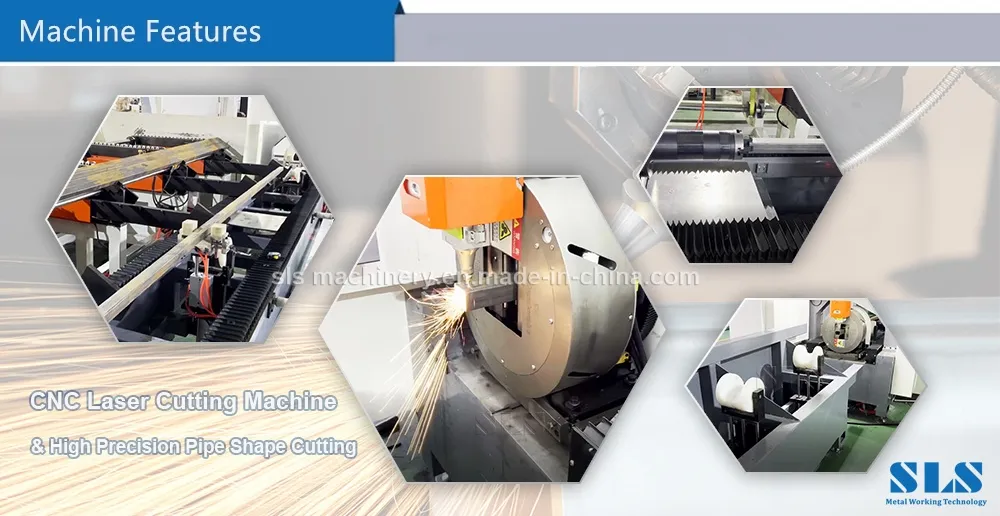

Laser Tube Cutting Detail
🚀 Key Features
✓
Super high speed fiber laser cutting; 30% faster than universal machines.
✓
Machine acceleration up to 1.5G with high response times.
✓
Multifunctional cutting for round, square, rectangle, and oval pipes.
✓
Supports straight cut, angle cut, and hole making with smooth, burr-free edges.
✓
High precision: Cutting loss only 0.1mm; accuracy ±1mm.
✓
Full pneumatic four-jaw hollow rotary chuck with speeds over 150 RPM.
✓
Advanced roller feeding system allows simultaneous loading and cutting.
✓

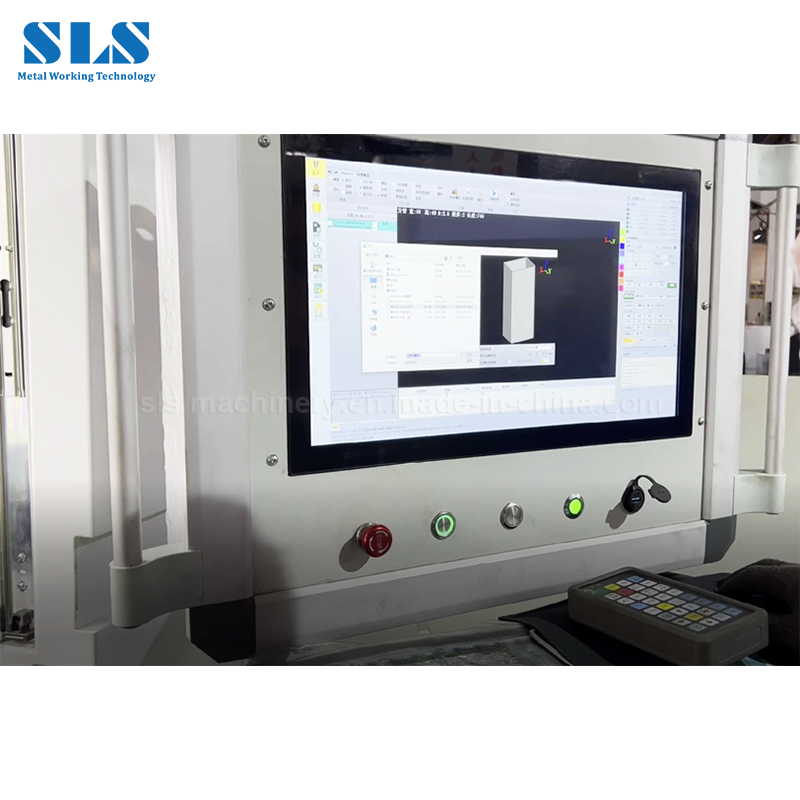

Self-developed control system for deep optimization and easy operation.
⚙️ Technical Parameters
Parameter Specification Parameter Specification
Cutting Diameter OD 15-159mm / Sq 15*15-110*110mm Tube Length 6200mm (Customizable)
Laser Power 1000W - 3000W Laser Source MAX / China
Control System FSCUT Pneumatic Chuck Lingman
Voltage 380V 50Hz 3Phase Machine Weight 4.0 T
Dimensions 9050*2600*2380mm Air Pressure 1.6 - 3.0 MPa
📸 Equipment Display

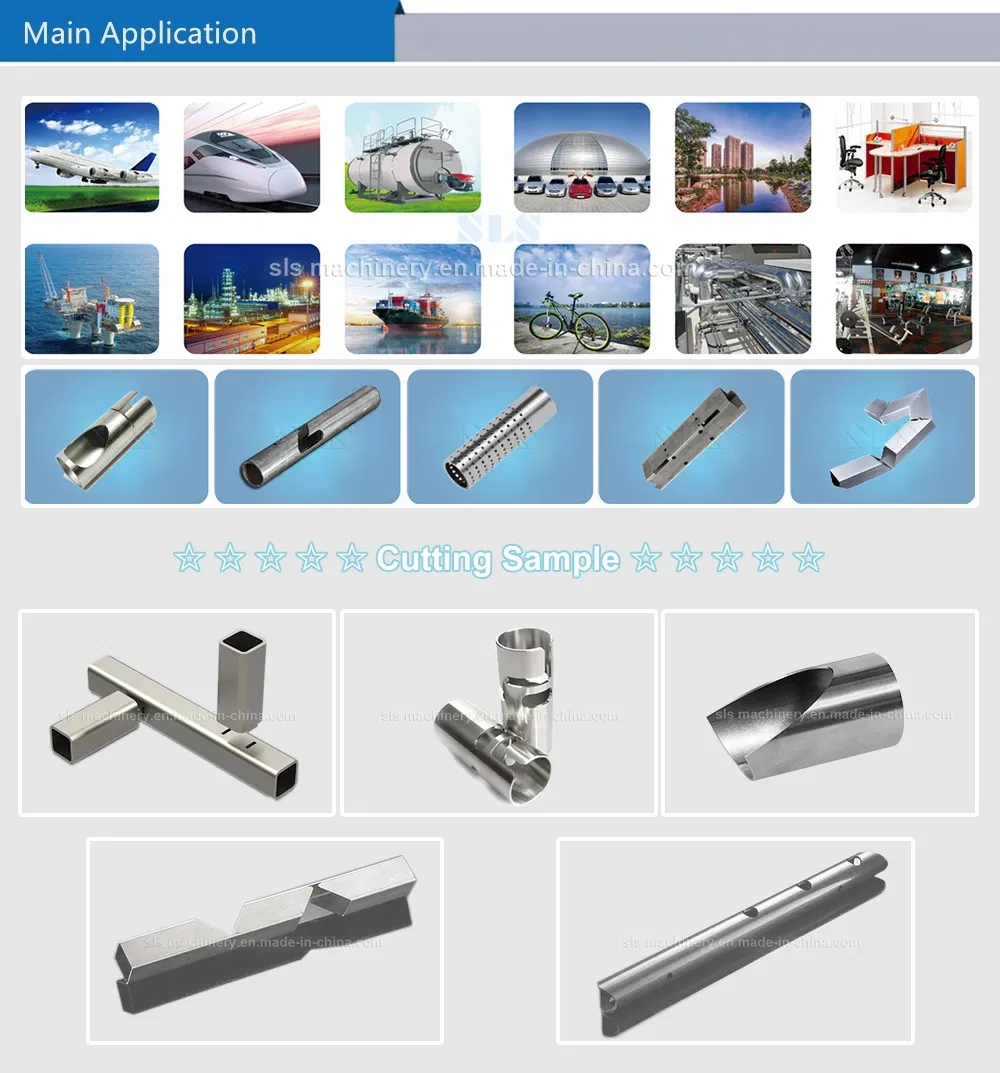

Machine Detail 1 Machine Detail 2 Machine Detail 3

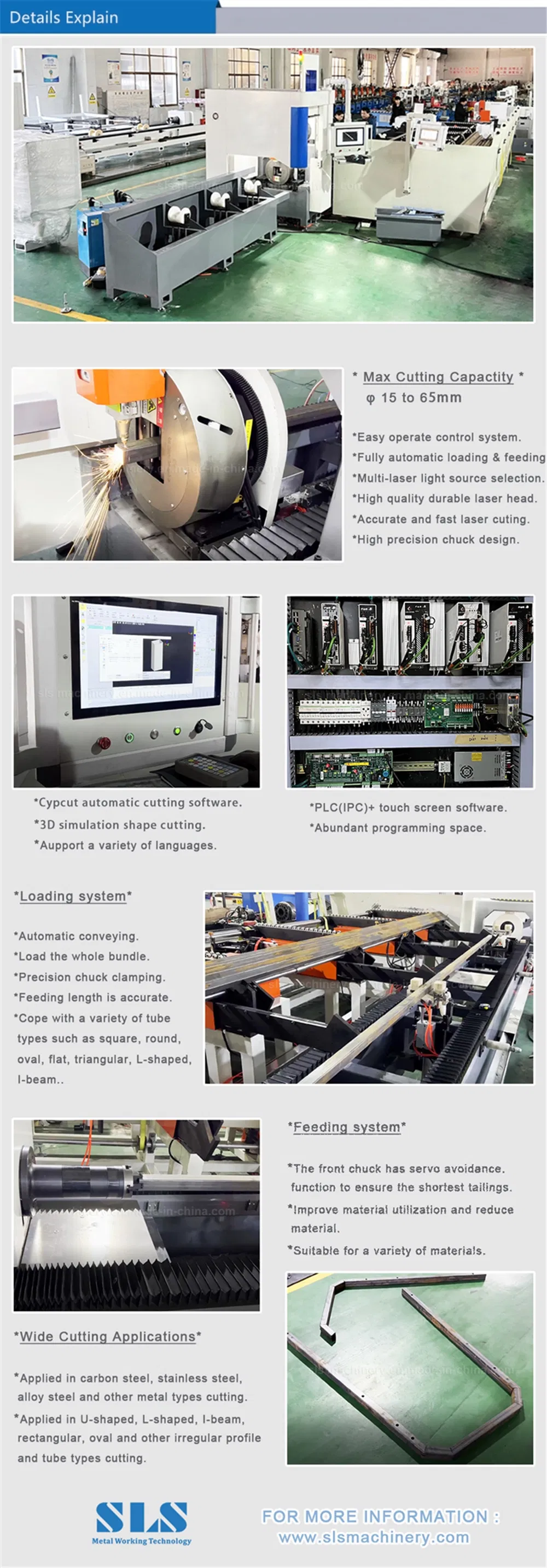

Full System View
Processing Example
❓ Frequently Asked Questions
Q1: Are you a manufacturer?
A: Yes, we are a professional manufacturer focusing on metal pipe and tube processing machinery production.
Q2: How do I choose the right pipe laser cutting machine?
A: You need to provide the pipe outer diameter range, wall thickness range, material type, cutting shape, and original pipe length. Our team will help you confirm the most suitable model.
Q3: Do your machines have CE certification?
A: Yes, all our laser cutting machines are compliant with CE standards and hold the necessary certification.
Q4: What kind of after-sales service do you provide?
A: We provide detailed operation manuals, installation and commissioning videos, and free training at our facility. Technical support is available via email or phone within 24 hours.
Q5: What materials can this machine cut?
A: The system is designed for high-efficiency cutting of stainless steel, carbon steel, aluminum, copper, and various other metal materials.
Q6: Can the machine be customized?
A: Yes, we can customize various auxiliary functions, voltage requirements, and processing lengths to meet your specific industrial needs.
