| Model NO. | CHD5t-S16.5m-H9m |
| Operation Form | Air Operation + Ground Operation |
| Max Lifting Height | <10m |
| Max Lifting Weight | <20t |
| Main Girder Form | Double Girder |
| Type | Beam |
| Product Name | Double Girder Overhead Crane |
| Lifting Weight(T) | 5 |
| Span(M) | 16.5 |
| Lifting Height(M) | 9 |
| Working System | A5 / M5 |
| Production Capacity | 50000 pieces/Year |

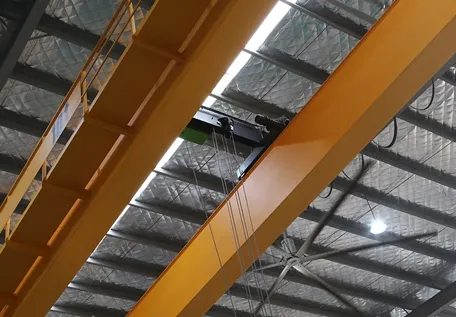

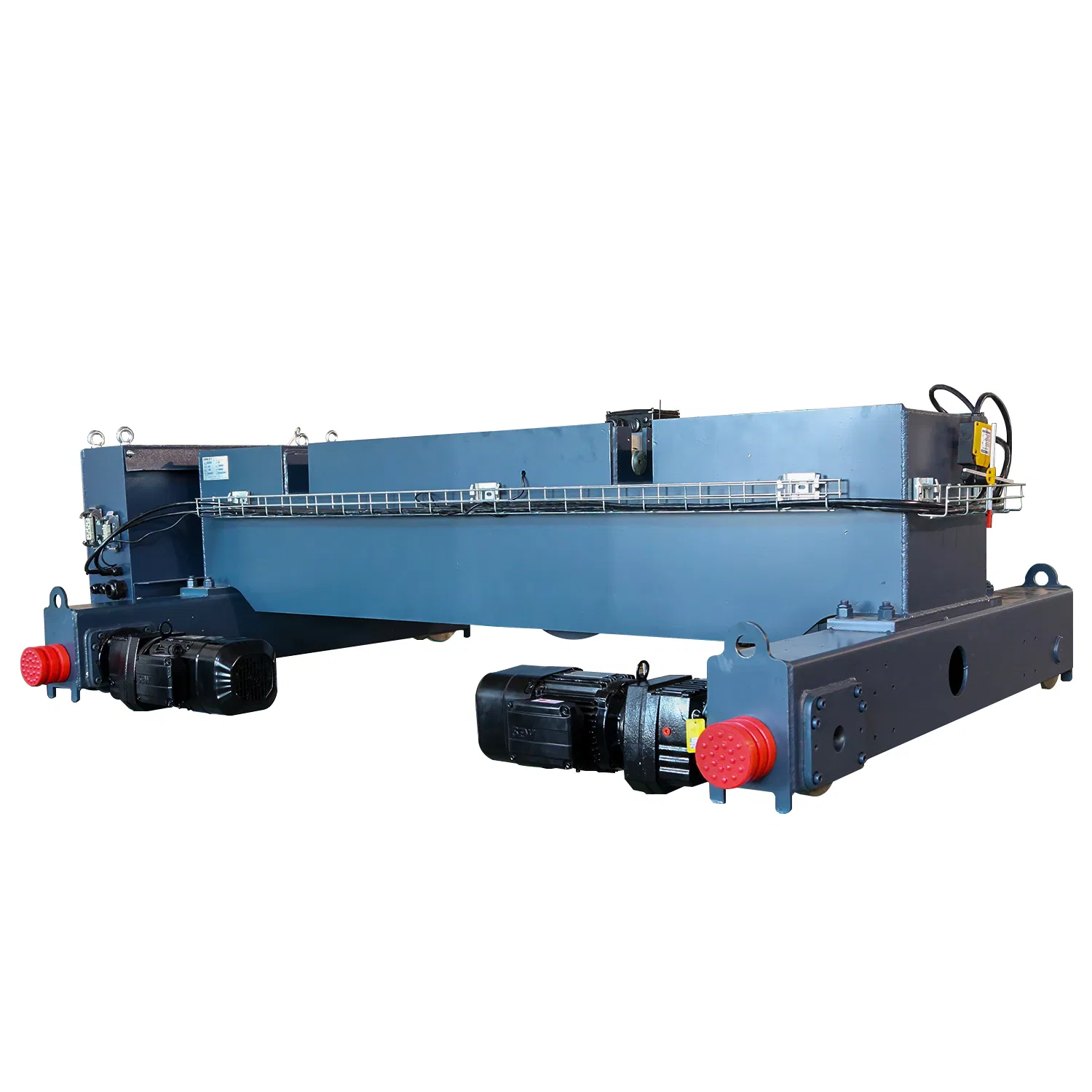

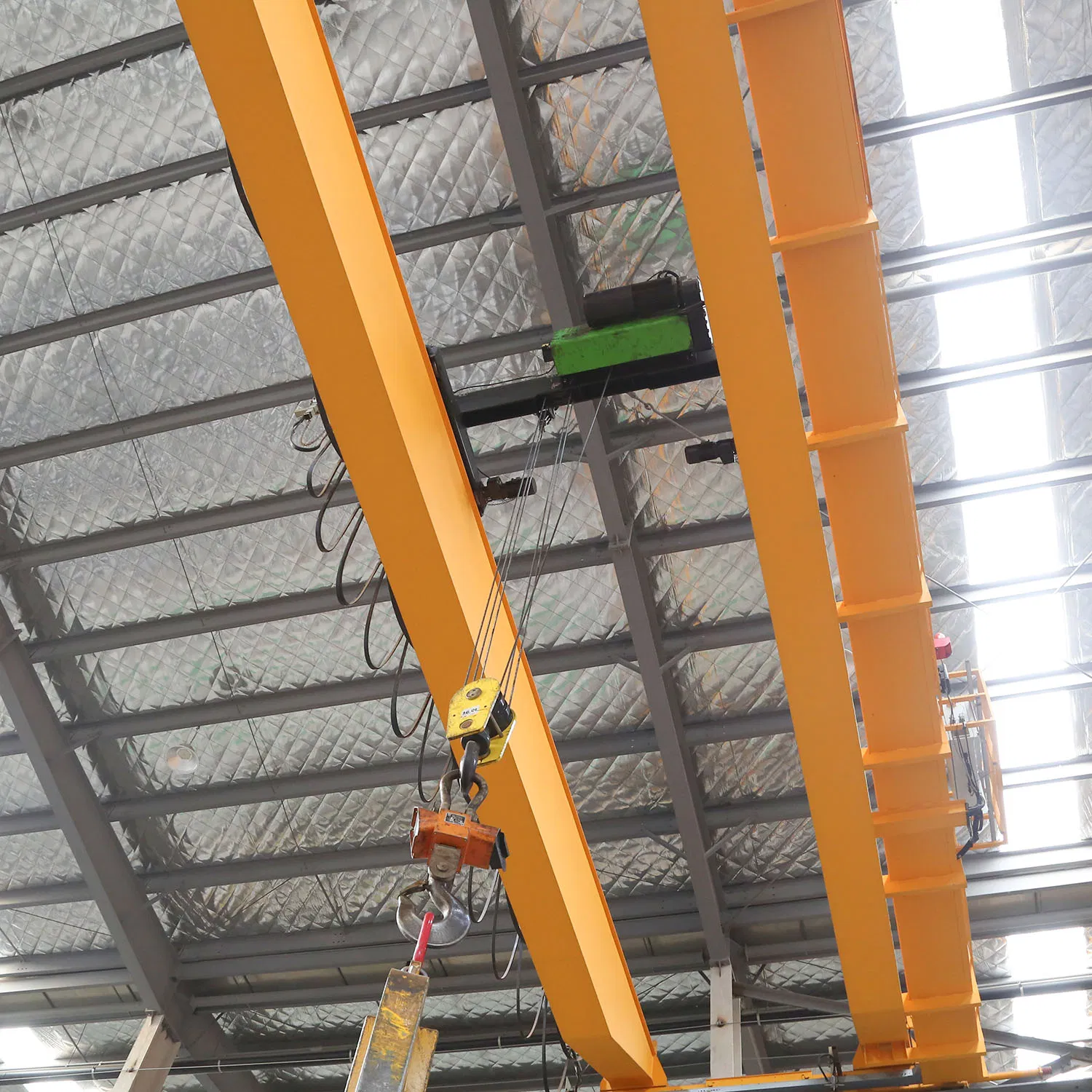

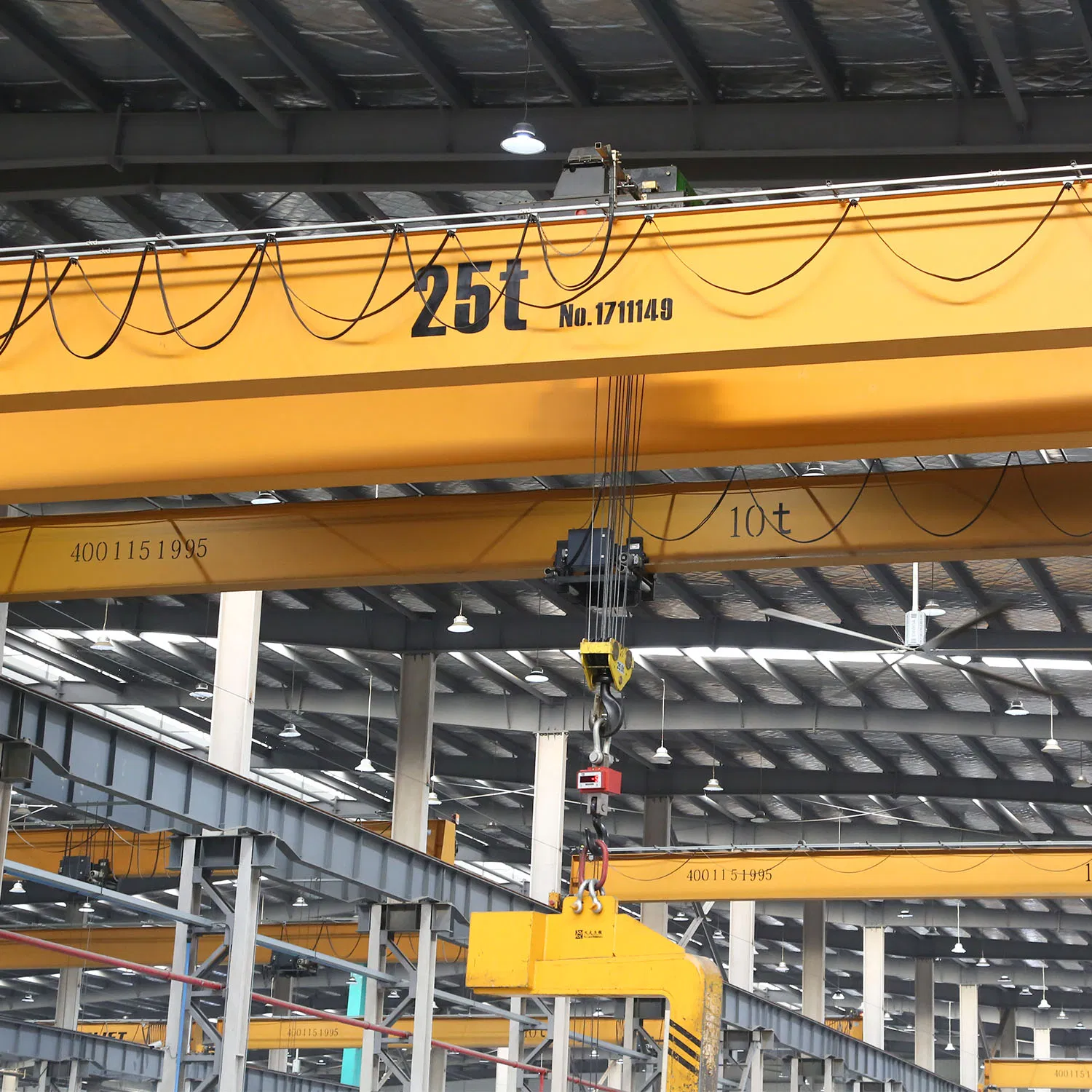

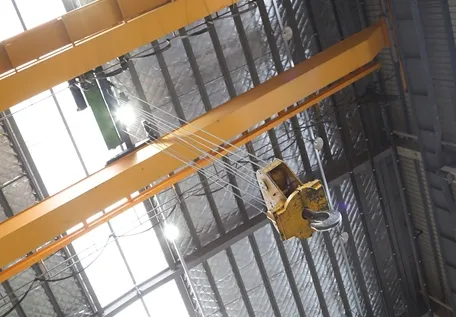

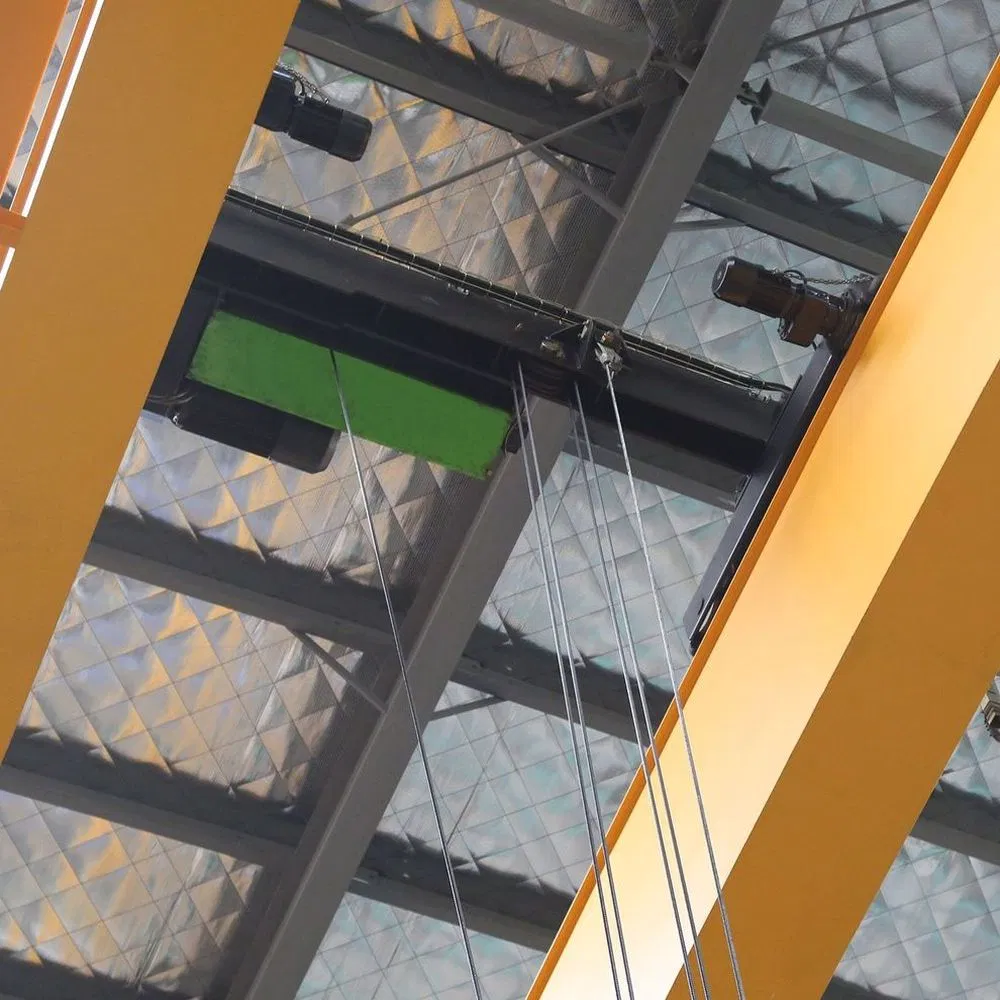

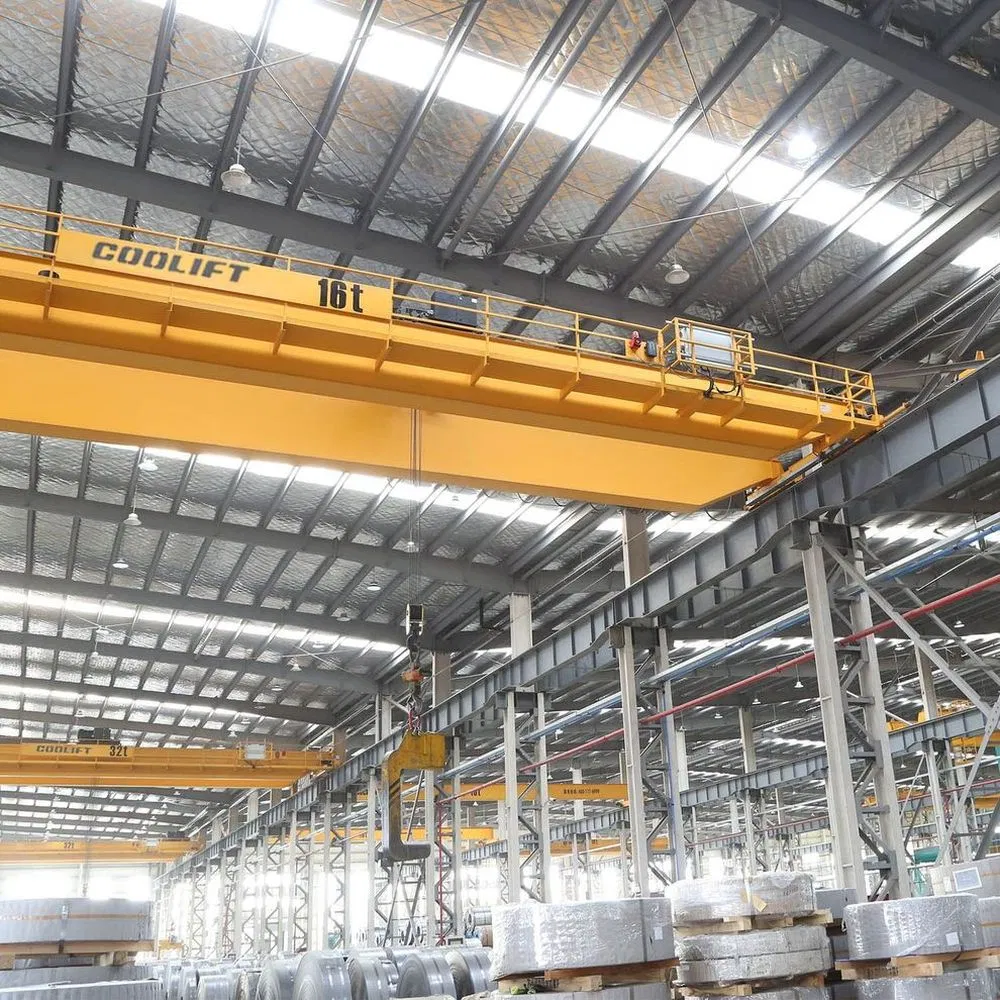

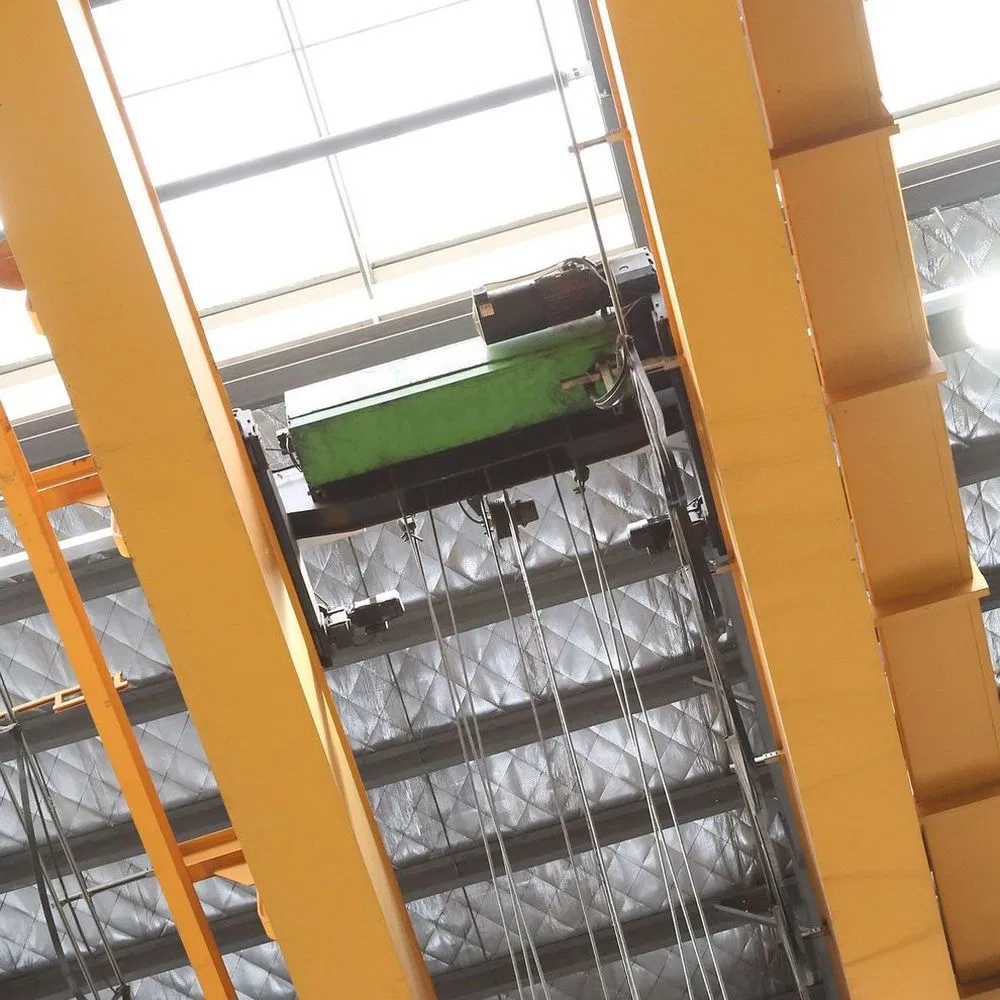

The Double-girder bridge crane is a versatile powerhouse in the realm of lifting equipment. A vital component in industrial production, logistics, and construction endeavors, this crane is ingeniously designed with key components including a main beam, end beam, lifting trolley, trolley running mechanism, and a sophisticated electrical control system. Together, the main beam and end beam create a robust bridge framework, delivering expansive operational coverage and steadfast support for seamless material handling and lifting tasks.

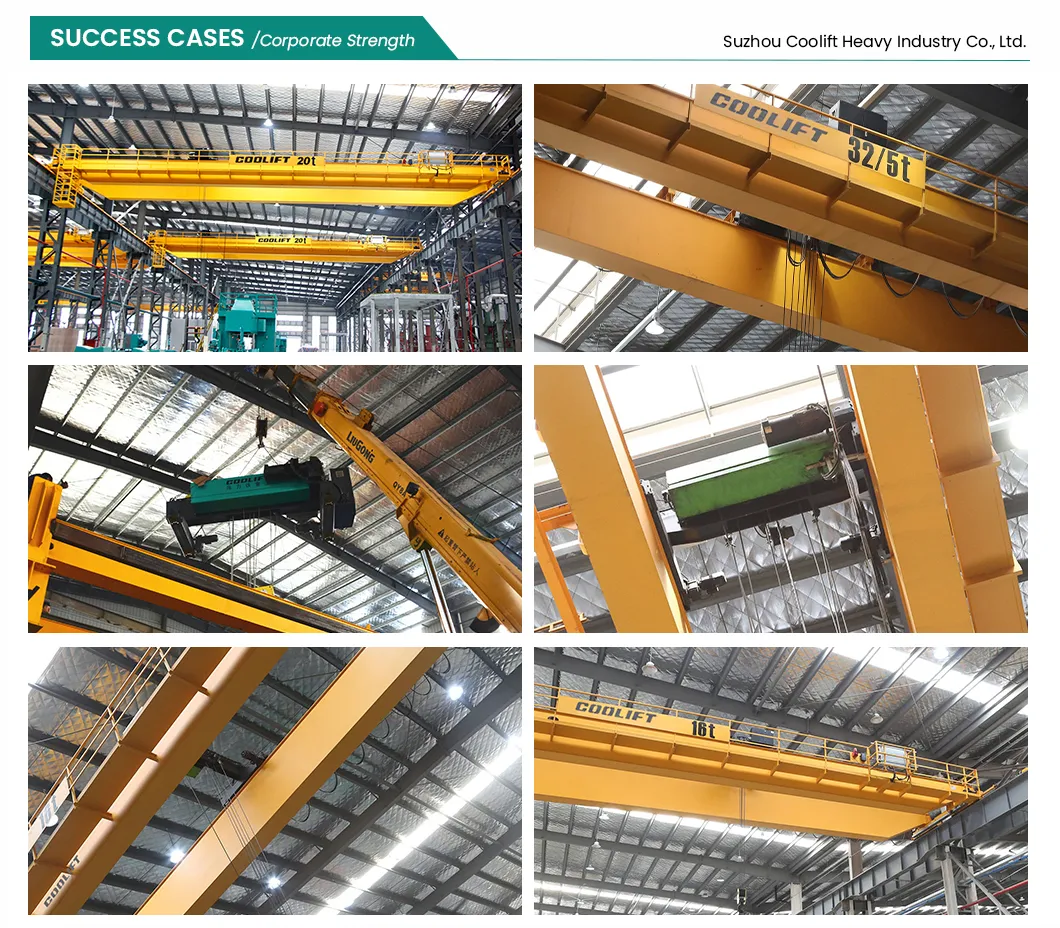

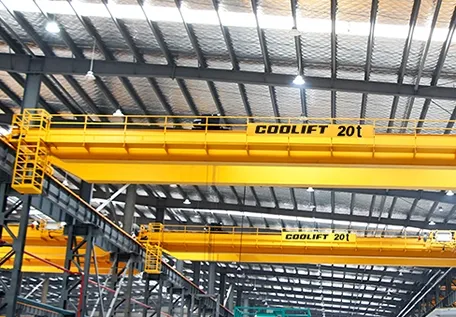

In real-world applications, double-girder bridge cranes are the backbone of industries such as machinery manufacturing, automotive production, steel smelting, port operations, and logistics.

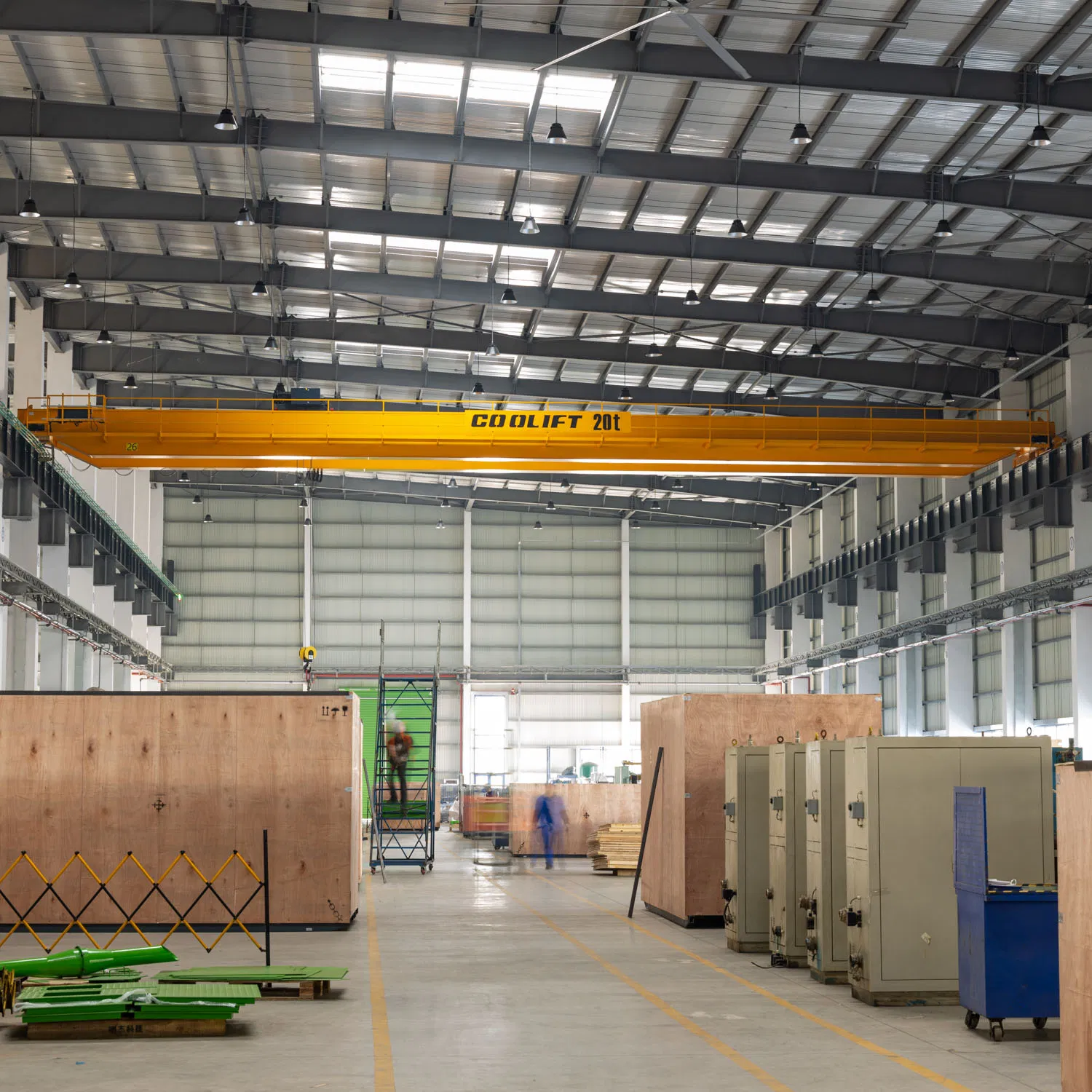

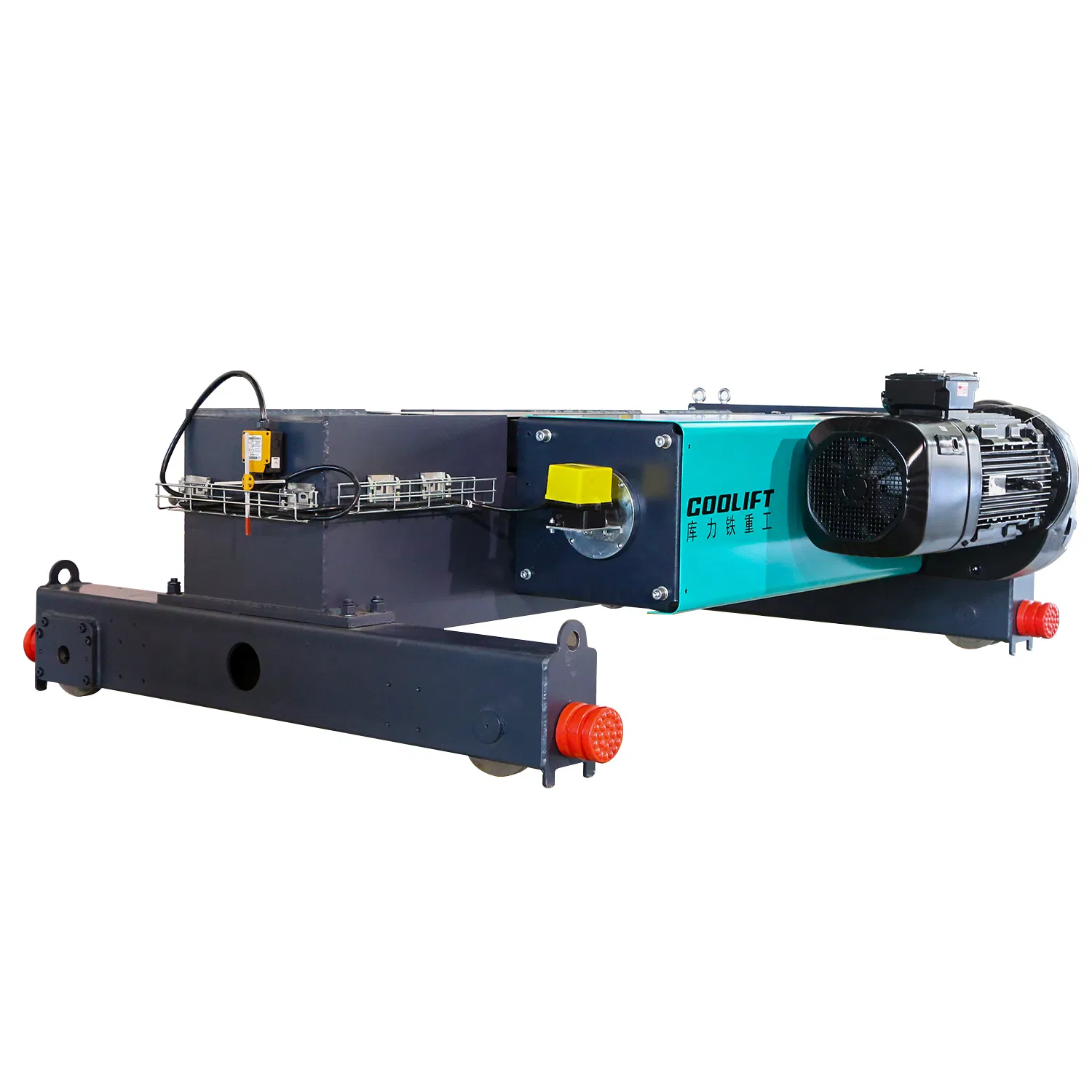

High-level Configuration
Standard Configuration
Basic Configuration
| DOUBLE GIRDER OVERHEAD CRANE SPECIFICATION | |
|---|---|
| Product Name | Double Girder Overhead Crane |
| Keywords | Overhead Crane |
| Configuration | High-level Configuration |
| Lifting Weight(t) | 5 |
| Span(m) | 16.5 |
| Lifting Height(m) | 9 |
| Lifting Speed(m/min) | 0.8/5.0 |
| Traversing Speed(m/min) | 5-20 |
| Crane Traversing Speed | 8-32 m/min |
| Working System | A5 / 2m/M5 |
| OEM & ODM Custom | Accept |
*The above data is for reference only.
Engineered for spectacular strength, the double-girder bridge crane's design supports substantial weights effortlessly. This exceptional lifting prowess allows it to adeptly handle heavy materials across diverse industrial settings.
Featuring impeccable structural engineering, the robust bridge framework disperses load while minimizing vibrations. Coupled with a cutting-edge electrical control system, it guarantees stable and quiet operation.
The expansive bridge architecture extends operational reach significantly. Customizable spans allow for movement both horizontally and vertically, optimizing spatial utilization.
User-friendly design supports multiple control modalities—ground buttons, remote interfaces, or cabin operations. Includes comprehensive safety features like overload and limit protections.
Tailor parameters like lifting capacity, span, height, and speed to perfectly align with distinct plant layouts and production requirements.
