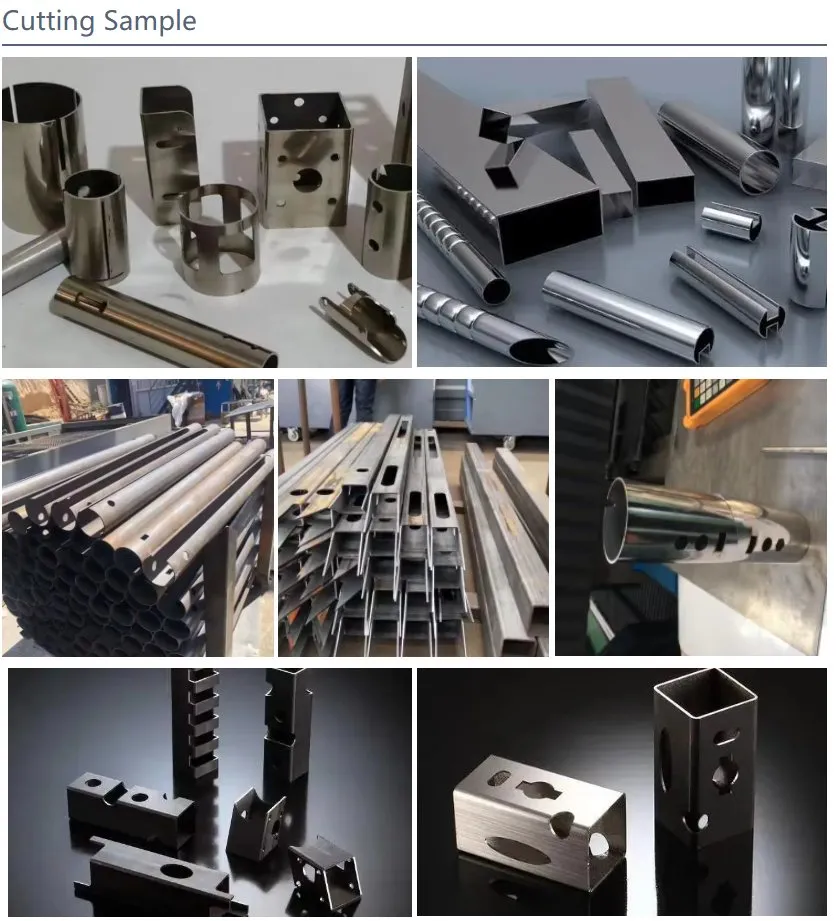

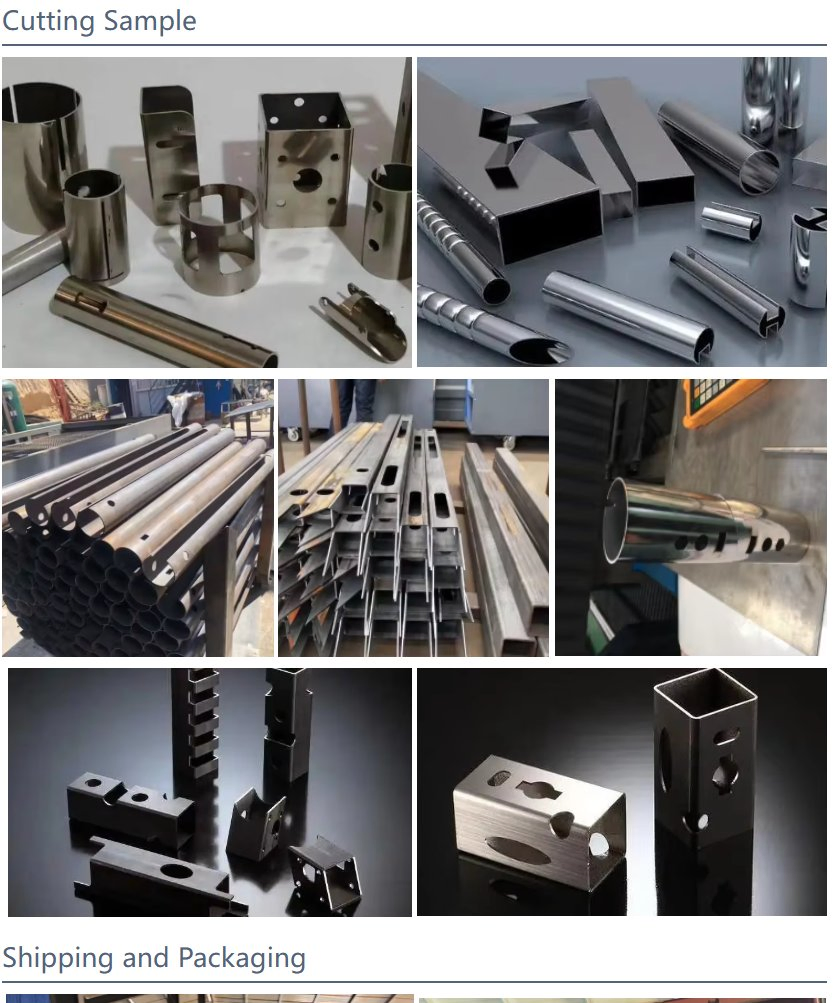

Mainly used for ordinary carbon steel pipe, stainless steel pipe, aluminum alloy pipe, and copper pipe. Cutting workpiece size round pipe Φ20mm-φ100mm, Square pipe, Angle steel, and groove steel side length ≤100mm, Length ≤6500mm.

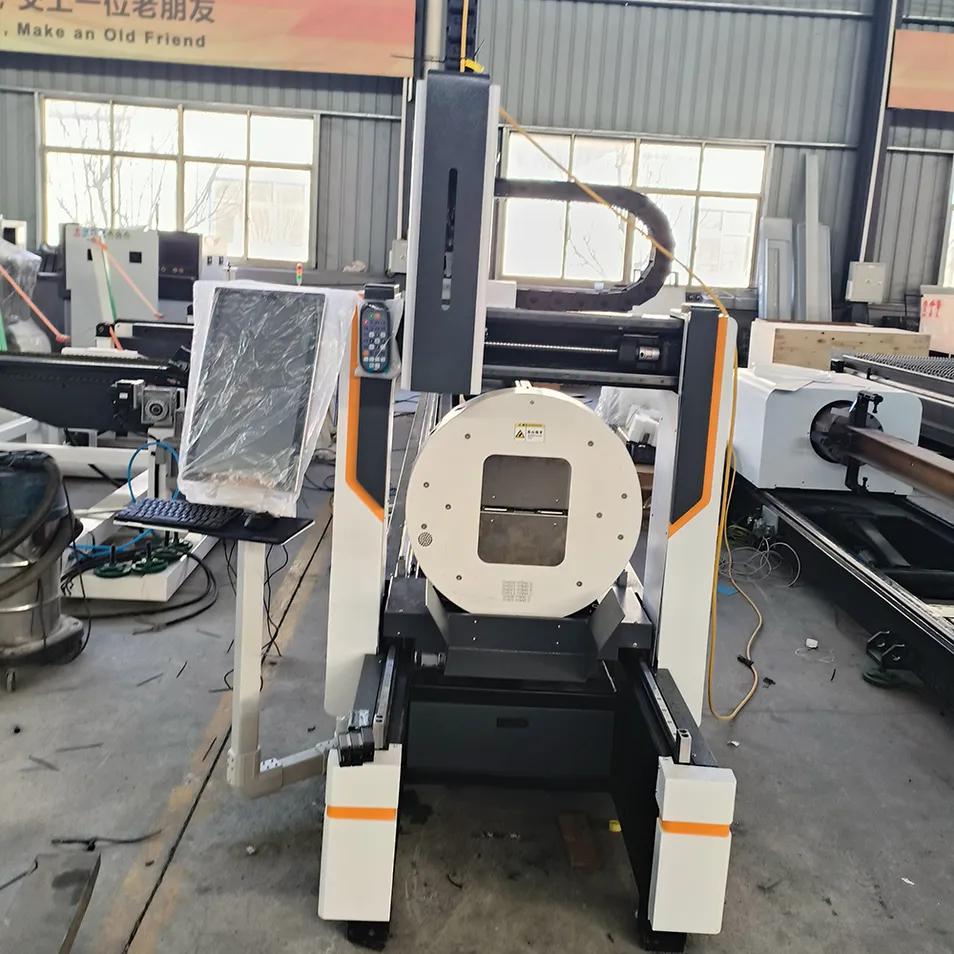

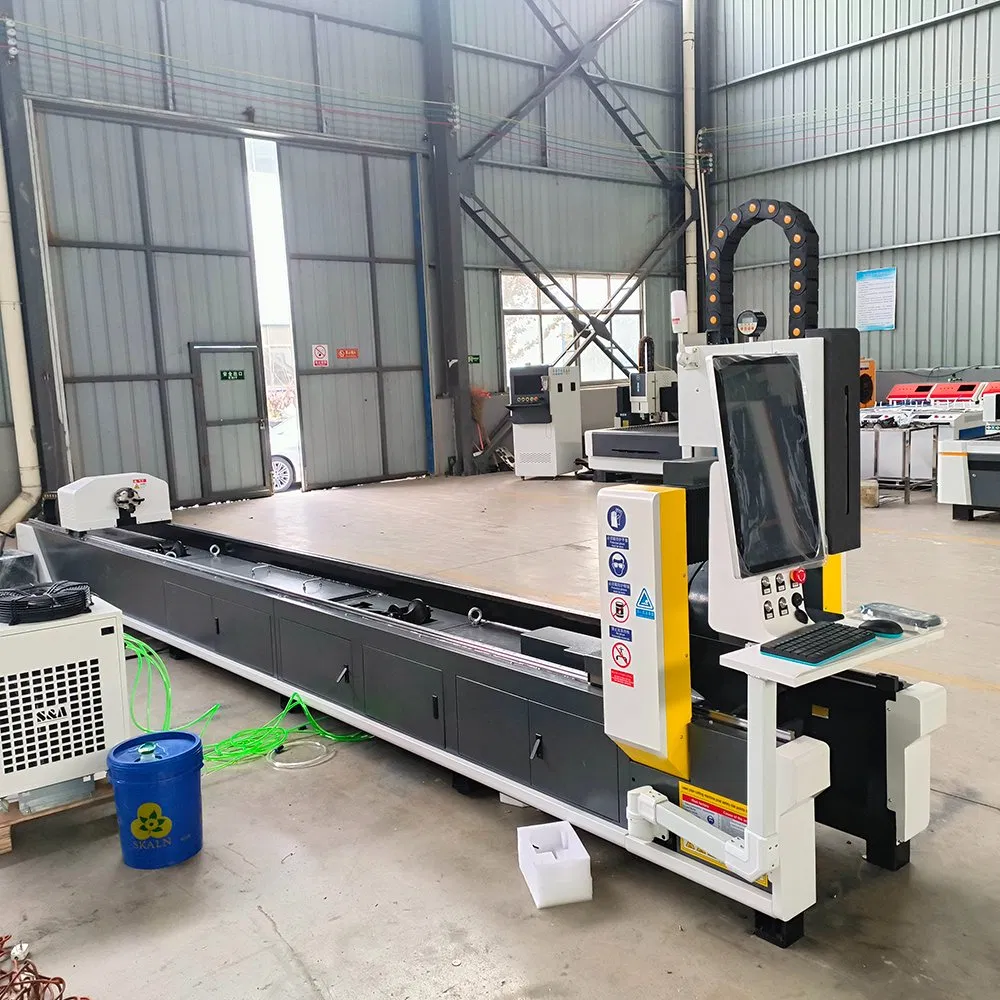

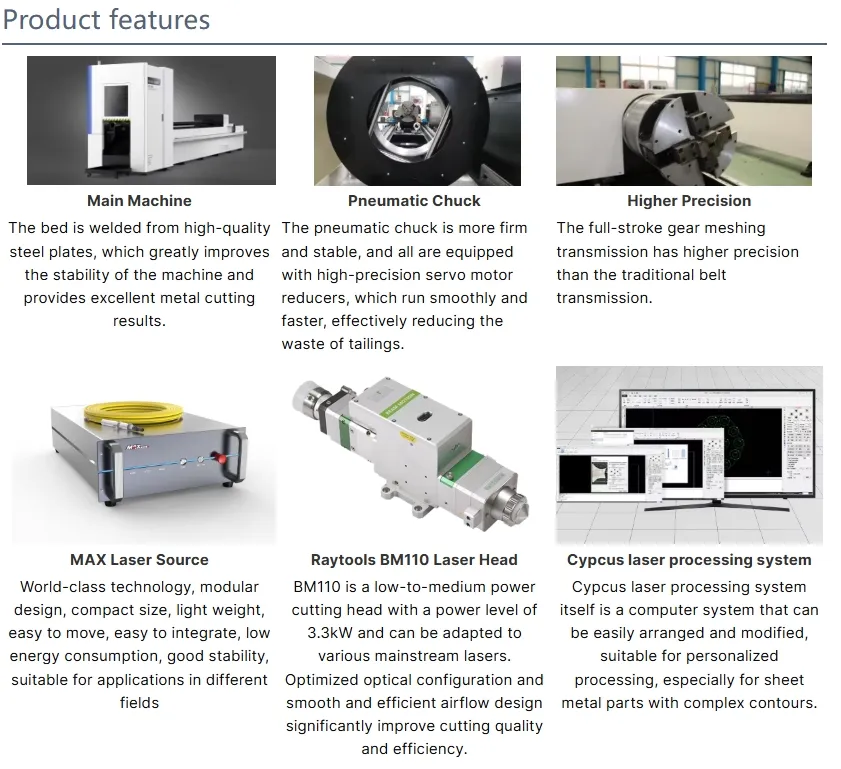

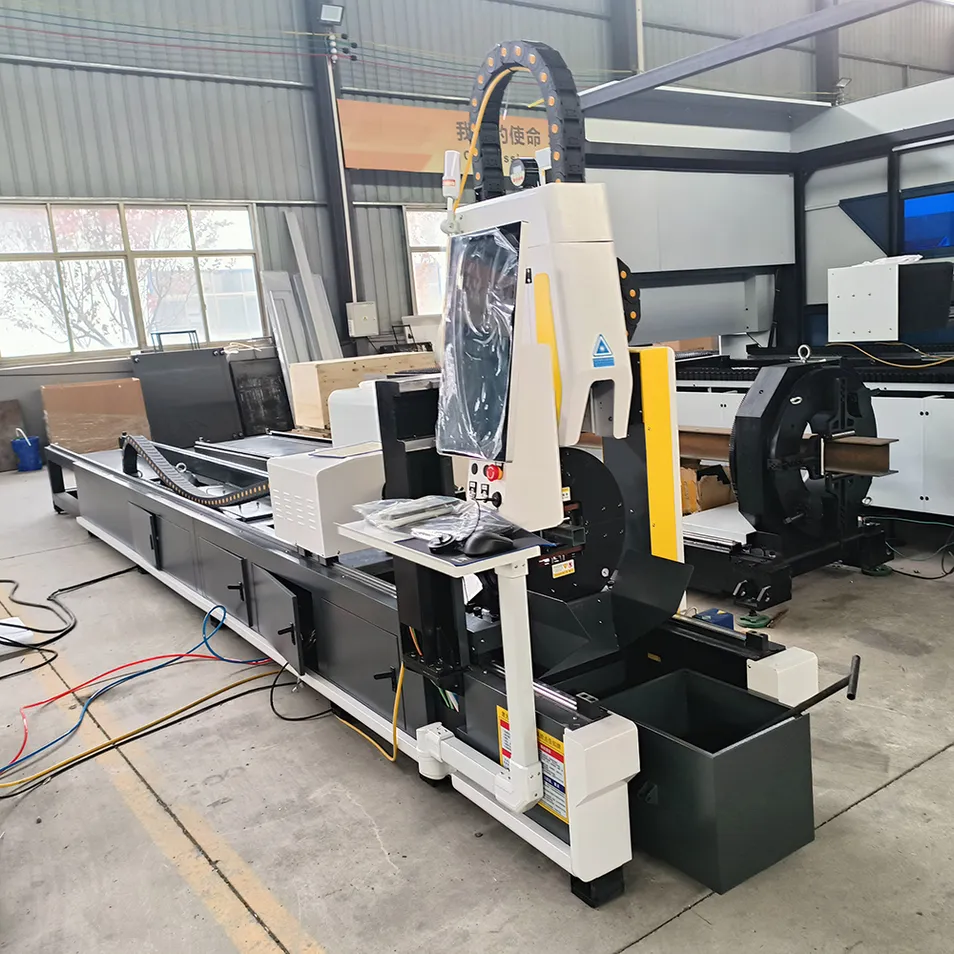

Main Composition of the ProductThe EOE-60100 series optical fiber pipe cutting machine components include: machine engine, control system, laser, and chiller.
| Order Number | Project Name | Parameter | Unit |
| 1 | Pipe processing size | circular tube Φ20mm-φ100mm, Steel side length ≤100mm, L≤6500mm | mm |
| 2 | X axis itinerary | 100 | mm |
| 3 | Y axis itinerary | 6500 | mm |
| 4 | Z axis itinerary | 120 | mm |
| 5 | X, Y axis accuracy | ±0.05/1000mm | mm |
| 6 | Repositioning Accuracy | ±0.03/1000mm | mm |
| 7 | Tailor length | ≤30 (minimum tail length depends on cutting accuracy) | mm |
| 8 | Laser power | MAX 1500 | W |
| 9 | Control system | SJTU-cnc | - |
| 10 | Power supply | 380V/50Hz | V |
