1Basic Information
Model NO.DF-F
Cooling SystemWater Cooling
Laser SourceRaycus / Max / Reci
Positioning Accuracy0.03mm
Technical ClassContinuous Wave Laser
Structure TypeGantry Type
Max Cutting Speed60m/Min
ApplicationManufacturing, Automotive, Aerospace, Agriculture
2Technical Specification
| No. |
Model Feature |
DF3015T Details |
| 1 | Maximum processing range | 3050*1530mm |
| 2 | X/Y axis travel | 1500mm / 3000mm |
| 3 | X/Y axis positioning accuracy | ±0.05mm |
| 4 | X/Y axis repeat positioning accuracy | ±0.03mm |
| 5 | X/Y axis maximum moving speed | 80m/min |

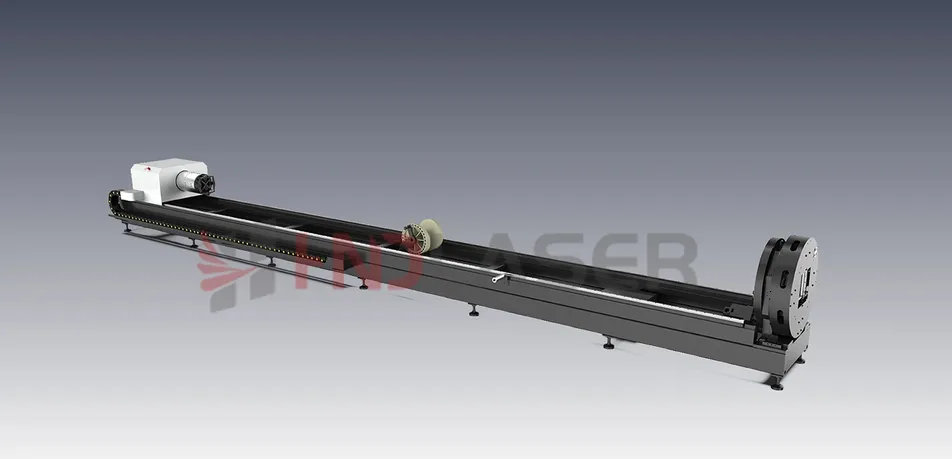

| 6 | Rotating axis chuck | Round tube φ15-230mm / Square tube 15*15-230mm |
| 7 | Rotating axis length | 6M |
| 8 | Chuck type | Fully pneumatic self-centering |
| 9 | W axis rotation angle | Unlimited n*360 |
3Product Description & Advantages

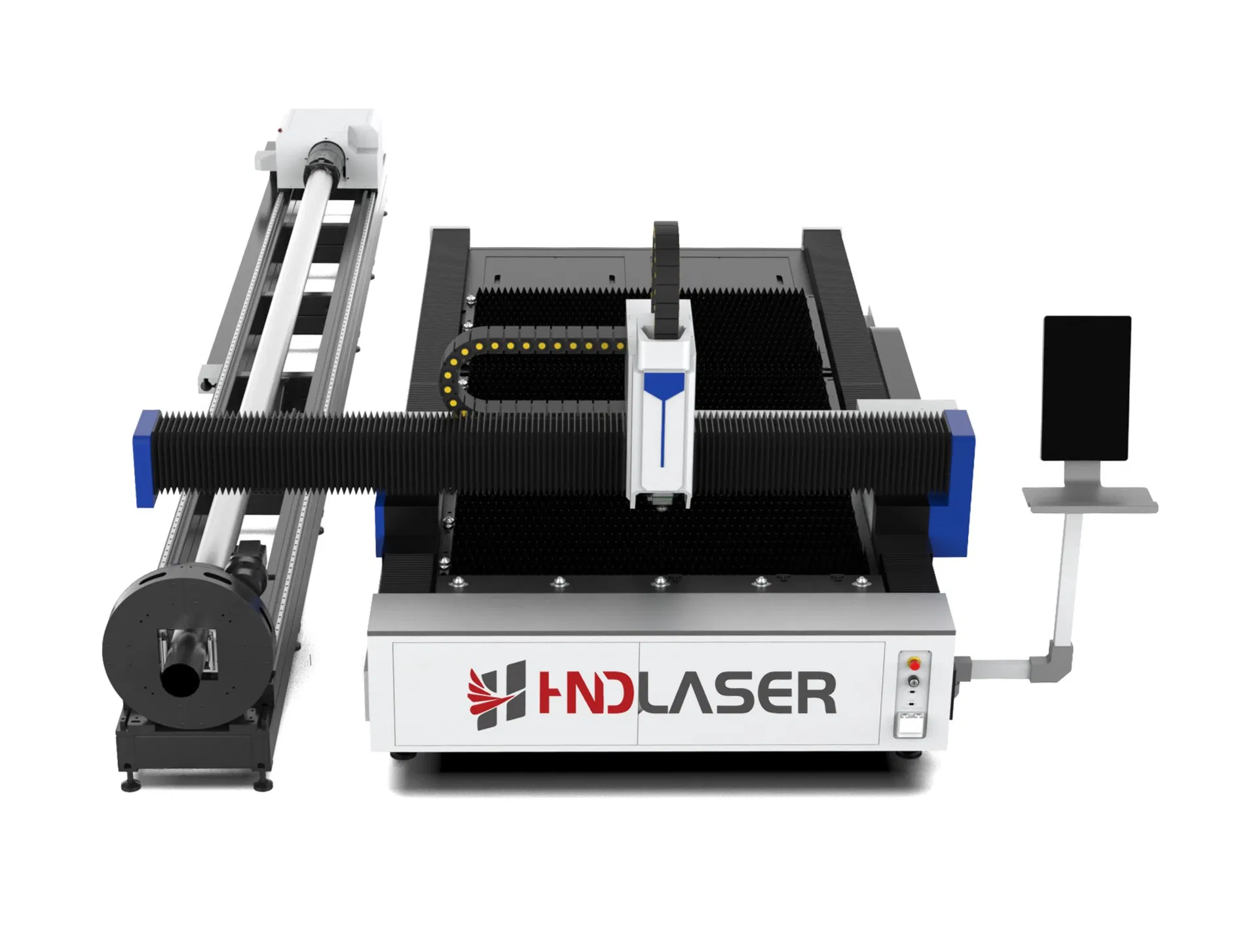

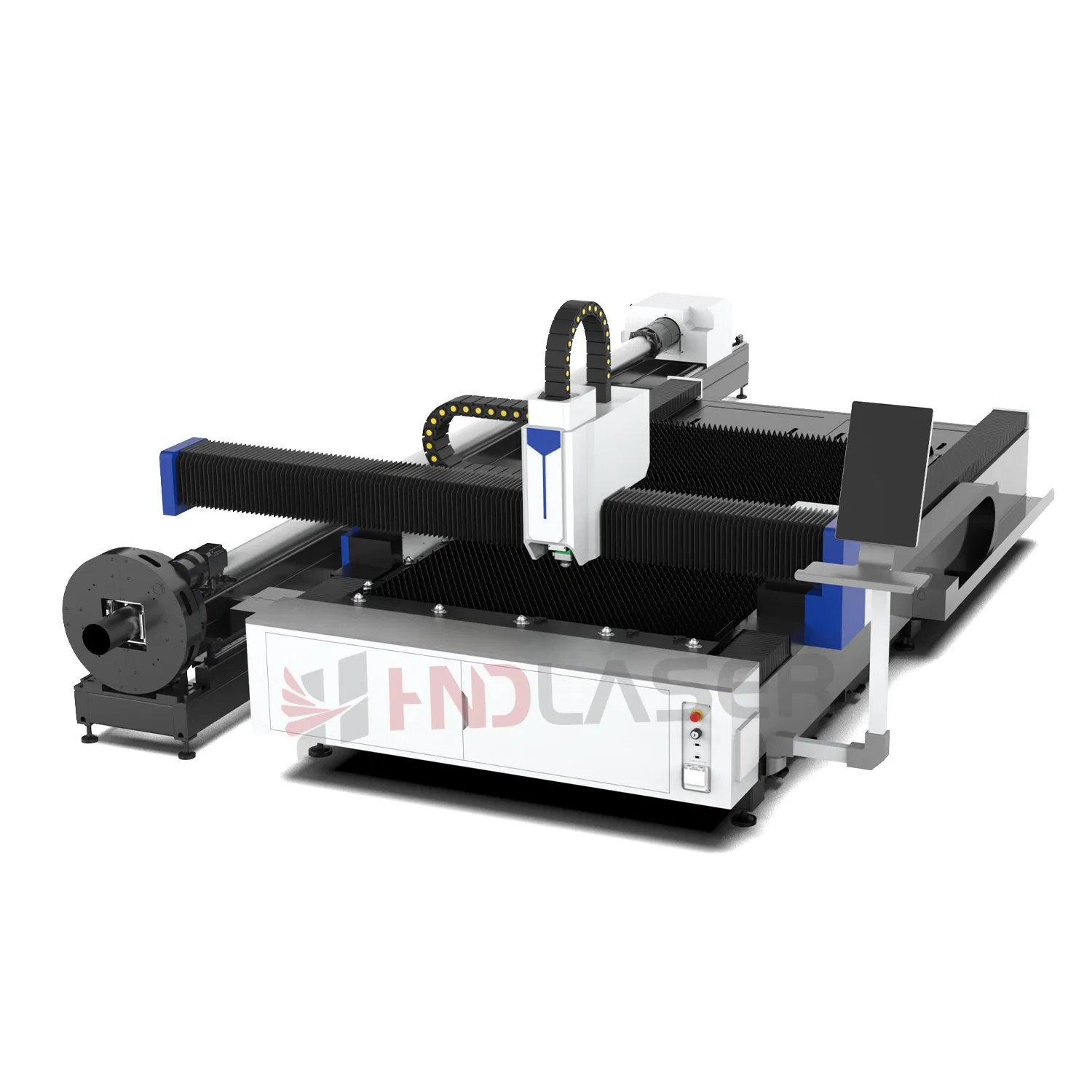

The integrated laser cutting machine is designed for versatile processing of both sheet metal and various pipe materials. It features easy installation, quick commissioning, and high-performance output. With stable operation and enhanced production safety, this machine delivers exceptional performance to meet diverse manufacturing needs.

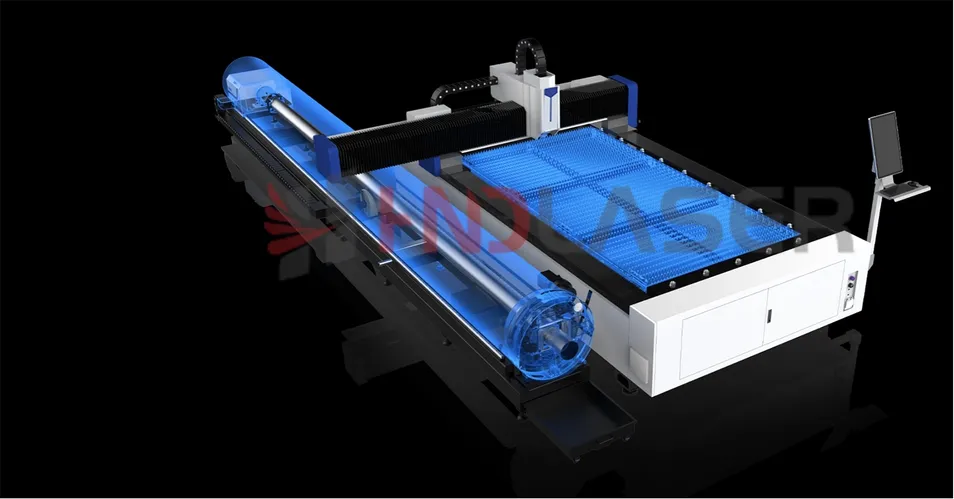

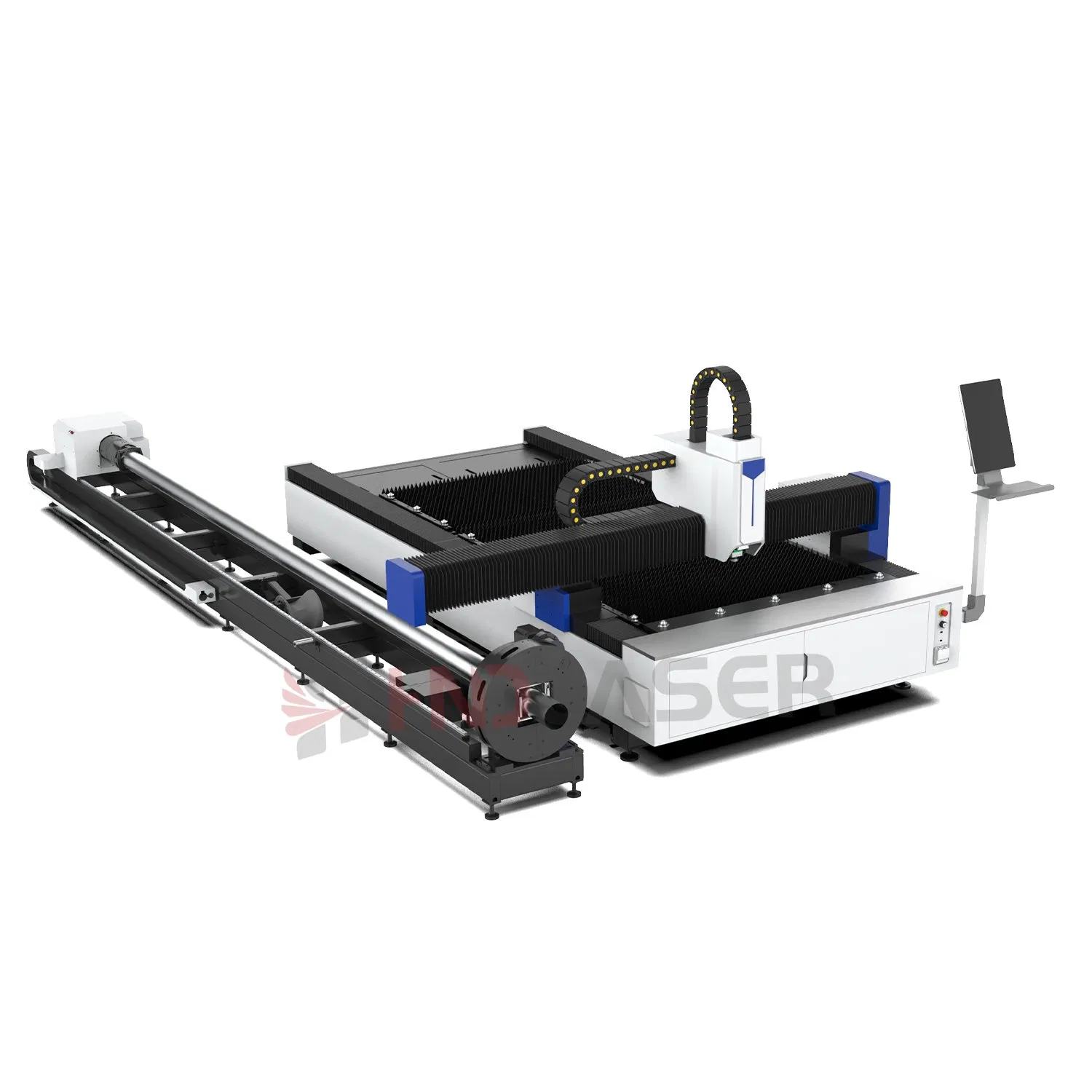

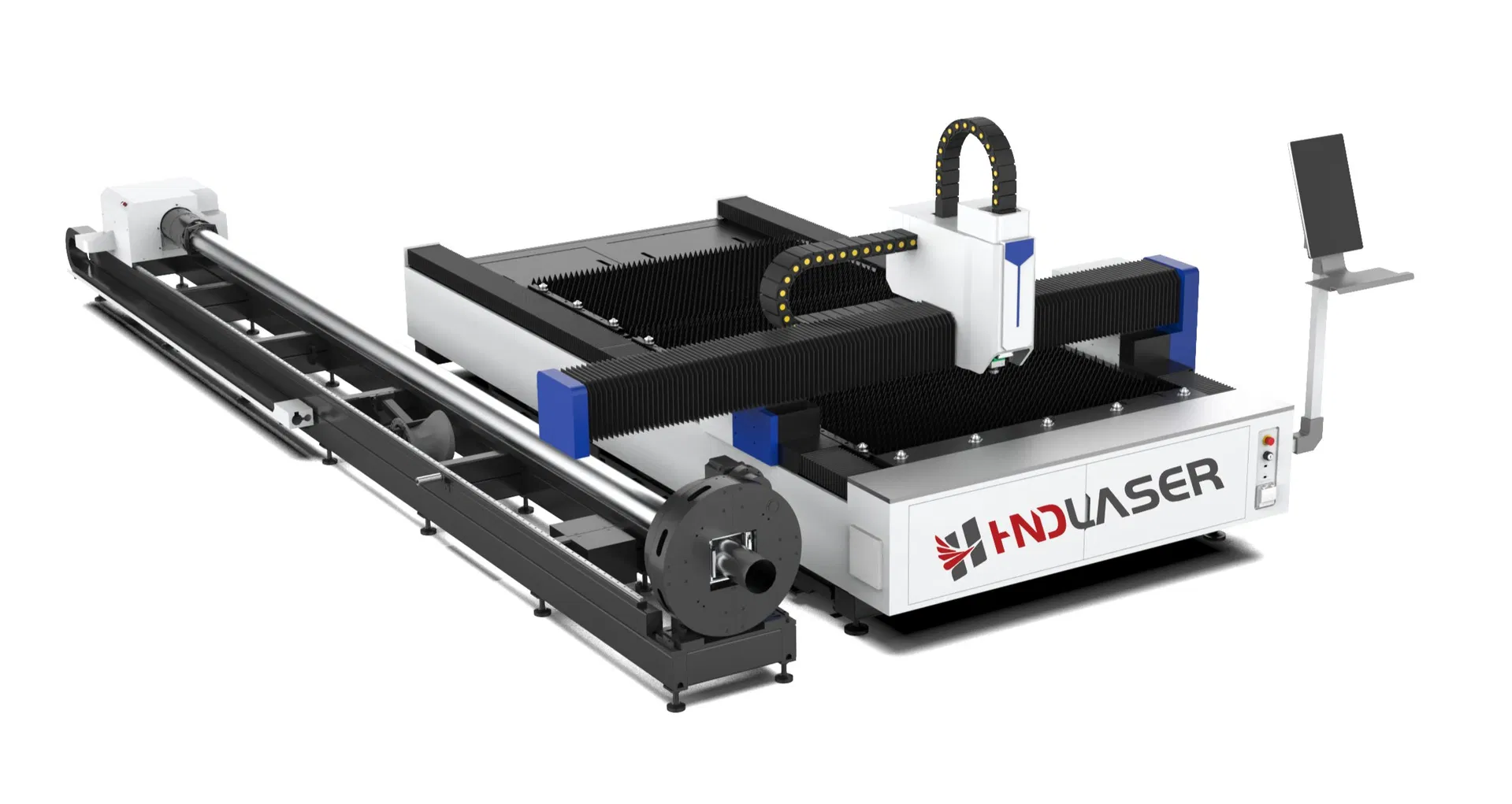

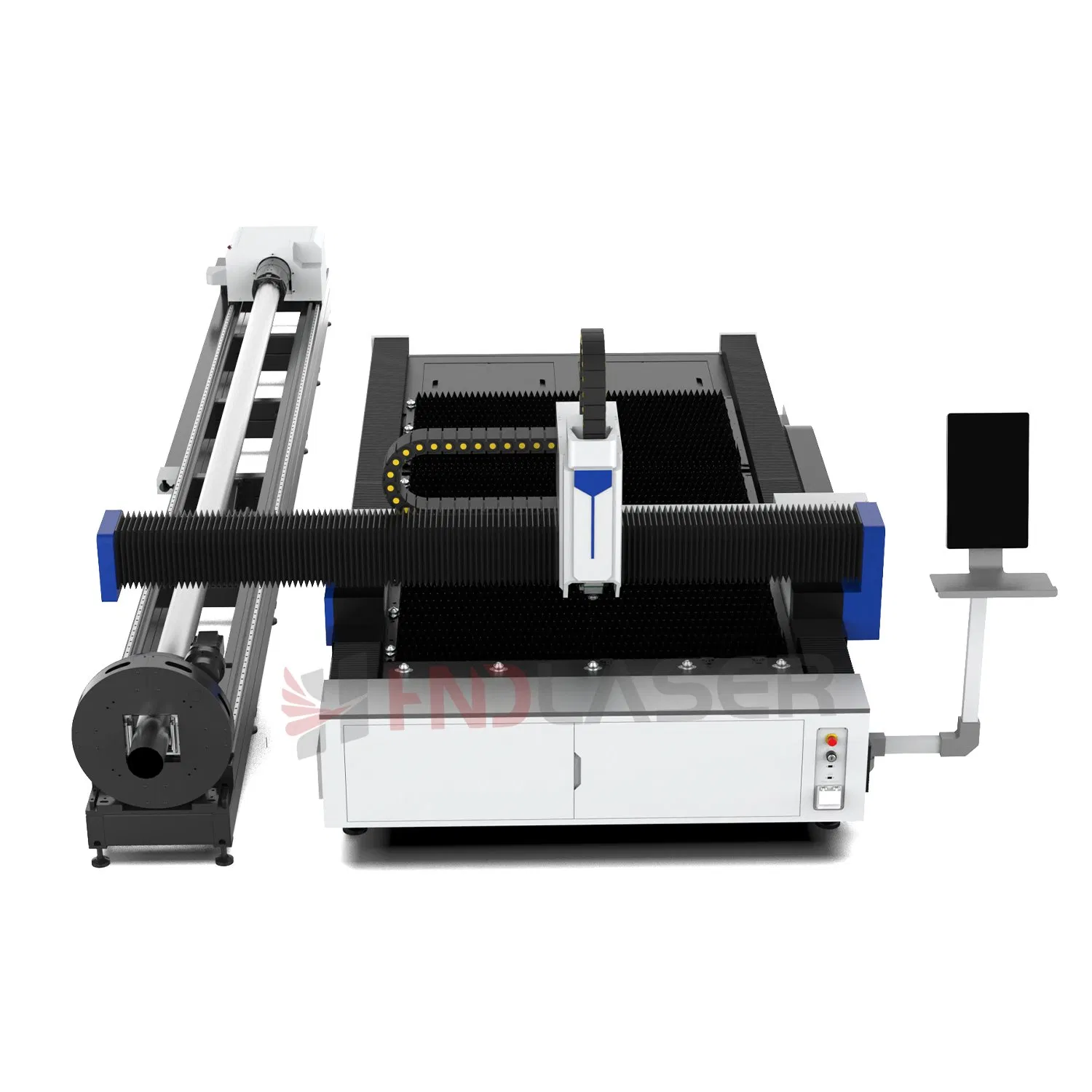

Double platform plate and tube integrated design
Fully enclosed protection design prevents laser from harming personnel; dual-purpose machine handles both plates and tubes with high cost performance.

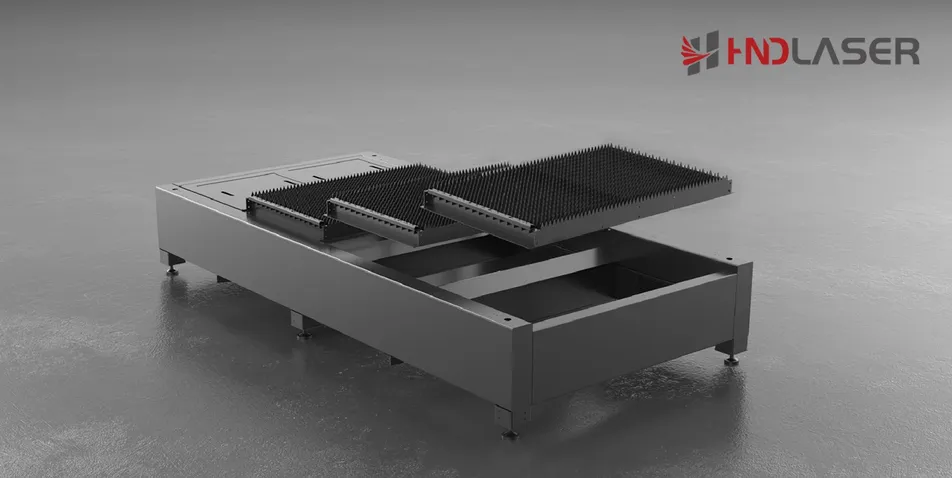

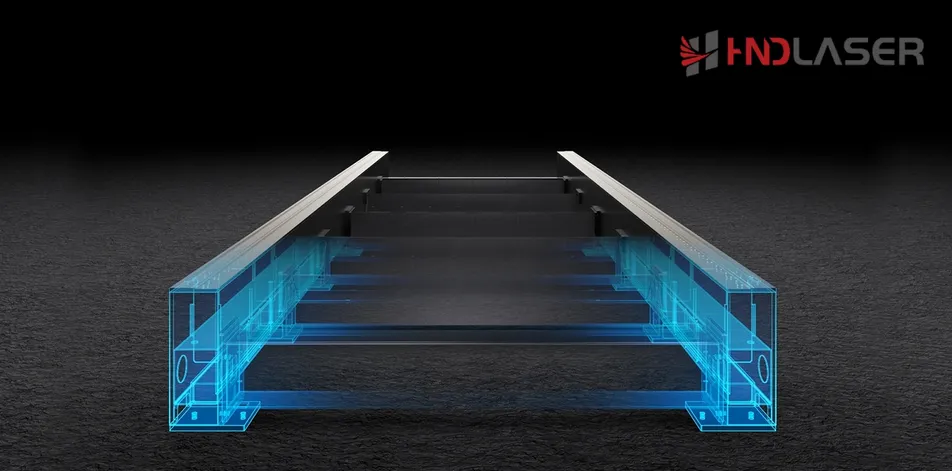

New double keel bed structure
Self-developed plug-in double keel design ensures the bed will not deform during long-term cutting, maintaining equipment stability.
Dynamic Auto-focus System
Automatically adjusts the focus between the laser head and the metal sheet in real time for consistent superior cut quality.
4Equipment Processing Capacity
| Material properties |
Maximum thickness(mm) |
Quality cutting thickness (mm) |
| Carbon steel | 20 | 16 |
| Stainless steel | 12 | 8 |
| Aluminum | 10 | 6 |
| Brass | 6 | 4 |
5After-Sales Service
- One-year Warranty: Comprehensive after-sales service for the entire machine.
- Rapid Response: Technical follow-up within 2 hours of notification; on-site support within 48 hours if required.
- Free Part Replacement: Coverage for non-consumable parts damaged due to quality issues.
- Life-long Support: Technical guidance and maintenance services provided beyond the warranty period.
- Spare Parts Availability: Reliable supply chain for maintenance and operation needs.
Frequently Asked Questions (FAQ)
?What materials can this laser cutter process?
The machine is capable of cutting a wide range of metals, including Carbon Steel (up to 20mm), Stainless Steel (up to 12mm), Aluminum (up to 10mm), and Brass (up to 6mm).
?Can it handle both flat sheets and pipes?
Yes, this is an integrated machine featuring a double platform for sheet metal and a rotary axis for tubes. It supports round tubes up to 230mm in diameter and square tubes up to 230mm.
?What is the warranty period for the equipment?
We provide a comprehensive one-year warranty for the whole machine. During this period, quality-related issues with system parts are covered for free replacement.
?How does the auto-focus system benefit the user?
The dynamic auto-focus system automatically adjusts the height between the laser head and the material in real-time, ensuring consistent precision and high cut quality even on uneven surfaces.
?What kind of after-sales technical support do you offer?
We offer a 2-hour response time for maintenance notices and 48-hour on-site service if technical issues cannot be resolved remotely. We also provide life-long technical guidance.
?How is the machine protected during operation?
The machine features a fully enclosed protection design and an integrated cooling system for optics, which prevents laser harm to operators and extends the lifespan of components.
