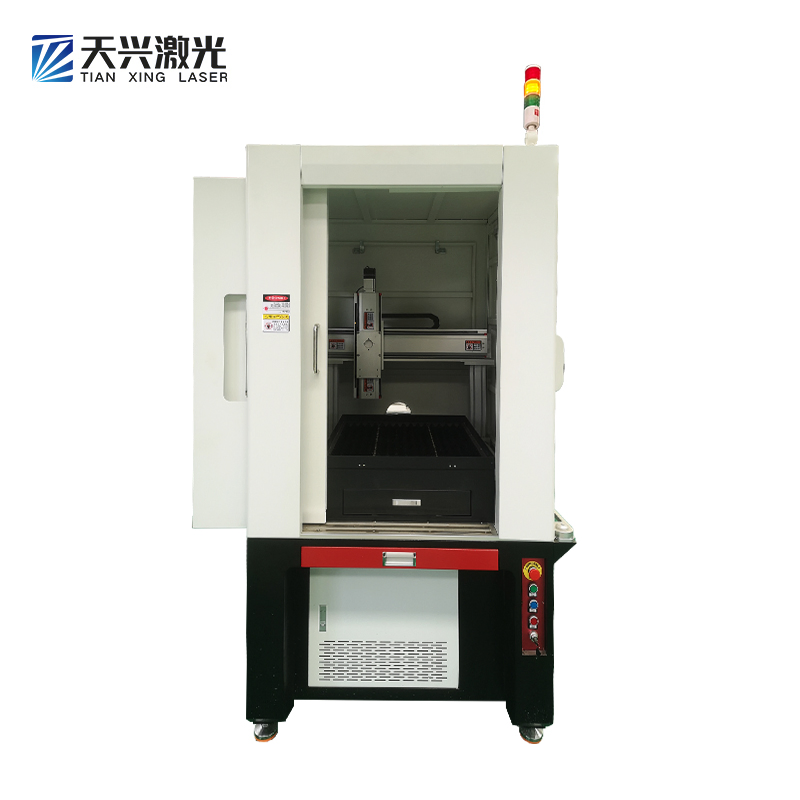

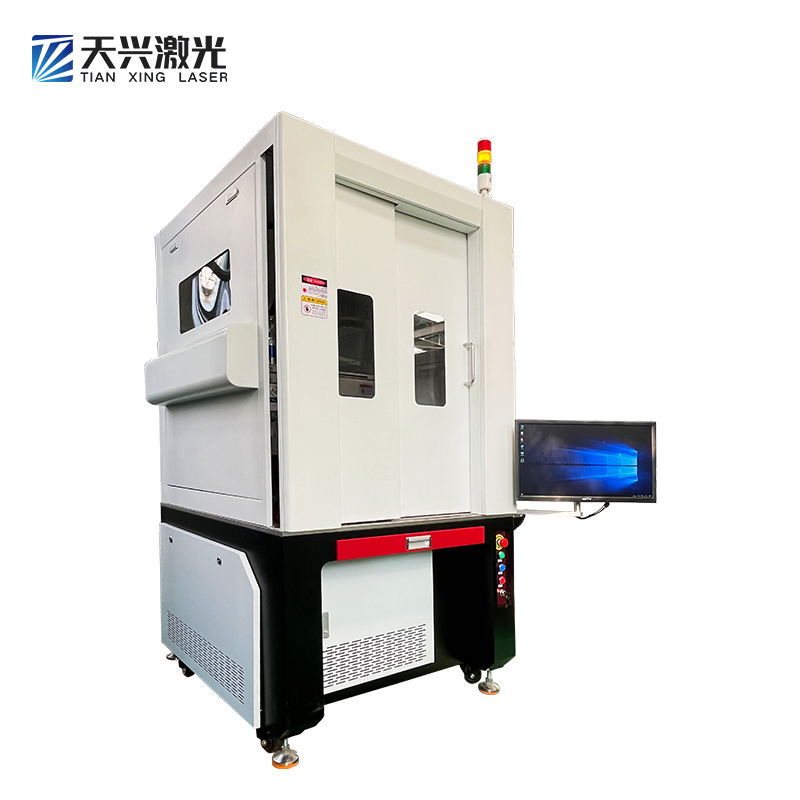

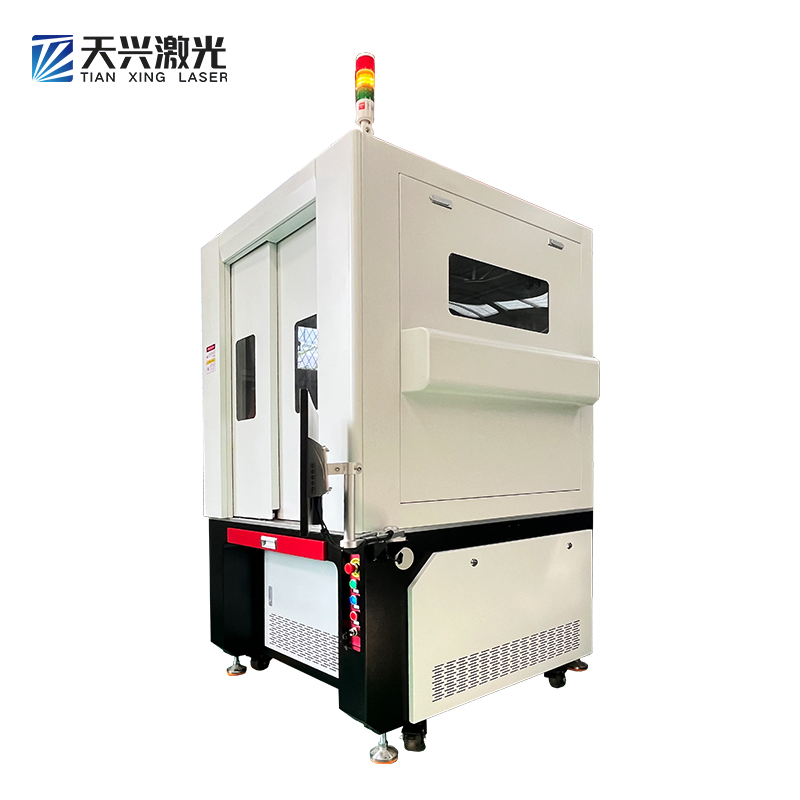

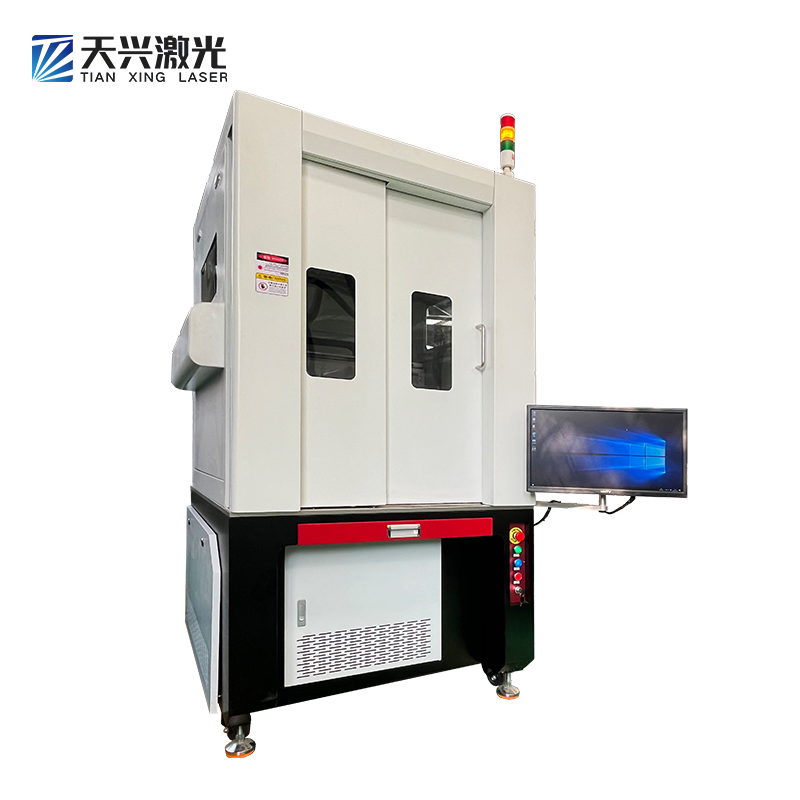

Mini Size Thin Sheet Metal Stainless Steel Fiber Laser Cutting Machine 1000W 2000W

Customization: Available
After-sales Service: Installation & Operation Guide
Warranty: 12months

Product Description

The precision fiber metal laser cutting machine adopts ultra-high precision linear motor module, compact structure and low power loss. Without mechanical contact, friction force is smaller. Smooth movement, high position accuracy and re-positioning accuracy, higher speed and acceleration. Fast reaction speed, high sensitivity, excellent follow-up performance, safe and reliable, long service life, low motion noise.

Basic Specifications

Model NO.TXT-QG-C6040
Working Area600 X 400 mm
Laser SourceRaycus / Ipg / Max
Laser Powers1000W / 1500W / 2000W / 3000W
Cooling SystemWater Cooling
Applicable MaterialMetal
Repeat Position Accuracy±0.02mm
Max Moving Speed40m/Min
Servo MotorPanasonic
Guide RailsHiwin
SoftwareCypcut
HS Code8456100090

Product Parameters

Transmission systemHigh quality ball screw transmission
X.Y axis location accuracy±0.01mm
X.Y axis repeat location accuracy±0.006mm
Max cutting speed1--40m/min (according to material and power)
Application MaterialIron/CS/SS/Aluminum/Copper and all kinds metal
AdvantagesExcellent beam quality, maintenance free, multilingual support, 3 years warranty

Cutting Capacity & Performance

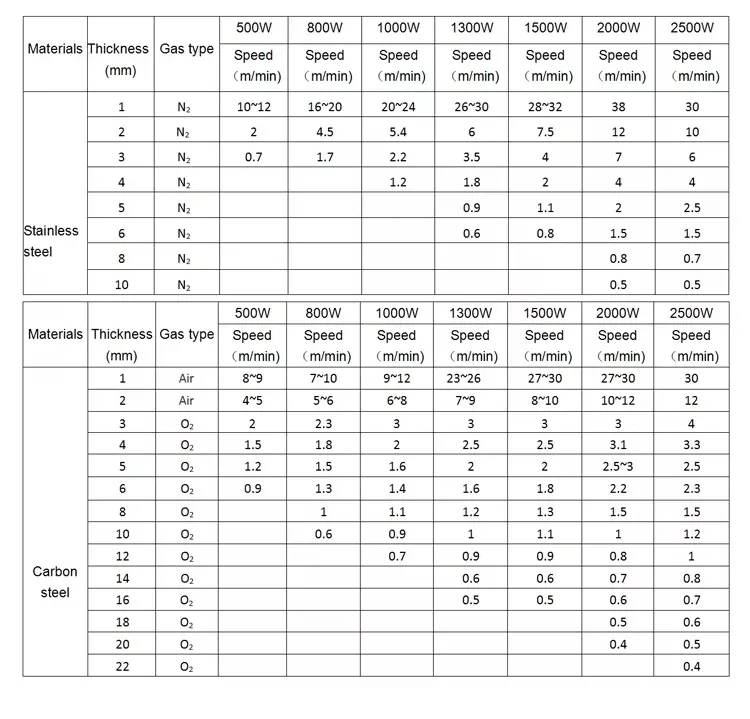

Cutting Thickness Chart

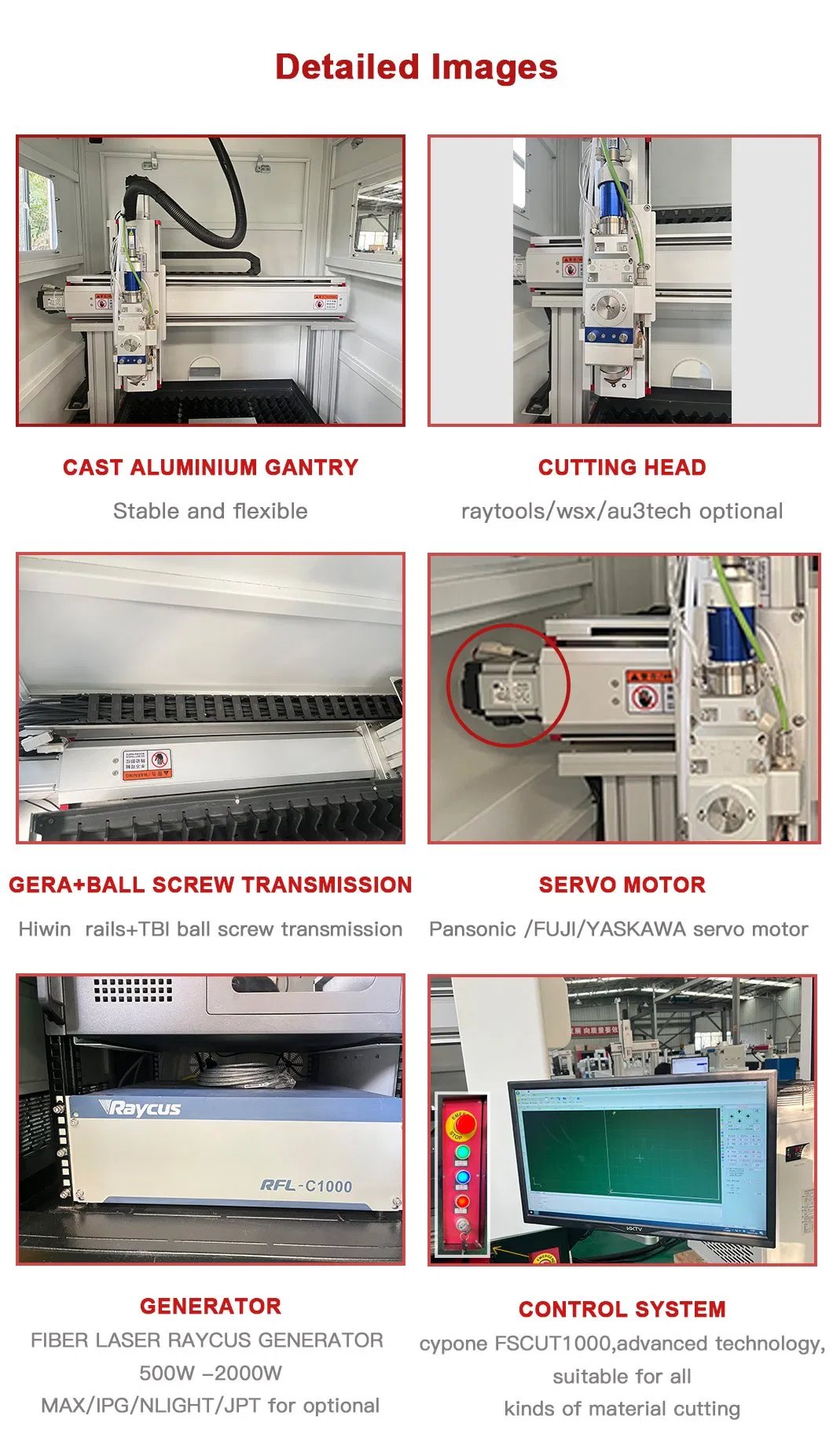

Laser Machine Detail 1

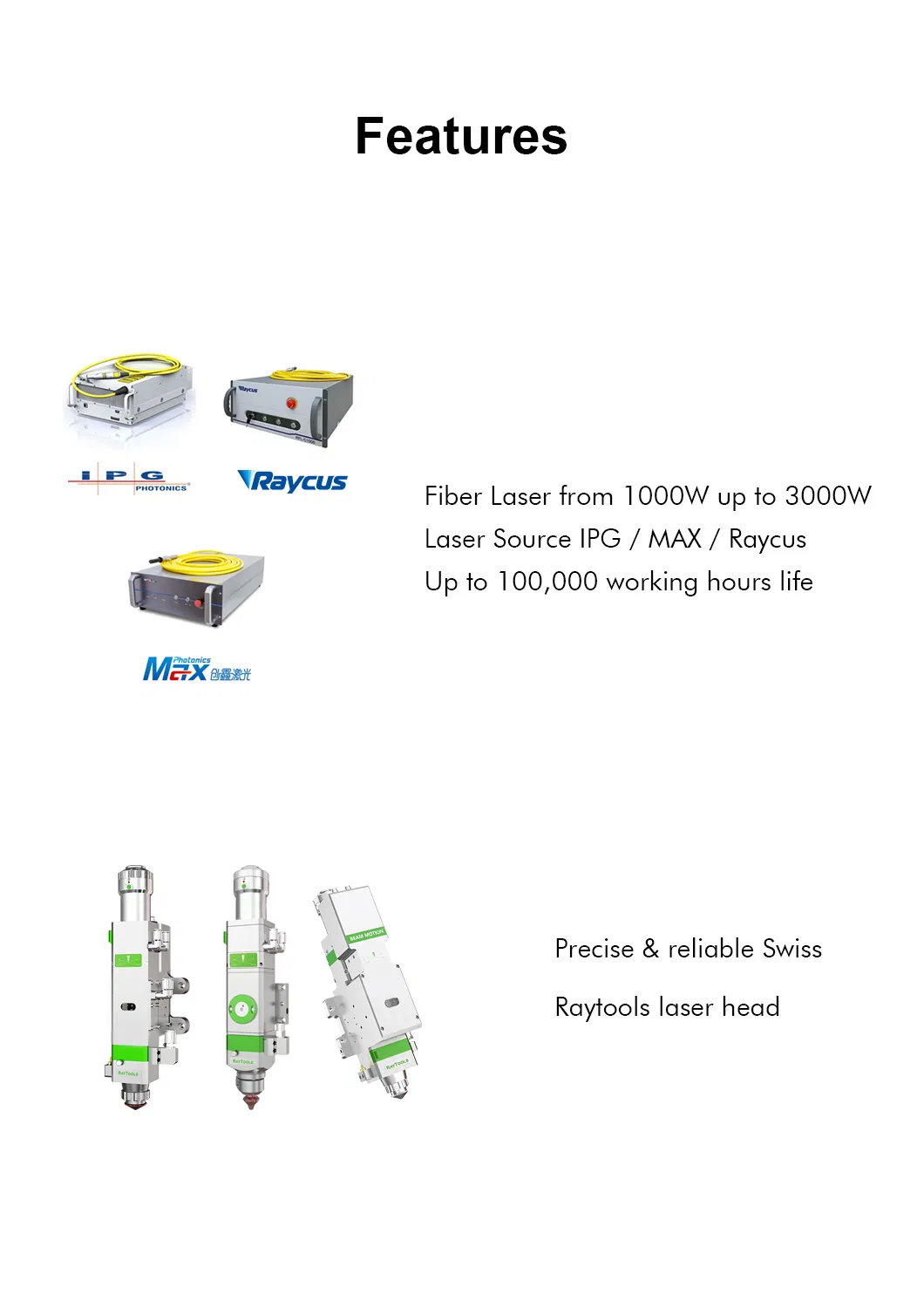

Laser Machine Detail 2

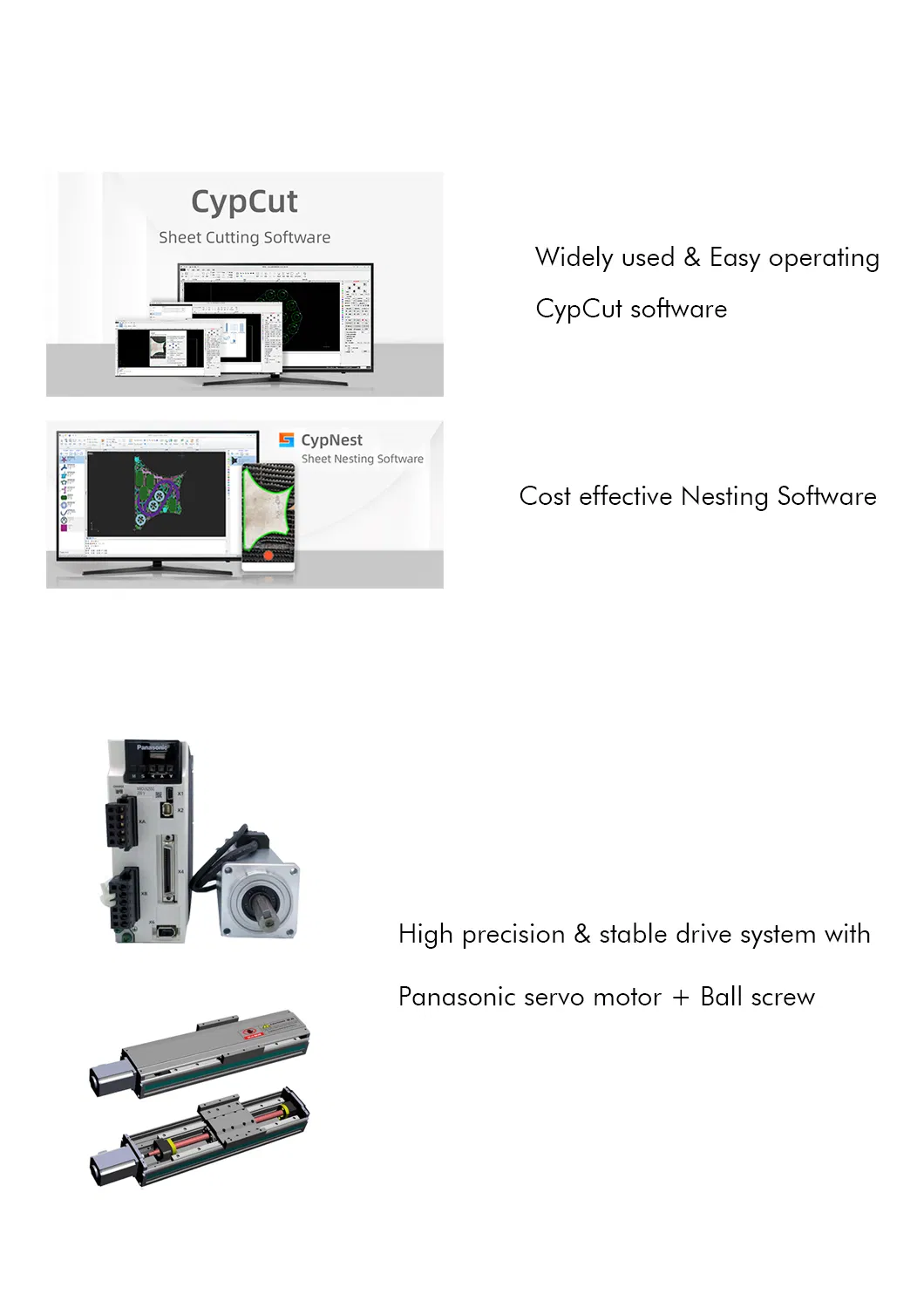

Laser Machine Detail 3

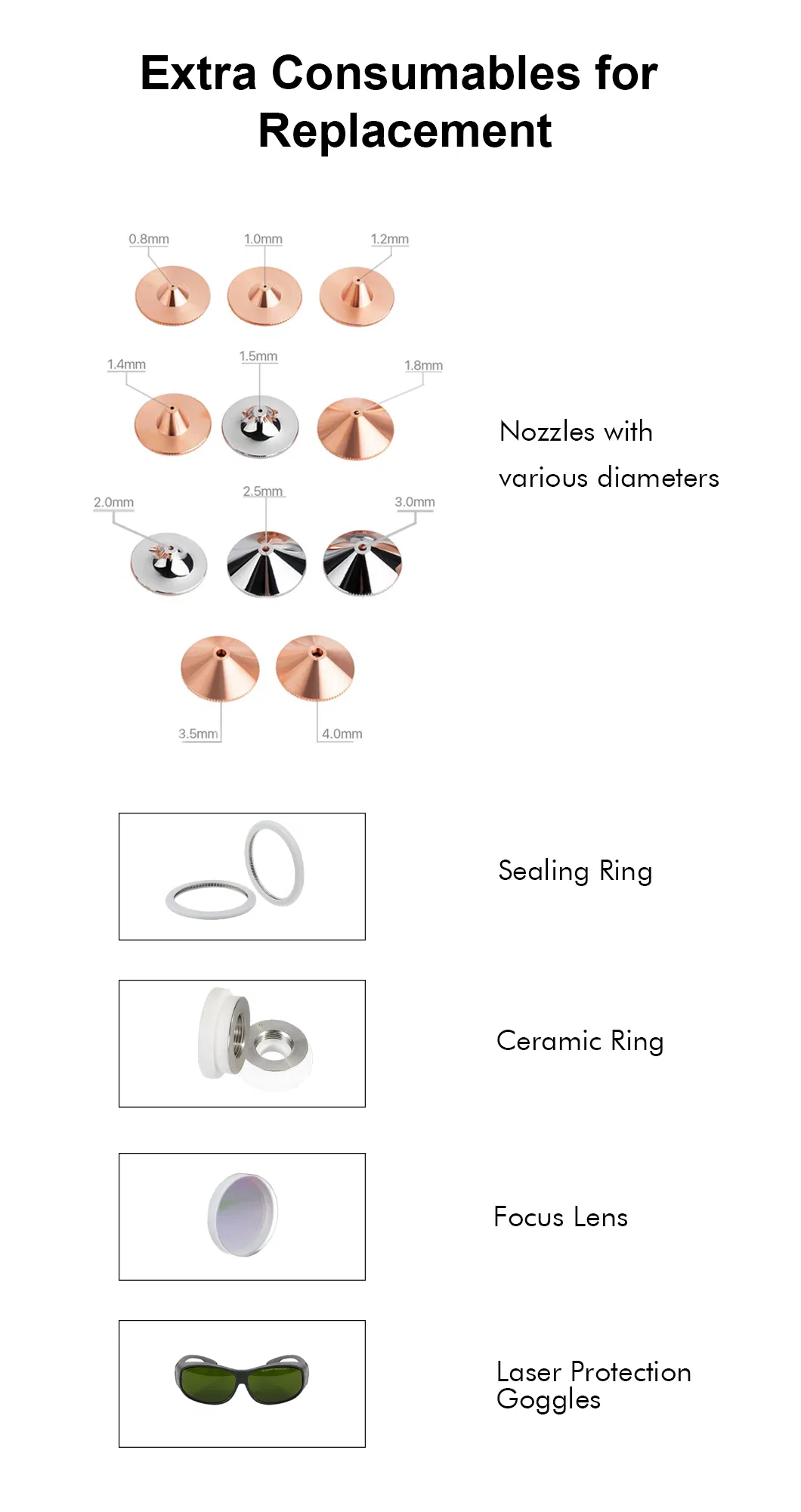

Laser Machine Overview

Samples & Applications

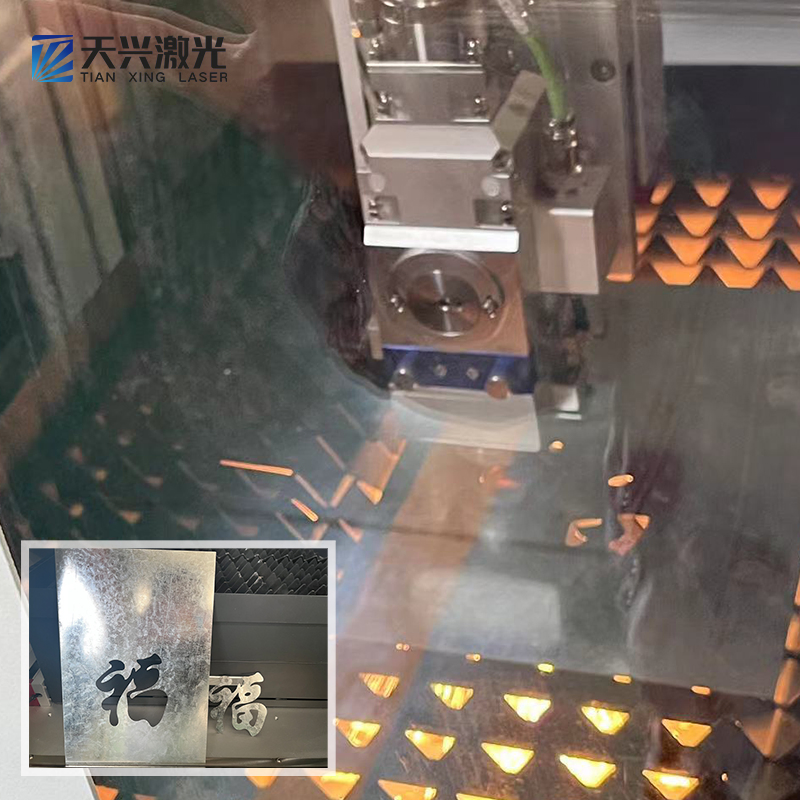

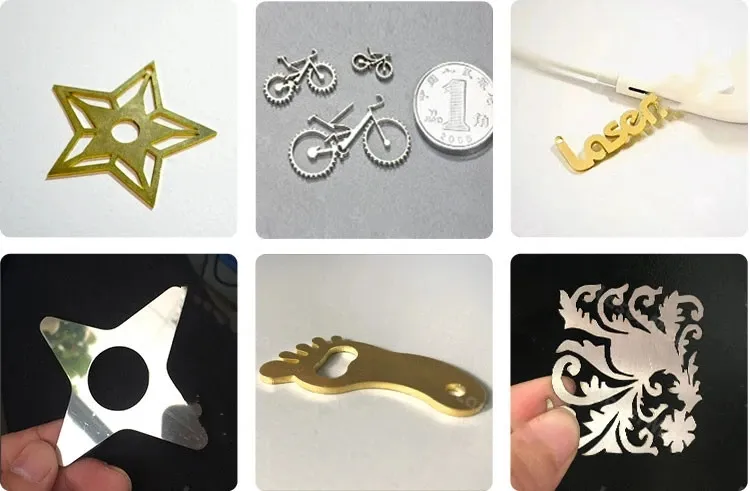

Cutting Samples

Key Advantages

As a global enterprise we are committed to providing better laser cutting solutions to customers around the world insisting on quality focusing on service and continuous core technological innovation and R&D.
Serialized and diversified products to meet specific customer needs.
Excellent and durable quality creating maximum value.
Timely after-sales service and professional handling of problems.
Free sample cutting and customer training courses.
Advantage 1
Advantage 2

Packaging & Logistics

Package Size191.00cm * 146.00cm * 206.00cm
Package Gross Weight1000.000kg
Transport PackagePlywood Case with Pallet Bottom
Packaging Detail

Frequently Asked Questions

How to select the suitable machine?
Tell us your material, detail requirements by words, pictures or video. We will recommend you the suitable model with the reasonable price.
How about the lead time?
For standard machines, the delivery time is 7-15 working days after payment. For non-standard machines, it is 15-20 days.
How to install and use it?
We provide an Instruction Book, Operational manual, and Training Video. We also offer free online training.
How to handle issues during operation?
You can send details via email, phone, or video communication. We will assist you in solving any technical issues promptly.
Can you provide training for machine operation?
Yes, we provide online training via video and also offer free training courses at our facility.
Do you provide onsite service?
Yes, we can provide onsite service if required. The customer is responsible for transport, accommodation, and a daily service fee.
