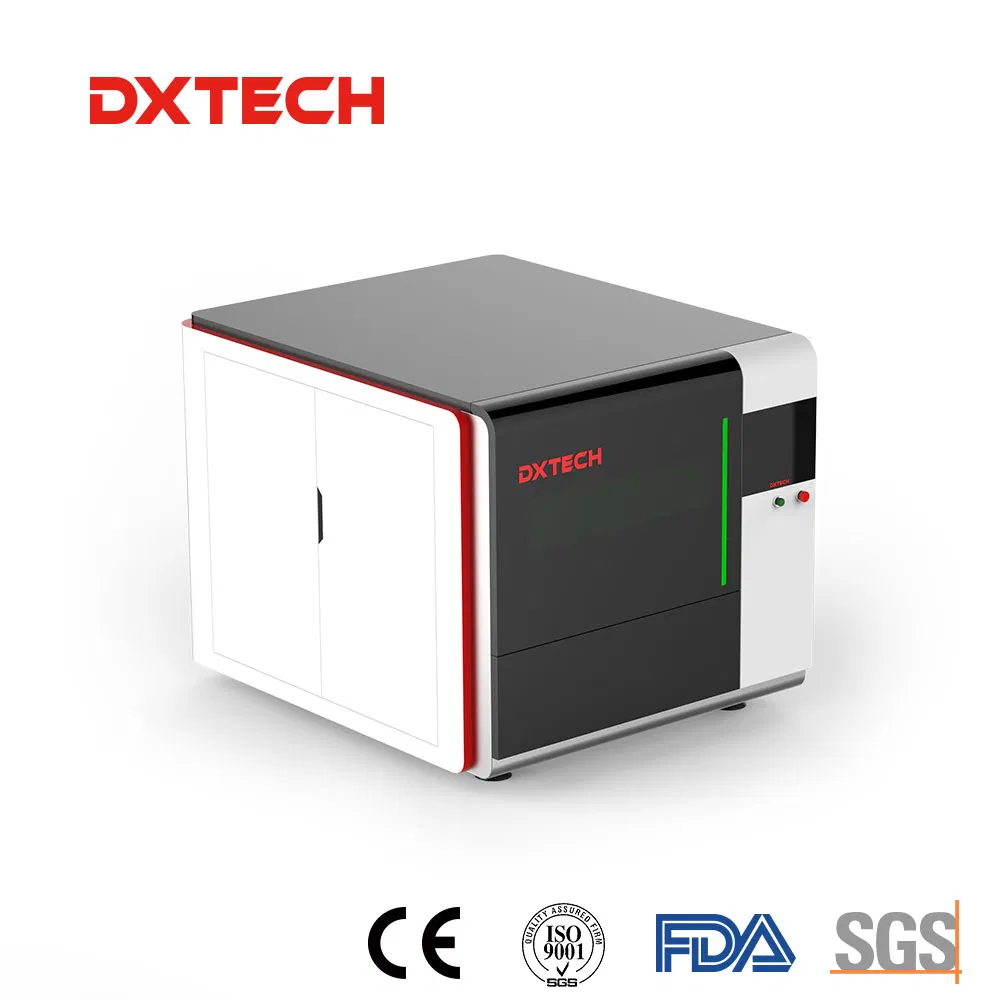

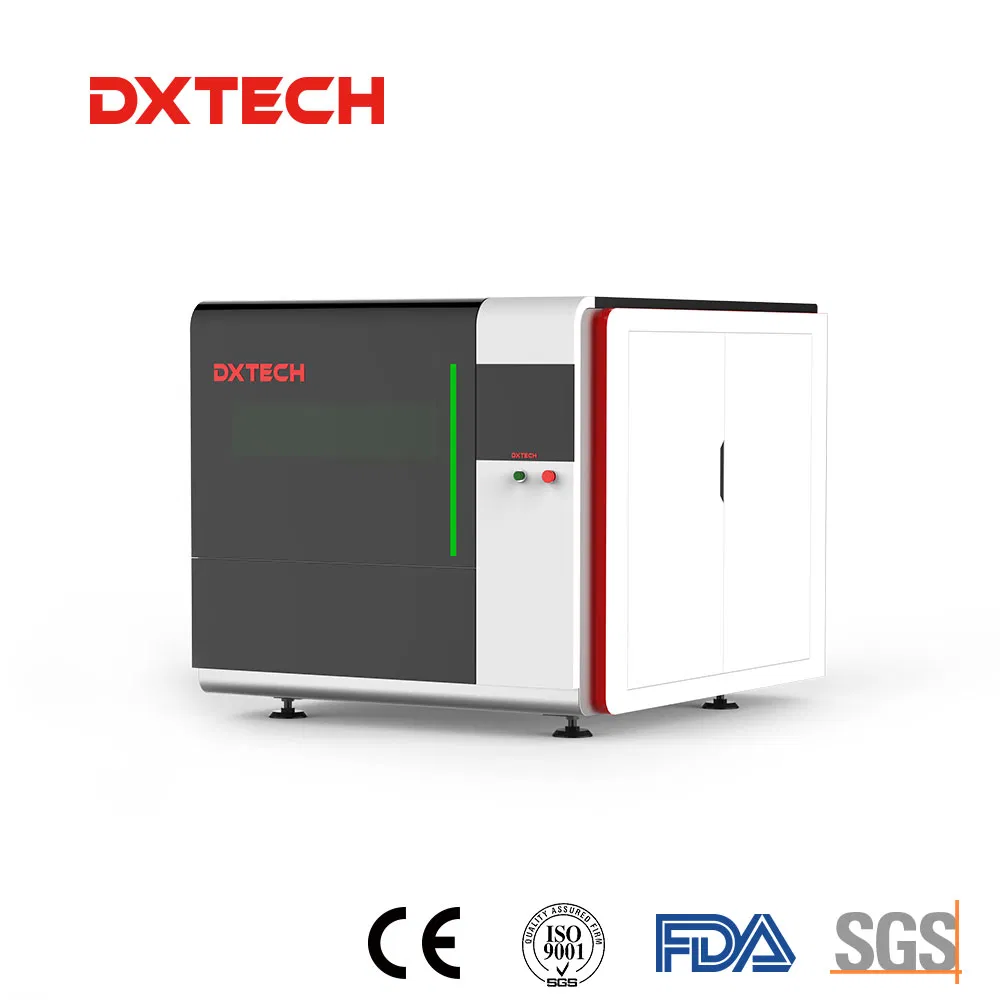

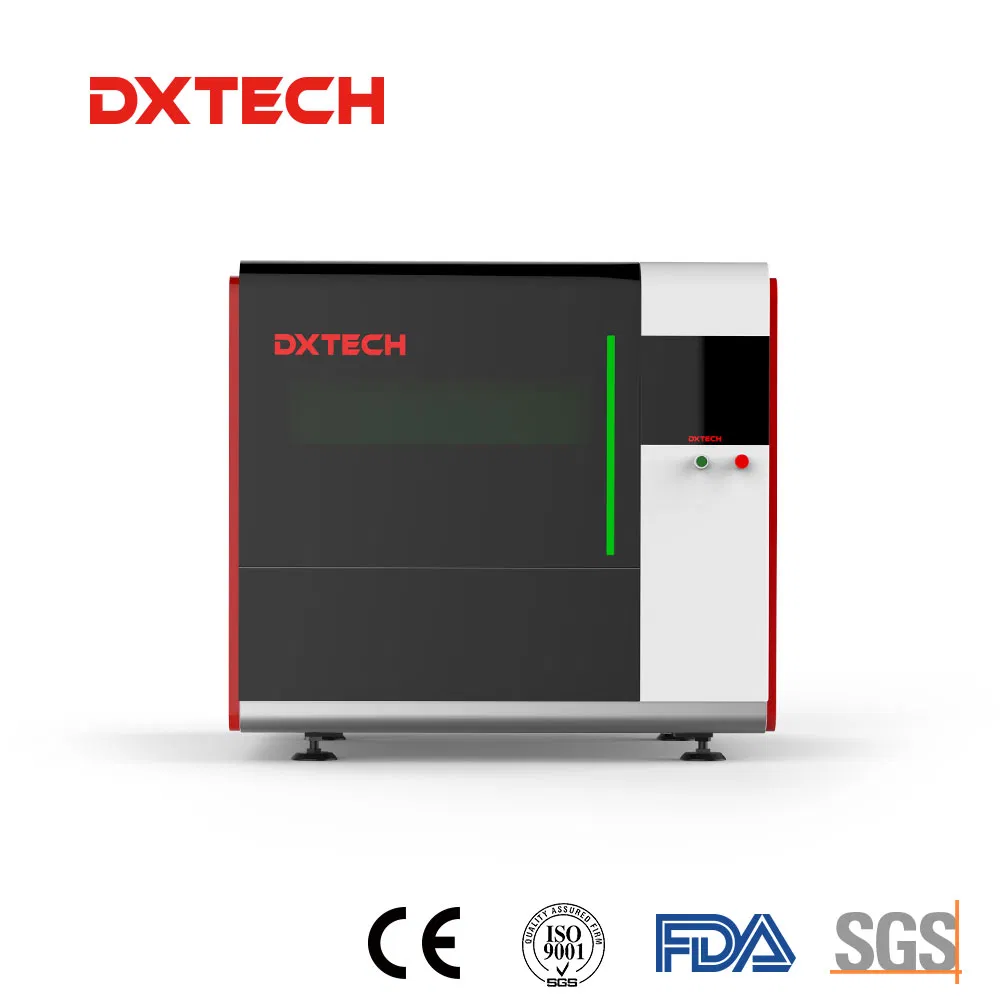

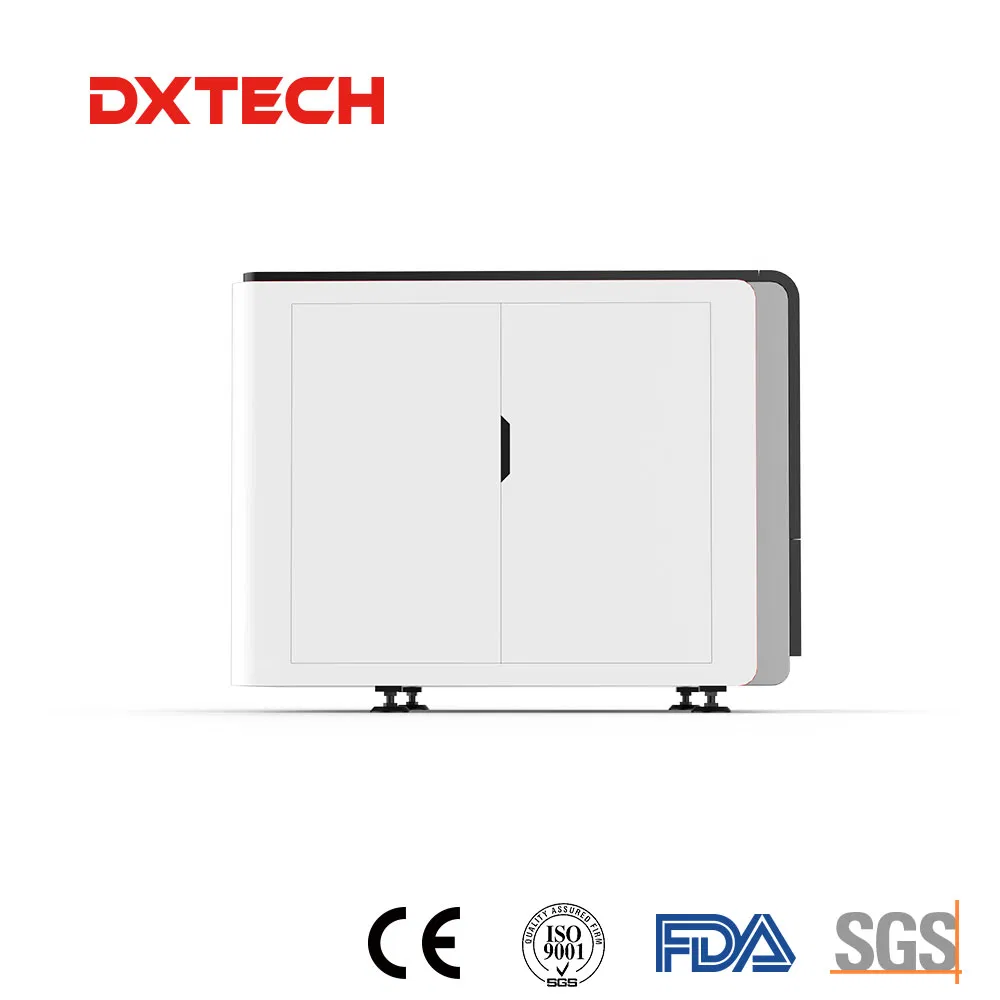

Small Thin Metal Plate High Precision CNC Fiber Laser Cutting Machine for Small Metal Parts Making Working Area 600*900mm

1 / 5

Small Thin Metal Plate High Precision CNC Fiber Laser Cutting Machine for Small Metal Parts Making Working Area 600*900mm

Customization:	Available
After-sales Service:	24-Hour Online Service
Warranty:	2-Year

Send Inquiry

Product Description

Basic Specifications

Product Name:

High Precision Laser Cutting Machine

Application:

Home Appliance, Environmental Equipment, Petroleum Machinery, Aerospace, Automotive, etc.

Cooling System:

Water Cooling

Laser Type:

Continuous Wave / Free Electron Laser

Structure:

Gantry Type

Driving System:

Servo Motor (Japan Yaskawa)

Working Area:

1500*3000mm (Option)

Bed Type:

Gray Cast Iron Bed

Product Description

If you are looking for a small fiber laser cutter, this high-precision small fiber laser cutting machine will be your best choice. It is designed with perfect mechanical structure and adopts high-quality components and parts. Besides, the adopted protective cover can prevent any dust and smoke during the processing and protects your safety. With this machine, you can make any metal products with high precision.

💎

Fusion of Aesthetics & Engineering: Compact mechanical structure and exquisite appearance indicating a perfect mechanical design.

🎯

High Precision Cutting: Top-quality laser head and nozzle ensure steady laser beams for carbon steel, stainless steel, brass, and aluminum.

⚡

Fast Processing: Advanced motor devices enable rapid cutting speeds, resulting in high efficiency.

🛠️

Versatile Applications: Ideal for metal tools, parts, ornaments, gifts, and signs.

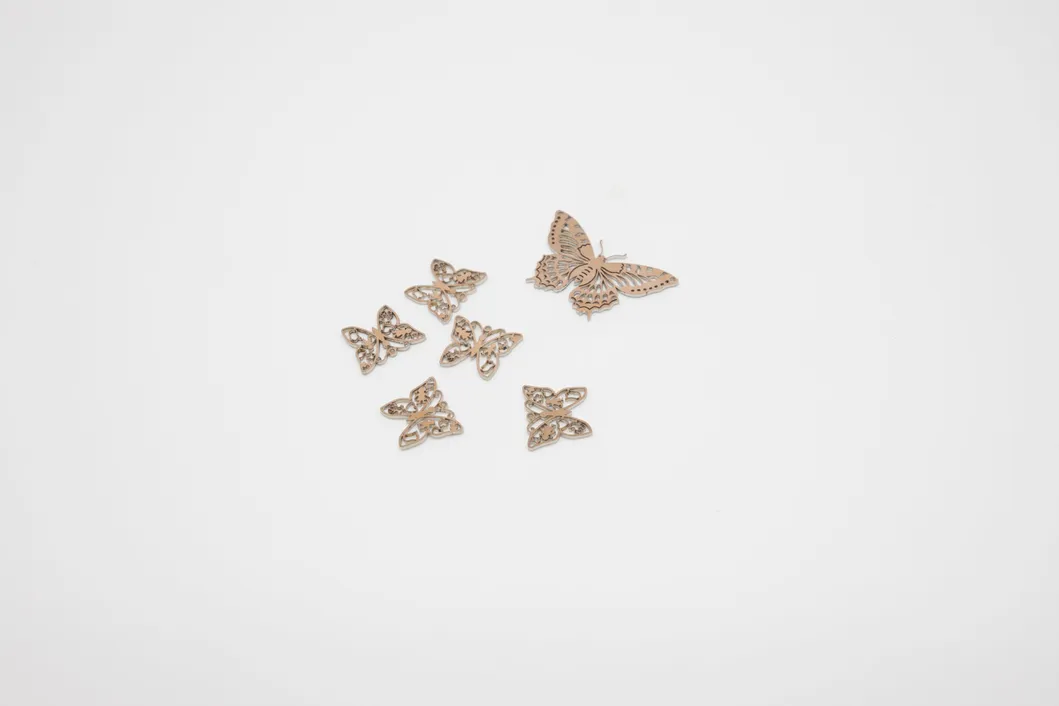

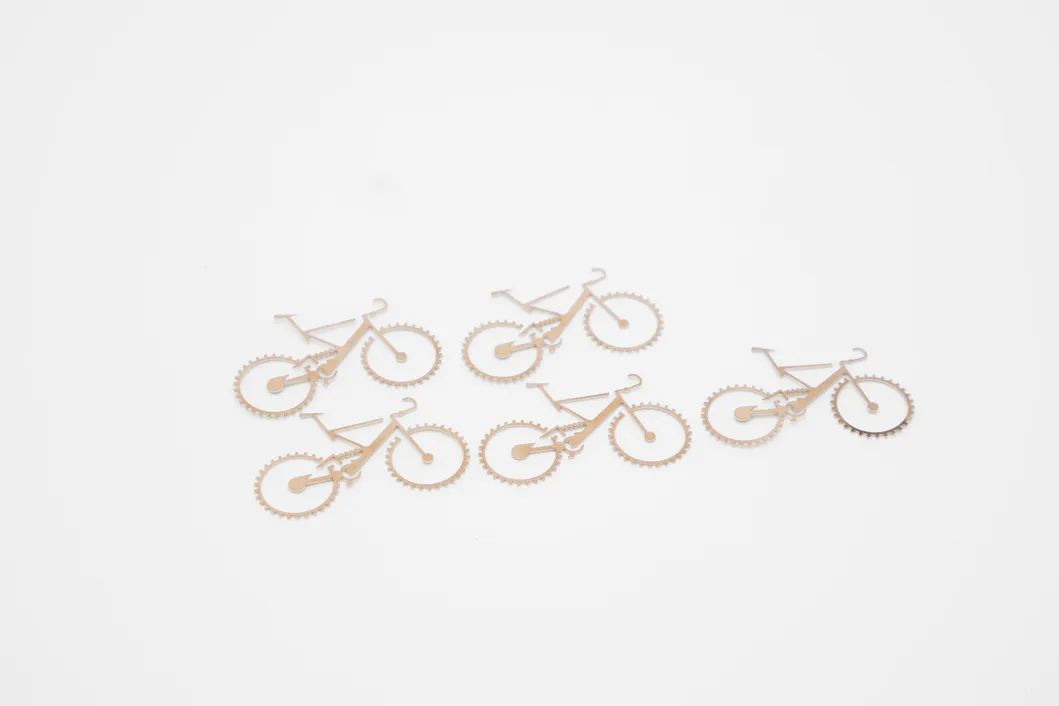

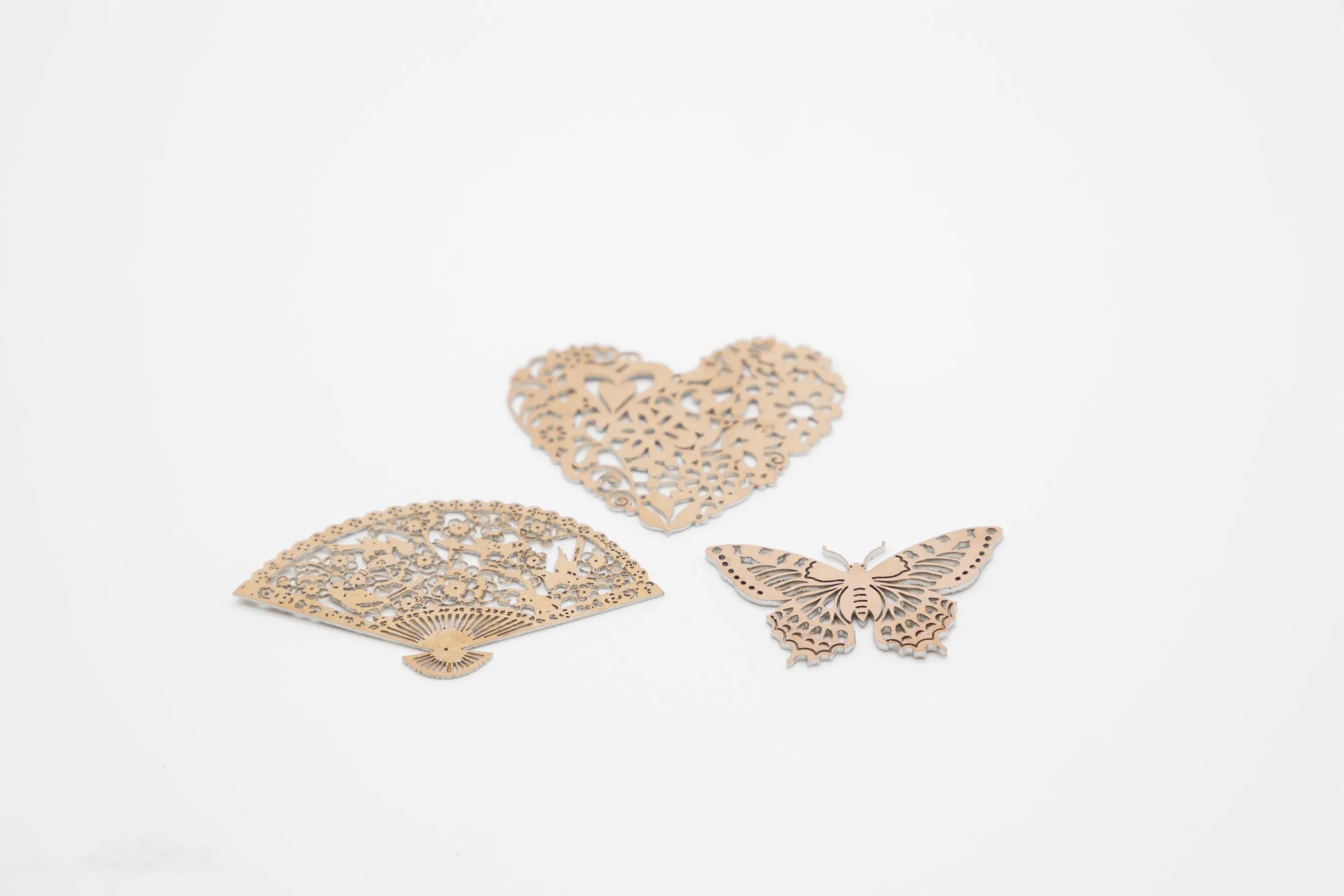

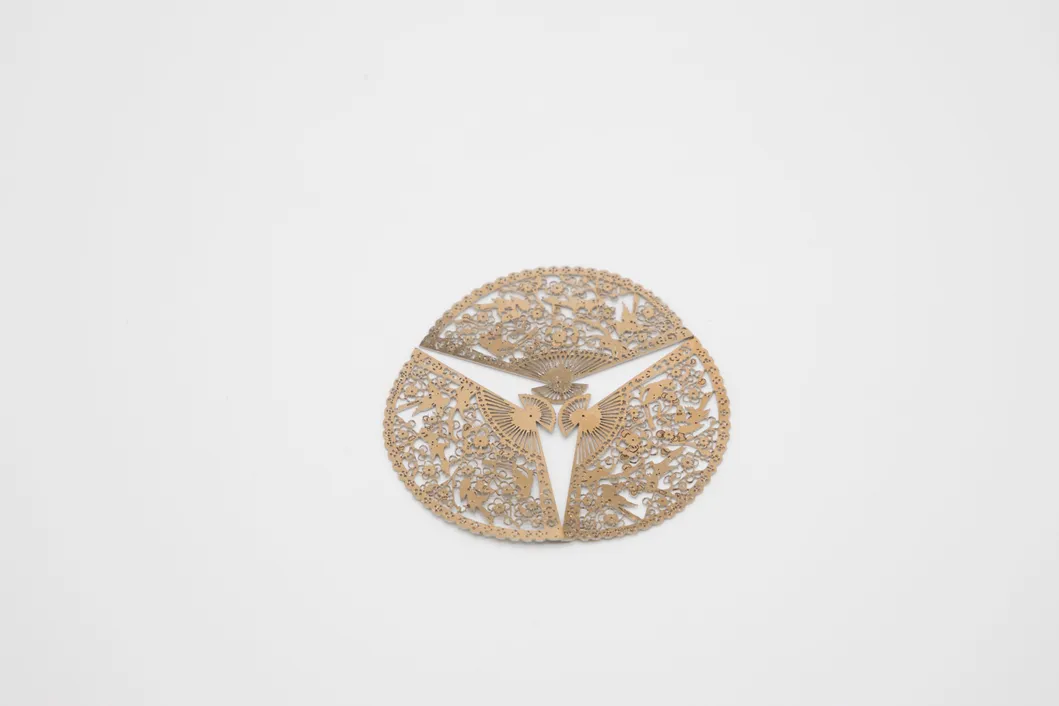

Precision Samples

Technical Parameters

Model	DX-1530F
Working Area	1500*3000mm (Optional)
Laser Output Power	1000W / 2000W / 3000W / 4000W
X/Y Positioning Accuracy	±0.03mm
X/Y Repositioning Accuracy	±0.02mm
Max Cutting Speed	25m/min
Maximum Acceleration	1.5G
Servo Motor	Japan Yaskawa / Japan Fuji
Reducer	Japan SHIMPO

Cutting Capacity

Material	500W	750W	1000W	1500W	2000W	3000W
Carbon Steel	0.4-6mm	0.4-10mm	0.4-12mm	0.4-14mm	0.4-16mm	0.4-20mm
Stainless Steel	0.4-3mm	0.4-4mm	0.4-5mm	0.4-6mm	0.4-8mm	0.4-10mm
Aluminum	0.4-2mm	0.4-3mm	0.4-3mm	0.4-4mm	0.4-6mm	0.4-8mm
Brass	-	-	0.4-3mm	0.4-3mm	0.4-3mm	0.4-8mm

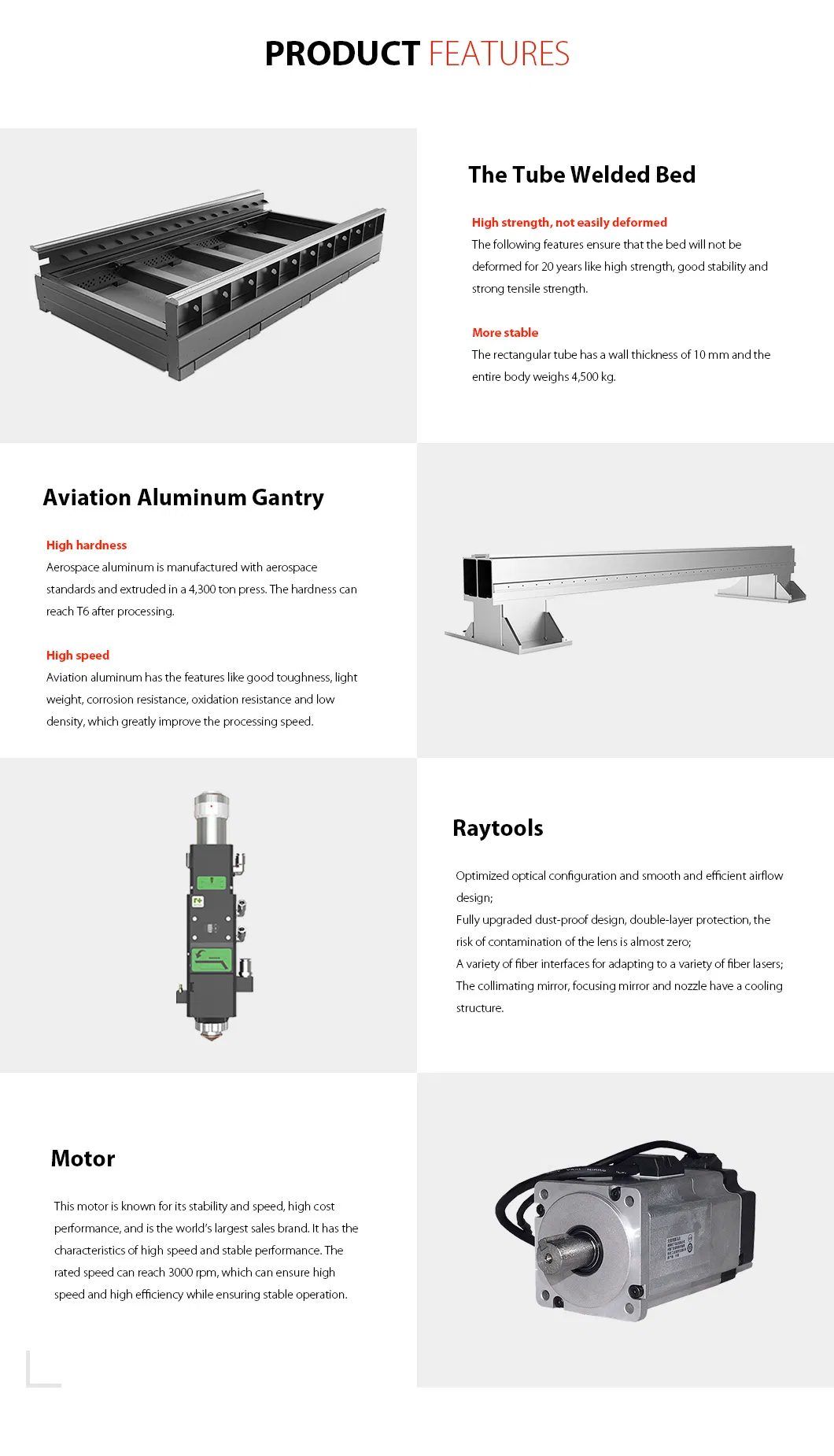

Core Components

Tube Welded Bed

High strength, not easily deformed for 20 years. Features good stability and strong tensile strength. The rectangular tube wall is 10mm thick, and the body weighs 4,500 kg.

Aviation Aluminum Gantry

Manufactured with aerospace standards and extruded in a 4,300-ton press. T6 hardness, light weight, and oxidation resistance significantly improve processing speed.

Raytools Laser Head

Optimized optical configuration and dust-proof design. Features cooling structures for collimating/focusing mirrors and nozzles.

Industrial Applications

Suitable Materials: Stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, copper, and more.

Industries: Automotive, advertising, kitchenware, sheet metal processing, aviation, aerospace, electronics, elevators, and grain machinery.

Packaging & Logistics

Our 3-layer protective packaging ensures safety:

Inner: EPE pearl cotton film package
Middle: Environmental protection material wrapping
Outer: PE stretch film winding

Frequently Asked Questions

What materials can this laser machine cut?

It is ideal for cutting various metals including carbon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel, and copper.

What is the positioning accuracy of the machine?

The X/Y-axis positioning accuracy is ±0.03mm, and the repositioning accuracy is ±0.02mm, ensuring high-precision results for complex parts.

How is the machine cooled during operation?

The system utilizes a professional water-cooling system to maintain stable temperatures for the continuous wave laser source.

What kind of bed structure does this machine use?

The machine features a heavy-duty gray cast iron bed with high stability and tensile strength, designed to remain undeformed for up to 20 years.

Is the machine easy to ship internationally?

Yes, we use a specialized three-layer packaging process (EPE pearl cotton, eco-friendly protection, and PE stretch film) and offer fumigation-free wooden cases for secure global transport.

What are the main selling points?

The main selling points include a competitive price, high processing quality, low procurement costs, and the use of world-class components like Yaskawa motors and Raytools laser heads.
