| Model | JX-T1325H | JX-T1530H | JX-T1560H |
|---|---|---|---|
| Effective Cutting Range | 1300*2500mm | 1500×3000mm | 1500×6000mm |
| Machine Size | 1950*3750mm | 2150x4250mm | 2150x7250mm |
| Cutting Speed | 50-10000 mm/min | ||
| Input Power Source | 380V±10% VAC, 50/60HZ, 3-Phase | ||
| Plasma Thickness | 0.5-40mm (Subject to power source) | ||
| Torch Height Controller | F1628 | ||
| CNC System | F2300A | ||
| Motor & Drive | Servo Motor and Drive | ||
| Operation Precision | ±0.2mm | ||
| Processing Materials | Iron, Steel, Aluminum, Galvanized & Titanium Sheets | ||

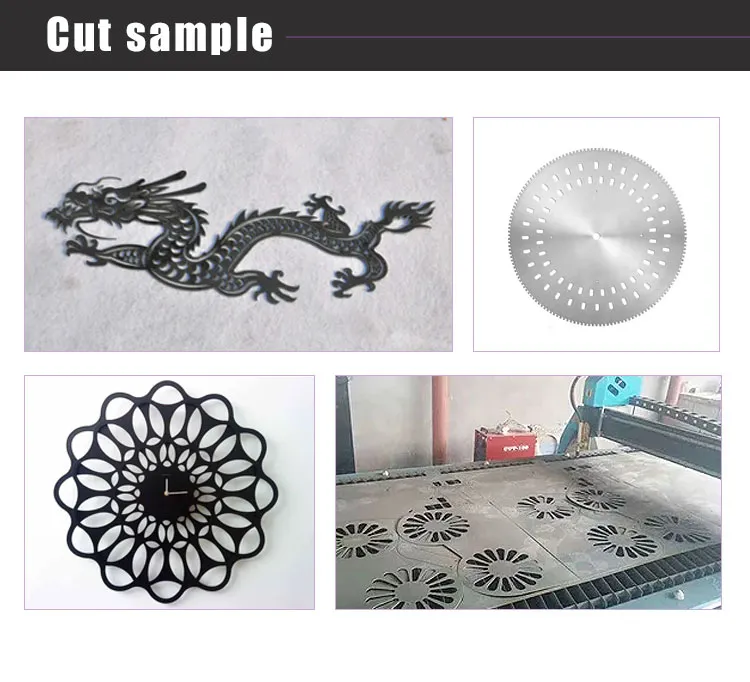

A: It is designed to cut a wide variety of metals including Carbon Steel, Stainless Steel, Aluminum, Copper, Iron, and Titanium sheets.
A: The machine can cut materials ranging from 0.5mm up to 40mm, depending on the specific plasma power source selected.
A: Yes, the system supports professional software like StarCam or Fastcam, which helps in efficient part drawing and material optimization.

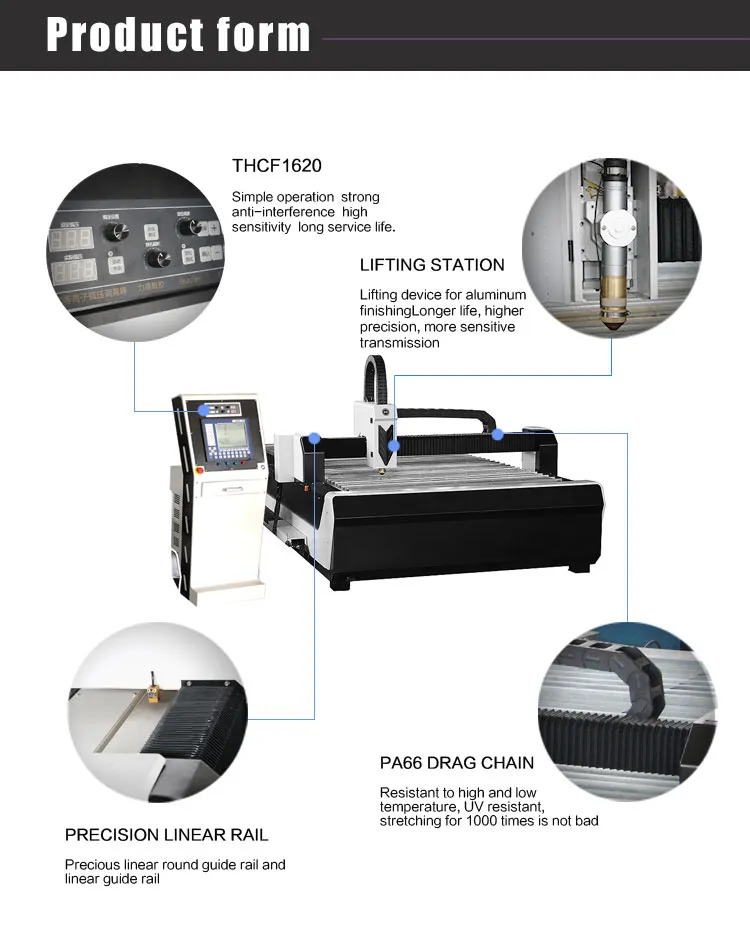

A: It is equipped with an F1628 Torch Height Controller (THC) that automatically adjusts the cutting head's position to maintain a stable distance from the material.

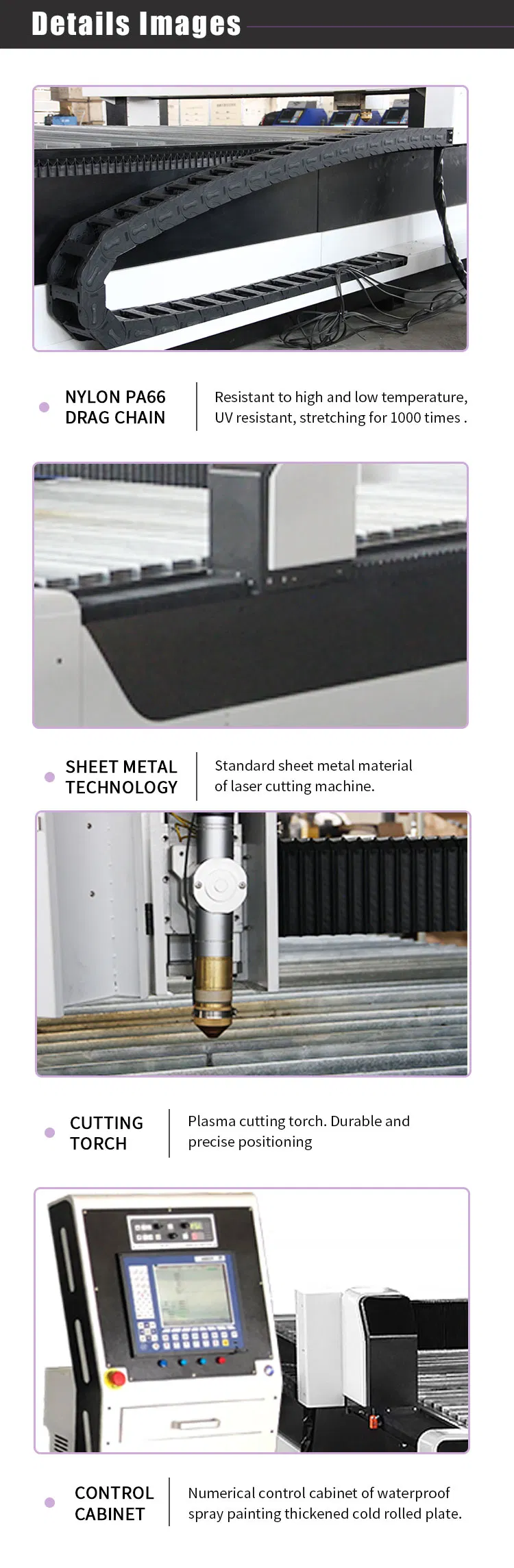

A: The machine offers high operational precision of ±0.2mm, supported by a heavy-duty welded structure and high-quality servo motors.
A: Absolutely. We offer customization for specifications, size, and appearance to fit your specific production workflow and workspace.
