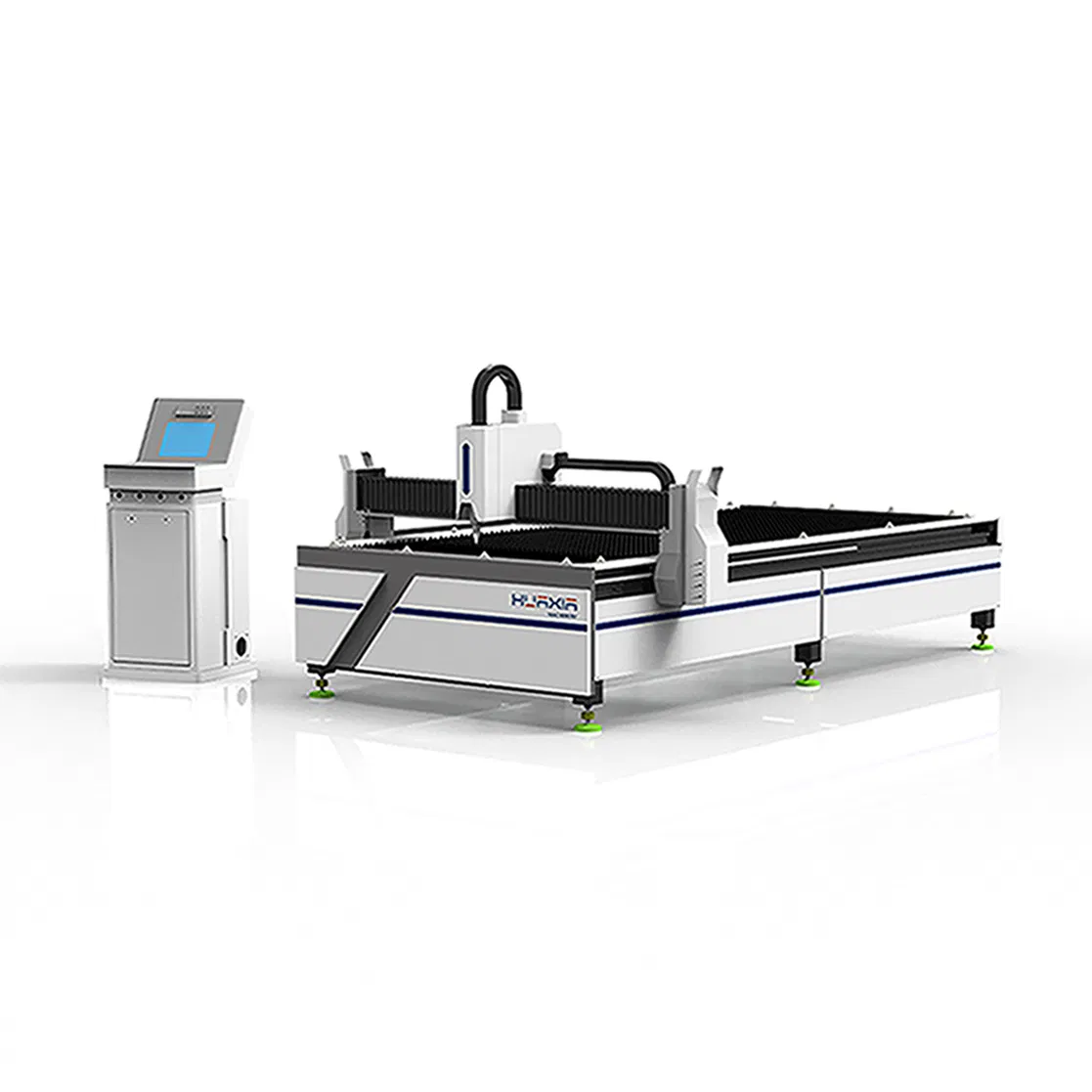

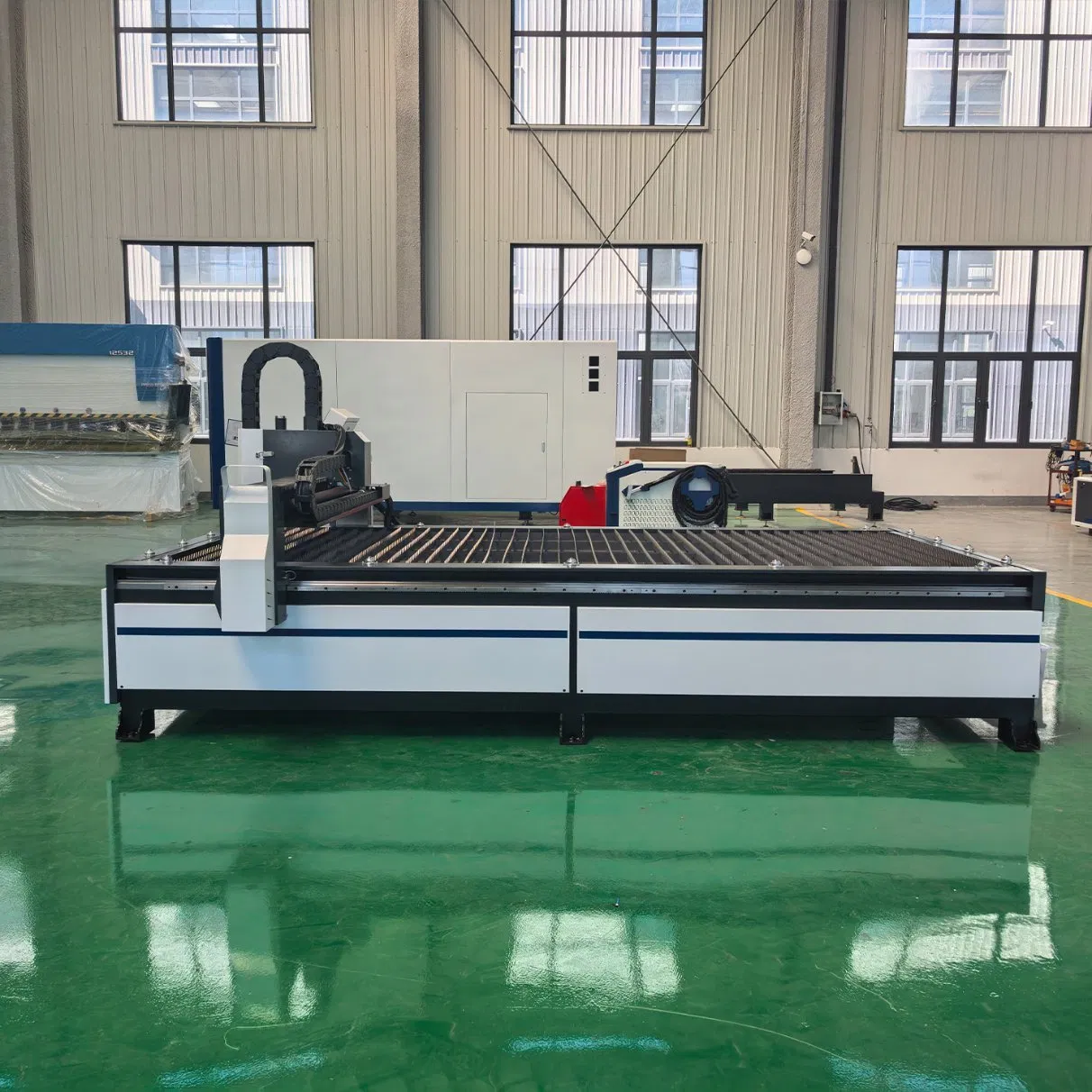

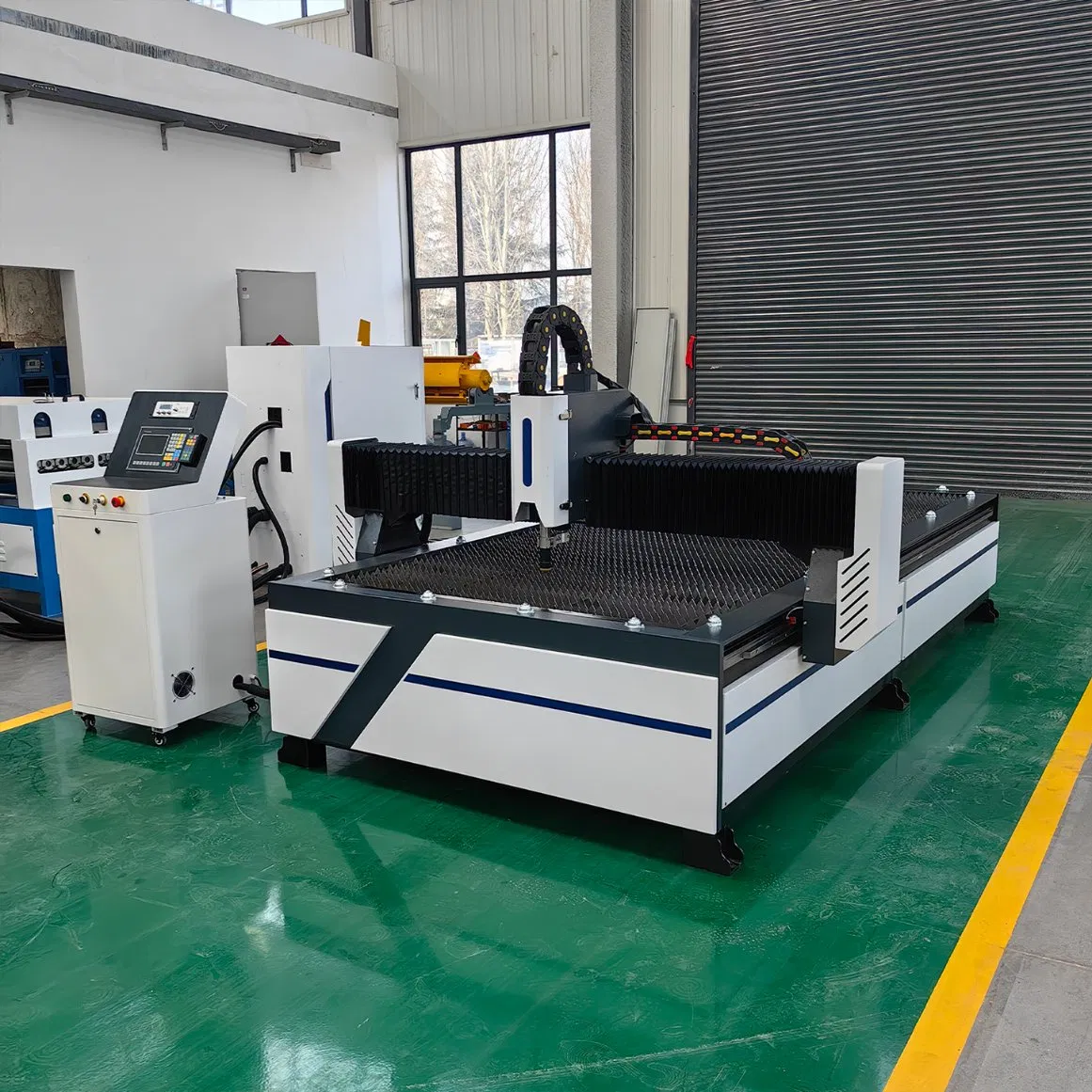

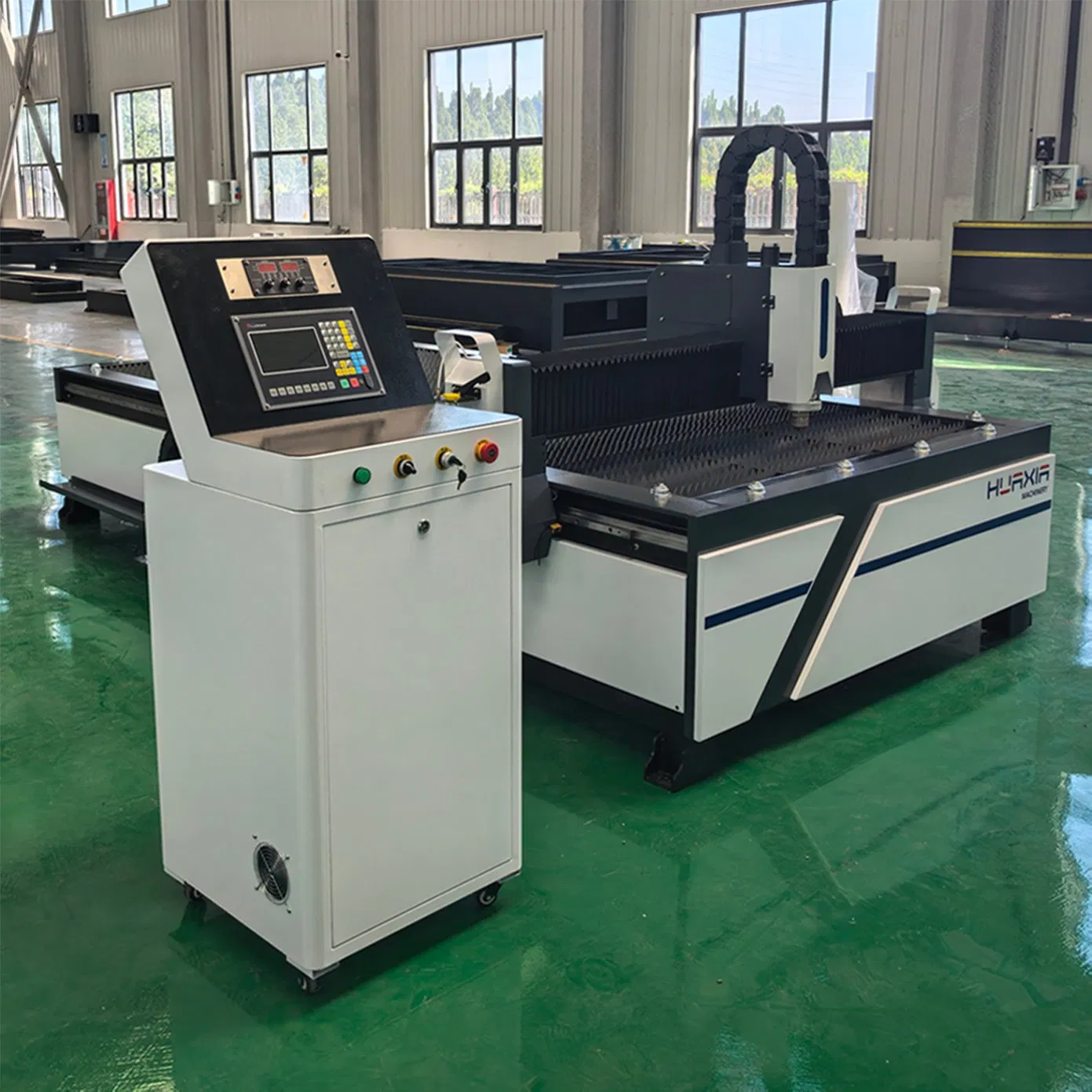

Precision Cutting Machine CNC Plasma Cutter for Complex Shape Plate 63A-300A Aluminum Cutter Machine with CE High Accuracy Fast Cutting for Thin Metal

1 / 5

Precision Cutting Machine CNC Plasma Cutter for Complex Shape Plate 63A-300A Aluminum Cutter Machine with CE High Accuracy Fast Cutting for Thin Metal

Customization:	Available
Cooling Method:	Air Cooling
Frequency Band:	High Frequency

Send Inquiry

Product Description

Basic Specifications

Model NO.

Product Name

CNC Plasma Cutting Machine

Warranty

3 Year Remote Warranty

Cutting Material

Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel

Automatic Grade

Automatic

Power Source

Electric

Cutting Mode

Plasma Cutting

Working Area

3000*1500mm

Plasma Power

63A/120A/160A/200A/300A/400A

Materials Thickness

Max 60mm

Voltage

380V/50Hz

Origin

China

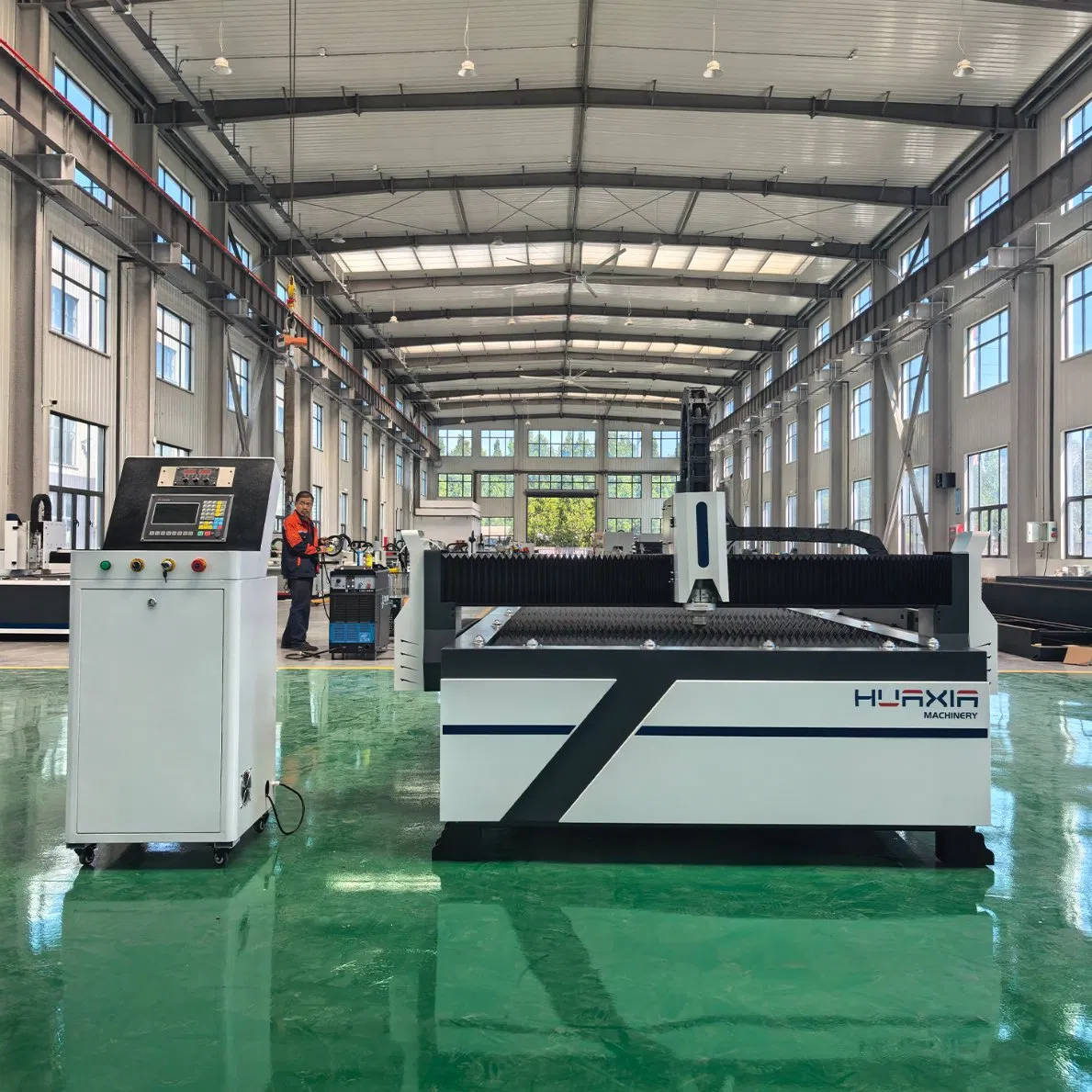

Industrial CNC Plasma Cutting System

Plasma cutting table provide high cutting speeds and throughput, combined with a low cutting cost per mm. With the introduction of high-definition systems, secondary operations on processed parts are nearly or completely eliminated. The HXP-3015 series is a tailor-made plasma cutting system that has been specially designed to meet various industrial needs. With a compact design, this machine is suitable for use in small workshops as well as in large industrial companies.

Machine Features

Compact design & space saving
High performance STARFIRE controls
FASTCAM nesting software
Rugged design for multi-shift operation
Low maintenance requirements

Model Comparison

Model	HX-1325PA	HX-1530PA	HX-1560PA	HX-2030PA	HX-2040PA	HX-2060PA
Processing Range	1300*2500mm	1500*3000mm	1500*6000mm	2000*3000mm	2000*4000mm	2000*6000mm
Plasma Power	63A / 120A / 160A / 200A / 300A
Accuracy	Positioning: ±0.05mm \| Repeatability: ±0.02mm
Max Speed	20m/min

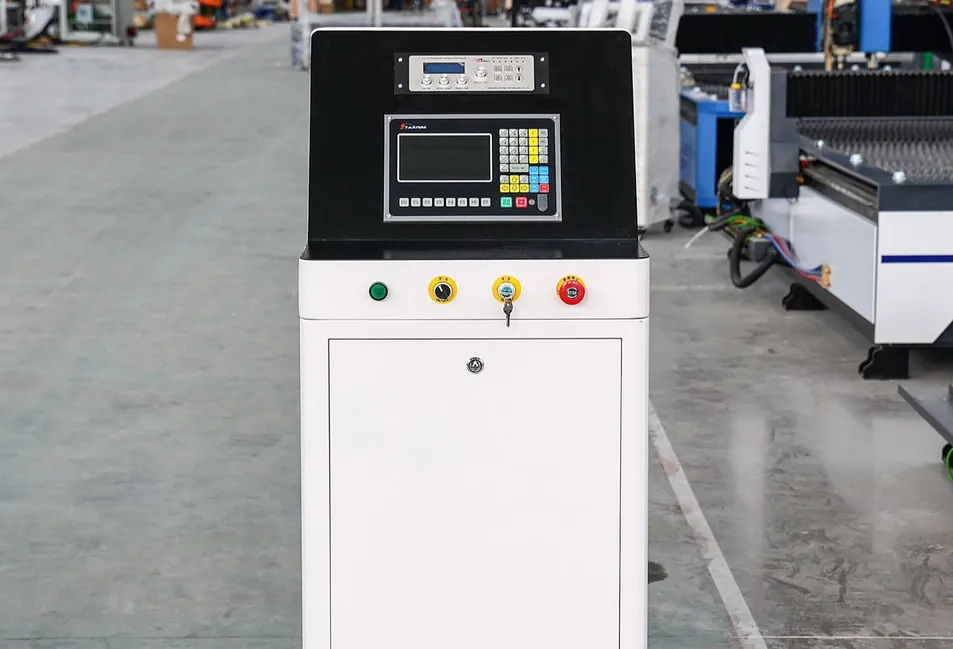

CNC System

Highly reliable design with anti-plasma interference and automatic corner speed control.

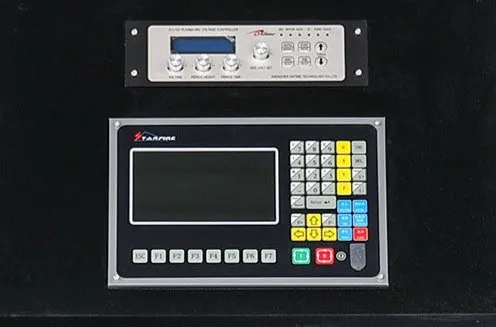

Height Controller

Automatic arc pressure function ensures constant torch height for high-quality cutting.

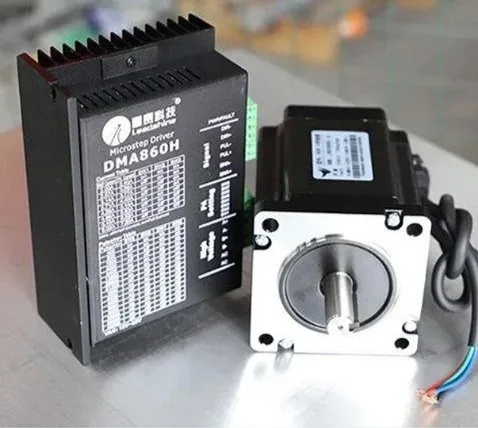

Drive System

Precision power system for accurate starting, stopping, and turning motions.

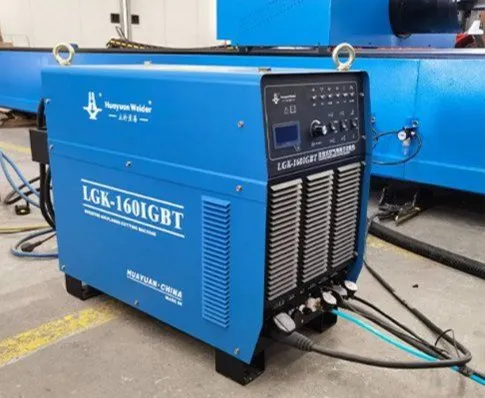

High Efficiency Plasma Power

High load duration, suitable for heavy industry.
Slow rise technology to reduce accessory consumption.
Clean incision with good arc stiffness.
Undervoltage and overheat automatic protection.
Stepless adjustable current for different thicknesses.

Packaging & Delivery

Package Size

385.00cm * 225.00cm * 165.00cm

Gross Weight

1250.000kg

Package Type

Fumigation-Free Plywood Wooden Box

Frequently Asked Questions

1. What materials can this CNC plasma machine cut?

The machine is capable of cutting a wide range of metals, including Copper, Carbon Steel, Iron, Aluminum, Metal Alloys, and Stainless Steel.

2. What is the maximum cutting thickness of the equipment?

The machine can handle a maximum material thickness of up to 60mm, depending on the plasma power source selected.

3. What is the warranty period for this machine?

We provide a comprehensive 3-year warranty for the machine along with a 3-year remote technical support warranty.

4. Are there different sizes available for the working area?

Yes, while the standard size is 3000*1500mm, we also offer other configurations such as 1325, 4015, and 4020 to fit your specific needs.

5. What control system does the machine use?

The machine is equipped with high-performance STARFIRE controls and uses FASTCAM nesting software for optimal efficiency.

6. What plasma power options can I choose from?

Available power options include 63A, 120A, 160A, 200A, 300A, and 400A to suit various industrial requirements.
