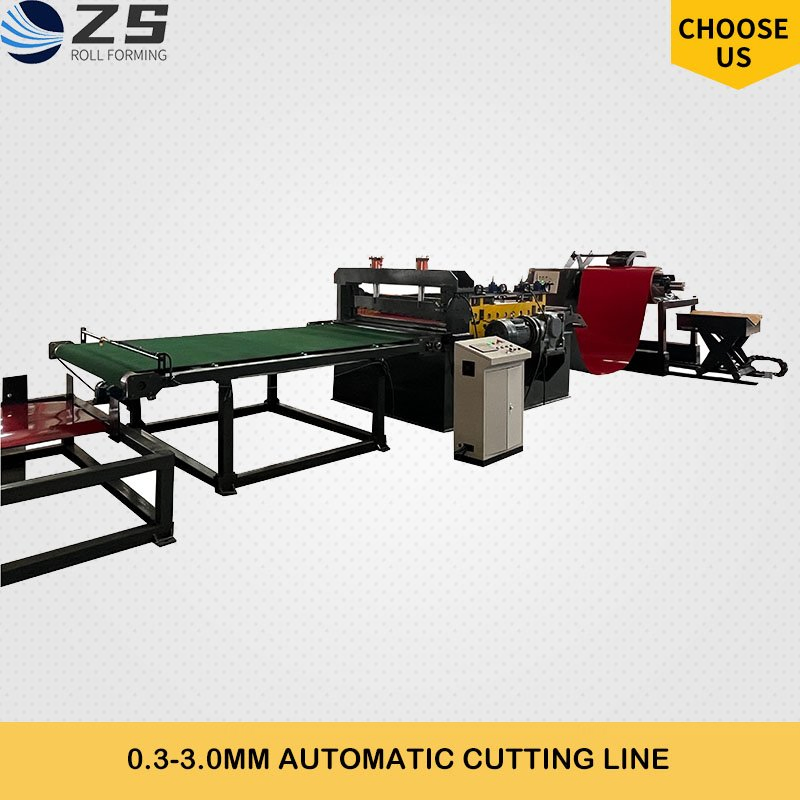

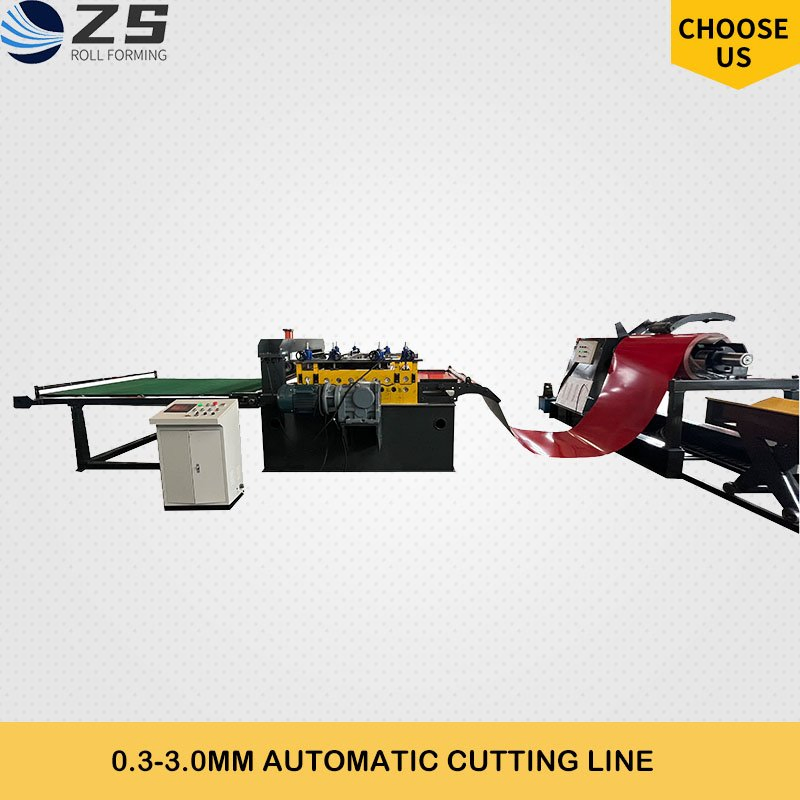

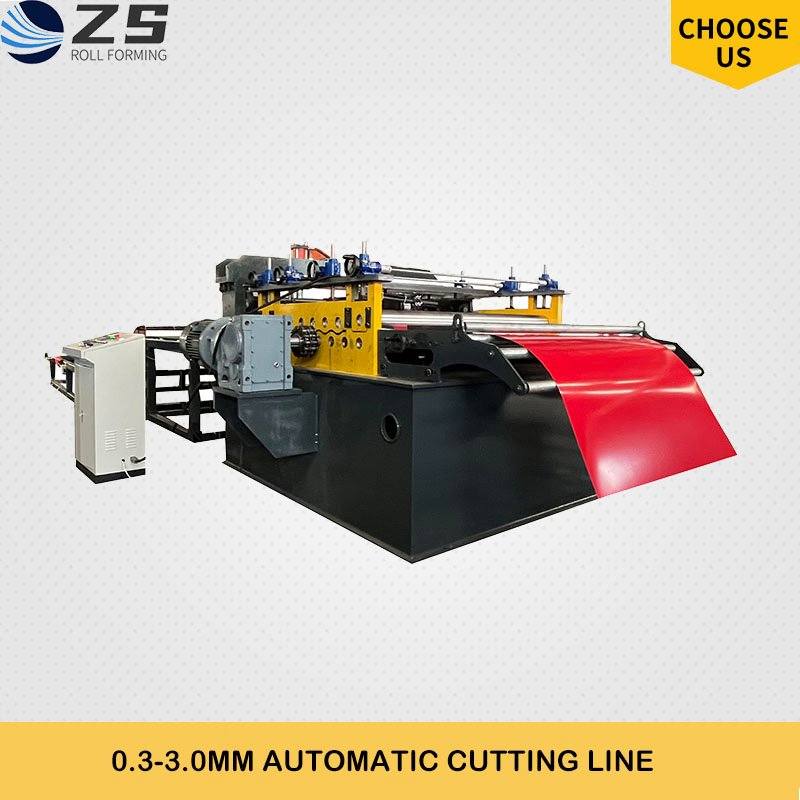

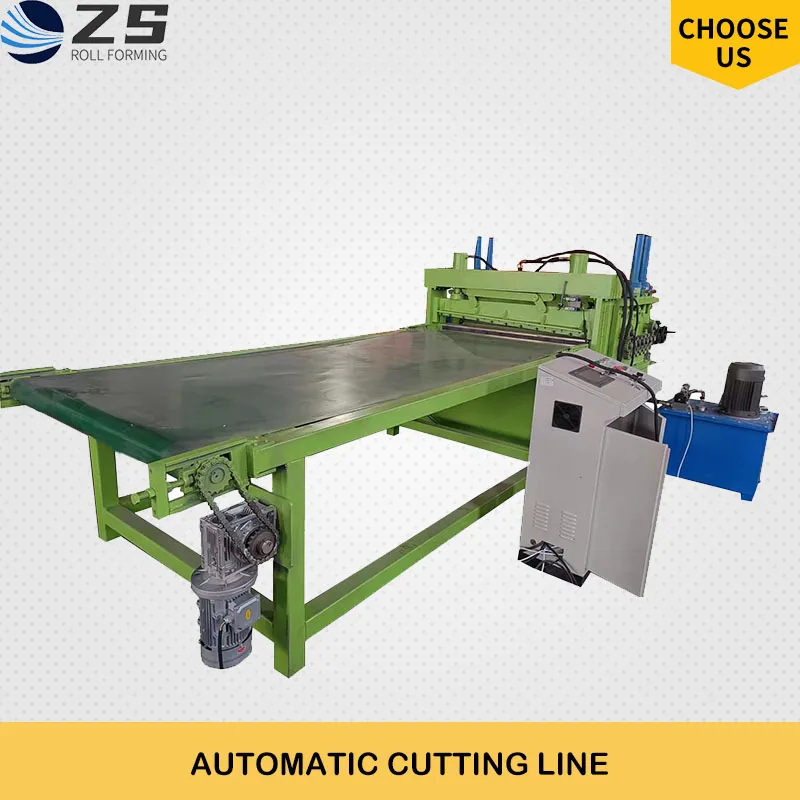

Full Automatic Hot Coil Cold Coil 0.3mm-3.0mm Cutting Line

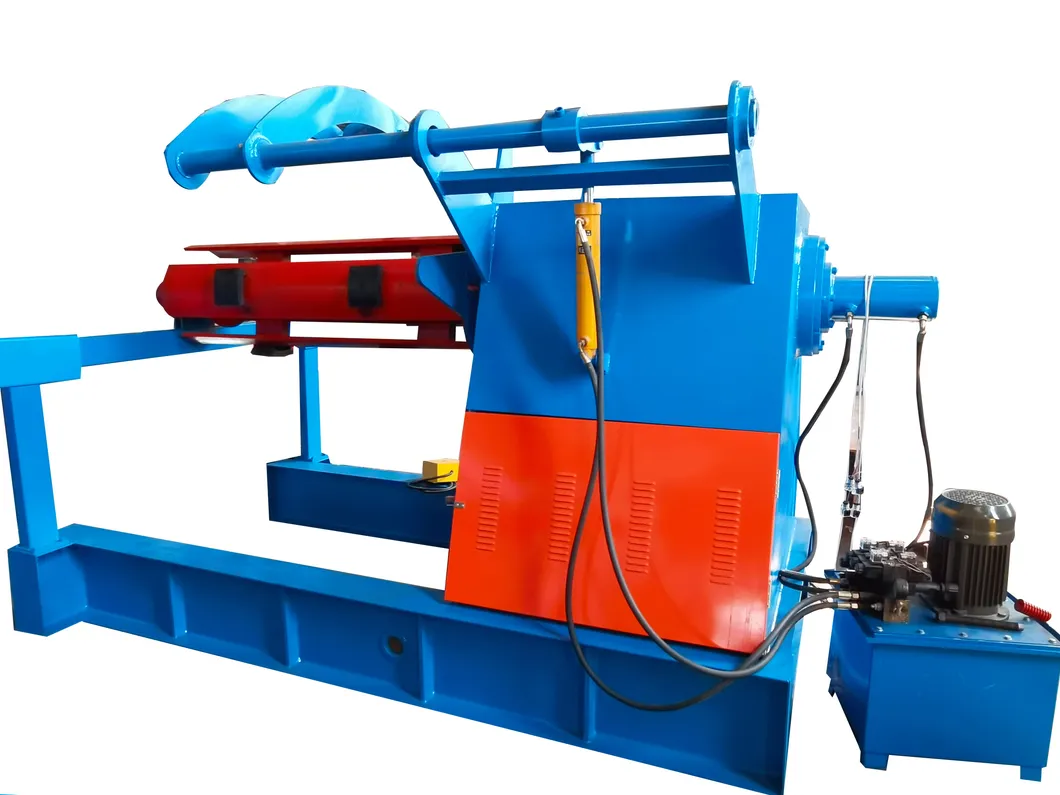

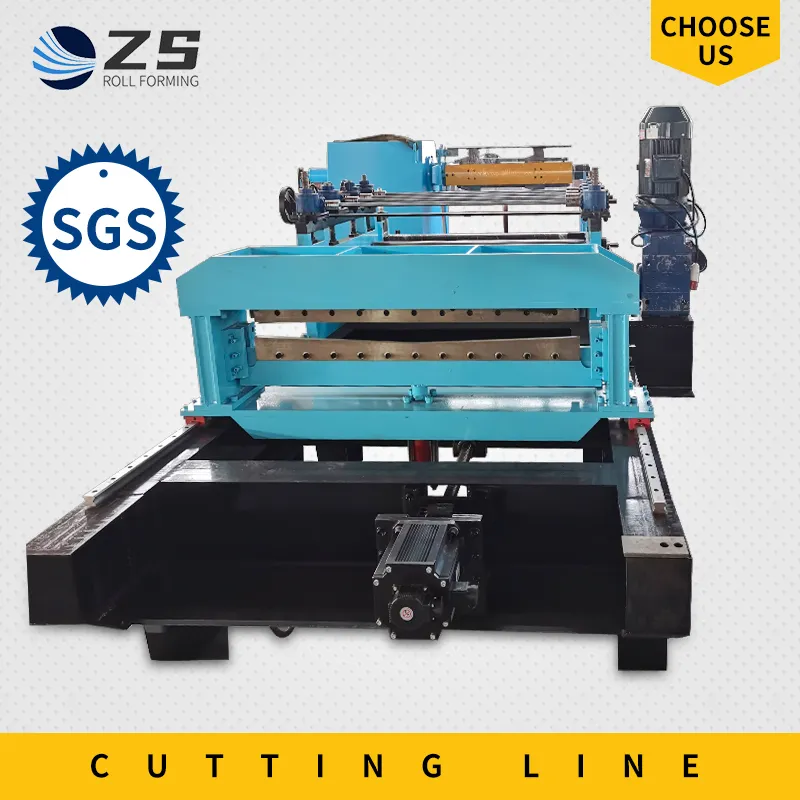

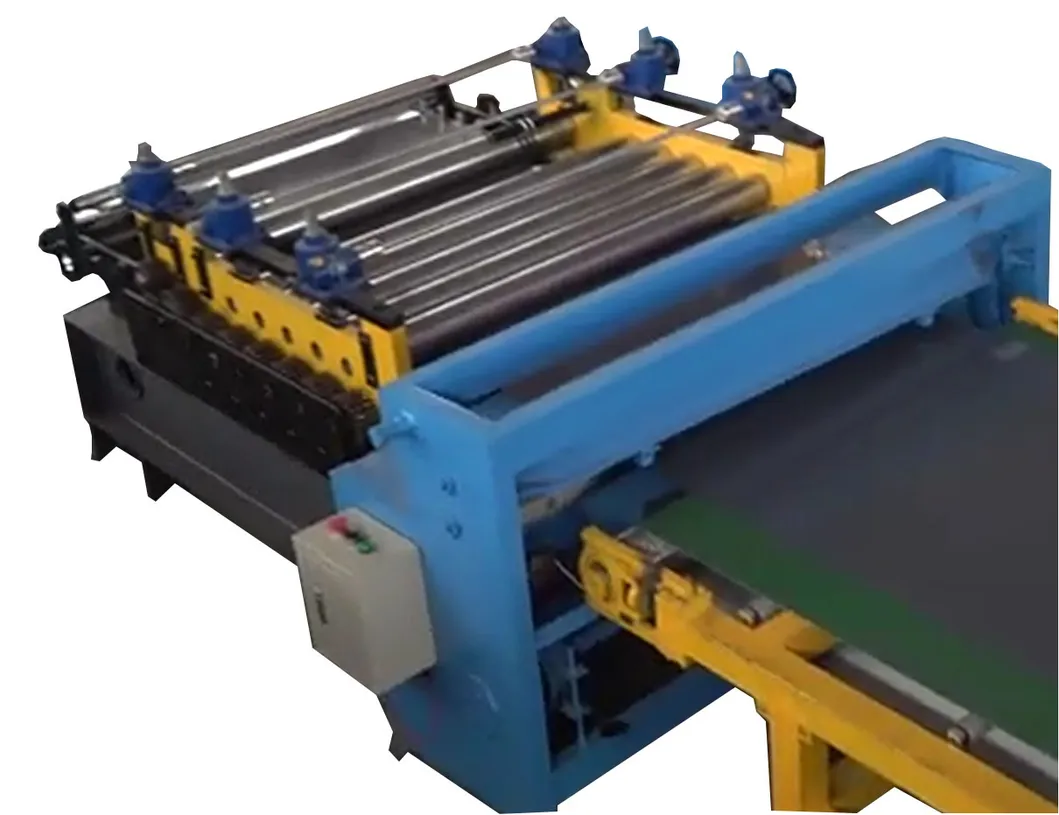

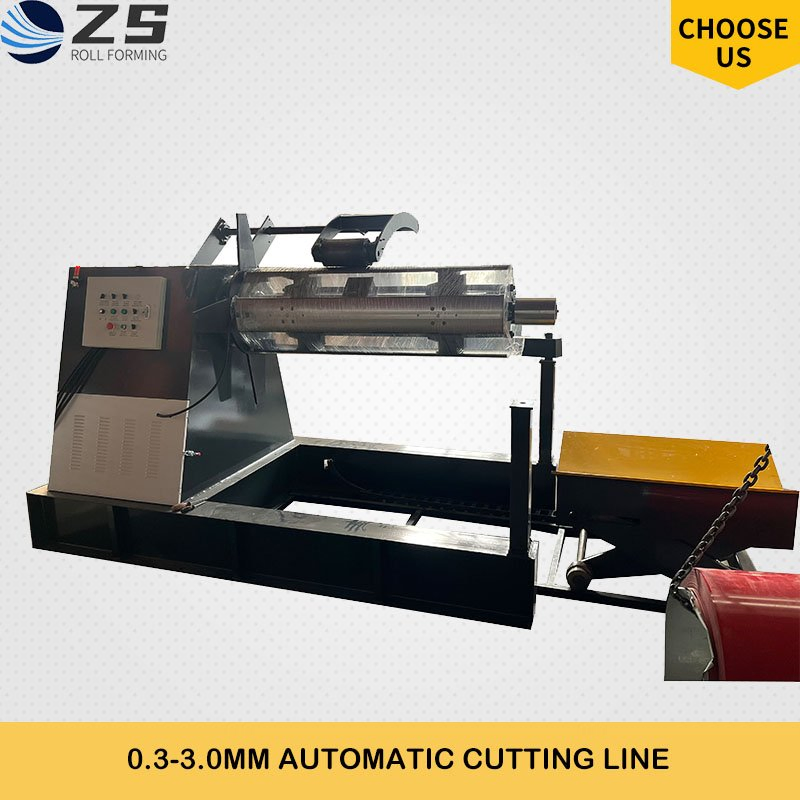

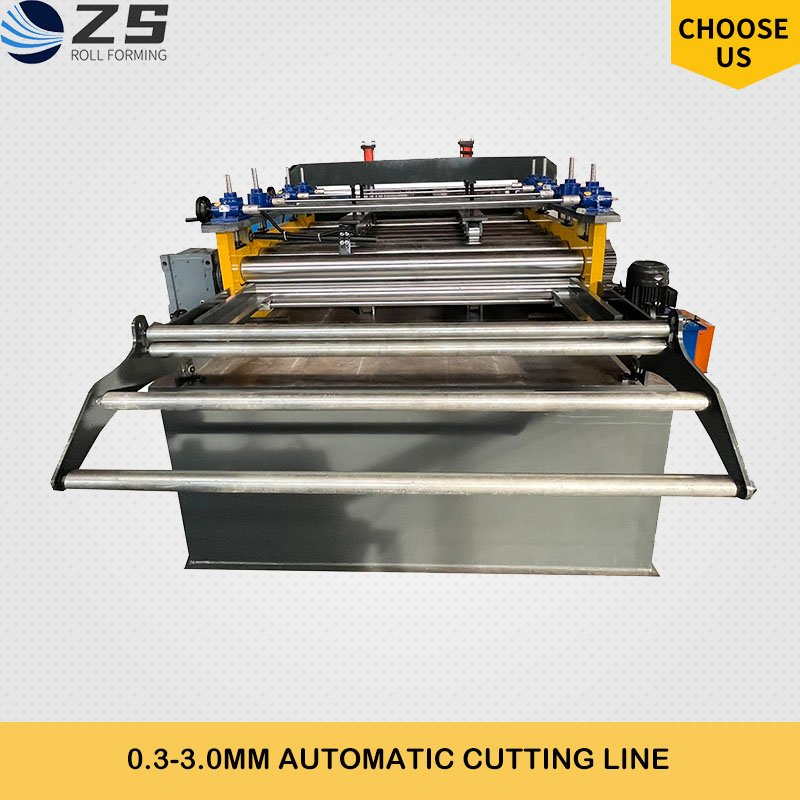

The cutting line is mainly used for metal coil shearing, integrating processes from decoiling, feeding, flattening, and cutting to conveyor belt transport and unloading.
Its primary function is to shear wide metal coils longitudinally into narrow coils. It handles various materials including cold rolled plates, electrolytic galvanized plates, hot-dip galvanized plates, color-coated plates, stainless steel plates, aluminum plates, and copper plates.
| Item | Unit | Parameter | Remark |
|---|---|---|---|
| Material Type | - | PPGI, PPGL, GI, GL, PPAL | As requirement |
| Thickness of Material | mm | 0.3-3.0mm | As requirement |
| Material Width | mm | 914-1500 | As requirement |
| Production Speed | m/min | 10-25m/min | Adjustable |
| Roller Material | - | 45#, Cr12, GCr15, GCr12MoV | As design |
| Motor Power | kW | 5.5-15kW | As design |
| Control System | - | Delta or Siemens | Selectable |

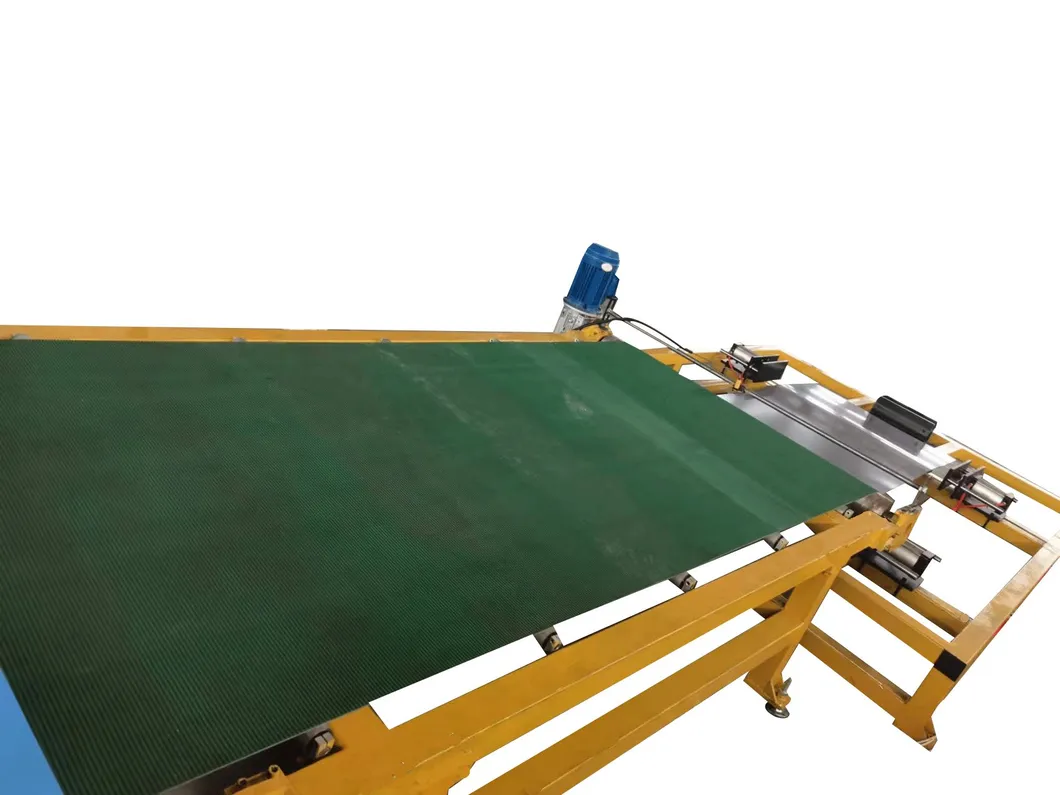

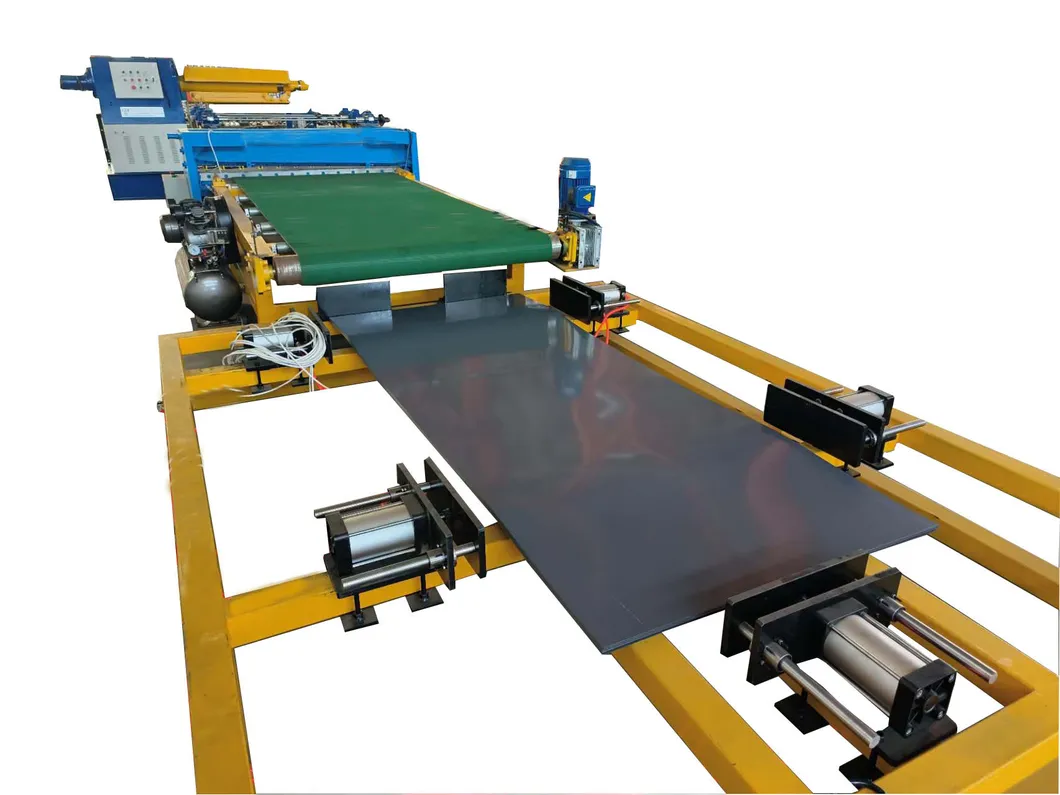

Efficiently delivers cut coils to the unloading system. Speed is synchronized with the cutting machine and unloading table via PLC control.

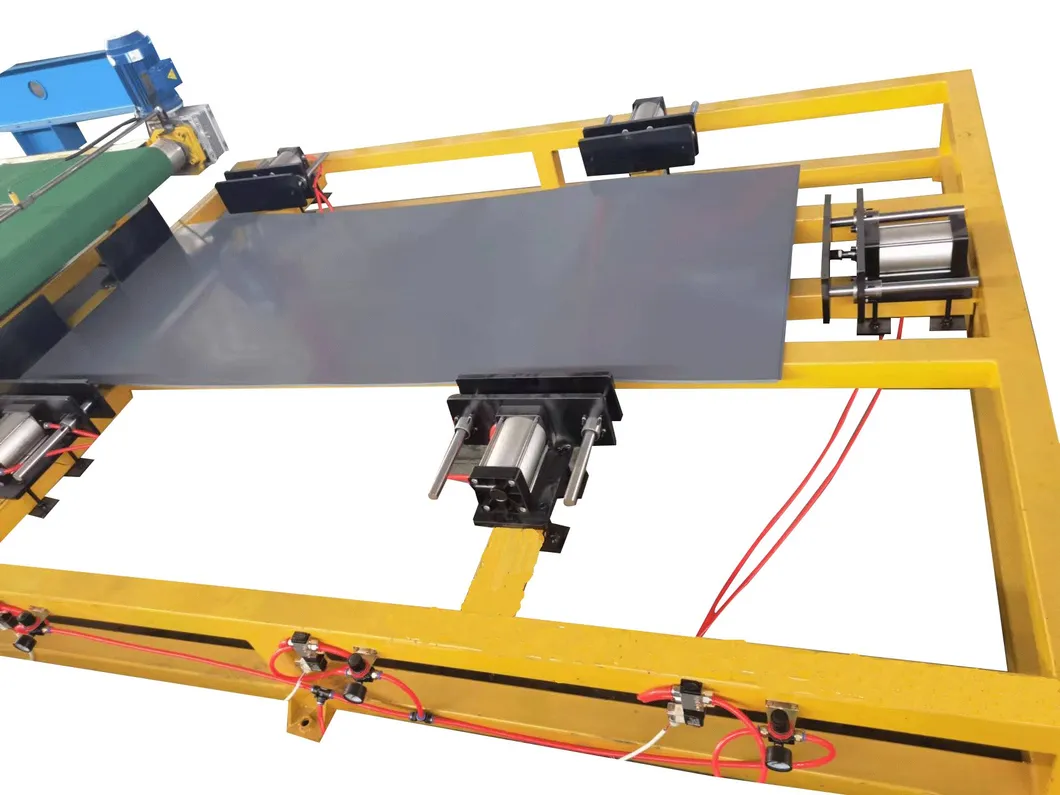

Collects finished cut coils automatically, reducing labor costs. Driven by air pump and fully controlled by the PLC system.
