Basic Information
Cutting Material:
Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
Cutting Mode:
Plasma Cutting
Software:
Fastcam or Stacam
Cutting System:
Shanghai Fangling Brand
Cutting Speed:
0-8000mm/Min
⚙️
Product Description

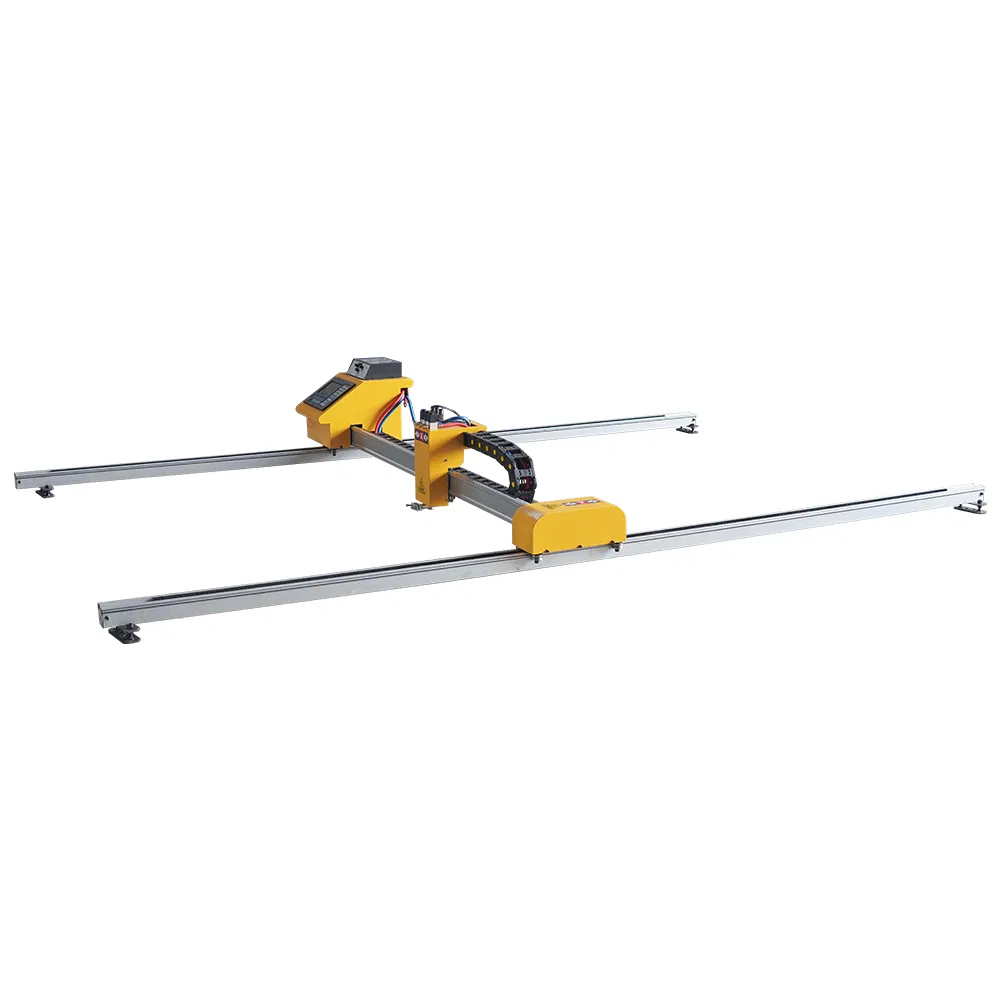

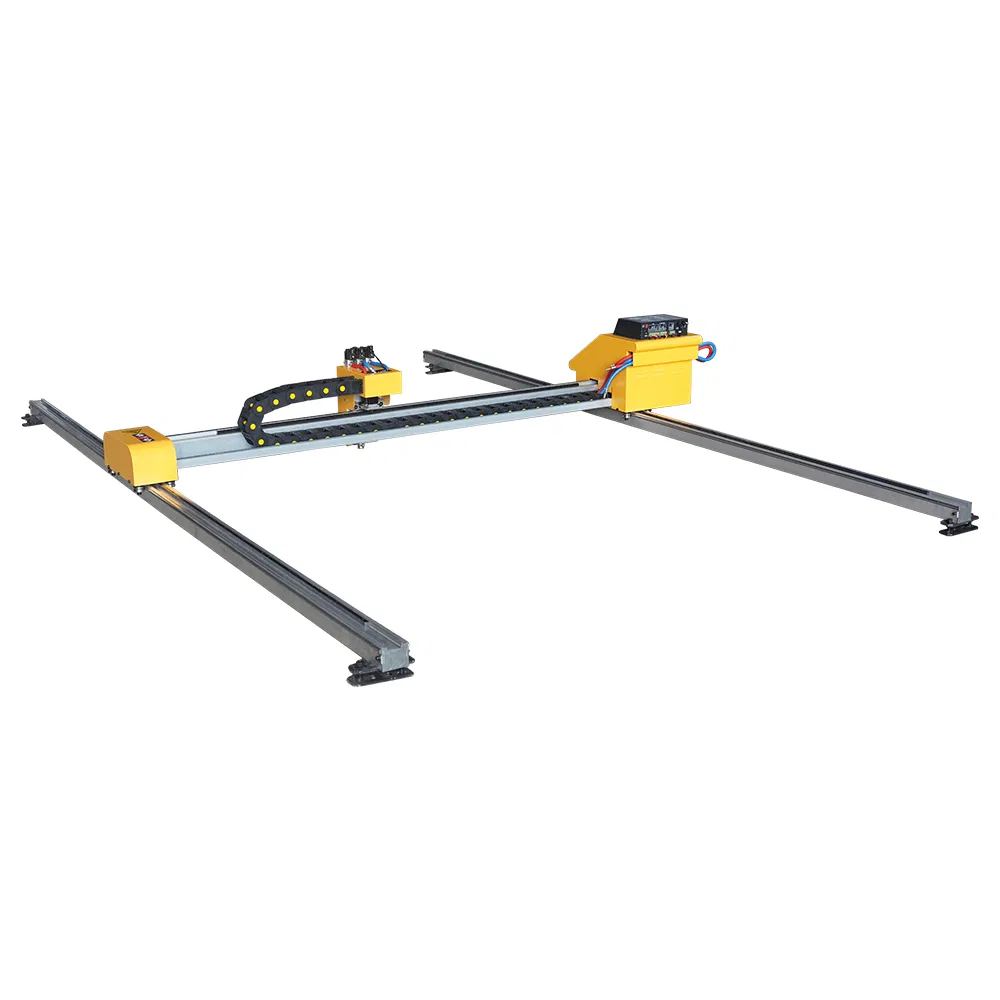

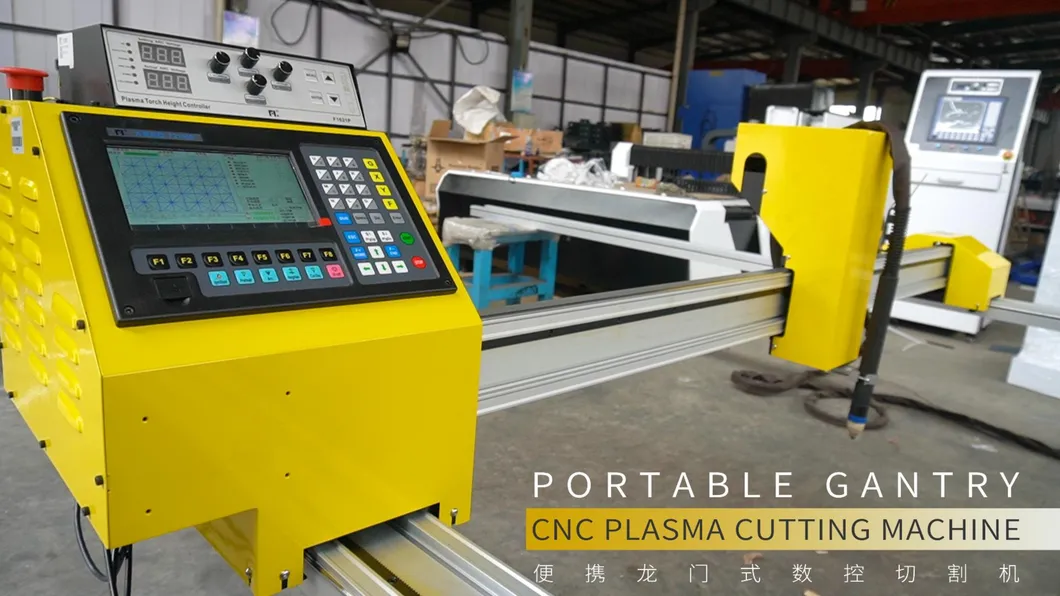

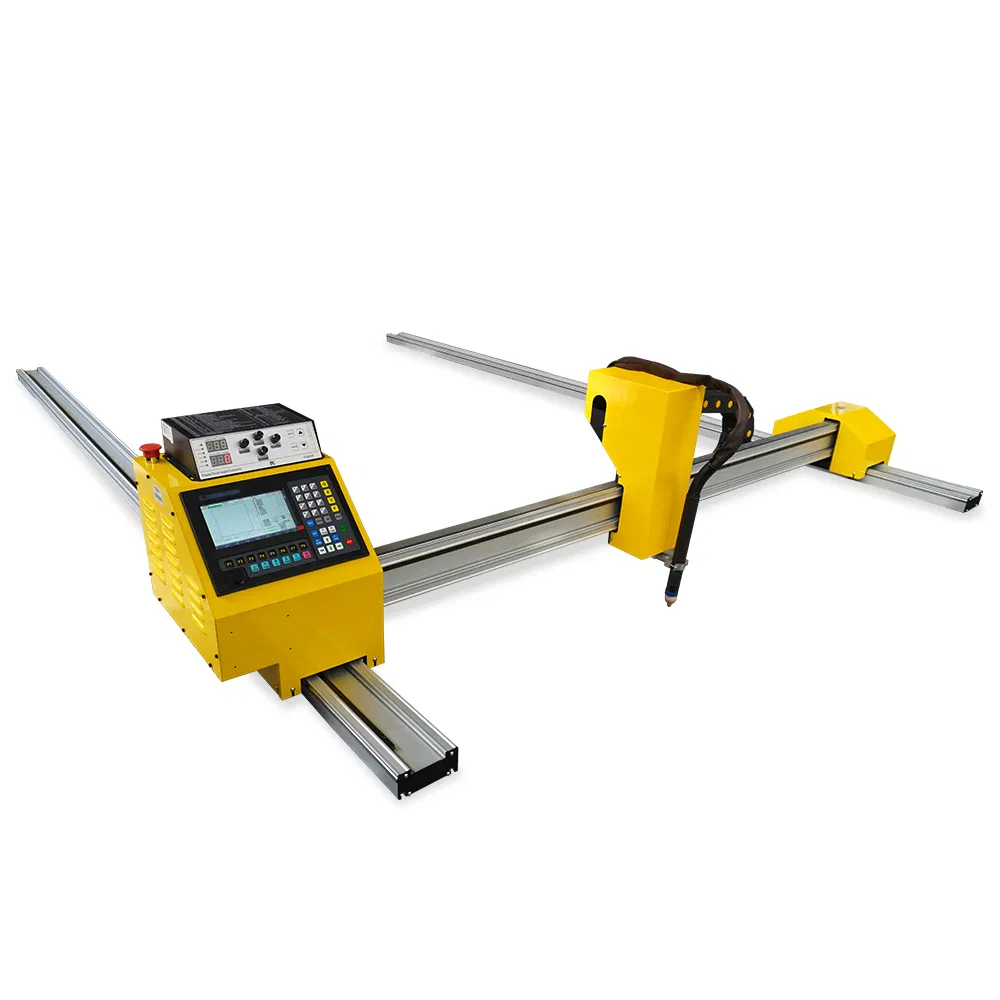

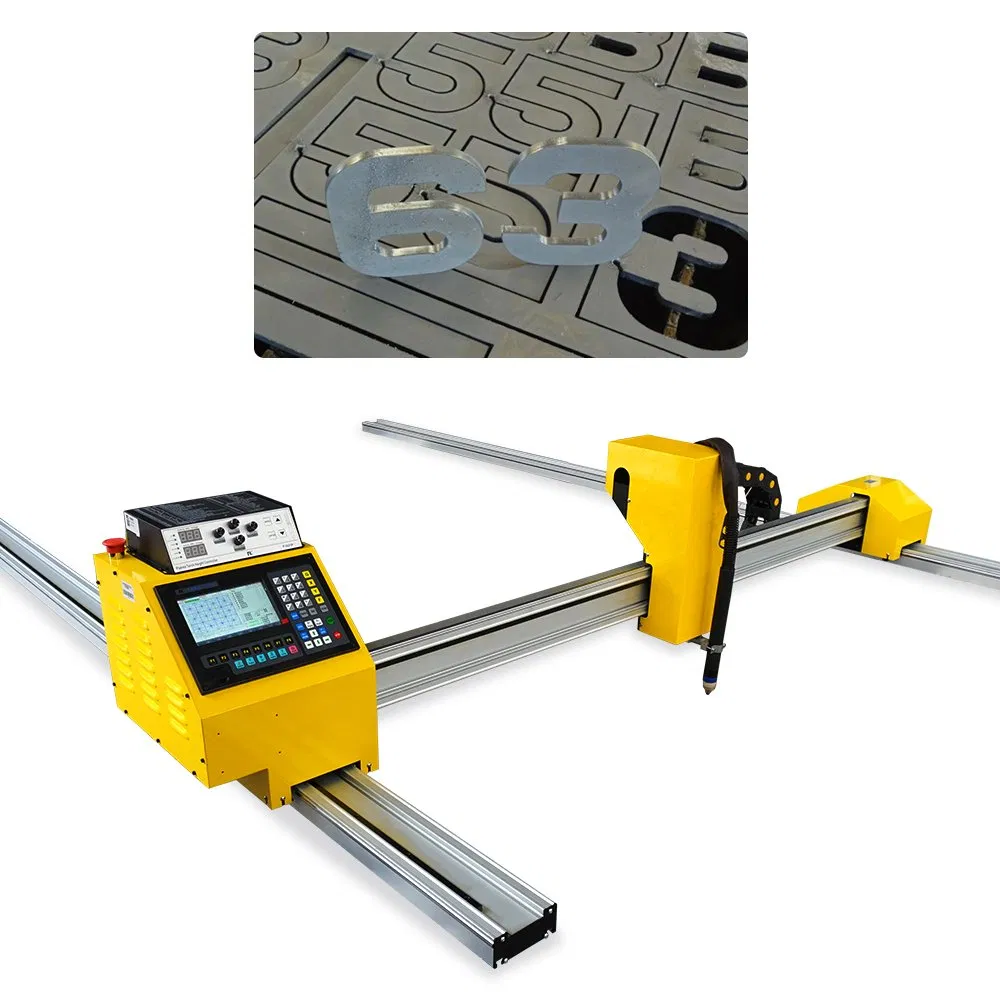

The gantry CNC plasma/flame cutting machine system can cut any flat shape parts composed of straight lines and arcs. Combination of dynamic and static graphics, easy to learn, can be programmed directly on the machine, can also be drawn on the computer or attached with ready-made CAD files. The software converts designs into G code program files for automatic cutting via U disk. Featuring a gantry type double-sided drive structure, it offers high automation, simple operation, and high reliability for sheet metal and thick steel plates.
🔍
Detailed Features
Versatile Material Cutting: Capable of cutting iron, stainless steel, carbon steel, copper, aluminum, galvanized, and titanium plates.

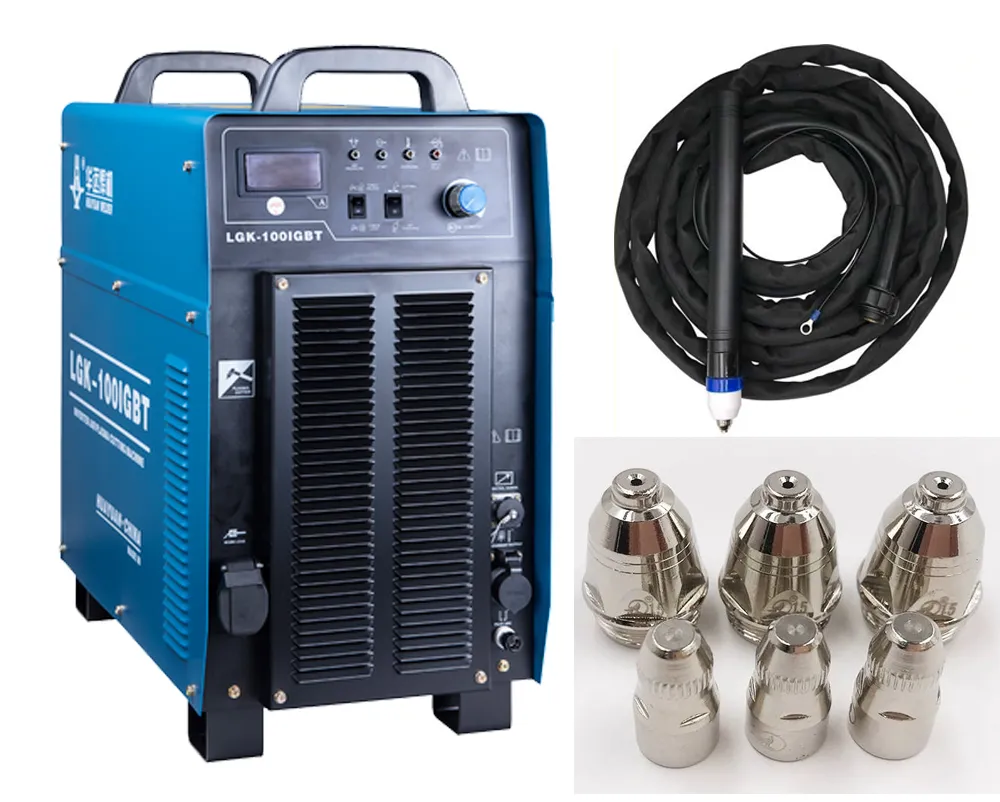

Plasma Power Source: Soft switch inverter technology for stable current; low consumption of cutting parts; high reliability with dust-proof design.

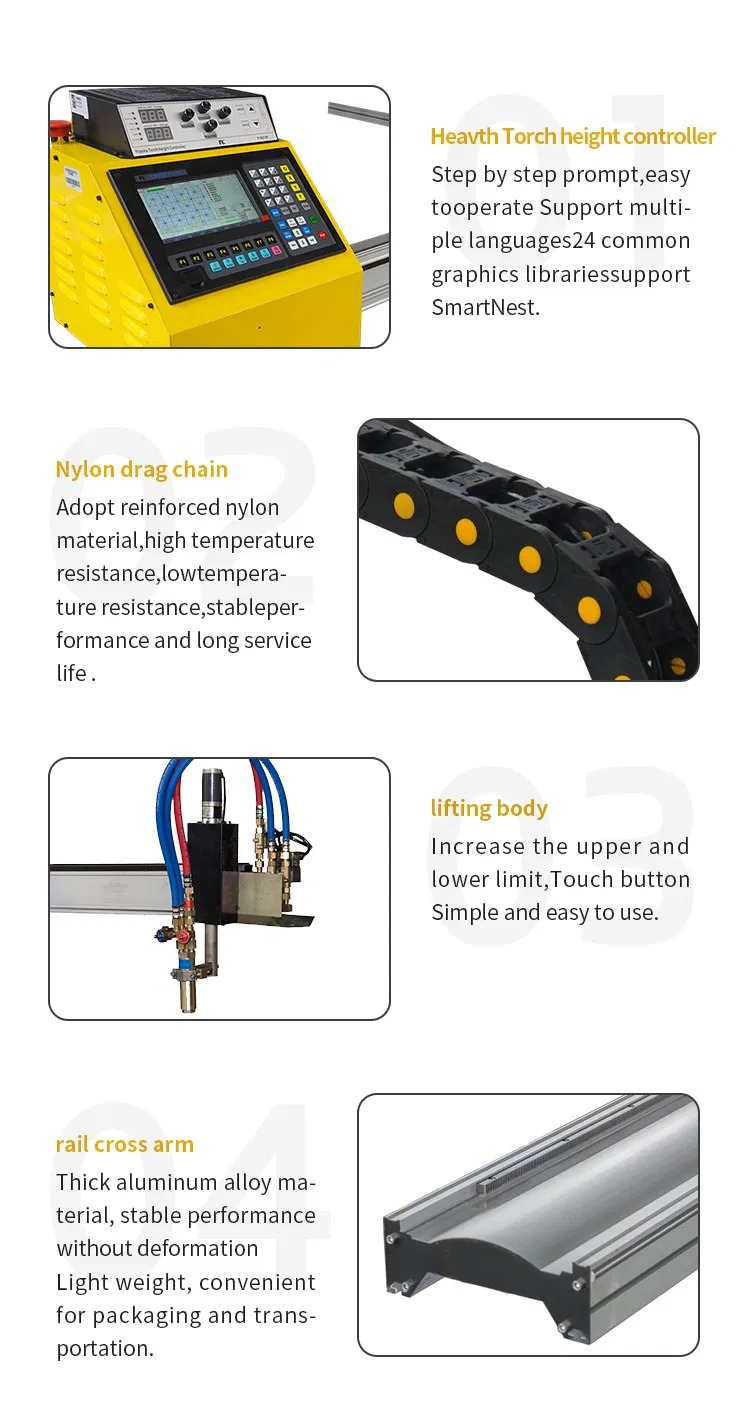

High Precision Track: Uses linear guides and light weight alloy-aluminum horizontal rails to prevent deformation.
📋
Technical Specification
| Feature |
Model JX-1530 |
Model JX-2060 |
| Effective cutting range | 1500×3000mm | 2000*6000mm |
| Cutting speed (mm/min) | 50-8000 |
| Input power source | 380v±10% VAC, 50/60HZ |
| Plasma cutting thickness | 0.5-30mm (Based on power source) |
| CNC controller system | F2100T |
| Motor & Drive | Leadshine Stepper motor and drive |
| Operation precision | ±0.2mm |
| Nesting software | StarCam or Fastcam |
🛠️

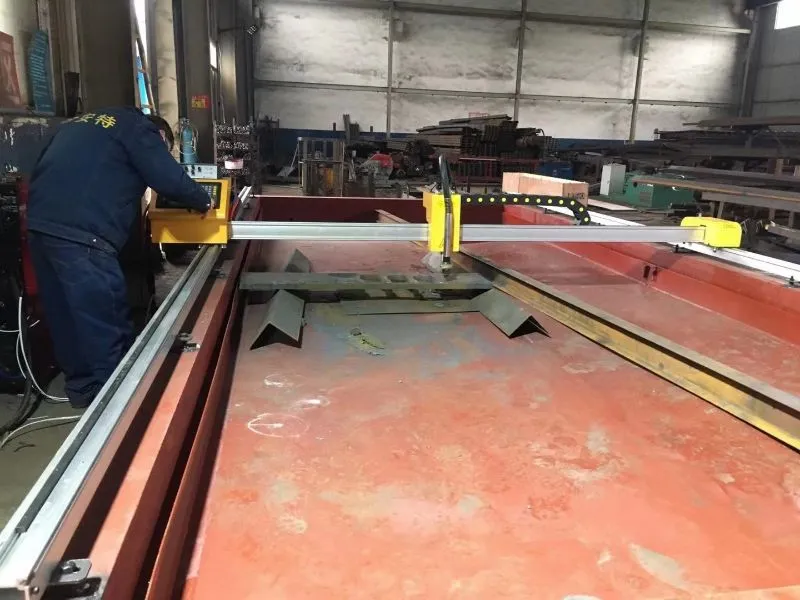

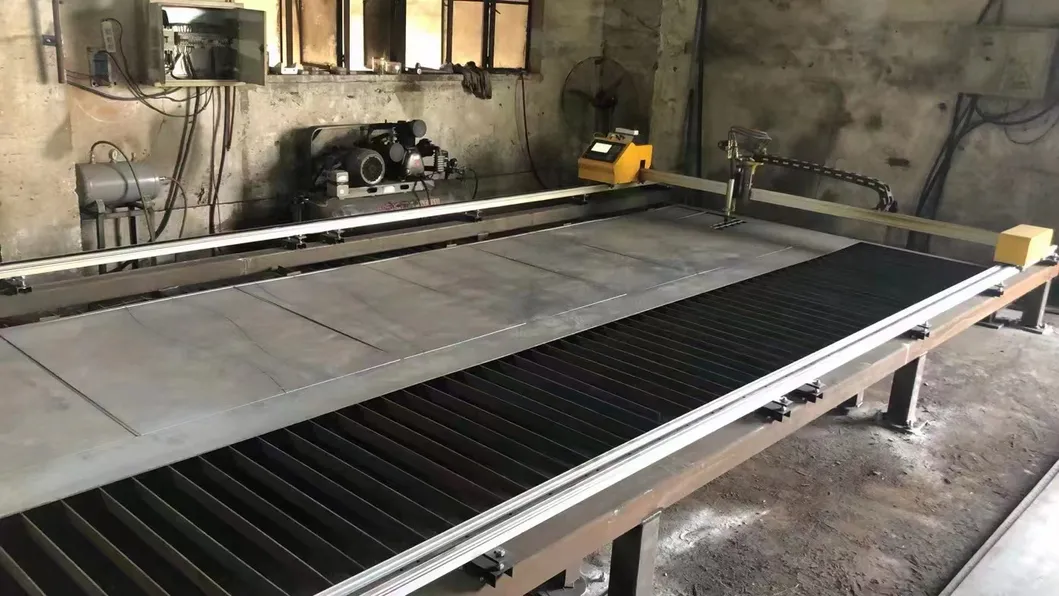

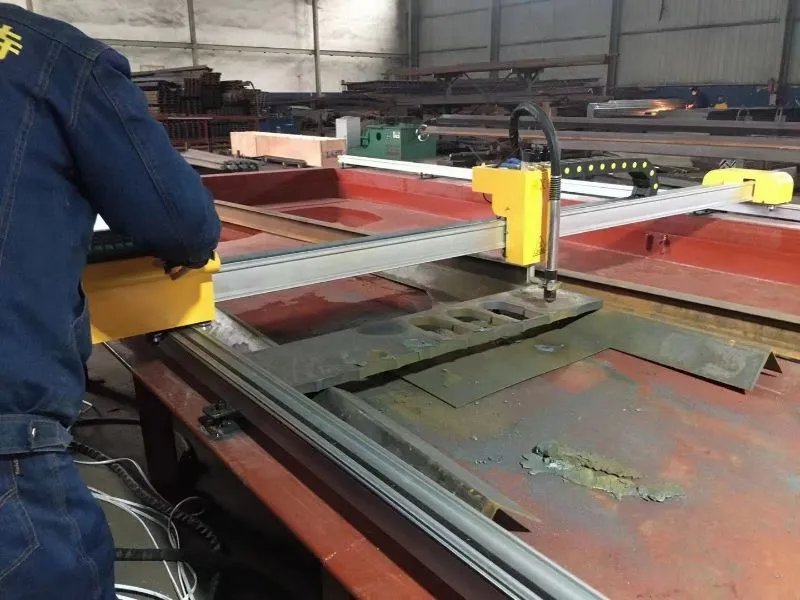

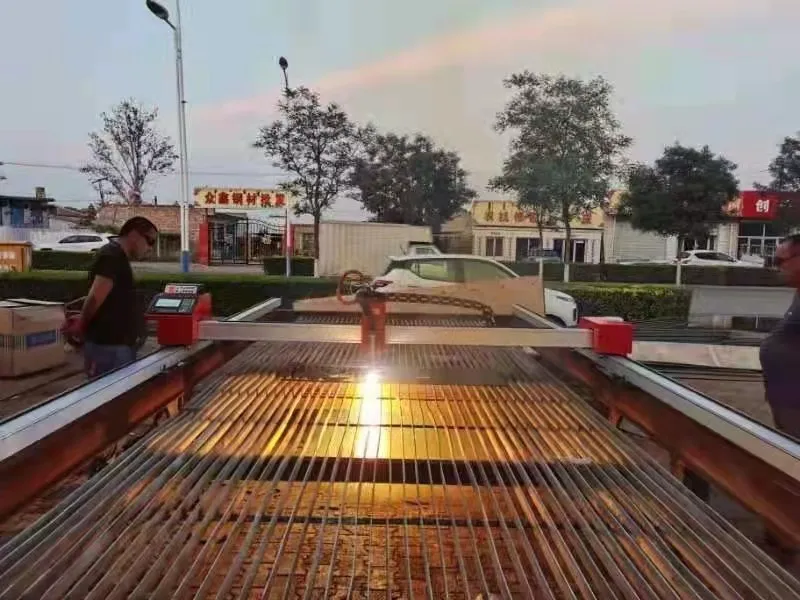

Applications & Working

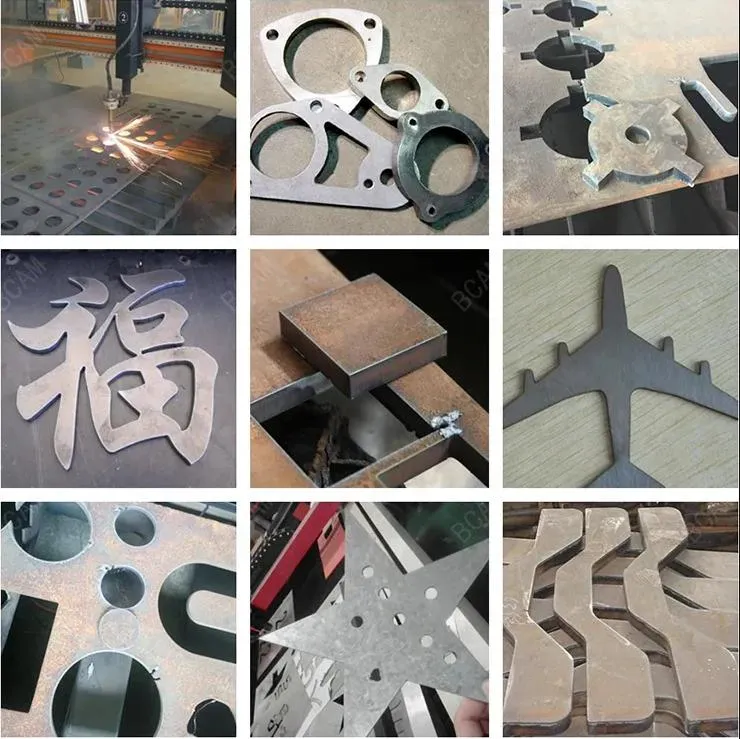

Widely used for 0.3-32mm thin metal sheets in industries like trucks, trailers, motorcycles, pressure vessels, steel structures, and shipbuilding.
📦
Packaging & Shipping
One machine is typically packed in 2 or 3 wooden cases. Shipping options include sea by LCL, truck, or air transport.
🏆
Our Services & Strength
Pre-Sales Service: Inquiry support, English user manuals, and testing videos are provided. 24-hour technical support via email or call.
After-Sales Service: Operational videos available, 12-month quality warranty, and lifetime technical support. Free training to ensure machine mastery.
❓
Frequently Asked Questions
Q: What's the delivery time for the machine?
A: It typically takes 10-15 working days to deliver to the port.
Q: What are the accepted payment terms?
A: We accept T/T, L/C, or Cash payments.
Q: What is the Minimum Order Quantity (MOQ)?
A: The MOQ is 1 set.
Q: Can the machine's motor be customized to local voltage?
A: Yes, we can supply motors for 220V/380V/440V at 50HZ/60HZ without extra charges.
Q: Do you support OEM orders?
A: Yes, we can manufacture machines according to your design, logo, and color requirements.
Q: What kind of packaging is used for shipping?
A: We use iron pallets and plywood cases or cartons depending on your requirements for safe transport.
