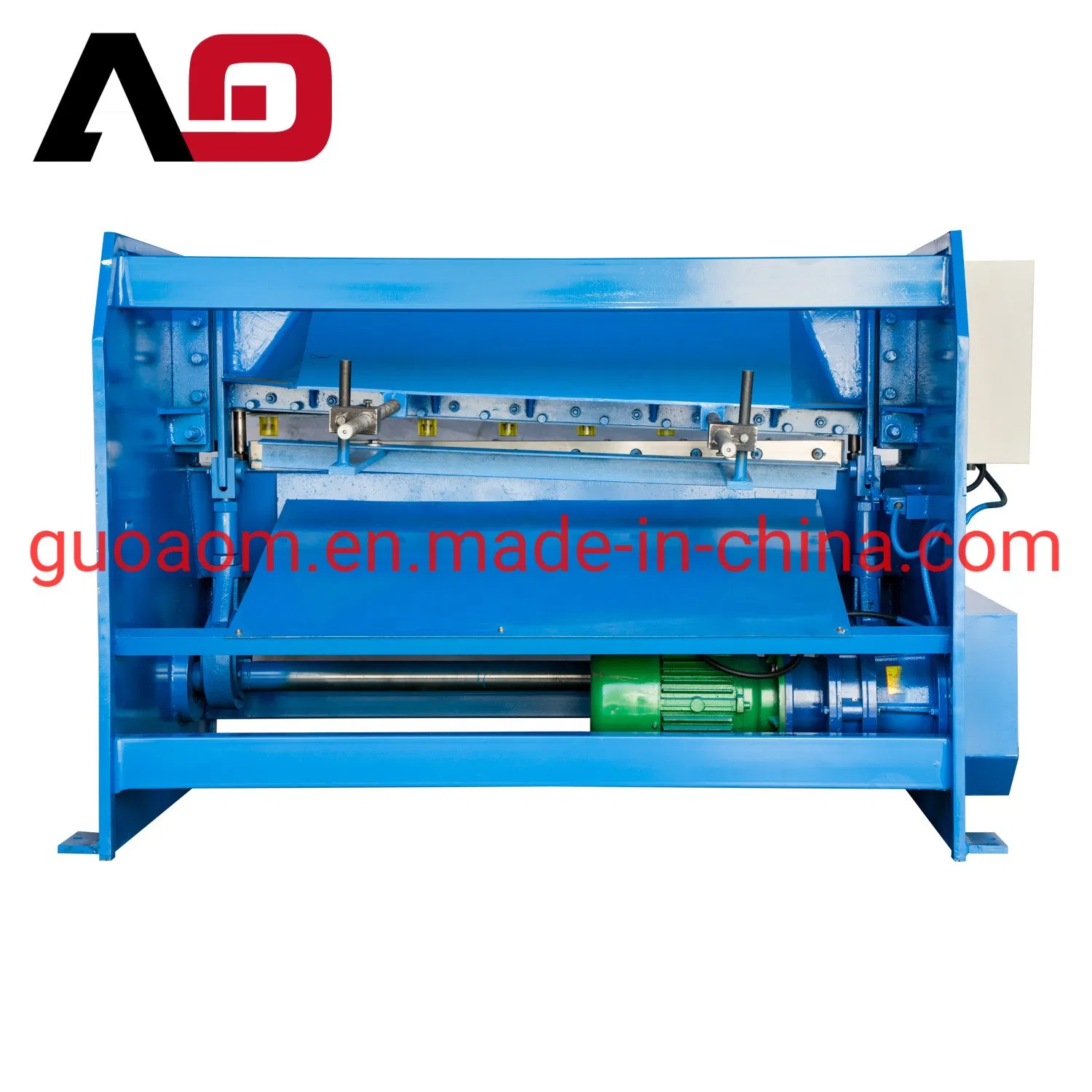

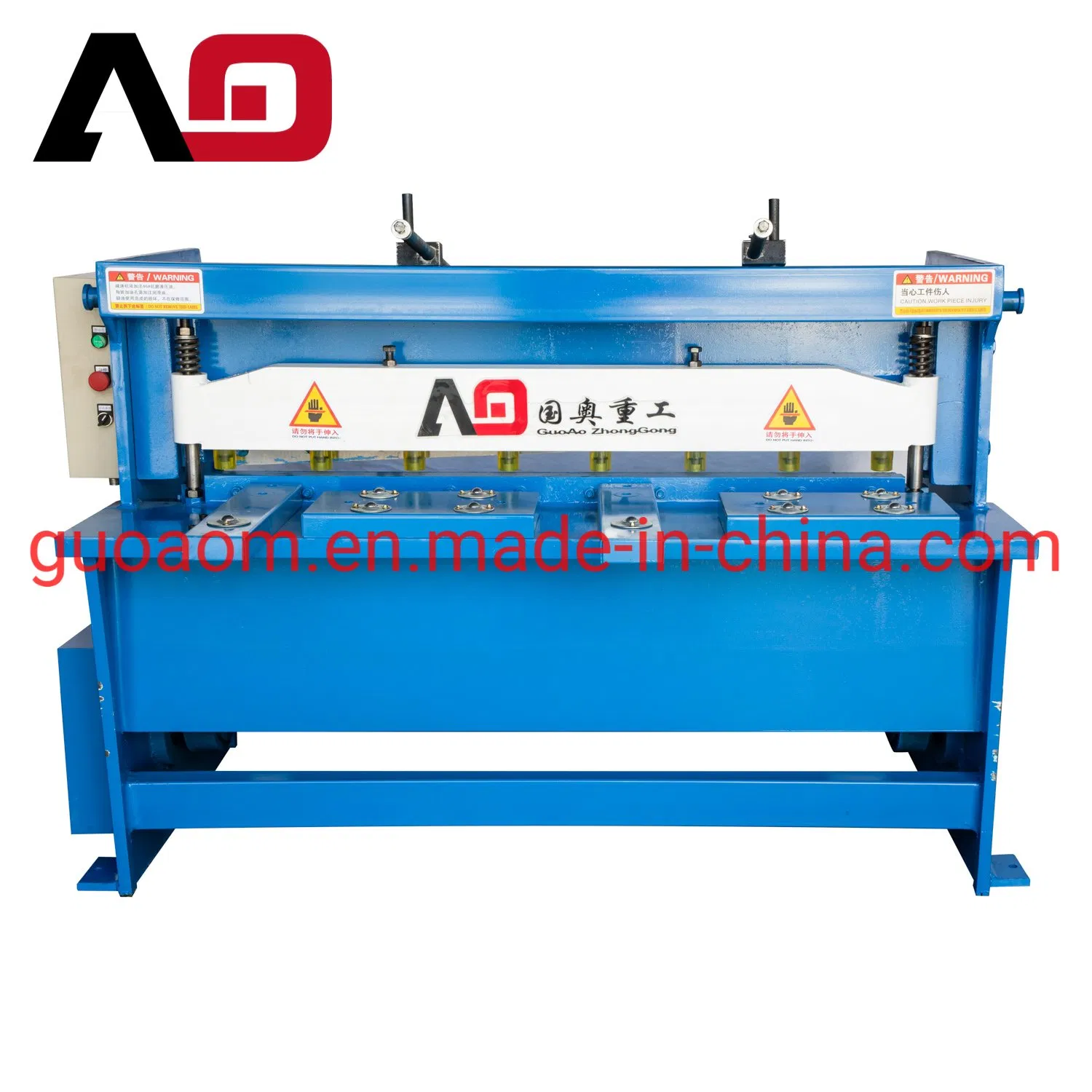

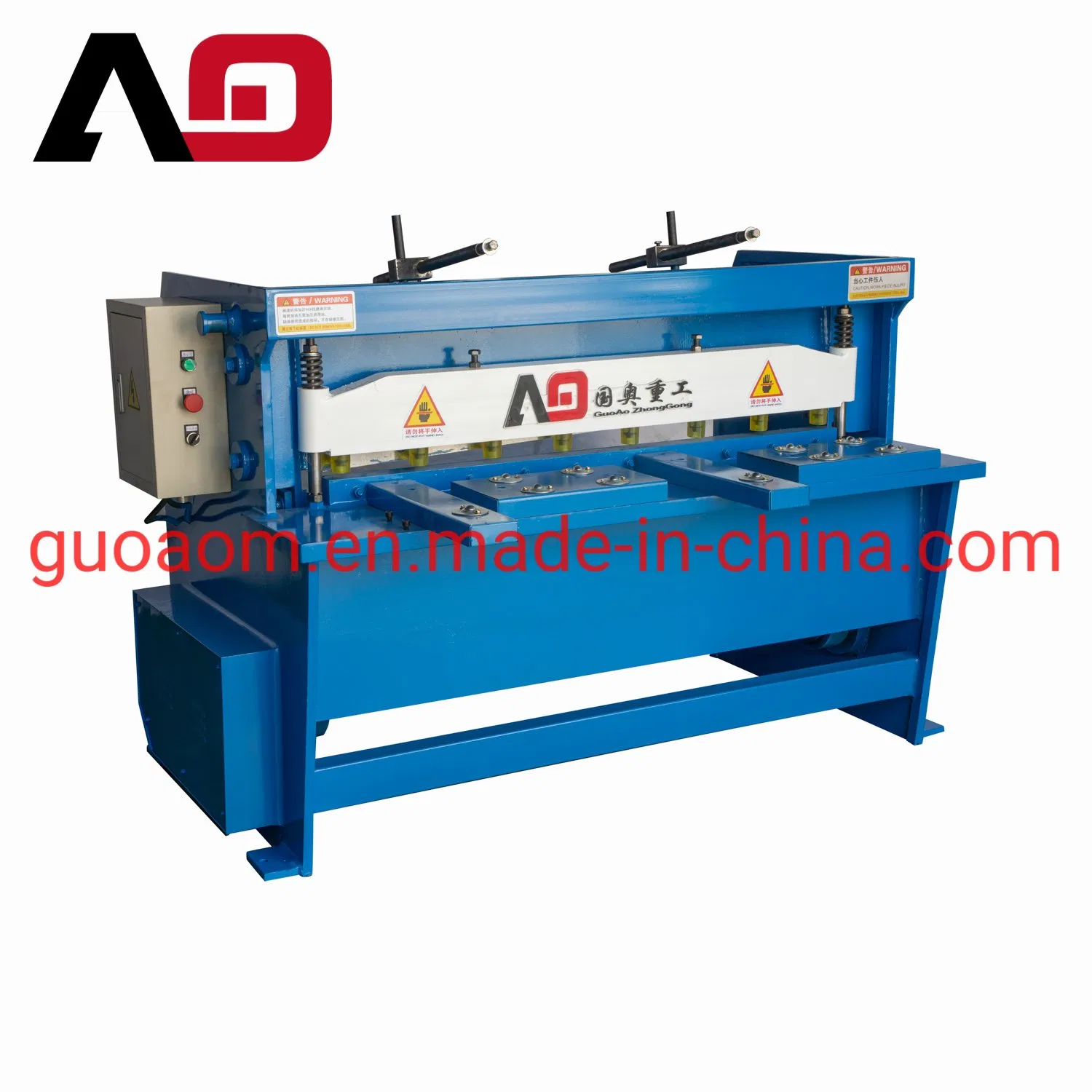

Precision 3mm Thin Electric Plate Shearing Machine for Metal Cutting
Precision 3mm Thin Electric Plate Shearing Machine for Metal Cutting
Precision 3mm Thin Electric Plate Shearing Machine for Metal Cutting
Precision 3mm Thin Electric Plate Shearing Machine for Metal Cutting
Precision 3mm Thin Electric Plate Shearing Machine for Metal Cutting
1 / 5
Precision 3mm Thin Electric Plate Shearing Machine for Metal Cutting
Precision 3mm Thin Electric Plate Shearing Machine for Metal Cutting
Precision 3mm Thin Electric Plate Shearing Machine for Metal Cutting
Precision 3mm Thin Electric Plate Shearing Machine for Metal Cutting
Precision 3mm Thin Electric Plate Shearing Machine for Metal Cutting

Precision 3mm Thin Electric Plate Shearing Machine for Metal Cutting

Customization: Available
After-sales Service: Overseas Aftersales Service
Automation: Electric
Send Inquiry

Product Description

Basic Information
Model NO.
Q11
Certification
CE, ISO 9001:2000
Condition
New
Warranty
1 Year
Transport Package
Standard Export Wooden Case
Specification
2300*900*1250 mm
Origin
China
HS Code
8462392000
Production Capacity
3000 Sets/Year
Product Description
The machine is overall steel-welded and gate-type with chain drive. The motor has its own brake, which means no power consuming when not shearing. It's suitable for processing sheet metal less than 3mm in thickness.
Main Technical Parameters
Model Max Sheet Thickness (mm) Max Sheet Width (mm) Number of Stroke (/min) Power (kw) Dimension L*W*H (mm)
Q11-3*1600 3 1600 30 4.5 2300*900*1250
Q11-3*2000 3 2000 30 5.5 2700*900*1250
Q11-2*2500 2 2500 30 5.5 3200*900*1250
Structure Design

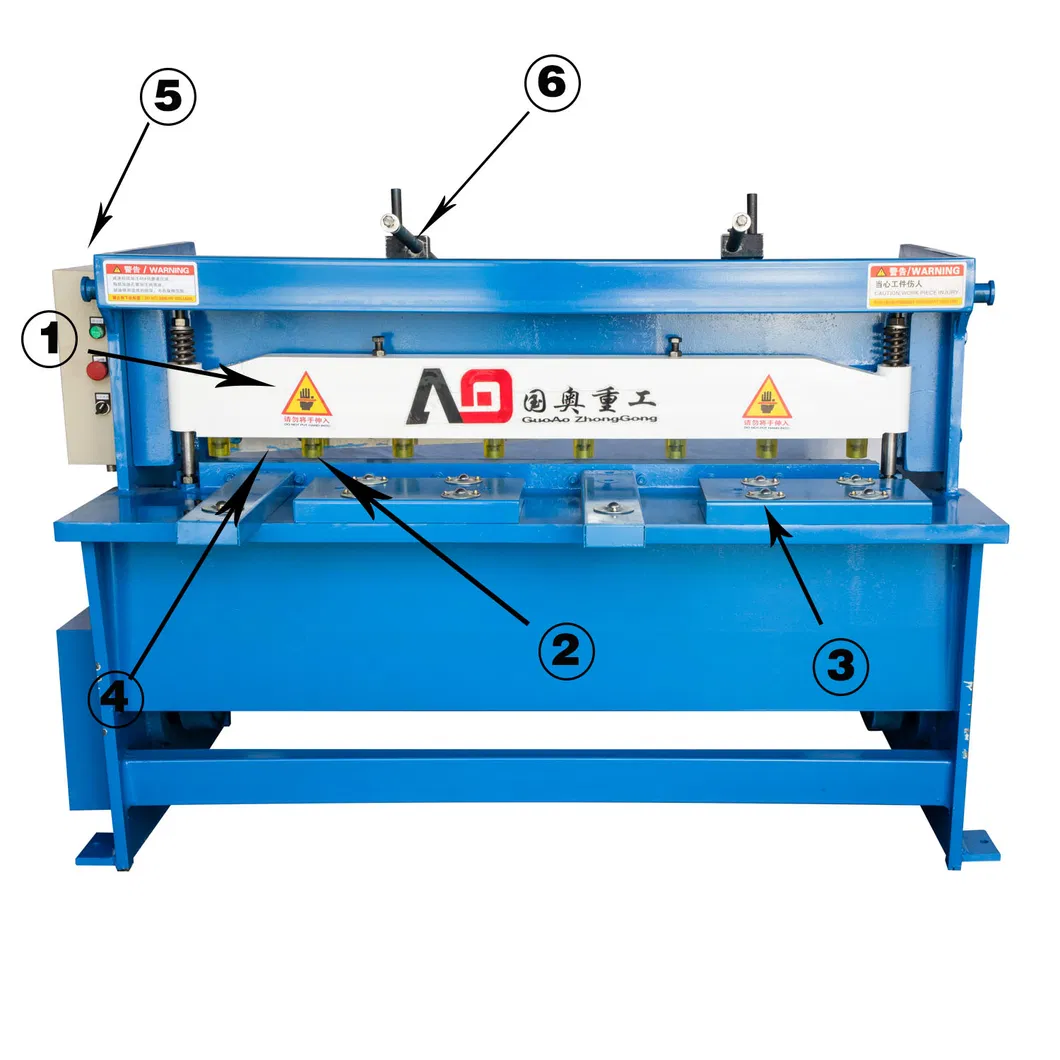

Precision Shearing Machine Structure 1

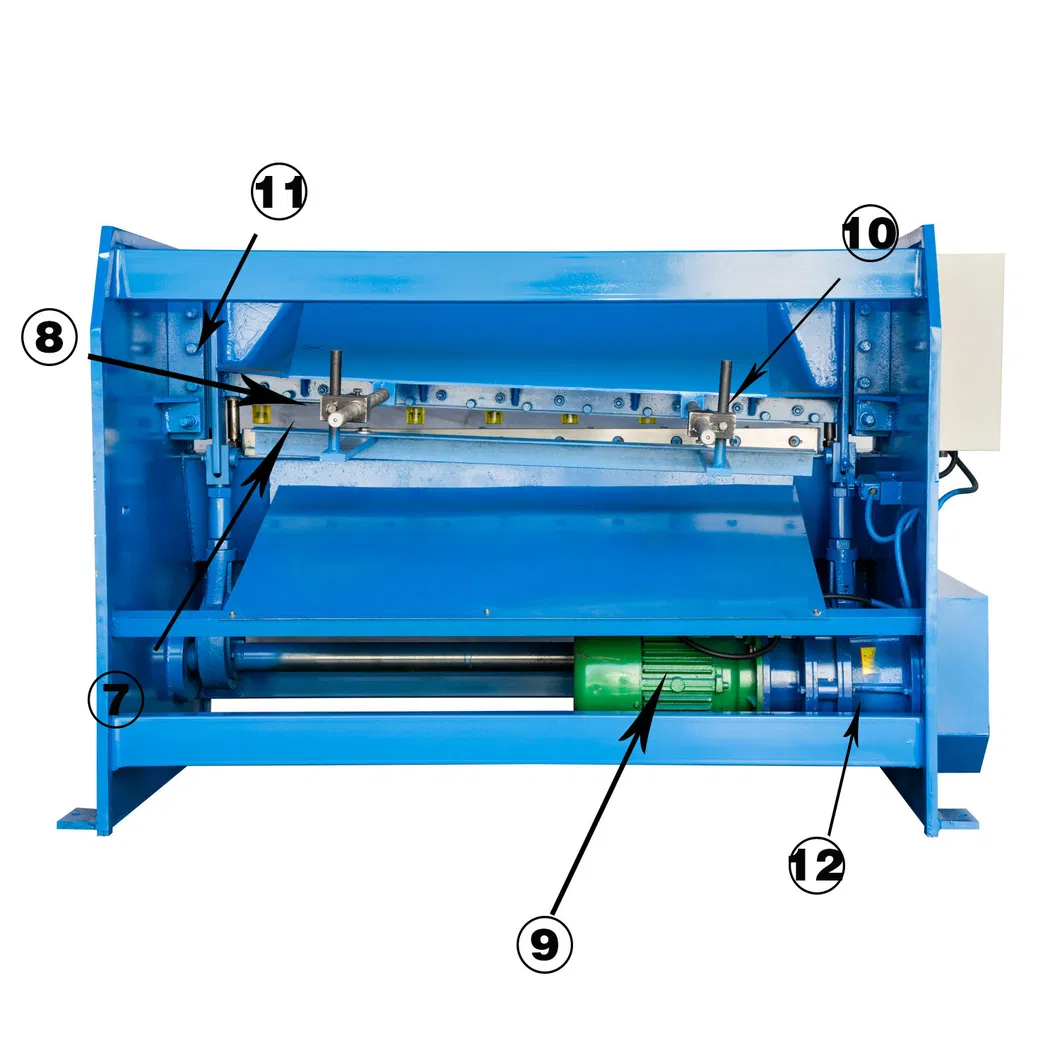

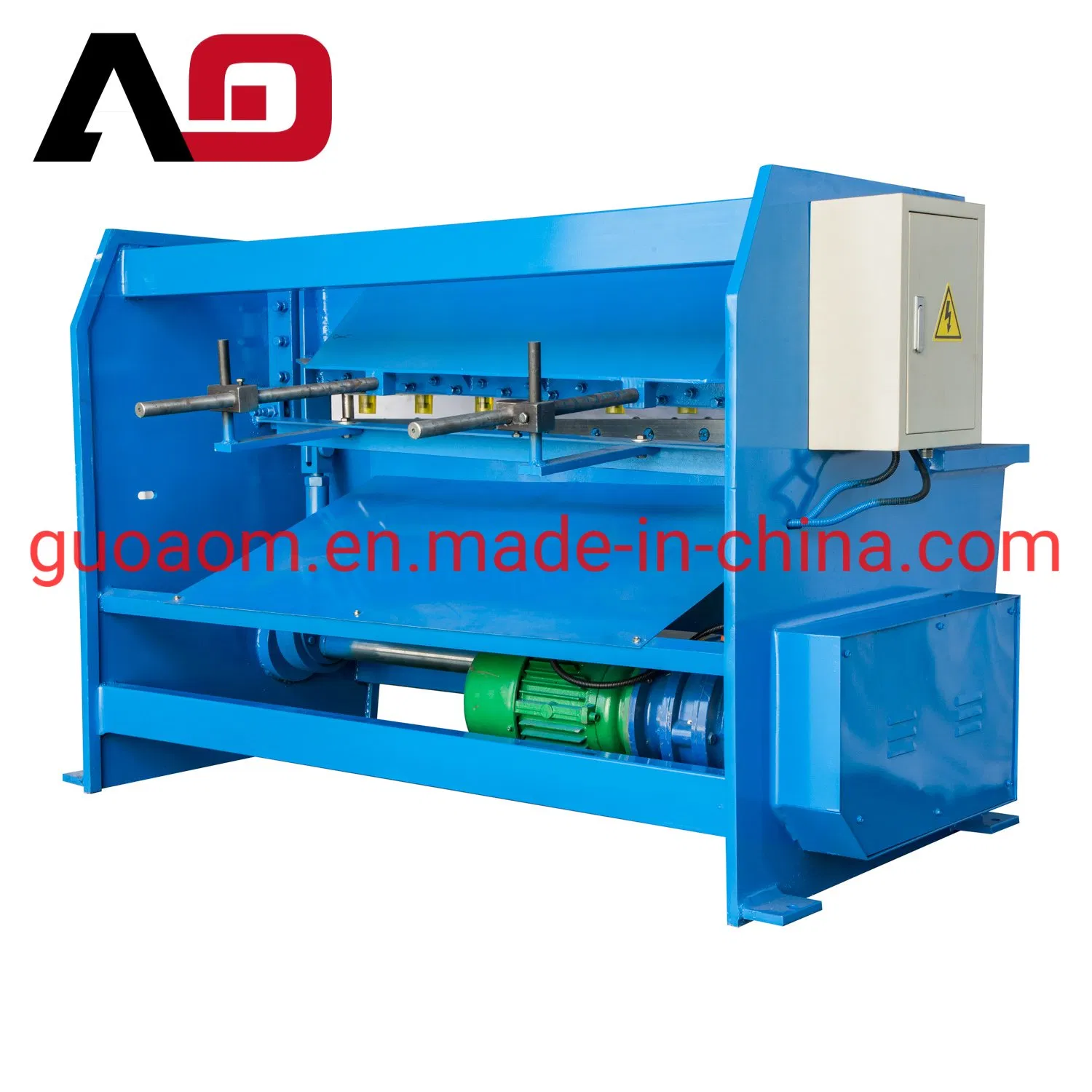

Precision Shearing Machine Structure 2
1. Swaging beam
2. Swaging gasket
3. Dragging plate
4. Shearing blade
5. Electricity box
6. Back gauge
7. Shearing blade
8. Blade adjust screw
9. Motor
10. Back gauge
11. Guide rail
12. Reducer
Workshop Gallery

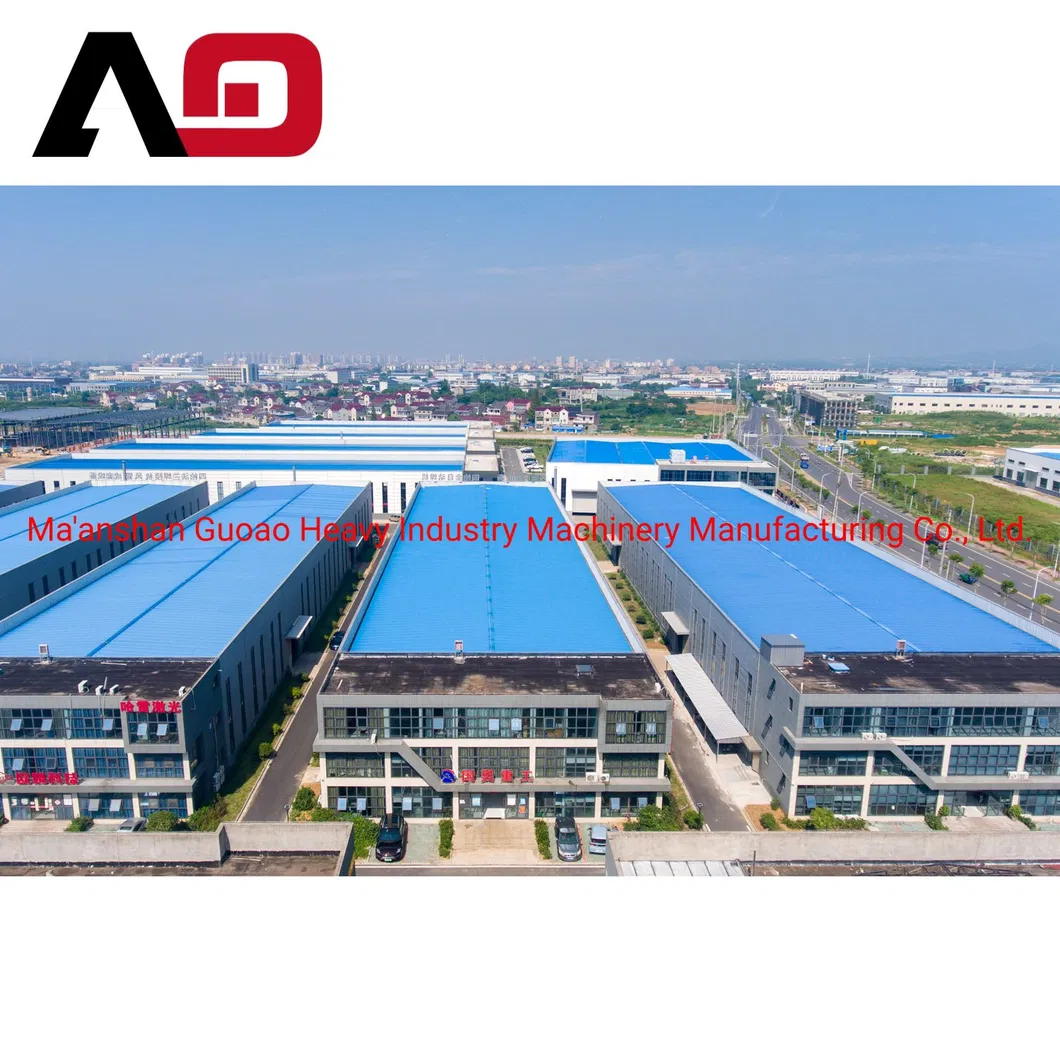

Workshop Overview

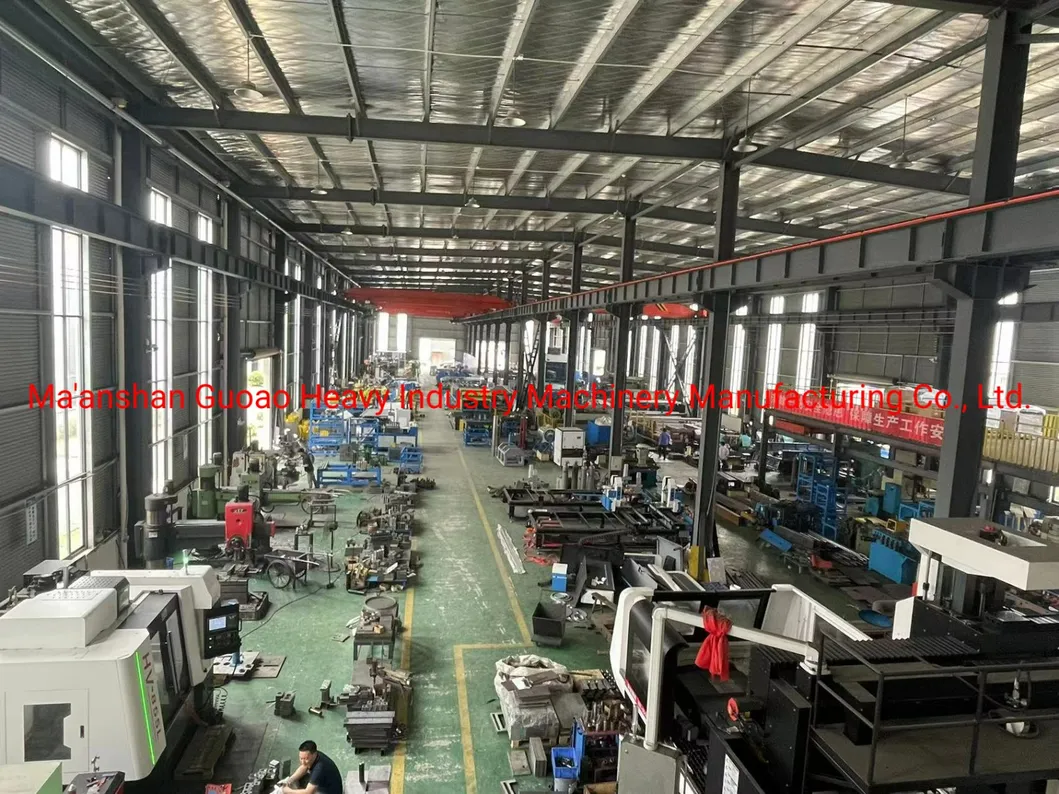

Production Detail 1

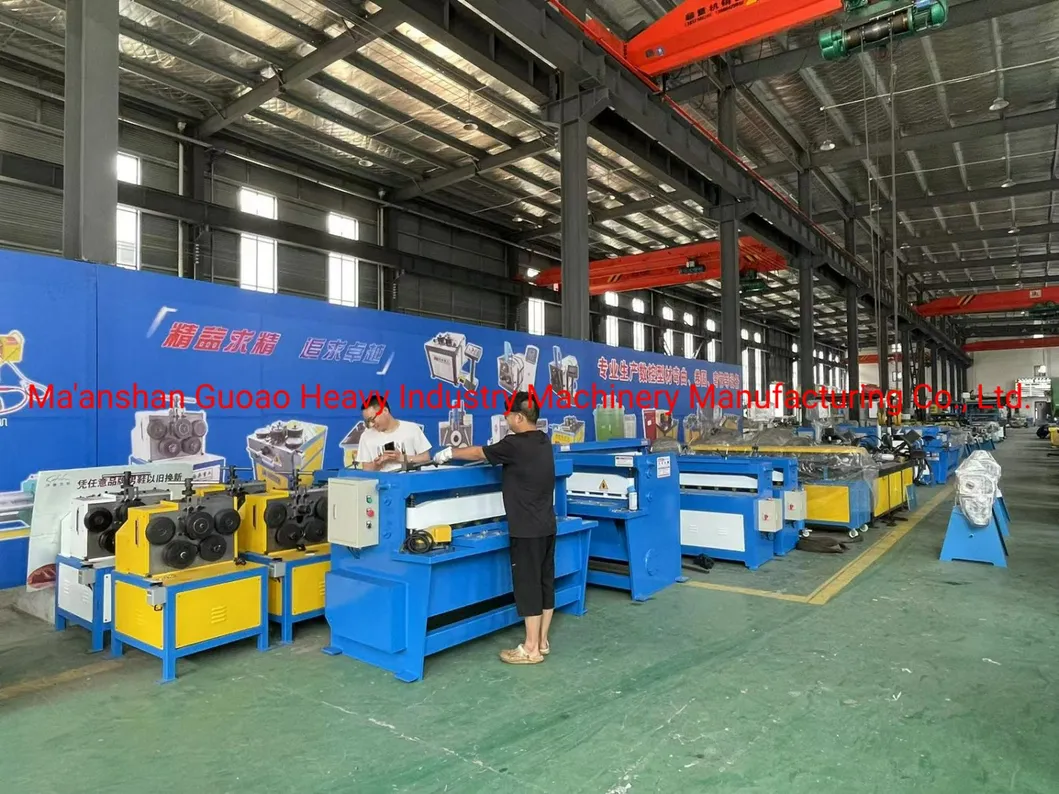

Production Detail 2
Packing & Loading

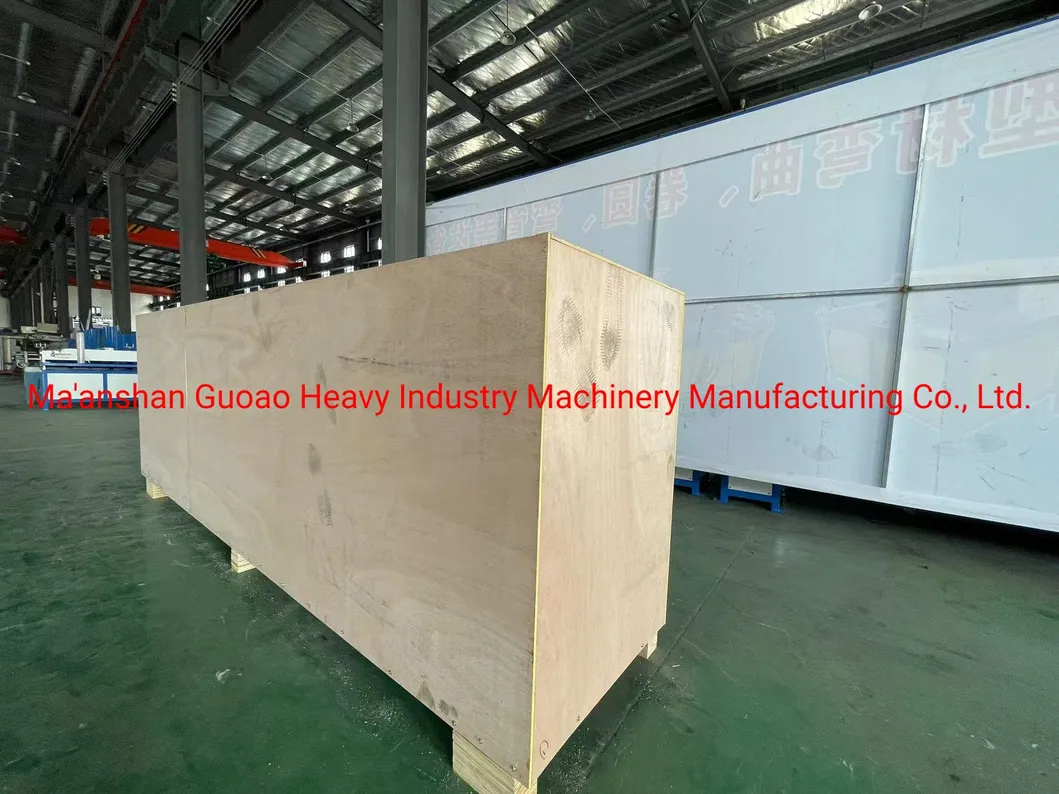

Packing Process 1

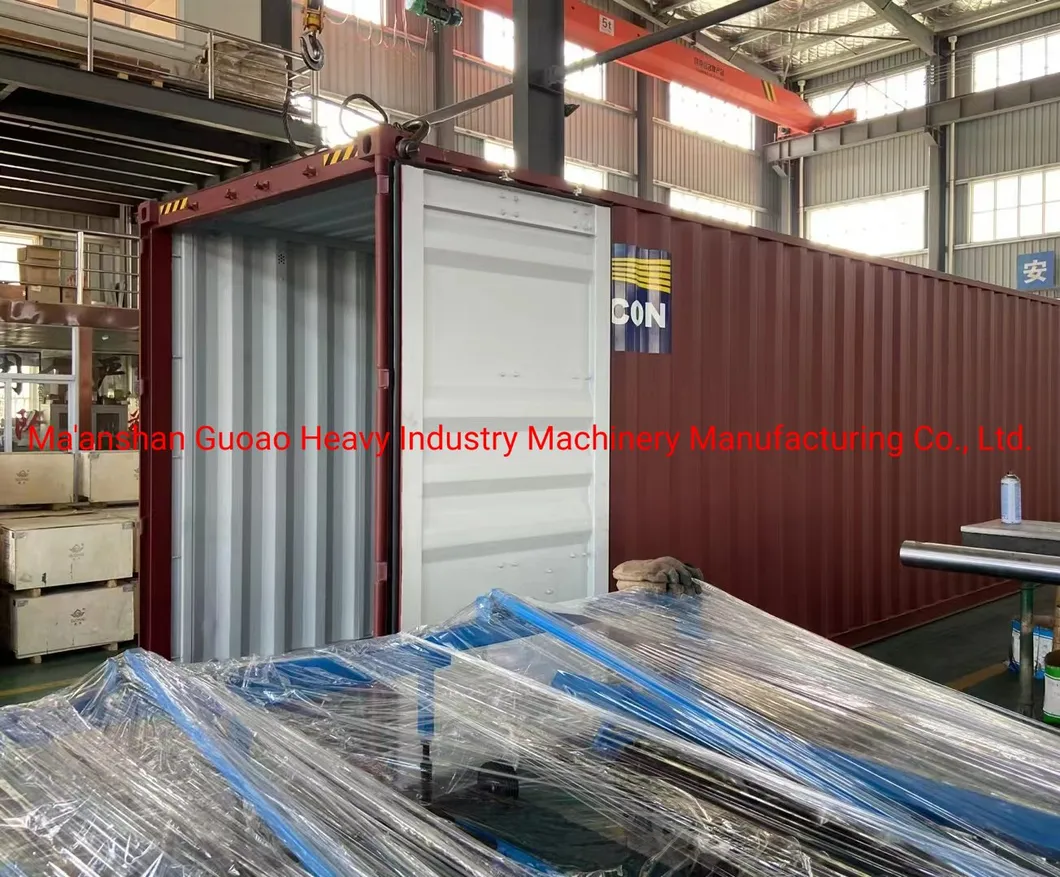

Packing Process 2

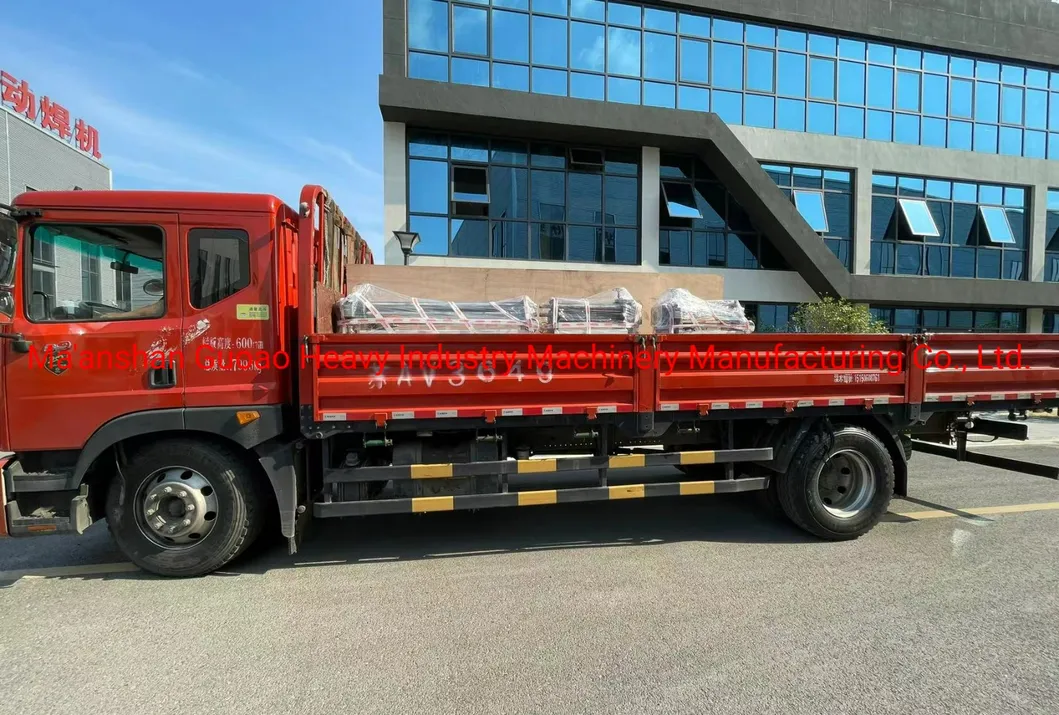

Loading Process
Frequently Asked Questions
What is the maximum sheet thickness this machine can handle?
The Q11 series electric shearing machine is specifically designed to process sheet metal with a thickness of up to 3mm.
How does the motor brake system benefit the operation?
The motor is equipped with its own brake, which ensures that no power is consumed when the machine is not actively shearing, improving energy efficiency and safety.
What kind of drive system does the Q11 model use?
This machine features a robust overall steel-welded, gate-type structure combined with a reliable chain drive system.
What certifications does the product hold?
The machine is manufactured under strict quality standards and holds both CE and ISO 9001:2000 certifications.
How is the machine packaged for international transport?
We use standard export wooden cases to ensure the machine is protected from damage during long-distance transport and loading.
What is the warranty period for this electric shearing machine?
The machine comes with a 1-year warranty covering technical support and quality assurance.
