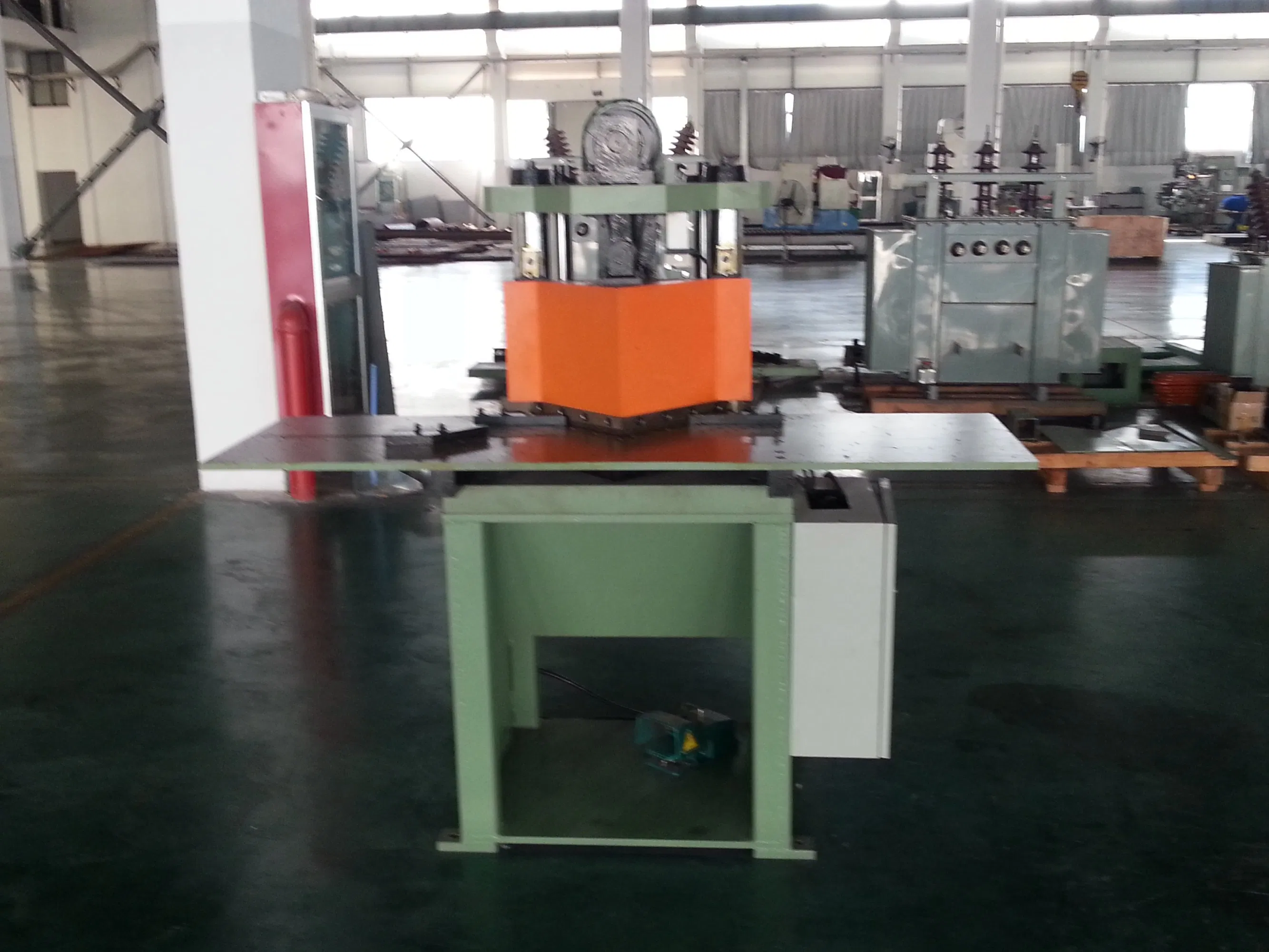

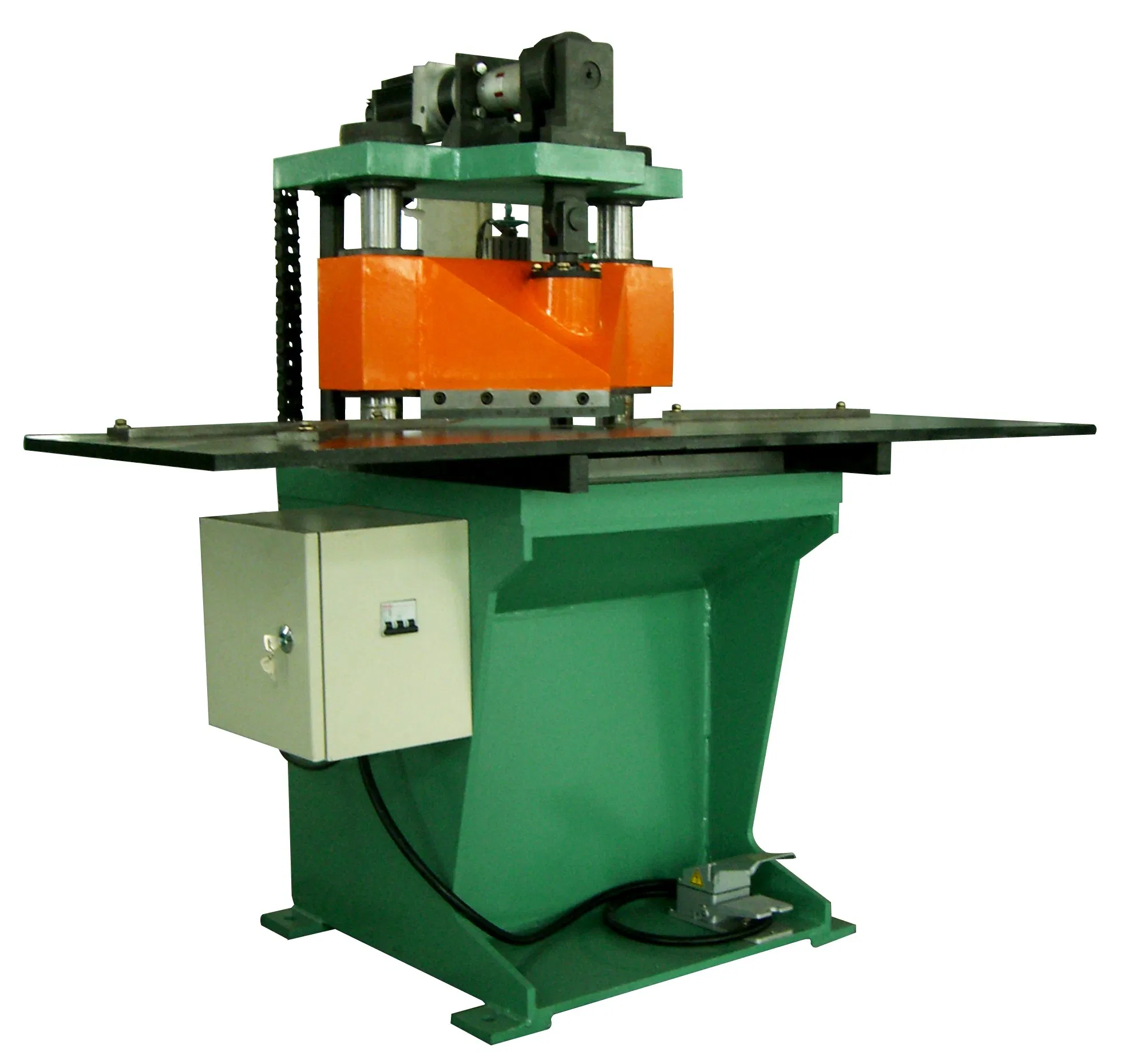

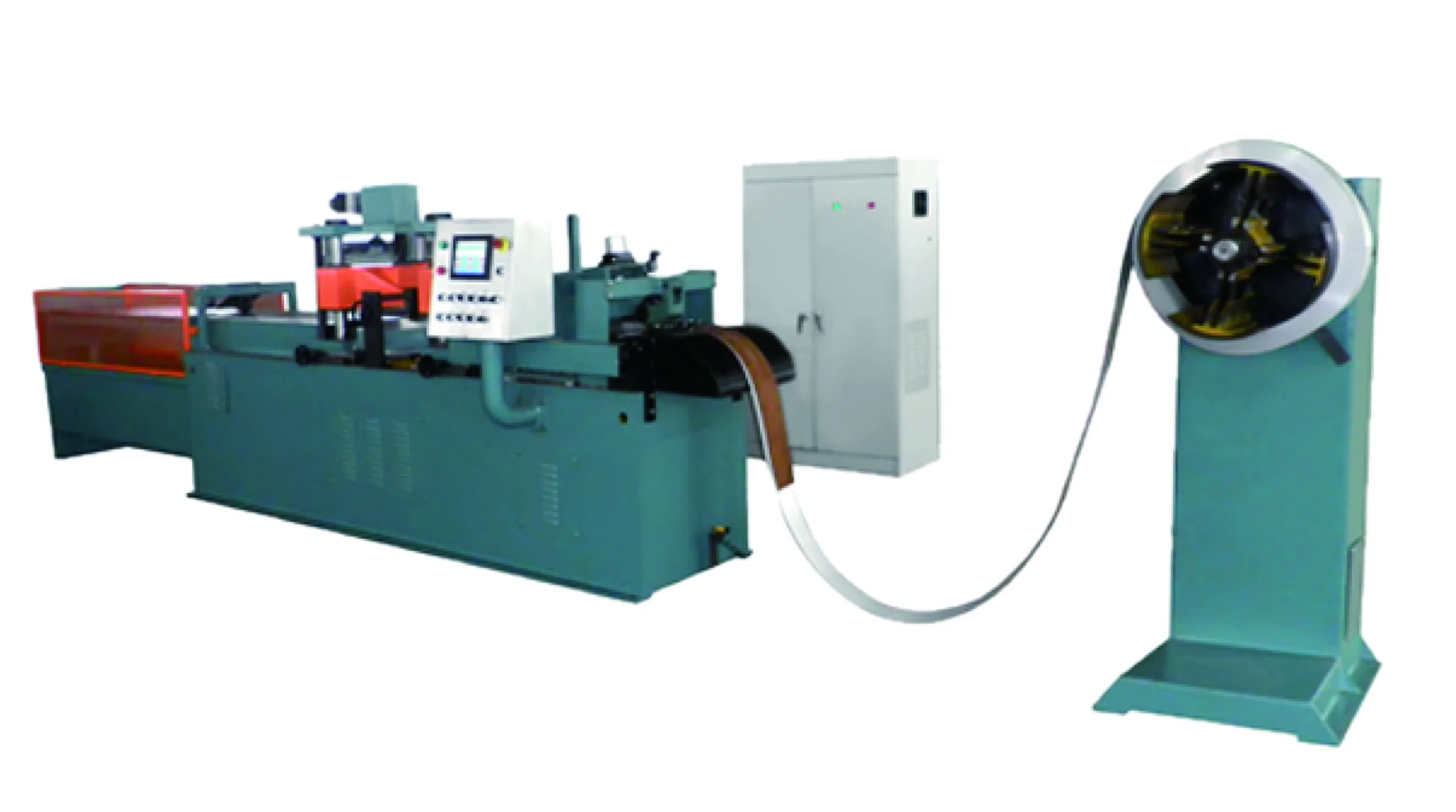

200mm Width Lamination High Precision Transformer Core Lamination V Notching Machine
200mm Width Lamination High Precision Transformer Core Lamination V Notching Machine
200mm Width Lamination High Precision Transformer Core Lamination V Notching Machine
200mm Width Lamination High Precision Transformer Core Lamination V Notching Machine
200mm Width Lamination High Precision Transformer Core Lamination V Notching Machine
1 / 5
200mm Width Lamination High Precision Transformer Core Lamination V Notching Machine
200mm Width Lamination High Precision Transformer Core Lamination V Notching Machine
200mm Width Lamination High Precision Transformer Core Lamination V Notching Machine
200mm Width Lamination High Precision Transformer Core Lamination V Notching Machine
200mm Width Lamination High Precision Transformer Core Lamination V Notching Machine

200mm Width Lamination High Precision Transformer Core Lamination V Notching Machine

Thickness of Silicon Steel: 0.23-0.35mm
Notching Depth of “V”: 100mm,200mm
Cutting Burrs: 0.03mm
Send Inquiry

Product Description

i

Basic Specifications

Notching Controlling Servo Motor
Notching Blade Carbide Blade
Specification V Notching
HS Code 8462312000
Production Capacity 30 Sets/Month
Transport Package Standard
✓

Product Description

V Notching Machine
High precision transformer lamination V notching machine for 400mm wide lamination
VY Series Notching Machine for Transformer "V" Cutting Core Components
Model: VY-100   Servo Motor: Siemens
Bearing: NSK, SKF
Silicon Steel Thickness: 0.23~0.35mm
Notching Depth (V): ≤100mm
Cutting Burrs: ≤0.03mm
Controlling: Servo Motor
Blade Material: Carbide Blade
VY Series Advanced Comparison Brand Standards
Model: VY-200 VY-300 Servo Motor: Siemens

Bearing: NSK or SKF
Silicon Steel Thickness: 0.23~0.35mm 0.23~0.35mm
Notching Depth (V): ≤200mm ≤300mm
Cutting Burrs: ≤0.03mm ≤0.03mm
Controlling: Servo Motor Servo Motor
Blade Material: Carbide Blade Carbide Blade

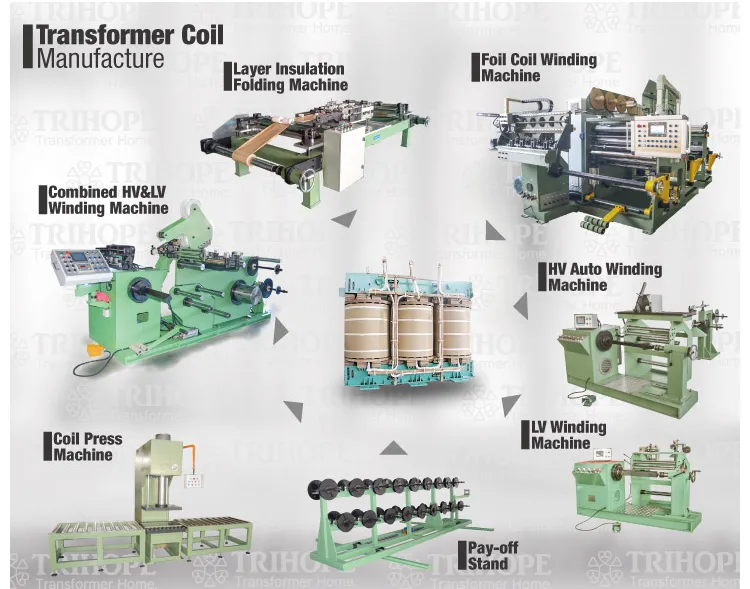

Details 1
Details 2
Details 3
Details 4
Details 5
Details 6
Details 7
?

Frequently Asked Questions

Q1: What is the maximum thickness of silicon steel this machine can process? The machine is optimized for high-precision processing of silicon steel with a thickness ranging from 0.23mm to 0.35mm.
Q2: How is the cutting precision and burr level controlled? By utilizing Siemens servo motor control and high-quality carbide blades, the cutting burrs are strictly maintained at ≤0.03mm.
Q3: What are the main brands used for core components? We use world-class components including Siemens Servo Motors and NSK or SKF bearings to ensure long-term stability and accuracy.
Q4: What is the maximum depth of the "V" notching? Depending on the model (VY-100, VY-200, or VY-300), the maximum notching depth ranges from 100mm up to 300mm.
Q5: What is the monthly production capacity for these machines? Our current production facility has a stable output capacity of approximately 30 sets per month.
Q6: What type of control system does the V notching machine use? The entire notching process is controlled by a high-precision Servo Motor system for consistent performance.
