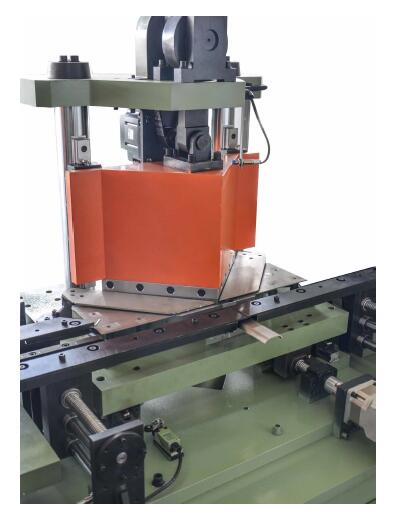

Step-Lap Silicon Steel Cut to Length Line Transformer Lamination Core CNC Automatic Cutting Machine

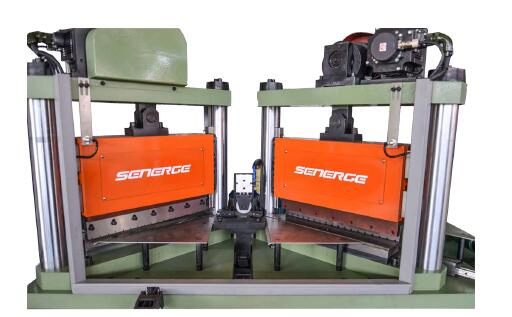

Step-Lap Silicon Steel Cut to Length Line Transformer Lamination Core CNC Automatic Cutting Machine

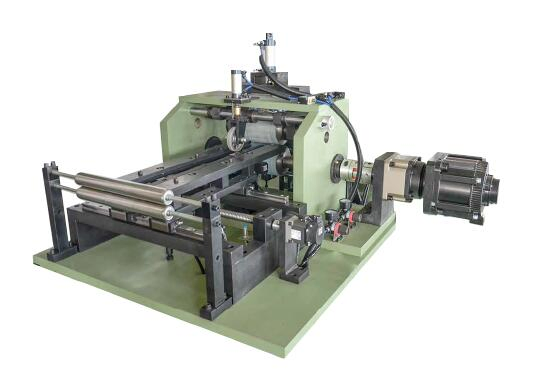

Step-Lap Silicon Steel Cut to Length Line Transformer Lamination Core CNC Automatic Cutting Machine
Step-Lap Silicon Steel Cut to Length Line Transformer Lamination Core CNC Automatic Cutting Machine
Step-Lap Silicon Steel Cut to Length Line Transformer Lamination Core CNC Automatic Cutting Machine
1 / 5
Step-Lap Silicon Steel Cut to Length Line Transformer Lamination Core CNC Automatic Cutting Machine
Step-Lap Silicon Steel Cut to Length Line Transformer Lamination Core CNC Automatic Cutting Machine
Step-Lap Silicon Steel Cut to Length Line Transformer Lamination Core CNC Automatic Cutting Machine
Step-Lap Silicon Steel Cut to Length Line Transformer Lamination Core CNC Automatic Cutting Machine
Step-Lap Silicon Steel Cut to Length Line Transformer Lamination Core CNC Automatic Cutting Machine

Step-Lap Silicon Steel Cut to Length Line Transformer Lamination Core CNC Automatic Cutting Machine

Function: Automatic
Demoulding: Automatic
Condition: New
Send Inquiry

Product Description

Basic Specifications

Model NO.
HJ-200/1200A
Certification
ISO
Warranty
12 Months
Automatic Grade
Automatic
Installation
Vertical
Driven Type
Servo Motor
Mould Life
>1,000,000 Shots
Core Steel Thickness
0.23—0.35 mm
Core Steel Width
40-200 mm
Length of Cut
350-1200 mm
Cutting Tolerance
0.10mm (L≤1000)
Maximum Burr
0.02mm
Feeding Speed
5-200m/Min
Cutting Speed
Max 52 Pieces/Min
Rated Power
10 Kw
Load Capacity
800kg
Production Capacity
30 Sets/Month
Origin
China

Product Description

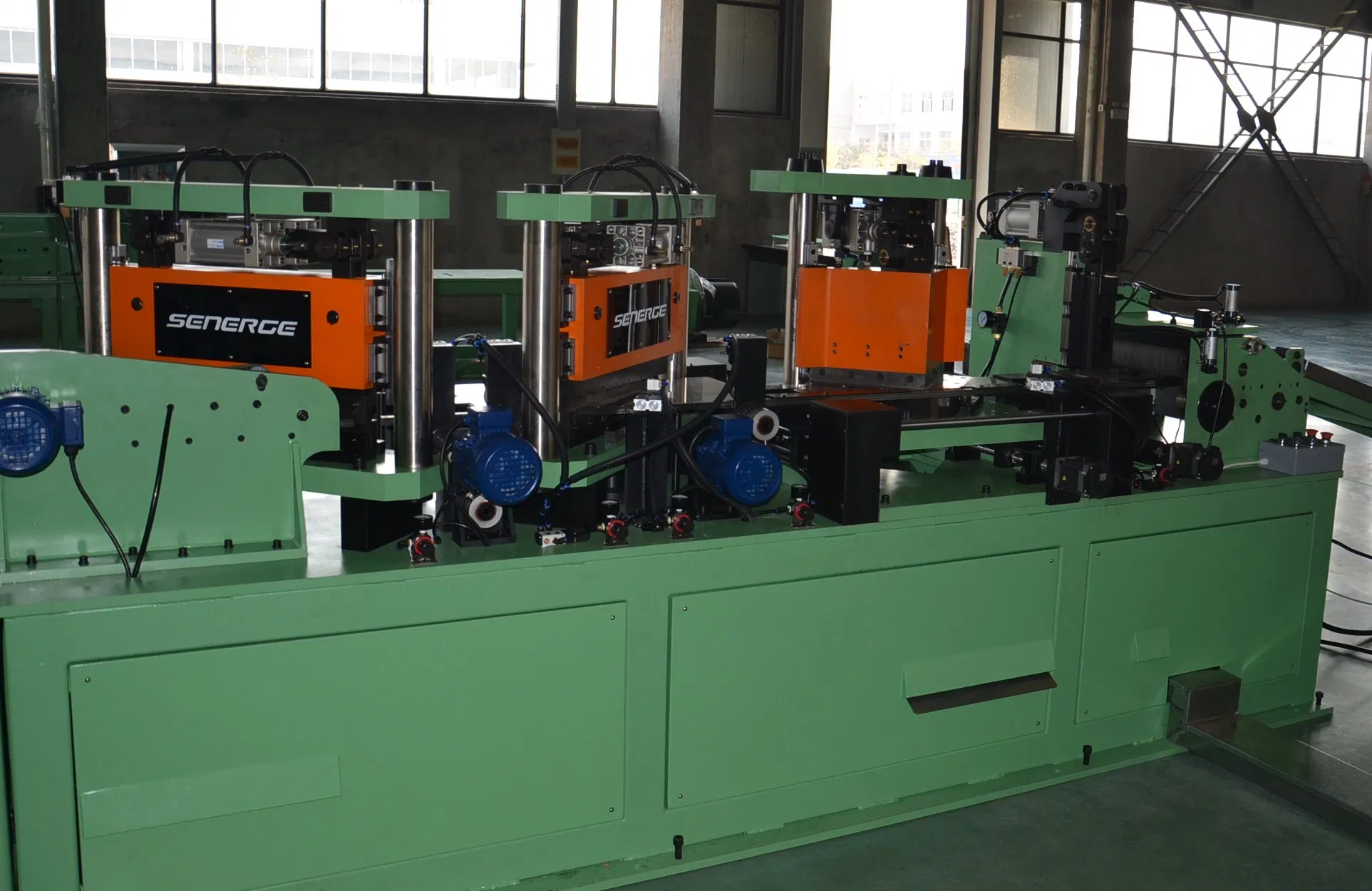

Step-Lap Silicon Steel Cut to Length Line

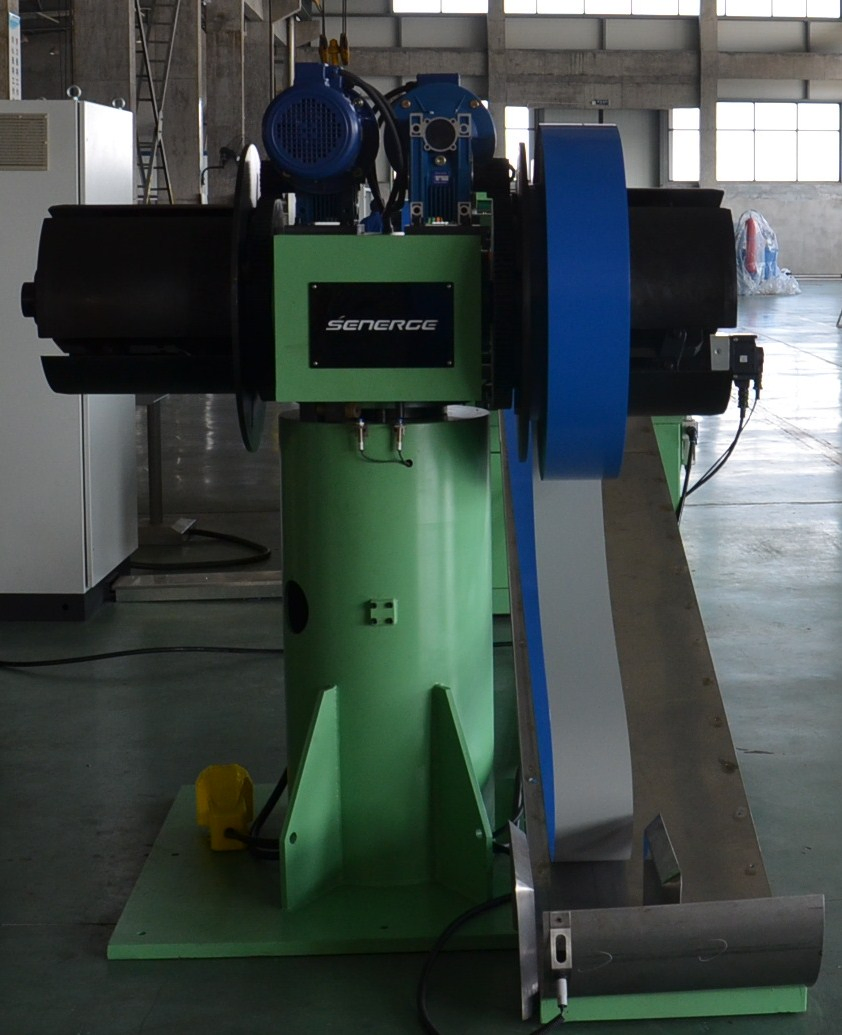

Single Mandrel Working Parameters

  • Maximum load capacity: 800Kg
  • Coil size: Inside diameter Ф500mm / Outside diameter ≤ Ф1000mm
  • Width: 40-200mm
  • Decoiler line speed: 0- 200 M / min stepless Speed Regulation
  • Mandrel diameter variation: Ф450 - Ф520mm

Main Technical Parameters

Processing Range:

  • Core steel thickness: 0.23-0.35 mm
  • Core steel width: 40-200 mm
  • Length of cut: 350-1200 mm

Processing Tolerance:

  • Cutting length: ± 0.10mm (L ≤ 1000) / ± 0.15mm (L ≥ 1000)
  • Angle tolerance: ± 0.025°
  • Maximum burr: ≤ 0.02mm

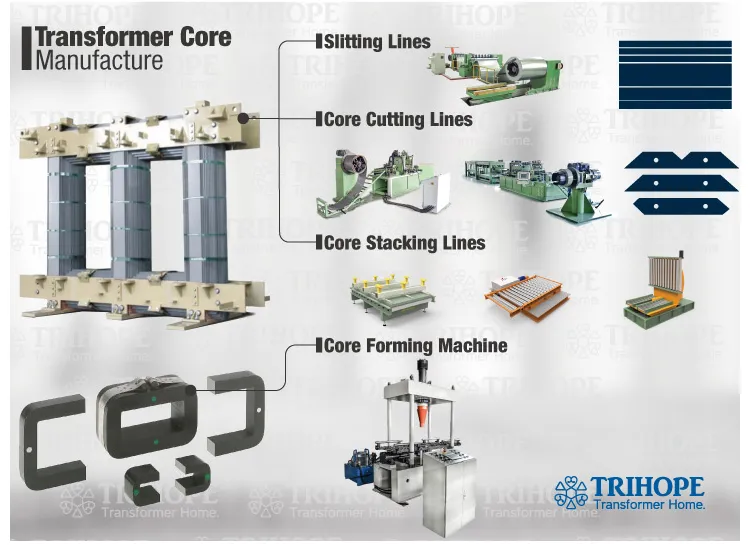

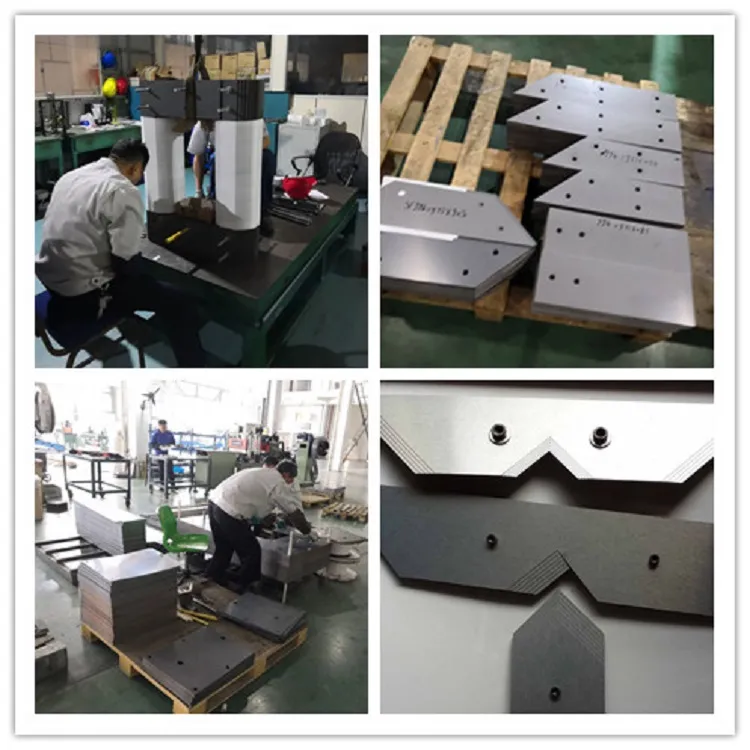

Core Type Processing Display

Core Type
Core Type
Core Type
Core Type
Core Type
Core Type
Core Type
Core Type
Core Type

Frequently Asked Questions

1. What is the maximum processing speed of this cutting machine?
The machine can reach a maximum cutting speed of 52 pieces per minute, with a feeding line speed ranging from 5 to 200 meters per minute.
2. What thickness of silicon steel can be processed?
This equipment is designed to process silicon steel with a thickness range between 0.23 mm and 0.35 mm.
3. What is the precision and tolerance of the cutting length?
For lengths under 1000mm, the tolerance is ± 0.10mm. For lengths over 1000mm, the tolerance is ± 0.15mm. The angle tolerance is maintained at ± 0.025°.
4. What is the maximum weight capacity for the decoiler?
The single mandrel has a maximum load capacity of 800kg, supporting coil widths from 40mm to 200mm.
5. What kind of drive system does the machine use?
The machine utilizes a high-precision Servo Motor drive system to ensure accurate feeding and cutting.
6. Is the machine fully automatic?
Yes, it is an automatic grade CNC cutting machine designed for high-efficiency transformer lamination core production.
