🟦 Basic Information
Model NO.JN-3002S
CustomizedCustomized
LayoutHorizontal
Cutting MaterialCRGO CRNGO Electrical Silicon Steel
Automatic GradeAutomatic
Power SourceElectric
Cutting ModeMotorized Blade Cut
Strip Width Range30-300mm
Strip ThicknessMax. 0.6mm
Feeding MethodDelta Servo Motor
Feeding SpeedMax. 100m/Min
Cutting Speed100-150 Cuts Per Minute
Length Precision+/-0.02mm
Burr HeightLess Than 0.02mm
Blade MaterialCarbide Alloy
Blade Life1,200,000 Times Before Grinding
Control SystemPLC Control + HMI
PackageWooden Case
Dimensions1600 x 800 x 1200mm
OriginChina
📦 Packaging & Delivery
Package Size160.00cm * 80.00cm * 120.00cm
Package Gross Weight2000.000kg
⚙️ Product Description

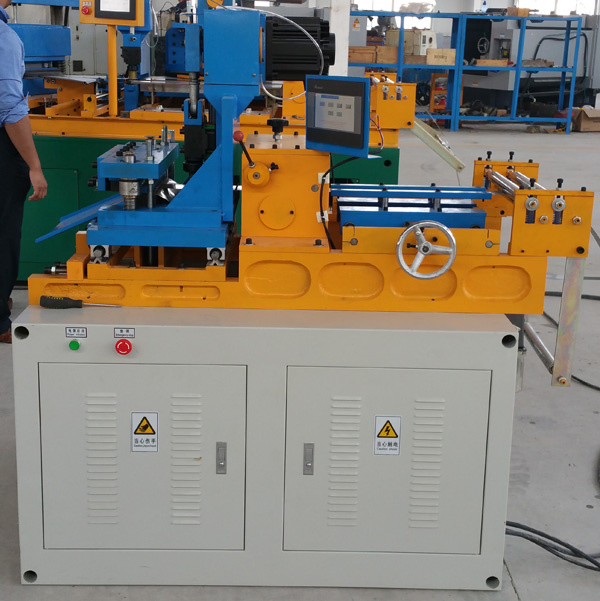

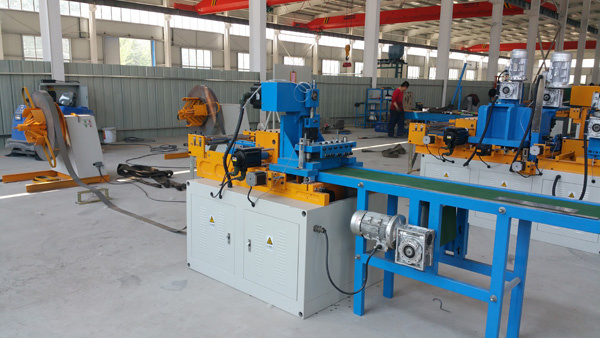

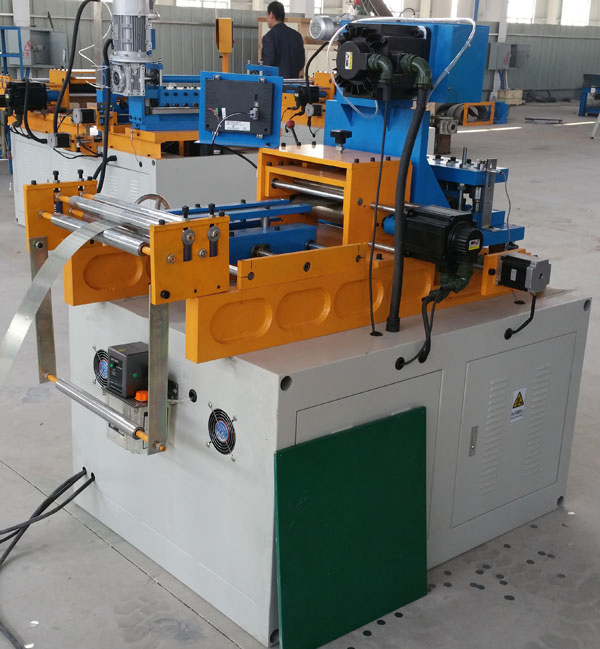

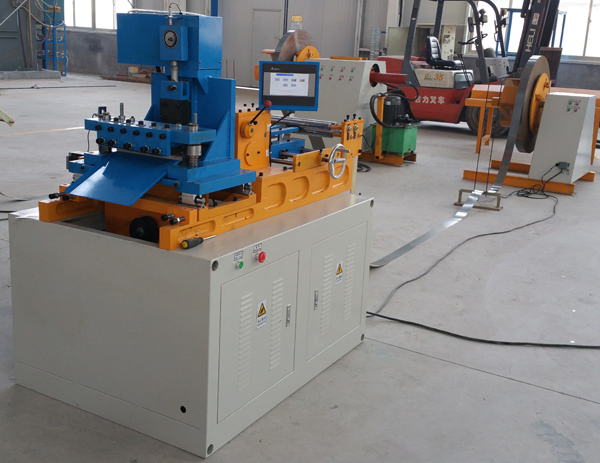

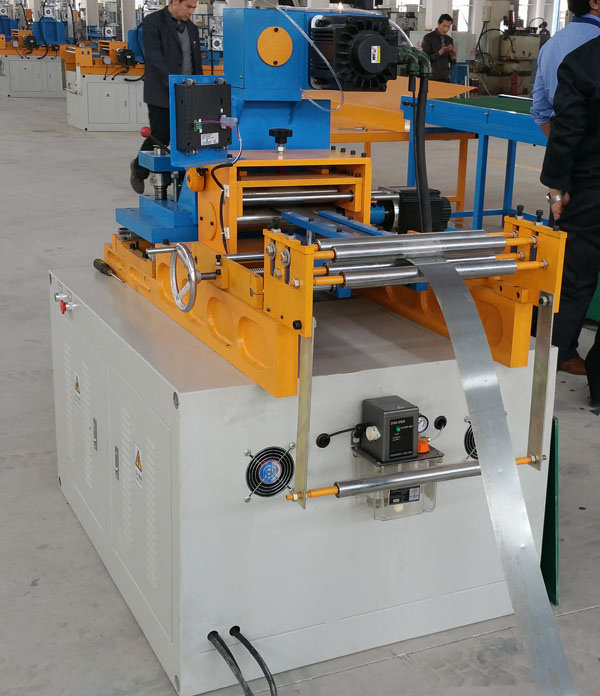

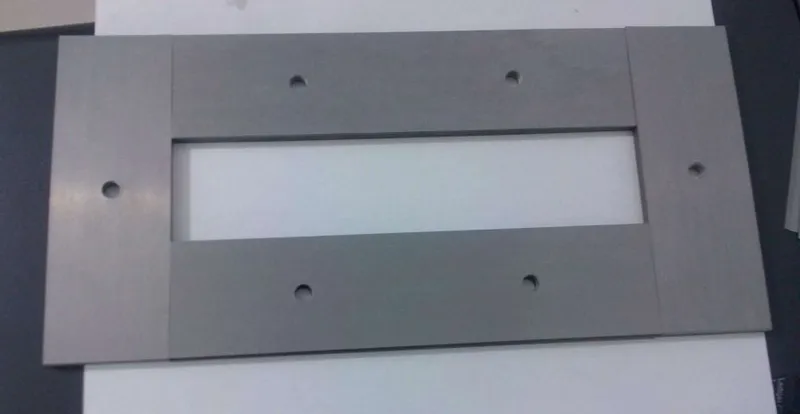

Electrical Silicon Steel Reactor Core Cutting Machine
I Description

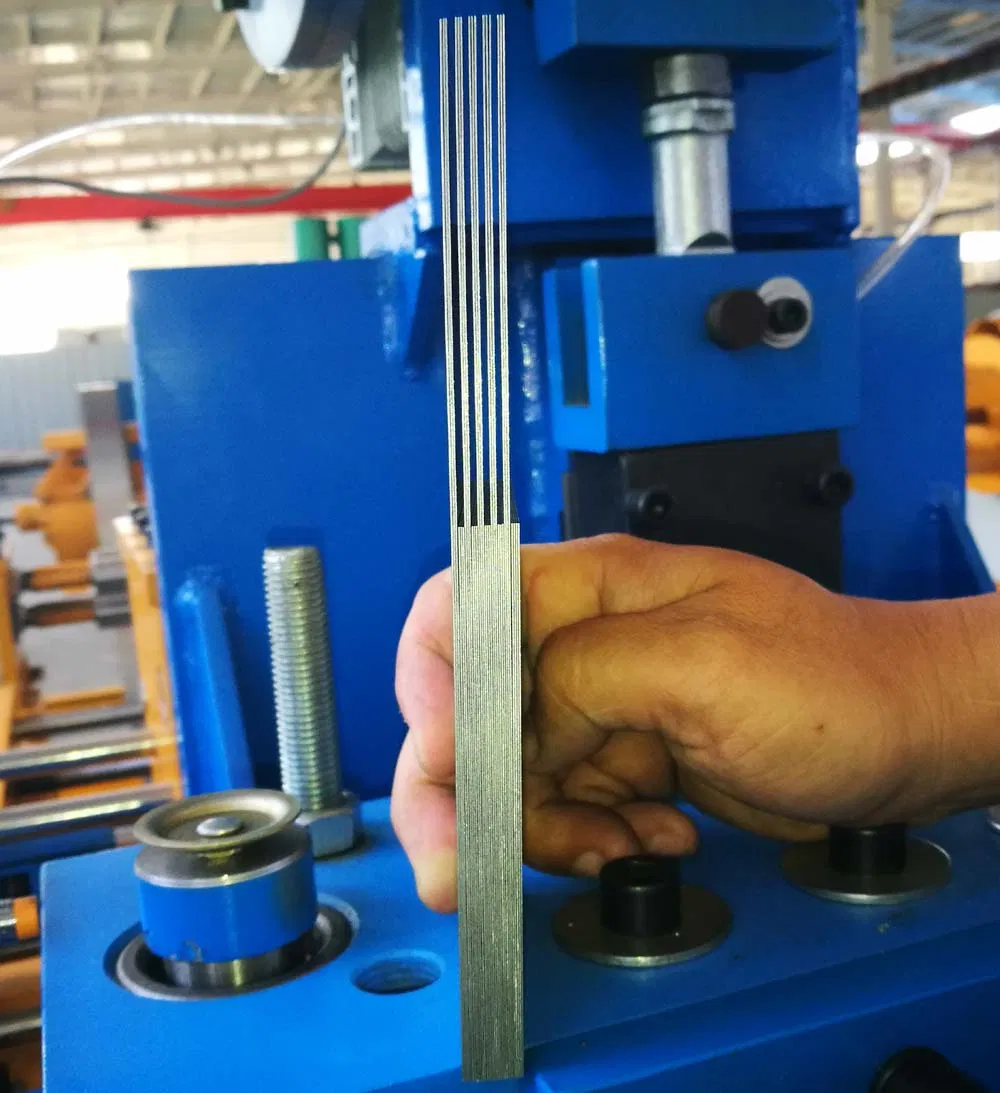

This machine is specially designed for cutting silicon steel coils into silicon strips for transformer cores, welding machine cores, and reactor cores. It is optimized for cutting 0.1mm thick CRGO electrical silicon steels.
II Detailed Component Information
- Inverter-controlled decoiler: 1.5kW motor, 1000kg max coil weight, 500mm max width.
- High speed feeding machine: Delta servo motor 4.5kW, Precision +/-0.02mm, Max. 100m/min.
- Cutting device: 100-150 times per minute, Carbide alloy blade (2M+ cuts life).
- Control system: Delta PLC & 5.7" Touch Screen for length and speed presets.

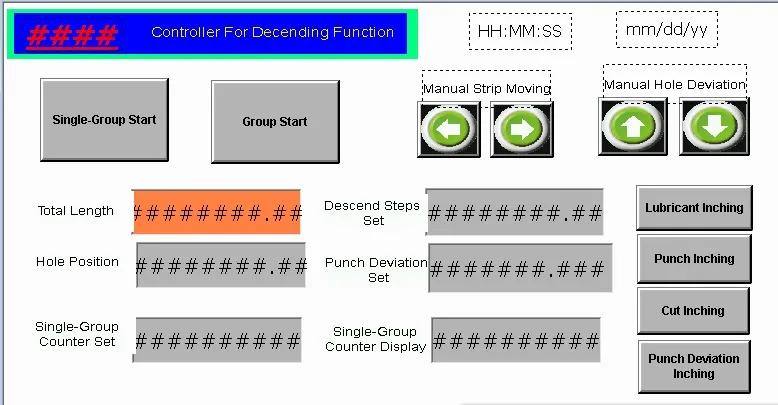

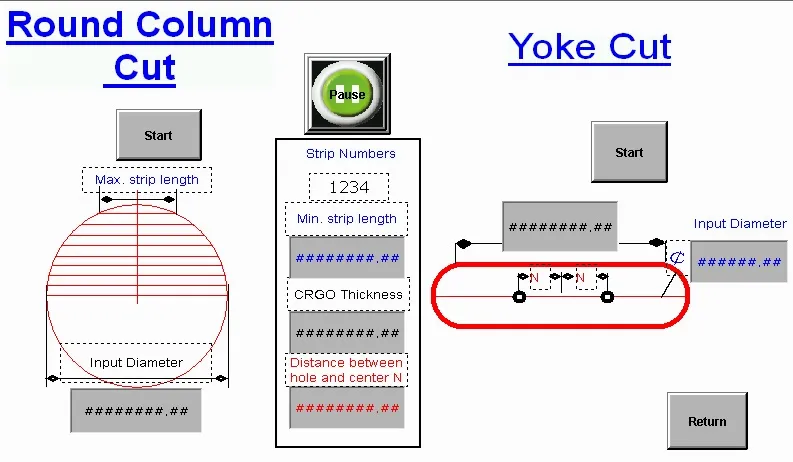

- Special Functions: Round column cutting and descending cutting for gap wound cores.
📊 Main Technical Data
| Item |
Data |
| Suitable silicon steel strip width | 30-300mm |
| Max. silicon steel thickness | 0.1-0.6mm |
| Cut to length | 1-999999mm |
| Cut to length tolerance | +/-0.05mm |
| Burr height | Less than 0.02mm |
| Servo feeding speed | Max. 100m/min |
| Cutting speed | 100-150 cuts per minute |
| Dimension (Main Machine) | About 800 x 1600 x 1200mm |
| Weight | About 900kg |

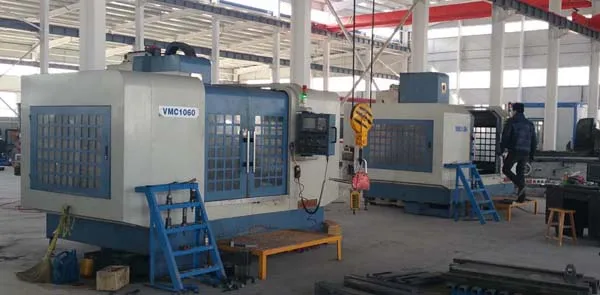

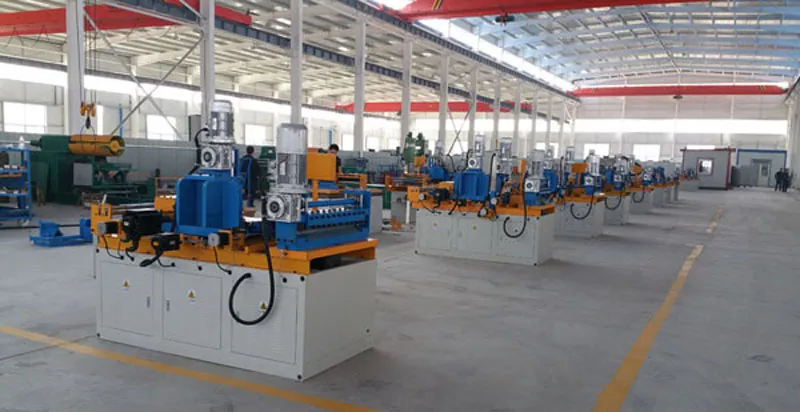

🏭 Workshop & Facilities
Frequently Asked Questions
Q1: What materials can this cutting machine handle?
A: The machine is specifically designed for CRGO and CRNGO Electrical Silicon Steel, with a focus on high-precision cutting for 0.1mm to 0.6mm thickness.
Q2: What is the cutting precision and burr height?
A: The machine offers high precision with a cut-to-length tolerance of +/-0.02mm and ensures a burr height of less than 0.02mm.
Q3: How long does the cutting blade last?
A: The blade is made of high-quality carbide alloy, providing a service life of over 1,200,000 to 2,000,000 cuts before requiring grinding.
Q4: What control system is used for operation?
A: It utilizes a Delta PLC control system combined with a 5.7-inch HMI touch screen, allowing easy pre-setting of quantity, length, and speed.
Q5: Can this machine produce special core shapes?
A: Yes, it includes special functions for round column cutting and descending cutting suitable for gap wound core production.
Q6: What is the maximum production speed?
A: The feeding speed reaches up to 100m/min, and the cutting speed ranges from 100 to 150 cuts per minute depending on the settings.
