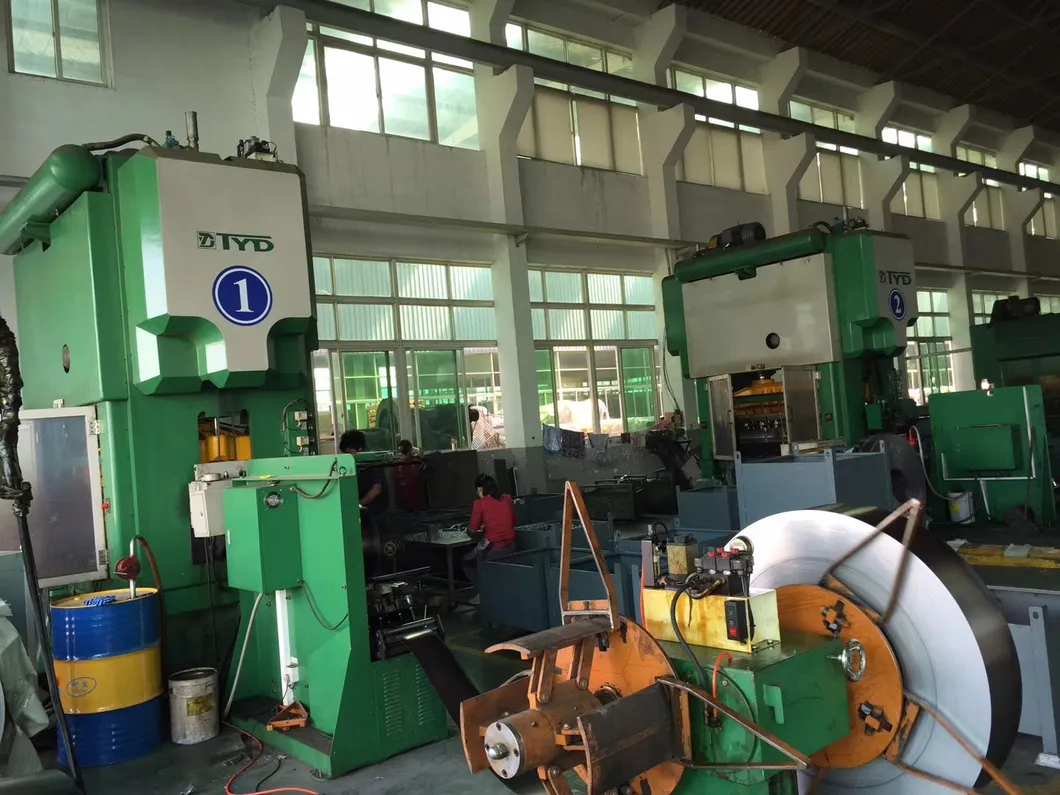

Our high-speed lamination press is engineered for precision stamping of iron cores used in new energy vehicle motors, compressor motors, and high-efficiency industrial motors. We provide complete production lines, including high-speed gear feeders, NC servo motor feeders, straighteners, and uncoilers for stator and rotor manufacturing.
Perfect for stamping stator and rotors of ceiling fans, air conditioners, servo motors, refrigerator compressors, and automobile starters.
Capacity from 60 to 500 tons with low inertia, allowing for faster braking and high-speed precision stamping.
| Parameter | Unit | Specification |
|---|---|---|
| Tonnage | ton | 200 |
| Stroke | mm | 30 |
| Number of strokes per minute | s.p.m | 150-600 |
| Lower table size | mm | 1700x950 |
| Blanking hole | mm | 1300x250 |
| Sliding block area | mm | 1700x700 |
| Die height adjustment stroke | mm | 370-420 |
| Main motor | kw | 45 |
| Feeding line height | mm | 200±50 |

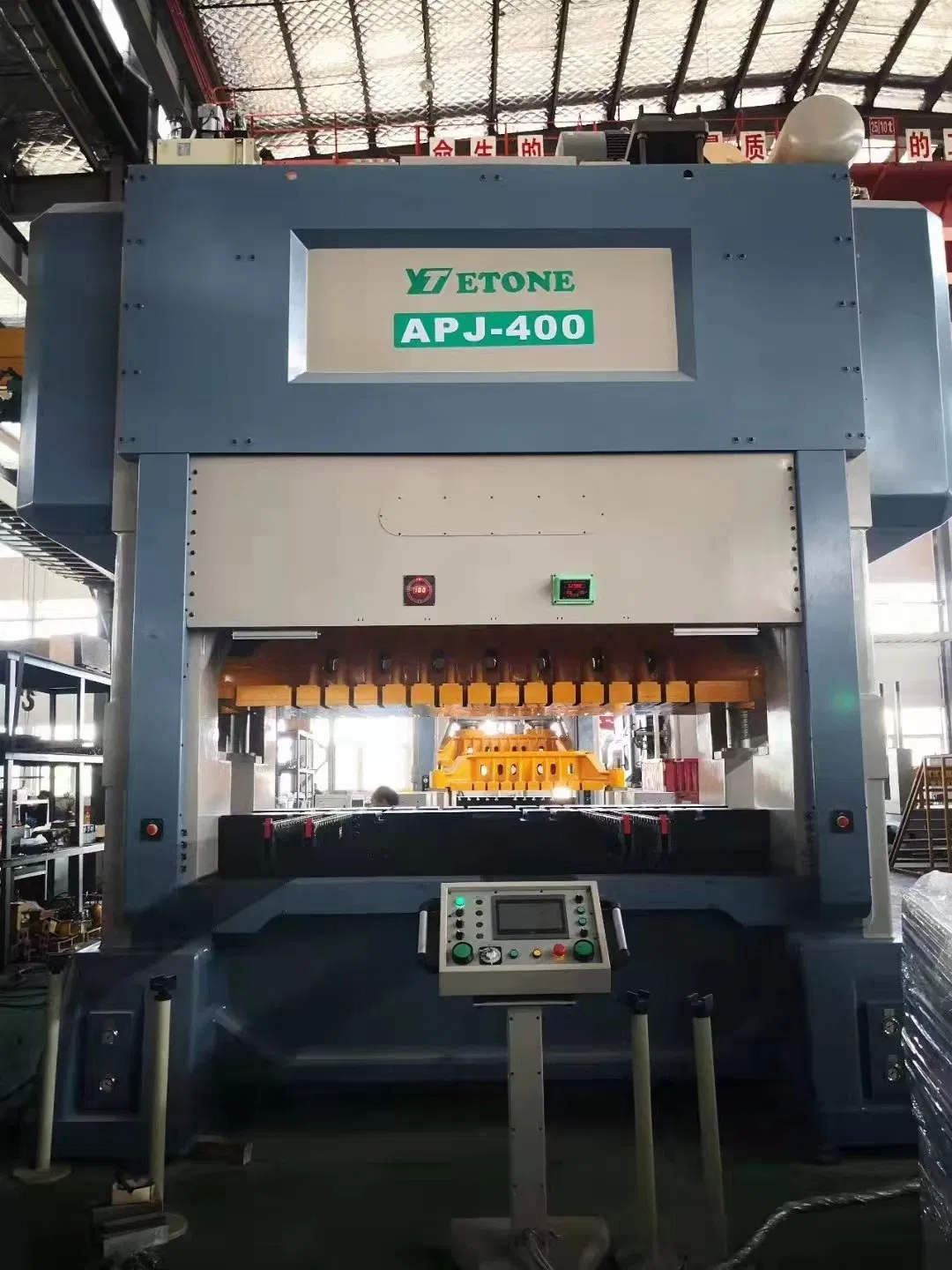

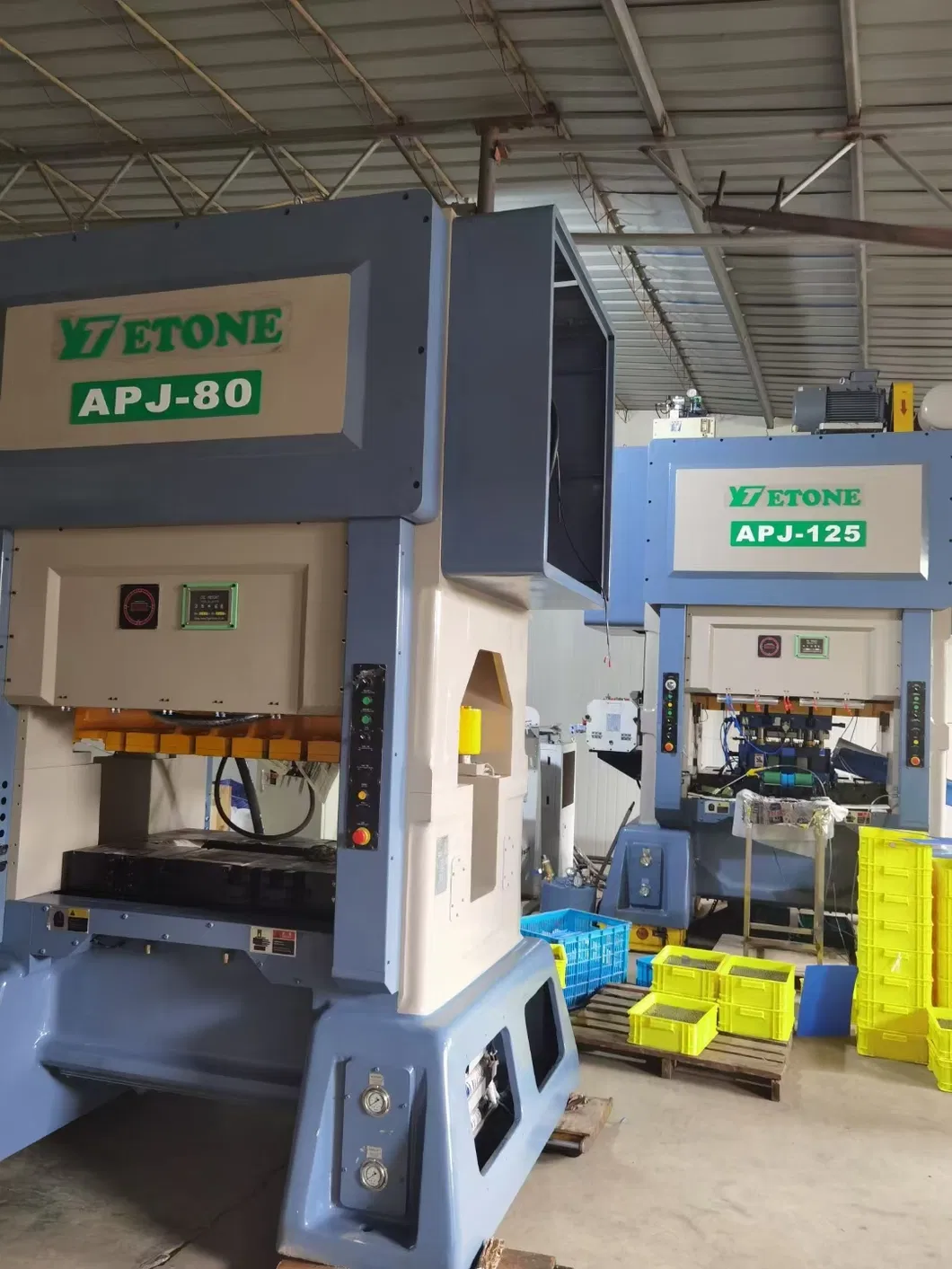

The APJ series is designed for precision stamping of self-riveting iron cores used in new energy vehicle motors, high-efficiency industrial motors, and compressor motors for household appliances.
By reducing passive inertia and optimizing the drive mechanism, the machine reduces unloaded energy consumption by approximately 30% compared to traditional models.
The machine uses a high-performance PLC control system, which can memorize data for up to 30 sets of mold processing materials for quick setup.
Our high-speed punching machines are certified with GS, CE, RoHS, and ISO 9001 standards, ensuring international safety and quality compliance.

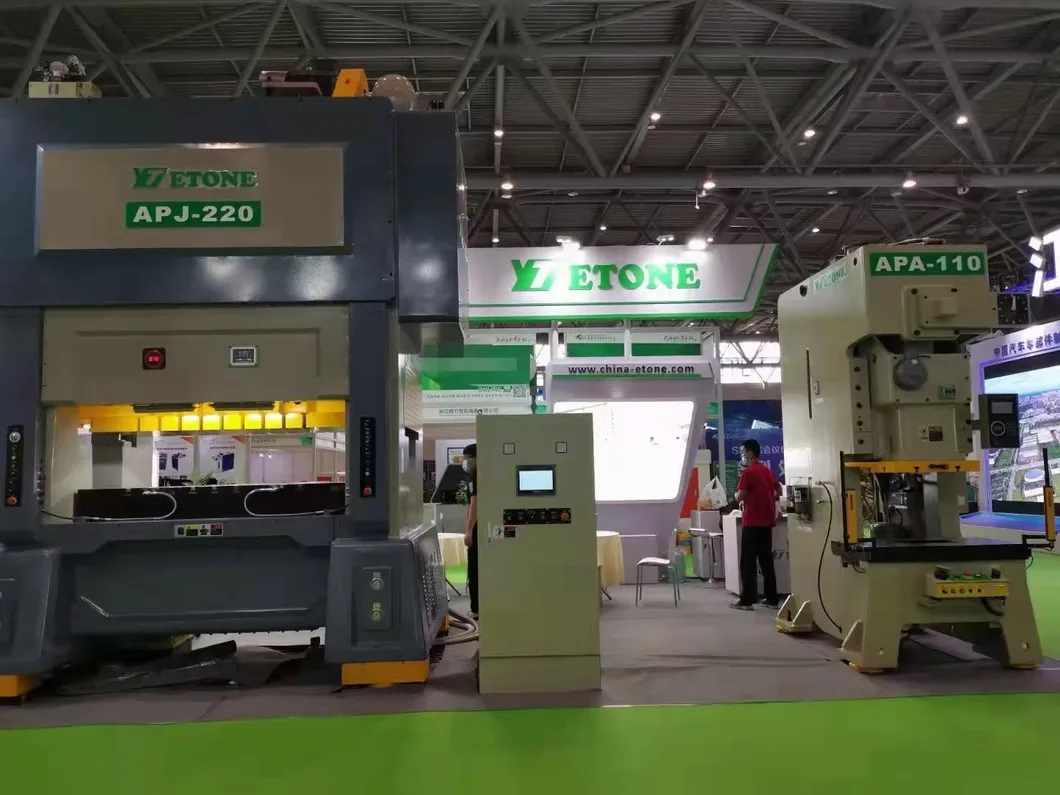

Yes, it is designed to integrate seamlessly with high-speed gear feeders or NC servo motor feeders to create a fully automated transfer production line.

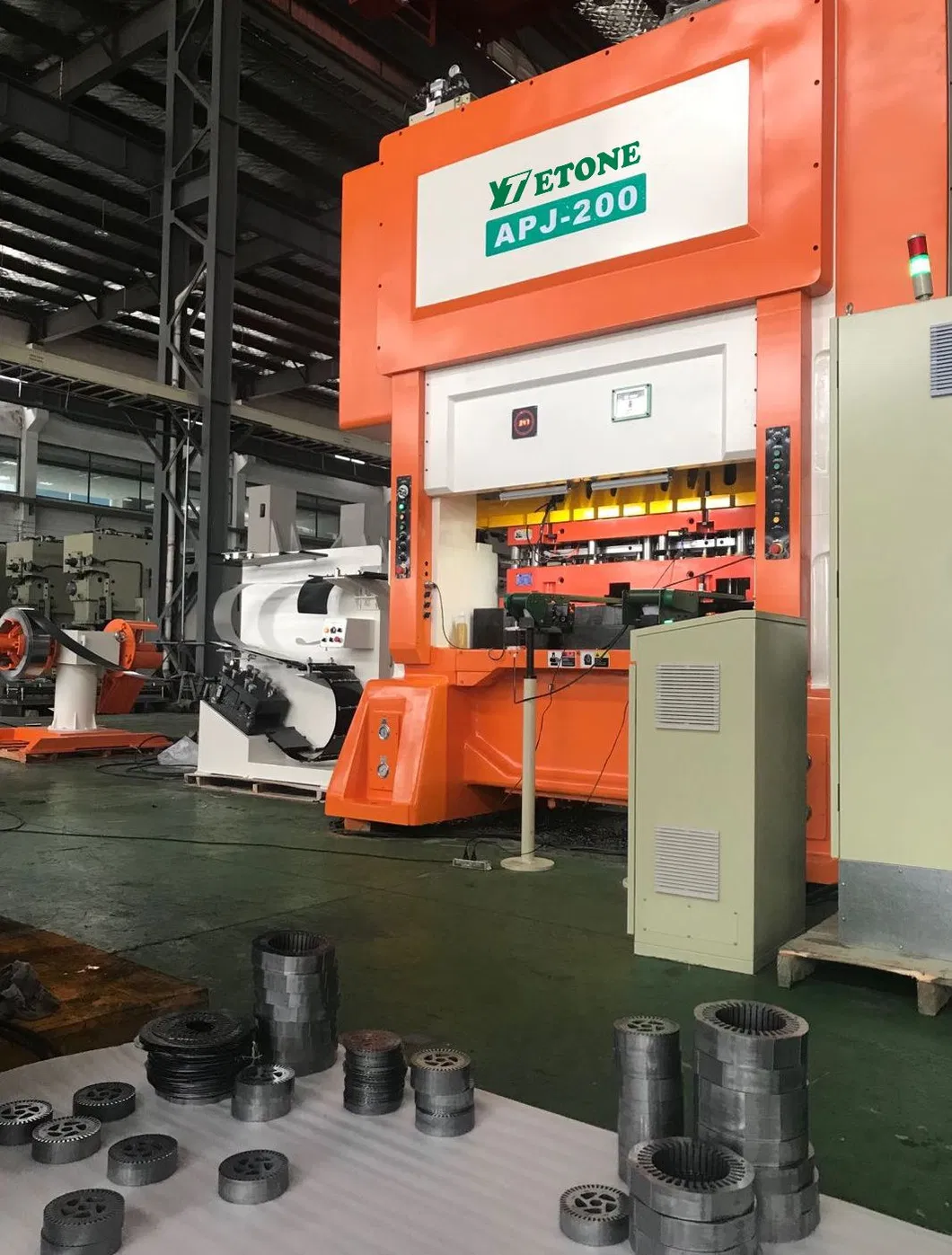

The APJ-200 features a stroke of 30mm and can operate at speeds ranging from 150 to 600 strokes per minute (s.p.m).
